User Manual

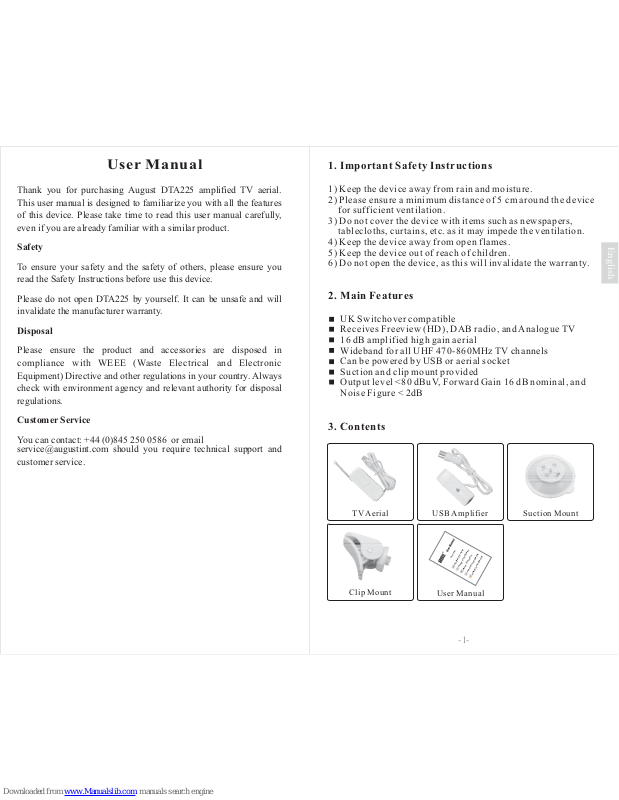

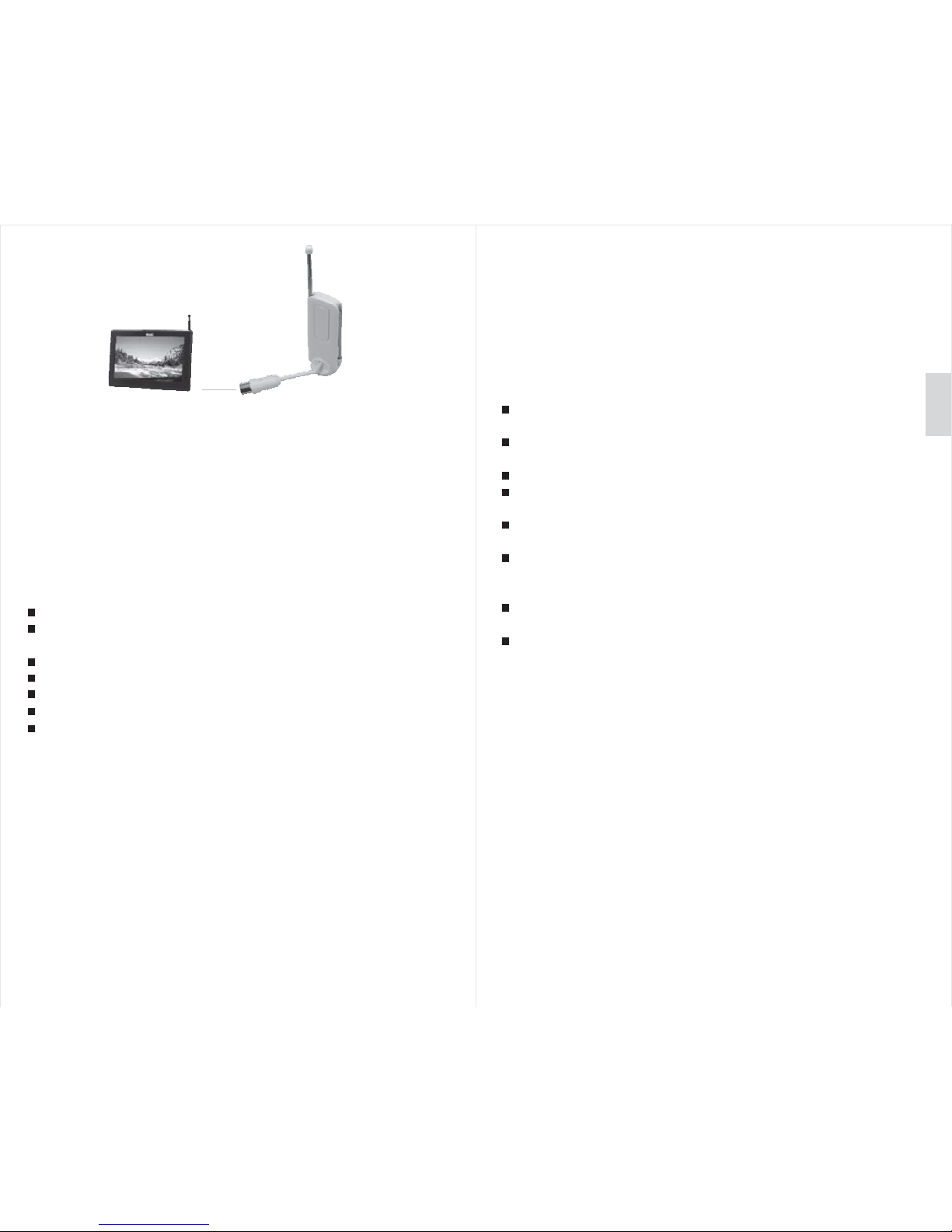

Thank you for purchasing August DTA225 amplified TV aerial.
This user manual is designed to familiarize you with all the features
of this device. Please take time to read this user manual carefully,
even if you are already familiar with a similar product.
To ensure your safety and the safety of others, please ensure you
read the Safety Instructions before use this device.
Please do not open DTA225 by yourself. It can be unsafe and will
invalidate the manufacturer warranty.
Please ensure the product and accessories are disposed in
compliance with WEEE (Waste Electrical and Electronic
Equipment) Directive and other regulations in your country. Always
check with environment agency and relevant authority for disposal
regulations.
You can contact: +44 (0)845 250 0586 or email
[email protected] should you require technical support and
customer service.
Safety
Disposal
Customer Service
English
1. Important Safety Instructions
2. Main Features
1) Keep the device away from rain and moisture.
2) Please ensure a minimum distance of 5 cm around the device
for sufficient ventilation.
3) Do not cover the device with items such as newspapers,
tablecloths, curtains, etc. as it may impede the ventilation.
4) Keep the device away from open flames.
5) Keep the device out of reach of children.
6) Do not open the device, as this will invalidate the warranty.
UK Switchover compatible
Receives Freeview (HD), DAB radio, and Analogue TV
16 dB amplified high gain aerial
Wideband for all UHF 470-860MHz TV channels
Can be powered by USB or aerial socket
Suction and clip mount provided
Output level <80 dBuV, Forward Gain 16 dB nominal, and
Noise Figure < 2dB
3. Contents
TV Aerial USB Amplifier
Suction Mount
Clip Mount
User Manual
-1-
AmplifiedTV Aerial
AntenneTV Amplifiée
AktiveTV Antenne
AntennaTV amplificata
AntenaTV Amplificada
DTA225B/W
Page 2
-2-
English
-3-
4. Part Names and Functions
To TV or USBAmplifier
Power Indicator
TV Aerial
USB Amplifier
To TV
USB port
Power Indicator
Aerial In
5. Operations
5.1 Use of TV aerial with USB amplifier
To T V
To powered USB port
To USB power adaptor
Step 1: Connect the TV aerial to the USB amplifier.
Step 2: Connect the coaxial cable from the USB amplifier to
your Freeview Box, TV or receiver.
Step 3: Plug the USB amplifier into a powered USB port, (such
as the USB port on the August DA900C or DA100C) or
use a USB mains (i.e.August UMC500) or car adaptor
to connect it to a plug socket or 12-24V cigarette lighter.
Step 4:Attaching the suction or clip mount:
Insert the connectors on the suction or clip mount into the
wider slots on the bottom of the TV aerial, then turn clockwise
to tighten.
Step 5: Mount the aerial close to a window.
Step 6: Turn on your Freeview TV, box or receiver, and adjust
the orientation of the DTA225, to get the best reception.
Note:
Some Freeview TVs (such asAugust DTV700B), boxes and
other receivers are capable of outputting power via coaxial
cable. When connected to one of these devices, the DTA225
does not need to be connected to a USB power supply.
To T V
5.2 Use of TV aerial without USB amplifier
The TV aerial can also be used without the amplifier, although
this will require a strong Freeview signal.
Page 3
-4-
English
-5-
To T V
Step 1: Connect the coaxial cable from the TV aerial to your
Freeview Box, TV or receiver.
Step 2: Mount the aerial close to a window using the suction or
clip mount provided.
Step 3: Turn on your Freeview box, TV or receiver, and adjust
the orientation of the DTA225, to get the best reception.
6. Specifications
UHF: 470-860MHz
Gain: 16±3dB (with amplifier)
2.1dB (without amplifier)
Power Supply Connector: USB/ A type
Voltage: 3-3.7 V
Current Consumption: < 30mA
Dimension: 76x30x10 mm
Net weight: 43g
This product is guaranteed for twelve months from the date of the
original purchase. In the unlikely event of any defect arising due to
faulty materials or workmanship, the unit will be either replaced or
repaired free of charge (where possible) during this period. An
alternative product will be offered in case the product is no longer
available or repairable.
This warranty is subject to the following conditions:
The warranty is only valid within the country where the product is
purchased.
The product must be correctly installed and operated in accordance
to the instructions given in this user manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover the
accessories.
The warranty does not cover the damage caused by misuse,
negligence, accident and natural disaster.
The warranty will be rendered invalid if the product is resold or
has been damaged by inexpert repairs. The manufactures disclaim
any liability for incidental or consequential damages.
Please consult our customer adviser before returning any product;
we are not responsible for any unexpected product returns.
Any faulty product must be kept and returned in the original
packaging with all the accessories and the original copy of the
purchase receipt.
The warranty is in addition to, and does not diminish, your statutory
or legal rights.
Customer Service:
