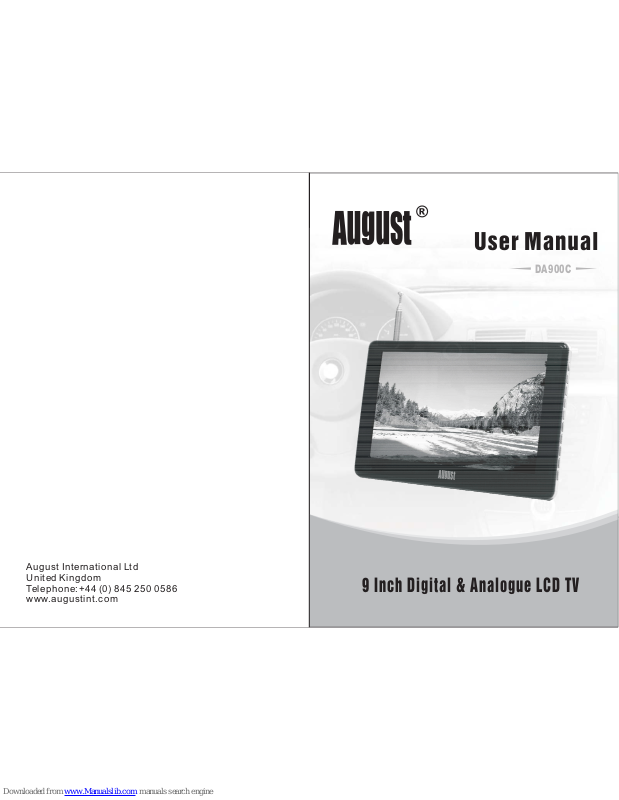

August DA900C User Manual

August International Ltd
United Kingdom
Telephone:[phone]
www.augustint.com

DA900C

9 Inch Digital & Analogue LCD TV

Thank you for buying our August TV. You may already be familiar with using

a similar product but please take time to read these instructions carefully. It is

designed to familiarise you with the product’s many features and to ensure

that you get the very best from your purchase.

To ensure your safety and the safety of others, please ensure you read the

Safety Instructions before you use this product.

Please ensure the product and its accessories are disposed in compliance with

WEEE (Waste Electrical and Electronic Equipment) Directive and other

regulations. Please check with your local authority for disposal regulations.

If you need help, please contact our Customer Service:
Telephone: [phone]
Email: [e-mail]

Safety

Disposal

Customer Service:

User Manual

Quick Start Guide

DA900C

It is suggested that you use a roof top aerial when scanning for TV channels

for the first time, if any signal is detected, the channel information will be

saved on the TV, you may then switch back to the portable antenna supplied

and change your location to find the best place to receive the signal.

Connect the device to the mains power, press POWER on the remote to

turn on the device, or press and hold POWER on the device for 1.5 seconds

to turn it on.

The MODE on the device or remote allows you to switch between: DTV

(Digital Freeview TV & Media Player), ATV (Analogue TV), AV IN,

BRIGHTNESS, CONTRAST, COLOR, SCALE (Aspect Ratio) and

INVERT.

When turning on the device for the first time, “Initial Install” will show,

follow the instructions to select OSD Language and Area, then press

ENTER, it will ask whether to install, select YES, the auto search will then

start. Once the search has finished, press CH+, CH- or EPG to select

channels. Press TV/R to switch between Freeview TV and Radio channels.

If you have done the first time installation before, and would like to search

for Digital Freeview channels again, or if you have moved to a different

region and need to scan channels again, press MODE to switch to Digital

TV & Media Player mode, press MENU, select “Digital TV” by pressing

ENTER, select “Installation”, then select “Auto Search”, press ENTER to

start the search. Once the search has finished, press CH+, CH- or EPG to

select channels. Press TV/R to switch between Freeview TV and Radio

channels.

To search for Analogue TV, press MODE repeatedly until it shows ATV,

press LEFT or RIGHT to switch to the Analogue TV mode. Press MENU, it

shows the ATV SETUP menu, set the TV FORMAT to “PAL I” for UK,

then move to AUTO SEARCH, press ENTER to start the search.

1.

2.

3.

4.

5.

6.

To play video, music, or photos on a SD card or memory stick, press

MODE to switch to Digital TV & Media Player mode, insert the SD card or

memory stick to the card slot or USB port, press MENU to select “Movie”,

“Music”, or “Photo”, press ENTER or PLAY to start playing, press MENU

to stop and exit to the main menu. During the photo playback, press UP for

the mirror effect, press again to back to normal, press DOWN for upside

down effect, press again to back to normal, press RIGHT to rotate

clockwise, press LEFT to rotate anticlockwise, press ENTER for photo

slideshow, photos in the selected folder will show repeatedly.

Please note the included portable antenna may only be used in areas where

signal is very strong. As mentioned on the Freeview website, only some

households might be able to use a set top aerial at present. This only applies

if you live in an area with coverage close to a transmitter, but reception

would still be unreliable and they strongly recommend that you use a roof

top aerial for good reception.

The reception will improve along with the progress of the Digital

Switchover Program. Reception may also be affected by various factors

such as how close you are to transmitters, tall buildings, thick walls,

ceilings and weather etc.

For any further queries, please telephone August International Ltd helpline

or email [e-mail][phone]

7.

8.

9.

1. Safety Instructions

2. Accessories

3. Part Names and Functions

4. Connection

5. Basic Operation

6. Digital Freeview TV (DVB-T)

7. Digital TV Recording

8. Card Reader & USB Functions

9. Games

10. Analogue TV (ATV)

11.

12. Troubleshooting

13. Warranty

Specifications

1

3

4

9

12

13

19

20

22

23

25

27

28

-1-

1. Safety Instructions

Maintenance

Please unplug all connection wires before start cleaning this machine.

Storage and Use

Never expose
the TV set to
moisture,dust
oil or smoke.

Never put this
machine in
containers that
are unstable as
this may cause
damage.

Never extrude
or chafe this
machine with
sharp objects.

Keep this machine
away from hot or
cold places.
The storage
temperature of
this machine is

-20~ 60 , the
application
temperature of
this machine is
5~ 35 .℃℃

Keep the TV
set away from
water or damp
environment.

Avoid
dropping or
exposing to
impacts.

Please wipethe
display screen
and buttonswith
a softcloth. Only
clean thescreen
with professional
LCD TVscreen
cleanser.

Never wipe this
machine with an
abrasive cloth,
detergent
powder, alcohol
and benzene etc.
various
propellants or
chemical
cleaning products.

Alcohol

-2-

1.Please do not tune your headphone / earphone at high volumes, otherwise,
it may lead to ear damage.

2.For open-designed earphone, to avoid annoying those close by, please tune
down the volume.

3.In case of any tinnitus, please turn down the volume or stop using this
machine.

4.It is recommended by aurists that the earphones should not be used
continuously for a prolonged period.

For the sake of safety for yourself and others, please do not watch the TV

while driving.

1.Use only the supplied power adaptor with this device. Failure to do so can

cause damage to the device and risk personal injury.

2.For the sake of safety, when you do not intend to use the display, please
switch off the AC adaptor or car adaptor.

A few highlights or dark spots may appear on the LCD screen. It is a very
common phenomenon of active matrix display technology, and does

-3-

Earphones

AV cable

Telescopic antenna

Stand

User manual

Digital TV antenna

AC/DC adaptor Remote control

2 Accessories.

1. Antenna input jack

3. AV OUT

5. Earphone jack

3.3 Left

2. USB jack

4. AV IN

6. 12V DC IN jack

-4-

1. IR receiver window

2. LCD display

1. Speakers

2. Stand

3. Part Names and Functions

3.1 Front

3.2 Back

1

2

11

2

23 4561

-5-

3.4 Right

1

23456

7

8910

1

3

5

7 Channel Down/ Down/ Previous Track or Chapter

8 Channel Up/ Up / Next Track or Chapter

9 Volume Up / Volume Down

10 / MODE

Press and hold to power on/off the device.

Press repeatedly for mode switch. More details can be found on page 12.

.

.
.
.

.

SD/MMC card slot

2 Play / Pause / Resume

Main Menu / Exit the menu

4 Right / Forward

Left / Reverse

6 Enter/ Confirm

.
.
.
.
.

MENU

-6-

3.5 Remote Control

3.5.1 Remote Button Functions

DA900C

2

4

7

8

9

12

13

15

16

19

20

21
24

26

27 28

3

REC

MOVE

6

1

5

10

11

14

17

18

22
23

25
