User Manual

Thank you for buying our August TV. You may already be familiar with using

a similar product but please take time to read these instructions carefully. It is

designed to familiarise you with the product’s many features and to ensure

that you get the very best from your purchase.

Quick Start Guide

DA701C

It is suggested that you use a roof top aerial when scanning for TV channels

for the first time, if any signal is detected, the channel information will be

saved on the TV, you may then switch back to the portable antenna supplied

and change your location to find the best place to receive the signal.

Connect the device to the mains power, turn the power switch on the side of

the TV to ON, a red standby light will show, press POWER on the remote or

TV to turn on the device.

The TV/AV button on the TV and MODE on the remote are for switching

between Digital Freeview TV & Media Player and Analogue TV modes.

Safety

To ensure your safety and the safety of others, please ensure you read the

Safety Instructions you use this product.

Disposal

Please ensure the product and its accessories are disposed in compliance with

WEEE (Waste Electrical and Electronic Equipment) Directive and other

regulations. Please check with your local authority for disposal regulations.

Customer Service:

If you need help, please contact our Customer Service: Telephone: +44 (0) 845 250 0586 Email: service@augustint.com

before

When turning on the device for the first time, “Initial Install” will show,

follow the instructions to select OSD Language and Area, then press ENTER,

it will ask whether to install, select YES, the auto search will then start. Once

the search has finished, press CH+, CH- or EPG to select channels. Press

REV/RADIO to switch between Freeview TV and Radio channels.

If you have done the first time installation before, and would like to search

for Digital Freeview channels again, or if you have moved to a different

region and need to scan channels again, press TV/AV on the TV or MODE on

the remote to switch to Digital TV & Media Player mode, press MENU,

select “Digital TV” by pressing ENTER, select “Installation”, then select

“Auto Search”, press ENTER to start the search. Once the search has

finished, press CH+, CH- or EPG to select channels. Press REV/RADIO to

switch between Freeview TV and Radio channels.

To search for Analogue TV, press TV/AV on the TV or MODE on the remote

to switch to Analogue TV mode and you should see either “AUTO”, “PAL”

or “SECAM” at the top right corner of the screen. Press MENU repeatedly, it

gives you menu “PICTURE”, “VOLUME”, “OPTION', “SYSTEM”,

“PRESET”, and “CLOCK” respectively. To start the auto search, move to

“PRESET” menu and “AUTO SEARCH” is selected, press RIGHT to start

search for channels.

To play video, music, or photos on a SD card or memory stick, insert the SD

card or memory stick to the card slot or USB port, press TV/AV on the TV or

MODE on the remote to switch to Digital TV & Media Player mode, press

MENU to select “Movie”, “Music”, or “Photo”, press ENTER or PLAY to

start playing, press EXIT to stop and exit to main menu. During the photo

playback, press UP for the mirror effect, press again to back to normal, press

DOWN for upside down effect, press again to back to normal, press RIGHT

to rotate clockwise, press LEFT to rotate anticlockwise, press ENTER for

photo slideshow, photos in the selected folder will show repeatedly.

Please note the included portable antenna may only be used in areas where

signal is very strong. There may be difficulties in receiving signal with the

portable antenna in some regions at present, this is due to the fact that

Freeview (www.freeview.co.uk) is yet to operate in full power in the UK. The

government aims to achieve a full switchover by 2012, which will occur in

stages, region by region between 2008 and 2012, at present the quality of

Freeview reception varies in different regions across the UK.

1.Safety Instructions

2.Accessories

3.Part Names and Functions

4.Remote Control

5.Connections

6.Digital Freeview TV (DVB-T)

7. Digital TV Recording

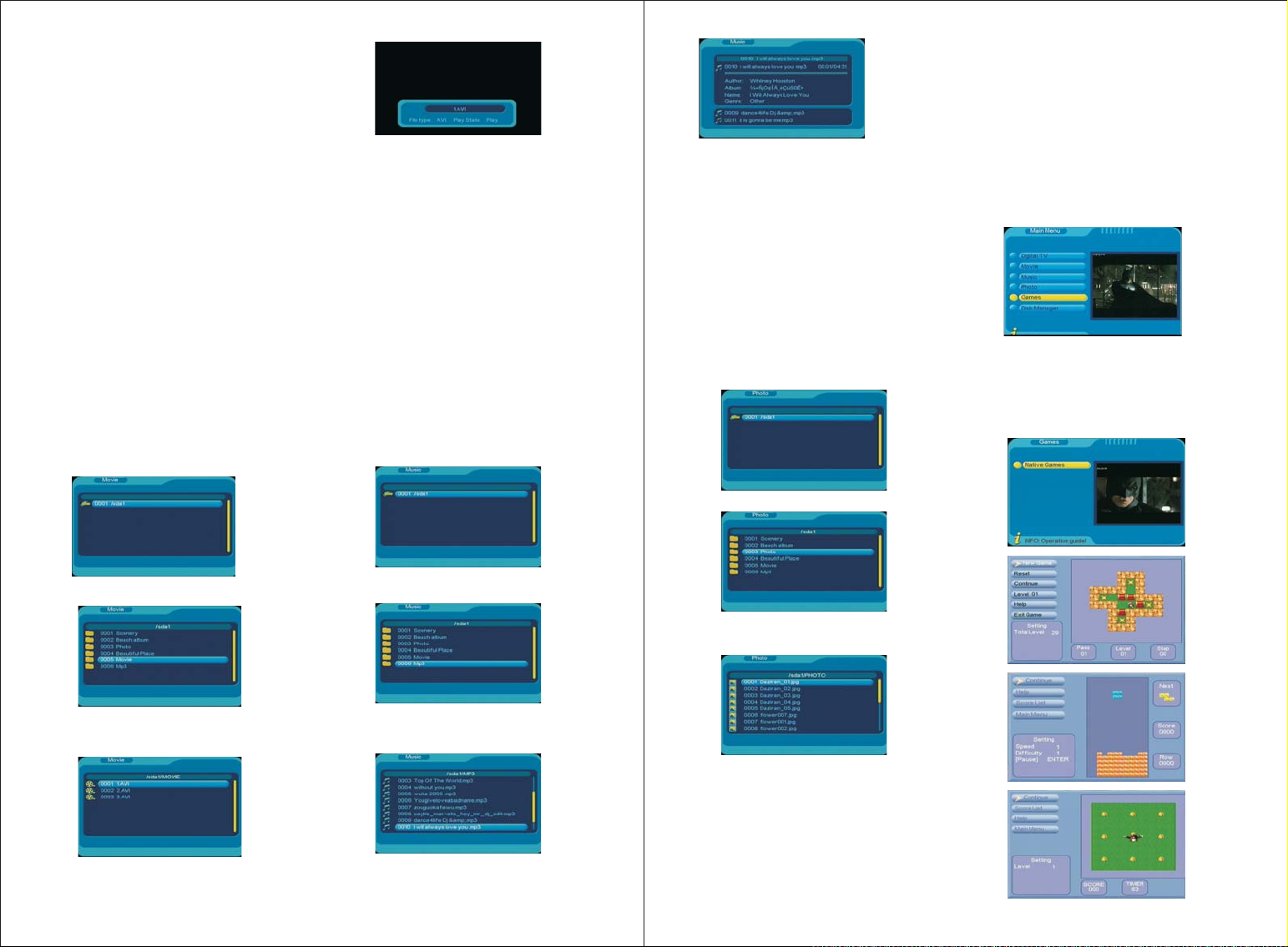

8.Card Reader & USB Functions

9.Games

10.Screen Setting

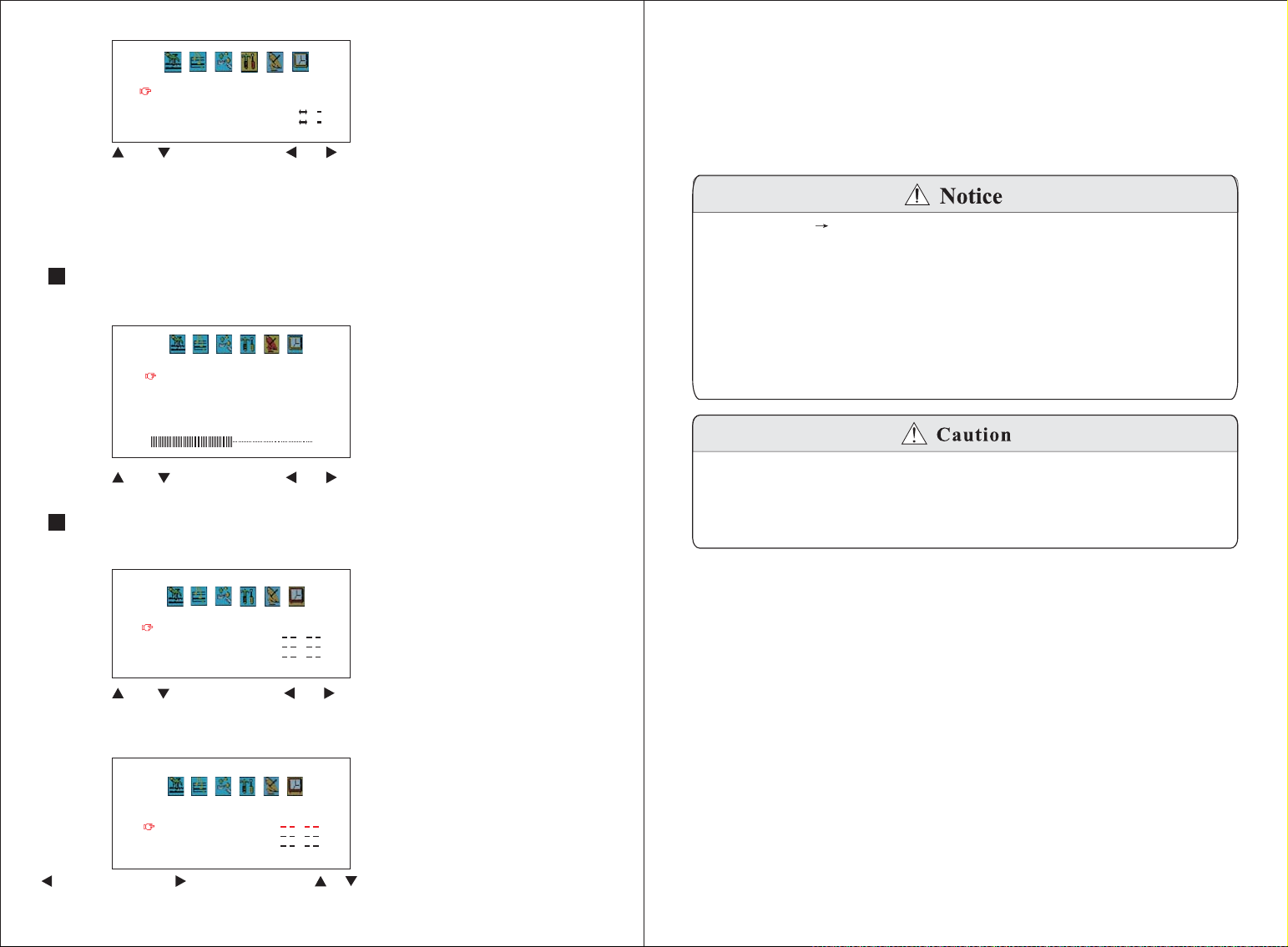

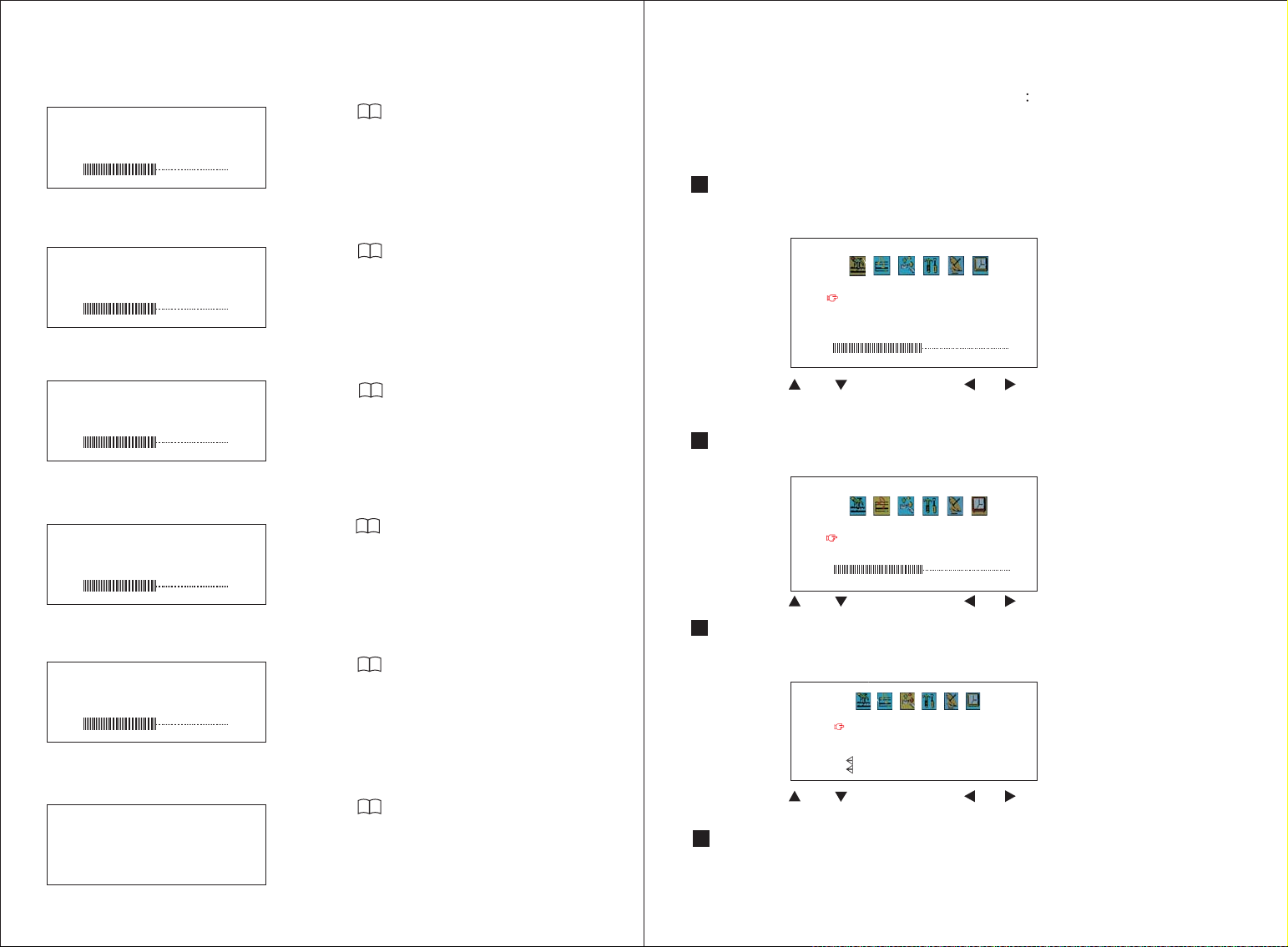

11.Analogue TV

As mentioned on the Freeview website, only 73% of the UK population is

able to receive Freeview at present and only a small number of households

might be able to use a set top aerial at present. This only applies if you live in

an area with coverage close to a transmitter, but reception would still be

unreliable and they strongly recommend that you use a roof top aerial for

good reception.

The reception will be improving along with the progress of the Digital

Switchover Program. Reception may also be affected by various factors such

as how close you are to transmitters, tall buildings, thick walls, ceilings and

weather etc.

For any further queries, please telephone August International Ltd helpline

0845 250 0586 or email service@augustint.com

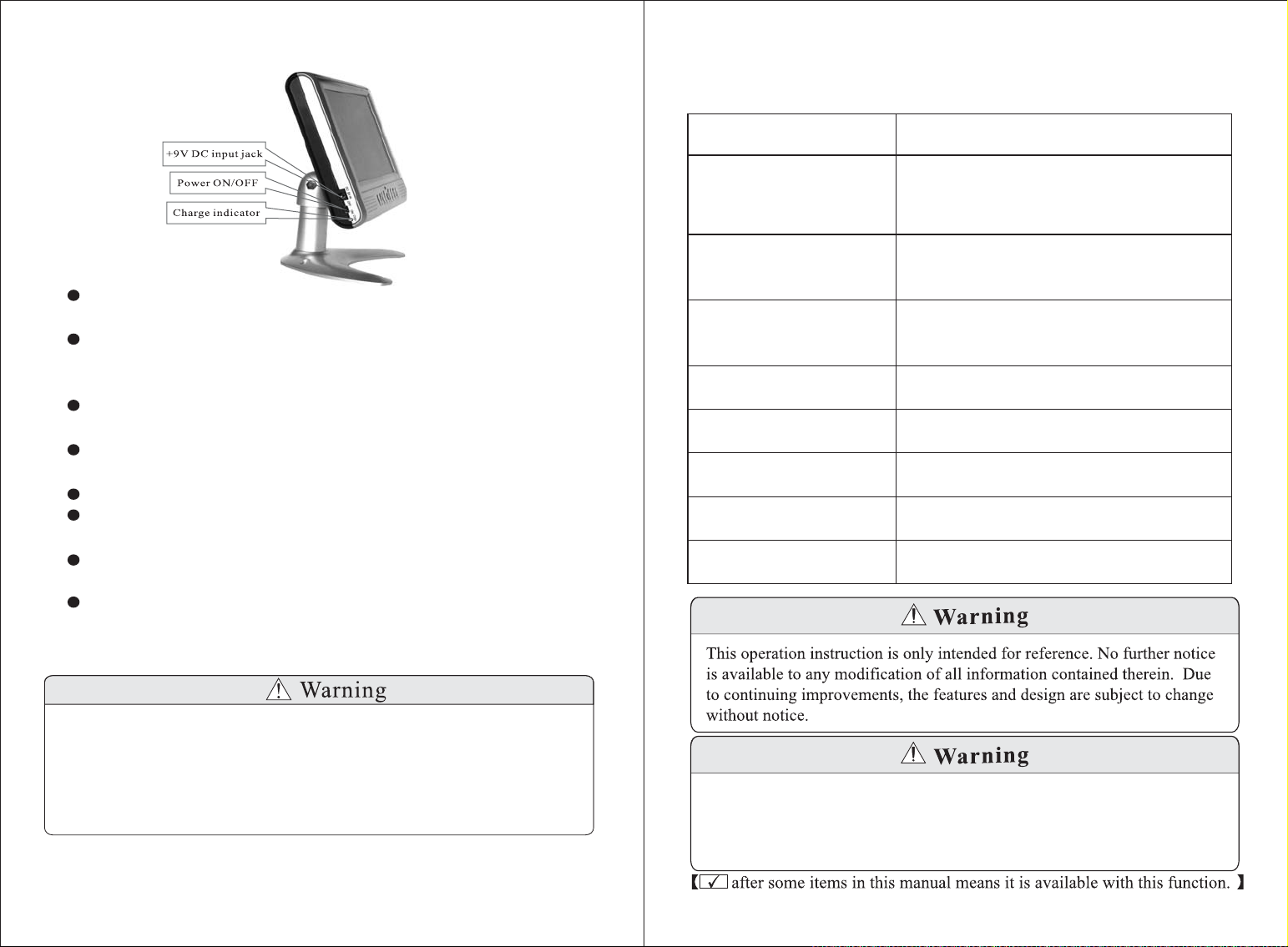

12.Battery Charging

13.Troubleshooting

14. Specifications

15.Warranty

1. Safety Instructions

Storage and Use

Keep this machine away from hot or cold places. The storage temperature of this machine is

-20~ 60 , the application temperature of this machine is 5~ 35 .℃℃

Never expose the TV set to moisture,dust oil or smoke.

Never put this machine in containers that are unstable as this may cause damage.

Keep the TV set away from water or damp environment.

Avoid dropping or exposing to impacts.

Never extrude or chafe this machine with sharp objects.

1.Only the attached AC adaptor and the car adaptor are suitable.

2.For the sake of safety, when you do not intend to use the display, please switch off the AC adaptor or car adaptor.

1.Please do not tune your headphone / earphone at high volumes, otherwise, it may lead to ear damage.

2.For open-designed earphone, to avoid annoying those close by, please tune down the volume.

3.In case of any tinnitus, please turn down the volume or stop using this machine.

4.It is recommended by aurists that the earphones should not be used continuously for a prolonged period.

For the sake of safety for yourself and others, please do not watch the TV

while driving.

A few highlights or dark spots may appear on the LCD screen. It is a very common phenomenon of active matrix display technology, and does

Maintenance

Please unplug all connection wires before start cleaning this machine.

Please wipethe display screenand buttons witha soft cloth. Onlyclean the screenwith professional LCD TV screen cleanser.

Never wipethis machine with abrasive cloth, detergent powder, alcohol and benzene etc. various propellants or chemical cleaning products.

-1-

-2-

2 Accessories.

3. Part Names and Functions

．

Stereo speakers

．

Power switch

．

Volume - / Left

．

AC/DC adaptor Car adaptor

MUTE

DISPLAY

SUBTITLE

AUTO

TTX

REV RADIO/

FWD EPG/

FAV

PP.

RED

SLEEP

ZOOM

GREEN

YELLOW

BLUE

701C

MODE

REC

REPEAT

EXIT

RETURN

PRLIST

AUDIO

Remote control

Volume + / Right

．

Remote receiver

．

Telescopic antenna

．

TFT LCD screen

．

Power indicator

Standby: Red

Turn on: Green

．

OK confirm

．

TV/AV shift

．

Channel -/ Down

．

Channel +/ Up

14 Base support．

Base support

AV cable

-3-

Double-sided adhesive pad for base support

User manual

-4-

15.

Antenna input jack

16.

USB jack

17.

AV OUT

18.

SD/MMC/MS port

19.

Earphone jack

20.

+ 9V DC IN jack

21.

Power ON/OFF switch

22 Charge indicator

Panel Button Functions

This table explains the functions of the buttons on the panel in each mode:

Panel Button

①

②

③

④

⑤

⑥

⑦

⑧

POWER

OK OK OK OK

TV AV/

VOL-/

VOL+/

CH-/

CH+/

▲

DVB-T

POWER

MODE MODE MODE

VOL-

+ VOL+

VOL

MENU MENU

▲

CH-/

CH+/

▲

Card & USB

POWER

VOL-

▲

ATV

POWER

VOL-/

VOL+/

CH-/

CH+/

▲

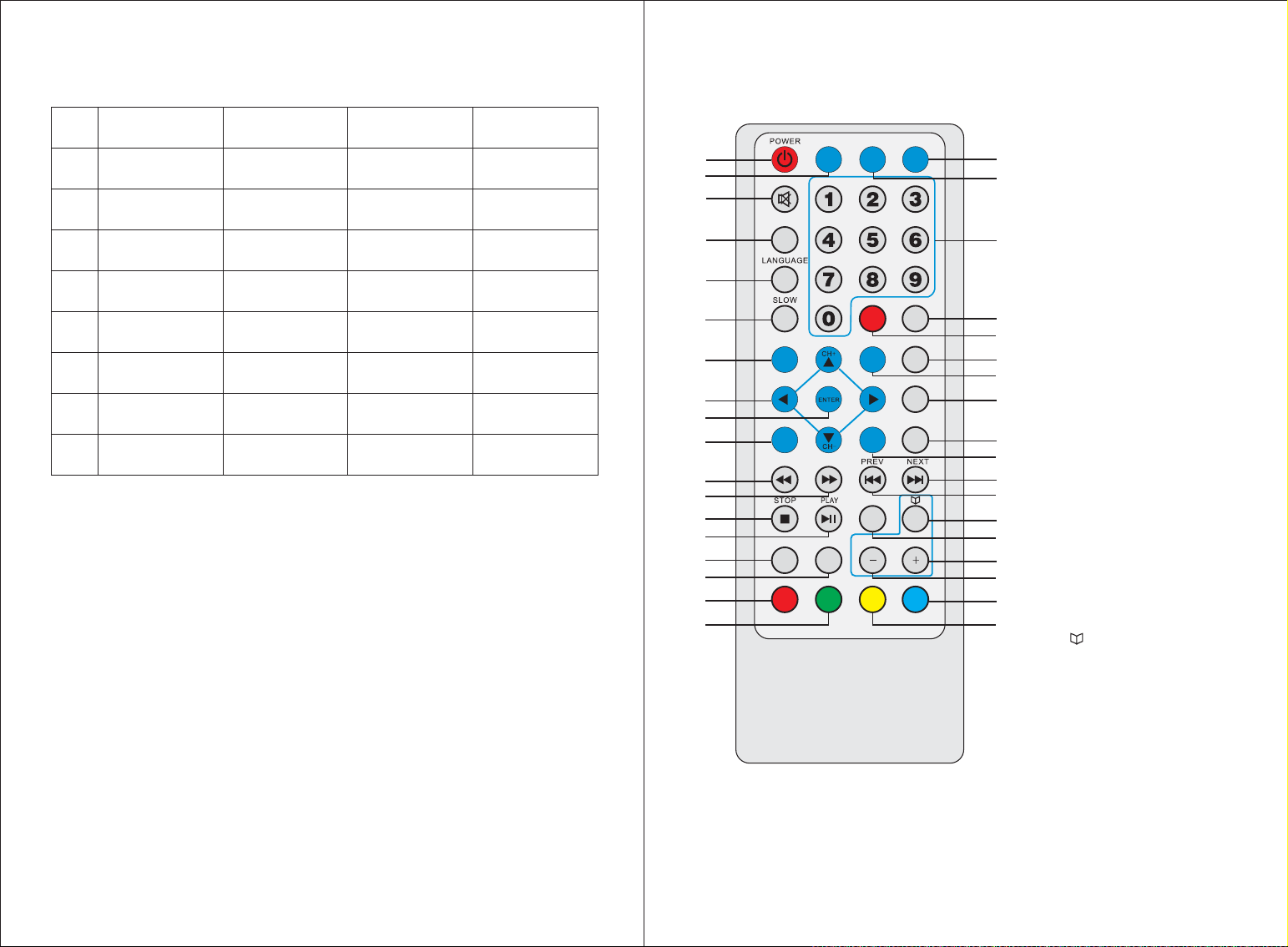

4. Remote Control

AUTO

DISPLAY

MODE

MUTE

SUBTITLE

▲

REPEAT

REC

EXIT

RETURN

PRLIST

8 9

TTX AUDIO

FAV

FWD EPG/

REV RADIO/

ZOOM

13 14

PP.

SLEEP

15 16

RED

GREEN

YELLOW

BLUE

33 34

DA701C

1 POWER

2 DISPLAY

3 MUTE

4. SUBTITLE

5 LANGUAGE

6SLOW

7MENU

22 23

25 26

27 28

29 30

32 35 36

8 LEFT RIGHT UP DOWN

./ //

9 ENTER

10 TTX

11 REV RADIO

12 FWD EPG

13 STOP

14 PLAY

15 P P

16 SLEEP

17 MODE

18 AUTO

19 NUMBER

20 REPEAT

. .

21 REC 22 RETURN

23 EXIT

24 PRLIST

25. AUDIO 26 FAV

27 NEXT

28 PREV

30 ZOOM

31 VOL

32 VOL

33 RED

34 GREEN

35 BLUE

36 YELLOW

-5-

-6-

Remote Control Functions

This table explains the functions of the buttons on the remote control in each mode:

Card & USB

POWER

DISPLAY

MUTE

SUBTITLE

SLOW

(video only)

▲

ENTER

REV

FWD

STOP

PLAY

PP.

SLEEP

MODE

NUMBER 0 9(～)

REPEAT

EXIT

AUDIO

ZOOM

VOL+

VOL-

ATV

POWER

DISPLAY

MUTE

LANGUAGE

▲

PP.

SLEEP

MODE

AUTO

NUMBER 0 9(～)

RETURN

VOL+

VOL-

Remote button

POWER

DISPLAY

MUTE

SUBTITLE

LANGUAGE

SLOW

▲

ENTER

TTX

REV RADIO/

FWD EPG/

STOP

PLAY

PP.

SLEEP

MODE

AUTO

NUMBER 0 9(～)

REPEAT

REC REC

RETURN

EXIT

PRLIST

AUDIO

FAV

ZOOM

VOL+

VOL-

RED

GREEN

BLUE

YELLOW

DVB

POWER

DISPLAY

MUTE

SUBTITLE

LANGUAGE

▲

ENTER

TELETEXT

RADIO

EPG

PLAY

PP.

SLEEP

MODE

AUTO

NUMBER 0 9(～)

RETURN

EXIT

PRLIST

AUDIO

FAV

ZOOM

VOL+

VOL-

RED

GREEN

BLUE

YELLOW

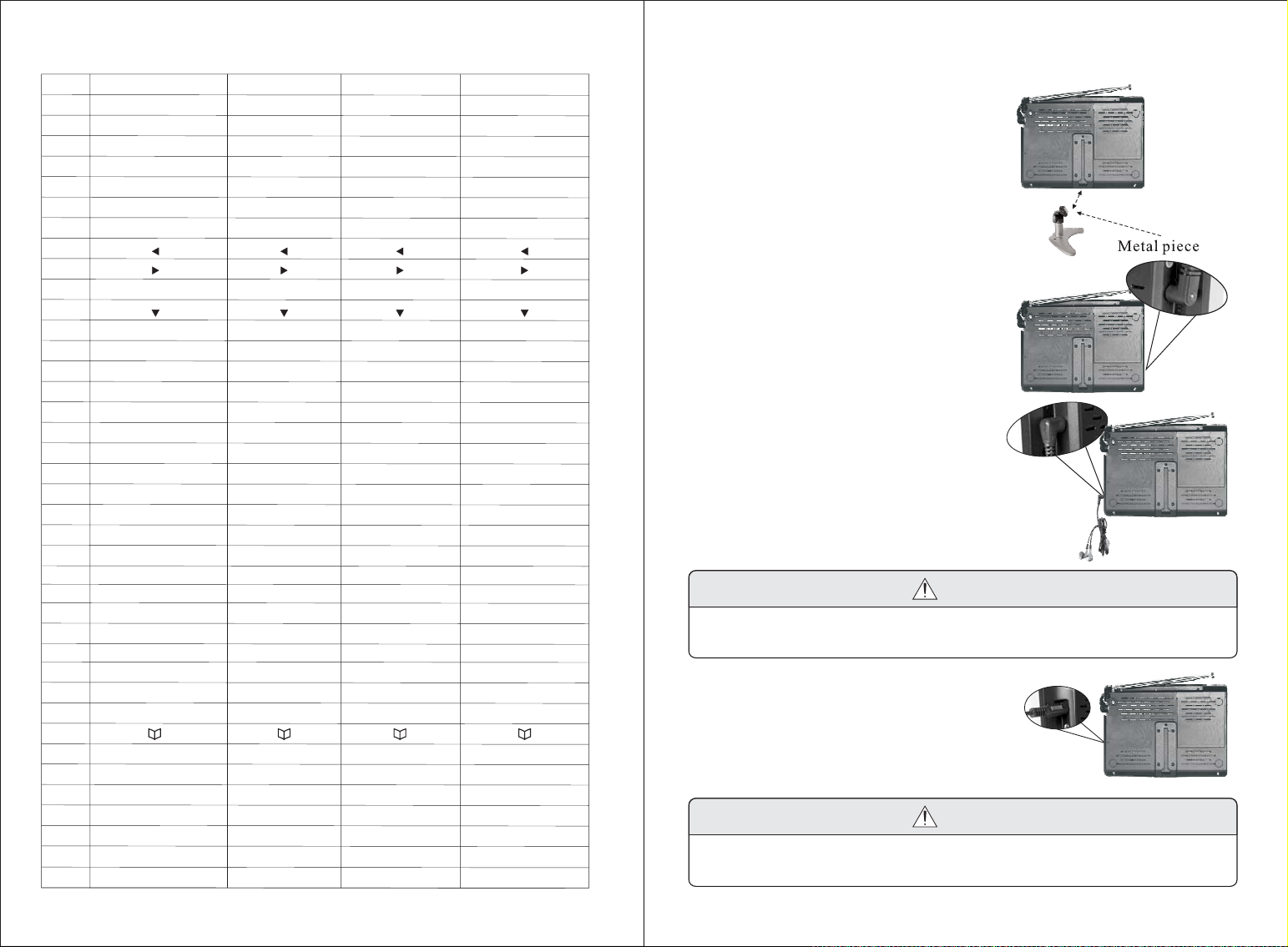

5. Connections

5.1. Installing the base support

Unscrew the oval handle on the ball-joint, it will split into halves, embrace them on the top of the base support, then tighten the oval handle. Slide the metal surface of the ball-joint into the slot on the back of the TV, then tighten the wheel screw.

5.2. Connecting the power supply

Insert the power supply plug on theAC adapter to the jack on the TV marked DC IN 9V.+

5.3. Connecting the earphones

Insert the earphone plug to the jack on the TV marked earphones.

Notice

If earphones are used, sound is only transmitted through the earphones, and no sound is available from the stereo speakers of the TV.

5.4. Connection of AV Output

Connect the yellow port of the AV cable to video jack, the white port to the left audio jack and the red port to the right audio jack, then insert the AV head into theAV output jack on the TV.

Notice

The AV output function is only available in DVB-T and Media player mode.

-7-

-8-

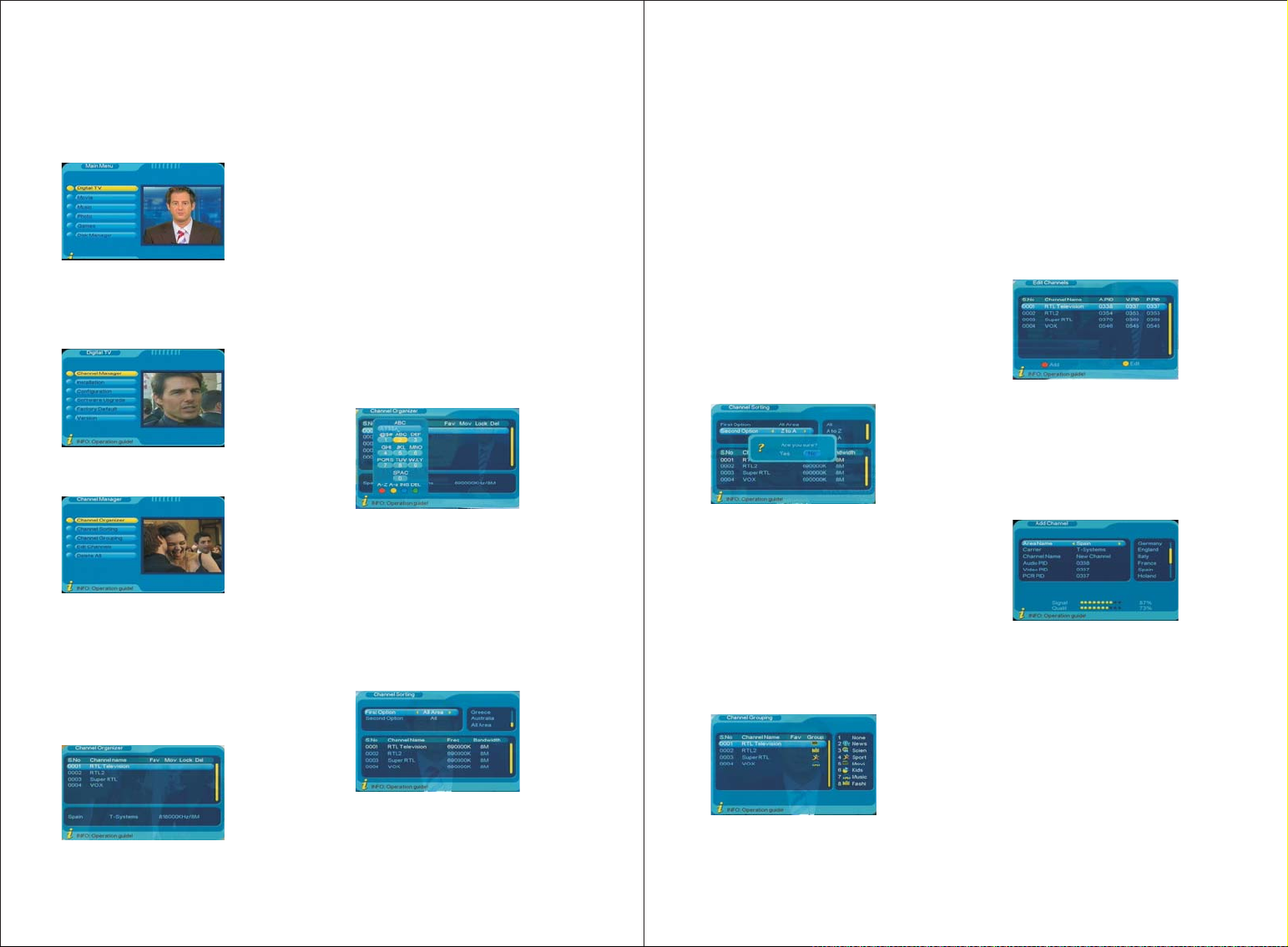

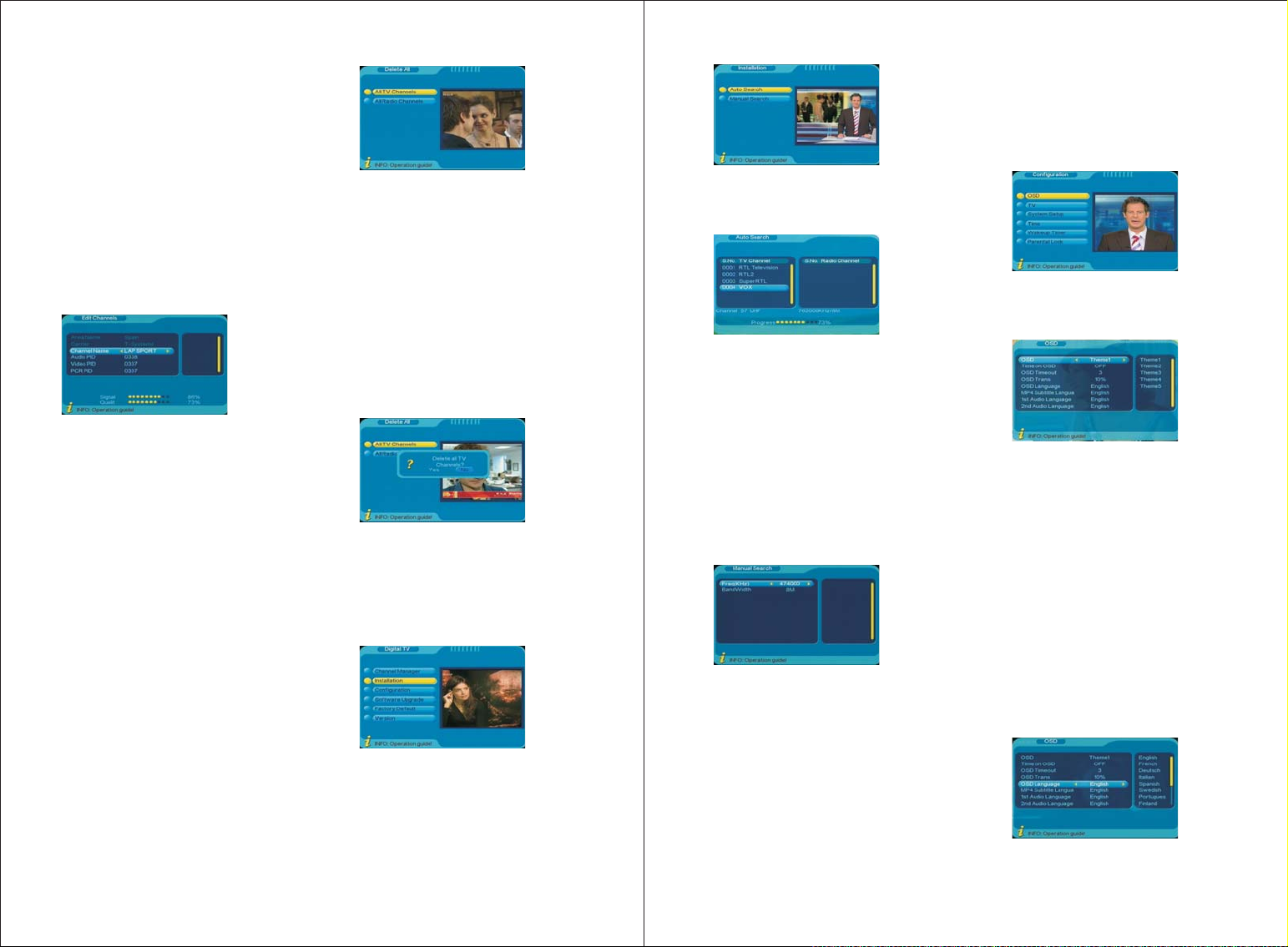

6. Digital Freeview TV (DVB-T)

When in Digital TV mode, press MENU and select Digital TV, it gives the following options: Channel Manager, Installation, Configuration, Software Upgrade, Factory Default, and Version Information.

6.1 Channel Manager

Channel Manager allows the user to sort, edit, delete, and classify the channels.

2. If there is no channel saved on the TV, Channel Organizer can not be accessed, and it will show “Channel not available”.

3. Use UP/DOWN to select the channel you want to edit.

- Press RED to select or cancel a favourite.

- Press GREEN to delete or undelete a

channel.

- Press YELLOW to set or cancel a

channel's position change.

- Press BLUE to lock or unlock a channel,

it will ask you to enter the password, the system default password is 0000.

4. To change the channel name, use UP/DOWN to select the channel line, press LEFT/RIGHT to enter the page to change the name, press RED/GREEN /YELLOW/BLUE to edit the name.

2. If there is no channel saved on the TV, Channel Sorting can not be accessed, and it will show “Channel not available”.

3. Press UP/DOWN to select: First Option: Area, press RIGHT to

①

enter the area list, use UP/DOWN to select, press ENTER to confirm.

Second Option: Sorting rules, press

②

RIGHT to enter the rule list, use UP /DOWN to select, press ENTER to confirm.

4. Sorting rules can be selected by pressing RIGHT/UP/DOWN/LEFT.

5. After sorting rules is selected, press ENTER to confirm, it will ask “Are you sure?”, select “Yes” to confirm and to proceed the sorting, or select “No” to cancel.

3. Use UP/DOWN to select the channel, and then select the category by pressing the numbers (1-8).

4. After setting, press EXIT, it will show “Successfully updated”.

6.1.4 Edit Channels

It allows the user to add and edit channels.

1. Edit Channels can be accessed by selecting MENU-> Digital TV-> Channel Manager-> Edit Channels.

2. If there is no channel saved on the TV, Edit Channels can not be accessed, and it will show “Channel not available”.

In Digital TV mode, select Channel Manager, press ENTER for the submenus.

6.1.1 Channel Organizer

Channel organizer is used to set favourite channels, change channel positions, lock and delete channels, and edit channel's name.

1. Channel Organizer can be accessed by selecting MENU -> Digital TV -> Channel Manager -> Channel Organizer.

5. Press EXIT or MENU to exit Channel Organizer.

6.1.2 Channel Sorting

It allows the user to sort the channels by area, alphabetically or by number sequence.

1. Channel Sorting can be accessed by selecting MENU-> Digital TV-> Channel Manager->Channel Sorting.

-9-

6. Press EXIT or MENU to exit Channel Organizer.

6.1.3 Channel Grouping

It allows the user to sort channels into 8 different categories: News, Science, Sports, Movie, Kids, Music, Fashion and None.

1. Channel Sorting can be accessed by selecting MENU-> Digital TV-> Channel Manager->Channel Grouping.

2. If there is no channel saved on the TV, Channel Grouping can not be accessed, and it will show “Channel not available”.

3. To add a new channel, press RED, and then press UP/DOWN to select between the 6 parameters as shown:

①

Area Name: press RIGHT to enter the area list, use UP/DOWN to select, press ENTER to confirm.

②

Carrier: press RIGHT to enter the carrier list, use UP/DOWN to select, press ENTER to confirm.

③

Channel Name: press RIGHT to enter the edit page, use RED/GREEN /YELLOW/BLUE to edit, press ENTER to confirm.

④

Audio PID: can be changed by pressing the numbers.

-10-

⑤

Video PID: can be changed by pressing the numbers.

⑥

PCR PID: can be changed by pressing the numbers.

⑦

Once finish the settings, press ENTER to confirm, it will show “Successfully updated” and return to Edit Channels.

⑧

During setup, press EXIT at any time to cancel and exit to Edit Channels.

5. To edit a channel, press YELLOW, and then press UP/DOWN to select between the 4 parameters as shown:

①

Channel Name: press RIGHT to enter

the edit page, use RED/GREEN/

YELLOW/BLUE to edit, press ENTER

to confirm.

Audio PID: can be changed by pressing

②

the numbers.

Video PID: can be changed by pressing

③

the numbers.

PCR PID: can be changed by pressing

④

the numbers.

Once finish the settings, press ENTER

⑤

to confirm, it will show “Successfully updated” and return to Edit Channels.

During setup, press EXIT at any time to

⑥

cancel and exit to Edit Channels.

6.1.5 Delete All

To delete all the TV and Radio channels, select MENU-> Digital TV-> Channel Manager-> Delete All.

1. It will ask you to enter the password, the default one is 0000. After entering the correct password, it allows you to select to delete all TV channels or Radio channels.

2. Use UP/DOWN to select TV channels, it will ask “ Delete all TV channels?”, select “Yes” to confirm and proceed the delete, select “No” to cancel.

3. Use UP/DOWN to select Radio channels, it will ask “ Delete all Radio channels?”, select “Yes” to confirm and proceed the delete, select “No” to cancel.

6.2 Installation

Installation is for searching TV and Radio channels, it can be accessed by selecting MENU-> Digital TV-> Installation.

Pressing ENTER, it gives two search options: Auto Search and Manual Search.

6.2.1 Auto Search

Select Auto Search, press ENTER, it will start the search.

After searching, the system will automatically exit the searching page, save program information and return to Installation menu, press EXIT or MENU to exit.

6.2.2 Manual Search

If you know a channel's broadcasting frequency and bandwidth, using manual search to find the channel can be quicker.

Select Manual Search, press ENTER, it will ask you to provide two parameters:

①②Freq (KHz): scanning frequency, the

default is 474000 KHz, use numbers or LEFT/RIGHT to change.

Band Width: use LEFT/RIGHT to select.

After setting, press ENTER to start the search. After searching, the system will automatically exit the searching page, save program information and return to Installation menu, press EXIT or MENU to exit.

6.3 Configuration

Configuration menu has the following options: On Screen Display, TV, System Setup, Time, Wakeup Timer and Parental Lock. It can be accessed by selecting MENU->Digital TV->Configuration.

6.3.1 OSD (On Screen Display)

Through OSD, you can set the interface pattern.

Left of the menu lists all the options under OSD. Press UP/DOWN to select an option.

1. OSD: supports 5 menu patterns, press LEFT/RIGHT to select between Theme1-5.

2. OSD Timeout: sets the display time of an information dialog window, press LEFT/RIGHT to select between 1-6 seconds, the system default is 3seconds.

3. OSD Trans: sets the diaphaneity of the menu, press LEFT/RIGHT to adjust from 0%-60%.

4. OSD Language: the system supports multi-language user interface, press RIGHT to enter the language list, use UP/DOWN to select, press ENTER to confirm.

-11-

-12-

5. 1st Audio Language: press RIGHT to enter Audio Language list, use UP/DOWN to select, press ENTER to confirm.

6. 2nd Audio Language: press RIGHT to enter Audio Language list, use UP/DOWN to select, press ENTER to confirm.

7. After setting, press ENTER confirm, press EXIT or MENU to exit the setup, it will show “Successfully updated”.

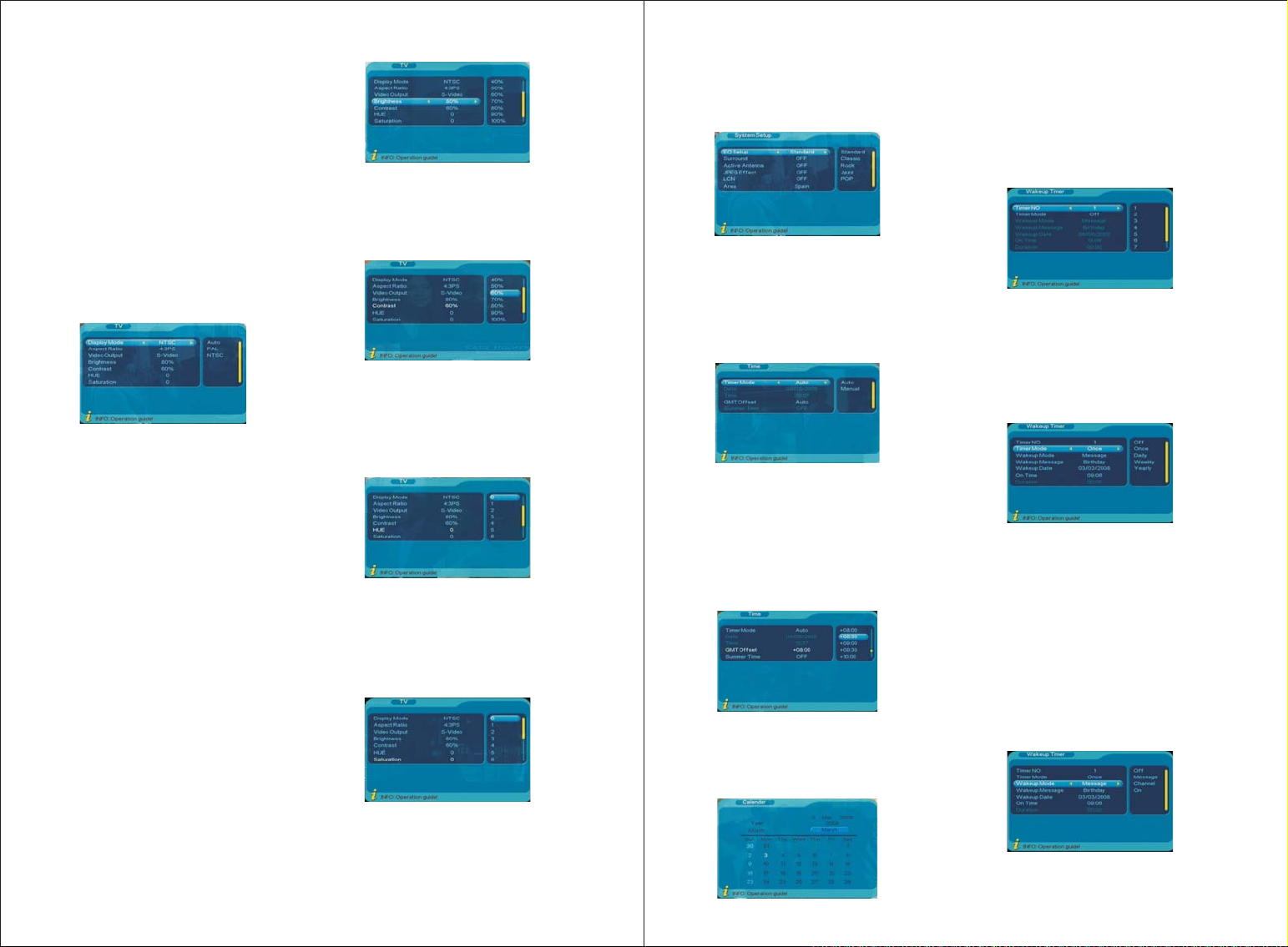

6.3.2 TV

This option allows the users to set their preferred TV output settings.

Left of the menu lists all the options. Press UP/DOWN to select an option.

1. Display Mode: press LEFT/RIGHT to select between AUTO, PAL, & SECAM, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

2. Aspect Ratio: press LEFT/RIGHT to select between 16:9, 4:3 Pan Scan, 4:3 Letter Box, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

3. Video Output: press LEFT/RIGHT to select between S-Video and CVBS, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

4. Brightness: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

5. Contrast: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

6. HUE: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

7. Saturation: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP /DOWN to select another option.

8. After setting, press ENTER, EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.3 System Setup

Press UP/DOWN to select an option, use LEFT/RIGHT to change the settings. After setting, press ENTER, EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.4 Time

You can set Timer Mode, Date, Time, GMT Offset, and Summer Time under Time menu. There are two Timer modes, one is Auto, and one is Manual.

The system default is Auto timer mode, press UP/DOWN to select Timer Mode or GMT Offset, use RIGHT/LIFT to change.

In Manual timer mode, press UP/DOWN to select an option, use RIGHT/LEFT or numbers to change the Date, Time, GMT Offset or Summer Time.

Press ENTER to confirm, press EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.5 Wakeup Timer

This option allows you to switch off / on the device automatically, set a scheduled time recording, or set a reminder for the program you do not want to miss.

You can set Timer Mode, Wakeup Mode, Wakeup Message, Wakeup Channel, Wakeup Date, Time, Duration and Partition.

1. Timer No.: the number of this Wakeup Timer setting, use LEFT/RIGHT to change.

2. Timer Mode: use LEFT/RIGHT to select

between Once, Daily, Weekly, Yearly or Off.

3. Wakeup Mode: use LEFT/RIGHT to choose

to show a message, switch to a channel you want to watch, switch off/on the device or set a scheduled TV recording.

Please note the device can only be switched on automatically through Wakeup Timer, after it was switched off through the Wakeup Timer last time. The device can also be set to switch On/Off automatically through the timer function in Analogue TV mode, for further details please refer to page 21-22.

-13-

-14-

①②Wakeup Message: use LEFT/RIGHT to

select between Birthday, Anniversary or General.

Wakeup Channel: use LEFT/RIGHT to select a channel from the channel list.

4. Wakeup Date: press RIGHT to enter the Calendar, use UP/DOWN/LEFT/RIGHT to select a date.

5. On Time: use numbers to set the starting time.

6. Duration: use numbers to set how long you want to watch or record the program.

7. Default Partition: this is for scheduled recording only, press RIGHT, it will show “Device List”, if the TV connects to an USB stick, it only shows one device on the list, if the TV connects to an external hard drive which has number of partitions, it will show the partition list, select the appropriate, press ENTER, it will ask to confirm whether to change, if you want to change, select “Yes” then press ENTER, otherwise select “No”. It will show “Set successfully”.

After setting, press ENTER to confirm, press MENU to exit the setup, it will show “Successfully updated”.

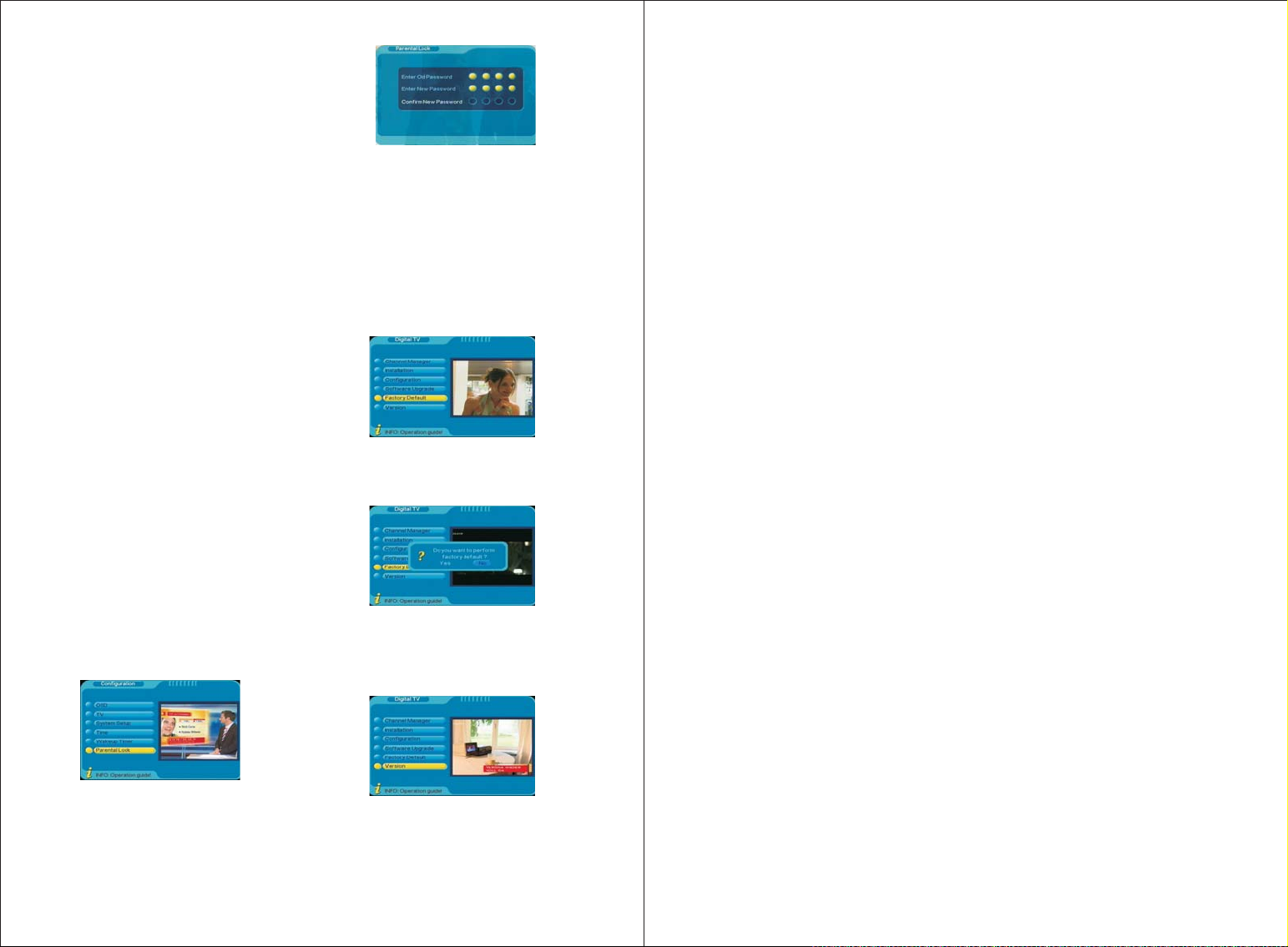

6.3.6 Parental Lock

User can change system password under this option.

Enter the old password, if it is correct, the cursor will move to Enter New Password option, enter and confirm the new password. The system will show “Password changed”.

-15-

The system default password is 0000.

6.4. Software Upgrade

This function is for manufacturer use only.

6.5 Factory Default

To restore the system configuration to factory default, press MENU, selectDigital TV-> Factory Default, press ENTER.

It will ask whether you want to perform the factory default, select [No] to cancel or select [Yes] to confirm.

6.6 Version

This provides the hardware, software and system information.

7. Digital TV Recording

The device supports recording Freeview TV to an USB memory stick or external hard drive (FAT32, USB2.0) via the USB port.

Before starting the recording, connect an USB stick or external hard drive, which has sufficient space left, to the device first.

7.1 Real Time TV Recording

Press REC on the remote to start the recording, it will show “REC” on the screen, press “REC” again to stop the recording, it will ask “Do you want to stop recording”, choose “Yes” to stop or “No” to carry on recording.

Press YELLOW during the recording, it allows you to set how long you would like the record to last, press RIGHT to choose: 15 min, 30 min, 45 min, 60 min, 75 min, 90 min, 105 min, 120 min or disable, press ENTER to confirm and exit.

Press DISPLAY during the recording, it will show how long the record has been on, the name of the channel, and how many space has left on your USB stick or external hard disk, press DISPLAY again to exit.

The recorded program is saved in a new folder “PVR” in your USB stick or external hard driver and is in MPG video format. It can be viewed by pressing the GREEN shortcut button or pressing MENU then selecting Disk Manager.

Press MENU, then select Disk Manger, it shows all the recorded programs stored in your USB stick or external hard drive, press GREEN repeatedly to select Play/Delete One / Delete All/ Rename a recorded program, press ENTER to confirm, press MENU to exit at any time.

Press BLUE to select partitions on your external hard drive.

7.2 Scheduled TV Recording

To set up a recording schedule, please make sure the device is on digital Freeview TV mode first. Then press MENU, select Digital TV by pressing ENTER, select Configuration, and then select Wakeup Timer. It gives the following options:

1.Timer No.: the number of this Wakeup Timer setting, use LEFT or RIGHT to change.

2.Timer Mode: use LEFT or RIGHT to select between Once, Daily, Weekly, Yearly or Off.

3.Wakeup Mode: select Recorder for scheduled recording, for the use of other available functions in this setting, please refer to page 14.

4.Wakeup Channel: use LEFT or RIGHT to select the channel you want to record.

5.Wakeup Date: press RIGHT to enter the Calendar, use UP/DOWN/LEFT/ RIGHT to select a date you want to record the program.

6.On Time: use numbers to set the starting time of the recording.

7.Duration: use numbers to set how long you want the record to last.

8.Default Partition: press RIGHT, it will show “Device List”, if the TV connects to an USB stick, it only shows one device on the list, if the TV connects to an external hard disk which has number of partitions, it will show the partition list, select the appropriate, press ENTER, it will ask to confirm whether to change, if you want to change, select “Yes” then press ENTER, otherwise select “No”. It will show “Set successfully”.

9.Press MENU to exit the setting, it will show “Successfully updated”.

Please note the scheduled recording can only be activated when the device is ON and is in the Freeview TV mode.

When the recording starts, it will show “REC” on the screen, when it has finished, the “REC” will disappear. Press DISPLAY during the recording, it shows the progress of the recording, the name of the channel, and how many space has left on your USB stick or external hard disk, press DISPLAY again to exit.

The recorded program is saved in a new folder “PVR” in the USB stick or external hard driver

-16-

and is in MPG video format. It can be viewed pressing the GREEN shortcut button or pressing MENU then selecting Disk Manager.

Press MENU, then select Disk Manger, it shows all the recorded programs stored in your USB stick or external hard drive, press GREEN repeatedly to select Play/Delete One/ Delete All/ Rename a recorded program, press ENTER to confirm, press MENU to exit at any time.

Press BLUE to select partitions on your external hard drive.

8. Card Reader & USB Functions

This player has built-in SD/MMC/MS card reader and USB port. It supports the playback of MP3, JPEG and MPEG4 (AVI) files.

Insert a SD/MMC/MS card or an USB memory stick to the card slot or USB port on the player.

8.1 Movie

Press MENU, select Movie, press ENTER, the Movie menu will show:

Press PLAY/PAUSE to start, pause and resume the play. Press FWD to search forward at 2, 4, 8 and 20 times of the normal speed. Press REV to reverse at 2, 4, 8 and 20 times of the normal speed. Press SLOW to start slow playback at 1/2 or 1/4 times of the normal speed. Press PREV to play the previous movie, press NEXT for the next one. Press REPEAT to choose Repeat Once, Repeat Directory, Repeat Shuffle, Repeat Off. Press ZOOM to view the picture at 2, 3, 4, 1/2, 1/3, or 1/4 times of the normal view. Press STOP and EXIT to exit the playback.

8.2 Music

Press MENU, select Music, press ENTER, the Music menu will show:

Press PLAY/PAUSE to start, pause and resume the play. Press FWD to search forward at 2, 4, 8 or 20 times of the normal speed. Press REV to reverse at 2, 4, 8 or 20 times of the normal speed. Press PREV to play the previous music file, press NEXT for the next one. Press REPEAT to choose Repeat Once, Repeat Directory, Repeat Shuffle, Repeat Off. Press STOP and EXIT to exit the playback.

8.3 Photo

Press MENU, select Photo, press ENTER, the Photo menu will show:

Use UP/DOWN to select a subtrack.

Press DOWN for upside down effect, press DOWN again to back to normal. Press ZOOM to view the picture at 2, 3,

4, 1/2, 1/3, or 1/4 times of the normal view. Press ENTER for photo slideshow, photos in the selected folder will show repeatedly. Press STOP and EXIT to exit the playback.

9. Games

Games can be accessed by selecting Menu

->Game-> Native Games.

Press UP/DOWN to select the game you want to play, press ENTER to confirm. The games are played using UP/DOWN /LEFT/RIGHT buttons. To exit the game, press ENTER to pause, and then select Exit Game.

Use UP/DOWN to select a subtrack.

Press ENTER to view the video files in the subtrack.

Use UP/DOWN to select a movie you want to watch, press ENTER to confirm.

Use UP/DOWN to select a subtrack.

Press ENTER to view the music files in the subtrack.

Use UP/DOWN to select a file you want to play, press ENTER to confirm.

-17-

Press ENTER to view the photo files in the subtrack.

Use UP/DOWN to select a file you want to play, press ENTER to confirm.

Press PREV to play the previous photo, press NEXT for the next one. Press RIGHT to rotate clockwise, press LEFT to rotate anticlockwise. Press UP for mirror effect, press UP again to back to normal.

-18-

10. Screen Setting

Bright

BRIGHT

Contrast

CONTRAST

Press to enter Brightness menu. Press + or - to adjust.

Press repeatedly to enter Contrast menu. Press + or - to adjust.

11. Analogue TV

Press MODE on the remote control to switch to the Analogue TV mode. Press MENU repeatedly, the following options will show:

PICTURE VOLUME OPTION

SYSTEM PRESET CLOCK

11.1. Picture

Press UP or DOWN to select between Brightness, Contrast, Colour, and Language settings.


BRIGHT

CONTRAST COLOR ENGLISH

50 50

Color

COLOR

Hue(Only in NTSC/SECAM mode)

HUE

Volume

VOLUME

Reset

RESET

Press repeatedly to enter Colour menu. Press + or - to adjust.

Press repeatedly to enter Hue menu. Press + or - to adjust.

Press repeatedly to enter Volume menu. Press + or - to adjust.

Press repeatedly to enter Reset menu. Press + or - to reset the Brightness, Contrast, Colour, Hue and Volume settings to the default level 50.

-19-

/ Select / Adjust

Press LEFT or RIGHT to change the setting.

11.2. Volume

Press LEFT or RIGHT to change the volume setting.

VOLUME

/ Select / Adjust

11.3. Option

Press UP or DOWN to select between Zoom, Blue Background, Game, Calendar, picture up down and mirror effect settings.

OPTION

ZOOM :16 9

BLUE BACK ON GAME CALENDAR

VERTICAL HORIZONTAL

/ Select / Adjust

Press LEFT or RIGHT to change the setting.

11.4. System

Press UP or DOWN to select between Color-Sys, Sound-Sys, Swap and Copy settings.

-20-

SYSTEM

COLOR SYS-

SOUND SYSSWAP COPY

AUTO

0 0

/ Select / Adjust

Color-Sys: Press LEFT or RIGHT to select between AUTO, PAL, and SECAM. Sound-Sys : Press LEFT or RIGHT to select between I, L, BG, and DK.

UK customer please set the sound system to I. Swap: Use LEFT, RIGHT, UP or DOWN to swap channel positions. Copy: Use LEFT, RIGHT, UP or DOWN to copy and change channels.

11.5. Preset

Press UP or DOWN to select between Auto Search, Search, Fine Tune, Band, Position and Skip settings.

PRESET

AUTO SEARCH-

SEARCH FINE TUNE BAND POSITION SKIP

VHFL

Time: Press LEFT to change the hours, press RIGHT to change the minutes. Off-Time: The unit can be set to turn off automatically, press LEFT to change the hours, press RIGHT to change the minutes. On-Time: The unit can be set to turn on automatically, press LEFT to change the hours, press RIGHT to change the minutes.

1. Auto Search Start from Program No .0.

2. When the signal is received under Manual Search, the indication frequency will stop, which is the optimum position for signal storage. If the signal is too weak, the system will automatically identify it as no signal.

3. In the case of a picture without sound, please check the Sound System for correct setup first.

4. If the input signal is not strong enough, please adjust “Fine” option, it may improve the picture and sound quality.

//Select Adjust

Press LEFT or RIGHT to change the setting.

11.6. Clock

Press UP or DOWN to select between Sleep, Time, Off-Time, and On-Time settings.

CLOCK

SLEEP

TIME OFF TIMEON TIME-

: : :

//Select Adjust

Sleep: The unit can be set to turn off automatically after certain time, press LEFT or RIGHT to select from 0 to up to 240 minutes maximum with 10 minutes intervals.

CLOCK

SLEEP

TIME

OFF TIMEON TIME-

: :

Adjust hour Adjust minute Select items to be setup:: /:

-21-

If the signal is too weak, the image will remain poor whatever you do, and may output loud noises, shaking images and inferior sound etc., which is not the TV's fault. If the image remains poor when using the telescopic antenna, please try to use a roof top aerial or an amplified external antenna.

-22-

12 Battery Charging.

13. Troubleshooting

Problems listed below do not necessarily signify a fault with the unit. Please check this list before requesting repairs.

This unit has a built-in rechargeable battery. Fully charge the battery before using the device for the first time. To run the unit off mains power and/or charge the battery, connect the

＂＂

supplied AC adaptor to the socket marked 9V DC IN and switch

on the power at the wall. To run the unit off a car cigarette lighter, connect the car adaptor to the

＂+ ＂.

lighter socket and the socket marked The charge indicator (marked CHG will turn red,indicating that

＂＂)

9V DC IN

the battery is charging. When the indicator turns green, the battery is full. To run the unit from the battery,make sure any power adaptors are disconnected.

Fully charge the battery when it will not be used for an extended period of time. Switching off the device while charging the battery can shorten the charging time and extend the life of the battery.

Problems

No picture and no sound

No image

No sound

Picture freezing, and/or

sound distorting

No signal

Dark Picture

Snowstorm

Achromatic/Flashing/No Colour

Possible Causes and Solutions

Check the connection with the AC adaptor/Car adaptor. Use of an unauthorized power supply. Power switch on the side of the TV is off. TV is on standby as it was switched off by pressing the POWER on remote.

Check the channel selection. Scan for channels again. Always rescan for channels in new locations. Ensure video settings are correct.

Check the sound volume. If you are using earphones, test them on another item. Check that the cable is plugged in. Sound System is not correctly set in Analogue TV mode.

Signal too weak, please check the aerial. Try to use a proper roof top aerial or an amplified aerial.

Please adjust Brightness and/or Contrast settings.

Motors/Trains/High Voltage Lines and Neon Lights may affect the signal.

Please adjust the Colour Setting. Color-Sys is not correctly set in Analogue TV mode.

1. Use only the supplied power adaptors with this device. Failure to do so can cause damage to the device and risk personal injury.

2. Do not attempt to repair or replace the battery by yourself, as this will invalidate the warranty. Any repairs must be carried by either the manufacturer or their nominated service centre. Parts inside this device are subject to high voltage.

-23-

No user serviceable components are fitted inside this TV. Do not attempt any repairs, as this will invalidate the warranty. Any repairs must be carried out by either the manufacturer or their nominated service centre. Parts inside this set are subject to high voltage.

-24-

14. Specifications

LCD Display

DVB-T Decode Standard

DVB-T Band Width

DVB-T Frequency

Analogue TV Format

Analogue TV Frequency

AV Out

Antenna Input

Card Reader

USB Port

Built-in Speaker

Battery

Power Adaptor

Power Consumption

Video Format

Audio Format

Photo Format

Dimensions

Net Weight

Screen Size: 7 Inch Resolution: 480 x 234 pixels Aspect Ratio: 16:9 Brightness: 200 cd/m Contrast: 150:1

MHEG5 MPEG2 ISO/IEC13818 MPEG2 MP@ML

6M, 7M ,8M

VHF: 177.5~226.5 MHz UHF: 474~858 MHz

PAL-I , DK, BG SECAM-L, DK

VHF: 48.25 ~ 160.25 MHz;

168.25 ~ 456.25 MHz

UHF: 464.25~863.25 MHz

CVBS Output: 1Vp-p/75ohm System: PAL, NTSC

Impedance: 75ohm

Support SD, MMC,MS card

USB 2.0 host, 5V/600mA

2 x 1 W, 16 ohm

Lithium-ion rechargeable battery (2200mAh, 7.4V)

AC 100~240V 50~60 Hz DC 9V/1.5A

<10W

MPG, DAT, VOB, AVI (MPEG-1,2,4)

MP3, WAV

JPEG

191x143x27.5mm

586g

Warranty

This product is guaranteed for twelve months from the date of the original purchase. In the unlikely event of any defect arising due to faulty materials or workmanship, the unit will be either replaced or repaired free of charge (where possible) during this period. An alternative product will be offered in case the product is no longer available or repairable.

This warranty is subject to the following conditions:

The warranty is only valid within the country where the product is purchased The product must be correctly installed and operated in accordance with the instructions given in the user's manual. The product must be used solely for domestic purposes. The warranty only covers the main unit, and does not cover the accessories. The warranty does not cover the damage caused by misuse, negligence, accident and natural disaster. The warranty will be rendered invalid if the product is resold or has been damaged by inexpert repairs. The manufactures disclaim any liability for incidental or consequential damages. Please consult our customer adviser before returning any product; we are not responsible for any unexpected product return. Any faulty product must be kept and returned in the original packaging with all the accessories and the original copy of the purchase receipt.

The warranty is in addition to, and does not diminish, your statutory or legal rights.

Please note:

A LCD display panel comprises a very large number of pixels and each pixel

1. contains three sub-pixels - red, green and blue. Due to the complex manufacturing process, occasional pixel anomalies may occur. Pixel anomalies cannot be fixed or repaired and can happen at any stage in the LCD's life. August product should not be deemed as faulty if there are no more than three bright and dark pixels respectively.

Portable TV antennas included in the box are for people to watch Freeview TV in areas where the signal is strong and there may be difficulty to receive Freeview TV signal by the included portable antennas in some areas where the signal is not sufficiently strong. This is due to that the Freeview service in the UK is yet fully operating. August TVs should not be deemed as faulty if it can receive Freeview by connected to a proper rooftop aerial.

Customer Service:

Telephone: +44 (0) 845 250 0586 Email: service@augustint.com

Note:

Design and specifications of this device are subject to change without notice.

-25-

-26-

August DA701C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
