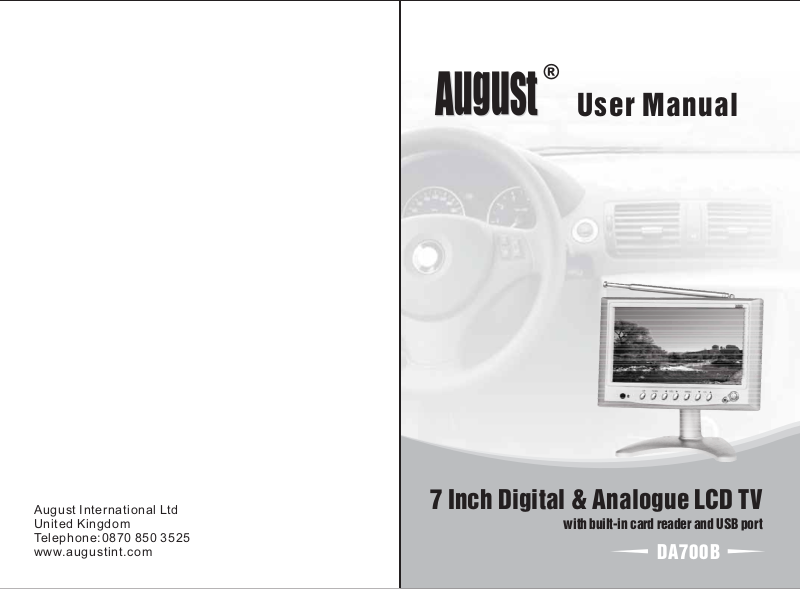

Page 1

User Manual

August International Ltd United Kingdom Telephone:0870 850 3525 www.augustint.com

7 Inch Digital & Analogue LCD TV

with built-in card reader and USB port

DA700B

Page 2

User Manual

Quick Start Guide

DA700B

1. It is suggested that you use a roof top aerial when scanning for TV channels

for the first time, if any signal is detected, the channel information will be

saved on the TV, you may then switch back to the portable antenna supplied

and change your location to find the best place to receive the signal.

Thank you for buying our August TV. You may already be familiar with using

a similar product but please take time to read these instructions carefully. It is

designed to familiarise you with the product’s many features and to ensure

that you get the very best from your purchase.

Safety

To ensure your safety and the safety of others, please ensure you read the

Safety Instructions you use this product.

Disposal

Please ensure the product and its accessories are disposed in compliance with

WEEE (Waste Electrical and Electronic Equipment) Directive and other

regulations. Please check with your local authority for disposal regulations.

Customer Service:

If you need help, please contact our Customer Service: Telephone: +44 (0) 870 850 3525 Email: service@augustint.com

before

2. The TV/AV button on the TV or MODE on the remote is for switching

between 3 modes: Analogue TV, Digital Freeview TV & Media Player and

AV Input.

3. When turning on the device for the first time, “Initial Install” will show,

follow the instructions to select OSD Language and Area, then press

ENTER, it will ask whether to install, select YES, the auto search will then

start. Once the search has finished, press CH+, CH- or EPG to select

channels. Press REV/RADIO to switch between Freeview TV and Radio

channels.

4. If you have done the first time installation before, and would like to search

for Digital Freeview channels again, or if you have moved to a different

region and need to scan channels again, press TV/AV on the TV or MODE

on the remote to switch to Digital TV & Media Player mode, press MENU,

select “Digital TV” by pressing ENTER, select “Installation”, then select

“Auto Search”, press ENTER to start the search. Once the search has

finished, press CH+, CH- or EPG to select channels. Press REV/RADIO to

switch between Freeview TV and Radio channels.

5. To search for Analogue TV, press TV/AV on the TV or MODE on the remote

to switch to Analogue TV mode and you should see either “AUTO”, “PAL”

or “SECAM” at the top right corner of the screen. Press MENU repeatedly,

it gives you menu “PICTURE”, “VOLUME”, “OPTION', “SYSTEM”,

“PRESET”, and “CLOCK” respectively. To start the auto search, move to

Page 3

“PRESET” menu and “AUTO SEARCH” is selected, press ARROW

RIGHT to start search for channels.

6. To play video, music, or photos on a SD card or memory stick, insert the

SD card or memory stick to the card slot or USB port, press TV/AV on the

TV or MODE on the remote to switch to Digital TV & Media Player mode,

press MENU to select “Movie”, “Music”, or “Photo”, press ENTER or

PLAY to start playing, press EXIT to stop and exit to main menu.

1.Safety Instructions

2.Accessories

3.Part Names and Functions

4.Remote Control

5.Connections

6.Digital Freeview TV (DVB-T)

7. Please note the included portable antenna may only be used in areas where

signal is very strong. There may be difficulties in receiving signal with the

portable antenna in some regions at present, this is due to the fact that

Freeview (www.freeview.co.uk) is yet to operate in full power in the UK.

The government aims to achieve a full switchover by 2012, which will

occur in stages, region by region between 2008 and 2012, at present the

quality of Freeview reception varies in different regions across the UK.

As mentioned on the Freeview website, only 73% of the UK population is

able to receive Freeview at present and only a small number of households

might be able to use a set top aerial at present. This only applies if you live

in an area with coverage close to a transmitter, but reception would still be

unreliable and they strongly recommend that you use a roof top aerial for

good reception.

The reception will be improving along with the progress of the Digital

Switchover Program. Reception may also be affected by various factors

such as how close you are to transmitters, tall buildings, thick walls,

ceilings and weather etc.

7.Card Reader & USB Functions

8.Games

9.Screen Setting

10.Analogue TV

11.AV Input

12.Troubleshooting

13.Technical Parameters

14.Warranty

8. For any further queries, please telephone August International Ltd

helpline 0870 850 3525 or email service@augustint.com

Page 4

1. Safety Instructions

Storage and Use

STRONG

Keep this machine away from hot or cold places. temperature of this machine is

-20~ 60 , the application temperature of this machine is 5~ 35 .℃℃

Never expose the TV set to moisture,dust oil or smoke.

Never put this machine in containers that are unstable as this may cause damage.

1.Only the attached AC adapter and the car adapter are suitable.

2.For the sake of safety, when you do not intend to use the display, please

Keep the TV set away from water or damp

STRONG

environment.

switch off the AC adapter or car adapter.

1.Please do not tune your headphone / earphone at high volumes, otherwise, it may lead to ear damage.

2.For open-designed earphone, to avoid annoying those close by, please tune down the volume.

Avoid dropping or exposing to impacts.

3.In case of any tinnitus, please turn down the volume or stop using this machine.

4.It is recommended by aurists that the earphones should not be used continuously for a prolonged period.

For the sake of safety for yourself and others, please do not watch the TV

Never extrude or chafe this machine with sharp objects.

while driving.

A few highlights or dark spots may appear on the LCD screen. It is a very common phenomenon of active matrix display technology, and does

Maintenance

Please unplug all connection wires before start cleaning this machine.

Please wipethe display screenand buttons witha soft cloth. Onlyclean the screenwith professional LCD TV screen cleanser.

Alcohol

Never wipethis machine with abrasive cloth, detergent powder, alcohol and benzene etc. various propellants or chemical cleaning products.

-1-

-2-

Page 5

2 Accessories.

3. Part Names and Functions

1 Remote receiver

．

TFT COLOR DPF DVB ATV MONITOR///

DISPLAY

MUTE

AUDIO

AUTO

TTX

REVRADIO/

FWDEPG/

FAV

PP.

SLEEP

ZOOM

RED

GREEN

DA700

YELLOW

BLUE

0 0 B

MODE

REPEAT

EXIT

RETURN

PRLIST

GAME

Remote control

123 4 56 78910

AV in/out cord

2 Base Support

．

3 OK confirm

．

4 TV/AV Shift

．

5 Volume - / Left

．

6 Volume + / Right

．

7 Menu

．

8 Channel -/ Down

．

9 Channel +/ Up

．

10 Power Indicator

．

Standby: Red

Turn on: Green

11 Power Switch

．

12 Telescopic Antenna

．

13 TFT LCD Screen

．

Base support

-3-

Double-sided adhesive pad for base support

14. AV OUT

15. AV IN

14 15

16. Earphone jack

17. SD/MMC/MS port

18. Power ON/OFF switch

19. + 12V DC IN jack

20. USB jack

21. Stereo speakers

-4-

Page 6

Panel Button Functions

This table explains the functions of the buttons on the panel in each mode:

4. Remote Control

Panel Button

①

POWER POWER

②

③

④

⑤

VOL-/

VOL+/

⑥

⑦

⑧

DVB-T

POWER

OK OK OK OK

TV AV/

CH-/

CH+/

▲

MODE MODE MODE MODE

VOL-

VOL

MENU MENU

CH-/

CH+/

Card & USB

POWER

VOL-

+ VOL+

▲

▲▲

▲

ATV

POWER

VOL-/

VOL+/

CH-/

CH+/

AUTO

DISPLAY

MUTE

MODE

17 18

SUBTITLE

VOL-/

▲

REPEAT

VOL+/

▲

EXIT

RETURN

PRLIST

▲

TTX AUDIO

FAV

FWD EPG/

▲

REV RADIO/

ZOOM

13 14

PP.

SLEEP

15 16

RED

GREEN

YELLOW

BLUE

32 33

DA700

DA700B

22 23

24 25

26 27

28 29

34 35

1 POWER

2 DISPLAY

3 MUTE

4. SUBTITLE 5 LANGUAGE

6SLOW

7MENU

8 LEFT RIGHT UP DOWN

./ //

9 ENTER

10 TTX

11 REV RADIO

12 FWD EPG

13 STOP

14 PLAY

15 P P

16 SLEEP

17 MODE

18 AUTO

19 NUMBER

20 REPEAT

21 RETURN

22 EXIT

23 PRLIST

24. AUDIO 25 FAV

26 NEXT

27 PREV

29 ZOOM

30 VOL

31 VOL

32 RED

33 GREEN

34 BLUE

35 YELLOW

-5-

-6-

Page 7

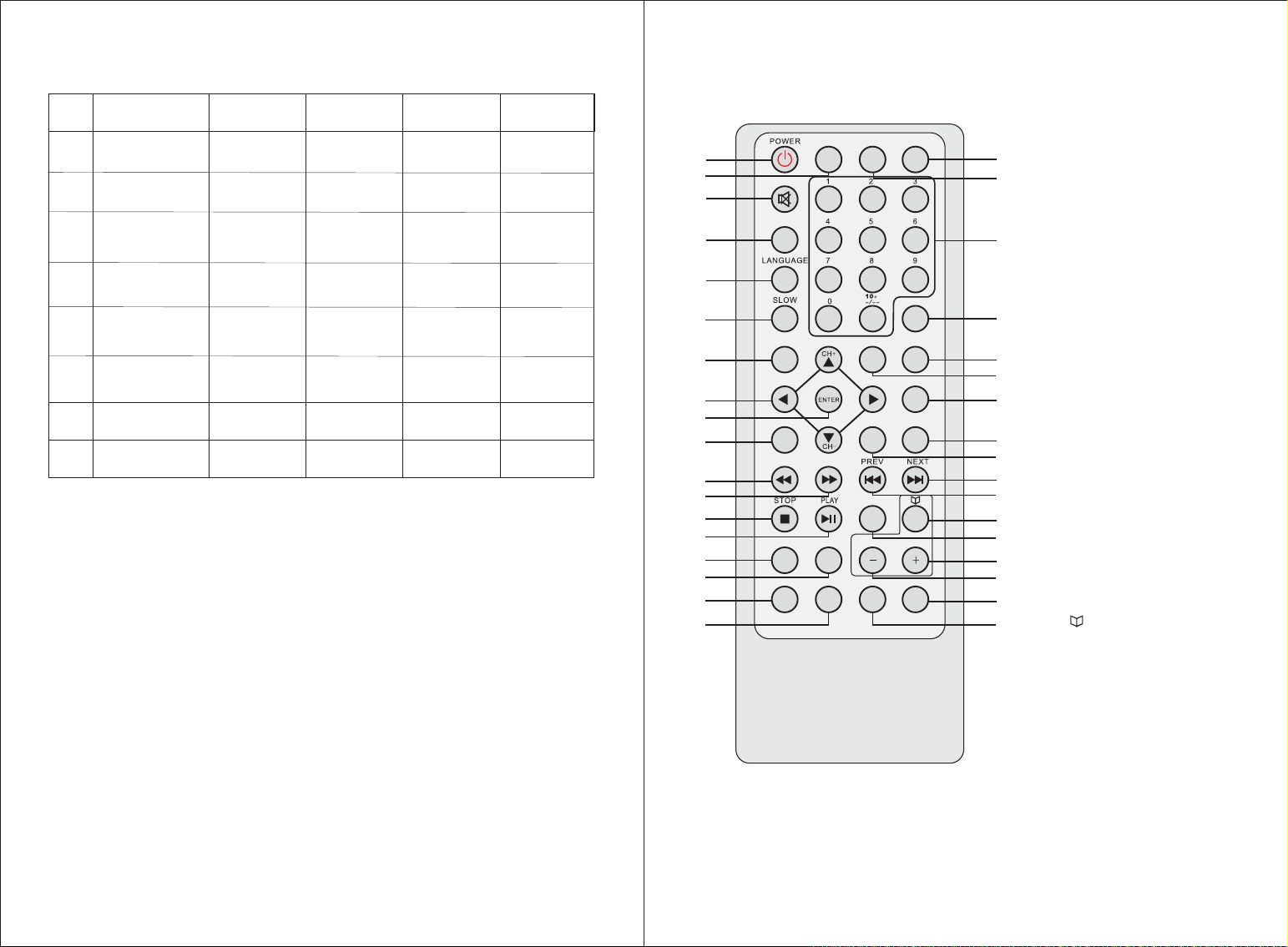

Remote Control Functions

This table explains the functions of the buttons on the remote control in each mode:

Remote button

SUBTITLE SUBTITLE SUBTITLE

LANGUAGE LANGUAGE LANGUAGE

REV RADIO/ RADIO REV

FWD EPG/ EPG FWD

NUMBER 0 9(～)

DVB

POWER POWER

DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY

MUTE MUTE MUTE MUTE MUTE

SLOW

MENU MENU MENU MENU MENU

▲ ▲ ▲ ▲ ▲

ENTER ENTER ENTER

TTX TELETEXT

STOP STOP

PLAY PLAY PLAY

PP. PP. PP. PP. PP.

SLEEP SLEEP SLEEP SLEEP SLEEP

MODE MODE MODE MODE MODE

AUTO AUTO AUTO

NUMBER 0 9(～)NUMBER 0 9(～) NUMBER 0 9(～)

REPEAT REPEAT

RETURN RETURN RETURN

EXIT EXIT EXIT

PRLIST PRLIST

AUDIO AUDIO

FAV FAV

NEXT NEXT

PREV PREV

ZOOM ZOOM ZOOM

VOL+ VOL+ VOL+ VOL+ VOL+

VOL- VOL- VOL- VOL- VOL-

RED RED

GREEN GREEN

BLUE BLUE

YELLOW YELLOW

Card & USB

POWER

SLOW

(video only)

AUDIO

-7-

ATV

POWER POWER

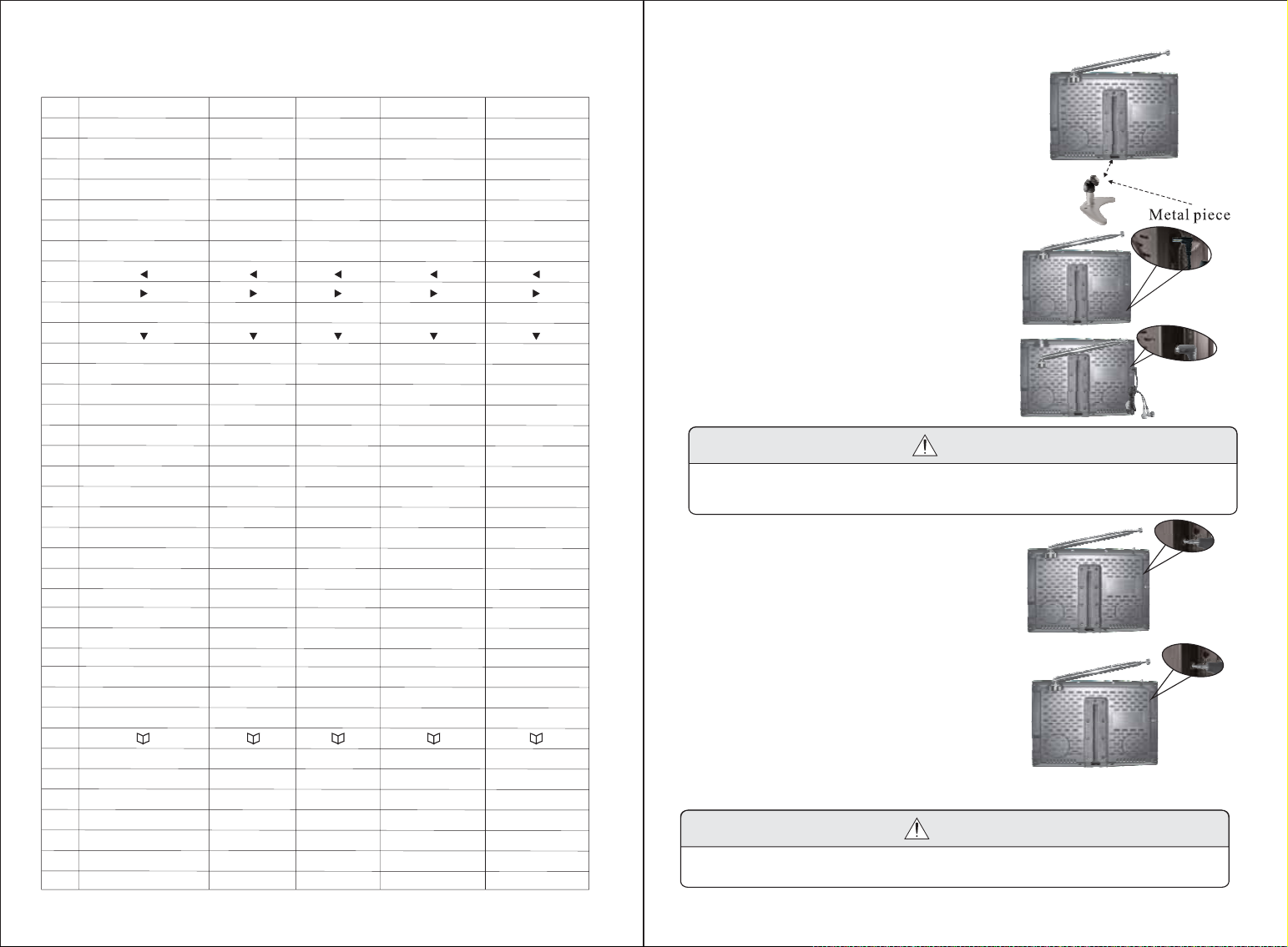

5. Connections

5.1. Installing the base support

Unscrew the oval handle on the ball-joint, it will split into halves, embrace them on the top of the base support, then tighten the oval handle. Slide the metal surface of the ball-joint into the slot on the back of the TV, then tighten the wheel screw.

5.2. Connecting the power supply

Insert the power supply plug on the AC adapter to the jack on the TV marked DC 12V.

5.3. Connecting the earphones

Insert the earphone plug to the jack on the TV marked earphones.

Notice

If earphones are used, sound is only transmitted through the earphones, and no sound is available from the stereo speakers of the TV.

5.4. Connection of AV Input

Connect the yellow port of the AV cable to video jack, the white port to the left audio jack and the red port to the right audio jack, then insert the AV head into the AV input jack on the TV.

5.5. Connection of AV Output

Connect the yellow port of the AV cable to video jack, the white port to the left audio jack and the red port to the right audio jack, then insert the AV head into theAV output jack on the TV.

Notice

The AV output function is only available when using DVB-T function.

-8-

Page 8

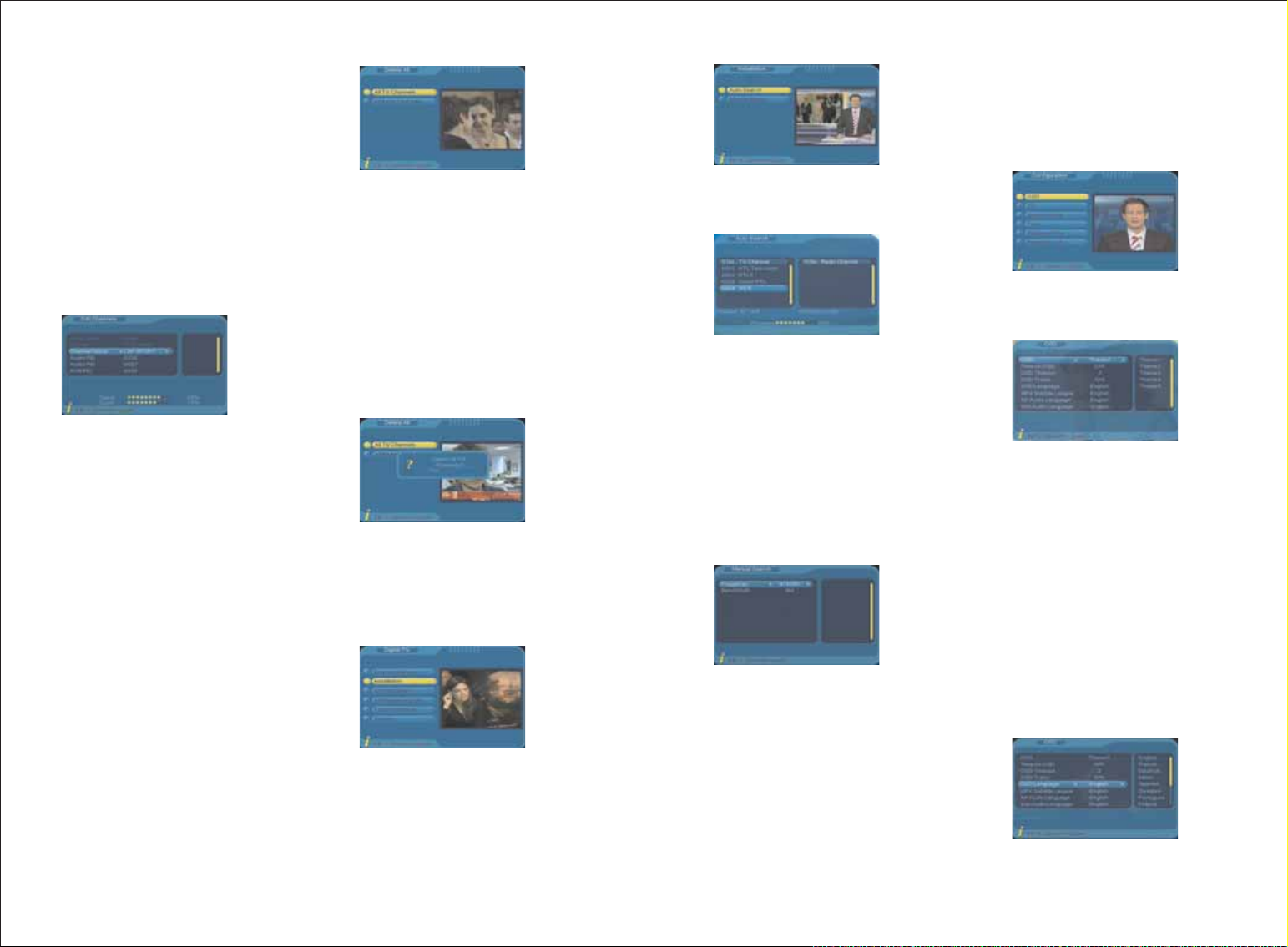

6. Digital Freeview TV (DVB-T)

When in Digital TV mode, press MENU and select Digital TV, it gives the following options: Channel Manager, Installation, Configuration, Software Upgrade, Factory Default, and Version Information.

6.1 Channel Manager

Channel Manager allows the user to sort, edit, delete, and classify the channels.

2. If there is no channel saved on the TV, Channel Organizer can not be accessed, and it will show “Channel not available”.

3. Use UP/DOWN to select the channel you want to edit.

- Press RED to select or cancel a favourite.

- Press GREEN to delete or undelete a

channel.

- Press YELLOW to set or cancel a

channel's position change.

- Press BLUE to lock or unlock a channel,

it will ask you to enter the password, the system default password is 0000.

4. To change the channel name, use UP/DOWN to select the channel line, press LEFT/RIGHT to enter the page to change the name, press RED/GREEN /YELLOW/BLUE to edit the name.

2. If there is no channel saved on the TV, Channel Sorting can not be accessed, and it will show “Channel not available”.

3. Press UP/DOWN to select: First Option: Area, press RIGHT to

①

enter the area list, use UP/DOWN to select, press ENTER to confirm.

Second Option: Sorting rules, press

②

RIGHT to enter the rule list, use UP /DOWN to select, press ENTER to confirm.

4. Sorting rules can be selected by pressing RIGHT/UP/DOWN/LEFT.

5. After sorting rules is selected, press ENTER to confirm, it will ask “Are you sure?”, select “Yes” to confirm and to proceed the sorting, or select “No” to cancel.

3. Use UP/DOWN to select the channel, and then select the category by pressing the numbers (1-8).

4. After setting, press EXIT, it will show “Successfully updated”.

6.1.4 Edit Channels

It allows the user to add and edit channels.

1. Edit Channels can be accessed by selecting MENU-> Digital TV-> Channel Manager-> Edit Channels.

2. If there is no channel saved on the TV, Edit Channels can not be accessed, and it will show “Channel not available”.

In Digital TV mode, select Channel Manager, press ENTER for the submenus.

6.1.1 Channel Organizer

Channel organizer is used to set favourite channels, change channel positions, lock and delete channels, and edit channel's name.

1. Channel Organizer can be accessed by selecting MENU -> Digital TV -> Channel Manager -> Channel Organizer.

5. Press EXIT or MENU to exit Channel Organizer.

6.1.2 Channel Sorting

It allows the user to sort the channels by area, alphabetically or by number sequence.

1. Channel Sorting can be accessed by selecting MENU-> Digital TV-> Channel Manager->Channel Sorting.

-9-

6. Press EXIT or MENU to exit Channel Organizer.

6.1.3 Channel Grouping

It allows the user to sort channels into 8 different categories: News, Science, Sports, Movie, Kids, Music, Fashion and None.

1. Channel Sorting can be accessed by selecting MENU-> Digital TV-> Channel Manager->Channel Grouping.

2. If there is no channel saved on the TV, Channel Grouping can not be accessed, and it will show “Channel not available”.

3. To add a new channel, press RED, and then press UP/DOWN to select between the 6 parameters as shown:

①

Area Name: press RIGHT to enter the area list, use UP/DOWN to select, press ENTER to confirm.

②

Carrier: press RIGHT to enter the carrier list, use UP/DOWN to select, press ENTER to confirm.

③

Channel Name: press RIGHT to enter the edit page, use RED/GREEN /YELLOW/BLUE to edit, press ENTER to confirm.

④

Audio PID: can be changed by pressing the numbers.

-10-

Page 9

⑤

Video PID: can be changed by pressing the numbers.

⑥

PCR PID: can be changed by pressing the numbers.

⑦

Once finish the settings, press ENTER to confirm, it will show “Successfully updated” and return to Edit Channels.

⑧

During setup, press EXIT at any time to cancel and exit to Edit Channels.

5. To edit a channel, press YELLOW, and then press UP/DOWN to select between the 4 parameters as shown:

①

Channel Name: press RIGHT to enter

the edit page, use RED/GREEN/ YELLOW/BLUE to edit, press ENTER to confirm.

Audio PID: can be changed by pressing

②

the numbers.

Video PID: can be changed by pressing

③

the numbers.

PCR PID: can be changed by pressing

④

the numbers.

Once finish the settings, press ENTER

⑤

to confirm, it will show “Successfully updated” and return to Edit Channels.

During setup, press EXIT at any time to

⑥

cancel and exit to Edit Channels.

6.1.5 Delete All

To delete all the TV and Radio channels, select MENU-> Digital TV-> Channel Manager-> Delete All.

1. It will ask you to enter the password, the default one is 0000. After entering the correct password, it allows you to select to delete all TV channels or Radio channels.

2. Use UP/DOWN to select TV channels, it will ask “ Delete all TV channels?”, select “Yes” to confirm and proceed the delete, select “No” to cancel.

3. Use UP/DOWN to select Radio channels, it will ask “ Delete all Radio channels?”, select “Yes” to confirm and proceed the delete, select “No” to cancel.

6.2 Installation

Installation is for searching TV and Radio channels, it can be accessed by selecting MENU-> Digital TV-> Installation.

Pressing ENTER, it gives two search options: Auto Search and Manual Search.

6.2.1 Auto Search

Select Auto Search, press ENTER, it will start the search.

After searching, the system will automatically exit the searching page, save program information and return to Installation menu, press EXIT or MENU to exit.

6.2.2 Manual Search

If you know a channel's broadcasting frequency and bandwidth, using manual search to find the channel can be quicker.

Select Manual Search, press ENTER, it will ask you to provide two parameters:

①②Freq (KHz): scanning frequency, the

default is 474000 KHz, use numbers or LEFT/RIGHT to change.

Band Width: use LEFT/RIGHT to select.

After setting, press ENTER to start the search. After searching, the system will automatically exit the searching page, save program information and return to Installation menu, press EXIT or MENU to exit.

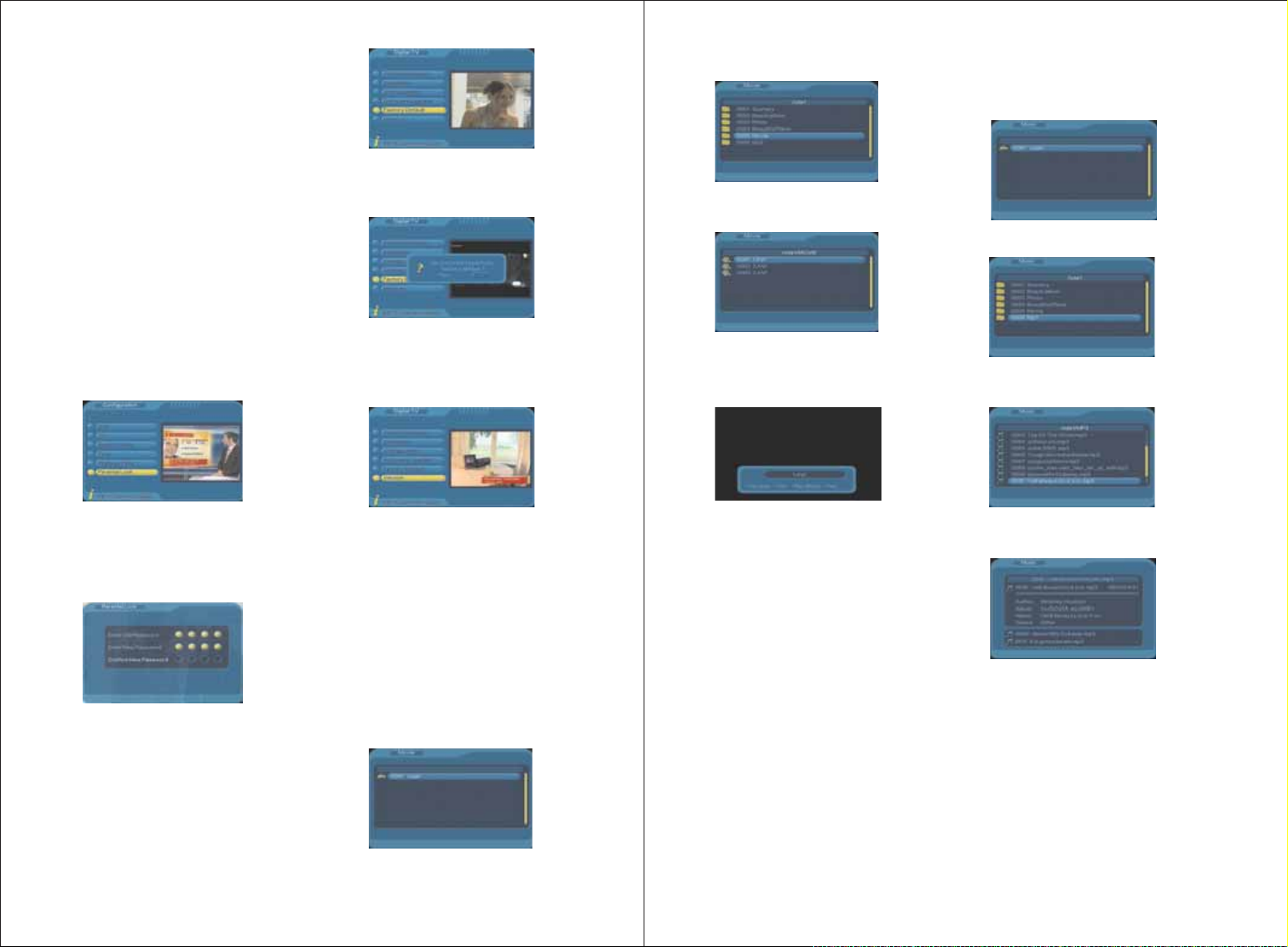

6.3 Configuration

Configuration menu has the following options: On Screen Display, TV, System Setup, Time, Wakeup Timer and Parental Lock. It can be accessed by selecting MENU->Digital TV->Configuration.

6.3.1 OSD (On Screen Display)

Through OSD, you can set the interface pattern.

Left of the menu lists all the options under OSD. Press UP/DOWN to select an option.

1. OSD: supports 5 menu patterns, press LEFT/RIGHT to select between Theme1-5.

2. OSD Timeout: sets the display time of an information dialog window, press LEFT/RIGHT to select between 1-6 seconds, the system default is 3seconds.

3. OSD Trans: sets the diaphaneity of the menu, press LEFT/RIGHT to adjust from 0%-60%.

4. OSD Language: the system supports multi-language user interface, press RIGHT to enter the language list, use UP/DOWN to select, press ENTER to confirm.

-11-

-12-

Page 10

5. MP4 Subtitle Language: press RIGHT to enter the subtitle language list, use UP/DOWN to select, press ENTER to confirm.

6. 1st Audio Language: press RIGHT to enter Audio Language list, use UP/DOWN to select, press ENTER to confirm.

7. 2nd Audio Language: press RIGHT to enter Audio Language list, use UP/DOWN to select, press ENTER to confirm.

8. After setting, press ENTER confirm, press EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.2 TV

This option allows the users to set their preferred TV output settings.

Left of the menu lists all the options. Press UP/DOWN to select an option.

1. Display Mode: press LEFT/RIGHT to select between AUTO, PAL, & SECAM, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

2. Aspect Ratio: press LEFT/RIGHT to select between 16:9, 4:3 Pan Scan, 4:3 Letter Box, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

3. Video Output: press LEFT/RIGHT to select between S-Video and CVBS, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

4. Brightness: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

5. Contrast: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

6. HUE: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

7. Saturation: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP /DOWN to select another option.

8. After setting, press ENTER, EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.3 System Setup

Press UP/DOWN to select an option, use LEFT/RIGHT to change the settings. After setting, press ENTER, EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.4 Time

You can set Timer Mode, Date, Time, GMT Offset, and Summer Time under Time menu. There are two Timer modes, one is Auto, and one is Manual.

The system default is Auto timer mode, press UP/DOWN to select Timer Mode or GMT Offset, use RIGHT/LIFT to change.

In Manual timer mode, press UP/DOWN to select an option, use RIGHT/LEFT or numbers to change the Date, Time, GMT Offset or Summer Time.

Press ENTER to confirm, press EXIT or MENU to exit the setup, it will show “Successfully updated”.

6.3.5 Wakeup Timer

If you know what time a program will be on, or want a hint when it is on, you can set this through Wakeup Timer.

You can set Timer Mode, Wakeup Mode, Wakeup Message, Wakeup Channel, Wakeup Date, Time, and Duration.

1. Timer No: the number of this Wakeup timer setting.

2. Timer Mode: select between Once, Daily, Weekly, Yearly or Off.

3. Wakeup Mode: use LEFT/RIGHT to choose to show a message, a channel, or a hint asking whether to turn on or switch off the TV.

-13-

-14-

Page 11

①②Wakeup Message: use LEFT/RIGHT to

select between Birthday, Anniversary or General.

Wakeup Channel: use LEFT/RIGHT to select a channel from the channel list.

Use UP/DOWN to select a subtrack.

7.2 Music

Press MENU, select Music, press ENTER, the Music menu will show:

4. Wakeup Date: press RIGHT to enter the Calendar, use UP/DOWN/LEFT/RIGHT to select a date.

5. On Time: use numbers to set the on time.

6. Duration: use numbers to set the duration time of the TV program you want to watch.

After setting, press ENTER, it will show “Set successful”. Press EXIT or MENU to exit the setup, it will show“Successfully updated”.

6.3.6 Parental Lock

User can change system password under this option.

Enter the old password, if it is correct, the cursor will move to Enter New Password option, enter and confirm the new password. The system will show “Password changed”.

The system default password is 0000.

6.4. Software Upgrade

This function is for manufacturer use only.

6.5 Factory Default

To restore the system configuration to factory default, press MENU, selectDigital TV-> Factory Default, press ENTER.

It will ask whether you want to perform the factory default, select [No] to cancel or select [Yes] to confirm.

6.6 Version

This provides the hardware, software and system information.

7. Card Reader & USB Functions

This player has built-in SD/MMC/MS card reader and USB port. It supports the playback of MP3, JPEG and MPEG4 (AVI) files.

Insert a SD/MMC/MS card or an USB memory stick to the card slot or USB port on the player.

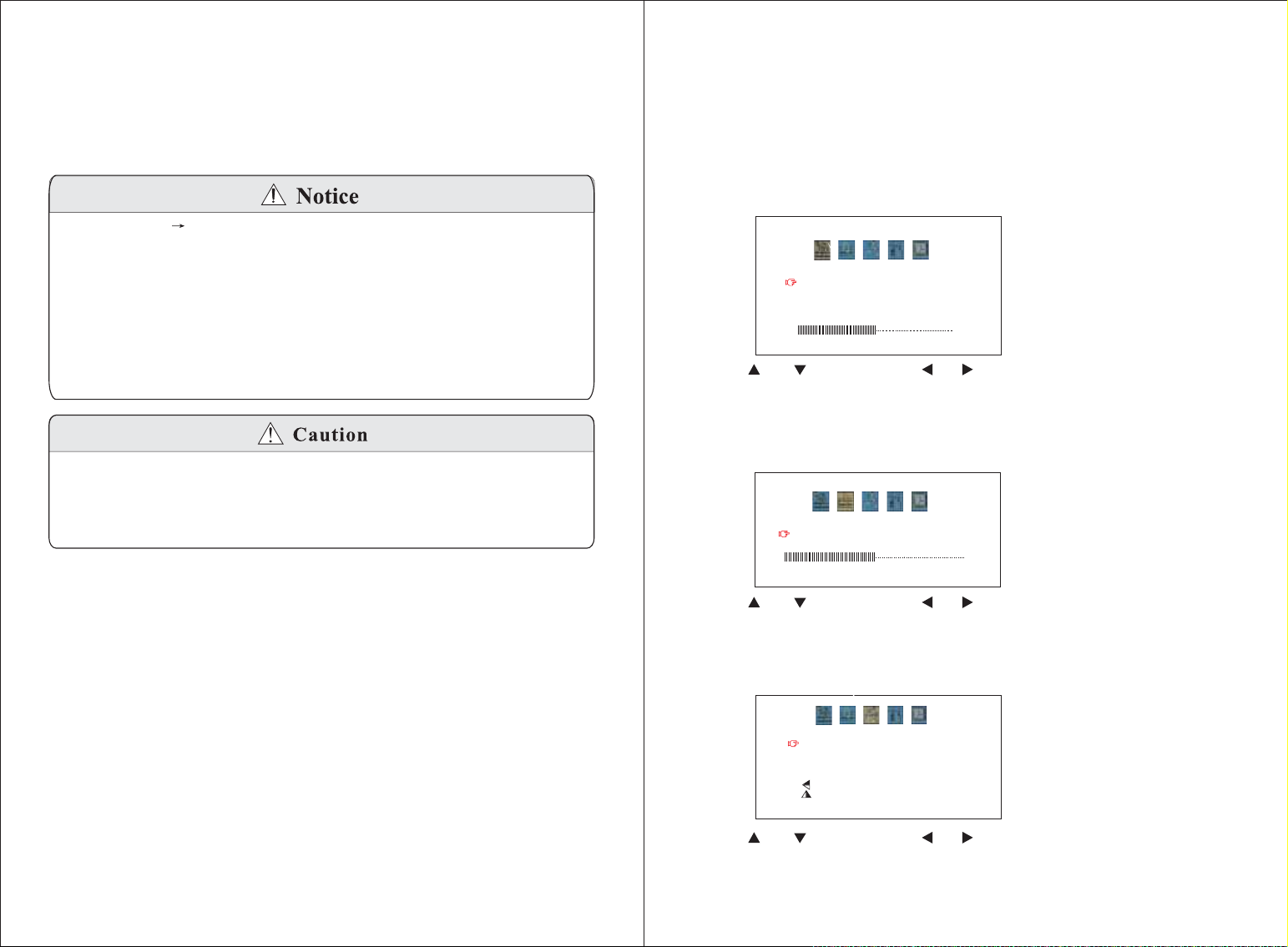

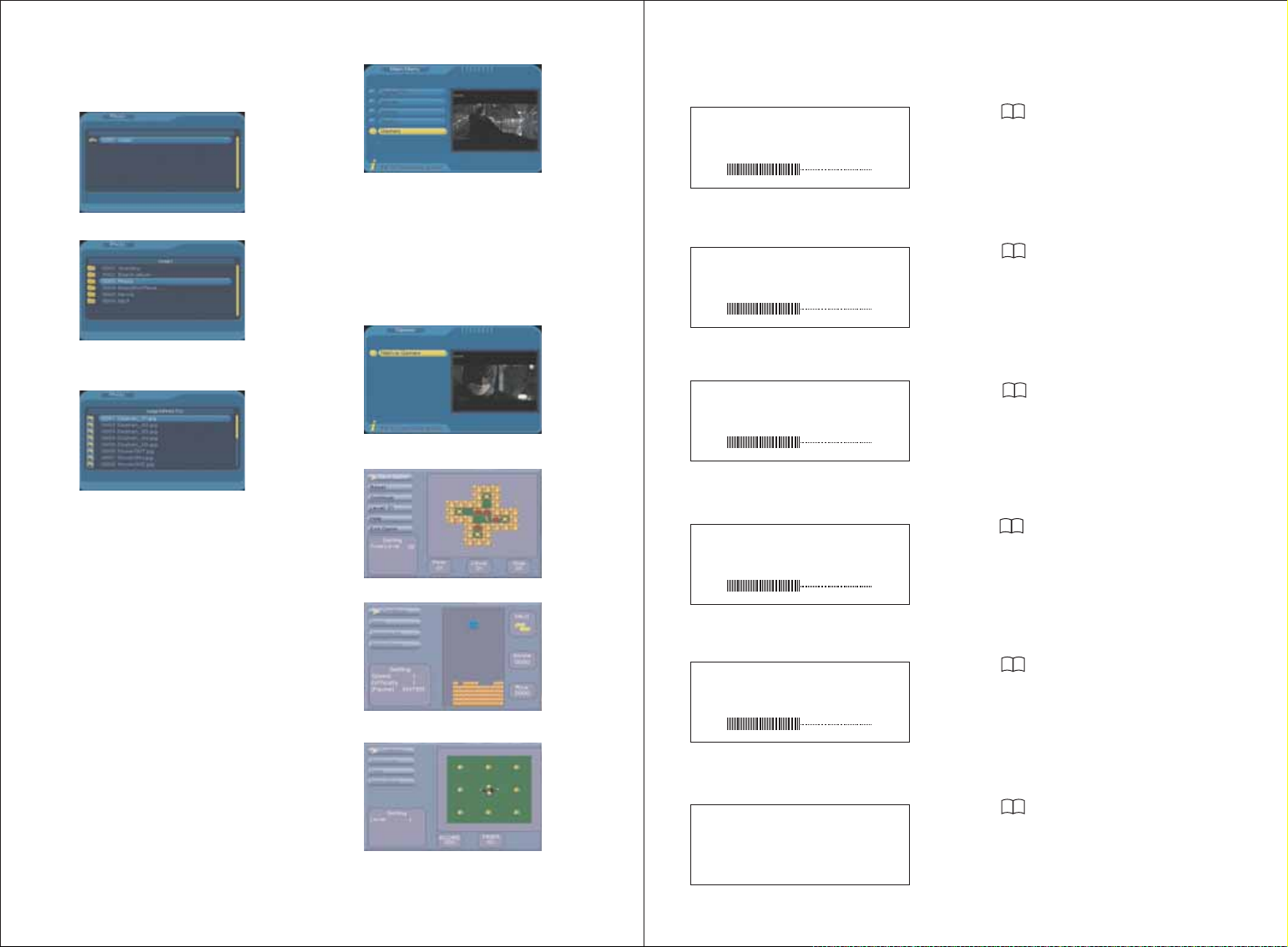

7.1 Movie

Press MENU, select Movie, press ENTER, the Movie menu will show:

Press ENTER to view the video files in the subtrack.

Use UP/DOWN to select a movie you want to watch, press ENTER to confirm.

Press PLAY/PAUSE to start, pause and resume the play. Press FWD to search forward at 2, 4, 8 and 20 times of the normal speed. Press REV to reverse at 2, 4, 8 and 20 times of the normal speed. Press SLOW to start slow playback at 1/2 or 1/4 times of the normal speed. Press PREV to play the previous movie, press NEXT for the next one. Press REPEAT to choose Repeat Once, Repeat Directory, Repeat Shuffle, Repeat Off. Press ZOOM to view the picture at 2, 3, 4, 1/2, 1/3, or 1/4 times of the normal view. Press STOP and EXIT to exit the playback.

Use UP/DOWN to select a subtrack.

Press ENTER to view the music files in the subtrack.

Use UP/DOWN to select a file you want to play, press ENTER to confirm.

Press PLAY/PAUSE to start, pause and resume the play. Press FWD to search forward at 2, 4, 8 or 20 times of the normal speed. Press REV to reverse at 2, 4, 8 or 20 times of the normal speed. Press PREV to play the previous music file, press NEXT for the next one. Press REPEAT to choose Repeat Once, Repeat Directory, Repeat Shuffle, Repeat Off. Press STOP and EXIT to exit the playback.

-15-

-16-

Page 12

7.3 Photo

Press MENU, select Photo, press ENTER, the Photo menu will show:

Use UP/DOWN to select a subtrack.

Press UP/DOWN to select the game you want to play, press ENTER to confirm. The games are played using UP/DOWN /LEFT/RIGHT buttons. To exit the game, press ENTER to pause, and then select Exit Game.

9. Screen Setting

Bright

BRIGHT

Contrast

CONTRAST

Press to enter Brightness menu. Press + or - to adjust.

Press repeatedly to enter Contrast menu. Press + or - to adjust.

Press ENTER to view the photo files in the subtrack.

Use UP/DOWN to select a file you want to play, press ENTER to confirm.

Press PREV to play the previous photo, press NEXT for the next one. Press RIGHT to rotate clockwise, press LEFT to rotate anticlockwise. Press UP for mirror effect, press UP again to back to normal. Press DOWN for upside down effect, press DOWN again to back to normal. Press ZOOM to view the picture at 2, 3,

4, 1/2, 1/3, or 1/4 times of the normal view.

Press STOP and EXIT to exit the playback.

8. Games

Games can be accessed by selecting Menu

->Game-> Native Games.

Color

COLOR

Hue(Only in NTSC/SECAM mode)

HUE

Volume

VOLUME

Reset

RESET

Press repeatedly to enter Colour menu. Press + or - to adjust.

Press repeatedly to enter Hue menu. Press + or - to adjust.

Press repeatedly to enter Volume menu. Press + or - to adjust.

Press repeatedly to enter Reset menu. Press + or - to reset the Brightness, Contrast, Colour, Hue and Volume settings to the default level 50.

-17-

-18-

Page 13

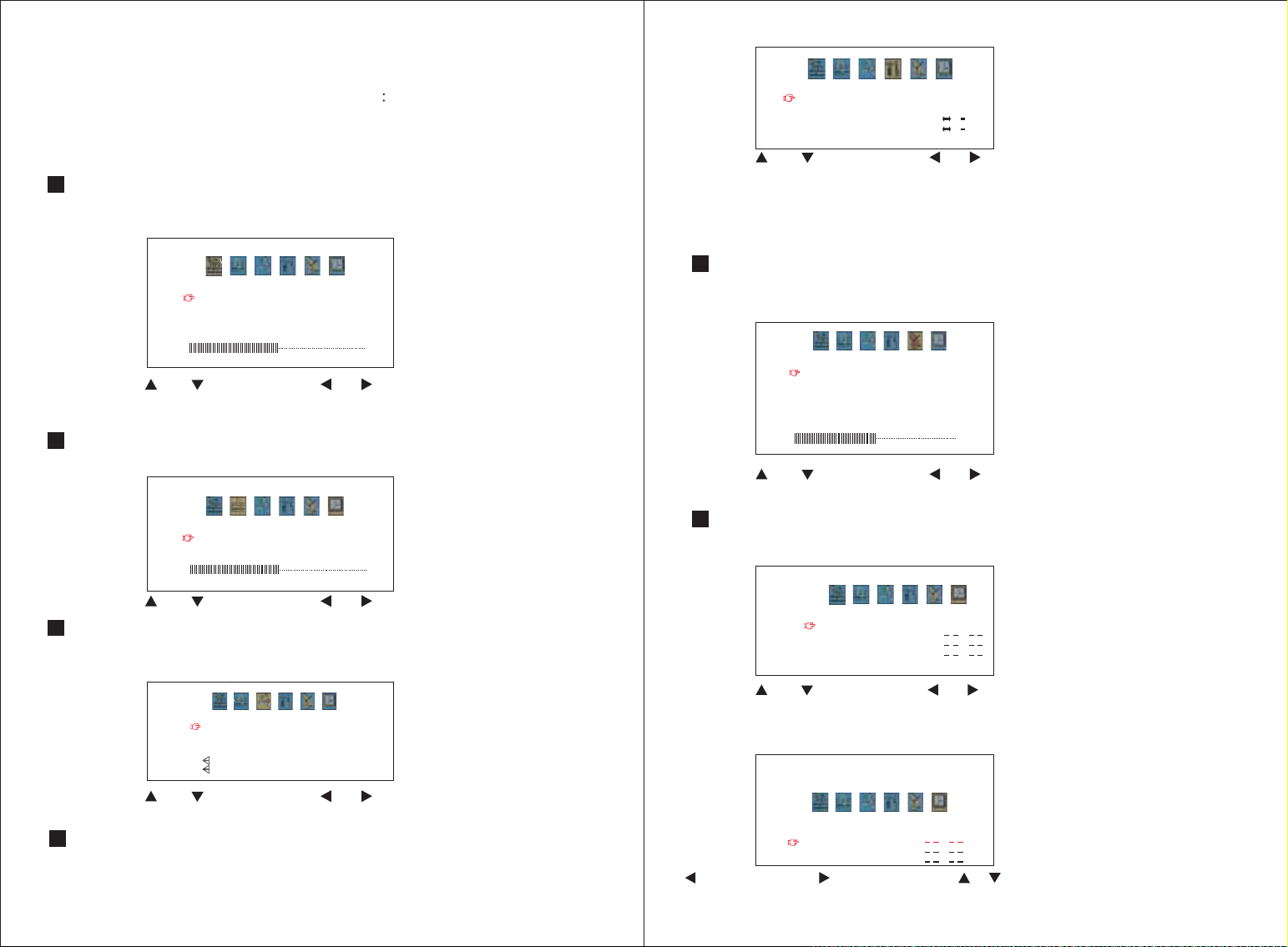

10. Analogue TV

Press MODE on the remote control to switch to the Analogue TV mode. Press MENU repeatedly, the following options will show:

PICTUR VOLUME OPTION

SYSTEM PRESET CLOCK

10.1. Picture

Press UP or DOWN to select between Brightness, Contrast, Colour, and Language settings.


BRIGHT

CONTRAST COLOR ENGLISH

/ Select / Adjust

Press LEFT or RIGHT to change the setting.

10.2. Volume

Press LEFT or RIGHT to change the volume setting.

VOLUME

50 50

SYSTEM

COLOR SYS-

SOUND SYSSWAP COPY

AUTO

0 0

/ Select / Adjust

Color-Sys: Press LEFT or RIGHT to select between AUTO, PAL, and SECAM. Sound-Sys: Press LEFT or RIGHT to select between I, L, BG, and DK. Swap: Use LEFT, RIGHT, UP or DOWN to swap channel positions. Copy: Use LEFT, RIGHT, UP or DOWN to copy and change channels.

10.5. Preset

Press UP or DOWN to select between Auto Search, Search, Fine, Band, Position and Skip settings.

PRESET

AUTO SEARCH-

SEARCH FINE BAND POSITION SKIP

VHFL

//Select Adjust

Press LEFT or RIGHT to change the setting.

10.6. Clock

Press UP or DOWN to select between Sleep, Time, Off-Time, and On-Time settings.

/ Select / Adjust

10.3. Option

Press UP or DOWN to select between Zoom, Blue Background, Game, Calendar, picture up down and mirror effect settings.

OPTION

ZOOM :16 9

BLUE BACK ON GAME CALENDAR

VERTICAL HORIZONTAL

/ Select / Adjust

Press LEFT or RIGHT to change the setting.

10.4. System

Press UP or DOWN to select between Color-Sys, Sound-Sys, Swap and Copy settings.

-19-

CLOCK

SLEEP

TIME OFF TIMEON TIME-

: : :

//Select Adjust

Sleep: The unit can be set to turn off automatically after certain time, press LEFT or RIGHT to select from 0 to up to 240 minutes maximum with 10 minutes intervals.

CLOCK

SLEEP

TIME

OFF TIMEON TIME-

: :

Adjust hour Adjust minute Select items to be setup:: /:

-20-

Page 14

Time: Press LEFT to change the hours, press RIGHT to change the minutes. Off-Time: The unit can be set to turn off automatically, press LEFT to change the hours, press RIGHT to change the minutes. On-Time: The unit can be set to turn on automatically, press LEFT to change the hours, press RIGHT to change the minutes.

1. Auto Search Start from Program NO .0.

2. When the signal is received under Manual Search, the indication frequency will stop, which is the optimum position for signal storage. If the signal is too weak, the system will automatically identify it as no signal.

3. In the case of a picture without sound, please check the Sound System for correct setup first.

4. If the input signal is not strong enough, please adjust “Fine” option, it may improve the picture and sound quality.

If the signal is too weak, the image will remain poor whatever you do, and may output loud noises, shaking images and inferior sound etc., which is not the TV's fault. If the image remains poor when using the telescopic antenna, please try to use a roof top aerial or an amplified external antenna.

11. AV Input

Press MODE on the remote control to switch to the AV mode. Press MENU repeatedly, the following options will show:

PICTURE VOLUME OPTION SYSTEM CLOCK

11.1 Picture

Press UP or Down to select between Brightness, Contrast, Colour and Language settings.


BRIGHT

CONTRAST COLOR ENGLISH

/ Select / Adjust

Press LEFT or RIGHT to change the setting.

11.2 Volume

Press LEFT or RIGHT to change the volume setting.

VOLUME

50 50

-21-

/ Select / Adjust

11.3 Option

Press UP or DOWN to select between Zoom, Blue Background, Game, Calendar, picture up down and mirror effect settings.

OPTION

ZOOM :16 9

BLUE BACK ON

GAME CALENDAR

VERTICAL HORIZONTAL

/ Select / Adjust

Press LEFT or RIGHT to change the setting.

-22-

Page 15

11.4 System

12. Troubleshooting

Problems listed below do not necessarily signify a fault with the unit. Please check this list before requesting repairs.

SYSTEM

COLOR SYS-

AUTO

/ Select / Adjust

Color-Sys: Press LEFT or RIGHT to select between AUTO, PAL, NTSC and SECAM.

11.5 Clock

Press UP or DOWN to select between Sleep, Time, Off-Time, and On-Time settings.

CLOCK

SLEEP

TIME OFF TIMEON TIME-

: : :

/ Select / Adjust

Sleep: The unit can be set to turn off automatically after certain time, press LEFT or RIGHT to select from 0 to up to 240 minutes maximum with 10 minutes intervals.

CLOCK

SLEEP

TIME

OFF TIMEON TIME-

: :

Problems

No picture and no sound

No image

No sound

Picture freezing, and/or

sound distorting

No signal

Dark Picture

Snowstorm

Achromatic/Flashing/No Colour

Possible Causes and Solutions

Check the connection with the AC adapter/Car adapter. Use of an unauthorized power supply. Power switch on the side of the TV is off. TV is on standby as it was switched off by pressing the POWER on remote.

Check the channel selection. Scan for channels again. Always rescan for channels in new locations. Ensure video settings are correct.

Check the sound volume. If you are using earphones, test them on another item. Check that the cable is plugged in. Sound System is not correctly set in Analogue TV mode.

Signal too weak, please check the aerial. Try to use a proper roof top aerial or an amplified aerial.

Please adjust Brightness and/or Contrast settings.

Motors/Trains/High Voltage Lines and Neon Lights may affect the signal.

Please adjust the Colour Setting. Color-Sys is not correctly set in Analogue TV mode.

/ Select / Adjust

-23-

No user serviceable components are fitted inside this TV. Do not attempt any repairs, as this will invalidate the warranty. Any repairs must be carried out by either the manufacturer or their nominated service centre. Parts inside this set are subject to high voltage.

-24-

Page 16

13. Technical Parameters

Product Name: 7 inch Digital & Analogue LCD TV with built-in card

reader and USB port

Disc Format: DVD, VCD, SVCD, MPEG4, JPEG, MP3, CD-R,

CD-RW, WMA. Picture Resolution: 500 Line Video S/N Ratio: 60dB Frequency Response: fs 96KHz: 4Hz-44KHz:+/-1dB Audio S/N Ratio: 90dB Dynamic Range: 90dB Harmonic Distortion: 0.01% D/A Converter:96KHz/24bit Video Output Level: 1Vp-p(75ohm) Audio Output Level: 1.0V± 0.1V DVB Band Wide:6 7 8 DVB VHF:177.5MHz~226.5MHz

UHF:474MHz~858MHz DVB Decode standard:MPEG2 ISO/IEC13818 MPEG2 MP@ML ATV Receiving Channel: 48.25MHz~855.25MHz ATV Sound System: DK I BG L M N Screen Size: 7 inches Audio Output: 0.3W (Max) Loudspeaker: two 40x20mm squareness loudspeaker. Outer Dimension: 197×132×40mm Weight: about 895g Dot Matrix: 0.107(H) 0.372 (V) Resolution: 480×RGB×230 Response Speed (ms): R: 30 / F:50 Visible Angle: U: 15 / D:35, R / L:50 Brightness: 200cd/m Contrast: 150:1

Warranty

This product is guaranteed for 2 years from the date of the original purchase. This warranty covers costs of parts and labour for the first 12 months and covers manufacture defects of major components which include LCD screens, DVD disc loaders and software on main circuit board for the second 12 months. In the unlikely event of any defect arising due to faulty materials or workmanship, the unit will be either replaced or repaired (where possible) during this period. An alternative product will be offered in case the product is no longer available or repairable.

This warranty is subject to the following conditions:

The warranty is only valid within the country where the product is purchased The product must be correctly installed and operated in accordance with the instructions given in the user's manual. The product must be used solely for domestic purposes. The warranty only covers the main unit, and does not cover the accessories. The warranty does not cover the damage caused by misuse, negligence, accident and natural disaster. The warranty will be rendered invalid if the product is resold or has been damaged by inexpert repairs. The manufacture disclaims any liability for incidental or consequential damages. Please consult our customer service before returning any product; we are not responsible for any unexpected product returns.

Any faulty products must be kept and returned in the original packaging with all the

accessories and the original copy of the purchase receipt.

The warranty is in addition to, and does not diminish, your statutory or legal rights.

Please note:

1.A LCD display panel comprises a very large number of pixels and each pixel contains three sub-pixels - red, green and blue. Due to the complex manufacturing process, occasional pixel anomalies may occur. Pixel anomalies cannot be fixed or repaired and can happen at any stage in the LCD's life. August products should not be deemed as faulty if there are no more than three bright and dark pixels respectively.

2.Portable TV antennas included in the box are for people to watch Freeview TV in areas where the signal is very strong and there may be difficulties in receiving signal with the included portable antennas in some regions at present. This is due to the fact that Freeview is yet to operate in full power in the UK. August TVs should not be deemed as faulty if it can receive Freeview by connecting to a proper digital rooftop aerial.

-25-

Customer Service:

Telephone: +44 (0) 870 850 3525 Email: service@augustint.com

-26-

August DA700B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
