August DA110CD User Manual

Thank you for buying our August TV. You may already be familiar with using

a similar product but please take time to read these instructions carefully. It is

designed to familiarise you with the product’s many features and to ensure

that you get the very best from your purchase.

To ensure your safety and the safety of others, please ensure you read the

Safety Instructions you use this product.

Please ensure the product and its accessories are disposed in compliance with

WEEE (Waste Electrical and Electronic Equipment) Directive and other

regulations. Please check with your local authority for disposal regulations.

If you need help, please contact our Customer Service:
Telephone: [phone]
Email: [e-mail]

Safety

Disposal

Customer Service:

before

User Manual

1. It is suggested that you use a roof top aerial when scanning for TV channels

for the first time, if any signal is detected, the channel information will be

saved on the TV, you may then switch back to the portable antenna supplied

and change your location to find the best place to receive the signal.

2. When turning on the device for the first time, to search for Digital Freeview

TV, press DVD/DVB to switch to DVB (Freeview TV) mode, it will ask

you to do the “First Time Installation”. Follow the instructions to select

“Country” and start the “Auto Scan”. Once the scan has finished, press

CH+, CH- or EPG to select channels.

3. To search for Analogue TV, press TV on the remote and you should see

either “AUTO”, “PAL” or “SECAM” at the top right corner of the screen.

Press MENU once to enter the first menu to change “Bright”, “Contrast”,

“Colour” and “Language”. Press MENU again to enter the second menu to

search for channels, change the video system (S-COLOR) between AUTO,

PAL and SECAM, and change the sound system (S-SYS) between I (UK),

L (France), BG (other European countries) and DK (Russia and Asia

countries). Press DOWN on the second menu to select “AUTO-SEARCH”,

then press RIGHT to start searching for channels.

4. If you have done the first time installation before, and would like to search

for Digital Freeview channels again, or if you have moved to a different

region and need to scan channels again, press DVD/DVB to switch to DVB

(Freeview TV) mode, then press SETUP, press DOWN to select

“Installation”, press RIGHT to select “Auto Scan”, press ENTER, press

LEFT or RIGHT to select the correct “Country”, press DOWN to select

“Start Scan”, then press ENTER to start. Once the scan has finished, press

CH+, CH- or EPG to select channels.

Quick Start Guide

DA110CD

5. To play a DVD or CD, insert the disc into the DVD drive, press DVD/DVB
to switch to DVD mode, press PLAY or wait for the player to load the disc
automatically.

6. To play music, photos or video files on a SD card or memory stick, insert
the SD card or memory stick to the card slot or USB port, press DVD/DVB
to switch to DVD mode, press LEFT or RIGHT to switch between the
“Audio”, “Photo”, “Video” folders and Subtrack, press UP or DOWN to
select the file you want to play, press ENTER or PLAY to start playing.

7. If your TV model has a built-in battery, there are power sockets on both
sides of the TV, the side with “CHG” is only for charging the battery. When
connected with a power adapter, the red light “CHG” will be on, which
means that it is charging. The power socket on the other side of the TV is
for watching TV only.

8. Please note the included portable antenna may only be used in areas where
signal is very strong. There may be difficulties in receiving signal with the
portable antenna in some regions at present, this is due to the fact that
Freeview (www.freeview.co.uk) is yet to operate in full power in the UK.
The government aims to achieve a full switchover by 2012, which will
occur in stages, region by region between 2008 and 2012, at present the
quality of Freeview reception varies in different regions across the UK.

As mentioned on the Freeview website, only 73% of the UK population is
able to receive Freeview at present and only a small number of households
might be able to use a set top aerial at present. This only applies if you live
in an area with coverage close to a transmitter, but reception would still be
unreliable and they strongly recommend that you use a roof top aerial for
good reception.

The reception will be improving along with the progress of the Digital
Switchover Program. Reception may also be affected by various factors
such as how close you are to transmitters, tall buildings, thick walls,
ceilings and weather etc.

9. For any further queries, please telephone August International Ltd
helpline 0870 850 3525 or email [e-mail]

1

3

4

5

7

9

9

9

9

9

9

10

11

12

13

17

17

18

18

18

18

18

18

19

22

23

23

24

26

27

1.Safety Instructions

2.Product Features

3.Accessories

4.Part Names and Functions

5.Remote Control

6.Connections

6.1.Installing the base support

6.2.Connecting the power supply

6.3.Connecting the earphones

6.4.Connection of AV input

6.5.Connection of AV output

6.6.System connection

7.DVD Player Operation

7.1.Basic operations

7.2.DVD Setup Menu

7.3.Playing MP3 music

7.4.Playing JEPG photos

7.6.USB port function

7.7.Card reader function

8.Digital Freeview TV (DVB-T)

8.1.Turn on the machine

8.2.First time installation

8.3.Main menu

9.Analogue TV

10.AV Input

11.Troubleshooting

12.Technical Parameters

13.Battery Charging

14.Warranty

7.5.Playing MPEG4 video

-1-

1.Safety Instructions

Storage and Use

Keep thismachine
away fromhot or
cold places.
The storage
temperature ofthis
machine is-20~
60 , the
application
temperature ofthis
machine is5~35 .℃℃

Never putthis
machine in
containers that
are unstableas
this maycause
damage.

Avoidthis
machine from
being dropped
or impact.

Never exposethe
TV setto moisture,
dust, oilor smoke.

To prevent electric shock, do not expose the unit to rain or moisture. Never
attempt to open the cabinet, high voltages are present in the unit.

1.Please place the unit in a place with a good airflow.

2.It is normal for the cover and rear panel to become warm after the player
has been operating for an extended period of time.

3.Do not move this device during playback. Doing so may cause damage
to the unit and the disc.

4.The DVD Video player is a CLASS 1 LASER product. There may be
dangerous laser radiation inside. As the laser beam used in this DVD
Video player is harmful to the eyes, do not attempt to disassemble the
cabinet.

Keep the TV set
away from water
or damp
environment.

Avoid dropping
or exposing to
impacts

1.Please do not tune your headphone / earphone at high volumes, otherwise,
it may lead to ear damage.

2.For open-designed earphone, to avoid annoying those close by, please tune
down the volume.

3.In case of any tinnitus, please turn down the volume or stop using this
machine.

4.It is recommended by aurists that the earphones should not be used
continuously for a prolonged period.

For the sake of safety for yourself and others, please do not watch the TV

while driving.

1.Only the attached AC adapter and the car adapter are suitable.

2.For the sake of safety, when you do not intend to use the display, please
switch off the AC adapter or car adapter.

-2-

Please wipethe
display screenand
buttons witha soft
cloth. Onlyclean
the screenwith
professional LCD
TV screencleanser.

Never wipethis
machine with
abrasive cloth,
detergent powder,
alcohol and
benzene etc.
various propellants
or chemical
cleaning products.

A few highlights or dark spots may appear on the LCD screen. It is a very
common phenomenon of active matrix display technology, and does

Please unplug all connection wires before start cleaning this machine.

1. 11” Digital and Analogue LCD TV with slot-in DVD player.

5

2. Plays DVD, VCD, SVCD, MPEG4, JPEG, MP3, CD-R, CD-RW, WMA.

3. SD/MMC/MS card reader and USB port.

4. Auto Program Search, Electronic Program Guide.
. Subtitle, Multi-language, Stereo sound.

6. Composite Video / Stereo Audio input / output.

7. 10-bit Video D/A Converter, high-definition multi-media interface of up

to 500 lines.

8. 24-bit/192 KHz Audio D/A Converter, high quality, professional Hi-Fi

standard.

2. Product Features

24-bit/192KHz D/A Converter

This is the latest converting technology which can apply for 192KHz

sampling rate and 24-bit data soft. The dynamic range of 48 decibel is better

than the traditional 16-bit CD code.

Laser Lens Power Protection System

The laser lens is the most important part of the DVD Player which affects the

unit life and error correction. When reading scratched or non-standard discs,

the laser strength will be up to 24 times as powerful. This dramatically

decreased the life of the laser lens. The laser lens protection system of this

unit ensures the stability of the laser power and increases the life of the laser

lens.

-3-

Base support

3. Accessories

AV in/out cord

Double-sided adhesive
pad for base support

Remote control

-4-

FAV/ZOOM

TTX

DISPLAY

PP.

DVDCARDUSB//

TVAV/

104D-DVD/DVB/TV

SLOW

DA110CD

This player can not play disc, card and USB stick at the same time.

4. Part Names and Functions

-5-

25

25

26
27

DCIN 12V:+

()With battery

()Without battery

1.VOL-

2.VOL+

3.PREV

4.NEXT

5.MENU/SETUP

6.MODE

7.PLAY/PAUSE

8.STOP

9.OK confirm

10.

11.UP/DOWN/LEFT
/RIGHT

12.TFT-LCD screen

13.Power indicator
Standby:Red
Turn on:Green

14.Remote receiver

15.Stereo speakers

16.Slot-in DVD loader

17.Antenna input jack

18.EJECT

19.AV IN

20.AV OUT

21.SD/MS/MMC port

22.USB port

23.Earphone jack

24.Power ON/OFF
switch

25. +12V DC Power
In jack

26.Charge indicator

27. +13.8V DC Power In

jack (for battery charging)

Power On

/ Standby switch

Panel Button Functions

-6-

Panel Button

DVD DVB-T

ATV

AV

DVD/DVB

1.In DVD mode, press and hold MODE on the panel to switch to DVB-T mode.

2.In DVB-T mode, press and hold MODE on the panel to switch to DVD mode.

VOL- VOL- VOL- VOL- VOL- VOL-

VOL+ VOL+ VOL+ VOL+ VOL+ VOL+

PREV PREV PREV PREV

NEXT NEXT NEXT NEXT

SETUP SETUP SETUP

MENU/SETUP

MENU MENU

Mode Mode Mode Mode

DVB/Mode DVD/Mode

PLAY/PAUSE PLAY/PAUSE PLAY/PAUSE

STOP

OKOKOKOK

POWER POWER POWER POWER POWER POWER

UPUP UP UP UP UP

DOWN DOWN DOWN DOWN DOWN DOWN

LEFT LEFT LEFT LEFT LEFT LEFT

RIGHT RIGHT RIGHT RIGHT RIGHT RIGHT

Press

Press & Hold

This table explains the functions of the buttons on the panel in each mode:

STOPSTOP

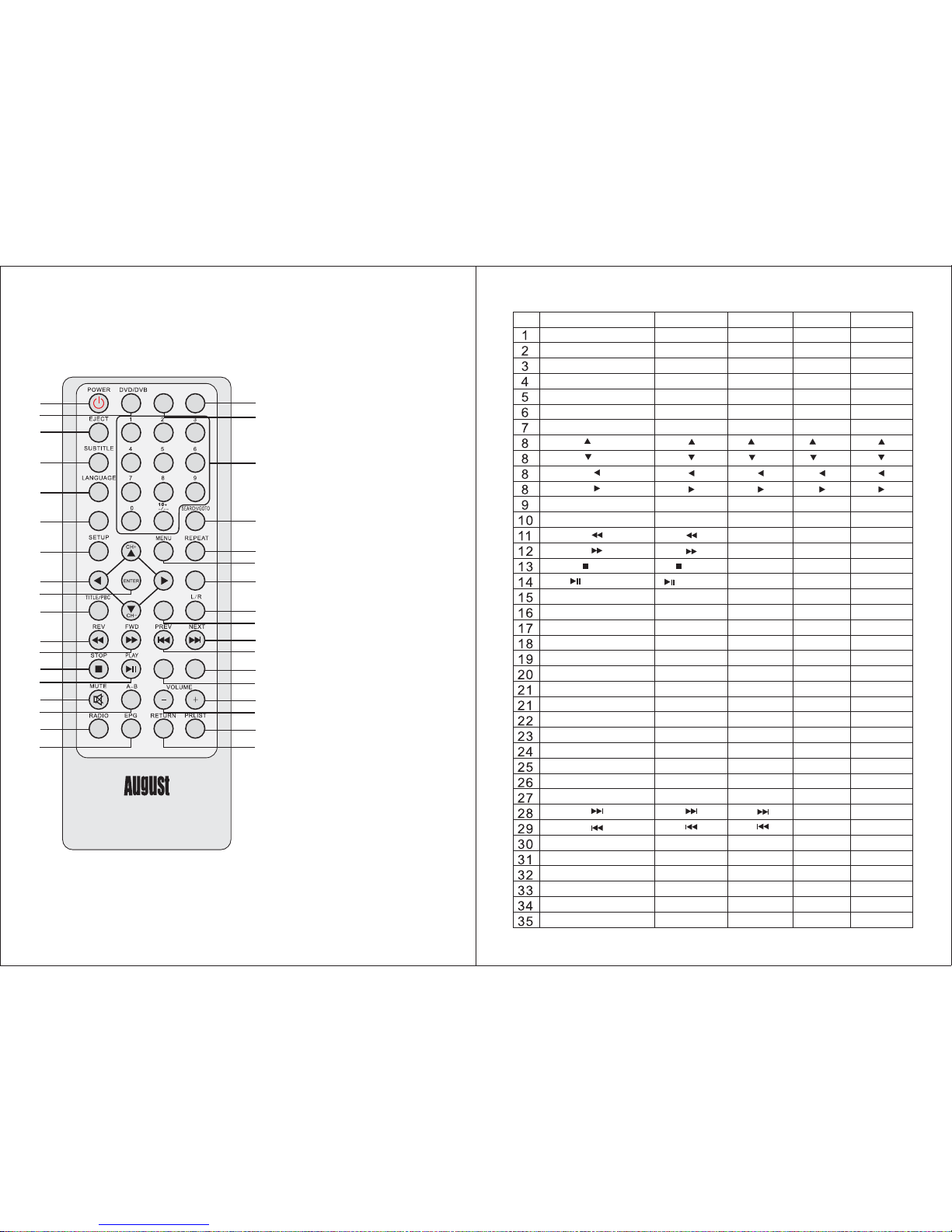

5. Remote Control

1.POWER

2.

3.EJECT

4.SUBTITLE

5.LANGUAGE

6.DVD CARD USB

7.SETUP

8.UP DOWN/LEFT/RIGHT

9.ENTER

10.TITLE/PBC

11.REV

12.FWD

13.STOP

14.PALY/PAUSE

15.MUTE

16.A-B

17.RADIO

18.EPG

19.TV AV

20.DISPLAY

21.NUMBER

22.SEARCH/GOTO

23.REPEAT

24.MENU

25.P P

26.L/R

27.FAV/ZOOM

28.NEXT

29.PREV

30.TTX not available

31.SLOW

32.VOLUME+

33.VOLUME-

34.PRLIST

35.RETURN

DVD/DVB-T Shift

//

/

/

.

()

1
2
3

4

5

6

7

8
9

10

11
12

13
14

15
16

17
18

20

21

22

23
24

25

26
27

28
29

30
31
32

33
34
35

19

FAV/ZOOM

TTX

DISPLAY

PP.

DVDCARDUSB//

TV AV/

104D-DVD/DVB/TV

SLOW

DA110CD

-7-

Remote Control Functions

Remote Button

DVD

DVB-T

ATV AV

POWER

ON/OFF STANDYON/OFF STANDYON/OFF STANDY ON/OFF STANDY

DVD/DVB-T DVD/DVB-T DVD/DVB-T

DVDDVD

EJECT EJECT

SUBTITLE SUBTITLE SUBTITLE

LANGUAGE LANGUAGE LANGUAGE

DVD CARD USB/ / DVD CARD USB//

SETUP SETUP SETUP

/CH+

/CH+ /CH+

/CH-

/CH- /CH-

ENTER ENTER ENTER

TITLE/PBC TITLE/PBC

(STOP)

(STOP)

(PLAY/PAUSE)

(PLAY/PAUSE)

MUTE MUTE MUTE MUTE MUTE

A-BA-B

RADIO RADIO

EPG

EPG

TV/AV TV/AV TV/AV TV/AV TV/AV

DISPLAY DISPLAY DISPLAY DISPLAY DISPLAY

0~9 0~9 0~9

10+/-/--

10+

SEARCH/GOTO

GOTO SEARCH SEARCH

REPEATREPEAT REPEAT

MENU

MENU MENU MENU MENU

L/R L/R L/R

FAV/ZOOM

ZOOM FAV

TTX

VOLUME+ VOLUME+ VOLUME+ VOLUME+ VOLUME+

VOLUME- VOLUME- VOLUME- VOLUME- VOLUME-

PRLIST PRLIST

RETURN RETURN

0~9

-/--

-8-

This table explains the functions of the buttons on the remote control in each mode:

PP. PP. PP. PP. PP.

SLOW SLOW

ON OFF

USB

D

ON OFF

DCIN:+12V

Notice

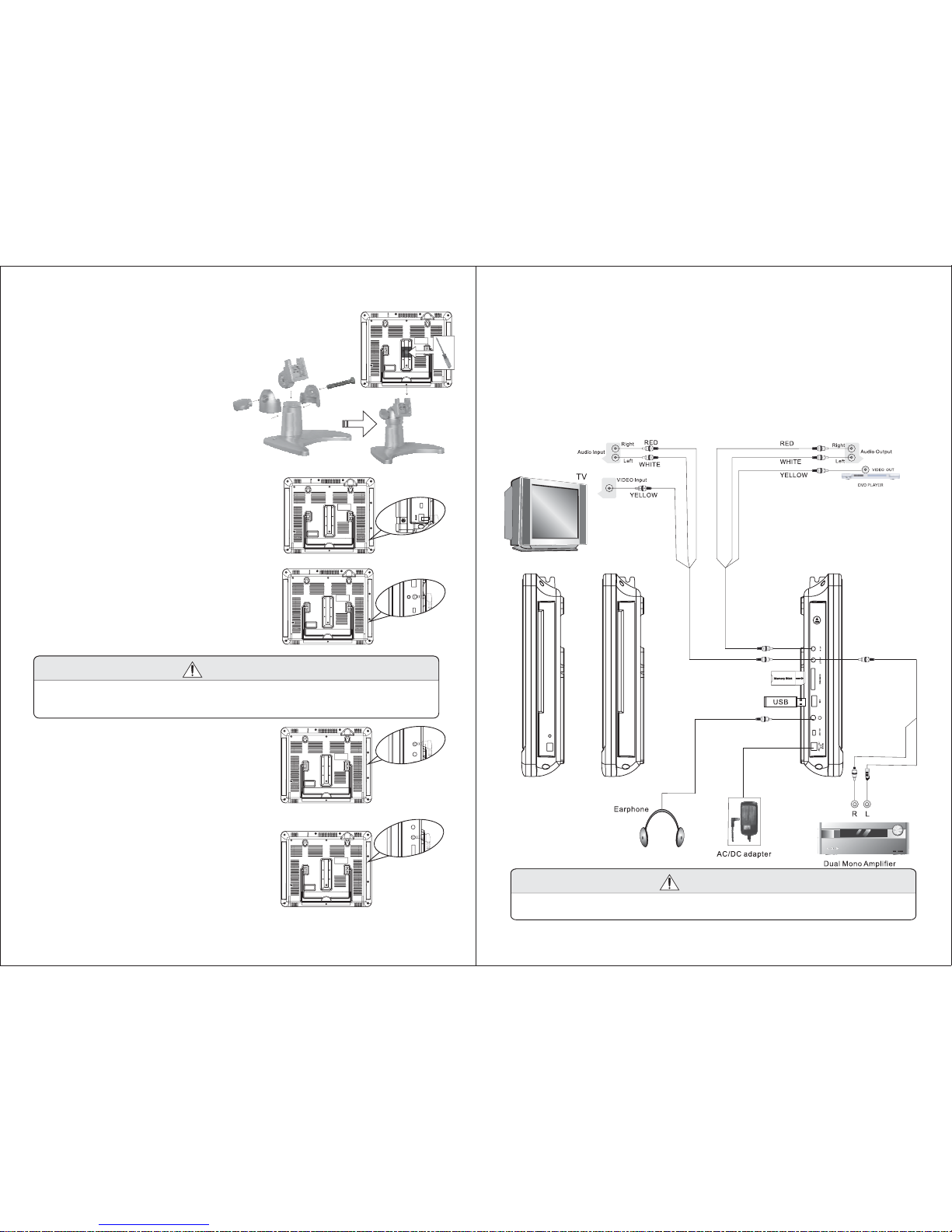

6. Connections

6.1. Installing the base support

Unscrew the oval handle on the
ball-joint, it will split into halves,
embrace them on the top of the base
support, then tighten the oval handle.
Slide the metal surface of the
ball-joint into the slot on the back
of the TV, then tighten the screw.

6.2. Connecting the power supply

Insert the power supply plug on the
AC adapter into the jack on the TV
marked DC12V.

6.3. Connecting the earphones

Insert the earphone plug into the
earphone jack on the TV.

If earphones are used, sound is only transmitted through the earphones, and
no sound is available from the stereo speakers of the TV.

6.4 Connection of AV Input.

Connect the yellow port of the AV
cable to the video jack, the white port
to the left audio jack and the red port
to the right audio jack, then insert the
AV head into the AV input jack on
the TV.

6.5. Connection of AV Output

Connect the yellow port of the AV
cable to the video jack, the white port
to the left audio jack and the red port
to the right audio jack, then insert the
AV head into the AV output jack on
the TV.

-9-

AVOUT

AVIN

SD/MS/MMC

AVOUT

AVIN

()with battery ()Without battery

6.6. System connection

1. Always turn off all devices before connecting or disconnecting any cables.

2. Audio/Video cables should be connected correctly according to the colour.

Yellow plug - Video jack

White plug - Left Audio jack

Red plug - Right Audio jack

3. Connection illustration

Notice

This player can not play disc, card and USB stick at the same time.

-10-

-12-

POWER

EJECT

Keep pressing

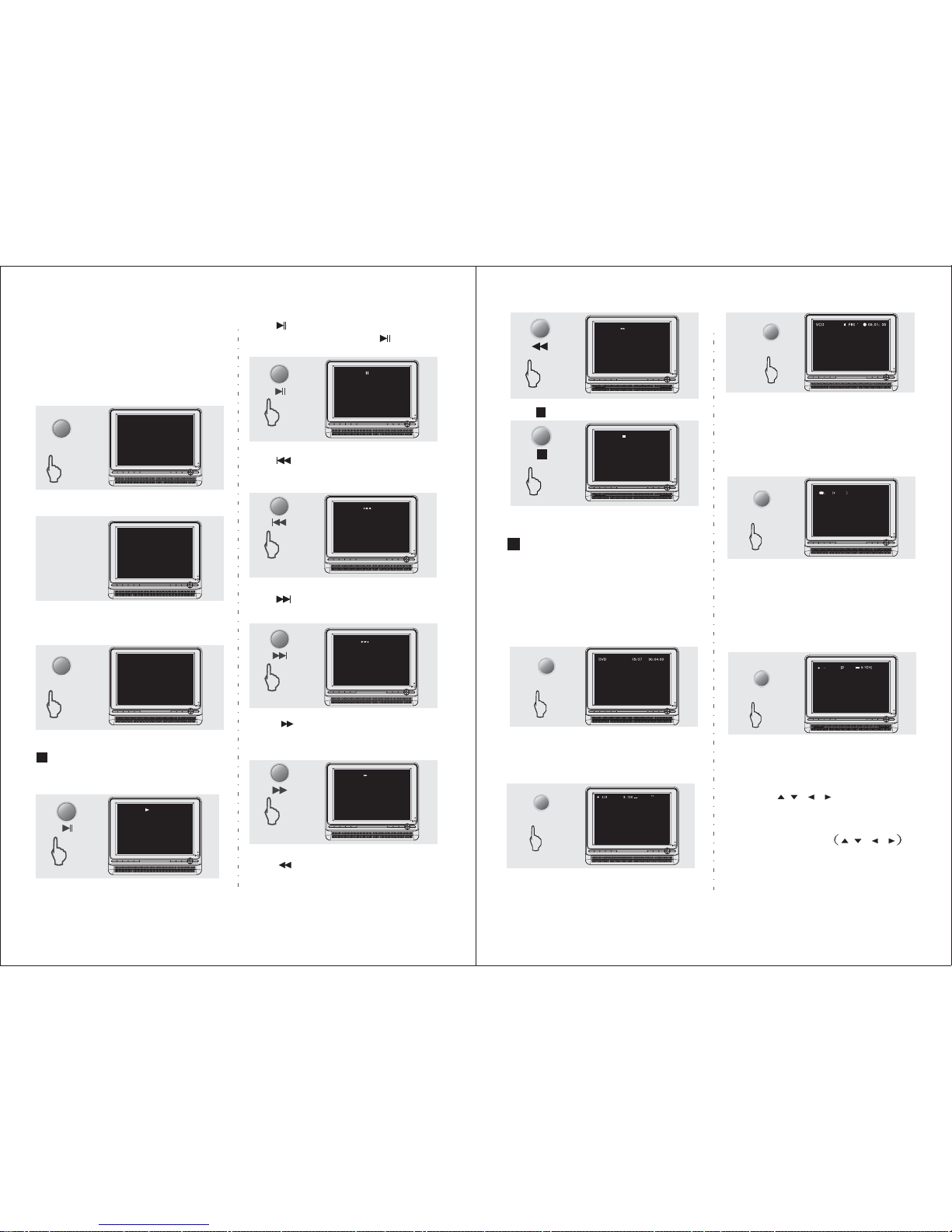

7. DVD Player Operation

After the system is connected, you can use
the unit in DVD mode. Before use, please
follow the instructions below:

Step 1: Press POWER to turn on the unit
and it will begin to read the disc as follows:

If there is no disc, the display will show:

Step 2: Press EJECT, the disc inside will
pop out automatically.

Playing Disc

This unit will begin to play after reading
the disc.

Press to pause playback.
To return to playback, press again.

Press to choose the previous track or
chapter.

Press to choose the next track or
chapter.

Press to search forward at different
rate. The player will search the track
at 2, 4, 8, and 20 times of the normal speed.

-11-

Press to search backward at different
rate. The player will search the track
at 2, 4, 8, and 20 times of the normal speed.

Pause

PREV

F.FWD

Next

PLAY

OPEN

NO DISC

READ

Press to stop playback.

DISPLAY

Display

Display

Subtitle

7.1. Basic Operations

7.1.1. Display

During playback, pressing DISPLAY on
the remote control will show the
following:
For DVD disc:
The first time DISPLAY is pressed, the
play time of the chapter will show.

The second time DISPLAY is pressed,
the language, subtitle and angle
information will show.

For DVD, Super VCD disc:
Pressing DISPLAY, the single track play
time, track number and PBC will show.

7.1.2. Subtitle

Press SUBTITLE repeatedly to select
subtitle language. (Up to 32 different
languages, only for the discs with this
function.)

Language

7.1.3. Language

Press LANGUAGE repeatedly to select
audio language, up to 8 different audio
languages. (4 for SVCD/CVD discs and
only for the discs with this function.)

During playback, press TITLE to enter
the TITLE menu and select by
pressing or numbers
during DVD playback.

7.1.4. Title

7.1.5. Move Selection

During playback, pressing UP, DOWN,
LEFT, and RIGHT allow the user to easily
select Title, Directory or Menu settings.

\\ \

\\ \

F.R EV

STOP

Title1/1Chapter

English

Close

No

Track3/15

Chinese

Chinese

Keep pressing

-13-

Repeat

REPEAT

REPEATWHOLE
DISC

7.1.6. Number Buttons

During playback, press number button
directly to select according to the menu
and begin to play a track or chapter.

7.1.7. PBC Play Mode

PBC ON: can only select menu functions
using PREV and NEXT.
PBC OFF: can select tracks directly by
pressing number button during playback
or PREV and NEXT. (This function is
for 3.0 version video CD only)

7.1.8. Repeat

During DVD playback, keep pressing
REPEAT, it will show:

Repeat one chapter

Repeat one title

Repeat (off )

During Super VCD/DVD playback, press
MENU to select PBC OFF, then keep
pressing REPEAT, it will show:

Press REPEAT again to close the Repeat
function.

7.1.9. A-B Repeat

7.1.10. Zoom

7.1.11 Audio Mode

7.1.12. Volume/Mute

7.1.13. Goto

During playback, press [A-B] button once
to set the starting point and again to set the
end point. After setting the points, the
program will repeat between A and B.
Press [A-B] again to cancel the repeat.

The DVD player can zoom up to 4 times
to view a dynamic or still picture. Keep
pressing ZOOM up to 1,2,3,4,5,6 times for
2,3,4,1/2,1/3,1/4 times zoom. Pressing for
the seventh time will return to normal
playback. Whilst zoomed in press the
directional buttons to move.

When playing VCD, pressing [L/R] can
choose between stereo, left mono, right
mono.

Press Volume+/Volume- to adjust the
volume. Press MUTE to turn off the
volume, press again to turn on the volume.

Press GOTO for selecting chapter/time to
play, use LEFT/RIGHT and numbers to
change, press ENTER to confirm. Press
GOTO at any time to exit.

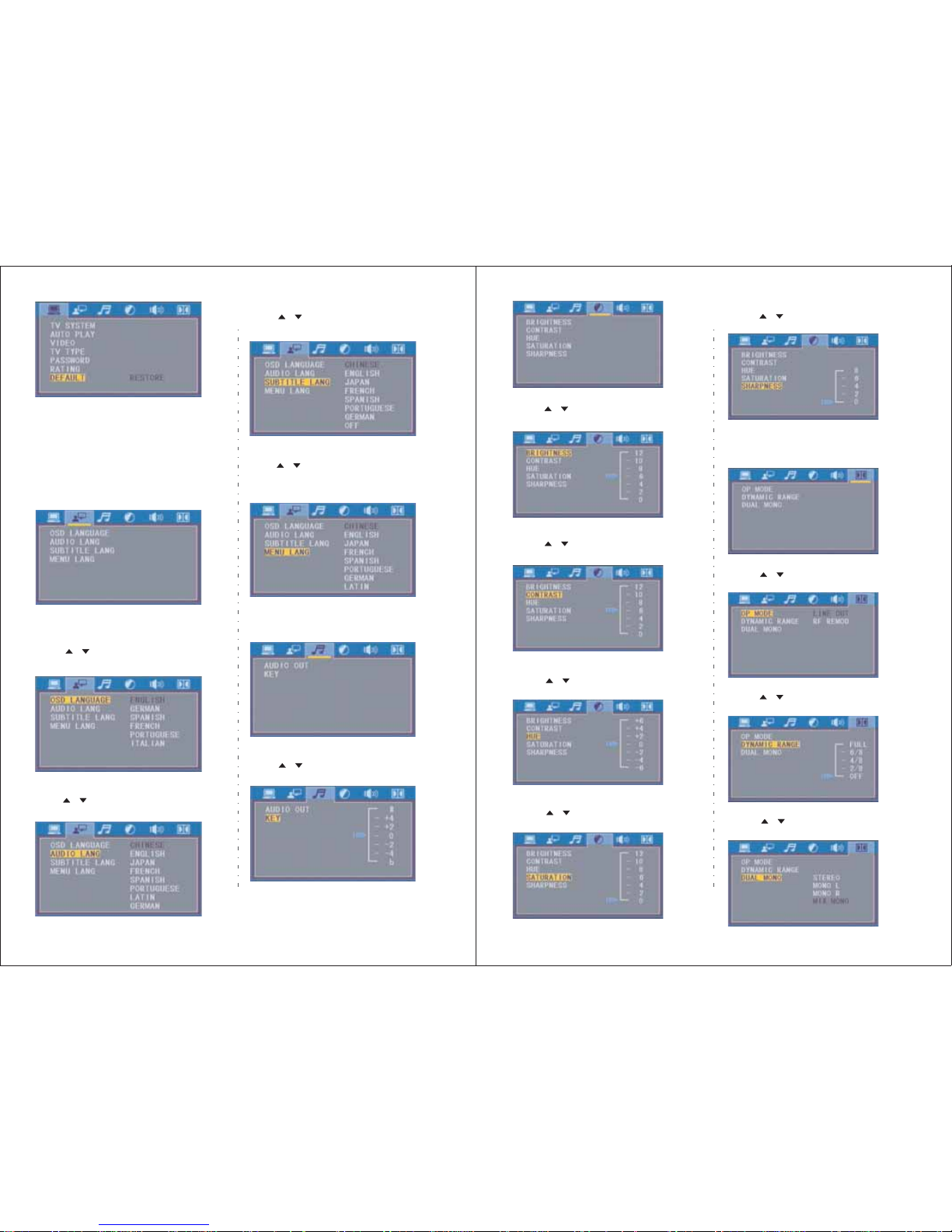

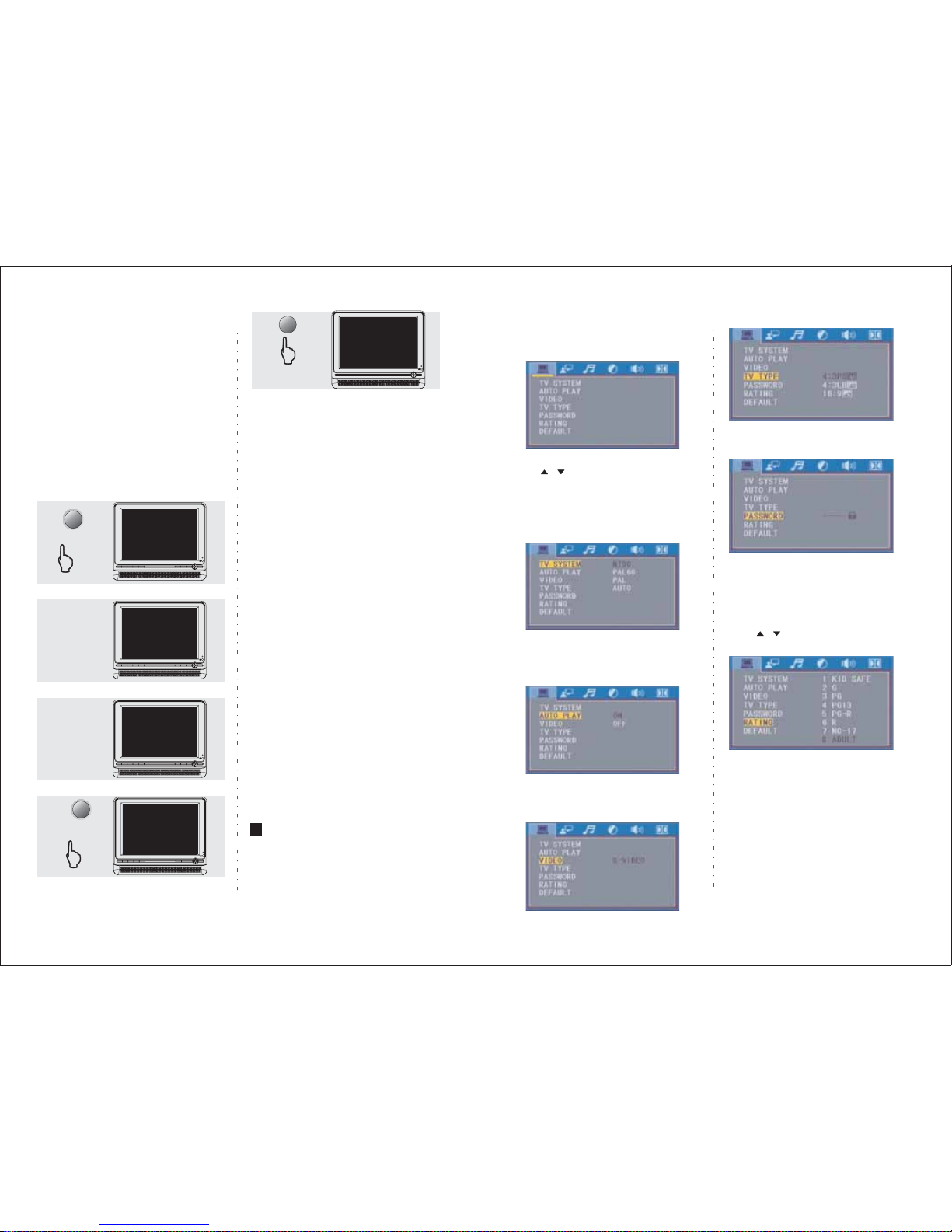

7.2. DVD Setup Menu

In DVD mode, pressing SETUP, the setup
menu will appear. Use LEFT or RIGHT to
select a setting and then press UP or
DOWN to select one specific function
setting. Press ENTER to confirm. Press
SETUP again to exit.

Repeat Close

Repeat

Title

Repeat

Chapter

REPEAT

REPEATWHOLE

7.2.1System Setup

System Setup has the following options:
TV SYSTEM, AUTO PLAY VIDEO,
TV TYPE, PASSWORD, RATING, and
DEFULT.

,

7.2.1.1 TV System

Press to select. Press ENTER to
confirm. Press SETUP to exit.
(NOTE: If you have chosen NTSC, your
TV system must support NTSC format,
otherwise the screen is in black or white
only)

/

7.2.1.2 Auto Play

This option allows the user to set the Auto
Play function On or Off.

7.2.1.4 TV Type

Use this option to change the display aspect ratio.

7.2.1.3 Video

This has been set to S-VIDEO as default.

7.2.1.5 Password

The default code is 0000, entering this
number to lock or unlock the password
setting, press ENTER to confirm, press
SETUP to exit.

7.2.1.6 Rating

Press to select. Press ENTER to
confirm. Press SETUP to exit.

This setting only works until the password
is open, you can change RATING level
from 1 to 8 (8 means no restriction).

7.2.1.7 Default

Press ENTER to confirm the RESTORE
setting. Press SETUP to exit.

/

-14-

Select this option to change this unit to the
factory default setting.

7.2.2 Language Setup

Language Setup has the following options:
OSD LANGUAGE, AUDIO LANGUAGE,
SUBTITLE LANGUAGE, and
MENU LANGUGAGE.

7.2.2.2 Audio Language

press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.2.4 Menu Language

Press to select, Press ENTER to
confirm. Press SETUP to exit.
This function must be supported by the disc.

7.2.3 Audio Setup

Audio Setup has AUDIO OUT and KEY
options.

7.2.3.1 Key

Press to select, Press ENTER to
confirm. Press SETUP to exit.

7.2.4 Video Setup

Video Setup has the following options:
BRIGHTNESS, CONTRAST, HUE,
SATURATION, and SHARPNESS

7.2.2.1 On Screen Display Language
(OSD Language)

Press to select. Press ENTER to
confirm. Press SETUP to exit.

/

7.2.2.3 Subtitle Language

Press to select, Press ENTER to
confirm. Press SETUP to exit.

/

/

/

/

-15-

7.2.4.1 Brightness

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.4.2 Contrast

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.4.3 Hue

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.4.4 Saturation

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.4.5 Sharpness

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.5 Digital Setup

Digital Setup has the following options:
OP (OUTPUT) MODE,
DYNAMIC RANGE, and DUAL MONO

7.2.5.1 Output Mode

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.5.2 Dynamic Range

Press to select. Press ENTER to
confirm. Press SETUP to exit.

7.2.5.3 Dual Mono

Press to select. Press ENTER to
confirm. Press SETUP to exit.

/

/

/

/

/

/

/

/

-16-

MP3 adopts the third audio compression
format of MPEG to compress the audio
signal to 12:1. A disc can record more
than 600 minutes of music or 170 songs
by using MP3 format and its quality is
near to CD.

7.3. Playing MP3 music

Basic Operations

1. Insert the disc, the player will search the
disc for data and show the following:

2. Press and PLAY to select the
submenu. Press to enter the track
menu and press again to select a
track to play. Press PLAY to play this
track or select the track directly in this
submenu by pressing a number button.

/

/

3. Press REPEAT to select Repeat Single
Track, Repeat Directory, Repeat Whole
Disc, or Repeat Off.

OtherFunctions

During MP3 playback, this unit also has
Mute, Volume Control, Pause, Previous Track,
and Next Track options. The operation is the
same as CD playback.

7.4. Playing JPEG photos

JPEG (Joint Photographic Experts Group)
is the most popular storage format for
pictures used nowadays. JPEG uses a high
compression ratio, compressing by 15-20
times of the original, the images still
remain in good quality. Its size is small
and can be used flexible. JEPG is
supported by most photo management
software and is good for photo storage.
This player can decode Picture CDs made
with JPEG code format.

Select pictures using numbers

1. Insert the disc and the player will begin
to search the disc for data, the TV screen
displays as below (It varies for different
disc)

2. Press to select (Audio) or

(JPEG) at the bottom of the screen.
Press PLAY to confirm then you can
select play music or JPEG picture.

3. Press a number to select the photo
collection, for example:

/

Select pictures using

1. Insert the disc, the player will begin to
search the disc for data, menu will appear
on the TV screen. Press to
select the submenu on the left side of the
screen. Press ENTER or PLAY to confirm.
The TV screen shows the following:

///

-17-

///

///

2. Press to select the picture
of this submenu, press PLAY to play.

OtherFunctions

1. When playing JPEG files, pause play
and repeat play can also be performed.

2. When playing JPEG files, press

TITLE/RETURN to return to the menu.

3. During playback, press PREV and
NEXT to select the previous or next
picture.

4. During playback, press to
rotate the picture to up, down, left or
right.

///

.

7.6. USB port Function

1. The USB port is compatible with flash

memory, it is not guaranteed that it can
be used with all types of MP3 players.

2. Insert the USB stick to the USB port of

this device.

3. The files in the memory stick will show

on the screen.

4. Press to select the (Audio)

or (JPEG picture) at the bottom of
the screen and press PLAY to confirm.
Then you can select play music or JPEG
pictures.

5. Pressing number buttons or

can select play files.

6. Other operations are the same as the

JPEG function.

/

///

7.7. Card reader function

1. Insert the SD, MS, or MMC card to the
card slot on the side of the TV.

2. The files in the card will show on the
screen.

3. Other operations are the same as the
USB function.

7.5. Playing MPEG4 video

MPEG4 is a video compressing standard
which supports movie play. The basic
operations are the same as MP3 functions.

8. Digital Freeview TV (DVB-T)

8.1.Turnon the machine

Press the POWER button on the remote
control to turn on the machine.
It will enter the mode that it was when
last turned off.
If it enters DVD mode, please press
DVD/DVB on remote control to switch to
DVB mode. For DVB mode, it will select
the last channel watched. If there was no
last channel watched, or this is the first
time it is powered on, a message will
appear, asking if you want to run the first
time installation wizard.

8.2. First time installation

A message will appear, asking if you want
to run the first time installation wizard.
Upon selecting [YES], a new window will
appear, asking you to select Country and
OSD Language. Use to make
the correct selections. Select [NEXT] and
press ENTER to proceed to the next step.
It will ask if you want to start an Auto
Scan. If select [YES], it will start the scan
automatically, if select [NO], it will exit
the setup.

///

Picture 1 Picture 2

Picture 4Picture 3

-18-

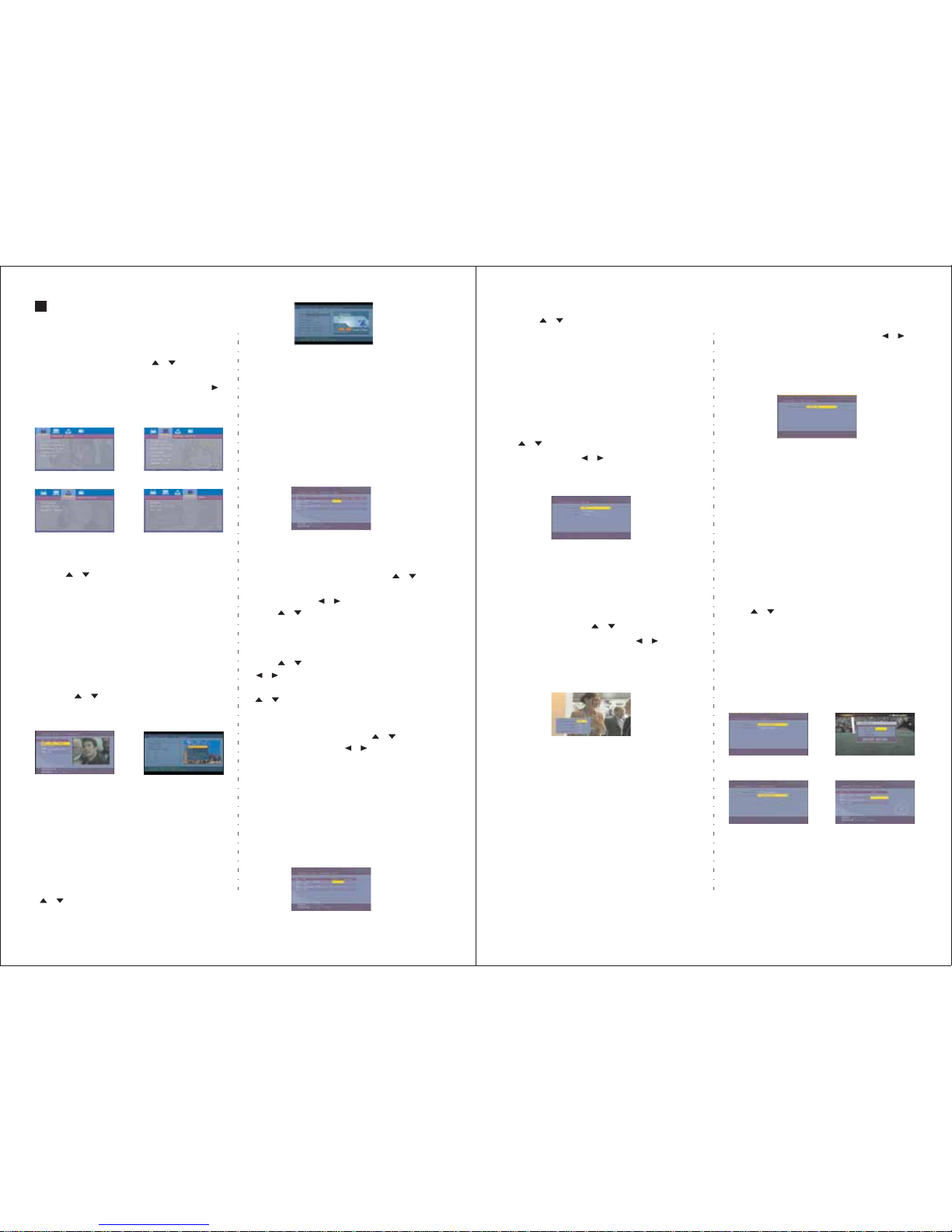

8.3. Main Menu

Pressing SETUP will enter the main menu,
pressing SETUP again or RETURN will
exit the menu.
In the Main Menu, press to select
Channel Guide, System Config,
Installation, or Game submenu, press
or ENTER to enter the submenu setting.

/

Picture 5 Picture 6

Picture 8Picture 7

8.3.1 Channel Guide

Press to select TV Channels,
Radio Channels, Channels Class,
Channels Edit, and Book List Options,
press ENTER to confirm.

/

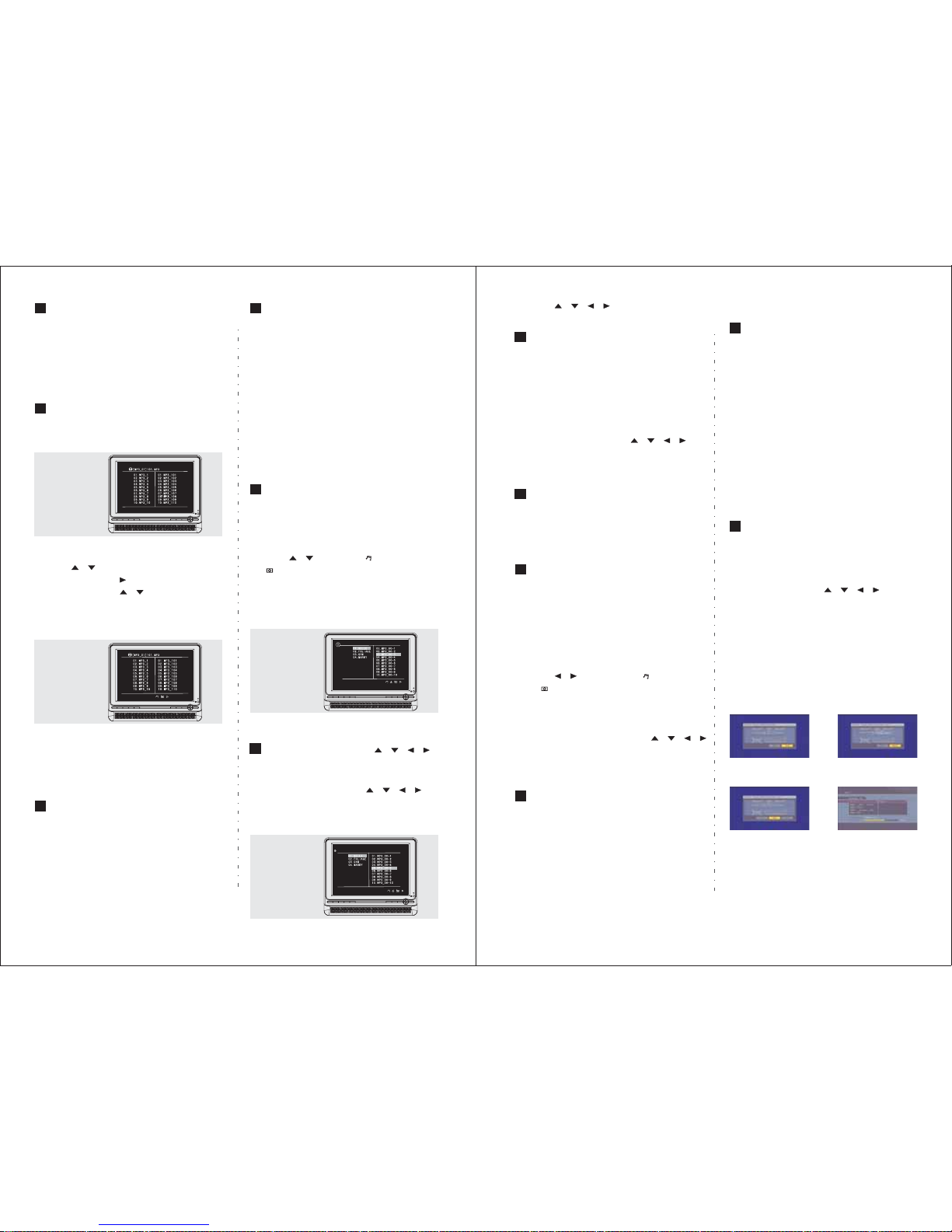

8.3.1.1 TV Channels

Upon entering the TV Channels menu, the
channels are listed on the left side of the
screen, and a preview window is on the
right side. The channel can be changed
using , press DISPLAY
to sort the channels, press ENTER to start
watching TV in full screen.

/

Picture 9 Picture 10

8.3.1.3 Channels Class

From the Channels Class menu, each
channel can be classified into a group.
Press ENTER if you wish to add any
channels to a column category, press
ENTER again to cancel. Press RADIO
button to switch to radio channels, press
RADIO again to switch back to TV
channels.

Picture 11

8.3.1.2 Radio Channels

Upon entering the Radio Channels menu,
the channels are listed on the left side of
the screen, and as they are radio channels,
the default screen picture of this TV will
appear in the preview window on the right
side. The channel can be changed using

, press DISPLAY to sort the
channels, press ENTER to start listening
to the radio.

/

Picture 12

8.3.1.4 Channels Edit

To edit a channel's name, press to
move to the channel, press ENTER to
confirm, press to select a character,
press to change the character,
press ENTER to confirm the change.

To change the channel's display sequence,
press to move to the channel, press

to move the cursor to the MOVE

column, press ENTER to confirm, press

to move the cursor to the row you

prefer, press ENTER to confirm.

To delete a channel, press to move
to the channel, press to move the
cursor to the DELETE column,
press ENTER to confirm, press ENTER
again to cancel. Press RETURN or
SETUP to exit.

Press RADIO button to switch to radio
channels, press RADIO again to switch
back to TV channels.

/

/

/

/

/

/

/

/

-19-

Picture 13

8.3.2 System Config

Press to select TV Setting,
Video Setting, Audio Setting, Language,
Parent Control, Time Setting, and System
Info Options, press ENTER to confirm.

/

8.3.2.1 TV Setting

The TV Setting has the following options:

TV System, Video, and TV Type. Press

to move the cursor to one of the

options, press to change the setting,

or press ENTER to change the setting.

Press RETURN or SETUP to exit.

/

/

Picture 14

8.3.2.2 Video Setting

The Video Setting has the following
options: Brightness, Contrast, Hue, and
Saturation. Press to move the cursor
to one of the options, press to
change the setting, or press ENTER to
change the setting. Press RETURN or
SETUP to exit.

/

/

Picture 15

8.3.2.3 Audio Setting

This function is not available yet.

8.3.2.4 Language

The Language menu allows the user to
change the OSD Language. Press
to change the language, or press ENTER
to change the setting. Press RETURN or
SETUP to exit.

/

Picture 16

8.3.2.5 Parent Control

The Parent Control menu has two options:
Change Pin and Channel Lock. When
selecting Change Pin, the user will be asked
to enter the Old Pin, New Pin and the New
Pin again. In order to change the Channel
Lock, the user will be asked to enter the
password (pin) first, if the password is
correct, the Channel Lock menu will appear.
Use to select a channel, press
ENTER to lock or unlock the channel.
Press RADIO button to switch to radio
channels, press RADIO again to switch
back to TV channels. Press RETURN or
SETUP to exit.

/

Picture 17 Picture 18

Picture 20

Picture 19

-20-

The system default password is 0000.

Picture 21

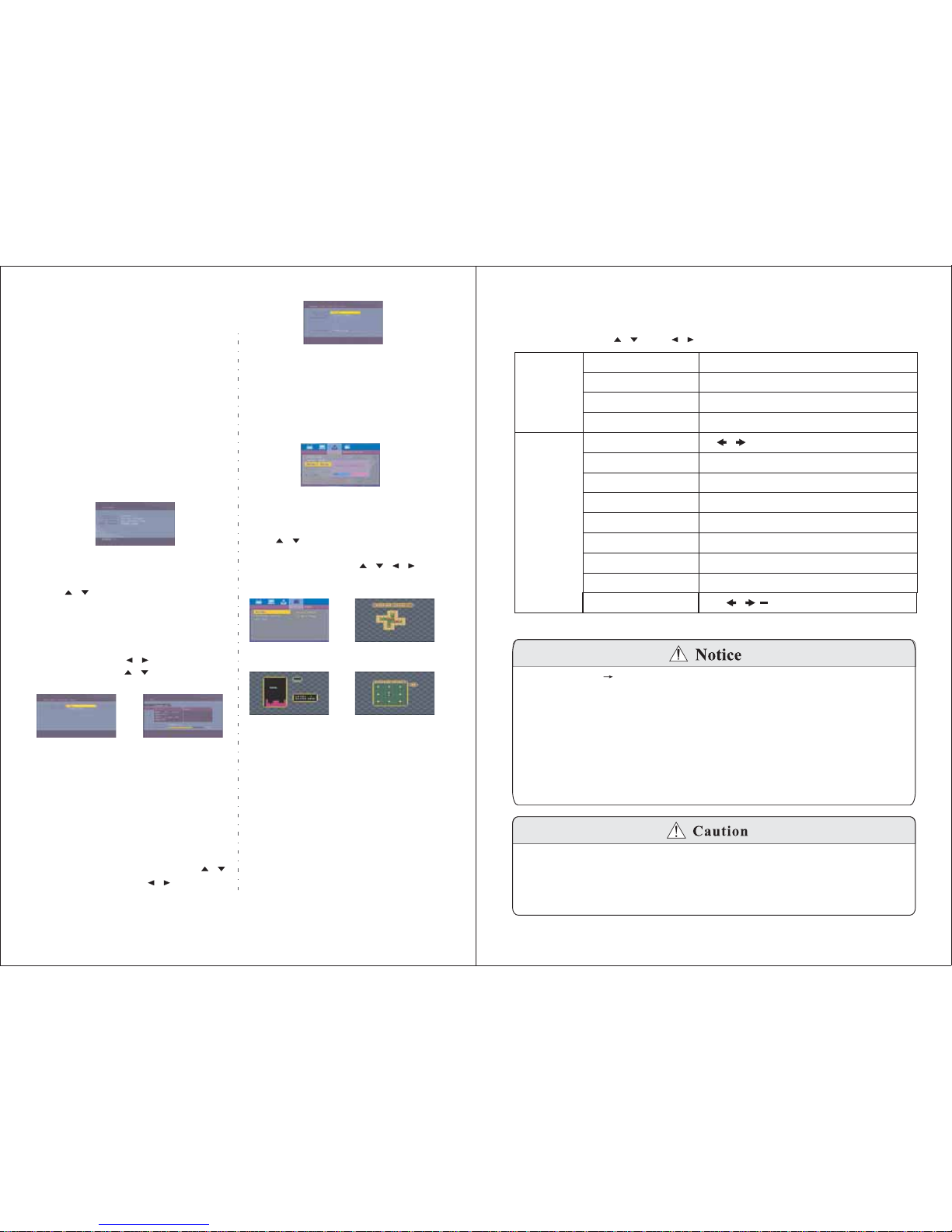

8.3.3 Installation

Press to select Auto Scan,
Manual Scan, and Default Setup Options,
press ENTER to confirm.

/

8.3.3.1 Auto Scan

In Auto Scan, press to select
your country, press to move to Start
Scan, Press ENTER to start.

/

/

Picture 22 Picture 23

8.3.3.2 Manual Scan

In Manual Scan menu, a scan can be
performed by setting the following options:
Country, Scan Type, Start Channel, End
Channel. If the Scan Type is Signal
Channel, only the Country and Start
Channel can be set. If the Scan Type is
Channel Range, the Country, Start Channel,
and End Channel can be set. Use the
to select the options and to change
the settings. Once finish the setting, move
to Start Scan and press
ENTER to start.

/

/

Picture 24

8.3.3.3 Default Setup

A message box will appear, asking if you
want to reset the machine to factory
default settings. After the reset, the first
time installation message will appear.

Picture 25

8.3.4 Game

There are three games in the Game menu.
Press to select the game you want
to play, press ENTER to confirm. The
games are played using
button. Press RETURN or SETUP to exit
the game.

/

///

Picture 26 Picture 27

Picture 28

Picture 29

-21-

8.3.2.6 Time Setting

TIME ZONE: If you fixed the country
whilst searching for channels, you cannot
adjust the time zone. Restore to factory
settings, and don't search for channels.
Access the TIME ZONE menu, then press
ENTER, a menu will show, use UP or
DOWN to select the time zone you are
and press ENTER to confirm.

8.3.2.7 System Info

System Info displays the firmware version
and date, along with tuner and model
information.

9. Analogue TV

Press TV on the remote control to switch to the Analogue TV mode.
Press MENU, use and to select and adjust.

/

/

Press MENU

once

BRIGHT

CONTRAST

COLOR

ENGLISH

AUTO-SEARCH

SEARCH

FINE

BAND

POSITION

SKIP

S-COLOR

S-SYS

SWAP

0~100

0~100

0~100

Other language options

48MHz ~ 860MHz

UHF / VHFL / VHFH

0 ~ 254

ON / OFF

AUTO / PAL /SECAM

DK/I/L/BG

0

Press MENU

twice

Press MENU to exit.

1. Auto Search Start from Program NO .0.

2. When the signal is received under Manual Search, the indication
frequency will stop, which is the optimum position for signal storage.
If the signal is too weak, the system will automatically identify it as no
signal.

3. In the case of a picture without sound, please check the Sound System
for correct setup first.

4. If the input signal is not strong enough, please adjust “Fine” option, it
may improve the picture and sound quality.

If the signal is too weak, the image will remain poor whatever you do, and
may output loud noises, shaking images and inferior sound etc., which is
not the TV's fault. If the image remains poor when using the telescopic
antenna, please try to use a roof top aerial or an amplified external antenna.

-22-

10. AV Input

Press MENU on the remote control.
Use / and / to select and adjust.

Other language options

Press MENU to exit Menu.

Press MENU

once

Problems listed below do not necessarily signify a fault with the unit.
Please check this list before requesting repairs.

Problems

11. Troubleshooting

No picture and no sound

Check the connection with the AC adapter/Car Adapter.
Use of an unauthorized power supply.
Power switch on the side of the TV is off.
TV is on standby as it was switched off by pressing
the POWER on remote.

Check the channel selection. Scan for channels again.
Always re-scan for channels in new locations. Ensure the
video cable is not damaged. Ensure video settings are
correct.

Check the sound volume. If you are using earphones, test
them on another item. Check that the cable is plugged in.
Sound System is not correctly set in Analogue TV mode.

-23-

Possible Causes and Solutions

Picture freezing, and/or

sound distorting

Signal too weak, please check the aerial. Try to use a
proper roof top aerial or amplified aerial.

No signal

Signal too weak, please check the aerial. Try to use a
proper roof top aerial or amplified aerial.

Please adjust Brightness and/or Contrast settings.

Dark Picture

Motors/Trains/High Voltage Lines and Neon Lights may
affect the signal.

Snowstorm

Achromatic/Flashing/No Colour

Please adjust the Colour Setting.
S-Color is not correctly set in Analogue TV mode.

No sound

No image

12.Technical Parameters

Product Name:

Disc Format:
MPEG4:
AC / DC adapter:

Picture Resolution:
Video S/N Ratio:
Frequency Response:
Audio S/N Ratio:
Dynamic Range:
Harmonic Distortion:
D/A Converter:
Video Output Level:
Audio Output Level:

UHF:
DVB Decode Standard:
ATV Receiving Channel:

ATV Sound System:
Screen Size:
Audio Output:
Loudspeaker:
Outer Dimension:
Weight:
Dot Matrix:
Resolution:
Response Speed (ms):
Visible Angle:
Brightness:
Contrast:

11inch digital and analogue LCD TV with built-in DVD

player, card reader and USB port

DVD / MPEG4 / SVCD / VCD / CD / Mp3 / CD-R /CD-RW

4 and 5 versions without QPEL and GMC

AC 100~240V - 50~60Hz
DC adaptor +12V (car cigaretter lighter)

500 Line

60dB

fs 96KHz: 4Hz - 44KHz: +/- 1dB

90dB

90dB

0.01%

96KHz / 24bit

1Vp - p( 75ohm)

1.0V 0.1V
474MHz ~ 858MHz

MPEG2 ISO/IEC 13818 MPEG2 MP@ML

DK/I 49.75MHz ~ 855.25MHZ

BG 48.25MHz ~ 855.25MHz

DKIBGL

11 inches

0.3W (Max)

two 40mm round loudspeaker.

300x250x64mm

(1) about 2200g with battery; (2) about 2005g without battery;

0.1000 (H) x 0.3000 (V)

800 x RGB x 480

R:30 / F:50

u:50 / D:60, R/L: 60

300cd/m

150:1

≥

≥

≥

≥

＜

2

-24-

No user serviceable components are fitted inside this TV. Do not attempt
any repairs, as this will invalidate the warranty. Any repairs must be carried
out by either the manufacturer or their nominated service centre. Parts
inside this set are subject to high voltage.

-25-

!

!

!

If there is no built-in battery in your product, please skip this page.

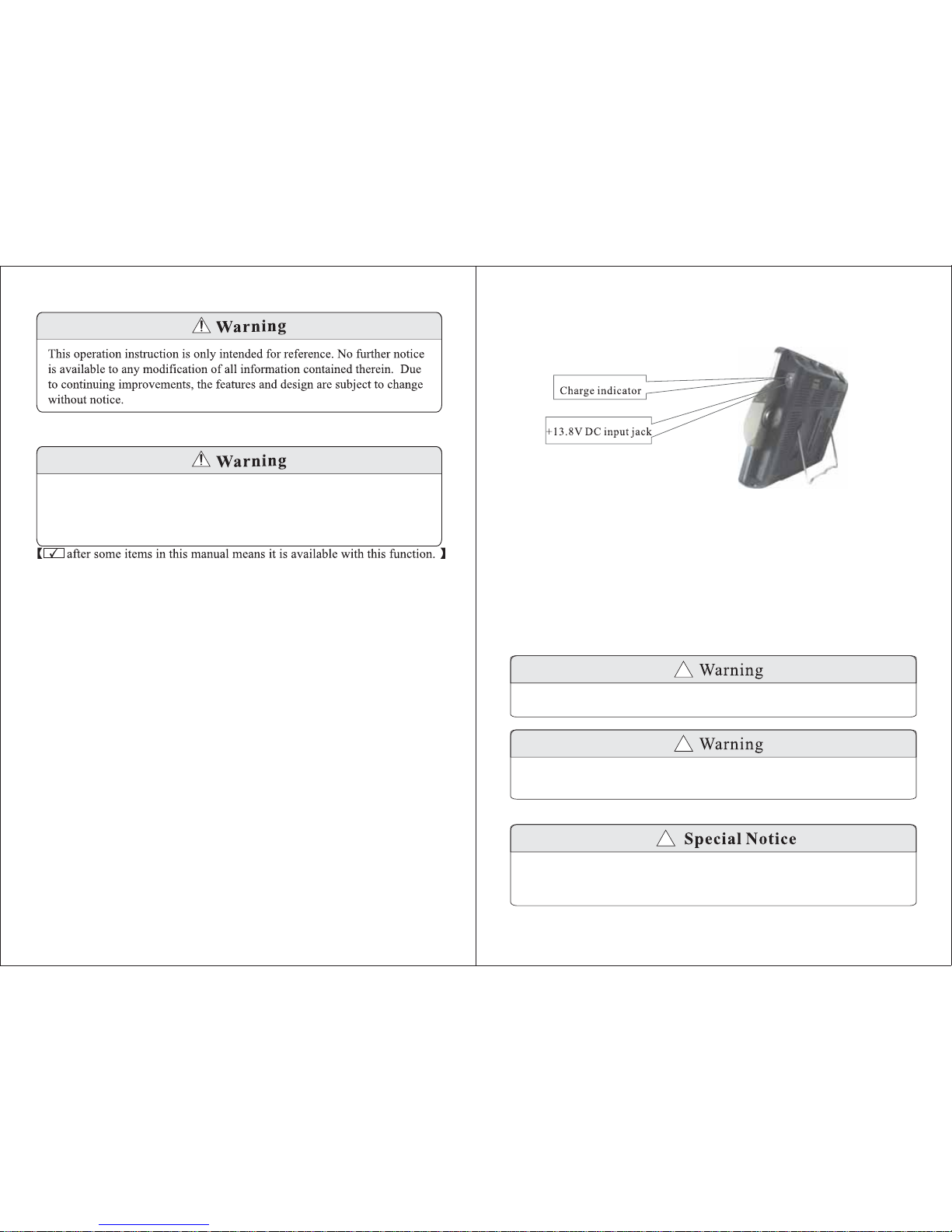

13. Battery Charging

1. The lithium battery is built into this machine.
Charge time: 5 hours.
Playback time: 1.5 hours

2. To charge, connect the supplied AC adapter to the socket marked “+13.8V
DC IN”.
If the indicator becomes red, the battery is charging.
If the indicator becomes green, the battery has been fully charged.

3.To run the unit from the battery, remove the power supply from the “+13.8V

DC IN” and set the ON/OFF switch on the machine to ON.

Use only the supplied power adapters with this device. Failure to do so can
cause damage to the device and risk personal injury.

The replacement of the built-in lithium battery, it must use the same type
of battery factory, otherwise, it could have unclear consequences.

Please ensure unit is turned off when not in use. If the battery has not been
used for some time (6 months) then fully charge the battery to ensure
maximum battery life.

-26-

Warranty

This product is guaranteed for 2 years from the date of the original purchase. This
warranty covers costs of parts and labour for the first 12 months and covers manufacture
defects of major components which include LCD screens, DVD disc loaders and software
on main circuit board for the second 12 months. In the unlikely event of any defect arising
due to faulty materials or workmanship, the unit will be either replaced or repaired
(where possible) during this period. An alternative product will be offered in case the
product is no longer available or repairable.

This warranty is subject to the following conditions:

The warranty is only valid within the country where the product is purchased
The product must be correctly installed and operated in accordance with the
instructions given in the user's manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover the accessories.
The warranty does not cover the damage caused by misuse, negligence, accident
and natural disaster.
The warranty will be rendered invalid if the product is resold or has been damaged
by inexpert repairs. The manufacture disclaims any liability for incidental or
consequential damages.
Please consult our customer service before returning any product; we are not
responsible for any unexpected product returns.

Any faulty products must be kept and returned in the original packaging with all the

accessories and the original copy of the purchase receipt.

The warranty is in addition to, and does not diminish, your statutory or legal rights.

Please note:

1.A LCD display panel comprises a very large number of pixels and each pixel contains
three sub-pixels - red, green and blue. Due to the complex manufacturing process,
occasional pixel anomalies may occur. Pixel anomalies cannot be fixed or repaired and
can happen at any stage in the LCD's life. August products should not be deemed as
faulty if there are no more than three bright and dark pixels respectively.

2.Portable TV antennas included in the box are for people to watch Freeview TV in areas
where the signal is very strong and there may be difficulties in receiving signal with the
included portable antennas in some regions at present. This is due to the fact that
Freeview is yet to operate in full power in the UK. August TVs should not be deemed
as faulty if it can receive Freeview by connecting to a proper digital rooftop aerial.

Telephone: [phone]
Email: [e-mail]

Customer Service:

-27-
