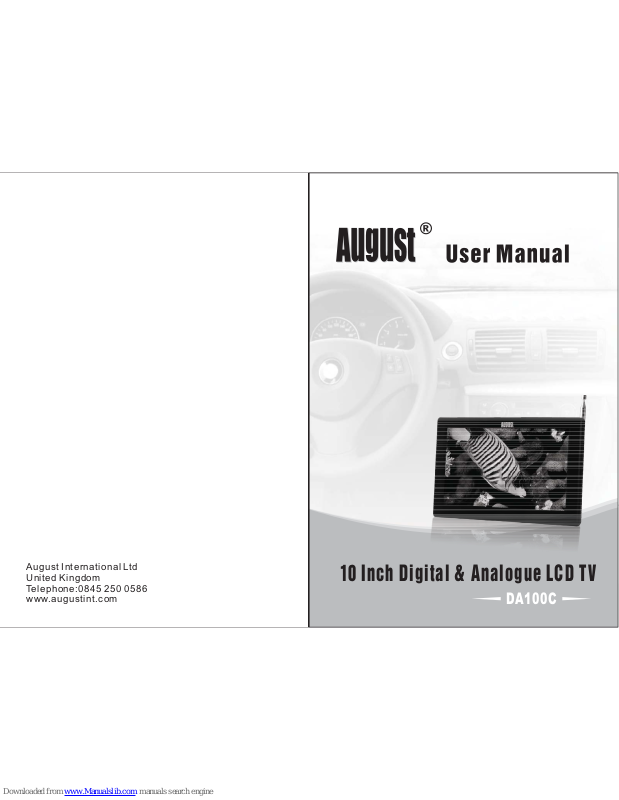

August International Ltd United Kingdom Telephone:0845 250 0586 www.augustint.com

10 Inch Digital & Analogue LCD TV

DA100C

Thank you for buying our August TV. You may already be familiar with using

a similar product but please take time to read these instructions carefully. It is

designed to familiarise you with the product’s many features and to ensure

that you get the very best from your purchase.

To ensure your safety and the safety of others, please ensure you read the

Safety Instructions before you use this product.

Please ensure the product and its accessories are disposed in compliance with

WEEE (Waste Electrical and Electronic Equipment) Directive and other

regulations. Please check with your local authority for disposal regulations.

If you need help, please contact our Customer Service: Telephone: +44 (0) 0845 250 0586 Email: service@augustint.com

Safety

Disposal

Customer Service:

User Manual

Quick Start Guide

DA100C

It is suggested that you use a roof top aerial when scanning for TV channels

for the first time, if any signal is detected, the channel information will be

saved on the TV, you may then switch back to the portable antenna supplied

and change your location to find the best place to receive the signal.

Connect the device to the mains power, press POWER on the remote to

turn on the device, or press and hold POWER on the device for 1.5 seconds

to turn it on.

The MODE on the device or remote allows you to switch between: DTV

(Digital Freeview TV & Media Player), ATV (Analogue TV), AV IN,

BRIGHTNESS, CONTRAST, COLOR, HUE, SCALE (Aspect Ratio) and

INVERT.

When turning on the device for the first time, “Initial Install” will show,

follow the instructions to select OSD Language and Area, then press

ENTER, it will ask whether to install, select YES, the auto search will then

start. Once the search has finished, press CH+, CH- or EPG to select

channels. Press TV/R to switch between Freeview TV and Radio channels.

If you have done the first time installation before, and would like to search

for Digital Freeview channels again, or if you have moved to a different

region and need to scan channels again, press MODE to switch to Digital

TV & Media Player mode, press MENU, select “Digital TV” by pressing

ENTER, select “Installation”, then select “Auto Search”, press ENTER to

start the search. Once the search has finished, press CH+, CH- or EPG to

select channels. Press TV/R to switch between Freeview TV and Radio

channels.

To search for Analogue TV, press MODE repeatedly until it shows ATV,

press LEFT or RIGHT to switch to the Analogue TV mode. Press MENU, it

shows the ATV SETUP menu, set the TV FORMAT to “PAL I” for UK,

then move to AUTO SEARCH, press ENTER to start the search.

1. Safety Instructions

2. Accessories

3. Part Names and Functions

4. Connection

5. Basic Operation

6. Digital Freeview TV (DVB-T)

7. Digital TV Recording

8. Card Reader & USB Functions

9. Games

10. Analogue TV (ATV)

11. Battery Compartment

12.

13. Troubleshooting

14. Warranty

Specifications

To play video, music, or photos on a SD card or memory stick, press

MODE to switch to Digital TV & Media Player mode, insert the SD card or

memory stick to the card slot or USB port, press MENU to select “Movie”,

“Music”, or “Photo”, press ENTER or PLAY to start playing, press MENU

to stop and exit to the main menu. During the photo playback, press UP for

the mirror effect, press again to back to normal, press DOWN for upside

down effect, press again to back to normal, press RIGHT to rotate

clockwise, press LEFT to rotate anticlockwise, press ENTER for photo

slideshow, photos in the selected folder will show repeatedly.

Please note the included portable antenna may only be used in areas where

signal is very strong. There may be difficulties in receiving signal with the

portable antenna in some regions at present, this is due to the fact that

Freeview (www.freeview.co.uk) is yet to operate in full power in the UK.

The government aims to achieve a full switchover by 2012, which will

occur in stages, region by region between 2008 and 2012, at present the

quality of Freeview reception varies in different regions across the UK.

As mentioned on the Freeview website, only 73% of the UK population is

able to receive Freeview at present and only a small number of households

might be able to use a set top aerial at present. This only applies if you live

in an area with coverage close to a transmitter, but reception would still be

unreliable and they strongly recommend that you use a roof top aerial for

good reception.

The reception will improve along with the progress of the Digital

Switchover Program. Reception may also be affected by various factors

such as how close you are to transmitters, tall buildings, thick walls,

ceilings and weather etc.

For any further queries, please telephone August International Ltd helpline

or email service@augustint.com0845 250 0586

-2-

1.Please do not tune your headphone / earphone at high volumes, otherwise, it may lead to ear damage.

2.For open-designed earphone, to avoid annoying those close by, please tune down the volume.

3.In case of any tinnitus, please turn down the volume or stop using this machine.

4.It is recommended by aurists that the earphones should not be used continuously for a prolonged period.

For the sake of safety for yourself and others, please do not watch the TV

while driving.

1.Use only the supplied power adaptor with this device. Failure to do so can

cause damage to the device and risk personal injury.

2.For the sake of safety, when you do not intend to use the display, please switch off the AC adaptor or car adaptor.

A few highlights or dark spots may appear on the LCD screen. It is a very common phenomenon of active matrix display technology, and does

-1-

1. Safety Instructions

Maintenance

Please unplug all connection wires before start cleaning this machine.

Storage and Use

Never expose the TV set to moisture,dust oil or smoke.

Never put this machine in containers that are unstable as this may cause damage.

Never extrude or chafe this machine with sharp objects.

Keep this machine away from hot or cold places. Working temperature of this device is 0 C~50 C, storage temperature is

-10 C ~ 60 C.

ﾟﾟ

Keep the TV set away from water or damp environment.

Avoid dropping or exposing to impacts.

Please wipethe display screen and buttonswith a softcloth.Only clean thescreen with professional LCD TVscreen cleanser.

Never wipe this machine with an abrasive cloth, detergent powder, alcohol and benzene etc. various propellants or chemical cleaning products.

Alcohol

-4-

1. IR receiver window 2. LCD display

3. Part Names and Functions

3.1 Front

3.2 Back

2 3

5 6

1. Speakers 2. Antenna input jack

3. USB jack 4. SD/MMC card slot

5. Earphone jack

7. Standby power indicator

9. Battery compartment 10. Slot for stand

8. 12V DC IN jack

6. AV in/out

*Note:

The standby power indicator shows red when the device is connected to an

external power source by either the mains or car adaptor and the device is in

standby status. The indicator turns off when the device is switched on.

-3-

Earphones

AV cable

Telescopic antenna

Stand

User manual

Digital TV antenna

AC/DC adaptor Remote control

2 Accessories.

-5-

3.3 Top

10.

. . .

. . . .

234

8910

VOL-

VOL+

Power / Play / Pause / Resume

Main Menu

Right / Forward

Left / Reverse

Enter/ Confirm

Volume Down

Channel Down/ Down/ Previous Track or Chapter

Channel Up/ Up / Next Track or Chapter

Volume

Press repeatedly for mode switch. More details can be found

on page 12.

MODE

-6-

3.4 Remote Control

3.4.1 Remote Button Functions

DA100C

21 24

27 28

REC

MOVE

-7-

20. Switch off / on the sound

21. Move channels when using Channel Organizer

22. Set favourite channels when using Channel Organizer Shortcut for favourite channels list when watching TV or listening to the radio

23. Zoom in on the picture

24. Set parental lock when using Channel Organizer

25. Switch on / off subtitle

26. 7 day electronic program guide Press RIGHT and UP/DOWN to view today's program information. Press to view next days program information, press to come back.

27. Freeview channel information

28. Freeview interactive teletext

1. Power on/off the device

2. Mode switch

3. Freeview TV and Radio switch

4. Select audio channel or audio language

5. Numbers

6. Start recording or stop recording

7. Main Menu

8. Next track or chapter

9. Up / Channel Up

10. Previous track or chapter

11. Left / confirm or change settings in ATV mode

12. Right / confirm or change settings in ATV mode

13. Confirm settings

14. Reverse in media player mode

15. Forward in media player mode

16. Down / Channel Down

17. Volume Up

18. Volume Down

19. Play/Pause/Resume

0-9

MOVE

REC

-8-

3.4.2 Use of the Remote Control

Please remove the PVC packaging before using the remote control for the first time.

1.Do not expose the remote control to direct sunlight or very strong/bright light.

2.Do not drop or step on the remote control or subject it to shocks.

3.Keep the remote control away from extreme hot or humid environment.

4.Keep the remote control away from water.

Operating range

1.The IR sensor on the remote control

should aim directly to the sensor on

the front of the device. It may not be

possible to operate the device if

there are obstacles between it and the

remote sensor.

2.Use the remote control no further

than 5 meters away from the sensor.

3.The receiving angle range should

be 30.

Replacing the battery

If the remote control does not function or if the operating range becomes

reduced, replace the old battery with a new one.

Remove the old battery, then insert the new battery into the battery holder

with the + side facing upwards.

Push back the holder.

Lithium battery(CR2025)

<5m

4.3 Connecting to a TV set via AV Output

Turn off all devices before connecting or disconnecting any cables.

*Note:

The AV output function is only available in Freeview (DVB-T) and Media player mode.

-10-

Audio/Video output

AV cable (Included)

Right side of the device

To video input jack

(Yellow)

To audio input jack

(White)

To audio input jack

(Red)

Signal flow

Black

Yellow

White

Red

Black

-9-

4.Connection

4.1 Connecting the power supply

1.Connect the DC output of the AC/DC adaptor to the DC IN 12V jack on

the device.

2.Plug the power adaptor to the AC power socket.

4.2 Connecting the earphones

Connect the earphone plug to the earphone jack on the device.

*Note:

If earphones are used, sound is only transmitted through the earphones, and

no sound is available from the stereo speakers of the device.

Earphones

*Note:

1.Please ensure proper disposal of used batteries.

2.To prevent leakage of fluid from the lithium battery, remove the battery when

not using the remote control for a long period of time. If the battery leaks fluid,

carefully wipe it out of the battery case, then change to a new lithium battery.

-11-

4.4 Connecting to an Audio/Video device via AV Input

Turn off all devices before connecting or disconnecting any cables.

*Note:

To use the AV IN function of this device, please set it to AV IN mode first.

5. Basic Operation

Connect the device to the mains power, press POWER on the remote to turn on

the device, or press and hold POWER on the device for 1.5 seconds to turn it on.

Press POWER on the remote to turn off the device, or press and hold POWER on

the device for 1.5 seconds to turn it off.

Press MODE repeatedly to select between the following modes:

DTV: Freeview TV & Media Player, press RIGHT to change

ATV: Analogue TV, press RIGHT to change

AV IN: AV input, press RIGHT to change

BRIGHTNESS: Press LEFT or RIGHT to change

CONTRAST: Press LEFT or RIGHT to change

COLOR: Press LEFT or RIGHT to change

HUE: Press LEFT or RIGHT to change

SCALE: Press LEFT or RIGHT to change aspect ratio to 16:9 or 4:3

INVERT: Press LEFT or RIGHT to change the display to upside down or normal

5.1 Turning on/off the device

5.1.1 Turn power on

5.1.2 Turn power off

5.2 Mode settings

-12-

Right side of the device

Audio/Video input

AV cable (Included)

Connect to the Video

Output of the AV device

Signal flow

Black

Yellow

White

Red

Connect to the Audio Output

of the AV device

6. Digital Freeview TV (DVB-T)

6.1 Channel Manager

In Digital TV mode, select Channel Manager, press ENTER for the submenus.

If the device is not in the Digital Freeview TV mode, press MODE repeatedly until it shows DTV, press LEFT or RIGHT to change .

Channel Manager allows the user to sort, edit, delete, and classify the channels.

6.1.1 Channel Organizer

Channel organizer is used to set favourite channels, change channel positions, lock and delete channels, and edit channel's name.

1. Channel Organizer can be accessed by selecting MENU -> Digital TV -> Channel Manager -> Channel Organizer.

2. If there is no channel saved on the TV, Channel Organizer can not be accessed, and it will show “Channel not available”.

3. Use UP/DOWN to select the channel you want to edit.

- Press RED to delete or undelete a channel,

it will ask you to enter the password, the system default password is 0000.

- Press GREEN to select or cancel a favourite.

- Press YELLOW to set or cancel a

channel's position change.

- Press BLUE to lock or unlock a channel,

it will ask you to enter the password, the system default password is 0000.

4. To change the channel name, use UP/DOWN to select the channel line, press LEFT/RIGHT to enter the page to change the name, press RED/GREEN /YELLOW/BLUE to edit the name.

5. Press MENU to exit Channel Organizer.

-13-

6.1.2 Channel Sorting

It allows the user to sort the channels by area, alphabetically or by number sequence.

1. Channel Sorting can be accessed by selecting MENU-> Digital TV-> Channel Manager->Channel Sorting.

6.1.3 Channel Grouping

It allows the user to sort channels into 8 different categories: News, Science, Sports, Movie, Kids, Music, Fashion and None.

1. Channel Sorting can be accessed by selecting MENU-> Digital TV-> Channel Manager->Channel Grouping.

2. If there is no channel saved on the TV, Channel Grouping can not be accessed, and it will show “Channel not available”.

3. Use UP/DOWN to select the channel, and then select the category by pressing the numbers (1-8).

4. After setting, press MENU it will show “Successfully updated”.

It allows the user to add and edit channels.

1. Edit Channels can be accessed by selecting MENU-> Digital TV-> Channel Manager-> Edit Channels.

6.1.4 Edit Channels

-14-

2. If there is no channel saved on the TV, Edit Channels can not be accessed, and it will show “Channel not available”.

3. To add a new channel, press RED, and then press UP/DOWN to select between the 6 parameters as shown:

2. If there is no channel saved on the TV, Channel Sorting can not be accessed, and it will show “Channel not available”.

3. Press UP/DOWN to select:

First Option: Sorting by area, press RIGHT to enter the area list, use UP/DOWN to select, press ENTER to confirm.

Second Option: Sorting alphabetically or by number sequence, press RIGHT to enter the option list, use UP/DOWN to select, press ENTER to confirm.

4. Sorting rules can be selected by pressing RIGHT/UP/DOWN/LEFT.

5. After sorting rules is selected, press ENTER to confirm, it will ask “Are you sure?”, select “Yes” to confirm and to proceed the sorting, or select “No” to cancel.

①

②

6. Press MENU to exit Channel Sorting.

①

②

③

④

Area Name: press RIGHT to enter the area list, use UP/DOWN to select, press ENTER to confirm. Carrier: press RIGHT to enter the carrier list, use UP/DOWN to select, press ENTER to confirm. Channel Name: press RIGHT to enter the edit page, use RED/GREEN /YELLOW/BLUE to edit, press ENTER to confirm. Audio PID: can be changed by pressing the numbers.

-15-

①

②

③

Channel Name: press RIGHT to enter the edit page, use RED/GREEN/ YELLOW/BLUE to edit, press ENTER to confirm.

Audio PID: can be changed by pressing the numbers.

Video PID: can be changed by pressing the numbers.

④

⑤

PCR PID: can be changed by pressing the numbers.

Once finish the settings, press ENTER to confirm, it will show “Successfully updated” and return to Edit Channels.

During setup, press MENU at any time to cancel and exit to Edit Channels.

⑥

6.1.5 Delete All

To delete all the TV and Radio channels, select MENU-> Digital TV-> Channel Manager-> Delete All.

1. Use UP/DOWN to select TV channels, it will ask “ Delete all TV channels?”, select “Yes” to confirm and proceed the delete, select “No” to cancel.

2. Use UP/DOWN to select Radio channels, it will ask “ Delete all Radio channels?”, select “Yes” to confirm and proceed the delete, select “No” to cancel.

Installation is for searching TV and Radio channels, it can be accessed by selecting MENU-> Digital TV-> Installation.

6.2 Installation

Pressing ENTER, it gives two search options: Auto Search and Manual Search.

⑤

⑥

⑦

⑧

Video PID: can be changed by pressing

the numbers.

PCR PID: can be changed by pressing

the numbers.

Once finish the settings, press ENTER to confirm, it will show “Successfully updated” and return to Edit Channels.

During setup, press MENU at any time

to cancel and exit to Edit Channels.

4. To edit a channel, press YELLOW, and then press UP/DOWN to select between the 4 parameters as shown:

6.2.1 Auto Search

Select Auto Search, press ENTER, it will start the search.

After searching, the system will automatically exit the searching page, save program information and return to Installation menu, press MENU to exit.

-16-

6.2.2 Manual Search

If you know a channel's broadcasting frequency and bandwidth, using manual search to find the channel can be quicker.

Select Manual Search, press ENTER, it will ask you to provide two parameters:

①②Freq (KHz): scanning frequency, the

default is 474000 KHz, use numbers or LEFT/RIGHT to change.

Band Width: use LEFT/RIGHT to select.

After setting, press ENTER to start the search. After searching, the system will automatically exit the searching page, save program information and return to Installation menu, press MENU to exit.

6.3 Configuration

Configuration menu has the following options: On Screen Display, TV, System Setup, Time, Wakeup Timer and Parental Lock. It can be accessed by selecting MENU->Digital TV->Configuration.

6.3.1 OSD (On Screen Display)

Through OSD, you can set the interface pattern.

Left of the menu lists all the options under OSD. Press UP/DOWN to select an option.

1. OSD: supports 5 menu patterns, press LEFT/RIGHT to select between Theme1-5.

2. OSD Timeout: sets the display time of an information dialog window, press LEFT/RIGHT to select between 1-6 seconds, the system default is 3seconds.

3. OSD Trans: sets the diaphaneity of the menu, press LEFT/RIGHT to adjust from 0%-60%.

4. OSD Language: the system supports multi-language user interface, press RIGHT to enter the language list, use UP/DOWN to select, press ENTER to confirm.

5. 1st Audio Language: press RIGHT to enter Audio Language list, use UP/DOWN to select, press ENTER to confirm.

6. 2nd Audio Language: press RIGHT to enter Audio Language list, use UP/DOWN to select, press ENTER to confirm.

7. After setting, press ENTER to confirm, press MENU to exit the setup, it will show “Successfully updated”.

This option allows the users to set their preferred TV output settings.

6.3.2 TV

Left of the menu lists all the options. Press UP/DOWN to select an option.

1. Display Mode: press LEFT/RIGHT to select between AUTO, PAL, & SECAM, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

-18-

In Manual timer mode, press UP/DOWN to select an option, use RIGHT/LEFT or numbers to change the Date, Time, GMT Offset or Summer Time.

After setting, press ENTER to confirm, press MENU to exit the setup, it will show “Successfully updated”.

6.3.5 Wakeup Timer

This option allows you to switch off / on the device automatically, set a scheduled time recording, or set a reminder for the program you do not want to miss.

You can set Timer Mode, Wakeup Mode, Wakeup Message, Wakeup Channel, Wakeup Date, Time, Duration and Partition.

1. Timer No.: the number of this Wakeup Timer setting, use LEFT/RIGHT to change.

2. Timer Mode: use LEFT/RIGHT to select between Once, Daily, Weekly, Yearly or Off.

3. Wakeup Mode: use LEFT/RIGHT to choose

to show a message, switch to a channel you want to watch, switch off/on the device or set a scheduled TV recording.

Please note the device can only be switched on automatically, after it was switched off through the Wakeup Timer last time.

①②Wakeup Message: use LEFT/RIGHT to

select between Birthday, Anniversary or General.

Wakeup Channel: use LEFT/RIGHT to

select a channel from the channel list.

4. Wakeup Date: press RIGHT to enter the Calendar, use UP/DOWN/LEFT/RIGHT to select a date.

5. On Time: use numbers to set the starting time.

6. Duration: use numbers to set how long you want to watch or record the program.

7. Default Partition: this is for scheduled recording only, press RIGHT, it will show “Device List”, if the TV connects to an USB stick, it only shows one device on the list, if the TV connects to an external hard drive which has number of partitions, it will show the partition list, select the appropriate, press ENTER, it will ask to confirm whether to change, if you want to change, select “Yes” then press ENTER, otherwise select “No”. It will show “Set successfully”.

After setting, press ENTER to confirm, press MENU to exit the setup, it will show “Successfully updated”.

6.3.6 Parental Lock

User can change system password under this option.

-17-

6. Saturation: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP /DOWN to select another option.

4. Contrast: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

5. HUE: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

7. After setting, press ENTER to confirm, press MENU to exit the setup, it will show “Successfully updated”.

2. Aspect Ratio: press LEFT/RIGHT to select between 16:9, 4:3 Pan Scan, 4:3 Letter Box, press ENTER to confirm and exit the setting. Or press UP/DOWN to select another option.

3. Brightness: press RIGHT to enter the list, use UP/DOWN to select, press ENTER to confirm, press ENTER again to exit the setting, or press UP/DOWN to select another option.

Press UP/DOWN to select an option, use LEFT/RIGHT to change the settings. After setting, press ENTER to confirm, press MENU to exit the setup, it will show “Successfully updated”.

6.3.3 System Setup

6.3.4 Time

You can set EQ Setup, Surround, LCN (Logical Channel Number) and Area in System Setup.

You can set Timer Mode, Date, Time, GMT Offset, and Summer Time under Time menu. There are two Timer modes, one is Auto, and one is Manual.

The system default is Auto timer mode, press UP/DOWN to select Timer Mode or GMT Offset, use RIGHT/LIFT to change.

-19-

6.5 Factory Default

To restore the system configuration to factory default, press MENU, selectDigital TV-> Factory Default, press ENTER.

It will ask whether you want to perform the factory default, select [No] to cancel or select [Yes] to confirm.

6.6 Version

This provides the hardware, software and system information.

Enter the old password, if it is correct, the cursor will move to Enter New Password option, enter and confirm the new password. The system will show “Password changed”.

The system default password is 0000.

6.4. Software Upgrade

This function is for manufacturer use only.

7. Digital TV Recording

The device supports recording Freeview TV to an USB memory stick or external hard drive (FAT32, USB2.0) via the USB port.

Before starting the recording, connect an USB stick or external hard drive, which has sufficient space left, to the device first.

7.1 Real Time TV Recording

Press REC on the remote to start the recording, it will show “REC” on the screen, press REC again to stop the recording, it will ask “Do you want to stop recording”, choose “Yes” to stop or “No” to carry on recording.

Press YELLOW during the recording, it allows you to set the duration of the recording, press RIGHT to choose: 15 min, 30 min, 45 min, 60 min, 75 min, 90 min, 105 min, 120 min or disable, press ENTER to confirm and exit.

Press INFO during the recording, it will show how long the record has been on, the name of the channel, and how many space has left on your USB stick or external hard drive, press INFO again to exit.

The recorded program is saved in a new folder “PVR” in your USB stick or external hard drive and is in MPG video format. It can be viewed by pressing MENU then selecting Movie.

Press MENU, then select Disk Manger, it shows all the recorded programs stored in the USB stick or external hard drive, press GREEN repeatedly to select Play/Delete One / Delete All/ Rename a recorded program, press ENTER to confirm, press MENU to exit at any time.

-20-

7.2 Scheduled TV Recording

To set up a recording schedule, please make sure the device is on digital Freeview TV mode first. Then press MENU, select Digital TV by pressing ENTER, select Configuration, and then select Wakeup Timer. It shows the following options:

1.Timer No.: the number of this Wakeup Timer setting, use LEFT/RIGHT to change.

2.Timer Mode: use LEFT/RIGHT to select between Once, Daily, Weekly, Yearly or Off.

3.Wakeup Mode: select “Recorder” for scheduled recording, for the use of other available functions in this setting, please refer to page 18 in the user manual.

4.Wakeup Channel: use LEFT/RIGHT to select the channel you want to record.

5.Wakeup Date: press RIGHT to enter the Calendar, use UP/DOWN/LEFT/ RIGHT to select a date you want to record the program.

6.On Time: use numbers to set the starting time of the recording.

7.Duration: use numbers to set the duration of the recording.

8.Default Partition: press RIGHT, it will show “Device List”, if the TV connects to an USB stick, it only shows one device on the list, if the TV connects to an external hard drive which has number of partitions, it will show the partition list, select the appropriate, press ENTER, it will ask to confirm whether to change, if you want to change, select “Yes” then press ENTER, otherwise select “No”. It will show “Set successfully”.

9.Press MENU to exit the setting, it will show “Successfully updated”.

Please note the scheduled recording can only be activated when the device is ON and is in the Freeview TV mode.

When the recording starts, it will show “REC” on the screen, when it has finished, the “REC” will disappear. Press INFO during the recording, it will show the progress of the recording, the name of the channel, and how many space has left on your USB stick or external hard drive, press INFO again to exit.

The recorded program is saved in a new folder “PVR” in the USB stick or external hard drive and is in MPG video format. It can be viewed by pressing MENU then selecting Movie.

Press MENU, then select Disk Manger, it shows all the recorded programs stored in the USB stick or external hard drive, press GREEN repeatedly to select Play/Delete One/ Delete All/ Rename a recorded program, press ENTER to confirm, press MENU to exit at any time.

8. Card Reader & USB Functions

This player has built-in SD/MMC card reader and USB port. It supports the playback of MP3, JPEG and MPEG4 (AVI) files.

Insert a SD/MMC card or an USB memory stick to the card slot or USB port on the player.

Press MENU, select Movie, press ENTER, the Movie menu will show:

8.1 Movie

-21-

Press to search forward at 2, 4, 8 and 20 times of the normal speed. Press to reverse at 2, 4, 8 and 20 times of the normal speed. Press to play the previous movie, press for the next one. Press ZOOM, a magnifying glass will show on the screen, press to zoom out and

view the picture at 1/2, 1/3, or 1/4 times of the normal view. Press to zoom in and view the picture at 2, 3, or 4 times of the normal view, press LEFT or RIGHT to move the picture. Press MENU to stop at any time, press again

to exit the playback.

8.2 Music

Press MENU, select Music, press ENTER, the Music menu will show:

Use UP/DOWN to select a subtrack.

Press ENTER to view the music files in the subtrack.

Use UP/DOWN to select a file you want to play, press ENTER to confirm.

Use UP/DOWN to select a subtrack.

Press ENTER to view the video files in the subtrack.

Use UP/DOWN to select a movie you want to watch, press ENTER to confirm.

Press to search forward at 2, 4, 8 or 20 times of the normal speed. Press to reverse at 2, 4, 8 or 20 times of the normal speed. Press to play the previous music file, press for the next one. Press MENU to stop at any time, press again to exit the playback.

-22-

9. Games

Games can be accessed by selecting Menu

->Game-> Native Games.

Press UP/DOWN to select the game you want to play, press ENTER to confirm. The games are played using UP/DOWN /LEFT/RIGHT buttons. To exit the game, press ENTER to pause, and then select Exit Game.

8.3 Photo

Press MENU, select Photo, press ENTER, the Photo menu will show:

Use UP/DOWN to select a subtrack.

Press ENTER to view the photo files in the subtrack.

Use UP/DOWN to select a file you want to play, press ENTER to confirm.

Press to play the previous photo, press for the next one. Press ZOOM, a magnifying glass will show on the screen, press to zoom out and view the picture at 1/2, 1/3, or 1/4 times of the normal view. Press to zoom in and view the picture at 2, 3, or 4 times of the normal view, press LEFT or RIGHT to move the picture. Press ENTER for photo slideshow, photos in the selected folder will show repeatedly. Press MENU to stop at any time, press again to exit the playback.

-23-

10. Analogue TV (ATV)

To search for Analogue TV, press MODE repeatedly until it shows ATV, press

LEFT or RIGHT to switch to the Analogue TV mode.

Press MENU, the ATV SETUP menu will show as follows:

Use UP/DOWN to select the TV FORMAT, AUTO SEARCH, SKP SWITCH,

FINE TUNE, press ENTER to confirm, press MENU to exit at any time during

the setting.

*Note：

Set the TV FORMAT to “PAL I” for UK.

10.2 AUTO SEARCH

The device will search for programs automatically if selecting AUTO SEARCH.

It will show as follows:

10.1 TV FORMAT

Use UP/DOWN to select the correct TV format for where you are, press

ENTER to confirm.

-24-

10.3 SKIP SWITCH

The SKIP SWITCH allows you to hide any channels, and they will be skipped when selecting channels using CH+ or CH-. Move to the channel you want to skip, press MENU, then select SKIP SETUP, the following menu will show:

Use UP/DOWN to select SKIP ON, press ENTER to confirm, then press

MENU to exit.

To turn the SKIP OFF for a channel, press the channel's number, press MENU,

use UP/DOWN to select SKIP OFF, press ENTER to confirm, then press

MENU to exit.

10.4 FINE TUNE

The device will tune the program finely if selecting FINE TUNE.

Use LEFT/RIGHT to tune, and the following will show:

*Note:

If the signal is too weak, the image will remain poor whatever you do, and may

output loud noise, shaking images and inferior sound etc., which is not the

fault. If the image remains poor when using the telescopic antenna, please

use a roof top aerial or an amplified external antenna.

TV's

try to

11. Battery Compartment

This device has got a built-in battery compartment which takes 6 pieces of AA 1.2V rechargeable batteries.

Fully charged batteries with 2700mAh capacity can support the TV watching and video playback for up to 2.5 hours. Higher duty batteries work longer.

-25-

1) Open the battery compartment

Make sure the device is switched off and disconnected with the power lead.

Slide to remove the battery compartment cover as shown below.

push down

2) Place the batteries with “+” and “-“ poles in right direction as shown on the

device.

3) Replace the battery cover, slide and push it back.

Caution:

The device will automatically charge batteries when connected to an external power source until fully charged. It may take up to 14 hours for 2700mAh batteries to be charged from almost flat to full.

Batteries may be charged by an external and separate charger (not supplied) before installed to the device and the charging time depends on the capacity of the charger used.

Use AA 1.2V rechargeable batteries only. Use normal AA 1.5V batteries

may cause permanent damage to the device and will invalidate the warranty.

Have the batteries fully charged before the first time using them.

The playback time may become shorter after the batteries are charged and

discharged for a large number of times.

Remove the batteries from the compartment if the device will not be used

for an extended period of time.

Dispose used batteries in compliance with WEEE and other government

regulations.

Do not throw batteries into fire. This can cause explosions.

Media Formats

File Type

Video Type

Audio Type

Audio bit Ratio

Resolution

AVI,MPG,ASF,VOB

MPEG1, MPEG2, MPEG4

MPEG1/2, Layer 1/2/3, PCM, LPCM

32Kbps ~ 320Kbps

Max. 720 x 480

Video player

Frame Rate

Max. 30fps/25fps(PAL)

-26-

DVB-T Band Width

6, 7, 8 MHz

DVB-T Frequency

VHF: 177.5~226.5 MHz UHF: 474~858 MHz

Analogue TV Format

PAL-I , DK, BG SECAM-L, DK

Analogue TV Frequency

VHF: 48.25 ~ 160.25 MHz

168.25 ~ 456.25

UHF: 464.25~863.2

MHz

5 MHz

AV I n

System: PAL, NTSC, SECAM CVBS Input: 1.0Vp-p/75ohm Audio Input: 1Vrms~2Vrms

AV Out

CVBS Output: 1.0Vp-p/75ohm System: PAL, NTSC

Antenna Input

Impedance: 75ohm

Card Reader

Support SD/MMC card up to 8GB

USB Port

USB 2.0 host (5v 800 m),A

Built-in Speaker

2 x1W, 8 ohm

Power Adaptor

AC 100~240V 50~60 Hz DC 12V/1.5A

Power consumption

<10W

Dimensions

263x172x31mm

Net Weight

681g

Battery Compartment

Watch TV for up to 2.5 hours with 6 x AA

1.2V 2700mAh rechargeable batteries.

12. Specifications

LCD Display

Screen size: 10 Inch Resolution: 800 x 480 pixels Aspect Ratio: 16:9 Brightness: 220 cd/m Contrast: 150:1

Decode Standard

DVB-T and MHEG5

-28-

This warranty is subject to the following conditions:

The warranty is only valid within the country where the product is purchased The product must be correctly installed and operated in accordance with the instructions given in the user's manual. The product must be used solely for domestic purposes. The warranty only covers the main unit, and does not cover the accessories. The warranty does not cover the damage caused by misuse, negligence, accident and natural disaster. The warranty will be rendered invalid if the product is resold or has been damaged by inexpert repairs. The manufacture disclaims any liability for incidental or consequential damages. Please consult our customer service before returning any product; we are not responsible for any unexpected product returns. Any faulty products must be kept and returned in the original packaging with all the accessories and the original copy of the purchase receipt.

The warranty is in addition to, and does not diminish, your statutory or legal rights.

Please note:

1.A LCD display panel comprises a very large number of pixels and each pixel contains three sub-pixels - red, green and blue. Due to the complex manufacturing process, occasional pixel anomalies may occur. Pixel anomalies cannot be fixed or repaired and can happen at any stage in the LCD's life. August products should not be deemed as faulty if there are no more than three bright and dark pixels respectively.

2.Portable TV antennas included in the box are for people to watch Freeview TV in areas where the signal is very strong and there may be difficulties in receiving signal with the included portable antennas in some regions at present. This is due to the fact that Freeview is yet to operate in full power in the UK. August TVs should not be deemed as faulty if it can receive Freeview by connecting to a proper digital rooftop aerial.

Telephone: +44 (0) 0845 250 0586 Email: service@augustint.com

Customer Service:

Warranty

This product is guaranteed for twelve months from the date of the original purchase. In the unlikely event of any defect arising due to faulty materials or workmanship, the unit will be either replaced or repaired free of charge (where possible) during this period. An alternative product will be offered in case the product is no longer available or repairable.

No user serviceable components are fitted inside this TV. Do not attempt any repairs, as this will invalidate the warranty. Any repairs must be carried out by either the manufacturer or their nominated service centre. Parts inside this set are subject to high voltage.

Problems listed below do not necessarily signify a fault with the unit. Please check this list before requesting repairs.

Problems

13. Troubleshooting

No picture and no sound

Check the connection with the AC adaptor or car adaptor. Use of an unauthorized power supply. Press POWER on the remote to turn on the device, or press and hold POWER on the device for 1.5 seconds to turn it on.

Check the channel selection. Scan for channels again. Always rescan for channels in new locations.

Check the sound volume. If you are using earphones, test them on another item. Check the earphone cable is plugged into the earphone socket on the device. Incorrect TV Format setting in Analogue TV mode. Set the device to factory default, then try again.

Possible Causes and Solutions

Picture freezing, and/or

sound distorting

Signal too weak, please check the aerial. Try to use a proper roof top aerial or an amplified aerial.

No signal

Signal too weak, please check the aerial. Try to use a proper roof top aerial or an amplified aerial.

Please adjust Brightness and/or Contrast settings.

Dark Picture

Motors/Trains/High Voltage Lines and Neon Lights may affect the signal.

Snowstorm

Achromatic/Flashing/No Colour

Please adjust the Colour Setting. Incorrect TV Format setting in Analogue TV mode.

No sound

No image

File Type

Bit Ratio

File Type

Resolution

MP3,WMA

32Kbps~320Kbps

JPG,JPEG(not include non--interlace)

Up to 4000 x 3000 pixels

Music player

Photo viewer

Caption DIVX(4.0, 5.0), XVID

-27-

August DA100C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
