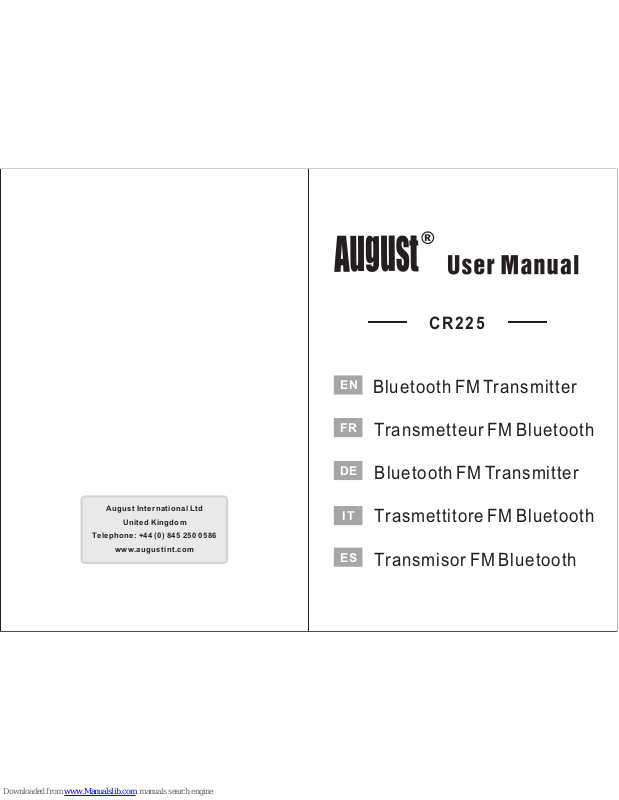

Page 1
August International Ltd
United Kingdom
Telephone: +44 (0) 845 250 0586
www.a ug us ti nt .c om
Tr
an
sm
et
t
eu
r
F
M B
l
u
et
o
o
t
h
Tr
as
m
e
tt
i
t
or
e
FM
B
l
u
e
to
o
t
h
B
l
u
et
o
o
t
h F
M
T
ra
ns
mit
te
r
T
ra
n
sm
i
s
or
FM
Blue
too
t
h
B
l
u
e
to
o
t
h
FM
T
ran
s
m
i
t
t
er
CR2
25
EN
FR
DE
IT
ES
Page 2
-1 -
User Manual
Thank you for purchasing the August Bluetooth FM
Transmitter. This user manual is designed to familiarize
you with all the features of this device. Please take time
to read this user manual carefully, even if you are already
familiar with a similar product.
Safety
To ensure the safety of you and others, please read the
Safety Instructions before using this device.
Please do not disassemble the CR225, it can be unsafe
and will invalidate the manufacturer's warranty.
Disposal
Please ensure the product and accessories are disposed in
compliance with WEEE (Waste Electrical and Electronic
Equipment) Directive and any other regulations in your
country.
Always check with the environment agency and any
other relevant authorities for current disposal
regulations.
Customer Service
You can contact us by phone on: +44 (0) 845 250 0586 or
by email at: service@augustint.com should you require
further technical support or customer service.
Storage and Use
1. Safety Instructions
Maintenance
Please unplug all leads before cleaning this device.
English
Never expose
the
to moisture,
dust, oil or
smoke.
device
When carrying
this device as
part of your
luggage please
ensure it is
securely stored
to avoid
impact damage.
Keep this
device away
from
extreme
temperatures.
Wipe the
device and
buttons with
a soft cloth.
Never wipe this
device with an
abrasive cloth
or apply
detergent,
alcohol or
chemical based
cleaning
products.
Alcoh ol
Never strike
or scratch this
device with
any sharp
object.
Keep the
device away
from wet or
damp
environment.
Avoid
dropping or
exposing to
impacts.
Page 3
-2 -
-3 -
2. Main Features
Powered USB socket for charging your portable electronics.
Powered by internal battery or 12V~24V cigarette lighter
socket.
3. Accessories
1) User manual
4. Device Layout
Take calls hands free through the integrated microphone.
Wirelessly connect your mobile phone to your car stereo.
1. Power button
2.
3.
4. Screen
5. Microphone
6. Previous
7. Next
8. FM frequency dial
9. USB output
Volume dial
Status LED
English
5. Operating
5.1 Power
Press and hold the power button to turn the device off or on.
Note: The CR225 will automatically turn on when connected
to a 12V~24V power socket and automatically turn off after 10
minutes if it is not connected to a Bluetooth source.
5.2 Bluetooth Connections
When turned on, the CR225 enters pairing mode
automatically indicated by the status LED flashing blue.
Scan for Bluetooth devices on your mobile phone and select
CR225 from the available devices.
After successful connection, the status LED will light blue.
The CR225 will attempt to reconnect to the last paired
device when it is turned on. To connect to a new device,
first disconnect any existing connection.
Note: Bluetooth settings on mobile phones are not
standardised,to find the specific information for your
phone, please refer to its user manual.
5.3 FM Transmission
The LCD screen displays the current FM transmission
frequency. Match your FM radio to this frequency to begin
playback through your car stereo. To reduce interference,
find an empty station on your FM radio then use the FM
frequency dial to match this number on the CR225.
5.4 Music Control
The CR225 can control the music playing on a compatible
Bluetooth device.
Use the volume dial to adjust the volume.
Press or to skip to the next or previous track.
Press the power button to play, pause and resume playback.
Page 4
-4 -
-5 -
5.5 Hands-free Calling
Whilst connected to your mobile phone, the CR225 will act as
ahands-free system for phone calls.
Press the power button on the CR225 to pick orhang up calls.
Press and hold the power button for 2 seconds to reject the
incomingcall.
Double press the power button to redial the last called number.
5.6 USB Output
Whilst the CR225 is connected to a 12V~24V power source,
the USB port on the CR225 acts as a powered USB port to
charge portable devices.
6. Specifications
Bluetooth version VER2.1+EDR
Bluetooth profile
Frequency response
Working distance
(Bluetooth)
FM frequency
Internal Battery
Working distance (FM)
Power input
HFP/HSP, OPP, A2DP/AVRCP, PBAP
20Hz~16KHz
About 10m
88.1~107.9MHz
DC 12V ~ 24V
USB output voltage
Charging time
Working time 2.5 hours
DC 5V 1A
1 hour
About 5m
200mAh
Dimensions
110×65.5×40mm
Net weight 191g
English
7. Troubleshooting
The devicewill not turn on.
1) Check that the CR225 is securely plugged into the
12V~24V power source.
2) Check that the 12V~24V power source is working.
No sound is heard.
1) Check that the volume level on your Bluetooth device,
CR225 and FM radio is not too low.
2) Check that the FM frequency of the CR225 and the FM
radio match.
The sound quality is intermittent.
1) Check that the FM frequency of the CR225 and the FM
radio match.
2) Check that the FM frequency is clear of FM radio
broadcasting.
The microphone volume is too low.
1) Turn the microphone on the CR225 to face you.
2) Move the CR225 closer to you.
Page 5
-6 -
8. Warranty
This product is guaranteed for twelve months from the date of
the original purchase. In the unlikely event of any defect
arising due to faulty materials or workmanship, the unit will
be either replaced or repaired free of charge (where possible)
during this period. An alternative product will be offered in
case the product is no longer available or repairable.
This warranty is subject to the following conditions:
where the
product is purchased.
The product must be correctly installed and operated in
accordance to the instructions given in this user manual.
The product must be used solely for domestic purposes.
The warranty only covers the main unit, and does not cover
the accessories.
The warranty does not cover the damage caused by misuse,
negligence, accident and natural disaster.
The warranty will be rendered invalid if the product is
resold or has been damaged by inexpert repairs. The
manufactures disclaim any liability for incidental or
consequential damages.
Please consult our customer adviser before returning any
product; we are not responsible for any unexpected product
returns.
Any faulty product must be kept and returned in the original
packaging with all the accessories and the original copy of
the purchase receipt.
The warranty is in addition to, and does not diminish, your
statutory or legal rights.
Customer Service:
Telephone: +44 (0) 845 250 0586
Email: service@augustint.com
The warranty is only valid within the country
