August ASL-01 Installation Manual
August Smart Lock
Installation Guide
August Installation Guide
2
3
Welcome!
This guide will get you up and running with
your August Smart Lock. Installation generally
takes less than 15 minutes. If you have any
trouble, please check our support section
(august.com/support), contact our installer
network (august.com/installers) or call
844-AUGUST1 (284-8781) for help.
August Installation Guide
4
Preparation
Make sure your existing deadbolt is compatible
with the August Smart Lock. Only standard
deadbolts are supported. Use our compatability
assistant to double-check. august.com/compatibility
TOOLS NEEDED
You will need a standard
phillips screwdriver.
Alternately, we have an installer network available
in major cities, who can help with installation.
august.com/installers
5
Compatibility
YES
Standard
Deadbolt is mounted and operates
independently of the door handle
Integrated
Lock & Handle
Handle and lock
thumb-latch are
both mounted
together on a
metal plate
NO
Mortise
An integrated
door handle
and deadbolt
in a single
metal unit
Rim
Cylinder
Mounted on
the inside, on
top of the
door and
door jamb
NO NO
August Installation Guide
6

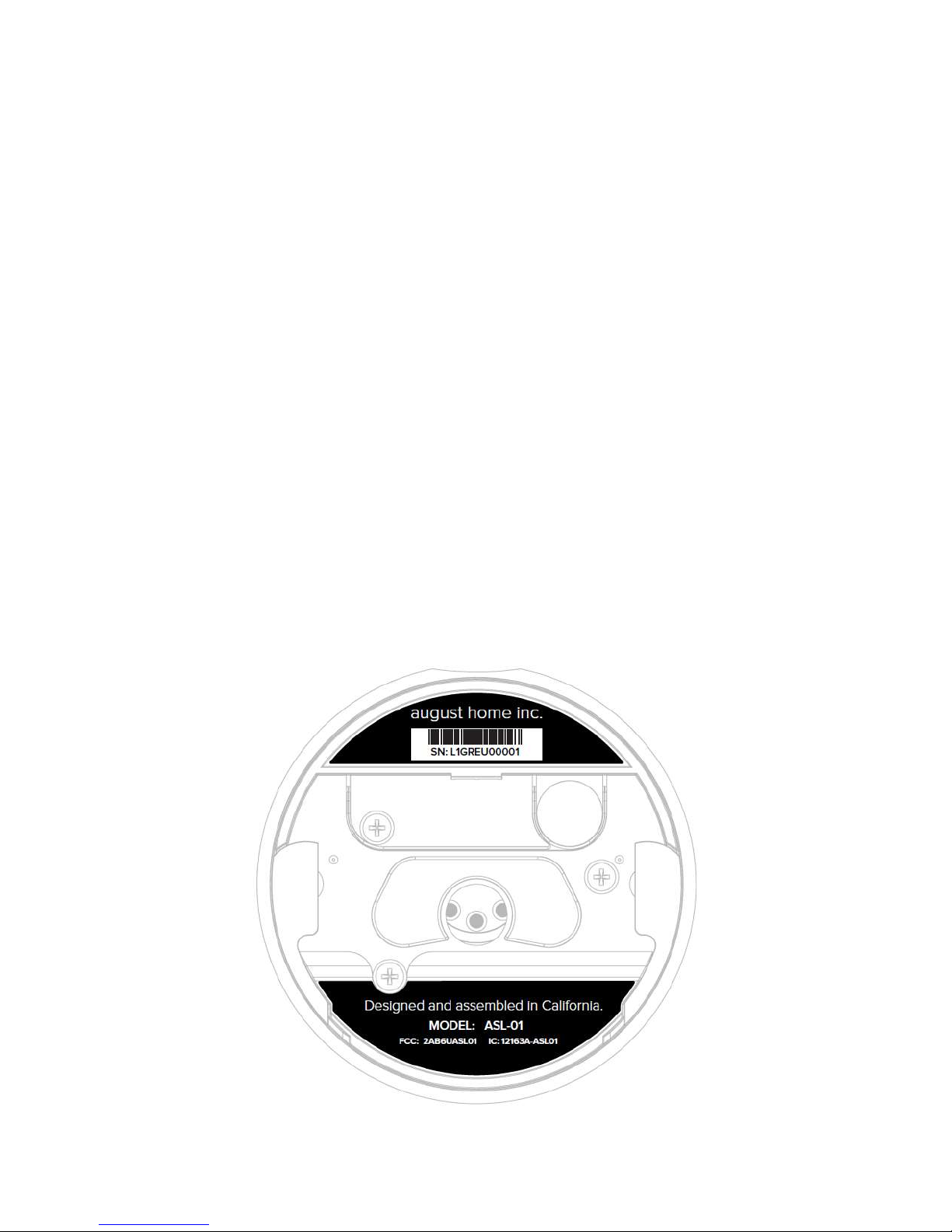

1 August Smart Lock
(4 AA Batteries pre-installed)
1 Adhesive Strip
(Inside Envelope)
Package Contents
7
3 Mounting Plates
3 Adapters
August Installation Guide
8
Installation Overview
Before Installation
Key Hole
Deadbolt
Tail Piece
Thumb-latch
Screws
1
2
3
4
5
1
2
3
4
5
9
After Installation
Key Hole
Deadbolt
Tail Piece
Mounting Plate
Screws
Tail Piece Adapter
August Smart Lock & Faceplate
1
2
3
4
5
6
7
1
2
3
4
5
6
7
August Installation Guide
10
Step 1:
Prepare existing deadbolt.

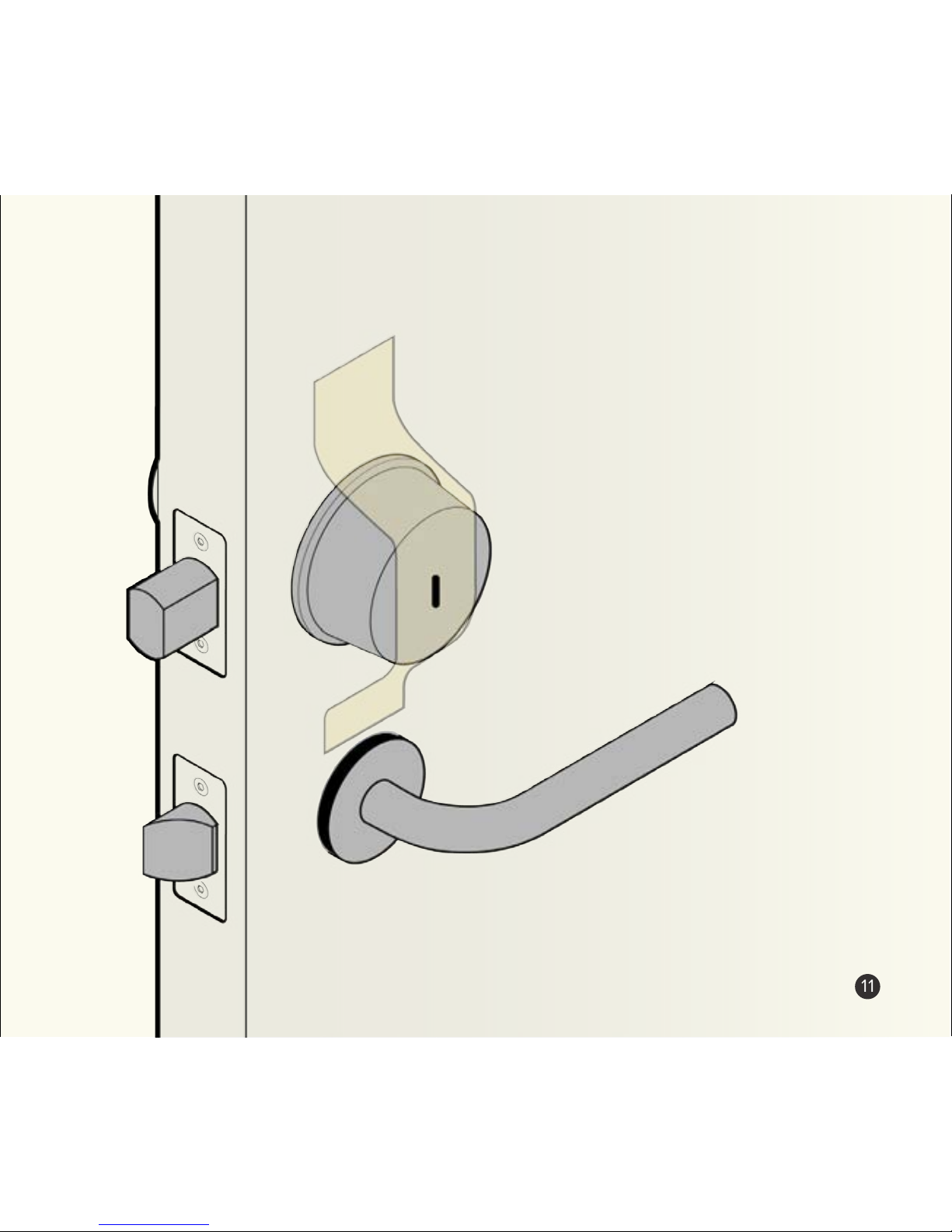

Ax the supplied adhesive strip over the key
hole, securing it to the exterior side of your door.
This should hold the keyhole in place when you

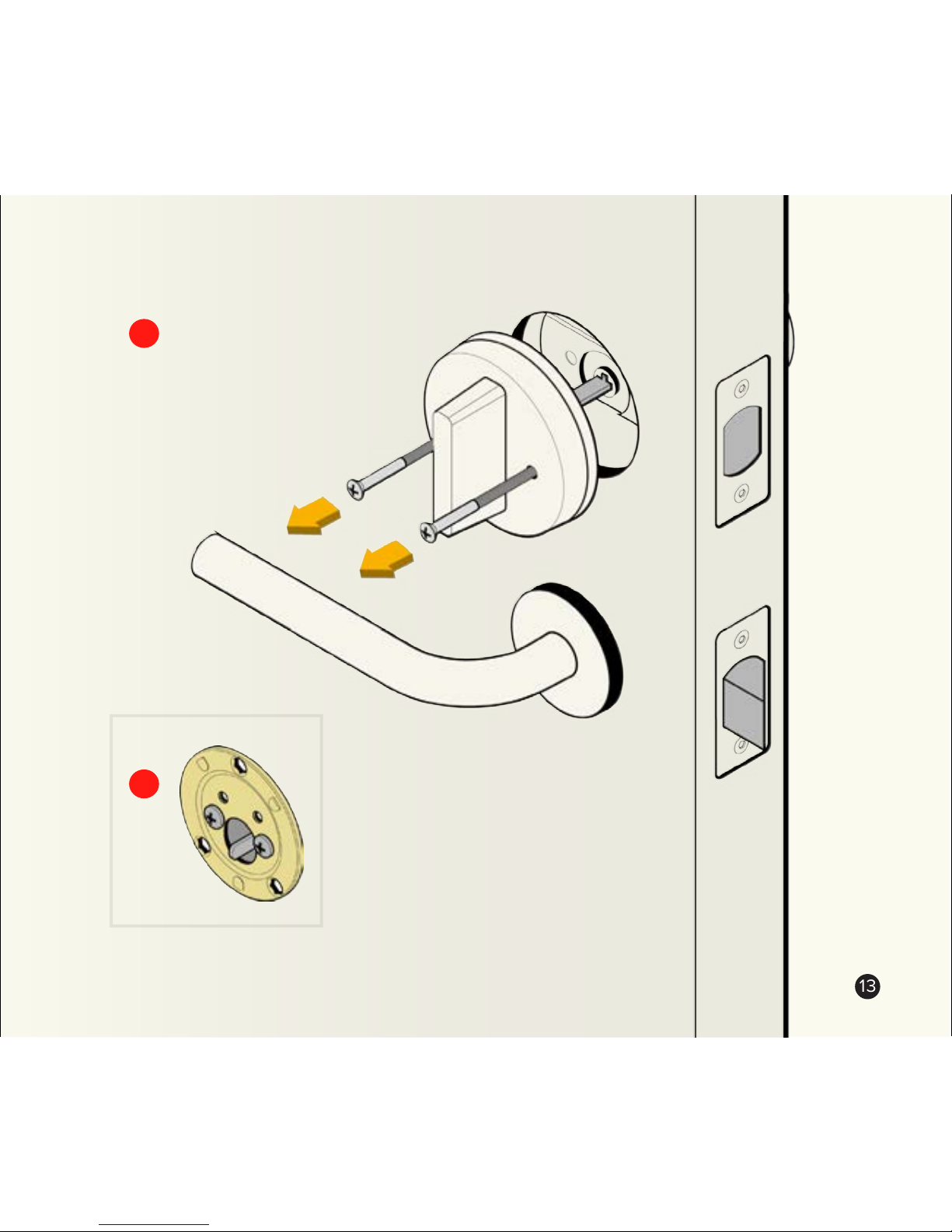

remove the thumb-latch on the inside of the door.
