Explosionproof telephone dFT3
Operating manual
dFT3 1.1 1
Fern Tel 3
2 dFT3 1.1 1
The dFT3 telephone is an explosionproof version of the weatherproof dFT3
telephone with all its features. The operating manual is still valid, with the addition of the
following items.
Operation
The dFT3 telephone is used as a stationary device in areas potentially endangered by an explosive gas or dust atmosphere.
Designed for Device Group II and Categories 3G and 3D, it may be operated within
zones 2 and 22.
The dFT3 telephone may only be operated in the analogue, public telephone
network and via analogue terminals of branch exchanges.
Commissioning
After having been connected to the telephone line, the telephone is operational.
Operating utilization position
The telephone may be mounted on a wall or used as a desk telephone.
Service
The telephone contains no serviceable parts.
Care and maintenance
The telephone is maintenance-free. Still, if the operating area is highly contaminated by
dust, fat, oil etc., the device should be cleaned from time to time.
The device may only be cleaned using a damp cloth in order to avoid electrostatic
charging.
Never use sharp objects for cleaning.
During maintenance, check accessible seals for function, e.g. regarding possible
damage or positioning. If the seals are damaged, operating the telephone is not allowed. Damaged seals must be replaced.
Disposal
The complete device should be disposed of as electronic waste. When the device is
disassembled, plastics, metals and electronics components are to be disposed of
separately. In every single case the national requirements and regulations for waste
disposal must be observed.
dFT3 1.1 3
Warnings and security information
This device is a explosionproof, weatherproof telephone especially designed for use in
rough industrial environments.
Please note the following warnings and security information:
– The installation and adjustment of the device must be carried out by qualified per-
sonnel in accordance with the prescribed installation regulations taking the specified
types of protection into account.
– This apparatus is a Protective Class lI device and may only be connected to and
operated at the voltage it was designed for.
Make sure the connections are in perfect order.
– Make sure the telephone housing, the connecting cable and the receiver cord are
not damaged. If the device is damaged, it may not be operated.
– While operating the device in commercial facilities, the accident prevention regula-
tions of the Employers' Liability Insurance Association regarding the use of electrical
systems and devices must be observed.
– The device may be operated solely under the stated ambient conditions. Unfavoura-
ble ambient conditions can lead to damage of the device and thus present a potential danger for the user.
Unfavourable ambient conditions include:
• Humidity of air too high (>75% r el., condensing)
• moistur e, dust (pay attention to the degree of protection)
• flammable gases, vapours and solvents not cover ed by the
device’s type of protection
• too high ambient temperatur es (>+55°C)
• too low ambient temperatur es low (<-20°C)
– During operation of the device the temperature must not exceed nor fall below the
prescribed range of ambient temperatures. It is not allowed to operate the device
with an additional cover.
– Repairs may be carried out by the manufacturer or by a person appointed by the
manufacturer followed by a renewed product conformity inspection.
– Make sure the wiring is disconnected from the power supply upon connecting or
disconnecting the wires in the terminal room.
– If electrical connections must be carried through in the hazardous area, the enclosu-
re must be opened and closed as follows:
• Remove voltage fr om the device
• Loosen the fastening scr ews from the keypad insert
• Remove the keypad insert and unfasten the keypad cable
4 dFT3 1.1
• Make the connections while the device is open
• When the work is done, plug the keypad back on, and place the keypad insert
back on the lower part of the device.
Make sure the seal is correctly positioned and in perfect working order. Then tighten
the fastening screws in a diagonal pattern.
– Only blind plugs and cable glands as prescribed by the manufacturer may be used.
Should these points not be observed, the explosion protection of the device cannot be
guaranteed. The device then poses a potential threat to the user’s life and can cause
the ignition of an explosive atmosphere.
CE symbol
The dFT3 fulfils the demands of the R&TTE Directive 1995/5/EC and the ATEX
directive 94/9/EC. The CE symbol confirms the conformity of the device with the
above-mentioned Directives.
Technical Specifications
Electrical characteristics
Connection data DC voltage La / Lb: Ui = 66 Vdc
Ringing voltage 24 Vac - 90 Vac / 16 Hz…68 Hz
Sounder input
impedance ≥ 6.0 kΩ at 25 Hz
≥ 3.5 kΩ at 50 Hz
General specifications
Enquiry key (flash) for dual-tone
multifrequency only 80 ms, 120 ms, 600 ms
Dialling procedure Dual-tone multifr equency Frequencies according to ITU-T Q.23
Tone duration unlimited or 90 ms
Pulse dialling Pulse/Pause ratio
1.5: 1 (60 ms/40 ms) or
2:1 (66.7/33.3 ms)
Ringing volume max. approx. 95 dB(A) at 1 m distance
Housing Height x Width x Depth 293 x 191 x 128 mm
Weight Approx. 2300 g
Receiver Microphone Electret-foil microphone
Receiver inset dynamic receiver inset with magnetic
field generator
dFT3 1.1 5
Connecting terminals
Labelling
Power cable 2-pin TCP/La - TCP/Lb
Secondary sounder cable 2-pin W - W1
Conductor cross section
flexible fine-wired 0.75 – 2.5 mm
2
/ AWG14
rigid single wired 0.75 – 2.5 mm
2
/ AWG14
When connecting the wire, observe the fulfilment
of the Class II requirements as follows:
1. For connection always use the required terminal (5)
2. The shielding isolation must be long enough to reach at least to the upper edge
of the cable gland.
3. The exposed conductors, from which the isolation has been removed,
must be situated in the terminals.
In order to avoid electrostatic discharge, the potential must be evened out. (17)
Dimensions connecting cable / cable entry
Cable entries M20 x 1.5 / M12 x 1.5
Blind plugs M20 x 1.5 / M12 x 1.5
Connecting cable diameter 6 – 13 mm
Connection potential compensation 1.5 – 4 mm
2
6 dFT3 1.1
Ambient temperature range and explosion protection
Type of protection II 3 G Ex nAnL IIC T5
II 3 D Ex tD A22 IP65 T80°C
Ambient operating temperature -20°C ≤ Ta ≤ +55°C
Storage and transport temperature -25°C ≤ T ≤ +70°C
Housing degree of protection IP 65
Labelling
Company J.Auer Fabrik elektr. Maschinen GmbH
Type dFT3
20°C ≤ Ta ≤ +55°C IP 65 Ui = 66 Vdc / 90 Vac
II 3 G Ex nAnL IIC T5 /
II 3 D Ex tD A22 IP65 T80°C
DEKRA BVS 09 ATEX E 061
Do not open while energized.
For cleaning moist cleaning-rag must be used
CE II 3 G Ex nAnL IIC T5 /
II 3 D Ex tD A22 IP65 T80°C
dFT3 1.1 7
EG KONFORMITÄTSERKLÄRUNG
EC – DECLARATION OF CONFORMITY
DECLARTION CE DE CONFORMITE
DELLARCION DE CONFORMIDAD CE
Wir erklären in alleiniger Verantwortung, dass das Produkt auf das sich diese Erklärung bezieht mit der/den folgenden Normen
oder normativen Dokumenten übereinstimmt:
Herewith we declare bearing sole responsibility that the product referred in this declaration is in conformity with the following standards or
normative documents and regulations of the directive:
Nous declarons de notre seule responsabilite que le produit auquel se rapporte la presnte declaration est conforme aux normes ou aux
documents normatifs suivants :
Declaramos, con nuestra exclusiva responsabilidad, la conformidad del producto al que se refiere la presente declaracion la(s) norms(s)
Bezeichnung des Erzeugnisses
Telefon
Name of product Telephone
Titre Produit Téléphone
Nombre del producto
Teléfono
Geräte- oder Typenbezeichnung
Equipment type or mark of equipment
Identification du produit
dFT3
Nombre del aparato o del tipo
Bestimmung der Richtlinie
Nr. und Ausgabedatum der Norm(en)
Provisions of the directive No. and date of issue of the standard(s)
Désignation de la directive No. et date d´ émision de la/des norme(s)
Directiva aplicable N° y fecha de emisión de la(s) norma(s)
94/9/EG: Geräte und Schutzsyteme zur bestimmungsgemäßen
Verwendung in explosionsgefährdeten Bereichen
EN 60079-0:2006
94/9/EC: Equipment and protective system intended for use in EN 60079-15:2005
potentially explosive atmospheres EN 61241-0:2006
94/9/CE: Appareils et systéme de protection destinés á étre EN 61241-1:2004
utilisés en atmosphéres explosibles
94/9/CE : aparatos y sistemas de proteccón para uso en
atmósferas potenciaömente explosivas
EG Baumusterprüfbescheinigung
EC-type-examination certificate
BVS 09 ATEX E 061
Attestation examen CE
Certificado de examen CE
Benannte Stelle für die Bescheinigung
DEKRA EXAM GmbH
Notified body of the certificate Fachstelle für Sicherheit elektrischer Betriebsmittel - BVS
Organisme notifié de l` attestation Carl-Beyling-Haus
Organismo encargodo del certificado Dinnendahlstraße
Benannte Stelle für die Überwachung
TÜV-Austria
Notified body of the inspection
Organisme notifié de contróle Krugerstraße 16
Organismo encargodo del examen A-1015 Wien
Hersteller / Anschrift
J.Auer GmbH
Manufacturer / Factory address Perfektastr. 102
Fabricant / Adresse A-1230 Wien
Geschäftsfrührer:
Dipl. Ing. Michael Auer
Managing director / Direction Gérant / Gerente: .......................................................
(Name, Vorname / name, prename / apellido, nombre)
Wien 22.04.2009
...................................... ................................... .......................................................
(
Ort
/ place / lieu / población) (
Datum
/ date / fecha )
(Rechtgültige Unterschrift)
9,
D-44809 Bochum
8 dFT3 1.1
Operating manual
FernTel 3
Version 16 keys
without display
Version without keys,
without display
Version 21 keys with display
Tabletop unit
Weatherproof telephone wFT3
dFT3 1.1 9
Note
Please read the operating manual carefully before installing the device.
Please check the contents of the box for completeness.
Table of Contents
General operating notes.................................................................................... 4
Device overview / Dimensions ........................................................................ 5
Device versions.................................................................................................... 5
Controls and indicators..................................................................................... 6
Version with keypad (21 keys) and display .......................................................... 6
Version with keypad (16 keys), without display .................................................... 7
Version without keypad, without display............................................................... 7
As-delivered condition....................................................................................... 8
Box contents....................................................................................................... 8
Telephone presetting .......................................................................................... 8
Mounting and installing..................................................................................... 9
Wall version ........................................................................................................ 9
Table version .................................................................................................... 10
Mounting the sling holder .................................................................................. 11
Connection of a secondary sounder .................................................................. 11
Version with keypad (21 keys) and display...................................... 12
Operation................................................................................................... 12
Seize (Make / answer a call)........................................................................ 12
Receiver volume ......................................................................................... 12
Make a call.................................................................................................. 12
Speed code dialling ..................................................................................... 12
Number redial ............................................................................................. 12
Disconnect .................................................................................................. 12
Enquiry call (dual-tone multifrequency only)................................................. 12
Telephone book .......................................................................................... 12
Programming............................................................................................. 13
Telephone book .......................................................................................... 14
Speed code dialling ..................................................................................... 14
Settings....................................................................................................... 15
Ringing signal........................................................................................ 15
Volume.................................................................................................. 15
Dialling mode ........................................................................................ 15
PBX....................................................................................................... 15
As-delivered condition ........................................................................... 15
Menu..................................................................................................... 15
Restrictions ................................................................................................. 15
Activate ................................................................................................. 15
None ............................................................................................... 15
Operation and programming 12
10 dFT3 1.1
Direct call ........................................................................................ 16
Total lock......................................................................................... 16
Telephone book............................................................................... 16
Programming................................................................................... 16
Direct call number.................................................................................. 16
PIN........................................................................................................ 16
Version with keypad (16 keys), without display ............................. 17
Operation ................................................................................................ 17
Seize (Make / answer a call)..................................................................... 17
Amplified listening in receiver.................................................................... 17
Make a call............................................................................................... 17
Last number redial.................................................................................... 17
Disconnect ............................................................................................... 17
Enquiry call (dual-tone multifrequency only) .............................................. 17

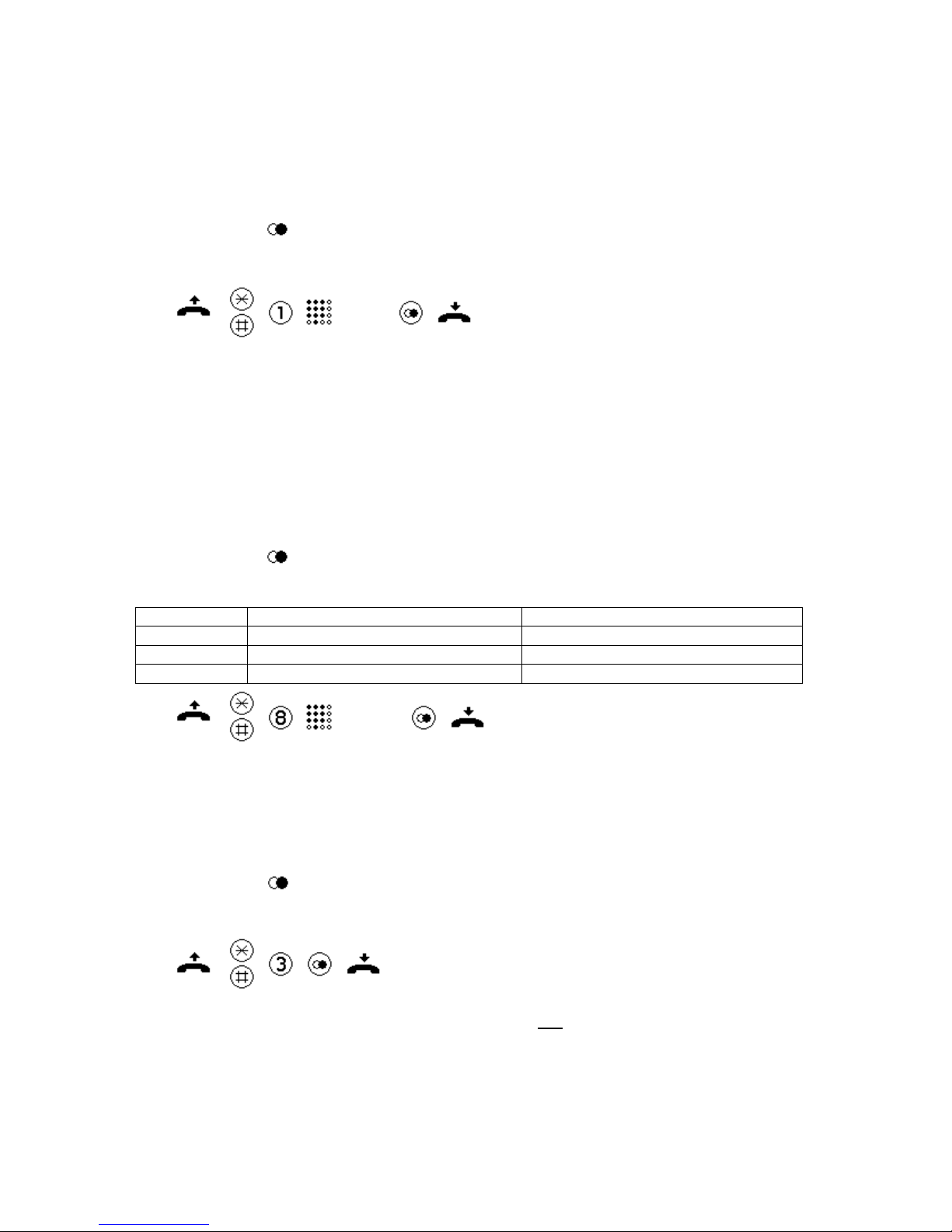

Programming.......................................................................................... 17
Allow settings modifications ...................................................................... 17
Restrict settings modifications................................................................... 18
Adjust ringing volume ............................................................................... 18
Adjust the ringing melody.......................................................................... 18
Amplified listening in receiver, setting the levels........................................ 18
Set dialling mode...................................................................................... 19
Enter the exchange code.......................................................................... 19
Delete the exchange code ........................................................................ 19
Program pause following the exchange code ............................................ 20
Program the Enquiry Key (flash time)........................................................ 20
Restore to as-delivered condition.............................................................. 20
Change Personal Identification Number (PIN)........................................... 21
Signalling tones during programming................................................... 21
Version without keypad and without display .................................. 22
Operation ................................................................................................ 22
Seize (Make / answer a call) and dialling .................................................. 22
Programming using device-internal
programming keypad (opt)..................................................................... 22
Setting operating mode............................................................................. 22
Enter speed code dialling number............................................................. 22
Adjust ringing volume ............................................................................... 22
Adjust the ringing melody.......................................................................... 23
Set dialling mode...................................................................................... 23
Restore to as-delivered condition.............................................................. 23
Signalling tones during programming................................................... 23
General information .......................................................................................... 24
Service............................................................................................................. 24
Care and maintenance .................................................................................... 24
Warnings and security information................................................................ 24
Technical Data .................................................................................................... 25
EC Declaration of Conformity........................................................................ 26
dFT3 1.1 11
General operating notes
1. The versions of FernTel 3 can be operated in the analogue, public telephone network
and connected to analogue terminals of branch exchanges.
2. The receiver is equipped with a leakage field spool for coupling of hearing aids. Users
of a hearing aid with inductive receiver may receive the signal from the receiver inset
directly.
3. The version without keypad does not offer you all the performance features available
in other versions.
4. The telephone has a receiver accommodation with a magnetic contact as hook
switch. To terminate an existing connection, the receiver must be replaced. For
disconnecting an existing connection, all you need to do is press the disconnect key
on the keypad.
5. When programming the settings, the handset must be off the hook. On the version
with 16 keys, you enter programming mode by simultaneously pressing the asterisk
and the hash key. For the version with 21 keys and a display, programming takes
place in the Select menu, which appears when the
key is pressed.
6. If a procedure has been completed successfully, you will hear an acknowledgement
signal. An error tone informs you of any operating mistakes.
7. Should more than 2 minutes pass before you start dialling, the exchange may cut off
the power supply. The dial tone can no longer be heard. In this case you should put
the handset back on the hook and wait approximately 2 seconds before you lift it
again. Programming sessions that have been started, but have not been completed,
must be repeated.
8. If you get a call, the FernTel 3 rings with the volume and melody you have chosen.
The display version also signals the incoming call in the display.
9. Entering your personal identification number (PIN) you may partly or completely
restrict functions and settings. Forgetting your PIN can be compared to losing a key.
If you have forgotten your PIN, please contact our technical support service.
12 dFT3 1.1
Device overview / Dimensions (mm / inch)
Device versions
The telephone FernTel 3 is available in three versions.
- with keypad (21 keys) and display
- with keypad (16 keys), without display
- without keypad, without display (optionally with a device-internal programming keypad)
dFT3 1.1 13
Controls and indicators
Version with keypad (21 keys) and display
Keypad
Menu operations keys
Speed code dialling
Disconnect
Last number redial
Enquiry key
________________________
Number keys
Display
The two uppermost lines display
numbers or the menu settings.
The lower line displays pictograms
that correspond to the functions.
Last number redial
Direct dialling
Dual-tone multifrequency (DTMF)
Pulse dialling
Menu operation
14 dFT3 1.1
Version with keypad (16 keys), without display
Keypad
Amplified listening in receiver
Disconnect
Last number redial
Enquiry key
________________________
Number keys
Version without keypad, without display
Optional, device-internal programming keypad (12 keys)
123
456
789
*0#
dFT3 1.1 15
As-delivered condition
Box contents
The scope of the delivery includes:
- 1 telephone
- 1 telephone mount
- 1 handset accommodation for the table version with 2 screws
- 4 washers Ø 18 mm
- this operating manual
Telephone presetting
Valid for version
ABC
Dialling mode Dual-tone multifrequency (DTMF),
signal duration 90 ms
xxx
Enquiry key function (R key) Flash 120 ms xx
Exchange code none xx
Pause following exchange code 3 seconds xx
Last number redial memory Empty xx
Speed code dialling memory Empty x
Direct call memory Empty x
Restrictions Programming restricted xx
Amplified listening in receiver Two levels (6 dB / 12 dB) x
PIN 0000 xx
Ringing melody 7 xxx
Ringing volume 6 = max xxx
Receiver volume 1 = min, default value x
A) with keypad (21 keys) and display
B) with keypad (16 keys), without display
C) without keypad, without display (optionally with a device-internal programming keypad)
Using the programming menu, you may reset this as-delivered condition at any time. The
PIN and the menu language, however, will not be altered by resetting.
16 dFT3 1.1
Mounting and installing
Protect the telephone from direct rays of the sun and sources of heat.
Wall version
Fasten the telephone mount with 4 screws (2). Place the provided washers Ø 18 mm under
the screw head.
Place the telephone in the upper latches (A), swing it downwards until the lower latches
audibly engage (B).
Remove the keypad plate (6), and tighten the two locking screws (3) as far as they will go.
Important: This preserves the IP65 degree of protection.
Pull the telephone line through the cable gland (4) and connect it with terminal (5) TCP/La TCP/Lb (TCP : Terminal Connection Point).
Use cables with a sheath diameter of 5 to 9 mm only, otherwise the IP65 degree of
protection can not be guaranteed.
Bore
illustration
(not to scale)
dFT3 1.1 17
Plug the ribbon cable onto the pin contact strip (7) of the keypad plate.
Tighten the keypad plate (6) using four screws (8).
Table version
Place the telephone in the lower latches (A), swing it backwards until the upper latches
audibly engage (B).
Pull the telephone line through the cable gland (4) and connect it with terminal (5) TCP/La TCP/Lb.
Use cables with a sheath diameter of 5 to 9 mm only, otherwise the IP65 degree of
protection can not be guaranteed.
The standard handset accommodation (for the wall version) (9) can be replaced for the table
version.
After loosening the two screws (12) on the bottom of the keypad plate you can remove the
standard handset accommodation.
Fasten the table version handset accommodation (11) to the keypad plate by using the
included screws (12).
Plug the ribbon cable onto the pin contact strip (7) of the keypad plate. Tighten the keypad
plate (6) using four screws (8).
Lay the telephone cord according to the instructions, in order to prevent accidents.
18 dFT3 1.1
Mounting the sling holder (optional)
Remove the keypad plate (6) by loosening the screws (8).
Lever out the duct cover (13).
Fasten the sling holder (14) by using the two included screws (15).
Insert the duct cover (16) with groove.
Screw the keypad plate (6) back on again.
Connection of a secondary sounder
If you want the telephone to control a secondary sounder, the blind plug must be replaced by
a cable gland M20x1.5 IP65. The cable diameter must correspond to the demands of the
cable gland, otherwise the IP degree of protection will not be reached. Remove the keypad
plate, install the cable gland and connect the secondary sounder to the terminals W and W1.
After all the connections are made, screw the keypad plate onto the housing again, using 4
screws (8).
dFT3 1.1 19
Operation
Seize (Make / answer a call)
When you pick up the handset, you may answer a call or make a call to a conversation
partner.
Receiver volume
During a call you can adjust the volume in the receiver for the duration of the call, using the
keys
and . If you want to change the receiver volume permanently, please use the
programming menu „Settings/Receiver volume“
Make a call
Dial the desired number by using the number keys. When using the dialling mode Pulse
dialling, the asterisk and hash keys have no function.
Speed code dialling
By pressing the A key, a pre-programmed number can be dialled automatically.
Last number redial
By pressing the last number redial key, the last entered number is automatically dialled.
Disconnect
To end a call and start a new call immediately afterwards, there is no need to put the handset
down, just press the disconnect key. When disconnecting, the old call ends, and after a short
while you hear the dialling tone. You may now enter the number for the new call.
Enquiry call (dual-tone multifrequency only)
If the telephone is connected to a private branch exchange, you may press the enquiry key R
in order to establish a connection with another subscriber, who is also connected to the
private branch exchange. By pressing this key a second time, you will be connected with the
first subscriber again.
Telephone book
You can dial numbers from the telephone book. Pick up the handset and press the key.
„Telephone book“ appears in the display. If you press the
key again, the first of the stored
names is shown. Using the keys
and you can scroll to the name you want on the
display. If you press the
key, the number associated with the displayed name is dialled.
(„Telephone book“ appears in the display only if the telephone book contains one or more
entries.)
Operation and programmin
g
V
ersion with keypad (21 keys) and displa
y
20 dFT3 1.1
Programming
General
Use the Programming menu to modify the operating settings of the telephone. After lifting the
handset or pressing the disconnect key, a welcome message appears in the display.
Begin the programming procedure by pressing the
key.
In the top line of the display, the text „Main menu“ appears. In the second line, you see the
first menu item of the Main menu. The arrow > in front of the menu item indicates that this
item has been selected. Provided you have access to other menu items, pressing the
key
takes you to the next menu items, one at a time. Pressing the
key takes you back to the
top of the list of menu items.
The display shows a maximum of two menu items. When an arrow > is visible in front of an
item, it indicates that the item has been selected. The menu items denote further sub-menus.
Pressing the
key activates a selected menu item.
Any sub-menu may contain further sub-menus as menu items. These sub-menus are
selected in the same manner as in the Main menu. Press the
key to go to a higher menu,
or to leave the Main menu.
At the lower menu levels, so-called radio buttons are displayed for the selection of possible
settings.
Example:
Display Significance
---Activate--- Title line
(
) None Activated option
( ) Direct call Option
>( ) No calls Selected option
=== End=== End of menu list
Pressing the C key activates a selected option.
In certain menus, values may be changed. These changes are made by pressing the
and
keys.
For all programming goes: Changes are applied and stored upon pressing the
key only.
By pressing the
key, you leave the menu without applying the changes.
If a programming session has not been completed, the telephone leaves the Programming
menu after a certain amount of time (time-out).
If you want to modify the settings, you will be required to enter a four-digit PIN. The PIN set
by the factory is 0000.
Initial programming
In the as-delivered condition, the telephone already has a basic configuration enabling you to
make and answer calls. If you want certain settings regarding telephone book entries,
volume, dialling mode, or operation from private branch exchanges, you must use the
Programming menu.
Press the
key to go to the Main menu.
The sub-menu „Programming“ appears. Pressing the
key takes you to the next level,
where you may activate the sub-item „allow“ by pressing the C key. You will be prompted to
enter the PIN (factory setting 0000). Programming is now allowed, and the complete Main
menu is at your disposal, including the following items:
- Telephone book
- Speed code dialling A
- Settings
In order to program the telephone, you have to allow modifications of the settings.
dFT3 1.1 21
- Restrictions
- Programming
Press the
key to select a menu item.
Telephone book
In the telephone book, you press the and keys to display the entered names (and
numbers). Press the
key to choose between the following sub-menus:
- dial
- modify
- add
- delete
- delete all
In case of an empty telephone book, only the sub-menu „add“ appears.
For using the menus „add“, „modify“, „delete“, „delete all“, you are also required to enter the
PIN.
How it works
dial
The number stored with the displayed name is dialled.
add
A new telephone book entry is added to the telephone book.
modify
Names and number of the displayed telephone book entry is modified.
delete
The displayed telephone book entry is deleted.
delete all
All entries of the telephone book are deleted.
Speed code dialling A
Under Speed code dialling you can program a number to be dialled automatically when the A
key is pressed.
22 dFT3 1.1
Settings
Under Settings, use the and keys to display the following sub-menus:
- Ringing signal
- Volume
- Dialling mode
- PBX
- Menu
- As-delivered condition
- PIN
Ringing signal
The volume and melody of the ringing signal are set.
Volume
The receiver volume is set permanently.
Dialling mode
Here, one of four dialling modes is selected. The options are:
- Dual-tone multifrequency (DTMF) with a tone duration of 90 ms
- Dual-tone multifrequency (DTMF) with unlimited tone duration (corresponding to key
usage)
- Pulse dialling (PD) pulse duty ratio 1.5:1
- Pulse dialling (PD) pulse duty ratio 2:1
PBX
If the telephone is connected to a private branch exchange, this is where you perform the
following settings:
- Enter or delete an exchange code
- The duration of the pause following the exchange code
- The flash time upon operation of the enquiry key (dual-tone multifrequency dialling
only)
Menu
Here you can set the menu language, the welcome message and the display contrast.
As-delivered condition
The as-delivered condition is reset. This will not alter the PIN or the menu language.
PIN
Here you may change the 4-digit PIN. The PIN is 0000 upon delivery.
Restrictions
Under Restrictions, use the and keys to display the following sub-menus:
- Activate
- Direct call number
Activate
Choose from
- none The telephone is not restricted.
- Telephone book Numbers can be dialled from the telephone book
only.
- Direct call When pressed, all keys except the Disconnect key
and the
key dial the direct call number.
dFT3 1.1 23
- Total lock The telephone is fully restricted. Calls can be
received only.
Direct call number
Here, enter the number to call when Direct call is enabled.
Lift restrictions by pressing the
key, in case of total lock, Direct call and exclusive dialling
from the telephone book. You may choose to lift the restrictions on the telephone for good or
just for this one call. You will be required to enter the PIN.
Signalling tones during programming
Tone Number Significance
Acknowledgement tone 1 long tone Completion of a correctly performed
procedure.
Error tone 4 short tones An error occurred within a procedure. The
procedure is cancelled.
PIN tone 1 short tone sequence Prompt to enter the PIN.
24 dFT3 1.1
Operation
Seize (Make / answer a call)
When you pick up the handset, you may answer a call or make a call to a conversation
partner.
Amplified listening in receiver
Press the A key to increase the receiver volume during a call. Depending on the presetting,
the volume is increased in one or two steps. Pressing the A key one more time reduces the
volume to the previous level.
Make a call
Dial the desired number by using the number keys. When using the dialling mode Pulse
dialling, the asterisk and hash keys have no function.
Last number redial
By pressing the last number redial key, the last entered number is automatically dialled.
Disconnect
To end a call and start a new call immediately afterwards, there is no need to put the handset
down, just press the disconnect key. When disconnecting, the old call ends, and after a short
while you hear the dialling tone. You may now enter the number for the new call.
Enquiry call (dual-tone multifrequency only)
If the telephone is connected to a private branch exchange, you may press the enquiry key R
in order to establish a connection with another subscriber, who is also connected to the
private branch exchange. By pressing this key a second time, you will be connected with the
first subscriber again.
Programming
Allow settings modifications
- Lift the handset.
- Press the * and # keys simultaneously.
- Press the # and 0 keys consecutively.
- Enter the PIN
- Press the key to allow settings modifications.
- Replace the handset.
(PIN)
V
ersion with keypad (16 keys), without displa
y
In order to program the telephone, you have to allow modifications of the settings.
dFT3 1.1 25
Restrict settings modifications
- Lift the handset.
- Press the * and # keys simultaneously.
- Press the # and 1 keys consecutively.
- Enter the PIN
- Press the key to disable settings modifications.
- Replace the handset.
(PIN)
Adjust ringing volume
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 5 (the ringing sound is played back with the selected volume setting).
- Set the desired volume using the keys 1 to 6.
- Press the key to store the selected volume.
- Replace the handset.
(1…6)
Adjust the ringing melody
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 6 (the set melody is played back)
- Set the desired melody using the keys 1 to 9.
- Press the key to store the selected melody.
- Replace the handset.
(1…9)
Amplified listening in receiver, setting the levels
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 2.
- Set the code for the desired number of levels, or steps.
- Press the key to store the setting.
- Replace the handset.
Code / Key Amplified listening in receiver, levels Comment
1 1 level, 6 dB
2 2 levels, 6 dB, 12 dB As-delivered condition
(1, 2)
26 dFT3 1.1
Set dialling mode
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 9.
- Enter the code for the desired dialling mode.
- Press the key to store the selected dialling mode.
- Replace the handset.
Code / Key Dialling mode Comment
1 Dual-tone multifrequency (DTMF),
unlimited tone duration
The DTMF tone is being generated as
long as the associated key is being
pressed.
2 Dual-tone multifrequency (DTMF),
tone duration 90 ms
As-delivered condition
3 Pulse dialling (PD), 1.5:1
4 Pulse dialling (PD), 2:1
(1, 2, 3, 4)
Enter the exchange code
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 0.
- Enter the exchange code (a digit or the R key;* and # not allowed)
- Press the key to store the entered exchange code.
- Replace the handset.
(0…9, R)
Delete the exchange code
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 0.
- Press the # key.
- Press the key to delete.
- Replace the handset.
dFT3 1.1 27
Program the pause following the exchange code
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 1.
- Press a key from 1 to 5 (the key number corresponds to the duration in seconds)
- Press the key to store the entered duration of the pause.
- Replace the handset.
(1…5)
Program the Enquiry Key (flash time)
For dual-tone multifrequency only. Pressing the enquiry key briefly interrupts the loop to the
private branch exchange (flash) to enable an enquiry to another private branch connection.
The flash time is programmable.
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 8.
- Enter the code for the desired flash time.
- Press the key to store the selected flash time.
- Replace the handset.
Code / Key Flash time Comment
1 80 ms
2 120 ms As-delivered condition
3 600 ms
(1, 2, 3)
Restore to as-delivered condition
- Lift the handset.
- Press the * and # keys simultaneously.
- Press key 3.
- Press the key to reset the as-delivered condition.
- Replace the handset.
Upon „Resetting to the as-delivered condition“ the PIN is not reset to 0000.
28 dFT3 1.1
Change Personal Identification Number (PIN)
- Lift the handset.
- Press the * and # keys simultaneously.
- Press the # and 2 keys consecutively.
- Enter the old PIN.
- Enter new PIN.
- Repeat new PIN.
- Press the key to store the new PIN.
- Replace the handset.
(old PIN) (new PIN) (new PIN)
Signalling tones during programming
Tone Number Significance
Acknowledgement tone 1 long tone Completion of a correctly performed
procedure.
Error tone 4 short tones An error occurred within a procedure.
The procedure is cancelled.
PIN tone 1 short tone sequence Prompt to enter the PIN.
dFT3 1.1 29
Operation
Seize (Make / answer a call) and dialling
Receive a call by lifting the handset. If you want to make a call, lift the handset. The private
branch exchange then automatically establishes a connection.
Optionally
If you have a telephone with a built-in programming keypad, you may program a speed code
dialling number. When the handset is lifted, this programmed number is then dialled
automatically. This operating mode is set using the programming keypad.
Programming using the device-internal 12-key programming keypad
Setting operating mode
- Lift the handset.
- Press the * key.
- Enter the operating mode code.
- Press the # key to store the selected operating mode.
- Replace the handset.
Code / Key Operating mode Comment
1 Normal telephone, dialling by private
branch exchange
As-delivered condition
4 Automatic speed dialling
(1, 4)
Enter speed code dialling number
- Lift the handset.
- Press the * key.
- Press the # key.
- Enter speed code dialling number
- Press the # key to store the speed code dialling number.
- Replace the handset.
(speed code dialling number)
Adjust ringing volume
- Lift the handset.
- Press the * key.
- Press key 5 (the ringing sound is played back with the selected volume setting).
- Set the desired volume using the keys 1 to 6.
- Press the # key to store the selected volume.
- Replace the handset.
(1…6)
V
ersion without keypad and without displa
y
30 dFT3 1.1
Adjust the ringing melody
- Lift the handset.
- Press the * key.
- Press key 6 (the set melody is played back)
- Set the desired melody using the keys 1 to 9.
- Press the # key to store the selected melody.
- Replace the handset.
(1…9)
Set dialling mode
- Lift the handset.
- Press the * key.
- Press key 9.
- Enter the code for the desired dialling mode.
- Press the # key to store the selected dialling mode.
- Replace the handset.
Code / Key Dialling mode Comment
1 Dual-tone multifrequency (DTMF),
unlimited tone duration
The DTMF tone is being generated as
long as the associated key is being
pressed.
2 Dual-tone multifrequency (DTMF),
tone duration 90 ms
As-delivered condition
3 Pulse dialling (PD), 1.5:1
4 Pulse dialling (PD), 2:1
(1, 2, 3, 4)
Restore to as-delivered condition
- Lift the handset.
- Press the * key.
- Press key 3.
- Press the # key to reset the as-delivered condition.
- Replace the handset.
Signalling tones during programming
Tone Number Significance
Acknowledgement tone 1 long tone Completion of a correctly performed
procedure.
Error tone 4 short tones An error occurred within a procedure. The
procedure is cancelled.
dFT3 1.1 31
General information
Service
questions regarding the telephone, or malfunctions should occur – even after the guarantee
has expired - please contact J. Auer. Please have the type denomination and product number
(to be found on the nameplate) ready.
Care and maintenance
The telephone is maintenance-free. Still, if the operating area is highly contaminated by dust,
fat, oil etc., the device should be cleaned from time to time. Use a moist cloth to dust o the
handset and the device.
Warning! Never use sharp objects for cleaning. Do not use other polishing or abrasive
substances.
Warnings and security information
This device is a weatherproof telephone especially designed for use in rugged industrial
environments. Please note the following warnings and security information:
1. The telephone is a Insulation Class II device and may only be connected to and
operated at the voltage it was designed for. Make sure the connections are in perfect
order. The connecting cable must be laid in a manner not to cause a tripping hazard.
2. The telephone may only be operated at the given ambient conditions (see also under
“Technical data”). Adverse ambient conditions, as for instance too high or too low
ambient temperatures are not allowed, due to increased risk of an electronic parts
breakdown.
3. Make sure the telephone, the connecting cable, etc. are not damaged. If the
telephone
is damaged, it may not be operated.
4. While the telephone is in operation please follow all relevant legal and professional
regulations, the accident prevention regulations of the Employers' Liability Insurance
Association, and laws and regulations governing the use and connection of electric
devices.
5. In case of repairs, use only original spare parts. Replace such parts according to
professional standards. Other spare parts may cause damage. The guarantee is
rendered invalid.
6. Before the telephone is repaired or replaced, it must be disconnected from the power
supply. If the maintenance or repair of a live device cannot be avoided, this must be
done by authorised personnel only.
7. Do not damage the covers keeping the housing tight when mounting or demounting the
device.
8. Take into consideration the required operating positions.
9. Magnetic elds with technical energy frequencies may cause an insignicant reduction
in listening quality.
10. This product is subject to technical improvements without prior notice.
You have bought a modern J. Auer product subject to meticulous quality control. If any
32 dFT3 1.1
Technical Data
Connection data
Supply voltage 24…66 Vdc
Supply current 19… 100 mA
Ringing alternating current 30…90 Vac
Ringing frequency 16…68 Hz
Ringer input impedance ≥ 6.0 kΩ at 25 Hz
≥ 3.5 kΩ at 50 Hz
Enquiry key (flash) only for DTMF 80 ms, 120 ms, 600 ms
Dialling mode
DTMF Frequencies according to ITU-T Q.23
Tone duration unlimited or 90 ms
PD Pulse/Pause ratio
1.5:1 (60/40 ms) or
2:1 (66.7/33.3 ms)
Ringing volume max. approx. 95 dB(A) at 1 m distance
Housing 293 x 191 x 128 mm
(Height x Width x Depth)
Weight approx. 2.300 g
(telephone incl. telephone mount)
Display 2 lines, 16 positions per row, 7x 5 matrix
Pictograms
Operating utilization position Table or vertical wall mounting
Handset
Mouthpiece Electret-foil microphone
Receiver inset dynamic receiver inset with magnetic field generator
Connections Single- or multiwired up to 2.5 mm
2
Labelling
Power cable TCP/La – TCP/Lb (TCP : Terminal Connection Point)
Secondary sounder W / W1
Environmental conditions without LCD with LCD
Ambient operating temp. -25°C...+55°C -10°C...+50°C
Transport and storage temp. -25°C...+70°C -20°C...+60°C
Degree of protection
acc. to IEC60529 IP65
dFT3 1.1 33
EC Declaration of Conformity
FHF Funke + Huster Fernsig GmbH declares that the telephone FernTel 3 is in compliance
with the basic demands and other relevant provisions of Directive 1999/5/EU (R&TTE).
This telephone is designed to be connected to public telecommunications exchanges and
private branch exchanges, and complies with the basic demands according to EU Directive
1999/5/EG (Radio and Telecommunications Terminal Equipment, R&TTE).
If you experience problems during operation, please contact the FHF’s technical support
service.
Electric and electronic devices carrying this symbol may contain substances harmful to
people and the environment. Therefore, it must not be disposed of together with unsorted
municipal waste (household rubbish). In order to protect the environment please use public
collecting points for the disposal of electric and electronic devices carrying this symbol.
J.Auer GmbH
J.Auer
Subject to change without notice
cations
Perfektastr. 102 · A-1230 Vienna
Phone 0043 1 813 82 20 · Telefax 0043 1 815 99 54
http://www.auer-signal.com · e-mail: office@auer-signal.com
Loading...
