Audix AP62, AP61 User Manual

PERFORMANCE SERIES WIRELESS

AP61 & AP62 USER GUIDE

TABLE OF CONTENTS

Safety Instructions & Certifications

Introduction

Quick Set Up Guide 6

R61 Receiver Front Panel 10

R61 Receiver Back Panel 11

R61 LCD Display

H60 Handheld Transmitter 13

B60 Bodypack Transmitter 15

Receiver Operating Instructions / Menu Functions

Using the H60 Handheld Transmitter

Using the B60 Bodypack Transmitter

Performance Tips

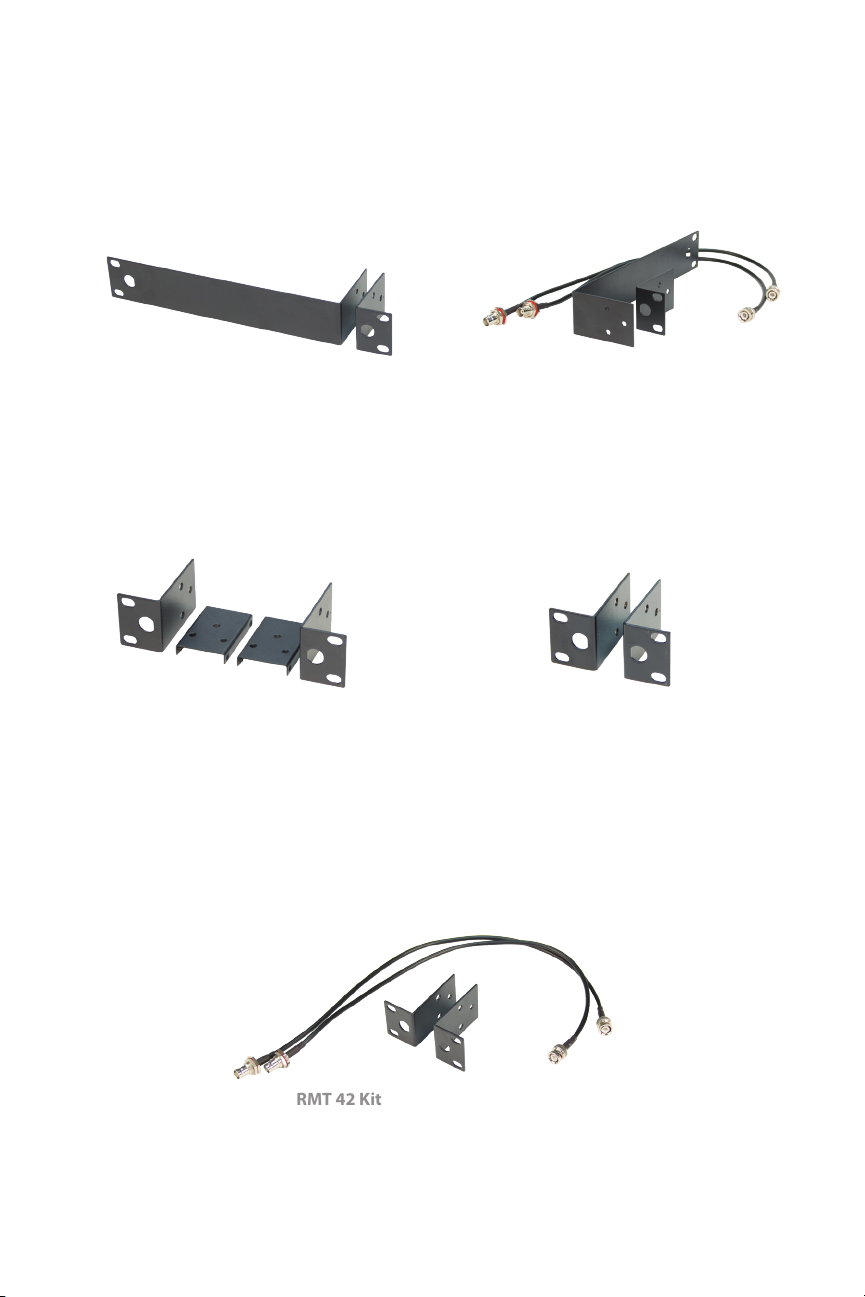

Rackmounts

Rackmount Installation

Specifications

Troubleshooting 30

Group/Channel Charts

International Group/Channel Charts

4

5

12

16

20

22

24

25

26

28

31

32

SAFETY INSTRUCTIONS

Please read this instruction manual to ensure proper use and care of your system.

Quick Safety Tips

Unplug the receiver from the wall socket when not in use

Use only with the power supply provided

Keep away from water, moisture, heat generating devices and direct sunlight

Clean only with dry cloth

Do not block the receiver from ventilation

Use only with accessories produced by Audix

Operate and store in a safe temperature range 0°C (32°F) - 43°C (110°F)

CERTIFICATIONS

This product complies with FCC Part 74 regulations and conforms to CE standards.

Documentation available upon request. Operation of wireless devices may require a

license in your area. Please comply with regulations pertaining to your area. Users of

wireless microphones in the USA, on frequencies listed under FCC part 74.801, must

comply with eligibility and licensing requirements under FCC Part 74.834.

4

INTRODUCTION

Congratulations on the purchase of the Performance Series Wireless system from Audix!

Your system is jam packed with features that will enable you to fine-tune the system as

needed. However, the best part of our design is that the system is simple to use. For most

applications, simply refer to the Quick Set Up Guide to get up and running (pgs 6-8).

Please take a few minutes and read through this manual in order to familiarize yourself

with the system components and the menus. The menus are very intuitive and most

questions about operating the system will be answered by understanding the structure of

the menus.

5

QUICK SET UP GUIDE

Follow these instructions to get up and running in very little time.

1a

1. Install 2 AA batteries in the handheld transmitter and bodypack. Refer to the

diagrams on the equipment to ensure batteries are positioned correctly.

a.) Handheld transmitter: Unscrew bottom portion of the transmitter to expose
battery holder. Push the first battery up through the housing with negative side
up. Place the second battery below the first with negative side up. The batteries are
spring loaded and will settle into place. Screw the cover back into place.

b.) Bodypack transmitter: With bodypack face down, push the spring release to
the right to open. Place left battery negative side up, and the right battery negative
side down. Snap the battery cover to close.

1b

2a

2. Attach antennas to the back of the receiver. Keep each antenna straight while

screwing it into the connector (2a). After attached, bend antennas into position (2b).

2b

6

3

3

3. Connect power supply. Loop cable through the metal strain relief as shown above

prior to connecting power supply to receiver. Plug into power outlet.

4a

4. Connect receiver to mixer or amplifier. Make sure audio levels on the mixer are

muted or off. For guitar, use the 1/4" AF output (line level unbalanced, 4b). For all other
applications use the XLR output (mic level, 4a).

5

5. Turn on transmitter.

4b

5

7

QUICK SET UP GUIDE

7

6

8

6. Turn on receiver.

7. On receiver, press and hold the UP or DOWN button to trigger Scan for a clear

Group/Channel. After 8-20 seconds a Group/Channel˝ will appear on the receiver.

8. Sync handheld transmitter to
receiver. Unscrew the battery cover and

locate the window housing infrared
device. From a close proximity (6 inches
/ 152.40 mm), point the infrared window
(located on the opposite side of the
batteries) towards the infrared sensor
next to the SYNC button on the receiver
and press the SYNC button. Within a few
seconds the transmitter Group/Channel
and Frequency will match the receiver.

9. Sync bodypack transmitter to
receiver. Locate the window housing

infrared device on the front of the
bodypack. From a close proximity
(6 inches / 152.40 mm) point the window
below the LCD screen on the bodypack
towards the infrared sensor next to the
SYNC button on the receiver and press
the SYNC button. Within a few seconds
the transmitter Group/Channel and
Frequency will match the receiver.

8

MULTIPLE SYSTEMS

Setting up multiple systems utilizes the Scan – Sync functions described to the left. In
general, compatible channels for synchronized use are organized by Group. (See the
Group/Channel chart on page 31.)

Be sure all receivers and transmitters are powered OFF.

1. Power up receiver #1 and matching transmitter: Run the standard Scan and Sync

routine as described in the previous section (Quick Set Up Guide). Leave the system ON.
Move the transmitter at least 6 feet (2 meters) away from the receiver.

2. Power up receiver #2 and matching transmitter: Run the Scan and the receiver

will find a clear channel in the same Group as the previous system. Sync the transmitter to
the receiver.

Adding more systems will follow the same procedure as above.

IMPORTANT: Be sure that all transmitters are at least 6 feet (2 meters) from each other as
you set up multiple systems.

Hint: If you are using more than one frequency band, be sure to set up all systems in the
same band before moving to the next.

9

FRONT PANEL

R61 SINGLE RECEIVER

1 2 3 4 567

R62 DUAL RECEIVER

1

2 2

3 3

1 POWER switch. Press for instant ON.

Press and hold for 3 seconds to turn
system OFF.

2 SYNC button. Automatically synchronizes

the transmitter to the receiver.

3 Infrared sensor. Sends data from receiver

to transmitter when SYNC function
is engaged.

4 High contrast LCD display. See Menu

Functions on page 16 for more details.

55 77 44

66

6 DOWN button. Only active in Menu

mode. Scrolls backwards through
menus. Also acts as hot key for
autoscan when pushed and held.

7 SET button. Press and hold to enter

the Menu mode. Also used to save
settings, exit the Menu mode and tog­gle between Frequency˝ and Group/
Channel˝ for quick reference.

5 UP button. Only active in Menu mode.

Scrolls forward through menus. Also acts
as hot key for autoscan when pushed
and held.

10

BACK PANEL

R61 SINGLE RECEIVER

1

R62 DUAL RECEIVER

1 7

2

3 3

2 2

3

4 4

1 BNC connector for Antenna B.

2 Ground lift switch to help eliminate

ground loops or noise from
other sources.

3 Mic level balanced XLR output for

connecting receiver to an audio mixer.

4

5

6

7

5 Metal strain relief. Allows power cable

to loop through for added security.

6 DC power jack for external

power supply (12 V).

7 BNC connector for Antenna A.

5

6

4 Unbalanced ¼ inch output for

connecting receiver to an amplifier.

11

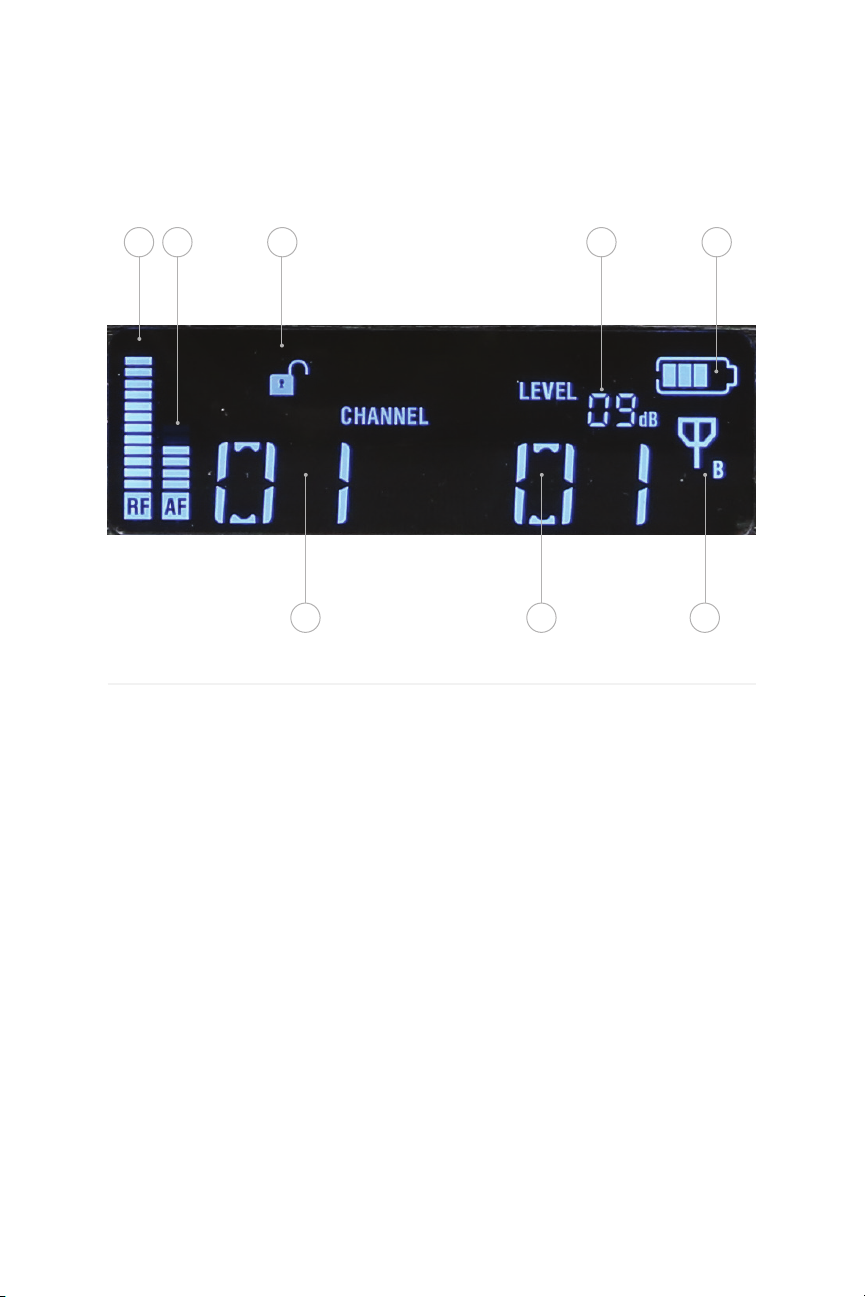

R61 LCD DISPLAY

1 2 3

4 5 8

1 RF (Radio Frequency). Displays RF

signal strength.

2 AF (Audio Frequency). Displays audio

signal strength.

3 Indicates whether receiver is

unlocked or locked for security.

4 Indicates active group when display

is in Channel mode. Indicates active
frequency when display is in

Frequency mode.

6 7

6 Displays Level (receiver gain) or

Squelch (see Menu Functions, pg 16).

7 Battery level.

4 bars = Up to 14 hours
3 bars = 9 hours
2 bars = 7 hours
1 bar = 3 hours
0 bars = 1 hour

8 Active antenna indicator (A or B).

5 Indicates active channel when display

is in Channel mode. Indicates active
frequency when display is in
Frequency mode.

12

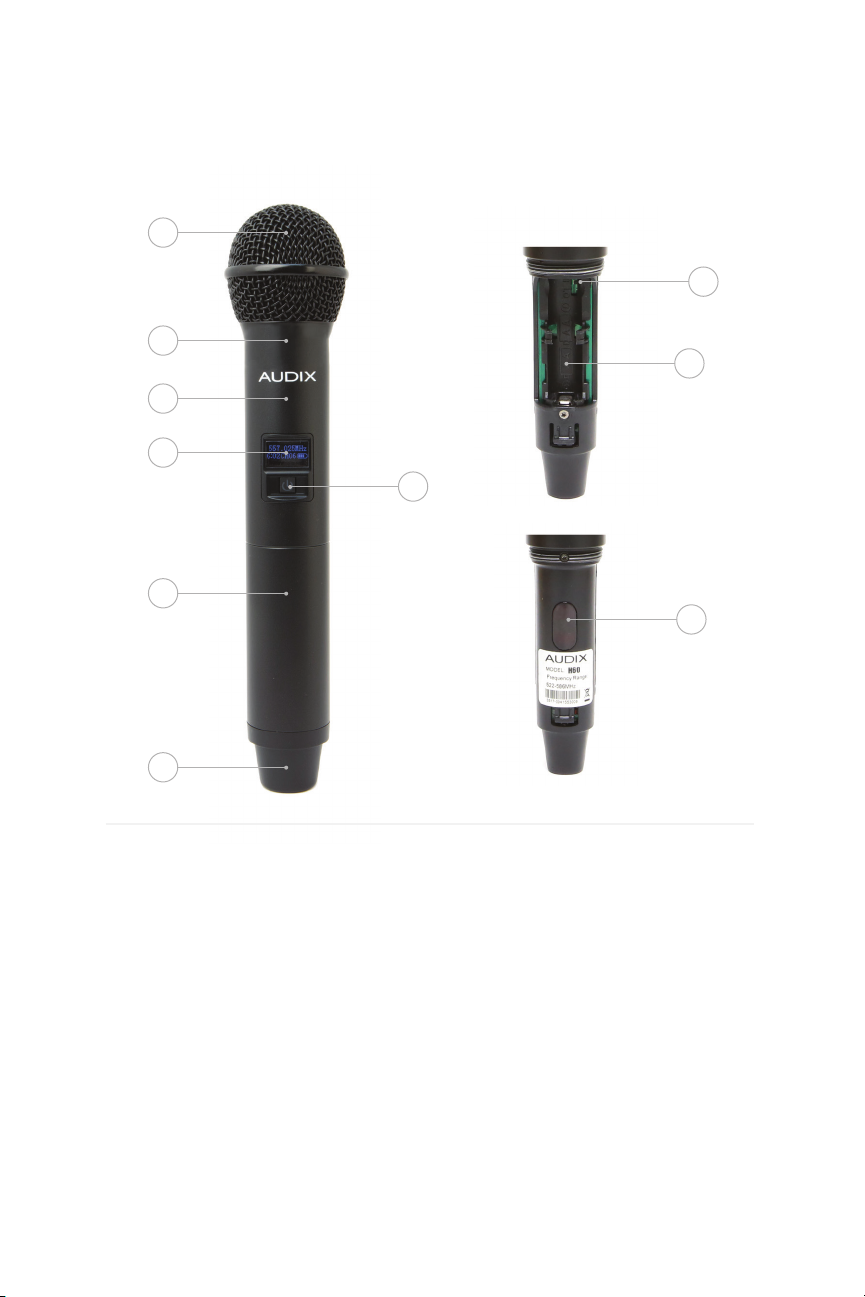

H60 TRANSMITTER - HANDHELD

The H60 is a 64 MHz wide spectrum transmitter. It covers the 522 mHz - 586 mHz frequency
group (pg 27).

1

8

2

9

3

4

5

6

10

7

1 Grill ball. Protects capsule.

Replaceable part.

2 Capsule housing. Threads on to

body of the transmitter housing.
Interchangeable part.

3 Transmitter housing. Contains

PCB boards and electronics for
RF transmission.

4 LCD display. Indicates Group/

Channel˝, Frequency˝ and

Battery Status˝.

5 Power ON/OFF and MUTE button.

6 Battery cover. Must be opened to

replace batteries or change transmitter

power selection.

7 Transmitter antenna housing.

8 Power dip switch (pg 14).

9 Battery compartment.

10 Infrared sync circuit.

13

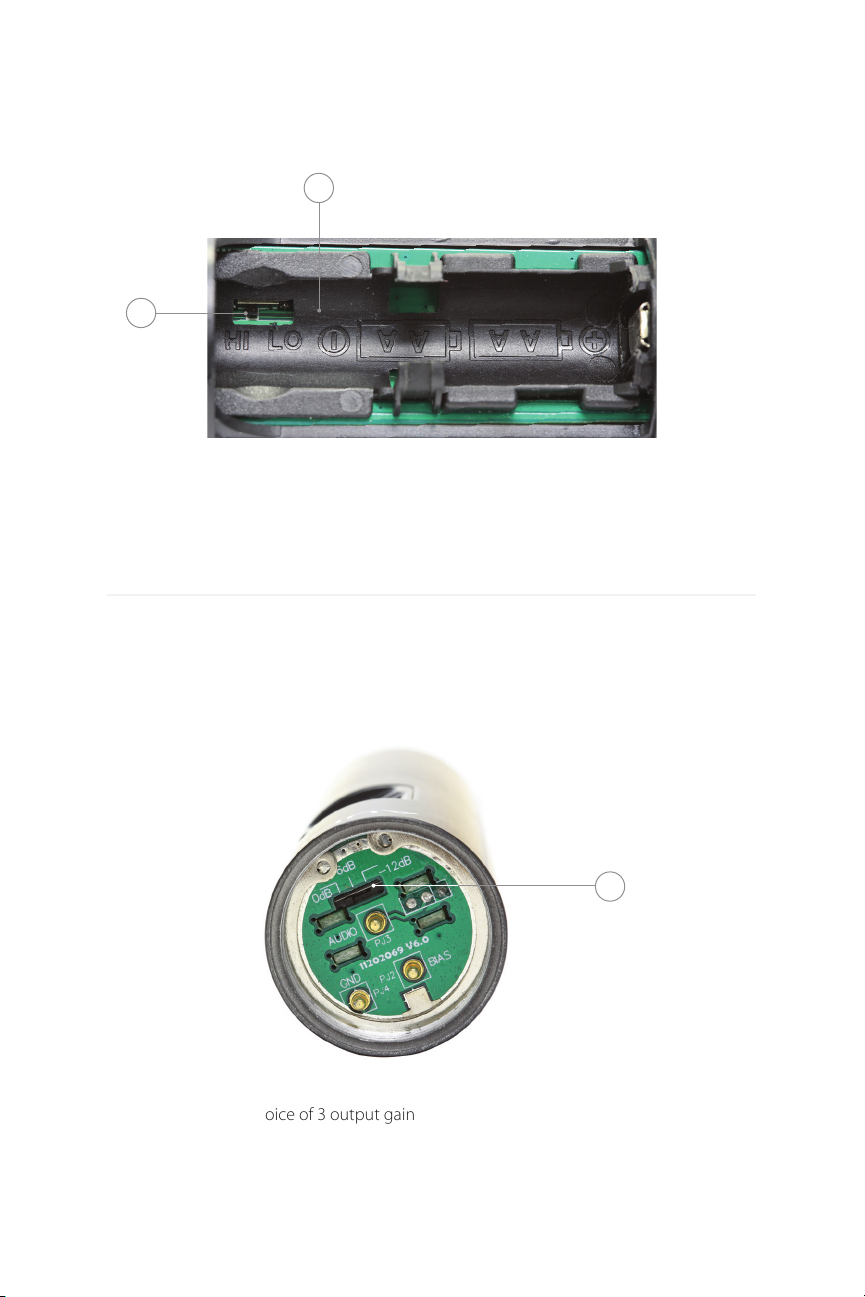

H60 TRANSMITTER - BATTERY COMPARTMENT

1

2

1 Houses AA batteries (see Quick Set Up

Guide for installation instructions, pg 4).

2 Dip switch to choose between

30 Milliwatt (HI) and 10 Milliwatt (LO)

H60 TRANSMITTER - TOP

RF power output.

1

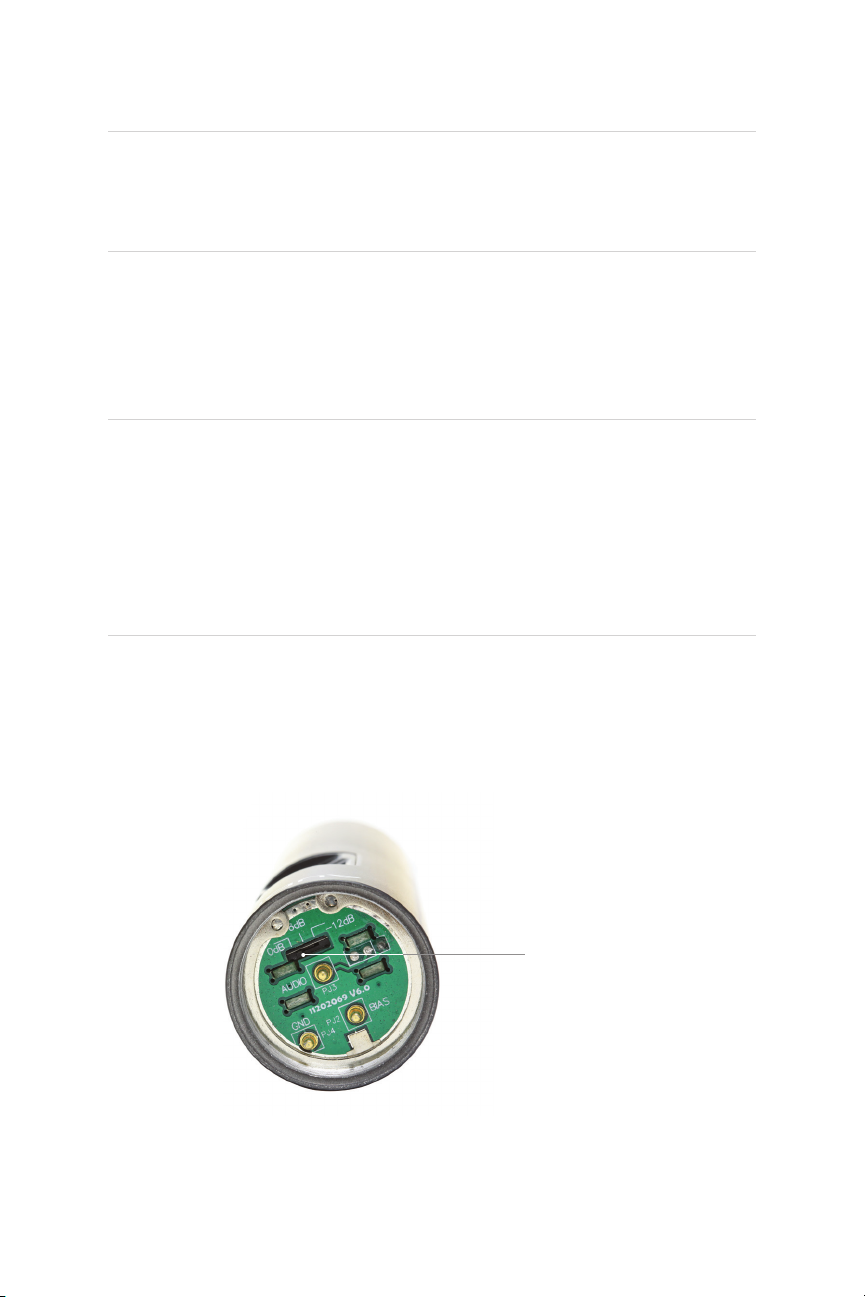

1 Dip switch with choice of 3 output gain

settings for capsule (0 dB, -6 dB, -12 dB).

14

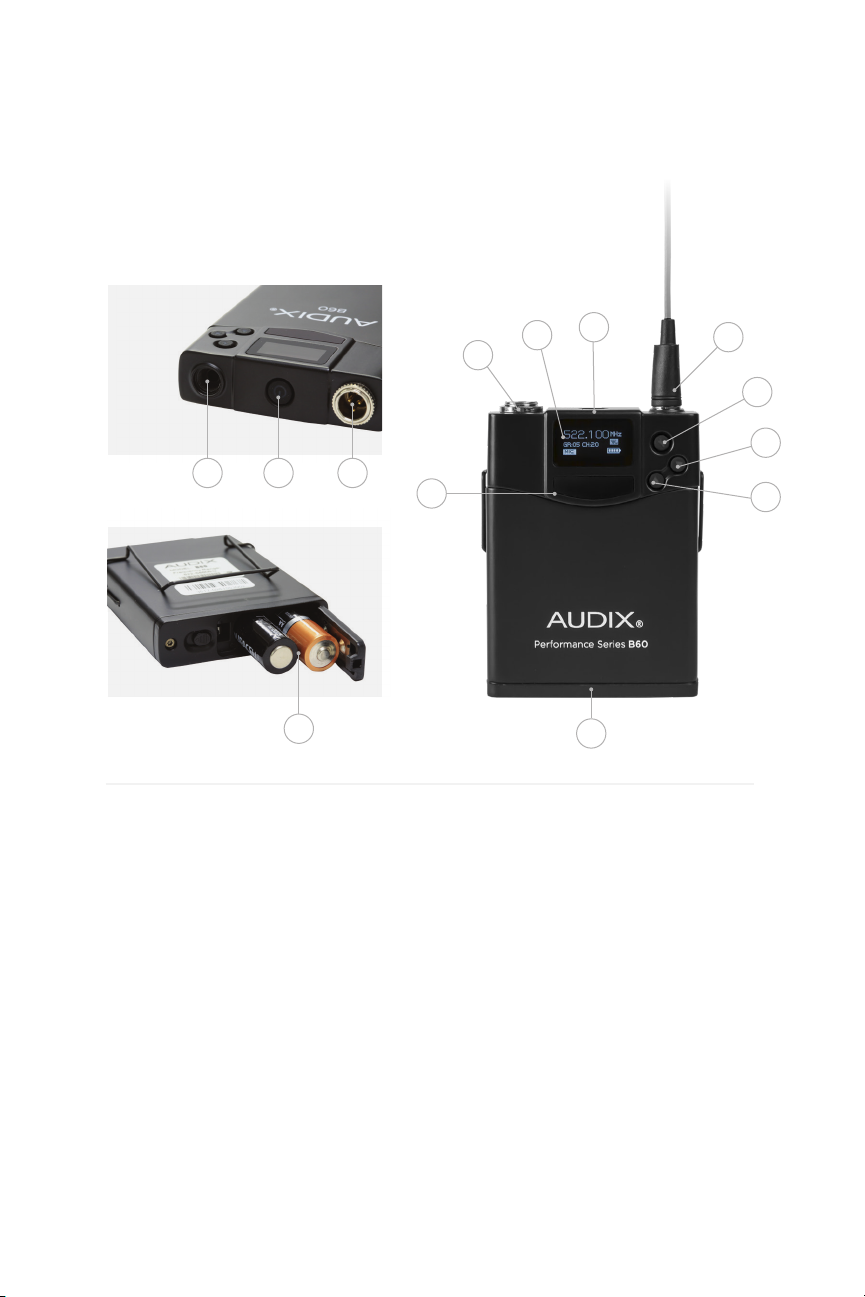

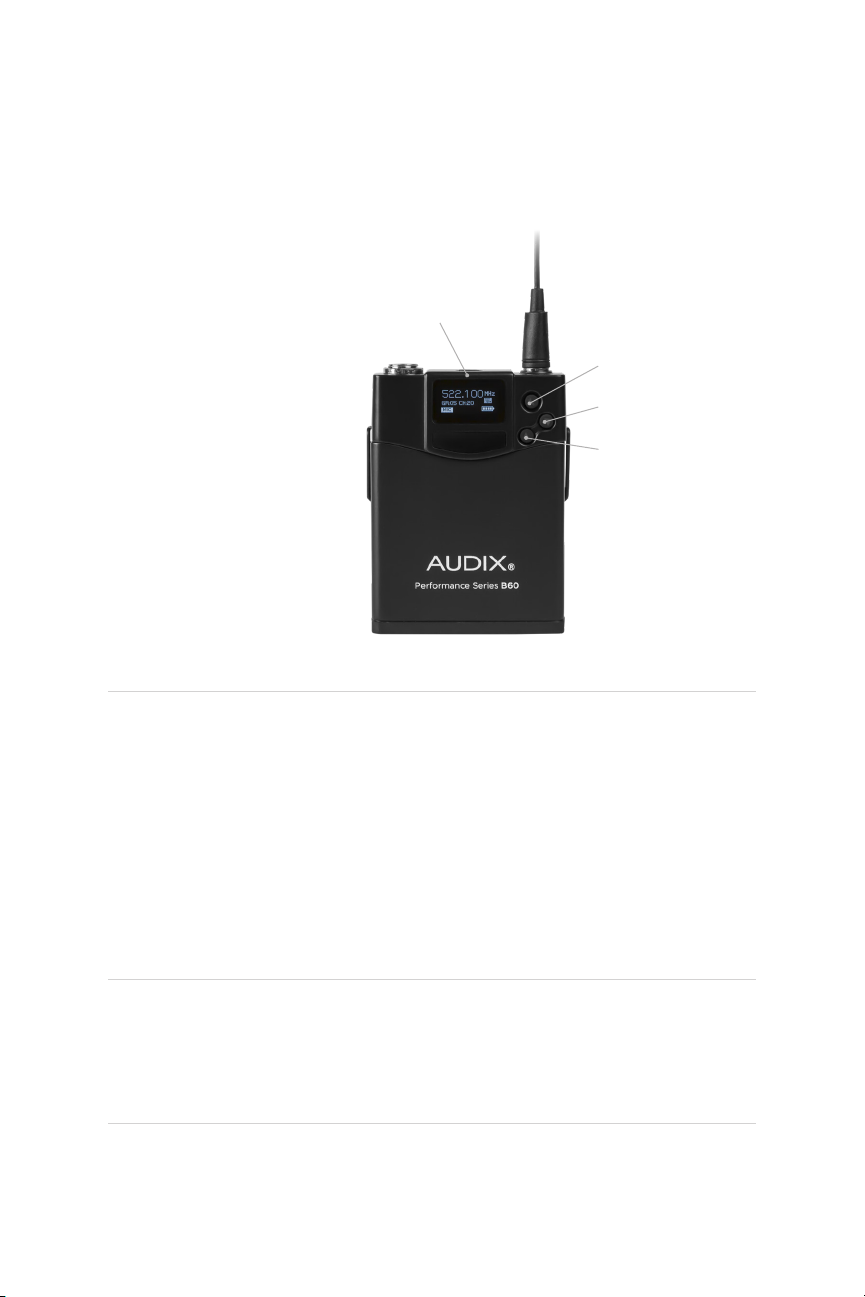

B60 BODYPACK - FRONT PANEL

The B60 is a 64 MHz wide spectrum transmitter. It covers the 522 mHz - 586 mHz
frequency group (pg 27).

4

3

2

Top

5

4

2

1

5

6

7

8

Bottom

1 Infrared panel. Point towards the SYNC

button on the receiver when locking
the transmitter to the receiver.

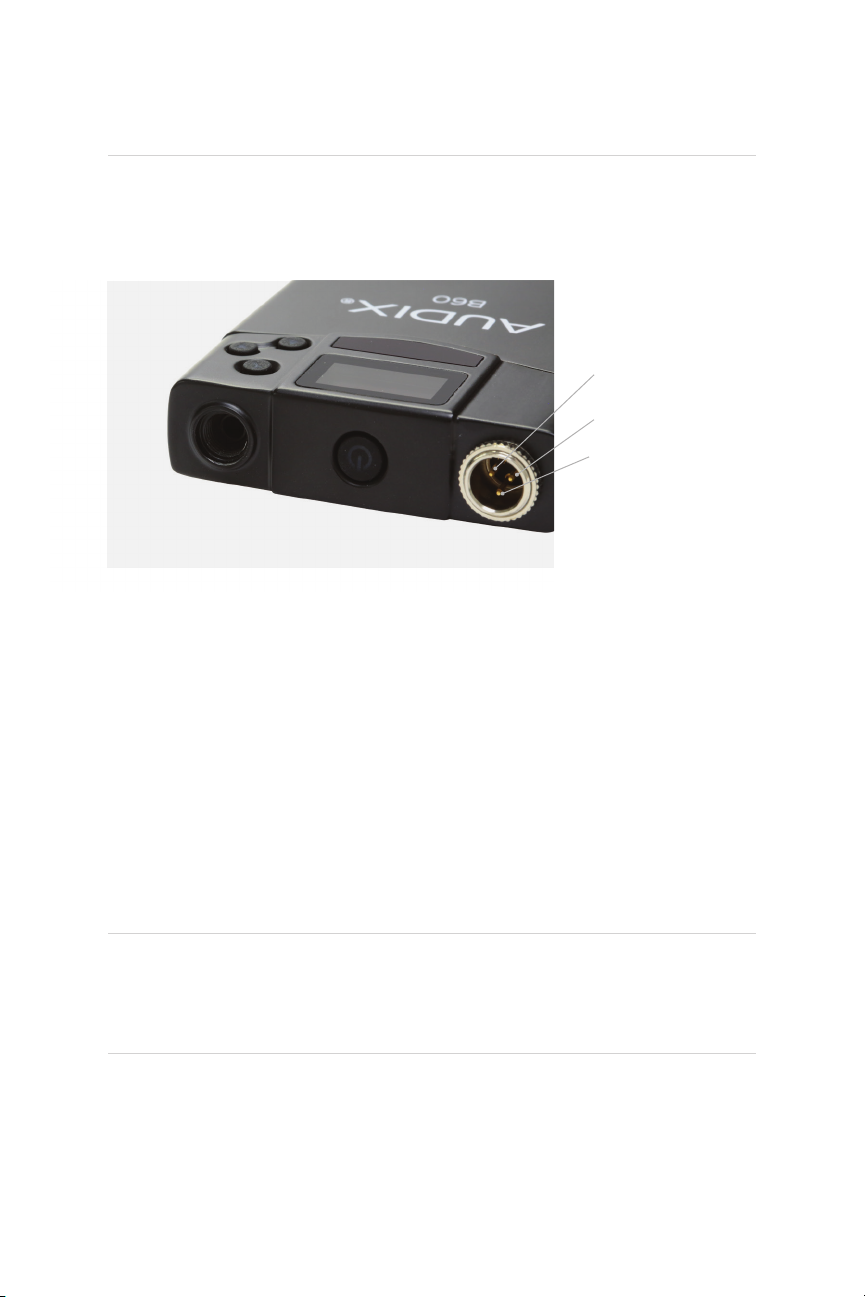

2 3-pin connector for microphone cable

or guitar cable.

3 LCD Display. Indicates Group/

Channel˝, Frequency˝ and
"Battery Status".

4 Power ON/OFF and MUTE button.

9

9

5 Antenna. Plug into bodypack and

thread on and off. Replaceable part.

6 SET button. Use to enter Menu and

Save settings.

7 UP button. Scrolls forward

through menu.

8 DOWN button. Scrolls backwards

through menu.

9 Battery compartment.

15

RECEIVER OPERATING INSTRUCTIONS

By understanding the menu structure it is easy to operate and make adjustments
to the system.

1. GROUP (1-10)

4. SQUELCH (5 – 45)

7. PILOT (ON, OFF) 9. NAME

10. T-LOCK (ON, OFF)

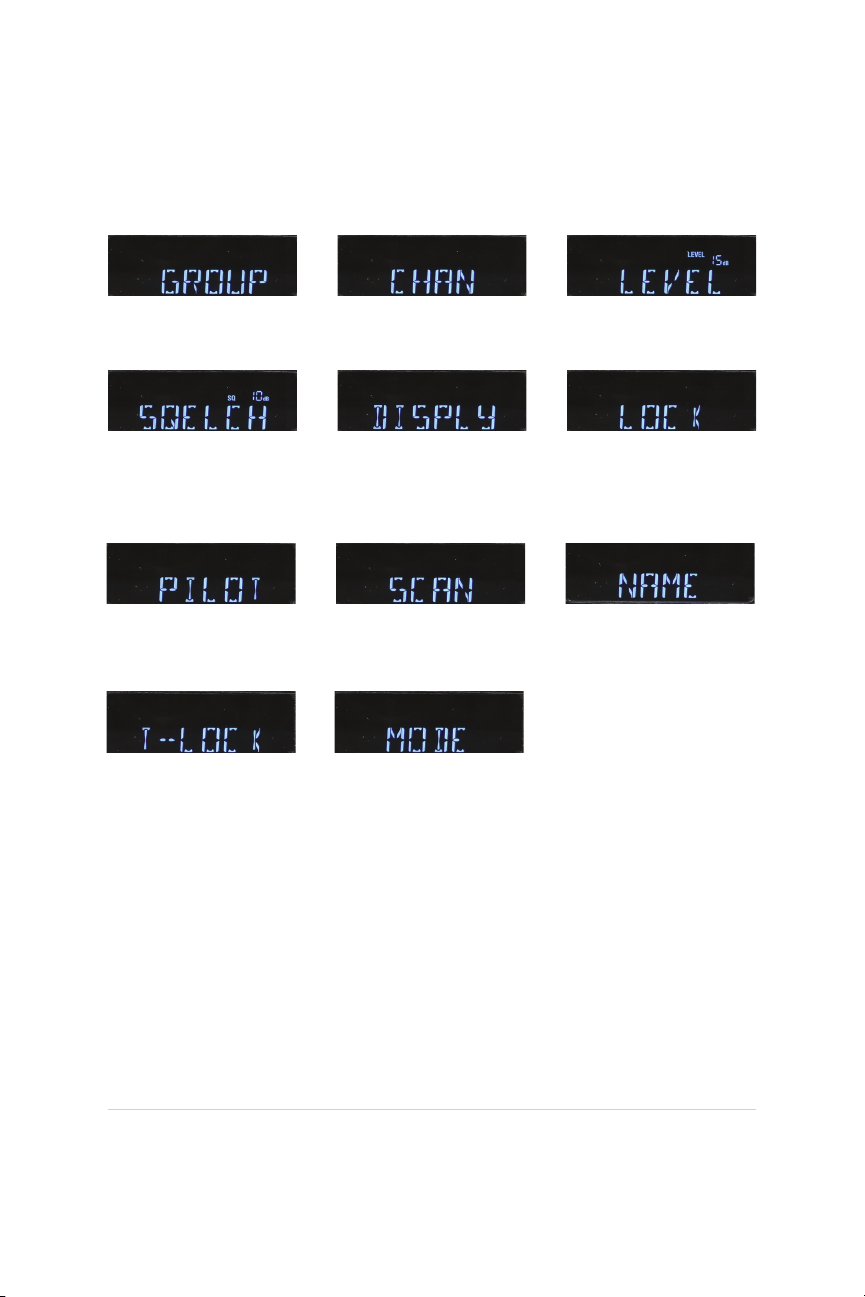

Activate Menu: To activate the menu, press the SET button until GROUP˝ appears on

the display.

Scroll Through Menu: Each of the menu functions are displayed on the screen in the order
they appear in the grid above. To scroll through the menu press the UP button. Use the
DOWN button to scroll in reverse. For example, if you are on GROUP˝ and want to quickly
get to T-LOCK˝, press the DOWN button twice.

2. CHANNEL (1-7)

5. DISPLAY

(FREQUENCY, CHANNEL,
SQUELCH, LEVEL)

8. SCAN (SCAN FOR

OPEN FREQUENCY)

11. MODE

3. LEVEL (-12 to +9)

6. LOCK (ON, OFF)

MENU FUNCTIONS

GROUP/CHANNEL

These two functions work hand-in-hand as they represent preselected frequency
coordinates. See page 31 for a table of coordinated frequencies. Each time a SCAN is

16

performed (by pressing and holding the UP or DOWN button), a clear Group/Channel˝
will be chosen and appear on the display. It will be one of the 207 predesignated
frequencies available in your system (see page 31). The SCAN function takes the
guesswork out of finding the best available frequency and is also handy for adding more
systems into the mix.

Group/Channel˝ can also be controlled manually from the menu. Activate the menu (see
previous page). When GROUP˝ appears, press SET. The current Group˝ will be displayed.
Press either the UP or DOWN button to scroll to another Group˝ and then press SET. The
new Group˝ will be saved and will appear on left side of the display.

Hint: The word CHANNEL˝ will appear to the upper right of the number. This means the
display is in Channel mode. The menu displays Group/Channel˝ as the default. Press the
SET button (quickly) and the Frequency˝ will appear on the screen. After 5 seconds it will
default back to Group/Channel˝. To set Frequency˝ as the default display see Display˝
(pg 18).

To change the channel, go to CHAN˝ in the menu (it’s next in line after GROUP˝) and
press SET. The current channel will be displayed. Scroll through the channels and select
the one you want, then press SET. The same applies if Frequency˝ has been selected as
the default.

LEVEL

This setting allows for additional gain control over the receiver. The factory setting is +6, a
good gain setting for Audix dynamic microphones. The VX5 condenser microphone has
much more output than a dynamic microphone and is better suited in the -6 or -9 range.

Hint: The key to a good sound with the least amount of noise and distortion is finding
the balance between the mixer, the receiver and the capsule gain. A soft singer, for
example, will require more gain on the mixer and receiver, which could potentially add
some noise into the system. Fine tuning the receiver setting can be helpful in these cases.
A loud singer, on the other hand, will require less gain and possibly a gain reduction on
the transmitter itself for control over distortion.

SQUELCH

Squelch is an important design facet of a wireless circuit. It mutes or suppresses noise
from the receiver in the absence of a desired signal. Typically, the lower the squelch, the
less signal it takes to activate the receiver. The higher or tighter the squelch, the higher
the signal required. Squelch also affects operating distance. Unless you run into extreme
conditions where you need more or less operating range than normal, we recommend
keeping the squelch around the factory setting of +15.

17

DISPLAY

There are two default options for the LCD screen: FREQUENCY˝ or CHAN˝. Additionally,
you have a choice of displaying either SQ˝(squelch) or LEVEL˝ settings. Activate the menu
screen and scroll to DISPLY˝. Press SET and FREQUENCY˝ will flash. Press the UP button
and CHANNEL˝ will flash. Press the UP button and SQ˝ (squelch) will flash. Press the UP
button and LEVEL˝ will flash.

Once you decide whether you want Frequency˝ or Channel˝ as the default, press SET to
save it. If you choose Frequency˝, the receiver frequency will be displayed as the default. If
you choose Channel˝, then Group/Channel˝ will be displayed as the default.

Hint: If Frequency˝ is selected as the default, then by pressing the SET button quickly, the
Group/Channel˝ info will be displayed for a few seconds. If Channel˝ is selected as the
default, then by pressing the SET button quickly, the Frequency˝ will be displayed for a
few seconds.

The option of showing either Level˝ or Squelch˝ is also available. Whatever settings
are chosen for those items will be displayed once selected and saved. Level˝ is the
factory default.

LOCK

You can lock the receiver to prevent someone from accidentally pressing SCAN, SYNC or
the POWER buttons. Once everything is set and working, this is recommended.

PILOT

This is an inaudible tone generated by the transmitter to the receiver as additional
insurance to keep the receiver from generating noise when there is no signal present.
The Pilot should be left ON and only be turned OFF temporarily if troubleshooting the
system for problems.

SCAN

The option to perform a scan for a clear channel. The Audix Performance Series Wireless
Scan feature performs a scan to find clear and open frequencies as well as compatible
frequencies when using multiple systems.

18

NAME

This function allows the receiver to be given a unique name. There are six characters
available. Scroll to the NAME˝ display on the menu and press SET. The display will move
to the first character and blink. Scroll through the characters by pressing the UP button
and there will be a choice of letters, numbers or symbols. Select the desired character and
press SET. The cursor will now move to the second position. Repeat the sequence until all
six characters are selected. Press SET to save.

Hint: Once a character is selected and set there is no way to move the cursor back. If
changes are needed, the process will have to start from the beginning.

TLOCK

Transmitter lock. This function disables the POWER and MUTE button on the handheld
transmitter. This helps prevent the transmitter from accidentally being MUTED or turned
OFF during a performance.

Hint: The bodypack has this feature built into the menu.

IMPORTANT

After making a change to one of the menu settings above, it is important to
RE-SYNC the microphone to the receiver in order to clear the previously
saved information.

MODE

The Mode menu toggles between Channel˝ and Tune˝.

Channel˝ is the factory default setting. When in the Channel˝ mode, the receiver will au­tomatically SCAN, SELECT, and SYNC the optimal frequency from the 207 pre-coordinated
frequencies available.

Tune˝ allows for frequencies to be selected manually in steps of .025 MHz.

To enter the Tune˝ mode, scroll to MODE˝ in the display menu and press SET twice. The
current frequency will be displayed with the first three digits flashing (for example, 545.500
with 545˝ flashing). Use the UP or DOWN button to change the number to the desired
frequency.

Hint: The numbers will only change one number at a time; holding down the button will
not speed up the process.

19

Once the desired frequency is displayed, press SET and the second set of three digits will
flash (for example, 546.500 with 500˝ flashing). Use the UP or DOWN button to change
the number by increments of .025. For example, if starting at 545.500, press the UP key
four times and it will read 545.600. When the desired frequency is reached, press SET and
the frequency will be saved and displayed. Now sync the transmitter to the receiver.

Hint: In the Tune mode, no group or channel is associated with the frequency. When SET
is pressed in this mode, no group or channel data is displayed. The Group, Channel and
Scan features are inactive in Tune mode. Engaging these buttons in Tune mode will result
in no changes.

Change back to the Channel mode: Activate Menu˝, scroll to MODE˝, select CHANNEL˝
and press SET twice. Doing this will take you back to the factory default setting.

Hint: Always remember to sync the transmitter following any changes to
frequency settings.

USING THE H60 HANDHELD TRANSMITTER

POWER ON/ MUTE

The button below the display powers ON the transmitter. To power OFF the transmitter,
press and hold the button for 2 seconds. A quick touch of the POWER button will MUTE
the transmitter. Another quick touch will restore signal. This is a noiseless function and is
very convenient for applications where a vocalist or presenter wants complete control of
the microphone.

LCD DISPLAY

The display indicates the frequency of the transmitter along with Group/Channel˝.
In order for the microphone to work, the frequency of the microphone must match that of
the receiver. If they do not match, go into the Sync mode (see Quick Set Up Guide, pg 6).

The same rules of acoustics that apply to a wired microphone also apply to the
handheld transmitter.

OM SERIES

The OM Series capsules are designed to maximize gain before feedback on stage. The
hypercardioid pickup pattern of the microphones are designed to reject sound from
instruments on stage. For best results, sing within a few inches of the microphone.

20

SETTING RF POWER OUTPUT

Choice of 10 Milliwatt or 30 Milliwatt RF transmission levels (pg 14).

VX5

The VX5 condenser microphone has a more open supercardioid pickup pattern. The
extended on-axis reach is ideal for singer/songwriters, keyboard players and vocalists who
want more freedom to work the microphone from a distance.

INTERCHANGEABLE CAPSULES

It is very easy to change a capsule assembly. Simply unscrew the capsule assembly at the
ring above the Audix logo.

Hint: Do not unscrew the grill ball as it is a separate threaded piece intended to be
removed separately from the capsule housing.

CONTROLLING DISTORTION

Audix capsules are designed to handle very high sound pressure levels without distortion.
If distortion is detected, try to minimize or eliminate it from the mixing console by turning
down the trim and gain controls. If distortion persists, there is a gain setting at the capsule.
First remove the capsule assembly. Locate the dip switch on the green PCB inside the
housing. Use a miniature screwdriver to move the switch from 0 dB to -6 or -12.

DIP SWITCH FOR
GAIN CONTROL

Hint: Padding the sensitivity of the capsule at the source is the most effective way to

control distortion without changing the natural sound quality or response of
the microphone.

21

USING THE B60 BODYPACK TRANSMITTER

There are three buttons that control the menu functions—SET, UP (forward) and DOWN
(backwards). The functions controlled by the buttons are RF OUTPUT, LEVEL and LOCK.

There are 3 menu functions:

RF POWER OUTPUT, LEVEL, LOCK.

RF POWER OUTPUT

This controls the level of the
RF output. LO = 10 Milliwatts or
HIGH = 30 Milliwatts.

TO SET RF POWER OUTPUT

POWER

(ON/OFF/MUTE)

SET

UP (forward)

DOWN (backwards)

Make sure the bodypack is turned ON. Press and hold the SET button. Press the UP
button until "RF AMP" or "RF OUTPUT" appears on the display. Press the SET button and
the display will flash, indicating the current setting, either "HIGH" or "LO" or 10mW˝ or
30mW", depending on which bodypack model version you have. Press the UP button to
toggle between HIGH = 30 milliwatt or LO = 10 milliwatt. Press SET to save the setting.

Hint: The Lo gain setting is helpful on a smaller stage with direct line of sight or in areas
with a lot of wireless congestion. It also improves battery life.

GAIN CONTROLS

There are two level settings: Line Level and Mic Level.
Mic level features three relative gain settings: 0, -6, -12.
Line level features -24 dB for active guitar or bass pickups.

TO SET LEVEL

Press and hold the SET button until LEVEL˝ appears on the display. Press the SET button
once and Mic Level (gain) or Line Level will flash. Use the UP button or DOWN button to

22

select either Mic or Line Level. Press the SET button again. Use the UP button or DOWN
button to select the gain level desired. Press SET and the current setting will appear. Use the
UP or DOWN button to scroll through the settings. Press SET to save the one you want.

LOCK

This disables the POWER button from being active. This prevents the bodypack from being
accidentally turned off or muted. RF Output and LEVEL are locked when the B60 is locked.

TO SET LOCK

Press and hold the SET button and use the UP or DOWN buttons until LOCK˝ appears on
the display. Press the SET button and the current setting will flash ON˝ or OFF˝. Use the
UP or DOWN button to scroll through the two options. Press SET to save the setting.

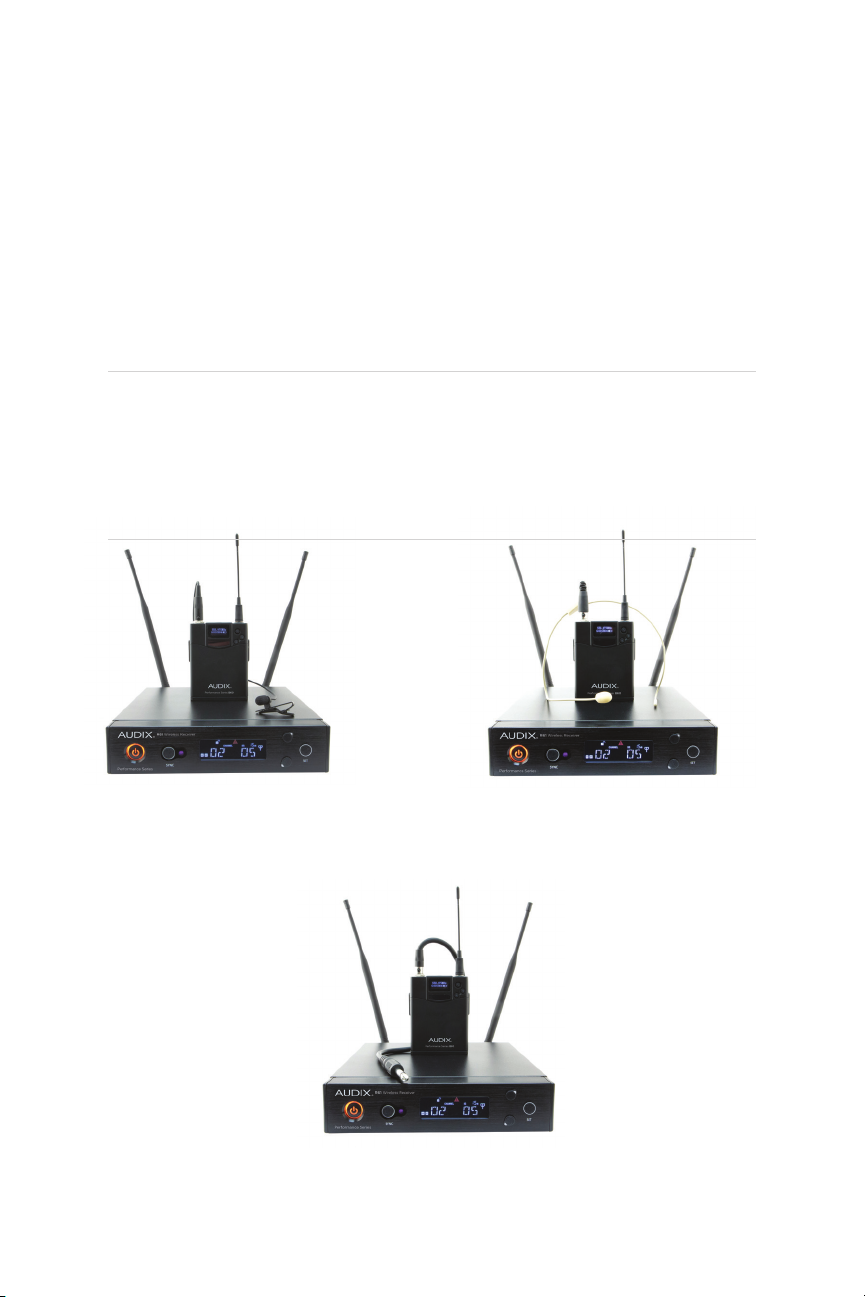

THERE ARE THREE USES FOR THE BODYPACK TRANSMITTER:

1. Lavalier microphones 2. Headworn microphones

(ADX10, L5) (HT2, HT5, HT7)

3. Sax, brass, flute and guitar

Hint: All microphones are available individually as well as with complete systems.

23

CONNECTOR

The bodypack uses a mini 3-pin XLR connector for all microphones. Other brands of
microphones can be used with the Audix Performance Series Wireless system; however, it
will be necessary to rewire the microphone connector to a mini 3-pin XLR (f). In this case,
note the following pin configuration:

Pin 3: Signal

Pin 2: Bias (voltage)

Pin 1: Shield

PERFORMANCE TIPS

The best position for a wireless receiver is within line of sight whenever possible.
For more complex set ups, consider extending the antenna range by using the
ANTDA4161 active antennas.

High quality batteries will provide the best results for handheld and bodypack
transmitters. Rechargeable batteries typically have a shorter usage span. It is not possible
to use two sets of transmitters simultaneously on the same frequency. It will not work.
Each time a scan and sync is performed, the transmitter will always be tuned to the current
frequency on the receiver. When using dual systems, always scan and sync each channel
independently from one another.

ANTENNAS

Both antennas must be installed in order for the diversity function to work properly.
Always attach both antennas to the receiver.

MULTIPLE SYSTEMS

It is fairly straightforward to get up to 24 channels of wireless to work simultaneously. This
is done using a standard Scan and Sync method, adding one system. The systems will stay
in the same Group until the group maxes out its channel selection. At this point, it may be
necessary to manually select a different Group for additional pre-coordinated channels. More
experienced users may use the Tune mode to manually set up their frequency selections.

24

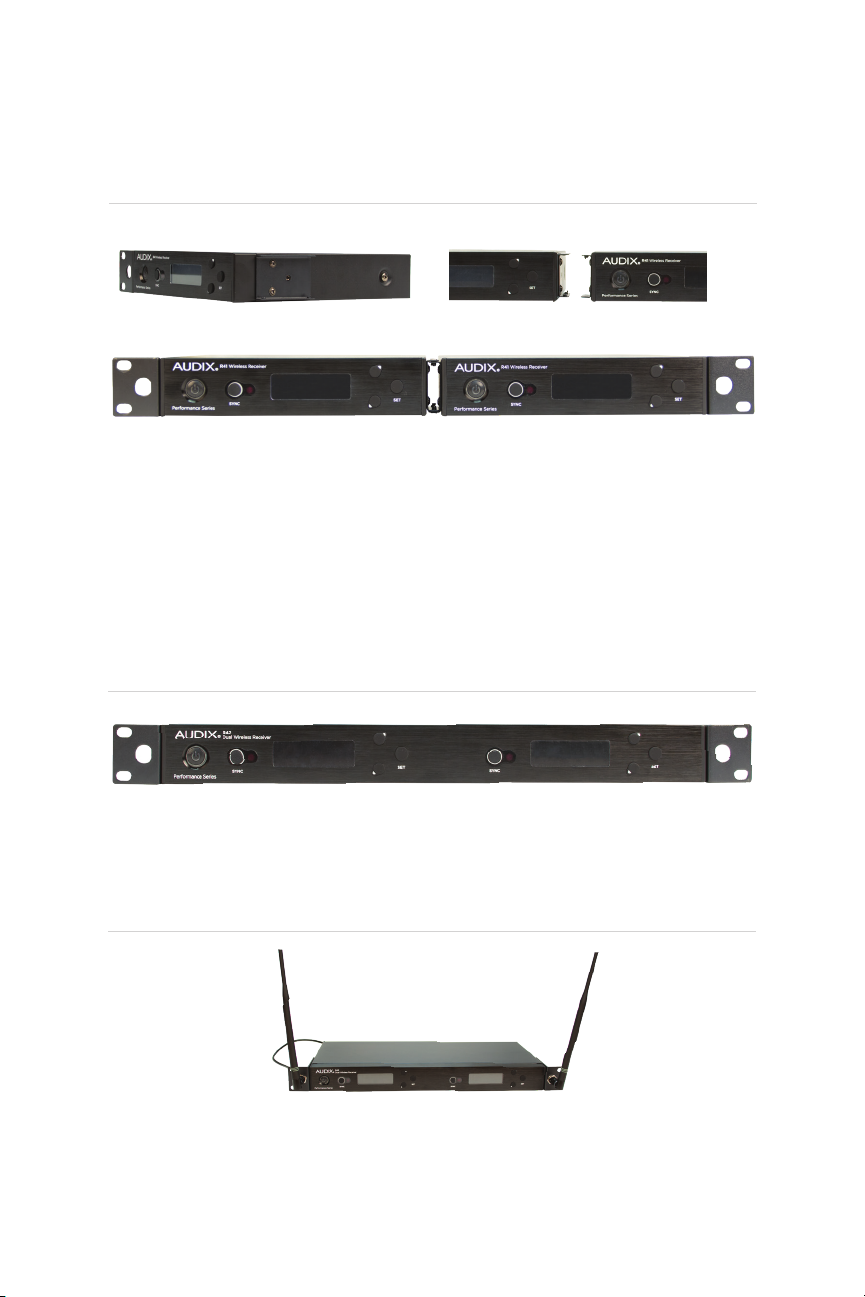

RACKMOUNTS

RMT 4161

Optional accessory. Adapts one R41 or R61
receiver into a single 19 inch rack space.

RMT 241

Optional accessory. Adapts two R41
or R61 receivers into a single 19 inch
rack space. Note: Antennas must
remain rear mounted when using
this rackmount.

RMT 41 Kit

Optional accessory. Includes
RMT 4161 and BNC cables for front
mounting antennas.

RMT 42

Optional accessory. Adapts one R42
or R62 two channel receiver into a
single 19 inch rack space.

RMT 42 Kit

Included accessory with AP42 and AP62
systems. Includes RMT42 rackmount and
BNC cables for front mounting antennas.

25

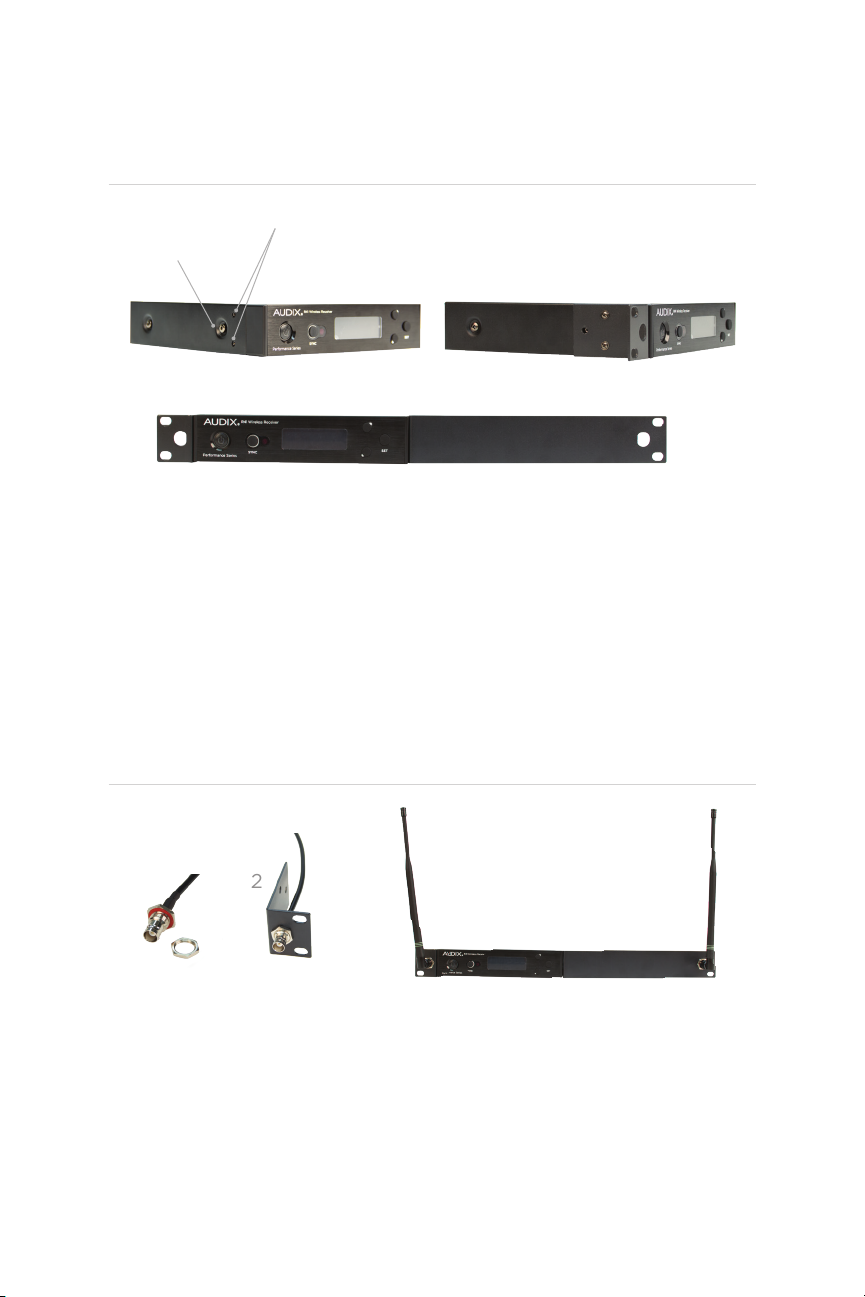

RACKMOUNT INSTALLATION

RMT 4161

Holes for rackmount screws

Machine screw

1

2

3

1 The holes for attaching rackmounts are located on the sides of the receiver.

2 The rackmounts are attached with two Phillips head screws and are intended to lay

over the Torx machine screw that holds the receiver enclosure together. For additional
support, the Torx screw may be removed and used as one of the fastening screws for
the rackmount.

3 After both metal pieces are fastened to the receiver, it is ready to be mounted into

the rack.

RMT 41 KIT

1

1 This kit includes the BNC cables needed for front mounting the antennas. Remove the

hex nut from the threaded end of the BNC connector.

2 Note: The rackmount has a hole that is slotted on one side. The flat portion of the BNC

connector must line up with the slotted portion of the hole in order to be pushed
through. It can only go in one way. Once it is through the hole, screw the nut back into
place and tighten.

2

3

26

3 After both sides are secure, connect the cables to Antenna A and Antenna B on the

back of the receiver. The antennas may now be front mounted to the BNC connectors.

RMT 241

1

2

3

1 Using the larger Phillips head screw, fasten the metal rackmount ears to the outside of

each receiver. Fasten the flat connecting metal piece to the inside of each receiver.

2 Place the two receivers together and line up the holes in order to adjoin the two

pieces. Once lined up, use the small screws to fasten the top side together. Then turn
the receivers over and fasten the bottom side.

3 Tighten up all screws and the receivers are now ready to be mounted into the rack.

RMT 42

Attach the metal rack ears in the normal fashion to each side of the receiver. See figure #2
under RMT 4161 on the previous page.

RMT 42 KIT

After the RMT 42 is attached to the receiver, follow the instructions for RMT 4161 on the
previous page for attaching BNC connectors and front mounting the antennas.

27

SPECIFICATIONS

R1/R62 Receiver

Frequency Range 522 MHz – 586 MHz

Bandwidth 64 MHz

Compatible Systems Up to 24 systems (R61) / 12 systems (R62) simultaneous use

Switchable Frequencies 207 Pre-coordinated frequencies

Manual Mode 2560 Tunable frequencies (spaced 25 kHz apart)

Frequency Response 45 Hz – 18 kHz

Compander System 2:1

Pilot Tone 32 kHz

Receiving System Dual tuner, true diversity

Signal-to-Noise Ratio 112 db at 30 kHz deviation (A-weighted)

Total Harmonic Distortion ≤0.4% (33 kHz deviation at 1 kHz)

Sensitivity 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)

Audio Output (Level=6)

Output Connectors 1/4", XLR

Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
1/4": -18 dbv @ 25 kHz deviation, 10 k ohm load

Audio Level Adjustment -12 to +9 in 3 db steps

Range 450' / 137 m (R62)

Power Supply 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A

Dimensions (W / D / H)

Net Weight

205 mm / 8.07 in x 206 mm / 8.11 in x 44 mm / 1.73 in (R61)
406 mm / 15.98 in x 209 mm / 8.23 in x 44 mm / 1.73 in (R62)

2.43 lb / 1.1 kg (R61)

4.75 lb / 2.1 kg (R62)

28

H60 Handheld Transmitter

RF Power Output

Frequency Bandwidth

Gain Controls

Input Connector

Batteries Included

Current Consumption

Battery Life

Input Impedance

Max Sound Pressure Level

Dimensions

Net Weight

10 mW, 30 mW

64 MHz

0 dB, -6 dB, -12 dB

n/a

2 AA 1.5 V

110 mA typical

Approximately 14 hours
(depending on battery type and usage)

n/a

>140 dB (depending on capsule)

2.1” diameter body, 10.43” (L) /
53 mm diameter body, 265 mm (L)

11.0 oz / 312 g (without battery)

B60 Bodypack Transmitter

RF Power Output 10 mW, 30 mW

Frequency Bandwidth 64 MHz

Gain Controls 0 db, -6 dB, -12 dB, -24dB

Input Connector 3 pin mini-XLR

Batteries Included 2 AA 1.5 V

Current Consumption 110 mA typical

Battery Life

Input Impedance Mic: 10 k ohm, Line: 1 M ohm

Max Sound Pressure Level Approx. 128 db to140 dB (depending on microphone)

Dimensions (W / L / D) 67 mm / 2.6 in x 90 mm / 3.5 in x 17 mm / 0.67 in

Net Weight 3.0 oz / 85 g (without batteries)

Approximately 14 hours
(depending on battery type and usage)

29

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Receiver won’t power up Bad connection

Batteries
Transmitter will
not power up

Lock mode may be ON

Check your power cord to
make sure it's plugged
into the outlet and
receiver correctly

Make sure they are
installed correctly (pg 6) or
check the battery life indicator
on the transmitter

If T-Lock is ON, change to OFF
(pg 19)

Transmitter
locked up

No RF signal

RF signal is weak

No AF

AF Signal distorted

Software conflict

Transmitter is not synced

to receiver

Receiver is out of range Reduce the distance

Antennas may not be

connected correctly

Possible frequency

interference from another

wireless device

Transmitter muted

Transmitter battery

low or dead

Receiver not hooked

up properly

Transmitter sensitivity setting

is too high

Receiver level too high

Re-load batteries in order to
clear memory

Sync transmitter to
receiver (pg 8)

Adjust antennas or use remote
antennas

Re-Scan and Sync to another
frequency (pg 8) or try a lower
power setting if on a smaller
stage or venue (pgs 14, 22)

Check transmitter
ON/OFF button

Replace battery

Check cable connections on
both receiver and console, also
check cable for continuity with
a cable tester

Reduce output level on
transmitter (pgs 14, 21) or
reposition vocal or
instrument microphone

Change gain level of receiver
(pg 17)

30

R61 AND R62 GROUP/CHANNEL CHART

GROUP

CHANNEL

1 2 3 4 5 6 7 8 9 10

1 583.475 585.575 584.500 584.675 584.400 584.825 583.350 584.675 585.375 584.400

2 583.075 584.850 578.125 582.600 582.350 579.125 581.600 582.600 584.500 582.350

3 582.450 559.600 571.450 579.400 581.475 578.625 573.825 581.750 581.150 581.475

4 581.625 558.975 565.600 571.600 579.125 574.475 572.800 579.400 580.600 579.125

5 580.500 557.750 564.975 570.975 577.600 567.550 571.550 578.375 579.200 578.100

6 579.575 557.025 564.150 570.150 576.975 566.000 570.775 577.150 578.125 577.100

7 578.350 555.675 563.025 569.750 576.150 561.100 569.050 576.650 577.450 576.375

8 545.625 554.650 561.675 569.025 575.025 557.075 565.700 575.300 576.100 575.850

9 544.500 541.475 560.125 567.675 573.675 555.300 561.075 574.450 575.250 574.825

10 543.575 541.075 547.475 566.125 572.125 553.625 553.600 571.450 572.250 573.475

11 542.350 540.450 547.075 554.125 553.300 547.350 552.975 564.700 565.500 572.850

12 535.075 539.625 546.450 549.675 551.625 543.475 552.150 562.600 563.400 570.050

13 533.625 538.500 542.850 548.650 544.925 542.400 551.750 561.050 561.850 564.525

14 531.575 537.575 535.475 548.125 541.600 538.350 551.025 556.275 557.075 562.450

15 530.850 536.850 534.450 529.475 540.450 535.500 527.625 553.450 554.250 560.575

16 536.350 532.500 529.075 527.325 533.950 526.500 549.700 550.500 551.725

17 530.350 528.450 526.075 528.075 525.575 548.775 547.875 550.500

18 524.850 525.525 526.375 523.475 547.325 546.425 549.575

19 524.350 524.525 525.800 523.075 544.700 545.500 548.125

20 522.100 522.450 543.475 541.750 545.500

21 534.625 538.925 544.275

22 532.750 537.475 535.425

23 530.675 534.150 533.550

24 530.250 532.600 531.475

25 525.150 530.500 531.050

26 522.350 528.100 525.950

27 523.750 523.150

28 522.525

*NOTE

Frequencies in the above chart may be selected by changing Group˝ and Channel˝ options from the menu (pg 16).

31

INTERNATIONAL E FREQUENCY
GROUP/CHANNEL CHART

Audix oers wireless systems that work with the international free frequency

(823 – 832 MHz and 863 – 865 MHz).

GROUP

CHANNEL

1 823.625 823.825 823.175 827.450 823.500 823.250 824.025 824.975 823.000 823.975

2 828.275 825.000 827.200 828.575 824.500 823.750 826.225 826.025 824.225 825.775

3 829.100 825.575 827.825 829.250 825.750 825.250 826.975 828.000 824.975 828.625

4 830.225 826.550 829.375 830.275 827.250 826.500 829.300 828.700 828.000 829.500

5 830.625 827.075 829.875 830.700 828.250 827.500 829.700 829.100 829.100 831.900

6 831.625 829.700 830.625 831.725 863.150 828.250 863.125 863.150 829.500 863.475

7 863.400 831.500 863.625 863.625 863.550 863.125 863.525 863.550 863.125 863.900

8 863.825 863.350 864.350 864.325 864.600 863.525 864.175 864.175 863.525 864.550

9 864.625 863.900 864.875 864.175 864.625 864.600 864.175

10 864.875 864.625 864.625

32

33

www.audixusa.com

503.682.6933

©2018 Audix Corporation All Rights Reserved.

Audix and the Audix Logo are trademarks of

Audix Corporation.

v.9 02.2018
