Audiovox XMXP05 Users Guide

op

tion

1

op

t

i

on

2

Keep excess cable
behind or under
the dashboard.

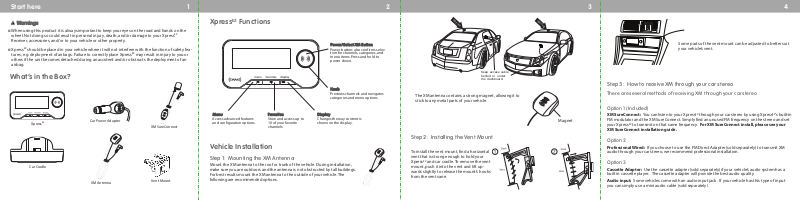

Start here

12 34

WWaarrnniinnggss

I When using this product it is always important to keep your eyes on the road and hands on the

wheel. Not doing so could result in personal injury, death, and/or damage to your Xpress
Receiver, accessories, and/or to your vehicle or other property.

EZ

I Xpress

should be placed in your vehicle where it will not interfere with the function of safety fea­tures, e.g. deployment of airbags. Failure to correctly place XpressEZmay result in injury to you or
others if the unit becomes detached during an accident and/or obstructs the deployment of an
airbag.

EZ

What’s in the Box?

Car Power Adapter

XM Antenna

XM SureConnect

Vent Mount

Xpress

Car Cradle

EZ

XpressEZFunctions

PPoowweerr//SSeelleecctt XXMM BBuuttttoonn

Power button; also confirms selec­tion for channels, categories, and
menu items. Press and hold to
power down.

KKnnoobb

Previews channels and navigates
categories and menu options.

MMeennuu

Access advanced features
and configuration options.

FFaavvoorriitteess

Store and access up to
10 of your favorite
channels.

DDiissppllaayy

Changes the way content is
shown on the display.

Vehicle Installation

Step 1: Mounting the XM Antenna

Mount the XM antenna to the roof or trunk of the vehicle. During installation,
make sure you are outdoors and the antenna is not obstructed by tall buildings.
For best results mount the XM antenna to the outside of your vehicle. The
following are recommended options.

The XM antenna contains a strong magnet, allowing it to
stick to any metal parts of your vehicle.

Step 2: Installing the Vent Mount

To install the vent mount, find a horizontal
vent that is strong enough to hold your
XpressEZand car cradle. To remove the vent
mount, push it into the vent and lift up­wards slightly to release the mount’s hooks
from the vent vane.

Magnet

Some parts of the vent mount can be adjusted to better suit
your vehicle’s vent.

Step 3: How to receive XM through your car stereo

There are several methods of receiving XM through your car stereo

Option 1 (Included)

XM SureConnect: You can listen to your XpressEZthrough your car stereo by using XpressEZ’s built-in
FM modulator and the XM SureConnect. Simply find an unused FM frequency on the stereo and set
your XpressEZto transmit on that same frequency. For XM SureConnect install, please see your

XM SureConnect installation guide.

Option 2

Professional Wired: If you choose to use the FM Direct Adapter (sold separately) to transmit XM
audio through your car stereo, we recommend professional installation.

Option 3

Cassette Adapter: Use the cassette adapter (sold separately) if your vehicle’s audio system has a
built in cassette player. The cassette adapter will provide the best audio quality.

Audio input: Some vehicles come with an audio input jack. If your vehicle has this type of input
you can simply use a mini audio cable (sold separately).

quick guide

XMCK-5

56 7

ANT IN

AUDIO OUT

DC IN

AANNTT IINN

Plug in your XM antenna here. If
you choose the XM SureConnect
method of install, this is where
you plug it in.

AAUUDDIIOO OOUUTT

If you choose to use a cassette
adapter or a mini audio cable,
plug it in here.

DDCC IINN

This is where you plug in the
power adapter.

Step 4: Making your Vehicle’s FM Radio an XM radio. (Options 1 and 2)

Your XpressEZcontains a built-in FM modulator that requires the use of either the included XM Sure­Connect or the optional FM Direct Adapter (sold separately) to transmit the XM audio signal to your
vehicle’s FM radio.

First, turn on your car stereo. You will need to find a suitable FM frequency in order to get the best
sound. A suitable FM frequency is an unused frequency or weak station that is not located near a
strong FM station in your area.

Next, power on your XpressEZ. Be sure all of your cables are properly connected. Turn the knob to go
to channel 1, this is the preview channel. You will not hear any sound through your car stereo until
you have chosen an FM Frequency.

Press Menu, look for this screen:

Press the XM button, then turn the knob to scroll
through the frequencies. Match the frequency to
the frequency you see on your car’s FM radio.

EZ

Now you should be able to hear your Xpress
sound please check all of your connections and be sure your XM antenna is not obstructed.

through your FM stereo. If you can’t hear any

Basic Controls

Turn on your XpressEZby pressing and holding the XM button. Subscribe to XM if you haven’t done
so already. To power down, press and hold the XM button.

SSeelleeccttiinngg CChhaannnneellss

Rotate the knob to scroll through the list of channels. Press the XM button to select that channel.
You can also set up XpressEZso that you do not have to press the XM button to select a channel.
See “Auto Tune Mode” in your user guide.

If you have channels assigned to favorites, press the button several times until you find the favorite
channel you would like to listen to.

UUssiinngg yyoouurr FFaavvoorriitteess

There are 10 user presets that can be stored using the favorites button. To set a channel to your

favorites:

1. Turn the knob to find your desired channel, then press the XM button.

2. Press and hold the favorites button for 2 seconds. The stored location for the channel will appear
across the top of the display.

You can access your favorite channels by pressing the favorites button.

When you attempt to add more than 10 favorite channels, your XpressEZwill give you the option to
replace one of your previously saved favorite channels. To replace a Favorite channel:

1. Tune to desired channel.

2. Press and hold favorites button for 2 seconds. You will receive a message stating “ Favorites Full”
then you will be prompted to “Replace?”.

3. Rotate knob to navigate through your favorite channels.

4. Press XM to replace. You will receive a message confirming the replacement.

FCC Statement

Please note that the power cable that has been supplied with your device is supplied with perma­nently attached ferrite beads. It is the responsibility of the user to use the power cable with the fer­rite beads.

The user is cautioned that changes or modifications not expressly approved by XM Satellite Radio
Inc. can void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the installation instructions, may cause harmful interference to radio com­munications. However, there is no guarantee that interference will not occur in a particular installa­tion. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna of the affected receiver.

- Increase the separation between the XM equipment and the affected receiver.

- Connect the XM equipment into an outlet on a circuit different from that to which the affected
receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Warning: The FCC and FAA have not certified this Satellite Radio Receiver for use in any air­craft (neither portable nor permanent installation). Therefore, XM Satellite Radio cannot support
this type of application or installation
