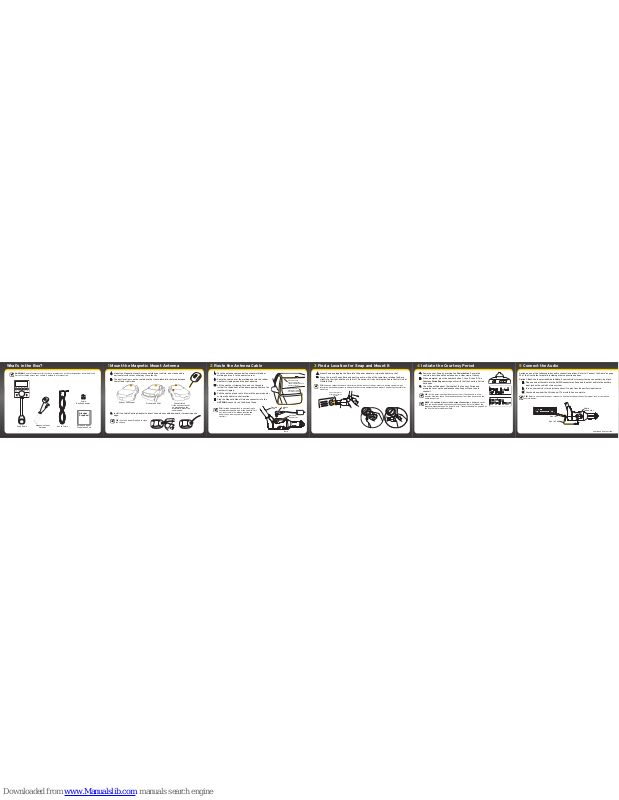

Audiovox XM Snap! Quick Start Manual

A. Mount the Magnetic Mount Antenna outside your vehicle, on a clean and dry
horizontal surface that will always face the sky.
B. The best location is on the roof above the front windshield, centered between
the left and right sides.
C. Install the Cable Routing Adapter to direct the antenna cable downward, if mounting on an
edge.
TIP: Use the Alcohol Prep Pad to clean the surface.
CAUTION: Do not attempt to install, activate, or adjust any of the setting options described in this Quick Start Guide unless your vehicle is parked in a safe location.
What’s in the Box?
Snap Radio
Magnetic Mount
Antenna
Antenna Alcohol Preparation Pad
Aux In Cable
1 2 3 4 5
Cable
Routing Adapter
Alcohol Prep Pad
1 Mount the Magnetic Mount Antenna 2 Route the Antenna Cable 3 Find a Location for Snap and Mount It
Sedans and Coupes
Pickups and SUVs Convertibles*
* If the antenna can not
be placed above the windshield, place it on vehicle hood.
A. Tuck the antenna cable under the windshield rubber
molding and run it to the nearest corner.
B. Route the cable out of the molding and into the rubber
weather stripping around the door opening.
C. Lift the weather stripping. Tuck and run the cable
inside it to the bottom of the door opening. Replace the weather stripping.
D. Pull the cable out and route it toward the power adapter
or cigarette lighter socket location.
E. Plug the Magnetic Mount Antenna connector into the
ANTENNA connector on the Base of Snap.
TIP: Include enough slack in your routing to accommodate open doors or the hood lid. Coil any excess cable in a hidden location and keep it away from any vehicle pedals or controls.
Place Antenna Closer to A-Pillar if Cable Doesn’t Reach Center of Roof
Power Adapter or Cigarette Lighter
Socket Location
ANTENNA
AUDIO FM
Antenna Connector
Base
Antenna
Plug
Flexible
Stalk
4 Initiate the Courtesy Period
A. Power on your Snap by pressing the Power button. Ensure the
vehicle is outside and the antenna has a clear view of the sky.
B. When prompted, press the number button 1, then 2, then 3. The
Courtesy Period Begun message will verify that the Courtesy Period
has begun.
C. You will be notified about the length of the Courtesy Period and
prompted to set up the audio connection. Snap will then tune to channel 1.
TIP: At this point, you should have access to all the channels in a few minutes. However, leave Snap tuned to channel 1 until you have set up the audio connection.
NOTE: If Acquiring Signal or Chk Antenna Connection is displayed, verify that you have mounted and connected the antenna. Refer to “Mount the Magnetic Mount Antenna” on page 14, or to “Troubleshooting” on page 42 of the User Guide for additional help.
MENU
FM
5 Connect the Audio
Decide on one of the following in-box audio connection options. Refer to “Connect the Audio” on page 23 of the User Guide for details including other connection options.
Option 1: Best: Use the provided Aux In Cable, if your vehicle’s stereo system has an auxiliary input jack.
A. Plug one end of the cable into the AUDIO connector on Snap and the other end into the auxiliary
input jack on the vehicle’s stereo system.
B. Turn on your vehicle’s stereo system and set it to play from the auxiliary input source.
C. You should now hear the XM channel 1. The installation is complete.
TIP! Refer to your vehicle’s owner’s manual to find the location of the auxiliary input jack, or consult the vehicle dealer.
AUDIO FM
Audio Connector
Aux In Cable
Aux In
continued on other side...
A. Mount Snap by plugging the Base into the power adapter or cigarette lighter socket.
B. Grasp the rear of Snap’s Base and gently push in, while at the same time rotating the Base
slightly to the right and then to the left. Do not push it in by holding the Radio Control Unit or Flexible Stalk.
TIP: Choose a socket that doesn’t interfere with the driver’s vision or access to driving controls, won’t interfere with the deployment of airbags or other safety equipment, and makes Snap easily accessible for operation.
Power Adapter or Cigarette Lighter
Socket
1
2
3
4
5
Rock Underground
25
Press 1,2,3 To Begin
Courtesy Period Begun
1
2
3
4
5
Option 2: Good: Use the PowerConnect™ feature of Snap. PowerConnect plays the XM audio through your vehicle’s FM radio.
A. Find and make a list of all available FM channels in your area that are
not being used by an FM radio station.
B. Pick the first FM channel on your list. Tune your vehicle’s FM radio to
this FM channel.
C. Set your Snap to transmit on the same FM channel that you have
selected on your vehicle’s FM radio:
i. Press FM on the top of Snap. ii. Turn the Rotary knob to select the available FM channel you
have chosen.
D. You should hear XM channel 1 through your vehicle’s FM radio. If you are satisfied with the
sound quality, the installation is complete.
E. If you are not satisfied, move to the next FM channel on your list and repeat the process.
Continue until you have found an FM channel with which you are satisfied.
F. Press FM or wait 10 seconds to exit the FM mode.
TIP: Refer to “PowerConnect Installation Instructions” on page 25 of the User Guide for details on how to find an available FM channel.
FM 90.1
FM
6 Explore, Enjoy and Subscribe
Once installation is complete, you can tune to other channels and listen to all the commercial-free music, plus live sports and the latest news, talk & entertainment on XM.
A. Turn the Rotary knob to tune to other channels and press the Previous or Next Category button
to browse and select the different categories.
B. Subscribe before the Courtesy Period expires. Follow the instructions displayed on the screen.
C. You can also subscribe anytime you want online or by phone. Just go to www.xmradio.com and
click on Activate Radio or call 1-800-XM-RADIO (1-800-967-2346).
TIP: To subscribe, you will need your Radio ID, which you can find by pressing MENU, on a label on the bottom of the gift box, on the label on the back of your Snap, and by tuning to channel 0.
Connect the Audio (continued) Snap Button Functions Snap Main Display
www.xmradio.com
SIRIUS XM Radio Inc. 1221 Avenue of the Americas New York, NY 10020
1.800.967.2346
© 2010 SIRIUS XM Radio Inc.
XSN1QSG 082610a
Call / Visit 866-408-9796
To Subscribe xmradio.com
Self installation instructions and tips are provided for your convenience. It is your responsibility to determine if you have the knowledge, skills and physical ability required to properly perform an installation. SIRIUS|XM shall have no liability for damage or injury resulting from the installation or use of any SIRIUS|XM or third party products. It is your responsibility to ensure that all products are installed in adherence with local laws and regulations and in such a manner as to allow a vehicle to be operated safely and without distraction. SIRIUS|XM product warranties do not cover the installation, removal or reinstallation of any product.
When listening to a channel, information about the channel and what is currently playing is displayed. The screen will alternate between displaying the artist name and song/program title; and displaying the category, channel name and channel number.
Antenna Signal Strength
Artist Name
or Talk Show Host
or Sports Teams/Score
Displayed when a
Favorite Channel or
FM Preset is selected
Category
Displayed when Snap is in menu mode (after pressing the MENU button)
Displayed when Snap is in FM mode (after pressing the FM button)
Song/Program Title or Talk Show Schedule or Game Time/Game Details
Channel Number
Channel Name
Rock The Loft
50
Los Lobos Johnny 99
MENU
1 2 3 4 5
FM
Power Button
Press to turn Radio on and off.
Menu Button
Press to access Radio ID and adjust audio level.
Scan Button
Press to start or stop scanning through channels within the current category.
Rotary Knob
Turn to tune to the previous or next channel within the current category; in FM mode, turn to tune FM channels.
1 2 3 4 5
MENU
FM
Front View (Radio Control Unit)
Top View (Radio Control Unit)
FM Button
Press to change to FM mode for configuring FM channels.
Number Buttons
Press to tune to a stored favorite channel, press and hold to store a favorite channel; in FM mode, press to select a stored FM preset, press and hold to store an FM preset.
Previous/Next Category Buttons
Press to access the previous or next category; press and hold to cycle through the categories.
MATCH FM CHANNELS
1 2 3 4 5
90.1
MENU
FM
