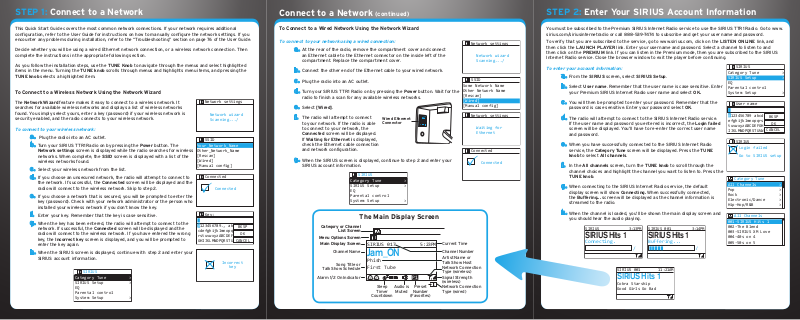

Audiovox TTR1 Quick Start Guide

STEP 1: Connect to a Network

3:13PM

3:14PM

Category or Channel

Network Connection

11:21AM

Connect to a Network

(continued)

STEP 2: Enter Your SIRIUS Account Information

This Quick Start Guide covers the most common network connections. If your network requires additional configuration, refer to the User Guide for instructions on how to manually configure the network settings. If you encounter any problems during installation, refer to the “Troubleshooting” section on page 76 of the User Guide.

Decide whether you will be using a wired Ethernet network connection, or a wireless network connection. Then complete the instructions in the appropriate following section.

As you follow the installation steps, use the TUNE Knob to navigate through the menus and select highlighted items in the menu. Turning the TUNE knob scrolls through menus and highlights menu items, and pressing the

TUNE knob selects a highlighted item.

To Connect to a Wireless Network Using the Network Wizard

The Network Wizard feature makes it easy to connect to a wireless network. It searches for available wireless networks and displays a list of wireless networks found. You simply select yours, enter a key (password) if your wireless network is security enabled, and the radio connects to your wireless network.

To connect to your wireless network:

a. Plug the radio into an AC outlet. b. Turn your SIRIUS TTR1 Radio on by pressing the Power button. The

Network settings screen is displayed while the radio searches for wireless networks. When complete, the SSID screen is displayed with a list of the wireless networks found.

c. Select your wireless network from the list. d. If you choose an unsecured network, the radio will attempt to connect to

the network. If successful, the Connected screen will be displayed and the radio will connect to the wireless network. Skip to step 2.

If you choose a network that is secured, you will be prompted to enter the key (password). Check with your network administrator or the person who installed your wireless network if you don’t know the key.

f. Enter your key. Remember that the key is case sensitive. g. When the key has been entered, the radio will attempt to connect to the

network. If successful, the Connected screen will be displayed and the radio will connect to the wireless network. If you have entered the wrong key, the Incorrect key screen is displayed, and you will be prompted to enter the key again.

Network settings

Network wizard Scanning.../

SSID

Your_Network_Name

Other_Network_Name [Rescan] [Wired] [Manual config]

Connected



Key:

0123456789., ab

cdefghijklmnopq rstuvwxyzABCDEF GHIJKLMNOPQRSTU

h. When the SIRIUS screen is displayed, continue with step 2 and enter your

SIRIUS account information.

SIRIUS

Category Tune

SIRIUS Setup EQ Parental control System Setup

Incorrect

key

BKSP

CANCEL

To Connect to a Wired Network Using the Network Wizard

To connect to your network using a wired connection:

a. At the rear of the radio, remove the compartment cover and connect

an Ethernet cable to the Ethernet connector on the inside left of the compartment. Replace the compartment cover.

b. Connect the other end of the Ethernet cable to your wired network.

c. Plug the radio into an AC outlet.

d. Turn your SIRIUS TTR1 Radio on by pressing the Power button. Wait for the

radio to finish a scan for any available wireless networks.

e. Select [Wired].

f. The radio will attempt to connect

to your network. If the radio is able to connect to your network, the Connected screen will be displayed. If Waiting for Ethernet is displayed, check the Ethernet cable connection and network configuration.

Wired Ethernet Connector

g. When the SIRIUS screen is displayed, continue to step 2 and enter your

SIRIUS account information.

SIRIUS

Category Tune

SIRIUS Setup EQ Parental control System Setup

The Main Display Screen

List Screen

Menu Options Screen

Main Display Screen

Channel Name

Song Title or

Talk Show Schedule

Alarm 1/2 On Indicator

SIRIUS 017

Jam_ON

Phish First Tube

1 2

Audio is

Sleep Timer

Countdown

Muted

5:23PM

P 1

Preset

Number

(Favorites)

Some Network Name Other Network Name [Rescan]

[Wired]

[Manual config]



Current Time

Channel Number Artist Name or

Talk Show Host

Type (wireless) Signal Strength

(wireless)

Type (wired)

Network settings

Network wizard Scanning.../

SSID

Network settings

Waiting for Ethernet

Connected

You must be subscribed to the Premium SIRIUS Internet Radio service to use the SIRIUS TTR1 Radio. Go to www. sirius.com/siriusinternetradio or call 888-539-7474 to subscribe and get your user name and password.

To verify that you are subscribed to the service, go to www.sirius.com, click on the LISTEN ONLINE link, and then click the LAUNCH PLAYER link. Enter your username and password. Select a channel to listen to and then click on the PREMIUM link. If you can listen in the Premium mode, then you are subscribed to the SIRIUS Internet Radio service. Close the browser window to exit the player before continuing.

To enter your account information:

a. From the SIRIUS screen, select SIRIUS Setup.

b. Select User name. Remember that the user name is case sensitive. Enter

your Premium SIRIUS Internet Radio user name and select OK.

c. You will then be prompted to enter your password. Remember that the

password is case sensitive. Enter your password select OK.

d. The radio will attempt to connect to the SIRIUS Internet Radio service.

If the user name and password you entered is incorrect, the Login failed screen will be displayed. You’ll have to re-enter the correct user name and password.

e. When you have successfully connected to the SIRIUS Internet Radio

service, the Category Tune screen will be displayed. Press the TUNE knob to select All channels.

SIRIUS

Category Tune

SIRIUS Setup

EQ Parental control System Setup

User name

0123456789 abcd

efghijklmnopqrs tuvwxyzABCDEFGH IJKLMNOPQRSTUVW

SIRIUS

Go to SIRIUS setup

BKSP

CANCEL

f. In the All channels screen, turn the TUNE knob to scroll through the

channel choices and highlight the channel you want to listen to. Press the TUNE knob.

g. When connecting to the SIRIUS Internet Radio service, the default

display screen will show Connecting. When successfully connected, the Buffering... screen will be displayed as the channel information is streamed to the radio.

h. When the channel is loaded, you’ll be shown the main display screen and

you should hear the audio playing.

SIRIUS

SIRIUS Hits 1

Connecting.

SIRIUS 001

SIRIUS Hits 1

Buffering...

Category Tune

All Channels

Pop Rock Electronic/Dance Hip-Hop/R&B

All Channels

001-SIRIUS Hits 1

002-The Blend 003-SIRIUS XM Love 004-40s on 4 005-50s on 5

SIRIUS Hits 1

Cobra Starship Good Girls Go Bad

> > > >

What’s in the Box?

MUTEBACK OK

TUNE VOL

1 2 3 5 6 7 8 9 0 BACK MENU

ALARM 1 ALARM 24

SIRIUS TTR1 Radio

SIRIUS TTR1 Radio Functions

Power Button

Turn radio On and Off.

1 2 3 5 6 7 8 9 0 BACK MENU

0-9 Number Buttons

Set and select channel presets or directly enter channel numbers.

TUNE Knob (Multifunction) Turning the knob at the default display screen displays the category tune screen; pressing the knob at the default display screen displays the direct tune screen; turning the knob in a menu or user input screen scrolls through menus and choices; pressing the knob in a menu or user input screen selects a highlighted item; pressing and holding displays the Parental control menu.

VOL (Volume) Knob

Increases or decreases volume; also mutes the audio.

TUNE VOL

BACK Button

Press to return to the previous display screen.

ALARM 1 ALARM 24

MENU Button

Press to access or exit category and channel tuning, advanced features, and configuration options.

ALARM 1 / ALARM 2 Buttons

Turns the alarm clocks On or Off; pressing and holding displays the alarm settings.

Compartment

Rear

2 3 41

6 7 85

ALARM1ALARM

Remote Control

Headphone

Connector

Snooze/Sleep Timer Button

Mutes the alarm, or sets the sleep timer, for 5, 10, 15, 30, 45, or 60 minutes.

Connector

Wireless Antenna

Aux In

SIRIUS Customer Care

800.869.5364

sirius.com

SIRIUS XM Radio Inc. 1221 Avenue of the Americas New York, NY 10020

Quick Start Guide

Wired Ethernet Connector

Line Out Connector

TTR1 QSG 090909a
