MODEL SU-101

SUB-WOOFER SPEAKER SYSTEM

WITH

DUAL SATELLITE TWEETERS

INTRODUCTION

Congratulations on your purchase of the
quality Bass reproduction, coupled with dual tweeters, allows your car's audio system perform to its full
potential.

Rampage

High Performance vehicle Sub-woofer System. High

TOLL-FREE ASSISTANCE

The installation and connections are so simple we doubt you’ll need our help, but if you do, we’re here to
help you. Just call our toll-free assistance line at 1-800-645-4994 during the days/hours shown.

TIME ZONE

DAY

PACIFIC

MOUNTAIN

CENTRAL

EASTERN

MON. - FRI.
SATURDAY

5:30AM - 4PM
6AM - 2PM

INDEX

Introduction and Contents Page 2

Packing List Page 3
Major Components Page 3
Installation Parts Page 3
Placing the System Page 4
Installation Sub-woofer Page 5

Enclosure

6:30AM - 5PM
7AM - 3PM

7:30AM - 6PM
8AM - 4PM

Satellite Tweeter Configuration Page 6
Wiring Instructions Page 7

SU-101 Speaker System Page 8
Interconnection Wiring Diagram

Use of Controls Page 9
Troubleshooting Page 10
Specifications Page 10

8:30AM - 7PM
9AM - 5PM

Warranty Page 1 1

2

PACKING LIST

Installation of your SU-101 is easy and everything you need is included in this package. Open it up, lay out
the parts and you are ready to get started.

MAJOR COMPONENTS

Sub-woofer Enclosure Assembly Tweeters (2)

INST ALLATION P ARTS

4 pcs

4 pcs

Socket-Head
Machine Screw
M6 x 12 mm

Pan-Head
Machine Screw
M5 x 10 mm

M5 Flat Washer4 pcs

TWEETER
SPEAKER

TWEETER SWIVEL
BRACKET

12 Vdc B+ Wire
(Y ellow, 4.0 M)

Remote Wire
(Blue, 3.0 M)

Ground Wire
(Black, 1.3 M)

High Input/Output
Extension Cable
Assys (4 M Each)

Enclosure Cable
Assembly (High
Level In/Out)

SAFETY
LANYARD

BRACKET MTG
SCREWS

1 pc

1 pc

1 pc

2 pcs

1 pc

2 pcs

2 pcs

2 pcs

Tweeter Mtg
U-Channel
Bracket

Tweeter Mtg
Bracket

Tweeter Mtg
Retaining
Plate

Hex Allen-Head
Driver (2.5mm
and 5mm)

Enclosure Mtg
Bracket

Hex-Head Tapping Screw
(with Captive Washer)
5mm x 25 mm

2 pcs

4 pcs

8 pcs

3

Placing the System

1. Mount the subwoofer enclosure in either the Rear Cargo Area (for Vans, SUVs and Hatchbacks) or in the trunk
(for sedans).

2. Mount the tweeters on the vehicle interior, high up for maximum sound and facing forward for optimum usage.

Important Installation Warnings

1. NEVER attempt to install this system in the area above the vehicle fuel tank. Drilling mounting holes could pierce

the fuel tank.

2. ALWAYS check under the area you select for installation, for wires or other obstructions.

3. ALWAYS make sure that you mount the subwoofer so the control panel is accessible to facilitate adjustments.

4. NEVER try to extend the length of the cables supplied with your system. The High Level Input/Output cable from

the speaker enclosure and the four RCA jacked extension cables are 15 feet long. DO NOT exceed this length in
your installation.

5. CAREFULLY plan the routing of your wires from the rear deck area to the dashboard and/or satellite tweeters,
keeping in mind the length of the available cables.

6. CHECK to make sure your chosen installation place does not interfere with the removal of your spare tire.

7. REMEMBER that failure to properly install the subwoofer enclosure may affect sound quality.

Follow the installation instructions for best results.

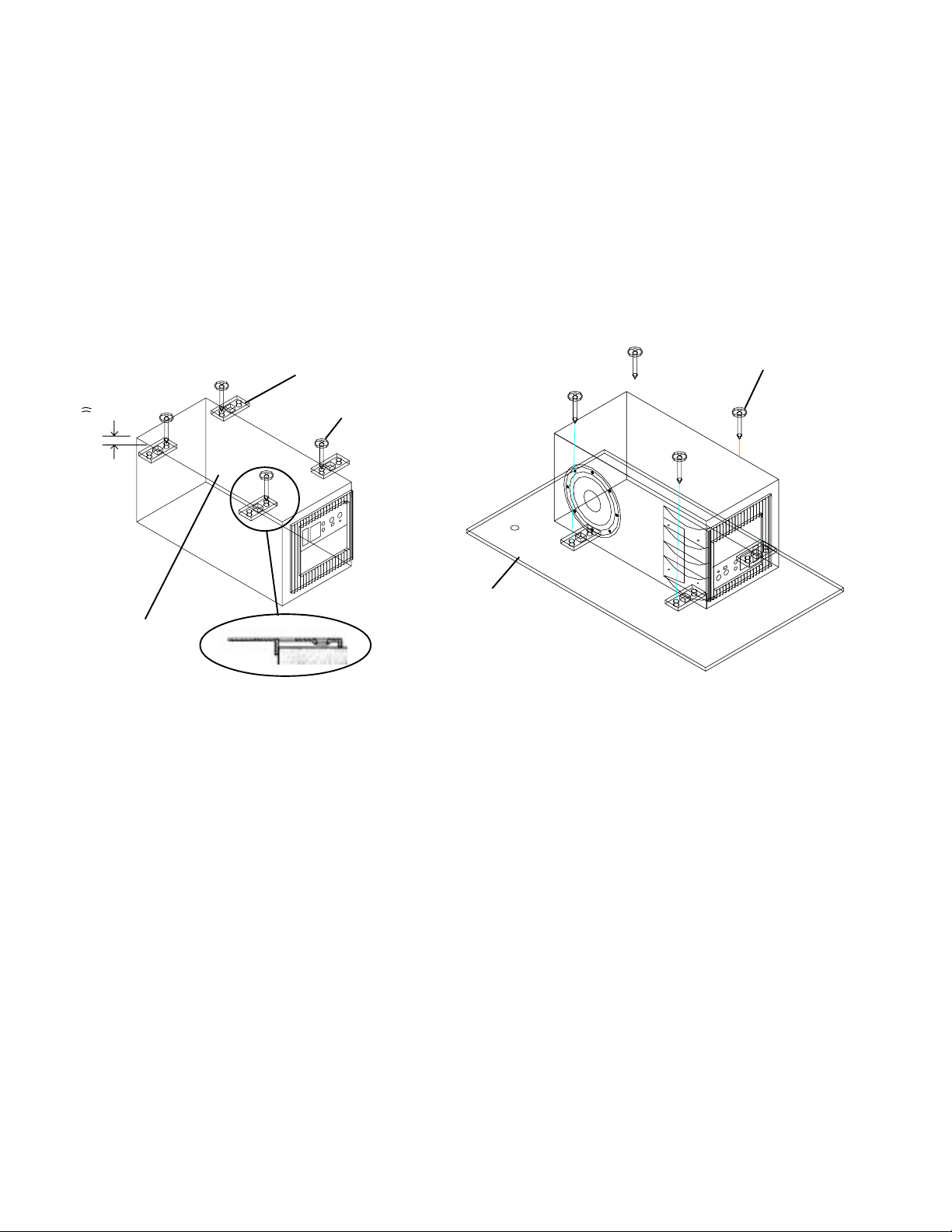

REAR CARGO AREA MOUNTING (VANS, SUVs AND HATCHBACKS)

SATELLITE TWEETER
MOUNTING

MOUNT ON FLOOR OF DECK
(HORIZONTAL)

TRUNK MOUNTING (SEDANS)

MOUNT ON FLOOR OF DECK
(HORIZONTAL)

SATELLITE TWEETER
MOUNTING

SATELLITE TWEETER
MOUNTING

MOUNT ON FLOOR OF
TRUNK (HORIZONTAL)
