INSTALLATION/
OWNERS
MANUAL
3.5”, 4”, 5-1/4”, 6.5”
SPEAKERS
SPECIFICATIONS
MODEL PS-2351 PS-2401 PS-2525 PS-2652 PS-2655
Nominal Dia. 3-1/2" 4" 5-1/4" 6-1/2" 6-1/2"
Description 2-Way 2-Way 2-Way 2-Way 2-Way
Impedance 4 Ohms 4 Ohms 4 Ohms 4 Ohms 4 Ohms
Freq. Resp.
(Hz)
Sensitivity (dB) 89 90 91 91 91
Power Handling 60 Watts 75 Watts 100 Watts 100 Watts 125 Watts
100-21, 000 80-20,000 60-20,0 00 50-20, 000 40-20,0 00
Features
Cone
(Polypropylene)
XXXX X
Installation
Speake r Gr ille s X X X X
Speaker WireXXXX X
HardwareXXXX X
Mounting Dia. 3-1/2" 4" 5-1/4" 6-1/2" 6-1/2"
Mounting Depth 1-9/16" 1-3/4" 1-3/4" 2-1/2" 2-1/2"
-2-
PRE-INSTALLATION TIPS
Before beginning your installation, read the following tips on proper
placement of speakers and how to obtain the best sound from the
speakers you have selected.
No. 1:
Always try to have the speakers aimed at the listener. Never install
speakers in a manner that would direct sound toward the floor of the
car. The only exception to not aiming a speaker would be the rear
deck (package shelf behind rear seat). The natural curve of the rear
window, combined with the wide-dispersion tendency of bass sounds,
allows woofers to perform exceptionally well in this location. This is
not true for high-frequency sounds which will be absorbed by the
roof liner long before they reach your ears.
No. 2:
High and mid-frequency sounds are very directional (the higher the
frequency , the more directional it is). This simply means that a tweeter
or mid-range speaker pointing toward the floor (or roof) will only be
clearly heard in the direction at which it is pointed. For this reason, it
is critical that tweeters and mid-range speakers always be installed
so they aim in toward the passenger area and as high in the car as
possible (on top of dash or high up in door panels). Never install
tweeters low in the car.
No. 3:
Select
panel is solid and securely attached to the car. Clipped-in plastic
solid
mounting panels! Always make certain the selected
or fire panels make poor mounting surfaces and tend to vibrate
when used. This is far more critical when installing large power producing woofers. Mount your speakers securely! If the speaker
has four mounting holes, use all of them.
No. 4:
Woofers need “breathing” room! For a speaker to perform efficiently ,
it must move large amounts of air. If you restrict this airflow (try to fit
a large speaker in a small space or if you undercut the recommended
mounting hole size), you won’t have an efficient speaker . Conversely,
the enclosure you mount them in should be somewhat sealed. In
other words, if you mount speakers in door panels, don’t cut any
extra holes in the door.
No. 5:
Tweeters can go in places other speakers can’t. They don’t need
“breathing” room or reinforced mounting panels. All they require is
directional placement. (See tip No. 2.)
No. 6:
Never let any part of the speaker (except the mounting flange) touch
any part of the car. You’ll be amazed what noises a speaker (and
your car) can produce when one touches the other.
No. 7:
Don’t skimp on the quality of the speaker wiring. All Audiovox speakers include wiring rated to properly transmit the normal power load
the speaker is designed for.
-3-
INSTALLATION INSTRUCTIONS
CAUTION: Do not mount the speakers in
the following locations:
-
Where the door window glass comes in contact with the
speaker.
- Where the window crank handles or gear assemblies come in
contact with the speaker when rotated.
- Where the speakers come in contact with the trunk springs,
shock towers, or trunk lid.
- Where the speakers come in contact with gas tanks or fuel lines.
- Where the speakers come in contact with the rear window glass,
car wall, etc.
We strongly recommend that you read these instructions first before you commence speaker installation. If the instructions appear
to be too difficult, or if you lack any of the equipment necessary to
finish the job, perhaps it would be more prudent to refer the installation to a qualified, car stereo professional.
Ease of Installation -
and possibly four, pre-cut openings in all cars. When only two are
provided, one is usually in the rear deck and the other is in the front
dash. Provisions for four speakers usually include two rear deck
openings and two door or dash openings. A car manufacturer picks
speaker locations that simplify installation and fit available spaces.
They are not always the best places for sound reproduction.
Using Factory Openings -
openings is you avoid having cut sheet metal, as the holes are prepunched. You normally have only to cut away thin plastic or fiber
panels that conceal the openings. Openings near the floor should
be avoided if at all possible.
The car manufacturer provides at least two,
The one advantage to using the factory
Be Innovative -
els, dash, side panels, etc., and really get into the basic construction of the car. You’ll be amazed at the vast amount of good-toexcellent speaker locations a car can conceal.
If You Don’t Wish to Cut Holes -
face-mount type of speakers. Just pick a reasonably flat panel, drill
a few holes, fasten a few screws, and you’re listening to stereo.
If you’re mechanically inclined, remove door pan-
Consider the hang-on or sur-
INSTALLING ROUND SPEAKERS IN DOORS OR
FLA T SURF ACES
Most cars are factory-equipped with round speaker openings in door
panels, kick panels and occasionally , rear deck panels.
If you decided on a door location for mounting speakers, the following procedure should be followed:
1. Examine the door panel thoroughly. Observe movement of
window crank (no power windows), door latches, etc. Obviously ,
you don’t want to install a speaker where the arc of a moving
window crank (or electric window frame) would inter fere with
the speaker grille. Avoid all areas that might cause interference
with the normal functions of the door assembly .
CAUTION: By removing the door upholstery panel, you may find
several alternate locations higher up on the door. W atch
out for window mechanisms; even professional installers
have mounted a speaker and then found out it interfered
with some moving part.
2. It is highly recommended that the padded door panel be removed. This can be accomplished by removing the window
crank (usually held by a screw or “C” clip found behind the
crank), unless the car is equipped with power windows.
-4-
If necessary, remove the door opening handle any accessory.
Unless screws are holding the door panel to the door frame,
which is very rare, you will find that most door panels are secured by spring clips.
3. Using a broad flat tool between door and door panel, unfasten spring clips. If a few clips are bent when removing them,
a pair of pliers will easily re-form them. Once all clips are unfastened, lift off door panel.
NOTE:On cars equipped with power windows, seats, etc., it may
be necessary to free the power switch plate, usually mounted
to the driver’s side arm rest, in order to fully separate the
door panel from the frame.
6. Door latch
7. Screws
8. Clip pins
Selecting Speaker Location
After removing the door panel, you are ready to select a location
for the speaker. Make this selection as follows:
1. When the steel sub-door panel is exposed, you may find
the panel completely or partially covered by brown or black
paper secured with a sticky-black, tar-like adhesive. Do not
tear this paper off. It is there to insulate the door , to trap
moisture, and to reduce wind noise.
2. Carefully unpeel the paper. (Do not do this if speaker
openings are exposed.) Y ou should now be able to see all
the varied size openings available in the sub-steel door. The
reason for exposing all the existing holes is to avoid cutting
metal unless it is absolutely necessary .
3. Now determine which existing holes will accommodate your
speakers. Temporarily install the window crank; place the
speaker into the opening and, while holding the speaker
in place, fully raise and lower the window. Check that no
moving part touches the speaker while opening or closing
the window. Then open and close the door and inspect for
speaker interference.

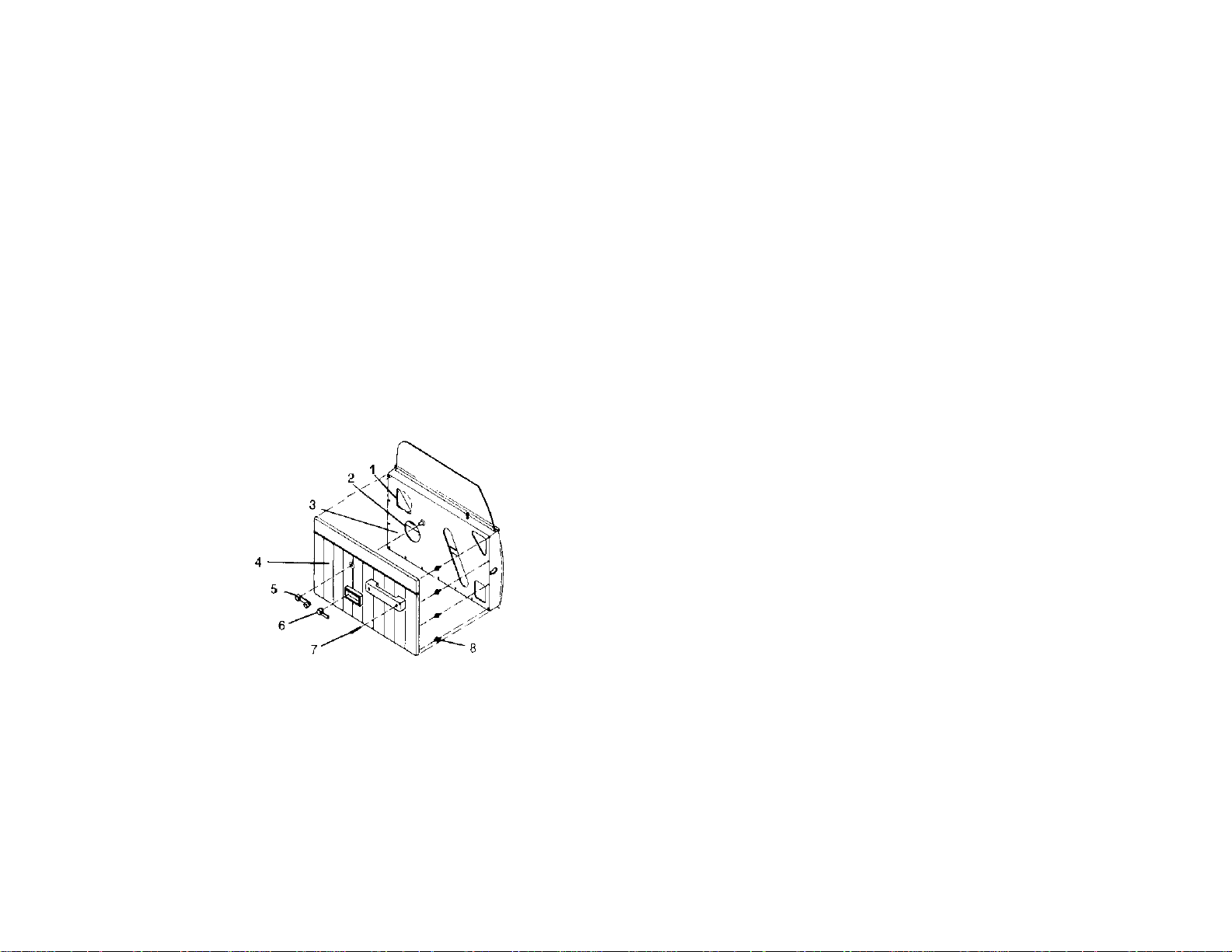

Removing the Door Panel
1. This opening would have to be enlarged
per dotted line
2. Possible speaker opening
3. Remove paper liner
4. Padded door panel
5. Window crank
4. If you are satisfied with the selected location, you can begin
the installation process. But first, visually check the padded
door panel to verify that nothing on it will interfere with
installing the speaker grille (an armrest, for example).
5. If the selected location is acceptable, proceed to Speaker
Mounting, step 2; if the location needs to be changed,
continue with Speaker Mounting, step 1.
-5-
Selecting the Speaker Location
1. This is a good speaker location , but to
use it, you’ll have to enlarge the existing
hole
2. Check for free window crank movement
3. Check for possible braces behind selected
area with window down
4. This is a poor location for a speaker installation;
it is too low and behind driver’s hearing area
and
up
1. Using the template provided (we’ll assume you’ve already
made all the necessary checks and you’ve not going to cut
through the door release mechanism), mark the speaker opening on the door panel. Now carefully cut the opening and
drill the required holes.
NOTE: Whether you’re using an existing hole, or have just
cut or modified an existing opening as described
above, you are now ready for speaker installation.
2. Place the speaker into the opening and check for proper
fit. Remove the speaker and replace the paper door liner
previously removed.
Speaker Mounting
Let’s assume you didn’t find a suitable opening, but you want to
install the speakers in the doors. This usually means you will have
to cut a speaker opening in the sub-metal (or at least enlarge an
existing opening). Cutting metal is not for the timid or unqualified
installer. If in doubt, proceed to your nearest garage or stereo installation center and let the “pros” do it for you.
If you intend to tackle the job yourself, break out your best metalcutting tools (no torches please); use nibblers, saws or heavy snips.
You’ll need a file too. Prepare the opening as follows:
Cutting Door Padding
1. Use a sharp knife to cut through padding
to expose speaker hole
2. Replace door panel and paper liner
-6-
Piercing Speaker Mounting Holes
Enlarging or Cutting a New Hole
1. Opening
2. Speaker
3. Pierce the speaker mounting holes
Using an Existing Hole
1. Speaker
2. Drill
3. Drill the required speaker mounting
holes
1. Enlarge or cut new hole per template
2. Tape
3. Template
4. Metal cutting saw
5. File hole smooth after cutting
Cutting Door Padding and Piercing Speaker Mounting Holes
After routing the speaker wires, perform the final installation as
follows:
1. Replace door panel, window crank, etc. Press against door
panel to locate speaker hole. Then, using a sharp knife or
box cutter, cut out opening in padded door panel.
2. Replace speaker in opening and pierce the three or four
speaker mounting holes. Remove speaker.
-7-
Routing Speaker Wires
Route the speaker wires as follows:
1. Route speaker wires from stereo into door. If possible, use
existing wires. If door is not equipped with grommets, drill
a 1/4” hole in door edge and door frame.
2. Connect wires to speaker per stereo wiring instructions.
Allow enough slack between door edge and frame to fully
open door. DO NOT tape wires to hinges or braces.
3. Place speaker into door and secure using screws (and clips,
if necessary) provided with speaker.
4. Test the speaker. Then install grille (grille snaps over outer
ring of speaker frame). Repeat for remaining door.
Routing Speaker Wires
1. Door Frame
2. Kick Panel
3. Connect speaker wires to speakers
4. Route wires to stereo
5. Drill 1/4” hole or use existing grommets
6. Door (open)
Securing Speaker and Grille
1. Speaker
2. Grille
3. Speaker mounting screws
4. Metal mesh
-8-
Speaker Mounting Details
The following illustrations define the requirements for mounting the
speaker on the near and far sides of the mounting surface or independent mounting board.
Typical Speaker Mounting and Grille Installation
-9-
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof,
under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such
defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty coverage (e.g. dated bill
of sale), specification of defect(s), transportation prepaid, to the warranty center at the address shown below.
This Warranty does not extend to the elimination of car static or motor noise, to correction of antenna problems, to costs incurred for installation,
removal, or reinstallation of the product, or damage to tapes, compact discs, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been damaged through
alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/bar code
label(s) or markings. THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR
REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF
30 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or
representative is authorized to assume for the Company any liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damage
so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
U.S.A. : AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NY 11788 l 1-800-645-4994
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA
Form No. 128-4502B
© 2000 Audiovox Electronics Corp., Hauppauge, NY 1 1788 128-5878
Loading...
