Audiovox PROV716, PROV716S, PROV716P User Manual

P .

LECTRONICS COR

PROV716/PROV716S/PROV716P

Drop Down Video TV/Monitor with DVD

Installation Guide

Important Notice

It is unlawful in most jurisdictions for a person

to drive a motor vehicle which is equipped

with a television viewer or screen that is located in the motor vehicle at any point

forward of the back of the driver's seat, or

that is visible directly or indirectly to the

operator of the motor vehicle.

MATERIALS INCLUDED IN THIS PACKAGE:

1) PROV716/PROV716 S/PROV716 P TV/Video Monitor with DVD (1pc)

2) 12 Pin Power / Signal harness (P/N 1 12B2821) (1 pc)

3) 3 Pin Power Wire Harness with choke (P/ N 1 12B3274) (1 pc)

4) Hardware Package #4 x 3/8” Screws (9 pcs) #8 x 5/8” Self Drilling Screws (4 pcs) #8 Washers (4 pcs)

5) Remote Control (136B3447) (1pc)

6) 14 Pin FMM Cable (P/N 1 12B3273) (1pc)

7) FM Modulator (P/N 136C3426) (1pc)

1 2

AUTO

CHANNEL SOURCE VOLUMEFMSELECT

PROG

R I D U

L A

T U P N I

O E ID V

ON OFF AUTO

H E A D P H O N E S

TOOLS REQUIRED:

CHOKE

POWER

OURCE

AUTO MEMORY

SKIP/ EARCH

ERASE/ WRITE

RETURN

TV DVD VCP

DISPLAY

PAUSE STOP

14253

Enter

EJECT

–

VOL

PIXMUTE

ETUP

REPEAT

PLAY

#2 Phillips Screwdriver #1 Phillips Screwdriver Utility or Razor Knife or Shears Wire Strippers Upholstery hook tool (for removal of panels as necessary) Electrical T ape Masking T ape Multimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe) Marker pen – to mark headliner Scribe (to mark trim ring if used) Misc. electrical connectors (to connect to vehicle power source). Requirements will vary from vehicle to vehicle) DVD Movie (to verify system operation after installation)

-1-

GENERAL INSTALLATION APPROACH:

1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Video Game, external amp, wireless headphones, VCP, etc.).

2) Review all manuals to become familiar with electrical requirements and hook ups.

3) Decide upon mounting locations of all components and method of mounting.

4) Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all areas where interconnecting wire harnesses will need to be located. If any access holes need to be cut into the vehicle (headliner, other trim components etc.), this should be done now as well. (Refer to Page 3).

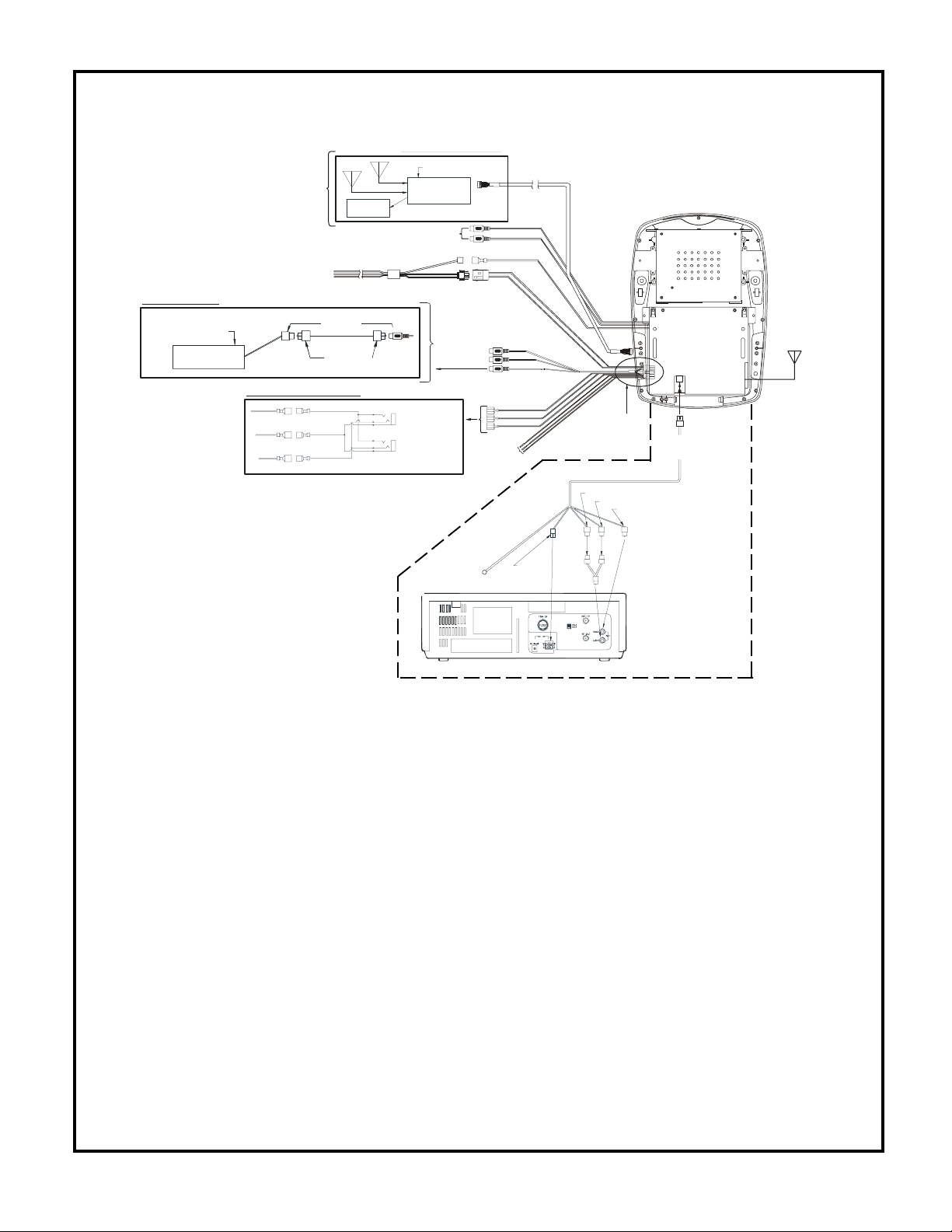

5) Route the wiring harnesses throughout the vehicle as necessary. (Refer to the Wiring Diagrams on pages 6 of this manual as well as the wiring instructions for the individual components and accessory options being installed). Be sure that all wiring is protected from sharp edges and is routed in such a manner that it will not be pinched when all components and interior trim are fully installed. Be sure to leave enough slack in the wiring at each component to allow working room.

6) Remove all A/V system components from their packaging and place them loosely in the vehicle at their respective locations.

7) Connect all components together (electrically) and verify proper operation of all system functions. Note: This is best done BEFORE, components have been permanently mounted.

8) After verifying proper operation of the system, proceed to mount of each component.

9) When all components are mounted, recheck function of entire system again to ensure that no wiring was pinched or connected improperly during final installation.

GENERAL SYSTEM CONFIGURATIONS:

The following is intended to provide some of the system configurations that are possible with the PROV716/ PROV716 S/PROV716 P series Drop Down Video Systems:

System 1: Video Monitor with TV tuner (PROV716/PROV716 S/PROV716 P), with DVD.

Notes :

There are a few audio output options that can be added as follows: a) Wired headphone jacks can be added to a PROV716/PROV716 S/PROV716 P system. Refer to the wiring diagram on page 6. b) Additional speakers can be added to a PROV716/PROV716 S/PROV716 P system using the speaker outputs. Refer to the wiring diagram on page 6. c) Wireless Headphones (P/N IR2CHS).

The PROV716/PROV716 S/PROV716 P video systems are only intended for an overhead, drop down installation. It is not intended for Seatback or any other type of mounting. The hinging mechanism is designed for horizontal, drop down use only.

-2-
