Audiovox PRO-900 User Manual

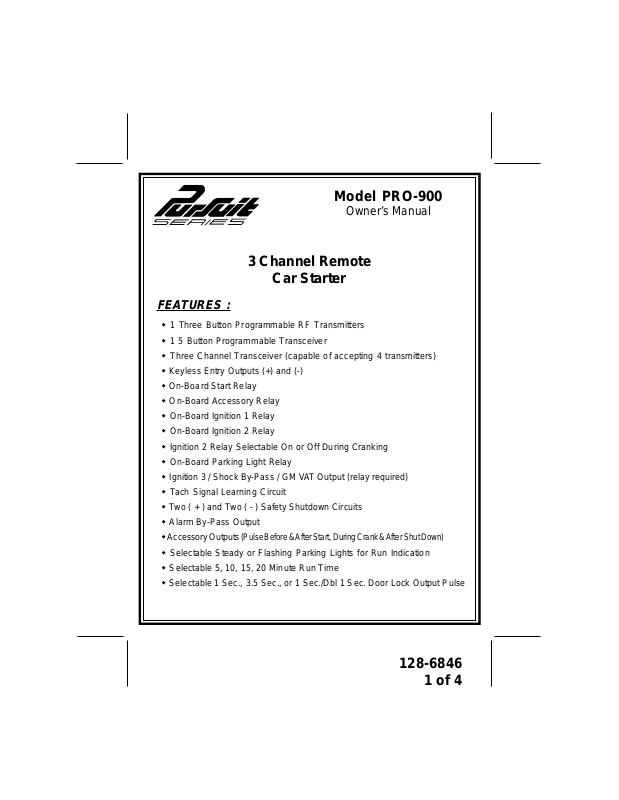

Model PRO-900

Owner’s Manual

3 Channel Remote

Car Starter

FEATURES :

w 1 Three Button Programmable RF Transmitters
w 1 5 Button Programmable Transceiver
w Three Channel Transceiver (capable of accepting 4 transmitters)
w Keyless Entry Outputs (+) and (-)
w On-Board Start Relay
w On-Board Accessory Relay
w On-Board Ignition 1 Relay
w On-Board Ignition 2 Relay
w Ignition 2 Relay Selectable On or Off During Cranking
w On-Board Parking Light Relay
w Ignition 3 / Shock By-Pass / GM VAT Output (relay required)
w Tach Signal Learning Circuit
w Two ( + ) and Two ( - ) Safety Shutdown Circuits
w Alarm By-Pass Output
w Accessory Outputs
w Selectable Steady or Flashing Parking Lights for Run Indication
w Selectable 5, 10, 15, 20 Minute Run Time
w Selectable 1 Sec., 3.5 Sec., or 1 Sec./Dbl 1 Sec. Door Lock Output Pulse

(Pulse Before & After Start, During Crank & After Shut Down)

128-6846

1 of 4

KEYLESS ENTRY

1. The Lock button on the transmitter is used to lock the vehicle's doors, the Unlock button is

matically after 30 seconds. If you wish to turn off the car finder mode prior to the
expiration of the 30 second timer, press and release either the lock or unlock button of
your transmitter one time

.

REMOTE STARTING THE VEHICLE

The system will not start the vehicle if any one of the following situations exists;

1. To start the vehicle, press and release the Key/Option button two times within 2 seconds.

2. When you arrive at the vehicle, turn the ignition key to the ON position (not the spring

NOTE: The engine will stop running before the pre-programmed run cycle has expired if

Your unit is also packaged with a two way confirming transmitter shown Right
which has Icon LED's to indicate the function and status of your vehicle.

Green.
b) Out of range, when after pressing a transmitter button, if the unit does not

receive the command, this LED will turn on Red and the transmitter will beep
twice indicating the command was not received or acted upon by the unit in
the vehicle.

c) Low Battery, if when pressing any transmitter button, this LED illuminates
Red.

The vehicle's hood lid is opened.
The gear shift selector is not in Park.
The brake pedal is depressed.
The safety control switch is in the Off position.

The vehicle will start and remain running for the pre-programmed 5,10,15,20 minute run
cycle. As a visual indication, the parking lights will flash or remain on depending on
the setting by your installation center.

loaded start position), then step on the brake pedal to disengage the remote starter. The
vehicle will continue to run, but now on it's own power.

you perform any one of the following functions;

-Press and release button 2 on the keychain transmitter two times within 2 seconds.

-Depress the brake pedal.

-Open the vehicle's hood

-Move the safety control switch to the Off position.

The top LED indicates:
a) Transmit,whenever a transmitter button is operated this LED will turn on

used to unlock the vehicle's doors. To lock or unlock the doors simply
press and release the desired function button one time. As a keyless
entry unit, for your convenience, the parking lights will flash once when
the doors are locked and twice when the door are unlocked.

REMOTE CAR FINDER

The Lock or Unlock buttons are also used to access the car finder mode.
This feature is particularly useful in a crowded parking lot where finding
your car may be difficult. To access the car finder mode, while within
range of your car, simply press and hold either the lock or unlock button
of your transmitter for three seconds. The parking lights will begin to
flash making your vehicle more visible. The lights will stop auto-

2
