Audiovox MMDV70CB User Manual

MMDV7OC / MMDV7OC B

7” LCD OVERHEAD MONITOR

WITH DVD PLA YER

PLAY

POWER

OFF ON

POWER

TOP

EJECT

ON OFF AUTO

DOME LIGHT

OPERA TION MANUAL

IMPORTANT

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in ‘park’ or when the vehicle’s parking brake is applied.

An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied, must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor

vehicle.

♦ Do not use any solvents or cleaning materials when cleaning the video system. ♦ Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly

dampened lint free cloth to wipe the screen if it is dirty.

♦ Lock the LCD screen in the fully closed position when not in use. ♦ Before putting on headphones always adjust the volume setting to the lowest position. ♦ Remember to leave the dome light switch in the off or auto positions when the

vehicle is unattended, as the dome lights, if left on, can drain the vehicle’s battery.

♦ Do not put pressure on the screen.

Warnings

♦ Caution children to avoid touching or scratching the screen, as it may become dirty

or damaged.

Safety Precaution

For safety reasons, when changing video tapes it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seatbelts to change tapes or make any adjustments to the system. System adjustments can be accomplished using the remote control unit, while seatbelts remain fastened. Enjoy your Movies 2 Go entertainment system but remembersafety of all passengers remains the number one priority .

Congratulations on your purchase of the Movies 2 Go MMDV7OC / MMDV7OC B drop-down Video Monitor with DVD player . The MMDV7OC / MMDV7OC B has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.

NOTE: Installation options vary, see the individual owner’s manuals for each component in your system to obtain a full understanding of each component’s operation.

FEA TURES

♦ 7” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Cryst al

Display) Monitor with DVD player

♦ OSD (On Screen Display) for Control of Picture Quality and

Functions

♦ DVD/CD/MP3 compatible ♦ Infrared Transmitter for the included IR Wireless

Headphones

♦ Two Audio / Video Source Inputs (One is for internal

DVD player)

♦ Power ON/OFF Switch ♦ Remote Repeater Sensor ♦ Dome Lights with Built-in Three W ay Switch ♦ Video Display ON/OFF Control (when LCD Panel is Opened

and Closed)

CONTROLS AND INDICA TORS DIAGRAM

10 11 12

PLAY STOP

POWER

EJECT

4 5

OFF ON

POW ER

ON OFF AUTO

DOM E LIGH T

15 14

MENU DOWN UP

MAIN FUNCTION DESCRIPTIONS

1. DVD disc insertion slot.

2. Power Button – For internal DVD player

3. Play Button

4. Eject Button

5. Stop Button

6. MMDV7OC / MMDV7OC B Ventilation opening

7. Infrared Transmitter – Used to transmit audio to wireless headphones.

8. Dome Lights – Provide additional interior illumination.

9. Power ON/OFF Select Switch – For LCD monitor.

10. Select Up Button

11. Select Down Button

12. Menu button – Display MENU, PICTURE, SOURCE and DISPLAY OFF.

13. LCD Panel

14. Screen Release – Slides in the direction of the arrow to release the drop down screen.

15. Three Position Dome Light Switch

• Auto – Automatically switches on the dome lights in conjunction with the vehicle’s interior illumination.

• Off – The Dome lights will not turn on in this position.

• On – Turns on the Dome lights.

16. Remote Sensor – For remote repeater.

17. Remote Sensor – For remote internal DVD player.

REMOTE CONTROL OPERATION

–

BATTERY INSTALLATION

Before attempting to operate your Remote Control, install the batteries as described below.

1) Turn the Remote Control face down.

Using a fingernail, lift the battery cover off.

2) Install two “AAA” batteries as shown.

Make sure that proper polarity (+ or –) is observed.

3) Align the cover t abs with he remote

control and press down until the

cover clicks. The remote control will operate the MMDV7OC / MMDV7OC B DVD player only . It is not a universal remote control and will not control equipment from other manufacturers.

10 11

12 13

EJEC T

23 22

21 19

DISPLAY

142

1 2 3 4

ANGLE

AUDIO

ZOO M

3 6

6 7

8 9

RETURN

Enter

SETUP

REPEAT

A-B

16 15

DVD FUNCTION DESCRIPTIONS

1. DISPLA Y Button Press to display DVD Disc current information.

Press DISPLAY button DVD Player Perform

Once Display current TITLE & CHAPTER Tw i ce D isplay cur rent SU BTITLE 3 times Display current AUDIO language & channel 4 times Display current ANGLE 5 times Display A-B curre n t status

6 times Display REPEAT current st atus

7 times Display is turned off

2. ANGLE Button Allows the user to select the DVD angle if the DVD cont ains this feature.

3. SUBTITLE Button* Allows the user to select the DVD subtitle feature. Use cursor keys to highlight desired

item, use ENTER to switch.

4. AUDIO Button*

Allows the user to enter the Audio menu features (language spoken etc.). Use the ( ) buttons to highlight desired item, use the ( ) buttons to switch.

5. ZOOM Button Press this button to zoom the picture.

Press ZOOM button O SD DVD Player Perform

Once ZOOM x2 ZOOM pict ure 2 times Tw i ce ZOOM x3 ZOOM picture 3 times 3 tim es ZOOM x4 ZOOM pict ure 4 times 4 tim es ZOOM x1/ 2 Reduced picture to 1/2 5 times ZOOM x1/ 3 Reduced picture to 1/3

6 times ZOOM x1/ 4 Reduced picture to1/4

7 tim es ZOOM OFF Normal Disp lay

*NOTE: Some DVDS only allow access to these functions through the root menu.

6. UP ( ) Button Allows the user to scroll upwards in the menu options.

7. LEFT ( ) Button Allows the user to shif t left in the menu options.

8. MENU Button Allows the user to access the main DVD menu.

9. RETURN Button

Allows the user to exit the set up menu.

10. NEXT ( )Button Allows the user to skip to the next chapter or track.

11. PREVIOUS ( ) Button

Allows the user to return to the previous chapter or track.

12. SCAN BACKW ARD ( ) Button

Allows the user to search in a backward direction at 2,4,6,8,16 and 32 times the normal speed.

13. SCAN FORWARD ( ) Button

Allows the user to search in a forward direction at 2,4,6,8,16 and 32 times the normal speed.

14. SLOW Button

The DVD viewing speed will be reduced to 1/2, 1/4, 1/8 and 1/16 times of the normal speed.

15. STOP ( ) Button

DVD disc play will be stopped.

16. PLAY ( ) Button

Press this button to activate the play mode while a disc is loaded into the disc compartment.

17. PAUSE ( ) Button

Allows the user to pause the playback.

18. A–B REPEA T Button

Allows the user to repeat play of a DVD or CD from point A to point B.

19. REPEA T Button

Allows the user to repeat various titles, chapters or tracks of a DVD,CD or MP3 and displays the repeat menu.

20. DOWN ( ) Button Allows the user to scroll downward in the menu options.

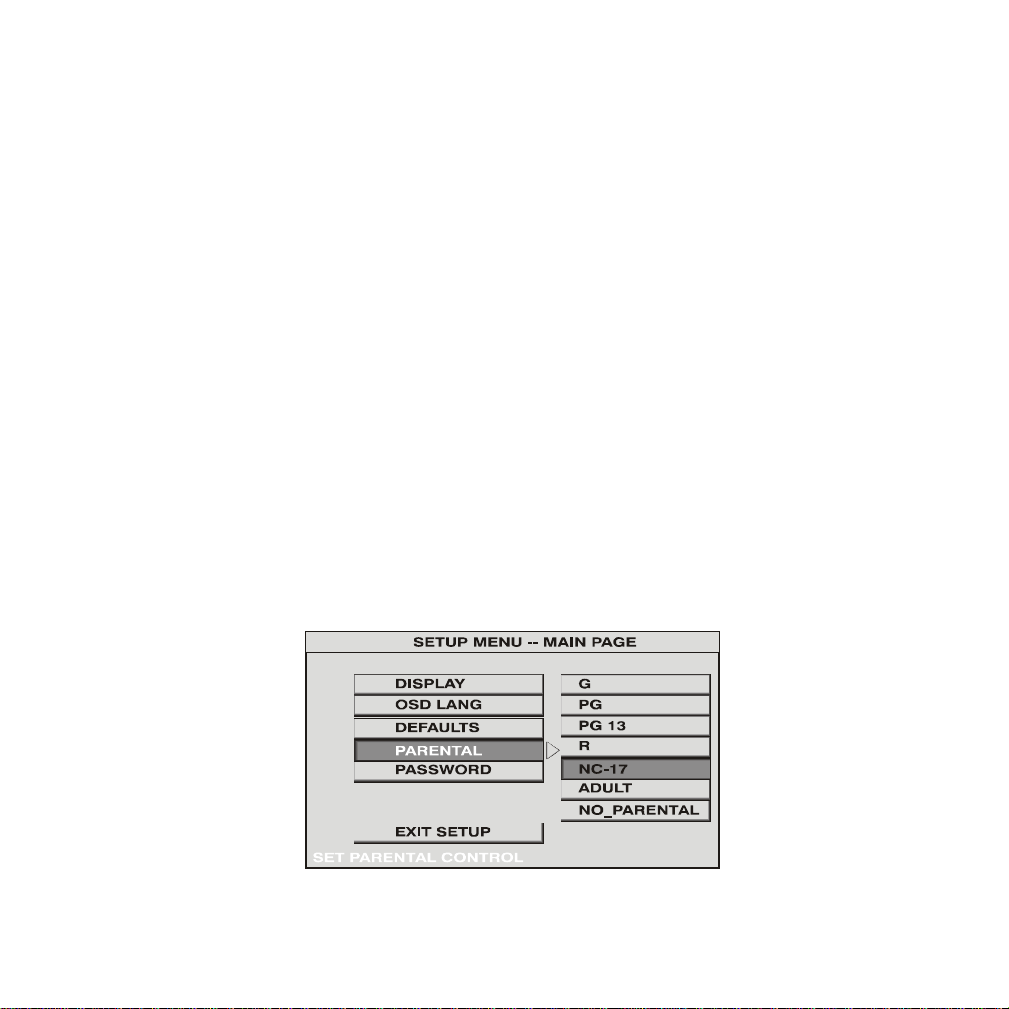

21. SETUP Button

Allows the user to select the DVD options (Display, OSD Language, Default, Parental Control, Password, Exit Setup). The setup display can be viewed only when the player is in stop mode.

22. RIGHT ( ) Button

Allows the user to shift to the right in the menu options.

23. ENTER Button

Used to select or switch a highlighted selection.

24. NUMBERS Buttons

Allows the user to enter the number 0 to 9 for selection of CD tracks, dvd chapters and password setting.

25. EJECT ( ) Button

The disc will be ejected from the disc compartment.
