Audiovox MMDV2 User Manual

OWNER’S MANUAL
Mobile Video System
MMDV2
Multi-subtitle Languages Function
Multi-audio Languages Function
Multi-angle Function
Parental Control
Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD)
This player can play discs recorded in either PAL or NTSC format.
A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.
L/R stereo analog audio outputs for connection to existing head unit aux inputs. Video output is composite video.
Supplied remote handles multi-function software (multi-language audio-track/subtitle, multi-angle, multi­story, etc.), plus all basic functions.
USE THIS PRODUCT SAFELY
When Driving
Keep the volume level low enough to be aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or excessive moisture. This could cause electrical shorts, fire or other damage.
Use Authorized Service Centres
Do not attempt to disassemble or adjust this precision product. Please refer to the Service Centre list included with this product for service assistance.
For Installation
The unit should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30°.
When Parked
Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a chance to cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with a 12 volt DC, negative ground battery system (the regular system in a North American car).
Protect the Disc Mechanism
Avoid inserting any foreign objects into the slot of this player. Failure to observe this may cause malfunction due to the precise mechanism of this unit.
2
CONTENTS
Safety Information ........................................................................................4
Disc Notes .....................................................................................................5
Installation .....................................................................................................6
Electrical Connections .................................................................................7
Remote Control.............................................................................................8
Preparing the Remote Control..............................................................................10
Loading a DVD/VCD/CD Disc...............................................................................10
Ejecting a Disc ......................................................................................................10
Basic Operation ..........................................................................................11
On-Screen Display Function.................................................................................13
Multi-audio Language Function............................................................................14
Menu Function (For DVD only)..............................................................................14
Title Menu Function (For DVD only) ......................................................................14
Multi-subtitle Language Function (For DVD only).................................................14
Multi-angle Function (For DVD only).....................................................................14
MP3 Disc Play.......................................................................................................15
Setup ............................................................................................................16
Initial Setup ...........................................................................................................16
General Setup.......................................................................................................16
Speaker Setup ......................................................................................................18
Audio Setup ..........................................................................................................18
Preferences Setup ................................................................................................19
Defaults Table .......................................................................................................21
Specifications..............................................................................................22
3
SAFETY INFORMATION
CAUTION:
THIS MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND - DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.
THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.
Region Management Information
Region Management Information: This Mobile DVD Player is designed and manufactured to respond to the Region Management Information that is recorded on a DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player cannot play this disc.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
4
DISC NOTES
Disc formats supported by this player
DVD
12 cm disc (Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Discs which cannot be played with this player
DVD-ROM
DVD-R/DVD-RAM
CDV
CD-G
Handling and Cleaning
Dirt, dust, scratches and warping disc will cause erratic operation.
Do not place stickers or make scratches on discs.
Do not warp discs.
A disc should always be kept in its
case when not in use to prevent from damage.
Do not place discs in the following places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. On the seats or dashboard
Note these scratches are not an indication of any problem with the player.
Label side up
Do not touch the underside of the disc
Do not bend
Wipe the disc from center toward the outside edge
Disc Cleaning
Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly moistured with isopropyl (rubbing) alcohol. Never use solvents such as benzine, thinner or conventional record cleaners as they may mar the surface of the disc.
Note:
A disc may become somewhat scratched (although not enough to make it unusable) depending on you handle it and conditions in the usage environment.
5
INSTALLATION
SCREW
M5x25
SCREW
M4x6
SCREWS LOCKED THE UNIT CORE
3
2
1
2
1
SCREW
M4x6
4
3
Note:
1. First remove the two transport screws that lock the unit core; then attach the
brackets on both sides of unit with screws (M4x6). Install the unit with screws (M5x25).
2. When installing the unit, you can slide the screw (M5x25) to left side or right side
to adjust to the required position. In the figure above, select 1 and 3 positions to align the bracket, or you can also select 2 and 4 positions to align the bracket.
6
ELECTRICAL CONNECTIONS
DVD PLAYER
AC/DC
ADAPTER
(OPTIONAL)
DC 12V IN DC 12V OUT
REMOTE
AUDIO
L/R VIDEO
A/V OUT
DIGITAL
(OPTIONAL)
REMOTE CONTROL RECEIVER
CIGARETTE LIGHTER ADAPTER
YELLOW
VIDEO OUT
RED
AUDIO R OUT
WHITE
AUDIO L OUT
DIGITAL AUDIO
7
REMOTE CONTROL
8
4
1
3
7
11
14
15
18
19
23
25
9
5
2
6
10
12
13
16
17
20
2421
22
28
29
32
2726
3130
8

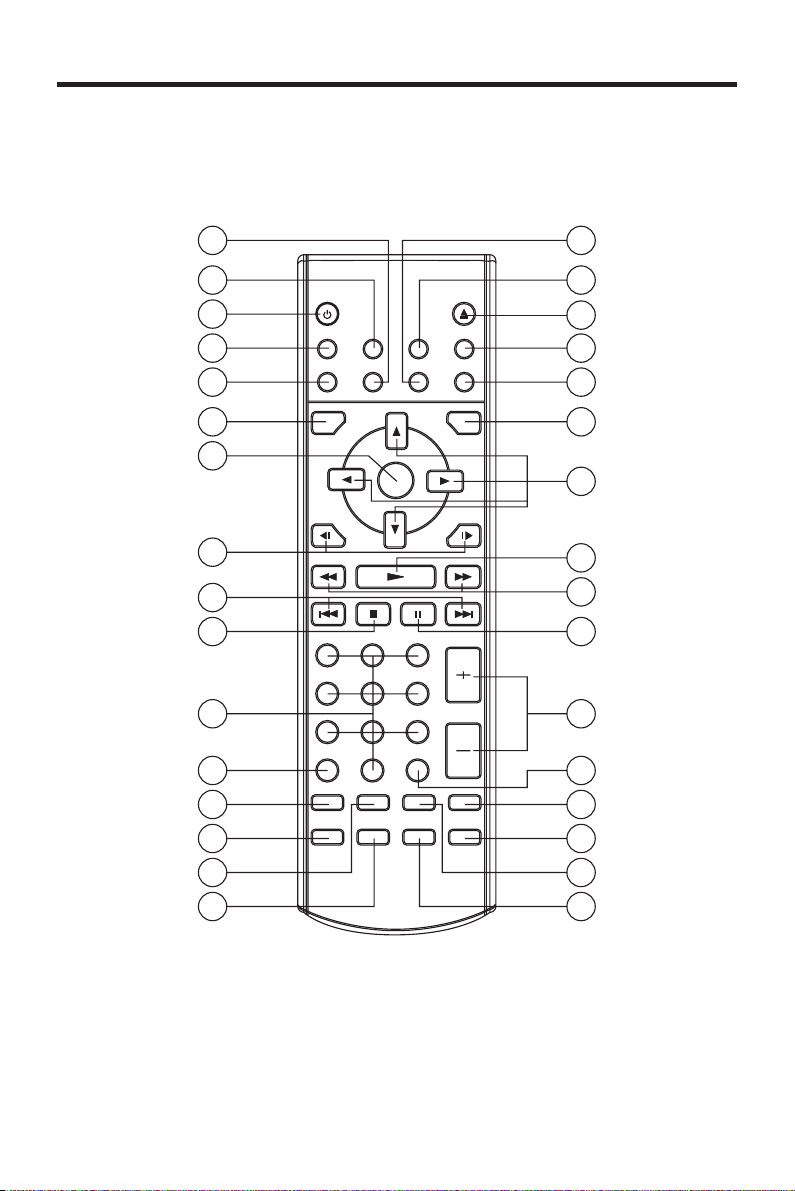

REMOTE CONTROL
1. POWER Press POWER to turn the unit ON or OFF.
2. EJECT Press to eject the disc.
3. MUTE Press to mute the sound.
4. SUBTITLE Change the SUBTITLE language on multi-subtitle language DVD
5. ANGLE Change the view angle on multi-angle DVD disc.
6. DISPLAY Display statistical disc information during playback.
7. PBC Change between PBC ON and PBC OFF on the VCD disc.
8. SETUP Display the SETUP menu.
9. PAL/NTSC Switch between PAL mode and NTSC mode.
10. AUDIO Change the AUDIO soundtrack on multi-audio soundtrack
11. TITLE Display the TITLE menu that is stored in DVD disc.
12. MENU Display the root menu that is stored on the DVD disc
13. / , / In case of MENU mode, / , / , buttons served as cursor
14. ENTER Confirm the Track/Chapter selected with the numeric buttons or
15. / Change the slow forward/reverse playback motion.
16. Press to play the disc.
17. / Press to start forward rapidly & to reverse rapidly.
18. / Press to skip to the next track & press to skip back one
19. Press to stop playback.
20. Press to pause playback.
21. 0 - 9 Numeric buttons
22. 10+ Digital select button, used in conjunction with numeric buttons.
23. CLEAR When you input a number in error, press the button to clear it.
24. VOLUME+/- Press VOLUME+/- button to increase or decrease the volume
25. ZOOM Allows the picture to be increased or decreased in size.
26. RESUME When in stop mode, press the button, then play can be resumed
27. GOTO Disc search button, used in conjunction with numeric buttons.
28. STEP Press to stop at the next picture.
29. RANDOM Allows tracks to be played in random order.
30. PROGRAM Allows the tracks to be played in the order you programmed.
31. REPEAT Switch the Repeat mode of discs.
32. A-B A-B repeat allows a passage to be repeated continuously.
disc.
DVD disc. Change of the sound mode of the VCD/CD disc.
buttons to select item left/right, ahead/back.
selected with the cursor buttons on TV screen.
track.
level.
from the stop point.
9
REMOTE CONTROL
Preparing the Remote Control
Inserting the Batteries
1. Open the battery compartment cover.
2. Insert two new AAA batteries. Make
sure that the positive and negative terminals of the batteries are oriented as indicated.
3. Close the cover
Using the Remote Control
Point the remote control towards the player front panel IR mark (remote control signal receiver). Operation angle: About ± 30 degree in each direction with respect to of the front of the IR mark.
To prevent damage to the unit, be sure to follow the connection diagram (page 7).
Loading a DVD/VCD/CD Disc
1. Turn the ignition to the accessory
position.
2. Press the POWER button (1).
3. Insert the disc into the disc slot (2)
with printed side facing up.
4. The player starts playback
automatically.
1 2 3
Ejecting a Disc
Press (EJECT) button (3) to eject the disc.
10
BASIC OPERATION
Stopping Play
- Briefly press the (Stop) button to
stop the unit playback, when the (Play) button is pressed, continuous normal playback is enabled.
- Press
(Stop) button twice, it will stop the playback and go back to initial Track/Chapter.
Rapid Forward/Rapid Reverse
Press & during play. Each time the button is pressed, the speed of rapid forward/reverse changes depending on the type of disc as follows.
DVD:
Normal Playback 2X 4X 6X 8X
VCD/CD:
Normal Playback 1X 2X 3X 4X
MP3:
Normal Playback 2X 4X
Skipping Track
Press SKIP / on the remote control or / buttons on the front panel during playback. Press to skip to next track, and to back one track. Note: For some VCD 2.0 discs (PBC-playback control), / buttons may be unavailable.
Slow Motion Play
Press / during play. Each time the button is pressed, the speed of slow forward/reverse changes according to the disc as follows.
DVD:
Normal Playback 2X 4X 8X
Pause (still picture)
Pressing during playback will stop play temporary. To return to normal playback, press once again.
MUTE
Will mute the sound, but the disc continues playing. When you unmute the sound (press MUTE again), a later passage will be playing.
Repeat
FOR DVD: Press the REPEAT button to select repeat mode as follows.
CHAPTER REPEAT ON TITLE REPEAT ON
REPEAT OFF
FOR VCD/CD: Press the REPEAT button to select repeat mode as follows.
REP-ONE REP-ALL REPEAT OFF
1. Continuously repeat at the current chapter/track, when REP-ONE mode is selected.
2. Select REP-ALL mode to continuously repeat all chapter/track on the current disc.
3. When the player finishes playback, the current disc last chapter/track will stop displaying the elapsed time. When REPEAT OFF mode is selected, REP-ONE & REP-ALL disappear from the screen display.
4. REPEAT feature does not support VCD2.0 (with PBC ON).
11
BASIC OPERATION
Repeat A-B
A-B repeat allows a passage to be repeated continuously. Press A-B button at the start of the required passage, then press A-B button again at the end of the passage. To revert to normal playing, press A-B button again. Each time the
PROGRAM
In stop mode, press PROGRAM button, the screen will display PROGRAM P00:00. For example: press numeric button 4 and button, PROGRAM P01:04 appears. It means track 4 will be
played first. button is pressed, the screen will display the following:
Reset
Reset button is located on the front panel A TO B SET A A TO B SET B A TO B CANCELLED
and must be activated with a ball point
pen or thin metal object. Reset button is
Disc Search (GOTO)
FOR DVD Press GOTO button twice, the screen will display the following message:
to be activated for the following reasons:
- Initial installation of the unit when all wiring is completed.
-
All the function buttons do not operate.
- Error symbol on the display.
TITLE 01/01 TIME -- : -- : --
00:00:25
Remote Sensor (IR)
Point the remote control at the remote sensor. The IR sensor receives the signal
You can select the item you want to
from the remote control. watch through TIME setting by using numeric buttons and ENTER key.
FOR VCD (WITH PBC OFF)/CD: Press GOTO button once, the screen will display the following message:
GOTO -- : --
00:00:25
Turning the player on/off
Press the
panel or press
remote control to turn the player on or off.
(POWER) button on front of
(POWER) button on
Use numeric buttons to input the time directly.
ZOOM
Allows the picture to be increased or decreased in size. Press ENTER to toggle among 1.5 scale, 2.0 scale and
3.0 scale.
RANDOM
Press RANDOM button, track selection will be made in random order. The display screen will show SHUFFLE ON in the right-top corner. Press RANDOM button again, SHUFFLE OFF appears and releases the mode.
12
BASIC OPERATION
On-Screen Display Function
Press the DISPLAY button during playback to display the contents of the current disc on the screen. Example:
DVD:
(1) Press DISPLAY for the first time:
TITLE 01/03 CHAPTER 002/025
00:02:25
Title Number, Total Title Number, Chapter Number, Total Chapter Number of this Title of the disc currently being played will be shown on the screen, along with the elapsed time.
(2) Press DISPLAY for the second time:
TITLE REMAIN
01:46:58
(3) Press DISPLAY for the third time:
CHAPTER ELAPSED
00:00:24
(2) Press DISPLAY for the second time:
SINGLE REMAIN
00:03:15
(3) Press DISPLAY for the third time:
TOTAL ELAPSED
00:00:25
(4) Press DISPLAY for the fourth time:
TOTAL REMAIN
00:40:35
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
CD:
(1)Press DISPLAY for the first time:
SINGLE ELASPED
00:00:25
TOTAL TRACK : 14 TRACK : - 01
(4) Press DISPLAY for the fourth time:
CHAPTER REMAIN
00:01:39
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
VCD:
(1) Press DISPLAY for the first time:
SINGLE ELAPSED
00:00:25
(2)Press DISPLAY for the second time:
SINGLE REMAIN 00:03:15
TOTAL TRACK : 14 TRACK : - 01
(3)Press DISPLAY for the third time:
TOTAL ELASPED 00:00:25
TOTAL TRACK : 14 TRACK : - 01
13
BASIC OPERATION
(4) Press DISPLAY for the fourth time:
TOTAL REMAIN 00:40:35
TOTAL TRACK : 14 TRACK : - 01
(5) Press DISPLAY for the fifth time:
The message on the screen will be cleared.
MP3 (When set to NO MENU in SMART NAV item):
(1) Press DISPLAY for the first time:
CHAPTER ELASPED 00:00:25
TOTAL TRACK : 123 TRACK : - 01
(2) Press DISPLAY for the second time:.
CHAPTER REMAIN 00:04:25
TOTAL TRACK : 123 TRACK : - 01
(3) Press DISPLAY for the third time:
The message on the screen will be cleared.
Multi-audio Language Function
For DVD:
Press AUDIO during playback. Each time the button is pressed, number of the audio soundtrack language changes on sequential order. Notes:
- The language number is different
according to the disc.
- Some disc only contain one language
soundtrack.
- When no different language
soundtrack are recorded will be displayed at screen left top corner.
For VCD/CD:
Press AUDIO during playback. It is possible to switch the sound between monaural and stereo sound.
MONO LEFT MONO RIGHT STEREO
MENU Function (For DVD Only)
Press MENU button while the disc is
playing and the disc menu will be
displayed. You can navigate with the
remote control navigation keys and
select a feature with the ENTER key.
TITLE Menu Function
(For DVD only)
If the DVD has multiple titles recorded on
the disc. It can select preferred title from
the title menu to start playback.
- Press TITLE during playback. The title menu is display.
- Press the cursor button shown in TV screen, select preferred title by the cursor button and confirmed by ENTER key.
Multi-subtitle Language Function (For DVD only)
Press SUBTITLE during playback. Each time the button is pressed, number of the subtitle language changes in sequential order. Notes:
- The language number is different according to the disc.
- Some discs only contain one subtitle language.
- When no different subtitle language are recorded, will be displayed at screen left top corner.
Multi-angle Function (For DVD only)
Press ANGLE during playback. Each time the button is pressed, number of the angle changes in sequential order. Notes:
- The angle number is different according to the disc.
- The function only works for discs having scenes recorded at different angles.
- When no different angle are recorded, will be displayed at screen left top corner.
14
BASIC OPERATION
MP3 Disc Play
MP3 disc is playing as the format of FOLDER. For example:
SMART NAVI
ROOT
ROOT 0
MP3 MUSIC 1
SKY
MP3 HEAR YOUR
PLAY MODE
Select STOP button or use the
DISC
/ buttons to change tracks. Pressing REPEAT button repeatedly can select three kinds of repeat play mode. REP-ONE:
Play the same song over and over again.
FOLDER REPEAT:
Play all songs in the current directory in sequence, over and over again.
FOLDER:
Play all songs in the current directory
once. When select PLAY MODE, press / to change between the following mode:
SINGLE REP-ONE FOLDER FOLDER REP
DISC SCAN DISC DISC REP RANDOM
SHUFFLE ON PROGRAM PXXX
In the playback, use or to skip an item ahead or back. : Rapid reverse, : Rapid advance Note: The FOLDER cannot be selected during playing. It can be selected after (Stop) button pressed.
15
SETUP
INITIAL SETUP
SETUP MENU --- MAIN PAGE
GENERAL SETUP
SPEAKER SETUP
AUDIO SETUP
PREFERENCES
EXIT SETUP
1. Press SETUP in the stop mode.
(Press the stop button twice to ensure
the player under STOP mode.)
2. The initial SETUP menu is displayed.
3. Select the preferred item by using the
/ buttons.
4. Press ENTER buttons.
a. GENERAL SETUP
This setup page includes all the item of TV display & audio output feature. The detail please refer to GENERAL SETUP MENU.
b. SPEAKER SETUP
This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Please refer to SPEAKER SETUP MENU.
c. AUDIO SETUP
This setup page includes all the items for AUDIO. Please refer to AUDIO SETUP MENU.
d. PREFERENCE SETUP
This setup page includes all the configuration of support feature. The detail please refer to
PREFERENCES SETUP MENU.
GENERAL SETUP
--- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
Video Material
4:3
16:9
Normal
TV display setup
This is to select the appropriate TV aspect (4:3 or 16:9) according to the connected TV set.
Normal/PS (For 4:3 TV)
Played back in the PAN & SCAN style. (If connected to wide-screen TV, the left and right edges are cut off.)
Normal/LB (For 4:3 TV)
Played back in letterbox style. (If connected to wide-screen TV, black bands appear at top and bottom of the screen.)
Wide (For 16:9 TV)
Select when a wide-screen TV set is connected.
NORMAL/PS
NORMAL/LB
WIDE
TV Screen
4:3 Wide (16:9)
Pan Scan Letter-box
16
SETUP
--- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
PIC mode setup
Select AUTO, the player PIC mode will depend on DVD disc. Select HI-RES format for best image resolution. Select N-FLICKER format on format on image or picture under noise affect.
--- GENERAL PAGE ---
AUTO
HI-RES
N-FLICKER
--- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
OSD LANG type setup
Select the preferred OSD language by using the / buttons.
--- GENERAL PAGE ---
ENGLISH
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
ANGLE MARK display setup
If it is set to ON, when the multi-angle DVD disc is playing, (the angle mark) will appears on the screen; if is set to OFF, the mark will not appear.
ON
OFF
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
CAPTIONS setup
Activate the CAPTIONS feature by selecting ON. And release this feature by selecting OFF.
17
ON
OFF
SETUP
--- GENERAL PAGE ---
TV DISPLAY
PIC MODE
ANGLE MARK
OSD LANG
CAPTIONS
SCR SAVER
MAIN PAGE
SCR SAVER setup
Select the SCR SAVER output ON/OFF.
ON
OFF
SPEAKER SETUP
--- SPEAKER SETUP PAGE ---
DOWNMIX
LT/RT
STEREO
AUDIO SETUP
--- AUDIO SETUP ---
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
MAIN PAGE
AUDIO OUT
This is to activate the audio output from ANALOG mode to SPDIF/RAW mode to SPDIF/PCM mode.
--- AUDIO SETUP ---
ANALOG
SPDIF/RAW
SPDIF/PCM
MAIN PAGE
This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode. Select the preferred SPEAKER connection by using the cursor buttons.
- Select the LT/RT to activate the Dolby
surround compatible output.
- Select the STEREO to activate simple
stereo mode.
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
MAIN PAGE
OP MODE
There are two operating modes for the Dolby Digital decoder: LINE OUT and RF REMOD.
18
LINE OUT
RF REMOD
SETUP
--- AUDIO SETUP ---
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
MAIN PAGE
Dynamic Range Control
Select DRC and adjust the dynamic range of a Dobly Digital encoded program. There are 8 steps between full compression and off compression.
--- AUDIO SETUP ---
AUDIO OUT
OP MODE
DYNAMIC
LPCM OUTPUT
LPCM 48K
LPCM 96K
FULL
6/8
4/8
2/8
OFF
PREFERENCES SETUP
NOTE: Preferences can only be accessed while the background screen is visible.
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
TV type setup
This player can play discs recorded in either PAL or NTSC format. Select NTSC format, when you connected to NTSC TV. Select PAL format, when you connected to PAL TV. Select AUTO format, the player TV output format will according to the DVD disc format.
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
AUTO
NTSC
PAL
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
MAIN PAGE
LPCM OUTPUT
Select the LPCM OUTPUT between LPCM 48K and LPCM 96K.
SMART NAV
MAIN PAGE
AUDIO language setup
Select the preferred AUDIO soundtrack by using the cursor buttons.
19
SETUP
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
SUBTITLE language setup
Select the preferred SUBTITLE language by using the cursor buttons.
--- PREFERENCES PAGE ---
TV TYPE
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
OFF
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
PARENTAL
Select suitable parental guidance by the cursor buttons and conformed by pressing ENTER button.
--- PREFERENCES PAGE ---
TV TYPE
1 G
2
3 PG
4 PG 13
5
6 PG-R
7 NC-17
8 ADULT
NO_PARENTAL
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
DISC MENU language setup
Select the preferred DISC MENU language by using the cursor buttons.
ENGLISH
FRENCH
SPANISH
CHINESE
JAPANESE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
PASSWORD
Select the change and press ENTER button. Type the old password (The initial factory code is 3308) and key in 4 characters password now you want to use, and retype again to confirm key in correctly.
20
CHANGE
SETUP
--- PREFERENCES PAGE ---
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
DEFAULTS
Select reset to become factory initial setting.
--- PREFERENCES PAGE ---
TV TYPE
RESET
DEFAULTS TABLE
General Setup
Speaker Setup
Audio Setup
Preferences TV Type AUTO
TV Display Normal/LB
PIC Mode AUTO
Angle Mark ON
OSD Language
Captions ON
SCR Saver ON
Downmix Stereo
Audio Out SPDIF/RAW
OP Mode Line Out
Dynamic FULL
LPCM Output
Audio English
Subtitle English
DISC Menu English
Parental NO Parental
Password 3308
Smart NAV With Menu
English
LPCM 96K
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
SMART NAV
MAIN PAGE
SMART NAV
In this item, you can select NO MENU mode or WITH MENU mode.
NO MENU
WITH MENU
21
SPECIFICATIONS
Supply Voltage : 12V DC (11V-15V), test voltage 14.4V, negative ground Current Consumption : Less than 2A Signal System : Compositive video 1.0Vp-p 75 Discs Played : (1) DVD-VIDEO Disc
Audio Output Level : 600 (2 ch 2.0 Vrms) Audio Signal Output Characteristics : (1) Frequency Response 20 Hz - 20 KHz
: (3) Wow and Flutter Below measurable limits
Note:
Specifications and design are subject to modification, without notice, due to improvements in technology.
5(12 cm) single-sided, single-layer 5(12 cm) single-sided, double-layer
(2) Compact Disc (CD-DA, VIDEO CD)
5(12cm) disc
: (2) S/N Ratio 90 dB (JIS)
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
22
128-5923
88-V1741-00
Loading...
