Owner/ Installation Manual
MMD10
10" LCD MONITOR & DVD PLAYER
Note:
This Product incorporates copyright protection technology that is pro-
tected by method claims of certain patents and other intellectual prop-
erty rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited view-
ing uses only unless authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
Warnings
Do not use any solvents or cleaning materials when cleaning the video
monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the
lowest position.
Remember to leave the dome light switch in the off or auto positions
when the vehicle is unattended, as the dome lights, if left on, can drain
the vehicle s battery.
Do not put pressure on the screen.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 and 5,927,784
2
I
mportant Notice
An LCD panel and/or video monitor may be installed in a motor vehicle
and visible to the driver if the LCD panel or video monitor is used for
vehicle information, system control, rear or side observation or
navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be
installed so that these features will only function when the vehicle is in
“park” or when the vehicle’s parking brake is applied.
An LCD panel or video monitor used for television reception, video or
DVD play that operates when the vehicle is in gear or when the parking
brake is not applied must be installed to the rear of the driver’s seat
where it will not be visible, directly or indirectly, to the operator of the
motor vehicle.
3
A. Introduction
Thank you for selecting the MMD10. The main features include a
10" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD)
monitor and a built-in DVD player. The unit applies the latest state of
the art electronics. The unit is constructed to provide years of reliable,
trouble-free service. Please read the entire instruction manual supplied with this product prior to operation. The documentation will assist you in installing the system properly to obtain the best equipment
performance. Please store this manual for later use.
B. Cautions and Warnings
1. Installation
Ensure that the MMD10 is installed in accordance with the instructions and illustrations provided in this manual.
2. Objects and Liquids
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). To ensure proper ventilation and
proper operation, never cover or block the ventilation slots and openings
3.Disassembly
Do not attempt to disassemble the cabinet. There is a risk of electric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
4. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
4
5. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper,
tape or glue on the disc. Do not expose the disc to direct sunlight
or heat sources such as hot air ducts. Do not touch the surface of
disc. Handle the disc by its edge. Clean the disc by wiping the disc
from the center out with a cleaning cloth. Remove the disc from
the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by software producers.
Since this unit plays discs according to the disc contents the software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
C. CONTENTS
1. 10" LCD Monitor & DVD Player Combo
2. A/V Adapter Cable
3. Power Dome light
4. Hardware Package
4 pcs M4 x 16mm Machine Screws
4 pcs M4 x 25mm Screws
4 pcs 2.6x10mm Screws
4 pcs Small Rubber Rings
4 pcs Connecting Axises
5. Remote Control
6. Mounting Plate
7. Owner/Installation Manual
8. Trim Ring
5
D. Installation and Powering
TOOLS REQUIRED:
#2 Philips Screwdriver
#1 Philips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery hook tool (for removal of panels as necessary)
Electrical Tape
Masking Tape
Multimeter (to verify 12 volt DC and continuity: Do not use a test light
or logic probe)
Marker pen # to mark headliner
Scribe (to mark trim ring if used)
Misc. electrical connectors (to connect to vehicle power source).
Requirements will vary from vehicle to vehicle.
6
GENERAL INSTALLATION APPROACH:
1)Decide upon system configuration and options that will be installed
(i.e.: what components, VCP, Tuner, RF Modulator/external amp,
remote headphones, DVD, etc.).
2)Review all manuals to become familiar with electrical requirements
and hook ups.
3)Decide upon mounting locations of all components and method of
mounting.
4)Prep the vehicle by removing any interior trim necessary to gain access to vehicle's wiring as well as all areas where interconnecting
wire harnesses will need to be located. If any access holes need to
be cut into the vehicle (headliner, other trim components etc.), this
should be done now as well.
5)Route the wiring harnesses throughout the vehicle as necessary.
(Refer to the Wiring Diagrams on page 10 of this manual as well as
the wiring instructions for the individual components and accessory
options being installed). Be sure that all wiring is protected from
sharp edges and is routed in such a manner that it will not be pinched
when all components and interior trim are fully installed. Be sure to
leave enough slack in the wiring at each component to allow working
room.
6)Remove all A/V system components from their packaging and place
them loosely in the vehicle at their respective locations.
7)Connect all components together (electrically) and verify proper operation of all system functions. Note: This is best done BEFORE
components have been permanently mounted.
8)After verifying proper operation of the system, proceed to mount each
of the components.
9)When all components are mounted, recheck the entire system again
to ensure that no wiring was pinched or connected improperly during final installation.
7
Notes :The MMD10 video system is only intended for an overhead,
drop down installation. It is not intended for seat back or any other
type of mounting. The hinging mechanism is designed for horizontal,
drop down use only.
VEHICLE PREPARATION:
1)Locate an accessory power source (+12v when key is in the ACC.
and run positions, and 0v when key is off). Generally, this wire can
be found at the ignition switch or fuse-box.
2)The mounting method and location will vary from vehicle to vehicle,
so this manual will only focus on the installation of the video monitor
and related console accessories.
3)Generally, the best location for the video monitor is where the vehicle's
factory dome light is installed. The monitor should be located in
such a manner that it can be comfortably viewed by rear seat passengers. NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE
DRIVER'S VIEW. THIS IS NOT ONLY DANGEROUS, BUT IT IS
ALSO ILLEGAL.
4)Once the mounting location of the monitor has been determined,
there may be additional preparation work necessary, depending on
the vehicle structure and installation method. Some of the steps
that may be required are:
A)Removal of the vehicle's dome light.
B)The headliner may need to be trimmed.
8
MOUNTING THE MMD10
Figure 2
NOTE:
Two of the mounting holes are located under the domelight covers.
If using the TRIM RING to mount the MMD10, please use the M3.5 x25mm screws.
9
Trim Ring Installation
The Trim Ring Installation is accomplished using the four (4) 2.6X1 0mm
screws supplied. Please refer to the illustration below.
A
A
A
A
1.Place the MMD 10 on a soft surface with the rubber gasket facing
up. Use care to avoid scratching the unit’s exterior surface.
2. Take off the rubber ring.
3.Place the trim ring on the unit and note the location of the four mounting
screws.
4.Attach the trim ring to the unit using the longer four (4) 2.6 X 10mm
screws supplied.
5.Attach the four (4) post extensions to the bracket.
6.Attach the four (4) rubber spacers on the post extensions
10
7.Refer to the Owner/Install Manual for the MMD 10 to complete the
installation.
11
MMD10
Figure 3
1)Make the connections to the vehicle with the 5 pin wiring harness.
2)Connect the 5 pin harness to the mating connector on the Video
Monitor.
3)Connect power harness to vehicle's electrical system by tapping
into an accessory hot line.
4)Verify all functions of the system before final mounting of the finished
assembly.
NOTE: A VCP or other A/V Component can be connected to the
video monitor system using an RCA A/V cable. This second harness would plug into the AV1 inputs or AUX jack.
A/V Source Definitions :
1 =Built-in DVD
2 =AV1 input ( VCP, DVD, etc )
3 =AV2 Input ( VCP, Game, DVD, etc )
12
CONNECTING THE DOME LIGHTS
The dome lights in the video monitor require three connections to the
vehicle's wiring. There are two common types of dome light circuits
used, positive or negative switched. Positive systems supply voltage to
the interior lights to turn them on, negative switched systems apply
ground to illuminate the bulbs. To determine which system you have
you must locate the wires at the dome light. On a positive switched
system, with all the doors closed and the lights out, both wires at the
dome light will rest at ground. When the light is activated, one of these
wires will switch to +12V DC. This is the vehicle's switching wire. On a
negative switched system, with all the doors closed and the lights out,
both wires at the dome light will rest at + 12V DC. When the light is
activated, one of these wires will switch to ground. This is the switching
wire.
For positive systems, connect the violet / brown (Lamp auto) wire to the
vehicle's switched wire. Then connect the red / black (lamp on) wire to
a fused constant 12 volt source and the black / red (lamp common) wire
to a good ground. Positive systems are commonly found on Ford
vehicles.
For negative systems, connect the violet / brown (Lamp auto) wire to
the vehicle's switched wire. Then connect the red / black (lamp on) wire
to a good ground and the black / red (lamp common) wire to fused constant 12 volt source. Negative systems are commonly found on General Motors and import vehicles.
Note:
Some vehicles which incorporate transistorized control of the dome
light circuit, such as the 1999 Dodge Caravan, may require that the
violet / brown (Lamp auto) wire be connected to the door pin switch
wire, as the additional current draw of the Monitor's lights may not be
supported by the output of the vehicles body control computer.
13

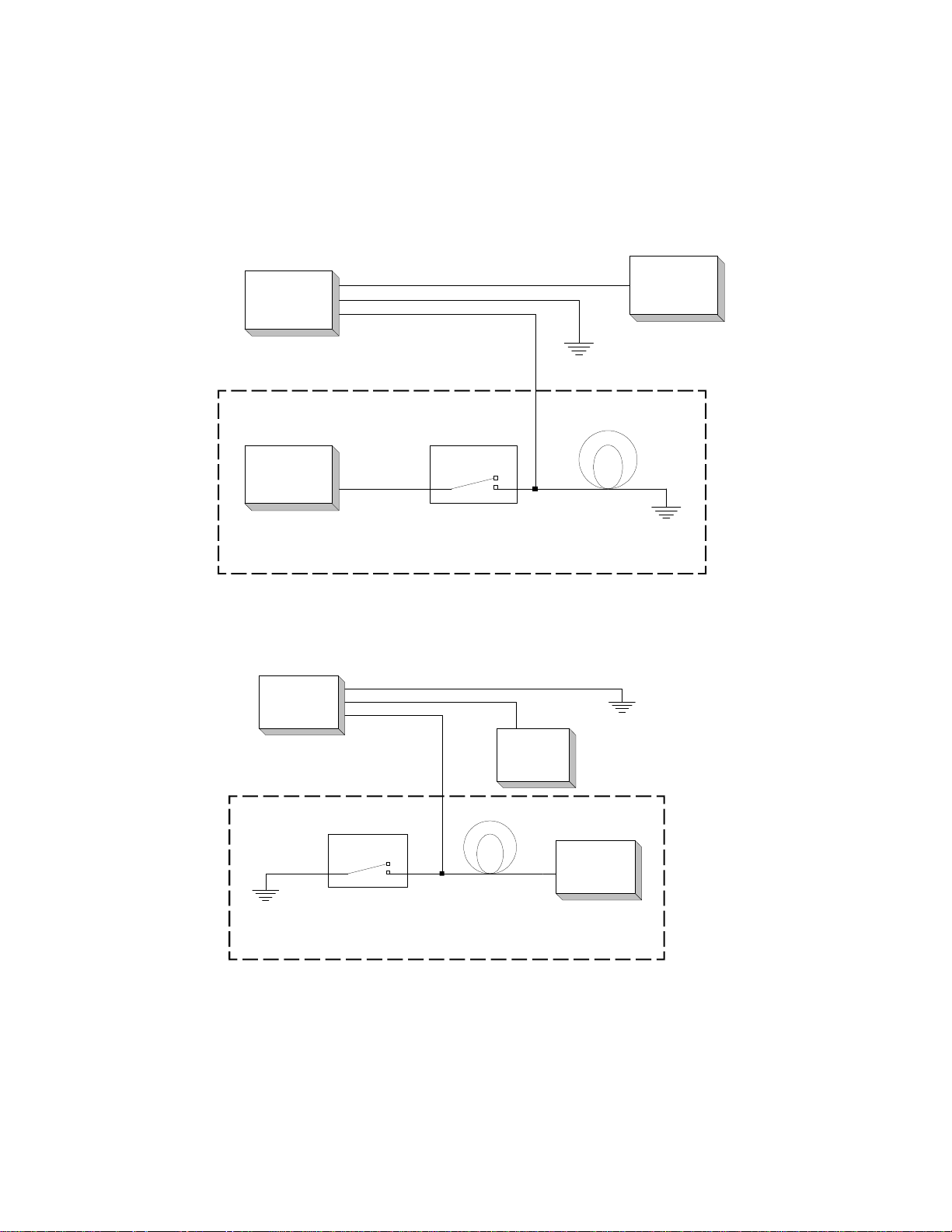

Positive Switched Dome lighting
To 3 pin
connector
on Monitor
Factory Dome light circuit
Red / black - Lamp on
Black / red - Lamp common
Violet / brown - Lamp Auto
To
constant
+12vdc
Factory Door ajar
switch or Body
Control computer
Figure 4
Negative Switched Dome lighting
To 3 pin
connector
Red / black - Lamp on
Black / red - Lamp common
Violet / brown - Lamp Auto
To
constant
+12vdc
Factory Dome light circuit
Factory Door ajar
switch or Body
To
constant
To
constant
Figure 5
14
E. Controls, Indicators, and Connectors
1. Unit View (Refer to Figure 6)
Figure 6
1) AV 2 In
2) Headphone Jack
3) FM Modulator Switch
4) Auto/Off/On Dome Light Switch
5) Power and Dome Light Connector
6) AV IN RCA Jacks(red,white,yellow)
7) AV Output RCA Jacks (red,white,yellow)
8) Power Button
9) Reverse Scan Button
10) Stop Button
11) Forward Scan Button
12) Monitor Release Button
13) IR Sensor and IR Transmitter
14) Volume -
15) Picture
16) Volume +
17) Play button
18) Dome Lights
19) Eject button
20) Disc Insertion Slot
15
2. Remote Control View (Refer to Figure 7)
1)Power Button
2)Display Button
3)Angle Button
4)Subtitle Button
5)A-B Button
6)Slow Button
7)Pause Button
8)Reverse Scan Button
9)Stop Button
10)Picture Button
11)DVD /AV1 /AV2
12)Zoom Button
13)Eject Button
14)Numeric Buttons
15)Audio Button
16)Repeat Button
17)Menu Button
18)Setup Button
19)Up/Down/Left/Right / Enter Buttons
20)Forward Scan Button Figure 7
21)Return Button
22)Play Button
23)Skip- Button
24)Skip+ Button
25)Vol Down Button
26)Vol Up+ Button
27)Wide Button
F. Loading and Playing a Disc
a.Turn the power on by pressing the power button on the unit or the
remote control. Select DVD using the DVD/AV1/AV2 button on the
remote.
b.Place a disc into the disc insertion slot with the label side facing up.
c.Playback will start automatically.
d. Pivot the LCD Screen for a good viewing angle.
16
G. BASIC OPERATION
POWER
PLAY
SLOW
PAUSE
STOP
FORWARD
REVERSE
UP/DOWN/LEFT /RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
DVD/AV1/AV2
EJECT
VOLUMEVOLUME+
SKIPSKIP+
Turn the unit on/off
Start Playback
Play at 1/2,1/4,1/8, or 1/16 normal speed
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Scan forward at 2, 4, 8, 16, or 32 times normal speed
Scan backward at 2, 4, 8, 16, or 32 times
normal speed
Used for Menu Navigation
Confirm item or setting
Select item or password setting
Not used in this model
Display the root menu of the disc
Repeat playback of a title, chapter, or track
Repeat a specific portion from point A to
point B of the disc
Display disc information (title, chapter, track,
time, etc.)
Change the angle on a scene
Select the subtitle language and turn it on/
off
Select the audio language
Enlarge an image to 2 ,3, or 4 times the
original size
Display the setup menu to select and set
items, and exit the setup menu.
Source selection DVD, AV1, AV2
Eject disc
Brightness/Contrast/Tint/Color
Reduce volume/Lower picture setting
Increase volume/Raise picture setting
Previous chapter/track
Next chapter/track
17
H. Setup
Press ‘SETUP’ to display the Main screen of the Setup Menu. Press
‘SETUP’ again to exit the Setup Menu and the unit will resume it’s last
playback mode.
Main Setup Menu Screen
1) Press “SETUP”, the ‘General Setup Page’ will be displayed.
a).Select ‘TV Display’ using the UP/DOWN button, and then press
RIGHT to enter the submenu. Select the TV display mode on the screen
using UP/DOWN, and press ENTER to confirm the setting. Press
LEFT to return.
* Normal/PS: When the player is connected to a normal TV, and a wide
picture is shown on the full screen.
* Normal/LB: When the player is connected to a normal TV, and a wide
picture is shown on the screen with a black strip at both the top and
bottom of the screen.
* Wide: When the player is connected to a wide screen TV, a wide
picture is shown on the full screen.
TV Display Screen Display
18
b).Select ‘Angle Mark’ using the UP/DOWN buttton, and then press the
RIGHT button to enter the submenu. Choose Angle Mark on or off
using the UP/DOWN button and then press ENTER to confirm the
setting. Press the LEFT button to return.
Angle Mark Screen Display
* On: The screen will show the angle mark icon. (*If an angle option is
available).
* Off: The screen will not display the Angle Mark
NOTE: Not all discs contain above features. The above features are
disc dependent.
c).Select ‘OSD Lang’ using the UP/DOWN button, and then press the
RIGHT button to enter the submenu. Choose the desired OSD language using the UP/DOWN button and then press ENTER to confirm
the setting. Press the LEFT button to return.
OSD Lang Screen Display
19
d). Select ‘Screen Saver’ using the UP/DOWN button, and then press
the RIGHT button to enter the submenu. Choose Screen Saver on or
off using the UP/DOWN button and then press ENTER to confirm the
setting. Press the LEFT button to return.
Screen Saver Screen Display
*On: Enables screen saver
*Off: Disables screen saver
*NOTE: The DVD player will enter the Screen Saver mode after approximately three minutes if the same image remains on the screen.
e). Select ‘Last Memory’ by UP/DOWN button.and then press the
RIGHT button to enter the submenu. Choose Last Memory on or
off using the UP/DOWN button and then press ENTER to confirm
the setting. Press the LEFT button to return.
Last Memory Screen Display
20
*On: The unit will return to the last position on the disc.
*Off: The unit will not return to the last position on the disc.
2) Select “Video Quality Setup”by using the LEFT/RIGHT button, press
ENTER to enter the video quality setup page.
Video Quality Setup Screen Display
a).Select ‘Brightness’ by using the UP/DOWN button, then press EN-
TER you can change the Brightness by pressing the LEFT/RIGHT
button. To exit ‘Brightness’ setting, press ENTER again to return
the main Menu.
Brightness Screen Display
21
b).Select ‘Contrast’ by using the UP/DOWN button, then press ENTER
you can adjust the Contrast by pressing the LEFT/RIGHT button.
Contrast Screen Display
To exit ‘Contrast’ Setting, press ENTER again to return the main Menu.
c).Select ‘Saturation’ by using the UP/DOWN button, then press ENTER
you can adjust the Saturation by pressing the LEFT/RIGHT button.
Saturation (Color) Screen Display
To exit ‘Saturation’ setting, press ENTER again to return to the main
Menu.
d).Select ‘Hue’ by using the UP/DOWN button, then press ENTER you
can adjust the Hue by pressing the LEFT/RIGHT button.
Hue (Tint) Screen Display
To exit ‘Hue’ Setting, press ENTER again to return the main Menu.
22
3).Select “Password” using the LEFT/RIGHT button, then press the Enter
and press the RIGHT button to enter the submenu.
Password Setup Page Screen Display
Press ENTER to enter the Password Change Page. Input the Old
Password or the Default Password, the New Password, and the
Confirmed New Password. Press ENTER to confirm the change.
Password Change Page Screen Display
NOTE: The Default Password is 3308. This password is always
effective even after you have selected your own password and
changed it. To avoid the possibility of others using the default
password to set the parental level and change the password, you
can record this default password in another area and delete it
from this manual. Some discs can be limited depending on the
age of users while some discs cannot.
23
4).Select ‘TV Type’ using the UP/DOWN button, and then press the
RIGHT button to enter the submenu. Choose TV Type using the UP/
DOWN button and then press ENTER to confirm the setting. Press
the LEFT button to return.
PAL
NTSC
NTSC
SetTVStandard
TV Type Screen Display
5).With no disc inside the player select ‘Preference Page ’ using the LEFT /
RIGHT buttons, then press ENTER to enter the preference page.
a. Select ‘Audio’ using the UP/DOWN button, then press RIGHT to
enter the submenu. Select the audio language you desire using the
UP/DOWN button, then press ENTER to confirm the setting. Press
LEFT to return.
NTSC
Preference Audio Language
24
b. Select ‘Subtitle’ the using UP/DOWN button, then press RIGHT to
enter the submenu. Select the desired subtitle language or Subtitle
Off using the UP/DOWN button, then press ENTER to confirm the
setting. Press LEFT to return.
NTSC
Preference Subtitle Language
Note: Language and subtitle selection is only available for discs that
are recorded in the above listed languages. If the selected language
is not available the player will play and display on the screen the original recorded language contained in the disc. Some DVDs only allow
access to these options in the DVD root menu.
c. Select ‘Disc Menu’ using the UP/DOWN button, then press RIGHT to
enter the submenu. Select the Disc Menu Language you desire using
the UP/DOWN button, then press ENTER to confirm the setting. Press
LEFT to return.
NTSC
Preference Menu Language
25

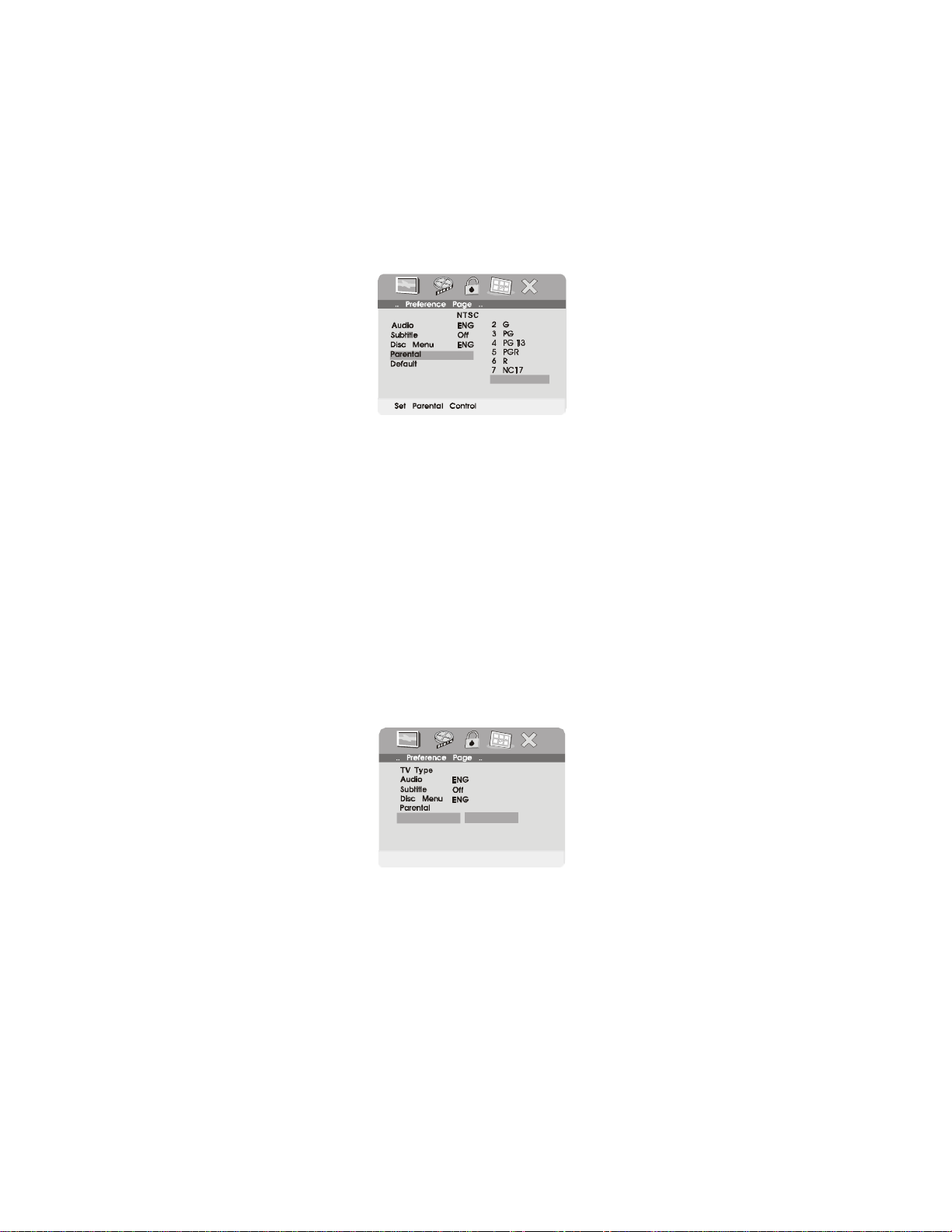

d. Select ‘Parental’ using the UP/DOWN button, then press RIGHT to
enter the submenu.
TVType
1KidSAF
8Adult
Parental Preference Screen Display
Select the parental level you desire using the UP/DOWN button for
discs with lock-out function or multiple rating levels. These are listed
from the lowest level (1 Kid Safe) to the highest level (8 Adult). Enter a
4 digit password, then press ENTER to confirm the parental level setting.
NOTE: The level of 8 Adult is the factory default.
e. Select ‘Default’ using the UP/DOWN button, then press RIGHT to en-
ter the submenu. Press ENTER to return all settings to the factory-set
mode.
NOTE: The parental setting is not affected by the default reset
function.
NTSC
ResetDefault
LoadFactorySetting
Loading Factory Setting
NOTE: The Default Password is 3308.
26
I. Menu
A DVD is divided into sections called titles and chapters. When you
play a DVD, a root menu of the disc will appear on the screen of your
TV or Monitor. The contents of the menu vary from disc to disc. Press
MENU during playback to display the menu. Some DVDs only allow
you to select disc playback options using the DVD root menu.
J. Display

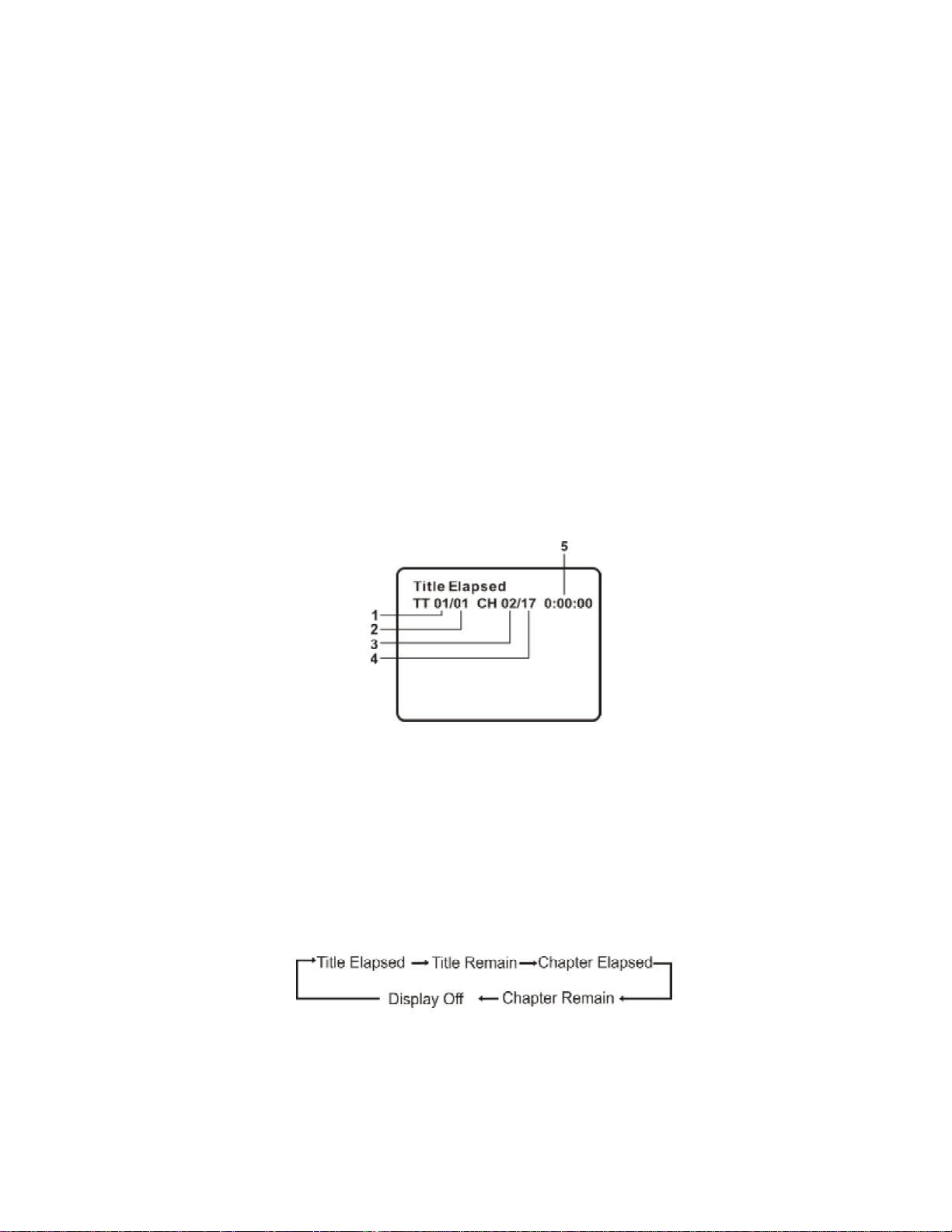

1. PLAYING TIME AND REMAINING TIME
a. During playback press the ‘DISPLAY’ button to display the cur-
rent Title Number (1), the total Number of Titles (2), the current
Chapter Number (3), the total Number of Chapters (4), and the
Playing elapsed Time for the title (5). The heading will disappear
automatically after 3 seconds if DISPLAY button is not pressed.
Title, Chapter Number, and Time Screen Display
b. Each time ‘DISPLAY’ is pressed the following options will be-
come available.
l Title Elapsed: The elapsed time of the title
l Title Remain: The remaining time of the title
l Chapter Elapsed: The elapsed time of the chapter
l Chapter Remain: The remaining time of the chapter
l Display Off: The DVD’s time Information will not be displayed.
27
2. ANGLE
During playback of a disc, press ‘ANGLE’ to display the available angles
for discs containing multi-angles*, with the current angle number (1)
and the total number of angles (2) displaying. Press ‘ANGLE’ to select
another angle, then press again to exit and return to the normal viewing angle. The angle display will disappear automatically if the ‘ANGLE’
button is not pressed again within 3 seconds.
*NOTE: Not all discs contain this feature.
Angle Screen Display
3. SUBTITLE
During disc playback press ‘SUBTITLE’ to select the subtitle language
you desire*, with the current Subtitle Language Number (1) and the
total Number of Subtitle Languages (2) displayed. If there are multiple languages press ‘SUBTITLE’ again to select another subtitle language. To turn subtitles OFF, press the ‘SUBTITLE’ button until ‘Subtitle Off’ is displayed. The Subtitle display will disappear automatically
if the ‘SUBTITLE’ button is not pressed again within 3 seconds.
Subtitle Screen Display
* Some DVDs only allow access to this function through the DVD menu
28
4. AUDIO
During playback press ‘AUDIO’ to select the audio language you
desire*, with the current Audio Channel Number (1) and the total number of Audio Channels (2) displayed. Press AUDIO again to select
another audio language. The audio display will disappear automatically if the ‘AUDIO’ button is not pressed within for 3 seconds.
Audio Language Screen Display
* Some DVDs only allow access to this function through the DVD
menu.
5. ZOOM
During playback press ‘ZOOM’ to enlarge the picture by 2x, 3x, or 4X
with the current zoom multiple. (1) Press “zoom” once, the picture
will be enlarged 2X. (2) Press “zoom” a second time ,the picture will
be enlarged 3X. (3) Press “zoom” a 3rd time ,the picture will be enlarged 4X. (4) Press “zoom” a 4th time ,the picture will return to nor-
mal size.
Zoom Screen Display
29
6. A-B REPEAT
a. During playback press ‘A-B’ to set the Starting Point A.
A-B Repeat Starting Point Screen Display
b. Press ‘A-B’ a second time to set the Ending Point B and the player
will repeatedly play the part between Point A and Point B.
A-B Repeat Ending Point Screen Display
c. Press ‘A-B’ a third time to cancel A-B repeat and resume normal
playback.
A-B Repeat Cancelled Screen Display
30
7. REPEAT
During playback each time ‘1/ALL REPEAT’ is pressed, the following
modes will become available.
Chapter: Repeat the current chapter
Title: Repeat the current title
All: Repeat all chapters and titles
Off: Resume normal playback
The ‘Chapter’ repeat display is shown below for example:
Chapter Repeat Screen Display
K. Playing Audio CDS
When playing an audio CD press the DISPLAY button repeatedly on
the remote to view time information. The options below appear on
screen display circularly to show you what information is available
using this function.
C
D Display Mode
Single Elapsed: The current track playing and playing time of that
track will display on the screen.
Single Remain: The current track playing and the amount of time
left.
31
Total Elapsed: The current track playing and the total time that the
CD has been playing.
Total Remain: The current track playing and the amount of time
remaining on the CD.
Display Off: The CD time Information will not be displayed.

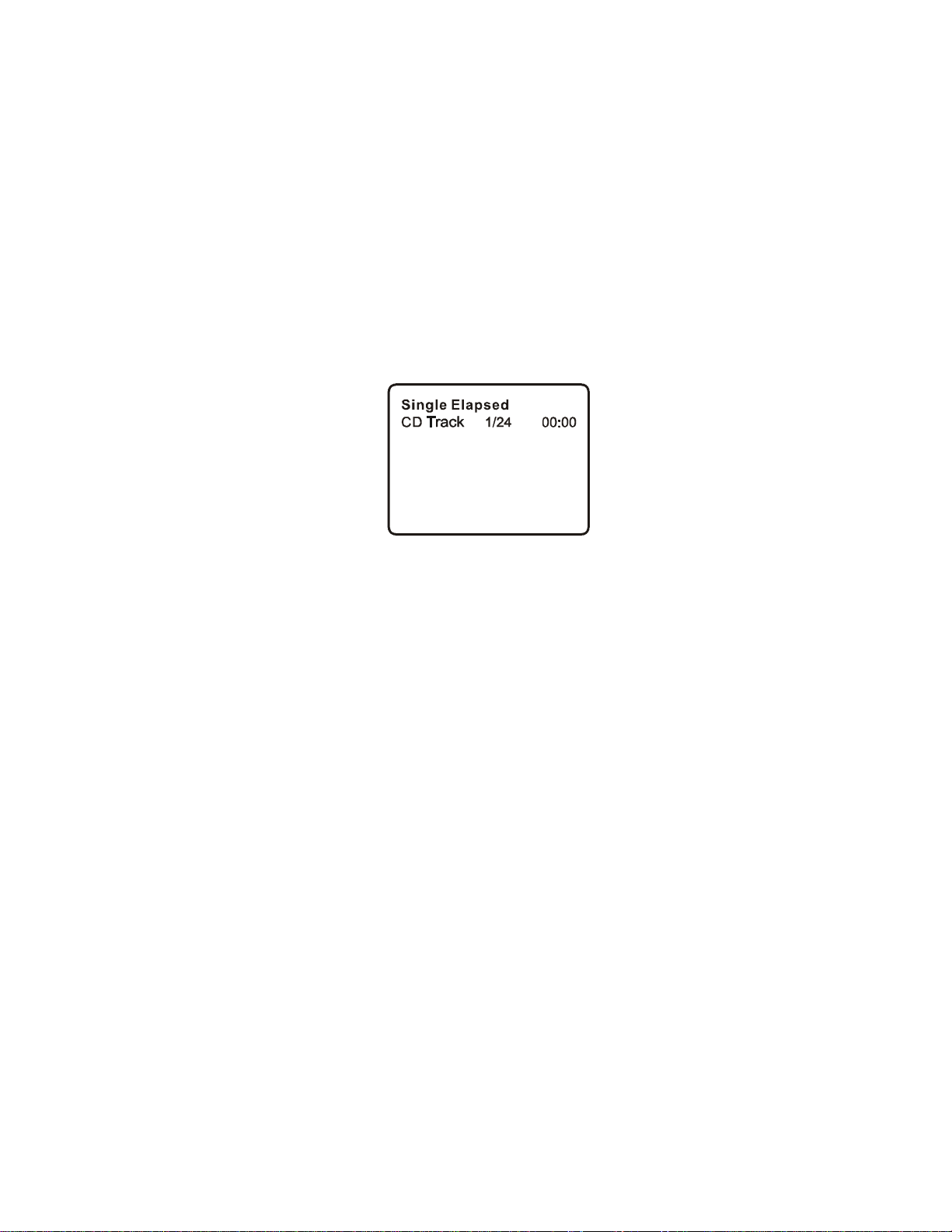

Take ‘Single Elapsed’ display as a example:
Single Elapsed Screen Display
USING THE REPEAT FEATURE
The default mode for the Repeat feature is OFF. Pressing REPEAT
consecutively changes the repeat options:
• Track- repeats the track that is playing.
• All- repeats the disc that is playing.
• Off
As you toggle through the options, the repeat option changes. The
selected repeat option loops repeatedly until you turn it off.
32
L. Playing MP3 Discs
MP3 is a format for storing digital audio. An audio CD-quality song is
compressed into the MP3 format with very little loss of audio quality
while taking up much less disc space. CD-R /RW discs that have
been encoded in MP3 format are compatible with this system.
MP3 MENU Screen Display
When an MP3 disc is inserted into the unit, the menu screen appears
automatically. You can use the menu screen to select your desired
folders and songs or the system plays the songs in the order they
were burned onto the disc.
1. Press the
or button to choose a folder from the folder list
on the left side of the screen.
2. Press ENTER to select the highlighted folder. The songs available in the folder will be listed.
3. Use or button to choose a song from the list. Press ENTER to select and begin playback of the highlighted song.
33
4. Use the ( NEXT ) button to move to the next song. Press the
(PREVIOUS) button to move to the beginning of the previous
song.
USING THE REPEAT FEATURE
The default mode for the Repeat feature is OFF(Folder). Pressing
REPEAT consecutively changes the repeat options:
• Repeat One (repeat playback of a song)
• Repeat Folder (repeat playback of a specific folder)
• Folder (normal playback)
As you toggle through the options, the repeat mode changes. The
selected repeat mode loops repeatedly until you turn it off.
NOTICE
“ ” icon in front of a file name indicates that this is a folder, not an
MP3 file.
“MP3” icon in front of a file name indicates that this is an MP3 file.
Note:
Due to the company’s policy of constant improvement and technical refinement, the company reserves the right to change or alter software.
34
M. Playing a Video Game (Refer to Figure 8)
Change the source by pressing the DVD/AV1/AV2 button on the
remote. The AV2 input jack is located on the left side of the unit.
The AV1 input is the RCA connectors located on the top of the unit.
AV2
Figure 8
Connect the A/V output from your game system to the RCA inputs
(AV1) or the 1/8 (AV2)* input. Adjust the volume and picture for
individual preference.
AV1
N. Wired Headphones and Wireless headphones
(Refer to Figure 8)
1.Optional wired Headphones may be used. Connect the headphones
to the Headphone Jack on the left side of the unit (Part Number
MMWHS).
2.Optional wireless headphones can also be used (Part Number
MMIRHS).
NOTE: Refer to the Owner s Manual with the headphones for
complete instructions.
*AV2 requires the use of the supplied AV adaptor cable.
35
O.Wireless FM Modulator
The MMD10 is equipped with built-in wireless FM Modulator*, that allows you to listen to the MMD10 audio signal by tuning your vehicle ’s
radio to the selected frequency, (88.3, 88.5, or 88.7MHz). This feature is accessed by using the FM Select switch on the left side of the
unit. Slide the FM Select switch to one of the three frequencies above
that is not used or is weak in your area. Select the same frequency
on the vehicle’s radio. Adjust the vehicle’s radio volume to a comfortable listening level. When the the FM Modulator is not used set the FM
Select switch to the OFF position.
FM Modulator FM
Frequency Select Switch
*NOTE: In certain areas where there are a large number of FM radio
stations (e.g. large cities, urban areas), the reception of the FM signal
from the overhead pod may not be satisfactory, resulting in static,
distorted sound or signal bleed thru from strong local radio stations.
This is not a defect in the product, but the result of a stronger local
radio station overpowering the wireless FM transmitter in your overhead pod.
36
P. Specification
Disc format: DVD/CD/MP3/JPEG
Color system: NTSC/PAL
Screen size: 10"
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 60 dB
Dynamic range : Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/790 nm
Power source: DC 12V
Power consumption: 30 W
Operating temperature: 5~35&C
Storage temperature: -20~60&C (4~140&F)
Dimensions (W x H x D): 254 x 214 x 58 mm (10.00" x 8.43" x 2.28")
Weight:1.36Kg
Q. Troubleshooting:
S
YMPTOM:
REMEDY:
No power at Video Monitor
Power but no video or
sound
Picture, but no sound
-Verify +12 VDC on the Red wire at 2 pin
Power Harness behind video monitor.
Verify ground connection with continuity test
from known good ground to black wire at 2
pin Power Harness.
-Verify that the correct source is selected
(i.e.: DVD, AV1 or AV2). Verify that the
source is on and playing a known good
media (such as a DVD). Verify connections at both ends of the harness.
-Verify that the headphones are turned on;
check headphone batteries.
Make sure the FM modulator and the vehicle radio are set to the same FM station.
For wired headphones verify that the
volume is turned up.
37
12 MONTH LIMITED WARRANTY
Applies to Movies To Go Mobile Video Products
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail
purchaser of this product that should this product or any part thereof, under normal
use and conditions, be proven defective in material or workmanship within 12
months from the date of original purchase, such defect(s) will be repaired or
replaced with reconditioned product (at the Company's option) without charge for
parts and repair labor. A game controller, if supplied, is similarly waranteed for
ninety (90) days.
To obtain repair or replacement within the terms of this Warranty, the product is to
be delivered with proof of warranty coverage (e.g. dated bill of sale), specification
of defect(s), transportation prepaid, to the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or
noise, to correction of antenna problems, to costs incurred for installation, removal
or reinstallation of the product, or to damage to digital memory cards, discs,
speakers, accessories, or vehicle electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of
the Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the
factory serial number/bar code label(s). THE EXTENT OF THE COMPANY'S
LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY
EXCEED THE PURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY
ACTION FOR BREACH OF ANY WARRANTY HEREUNDER INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A
PERIOD OF 24 MONTHS FROM DATE OF ORIGINAL PURCHASE. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL
DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR
IMPLIED, WHATSOEVER. No person or representative is authorized to assume
for the Company any liability other than expressed herein in connection with the sale
of this product.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damage so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal
rights and you may also have other rights which vary from state to state.
U.S.A. : AEC 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 z 1-800-645-4994
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION
SERVING YOUR AREA
© 2006 Audiovox Electronics Corporation
128-6429E
Loading...
