Audiovox LCM500NP User Manual
ELECTRONICS COR
P .
LCM500NP 5 Inch Monitor
with
2 Video Input Capability
®
Installation and Operation Manual
Important Notice
It is unlawful in most jurisdictions for a person to
drive a motor vehicle which is equipped with
a television viewer or screen that is located
in the motor vehicle at any point forward of
the back of the driver's seat, or that is visible
directly or indirectly, to the driver while operating the vehicle.
CAUTION
1. Do not operate the monitor at temperatures below 32°F (0°C) or above 104°F (40°C).
2. Keep the monitor clean and dry .
3. Always seek qualified personnel to perform repairs. Never attempt your own repairs.
4. Do not drop the monitor or expose to strong impacts.
5. Do not expose to direct sunlight for extended periods of time.
The Materials included in this package:
1. LCM500NP Monitor (1pc)
2. Remote Control Unit (1pc)
3. Interconnection Box (A VX-6865) (1pc)
4. Monitor Cable Assembly 16 Feet (5 Meters) (1pc)
5. Power Cable Assembly (1pc)
6. Surface Mount (S2) (1pc)
7. Headrest Shroud (1pc)
8. Trim Ring For Shroud (1pc)
9. Removal Tool (1pc)
LCM500NP SYSTEM OVERVIEW
The LCM500NP is comprised of a 5" Thin Film Transistor (TFT) Liquid Crystal Display ( LCD)
monitor. The monitor display is a widescreen display (16:9 Aspect Ratio ) that allows the user
to select from two video sources (Not Supplied). The housing has a built-in location for the
installation of an optional infrared audio transmitter ( Audiovox IRT 456, IRT 457) for use with
optional two channel wireless headphones. The monitors will display all functions with the
comprehensive On Screen Display (OSD).
OPTIONAL AUDIO CONNECTION
Required Materials:
1. IRT456 (CHA) Infrared Transmitter (1pc)
2. IRT457 (CHAB) Infrared T ransmitter Remote (1pc)
3. WHS200 T wo Channel Infrared Headphones
Before installing the IRT boards gently bend the three IR LEDs closest to the center of the
vehicle toward the center of the vehicle.
IRT 456 CH A BEFORE
IRT 456 CH A AFTER
IRT 457 CH B BEFORE
IRT 457 CH B AFTER
Insert the IRT boards into their respective compartments in the monitor housing and insert the plug
into the IRT board. When the user switches the video source utilizing the ON/OFF/MODE switch,
the A/B switch on the WHS200 headphones must also be switched to select the desired audio
source.
-1-
VEHICLE PREPARATION:
1) Decide on the system configuration and the options that will be installed (i.e.what components,
VCP, DVD, TV Tuner , Video Game, Monitor , FM Modulator , etc.).
2) Read the manuals and get familiar with the electrical requirements and connections.
3) Decide on the mounting locations and methods of mounting the products.
4) Prepare the vehicle by removing any interior trim necessary to gain access to the vehicle's wiring as
well as all areas where interconnecting wire harnesses will be located. If any access holes need to
be cut into the vehicle, headrests, or other trim components, this should be performed now. (Refer to
the Installation Procedure).

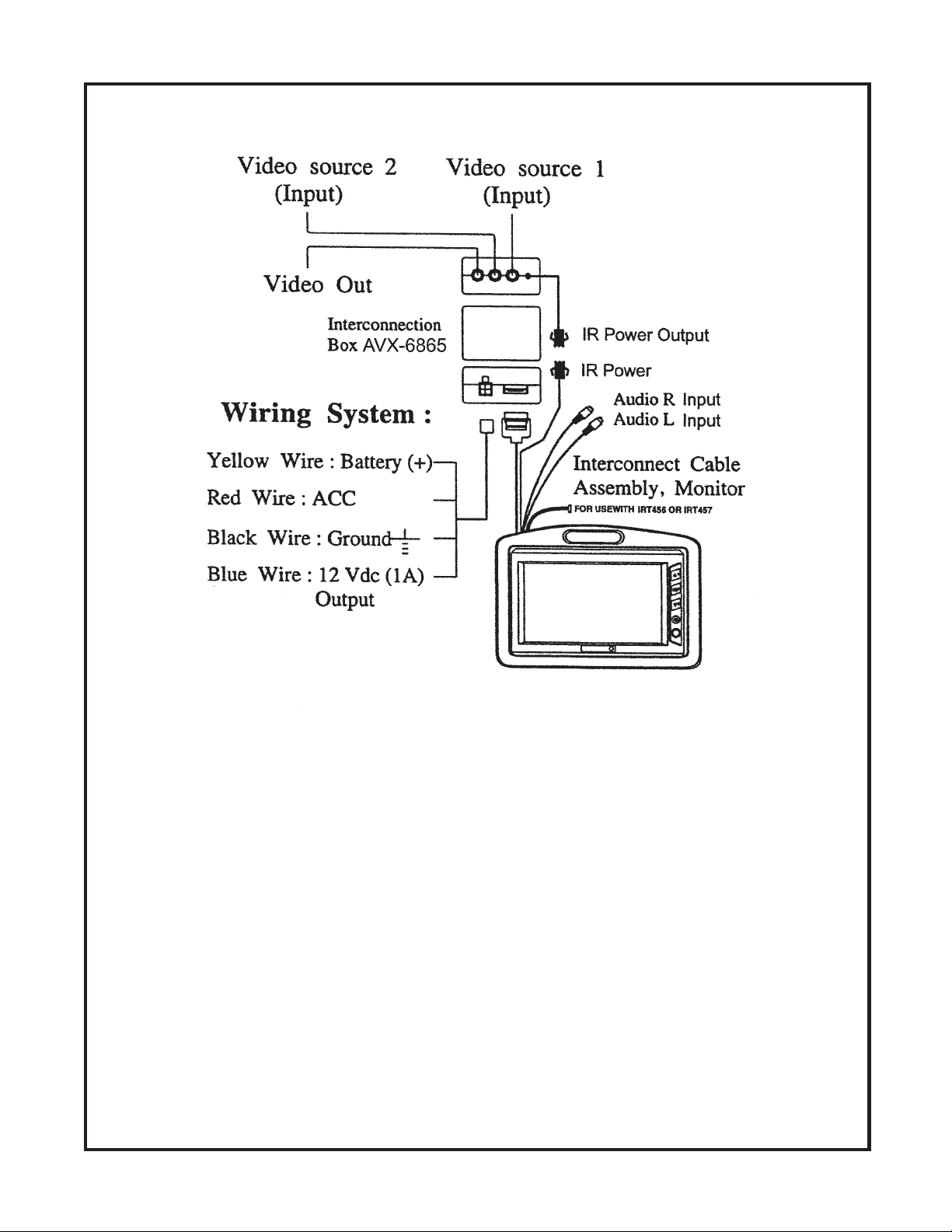

5) Run the wiring harnesses throughout the vehicle as necessary. (Refer to the Wiring Diagram on
page 7, as well as the wiring instructions for the individual components and accessory options being
installed). Be sure, that all the wiring is protected from sharp edges and is routed in such a manner
that it will not be pinched, when it is fully installed. Be sure to leave enough slack in the wiring at each
component to allow sufficient working room.
6) Remove all the A/V system components from their packaging and then place them in the vehicle at
their respective locations.
7) Connect all the components together (electrically) and verify the proper operation of all the system
functions. NOTE: This is best done BEFORE the components are permanently mounted.
8) After verifying the proper operation of the system, proceed to mount each component.
9) When all the components are mounted, recheck the function of the entire system to be sure it is
functioning correctly . Make sure that no wiring was pinched, or connected improperly during the final
installation.
10)Locate the following: an accessory power source (+12VDC present when the ignition key is in the
accessory and run positions). 0VDC should be present, when the ignition key is in the OFF position.
A constant power source (+12VDC present at all times). Generally , these wires can be found at the
ignition switch or fusebox. (NOTE: Ensure that the power leads are fused at the source. Failure to do
so may result in vehicle wiring damage.) Ground the black wire to a chassis ground close to the
mounting location of A V sources.
1 1) The mounting method, and the location will vary from vehicle to vehicle, so this manual will only focus
for the installation of the LCM500NP Monitor in the supplied configuration.
12)The best location for the LCM500NP System components are:
a) Monitor : Headrest
b) Interconnection Box: Under either seat where monitors are located.
-2-
T ools and Materials Required:
• Utility knife or box cutter with sharp blade
• Sharpie™ marker or similar
• Tie Wraps
Remove the headrest from the vehicle for
easiest installation.
Lay headrest on a flat surface
Center trim collar on headrest as shown.
NOTE: Depending on the angle of the
headrest the trim ring and housing may be
mounted upside down.
Using a Sharpie™ marker or similar marking
pen, mark headrest material along the
interior of the trim collar.

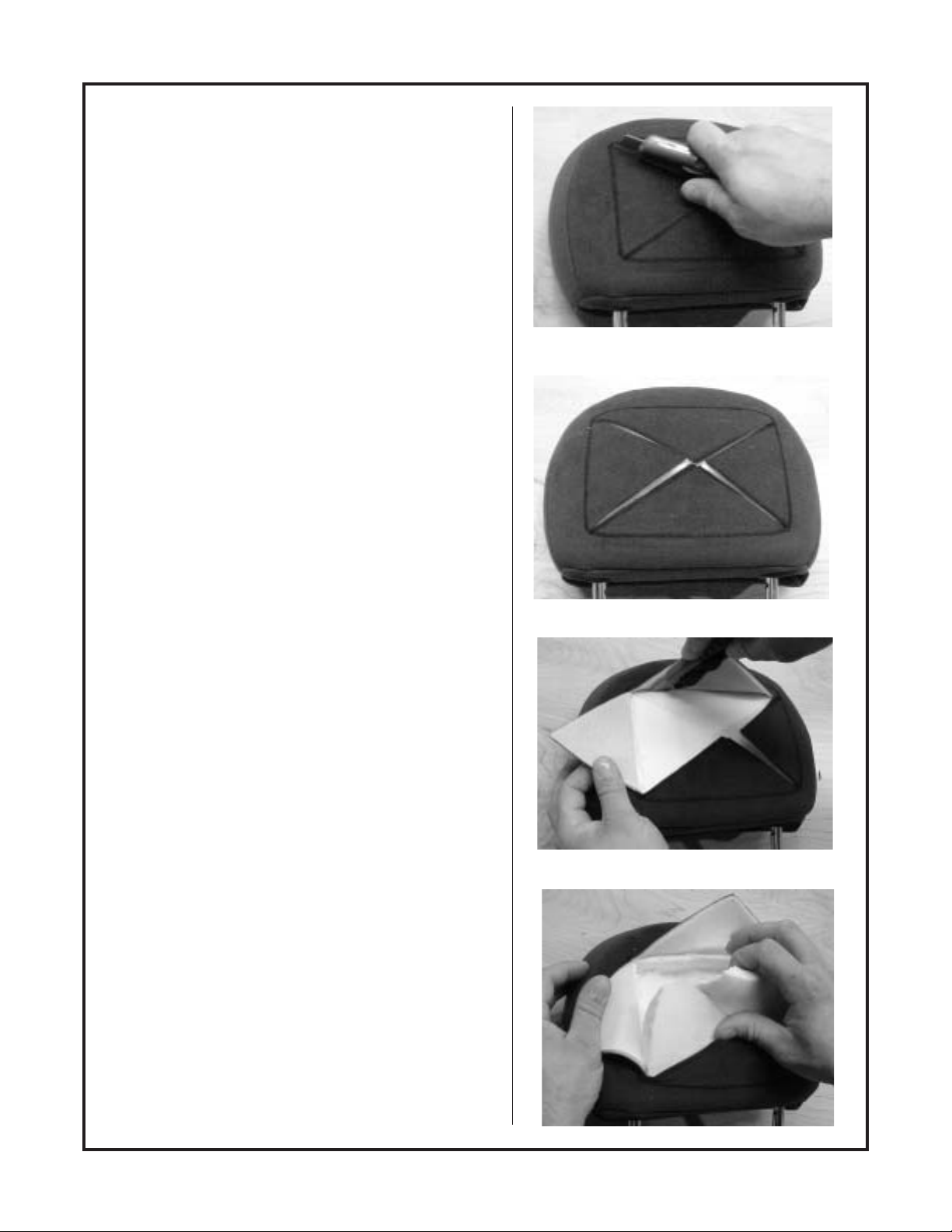

Remove the trim collar and mark an “X” from
corner to corner as shown
-3-
