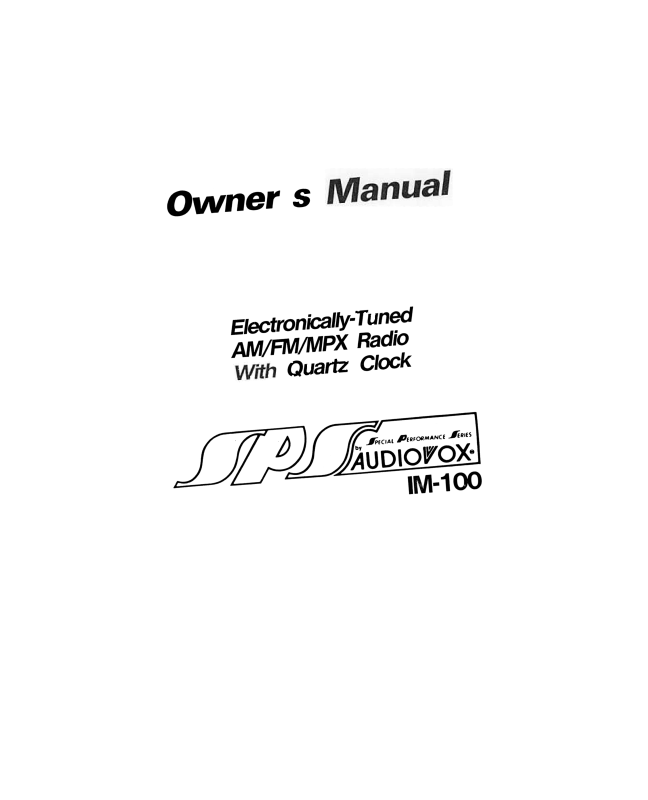

Audiovox IM-100 User Manual

~t~~{:~~%l

fi§~~

.,ff1:)~~.r,~.\t-':.,",;.:c,
"p~'c,:~f!,,;~';i"'

~;~~i~~,~

" '"'.

1?:'i

c' ""

I "i,

;0;""

~.\~ffi'.::f;

:! .

1" ' ,;

Ic1i""c!

ON-OFF sWITCHNOLUME CONTROL
Rotate this knob to the right to turn the radio on. Continue rotation until
the desired volume level is obtained.

,% TONE CONTROL

Rotate this knob either to the left or right to adjust the desired tone
reproduction. Rotating the knob clockwise will increase treble response

and counter-clockwise will increase bass response.

a; LEFT/RIGHT BALANCE CONTROL (PULL)

Pull this knob outward until it locks into outer position. Rotate it to the
left or right to obtain the desired balance between left and right speakers.
Push knob back in to return to volume control position-

@ FRONT/REAR FADER CONTROL

Rotate this knob to the left or right to obtain the desired balance between
front and rear speakers in 4 speaker installations. When used in
conjunction with the LeftlRight Balance Control rJ.J, you have full 4-way
stereo balance capability.

@ FM/AM BAND SELECTOR

Each time this button is pressed, the radio band is changed. The
indications. AM. , .FM 1 .or. FM2 .will appear in the display panel
according to your selection.

@ & !1; MANUAL UP/DOWN TUNING

To manually select a radio station press the Up Tuning(UP) button @
to advance the unit one digit higher or the Down Tuning(DN) button Q)
to tune downward. Pressing either button for longer than 0.5 second will
cause the radio to tune rapidly in the selected direction.

@ SEEK TUNING (PUSH)

During radio operation, this function is used to search for stations
automatically. By pressing the button, the radio will seek the next station

and stop at that frequency. The SEEK function can be stopped by
pressing the SEEK button again or activating any other tuning functil)n.

@ AUTO-sTORE TUNING (AS)

PRE-SET SCAN TUNING (PS)

During radio operation, press this button momentarily to scan the six
stations pre-set into the memories of the AM band or the twelve pre-set
memories of the FM bands. The unit will stop at each pre-set station for
5 seconds before coRtinuing to the next pre-set station(the channel
