Audiovox GMRS4WM User Manual

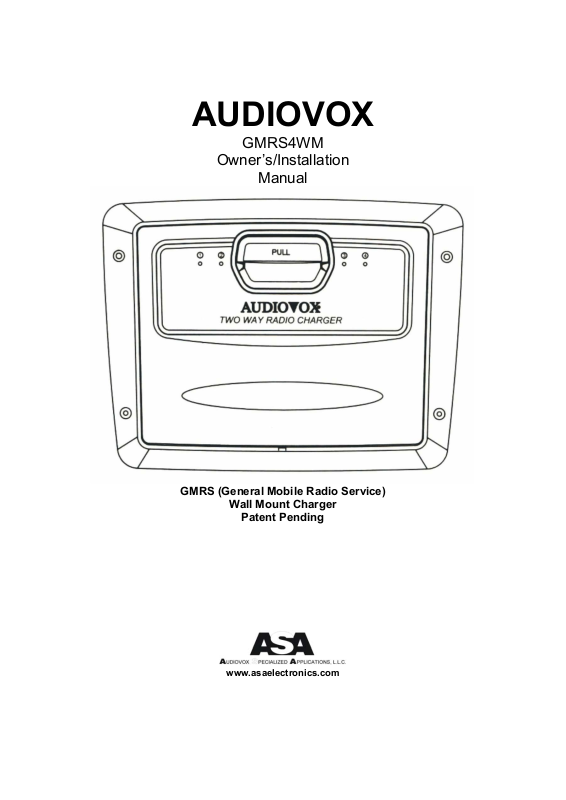

AUDIOVOX
GMRS4WM
Owner’s/Installation
Manual
GMRS (General Mobile Radio Service)
Wall Mount Charger
www.asaelectronics.com
WARNING
Replacement or substitution of transistors, diodes, or other parts of a unique nature, with parts other than those recommended by manufacturer, may cause violation of the technical regulations of Parts 95 of the FCC Rules, or violation of Part 2 of the rules. Do not use this device in or near a mining facility which uses remotely triggered explosives or in an area labeled “Blasting Area”. Premature or accidental detonation may result. Do not use this device or change batteries in potentially explosive atmospheres, as sparks in such areas could result in an explosion. Turn your transceiver off on board aircraft when requested to do so. This transceiver complies with FCC regulations for use in the United States. Use in other countries may be prohibited or restricted by local regulations. Please check with the local agency before using this device outside of the U.S.A. The GMRS wall mount charger is custom designed for mobile applications. It is intended to store and charge up to four GMRS100 radios. Before operating your GMRS4WM family radios and charger, please read this manual carefully.
CONTENTS
Qty
General Mobile Radio Service Charger Unit 1 Transceiver (Handset) 4 Rechargeable batteries 16 Mounting Screws 4 Manual 1
TABLE OF CONTENTS
Page Warnings 2 Contents 2 Features 3 Performance 3 Installation 3 Battery Installation 3 Battery Saver Mode 4 Use 4 Function and Location of Charger Controls 5 How to Operate your Radio 5 Cutout Installation Dimensions 6 Indicator Light Status 6 Care and Maintenance 6 Function and Location of Handset Controls 7 Specifications 8
Your GMRS4WM is a 12VDC wall mount charger that includes 4 GMRS (General Mobile Radio System) radios (P/N GMRS100). The charger keeps the radio batteries fully charged and stored when not in use. These radios are skillfully constructed to give reliable communication in many applications. Ideal applications include but are not limited to home, car, boat or recreation vehicle (RV). Ideal for use on hunting or camping trips, skiing trips, trips to the mall or at your
place of business for security patrols or warehouse communication.
FEATURES
- Includes Charger, 4 GMRS radios and rechargeable batteries
- 12VDC power Input
- Wall-mount design with integrated 4-screw flange mounting system.
- Latching spring-loaded door
- LED Charge Status Indicators
PERFORMANCE
Your transceiver will achieve maximum operating range when communicating with another transceiver in a flat open area with no trees or buildings obstructing it’s signal. Range can be up to two miles under such conditions. Obstacles, such as buildings, trees, or hills may tend to reduce the transceiver’s range.
INSTALLATION
Locate an area in the vehicle’s wall which will permit mounting of the GMRS4WM. The area inside the wall should allow a mounting depth of 4 inches minimum and must be free from obstructions such as wall braces, wires, or other impediments. Using the template provided, carefully mark the cutout and mounting holes. Carefully saw and remove the wall material from inside the hole. Locate a switched 12V line and ground line. Connect the Red Wire to the vehicle’s switched 12V line. Locate either a ground line or a grounded metal portion of the vehicle. Attach the Black Wire form the GMRS4WM to the ground. Carefully fold the wires into the wall section, making sure they are not pinched. Insert the GMRS4WM into the opening and attach it with the screws provided, making sure that the screws do not pierce wire bundles or other equipment in the wall.
BATTERY INSTALLATION
Each radio comes with four batteries. Remove cover by releasing the clasp at the bottom of the compartment. Observe polarity symbols inside the battery tray when installing new batteries. CAUTION: THE BATTERIES WHICH ARE SUPPLIED WITH THE HANDSETS ARE SPECIALLY SELECTED TO OPERATE WITH THE GMRS4WM CHARGER. REPLACE ONLY WITH EXACT REPLACEMENT BATTERIES TO GUARANTEE PROPER CHARGING OPERATION AND BEST PERFORMANCE FROM YOUR HANDSETS. USE OF OTHER BATTERY TYPES MAY DAMAGE THE UNIT.
BATTERY SAVER MODE
Your GMRS4WM has a unique circuit designed to dramatically extend the life of your batteries. Four seconds after the transmit button has been pressed, the GMRS4WM will switch to battery saver mode, and the LCD display will turn off. The Transceiver will remain ready to receive any incoming transmissions while in the battery saver mode. Pressing any of the buttons will illuminate the display and exit the battery saver mode.
USE
1) Install the transceivers with the PTT (Push To Talk) switch facing out. There are four docking
bays in the GMRS4WM charger to accommodate up to four GMRS100 Handsets.
2) Close and latch the GMRS4WM door. The latch can be engaged by gently pressing against
the center of the door.
3) There are four indicator lights on the GMRS4WM door. Initially they will “glow” red when
power is applied (ignition switch in “On” or “ACC” position). After the GMRS100 (Transceiver Handset) batteries are fully charged, the indicators will turn green, indicating the transceivers are ready for use. If the indicator light blinks red, try removing the handset and re-inserting it into the charger unit.
4) The transceivers may be stored safely in the GMRS4WM charging unit. When the batteries are fully charged, each transceiver will individually switch to “trickle” mode.
