Before connecting, operating or adjusting this product, please read the manual completely. Please
keep this manual for future reference.
The illustrations and on-screen displays in this operation manual are for explanation purposes and may
vary slightly from the actual operations.
Menu items that are not selectable are grayed out.
FOR ASSISTANCE CALL 1-800-619-3848 OR VISIT US AT WWW.AUDIOVOX.COM.
1287616
Important Information
WARNING
To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION-To reduce the risk of electric shock, do not
perform any servicing other than that
contained in the operating instructions unless
you are qualified to do so.
This symbol is intended to alert the user to the
presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
This product utilizes tin-lead solder, and fluorescent lamp
containing a small amount of mercury. Disposal of these
materials may be regulated due to environmental
considerations. For disposal or recycling information,
please contact your local authorities or the Electronic
Industries Alliance: www.eia.org
FCC STATEMENT
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications. Operation
of this equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own expense.
FCC CAUTION:
Pursuant to 47CFR, Part 15.21 of the FCC rules, any
changes or modifications to this monitor not
expressly approved by the manufacturer could
cause harmful interference and would void the
user's authority to operate this device.
WARNING:
This is a CLASS B product. In a domestic
environment this product may cause radio
interference in which case the user may be
required to take adequate measures to
counter interference.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water. Apparatus shall
not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be
placed on the apparatus.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifiers)
that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
1
Important Safeguards
Before using your TV, please read these instructions
completely, and keep this manual for future reference.
Carefully observe and comply with all warnings,
cautions and instructions placed on the unit or
described in the operating instructions or service
manual.
WARNING
To guard against injury, the following basic safety precautions
should be observed in the installation, use and servicing of the
unit.
Power Sources
This unit should be operated only from the type of power
source indicated on the information label.
If you are not sure of the type of electrical power supplied to
your home, consult your dealer or local power company.
Grounding or Polarization

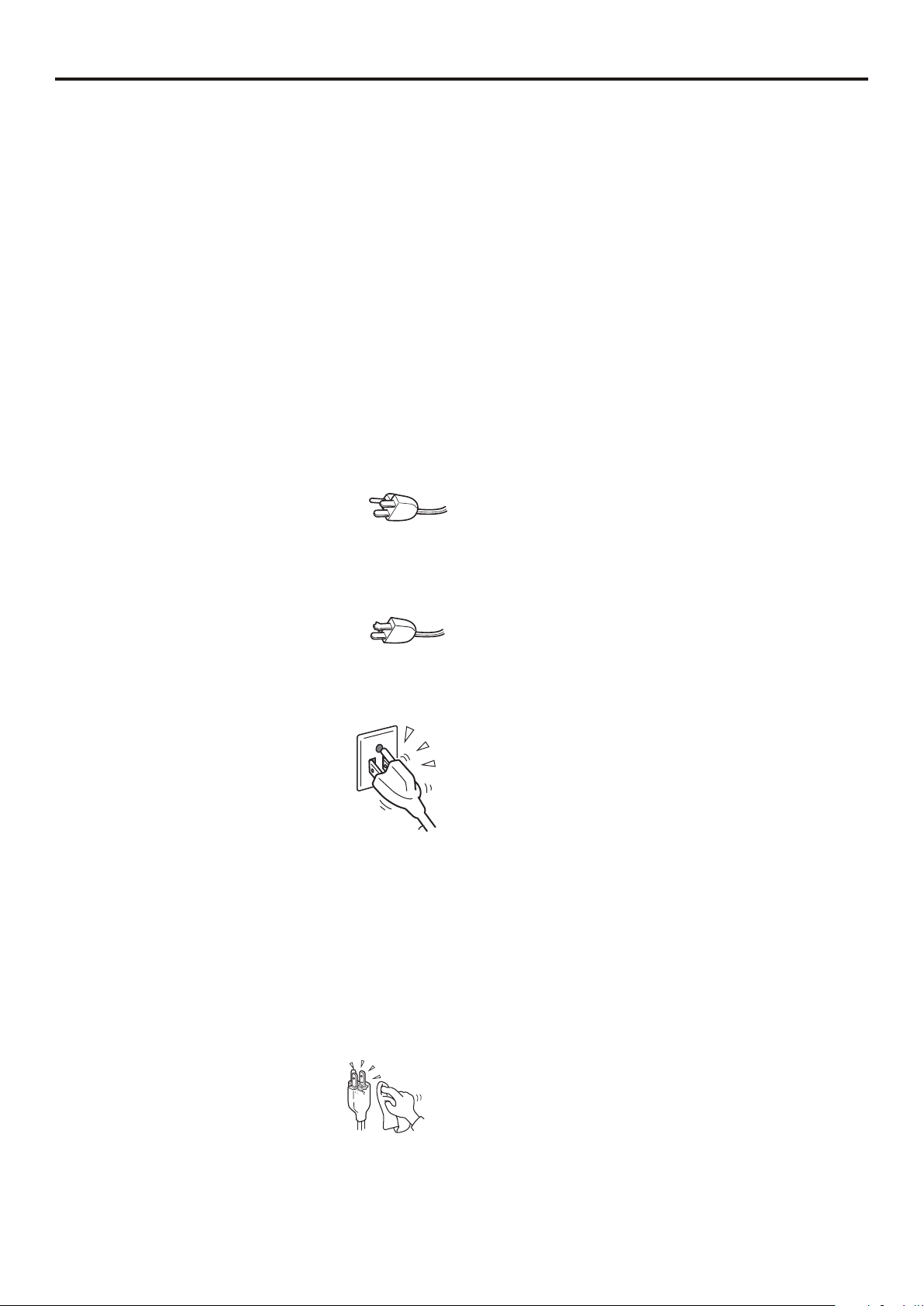

This unit is equipped with a polarized AC power cord plug (a
plug having one blade wider than the other), or with a threewire grounding type plug (a plug having a third pin for
grounding). Follow the instructions below:
For the unit with a three-wire grounding
type AC power cord plug (Class 1 unit)
This unit must be connected to an AC power socket outlet with
a protective earthing connection.
For the unit with a polarized AC power cord plug
This plug will fit into the power outlet only one way.
This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the
plug.
If the plug still fails to fit, contact your electrician to have a
suitable outlet installed. Do not defeat the safety purpose of
the polarized plug by forcing it in.
Wall outlet
Do not use a poor fitting outlet.
Insert the plug fully into the outlet. If it is loose,
it may cause arcing and result in fire. Contact
your electrician to have the outlet changed.
Wiring
For your safety, unplug the AC power cord when wiring
cables.
Electric shock
Do not touch the AC power cord or the unit with a wet hand. If
you plug/unplug the AC power cord from the unit with a wet
hand, it may cause electric shock.
Never attempt to move the unit unless the AC power cord is
disconnected.
Cleaning
= Clean the AC power plug regularly.
= If the plug is covered with dust and it picks
up moisture, its insulation may deteriorate
and result in fire. Unplug the AC power
plug and clean it regularly.
= Unplug the AC power cord when cleaning this unit. If not, it
may result in electric shock.
= Clean the cabinet of the TV with a dry soft cloth. To remove
dust from the screen, wipe it gently with a soft cloth.
= Stubborn stains may be removed with a cloth slightly
dampened with a solution of mild soap and warm water.
Never use strong solvents such as thinner or benzine for
cleaning.
= If using a chemically pretreated cloth, please follow the
instruction provided on the package.
Overloading
Do not overload wall outlets, extension cords or convenience
receptacles beyond their capacity, since this can result in fire
or electric shock.
Power
Always turn the unit off when it is not being used.
When the unit is left unattended and unused for long periods
of time, unplug it from the wall outlet as a precaution against
the possibility of an internal malfunction that could create a fire
hazard.
Sound
If a snapping or popping sound from the TV is continuous or
frequent while the TV is operating, unplug the TV and consult
your dealer or service technician. It is normal for TV’s to make
occasional snapping or popping sounds, particularly when
being turned on or off.
AC Power Cord
If you damage the AC power cord, it may result in fire or
electric shock.
= Do not pinch, bend, or twist the cord excessively. The core
lines may be bared and cut, and cause short-circuit,
resulting in fire or electric shock.
= Do not convert or damage the AC power cord.
= Do not put anything heavy on the AC power cord. Do not
pull the AC power cord.
= Keep the AC power cord away from heat sources.
= Be sure to grasp the plug when disconnecting the AC
power cord. If the AC power cord is damaged, stop using it
and replace with a new one.
Ventilation
The slots and openings in the TV are provided for necessary
ventilation. To ensure reliable operation of the unit, and to
protect it from overheating, these slots and openings must
never be blocked or covered. Unless proper ventilation is
provided, the unit may gather dust and get dirty. For proper
ventilation, observe the following:
= Do not install the unit turned backward or sideways.
= Do not install the unit turned over or upside down.
= Never cover the slots and openings with a cloth or other
materials.
= Never block the slots and openings by placing the unit on a
bed, sofa, rug or other similar surface.
= Never place the unit in a confined space, such as a
bookcase or built-in cabinet, unless proper ventilation is
provided.
= Leave some space around the unit. Otherwise, adequate
air-circulation may be blocked causing overheating and
cause fire or damage the unit.
Heat sources
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
2
Important Safeguards
Do not use this apparatus near water
For example, near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool, and
the like.
Do not use immediately after moving from a low temperature
to high temperature environment, as this causes
condensation, which may result in fire, electric shock, or other
hazards.
Apparatus shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall be placed on
the apparatus.
Entering of objects and liquids
Never insert an object into the product through vents or
openings. High voltage flows in the product, and inserting an
object can cause electric shock and/or short internal parts.
For the same reason, do not spill water or liquid on the
product.
Lightning
Unplug this apparatus during lightning storms or when
unused for long periods of time.
For added protection for this television equipment during a
lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the wall outlet and
disconnect the antenna. This will prevent damage to the
equipment due to lightning and power-line surges.
Servicing
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Replacement parts
In case the product needs replacement parts, make sure that
the service person uses replacement parts specified by the
manufacturer, or those with the same characteristics and
performance as the original parts. Use of unauthorized parts
can result in fire, electric shock and/or other danger.
Attachments
Only use attachments/accessories specified by the
manufacturer. Do not use attachments not recommended by
the manufacturer. Use of improper attachments can result in
accidents.
Damage requiring service
If any of the following conditions occurs, unplug the power
cord from the AC outlet, and request a qualified service
person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid is spilled on the product or when objects have
fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described
in the operating instructions.
Do not touch the controls other than those described in the
operating instructions. Improper adjustment of controls not
described in the instructions can cause damage, which
often requires extensive adjustment work by a qualified
technician.
e. If the product has been dropped or the cabinet has been
damaged in any way.
f. When the product displays an abnormal condition or
exhibits a distinct change in performance. Any noticeable
abnormality in the product indicates that the product needs
servicing.
Safety checks
Upon completion of service or repair work, request the service
technician to perform safety checks to ensure that the product
is in proper operating condition.
Wall or ceiling mounting
When mounting the product on a wall or ceiling, be sure to
install the product according to the method recommended by
the manufacturer. This is a safety feature.
Panel protection
The panel used in this product is made of glass. Therefore, it
can break when the product is dropped or impacted upon by
other objects. Be careful not to be injured by broken glass
pieces in case the panel breaks.
Pixel defect
The panel is a very high technology product, giving you finely
detailed pictures. Occasionally, a few non-active pixels may
appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your
product.
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions
below. An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric light or
power circuits, or where it can come in contact with such
power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.
Antenna Grounding According to the National
Electrical Code, ANSI/NFPA 70
Antenna lead-in wire
Ground clamps
Antenna discharge unit
Electric service
equipment
NEC: National Electrical Code
(NEC Section 810-20)
Grounding conductors
(NEC Section 810-21)
Ground clamps
Power service grounding
electrode system
(NEC Art 250 Part H)
3
Table of Contents
Important Information ..............................................................................................................................1
Important Safeguards...............................................................................................................................2
Table of Contents......................................................................................................................................4
Introducing the TV ...................................................................................................................................6
Remove the TV from the Box............................................................................................................6
Installing the TV ................................................................................................................................6
Carrying or Moving the TV................................................................................................................6
Attach the Speaker to the Display.....................................................................................................7
Remove the Stand ............................................................................................................................7
TV Controls and Connectors .........................................................................................................8
Control Panel ....................................................................................................................................8
Connecting the TV....................................................................................................................................10
Viewing Locked or Blocked Programs ..............................................................................................37
Other Information .....................................................................................................................................38
STOP! To safely remove the television from the box
It’s best to use 2 people to remove the television for
stability.
1. Removecardboard holders from the box.
2. Remove the cardboard; however, keep the wrapping
on the television to protect it while moving.
3. Lift onto installation location as the diagram illustrates.
Select a steady platform with good ventilation to place the TV.
= Keep enough space above and behind the Display.
The TV should be installed near an easily accessible
=
power outlet.
To prevent internal heat buildup, do not block the
=
ventilation openings.
Do not install the TV in a hot or humid place, or in a
=
place subject to excessive dust or mechanical
vibration.
=
Be sure to take measures to prevent the TV from
toppling over and causing injury.
= To obtain the best picture, do not expose the screen to direct illumination or
direct sunlight. It is recommended to use spot lighting directed down from the
ceiling or to cover the windows that face the screen with opaque drapery. It is
desirable to install the TV in a room where the floor and walls are not of a
reflective material.
6 inches
(15 cm)
or more
Carrying or Moving
the TV
Cautions:
Do not install the TV in protruding locations.
=
Do not install this unit in restaurants where oily vapors occur. Dust absorbing
=
oil may enter into the unit and damage the unit.
Do not install this unit outdoors. If the unit is exposed to rain, it may result in fire
=
or electric shock. If the unit is exposed to direct sunlight, the unit may heat up
and cause damage to the unit.
Do not install this unit in a vehicle or hang from the ceiling. Bumping of the
=
vehicle may cause the unit to fall down and cause injury.
Do not install this unit in a ship or vessel. If the unit is exposed to seawater, it
=
may cause fire or damage the unit.
If you install the unit on a non-level surface, the unit may fall or drop and cause
=
injury or damage.
If you place the unit on an unstable surface, the unit may fall and cause injury or
=
damage.
Do not hang anything on the unit. If you do so, the unit may fall from the stand or
=
wall-mount bracket, causing damage or serious injury.
When you move the TV, carry it by two or more people.
=
When you move the TV, hold the upper and bottom frames of the TV, not the
=
speaker.
As the glass surface of the TV has a special coating, be careful to avoid
=
touching the glass surface as far as possible.
When transporting, do not subject the unit to shocks or vibration, or excessive
=
force.
6
Introducing the TV
Attach the Speaker
to the Display
The appearance of the unit
may differ from the actual
one.
To deattach the speaker,
perform the steps in reverse
order.
Remove the Stand
Cautions:
1. Carefully handle the unit during setup and consult authorized service
personnel to ensure successful installation.
2. Before performing work spread cushioning over the base area to lay the
Display on. This will prevent it from being damaged.
3. Disconnect the AC power cord firstly.
Screw the Speaker and the Fixed
board to the unit using the supplied
screws and tighten securely, then
install the two Connecting covers as
the diagram illustrates.
Connect the speaker audio cable
between the speaker terminals on
the unit and the speaker matching
polarity according to the terminals’
color.
Fixed board
Screws
Connecting cover
Fixed board
Screws
Connecting cover
Cautions:
1. Carefully handle the unit during setup and consult authorized service
personnel to ensure successful installation.
2. Before performing work spread cushioning over the base area to lay the
Display on. This will prevent it from being damaged.
3. Disconnect the AC power cord firstly.
1
Rear cover
Take off the rear cover.
Do not remove the stand and
speaker from the Display unless
using an optional bracket to
mount it.
The appearance of the unit may
differ from the actual one.
To attach the stand, perform the
steps in reverse order.
2
Screws
Stand
Loosen the screws on the
Stand to remove the Stand.
3
Replace the rear cover
7
Introducing the TV
TV Controls and Connectors
Control Panel
1
2
ItemDescription
Power Indicator
1
Remote Sensor
2
CH-/CH+
3
VOL-/VOL+
4
5
MENU*
6
POWER
7
INPUT
Receives IR signals from the remote control.
Press to scan through channels. In menu operations, these buttons serve as down/up buttons.
Press to adjust the volume. In menu operations, these buttons serve as left/right buttons.
To access the Menu main page.
Turn the unit on or off.
To display the INPUT source list or to quickly select input source.
VOL-
VOL+
CH+
CH-
3
4
5
MENU
INPUT
6
7
In normal viewing, press the MENU button first time to access the Menu main page.
*
In Menu operations, the MENU button is used to confirm or alter the settings of the selected menu
item, which means it has the same function with the OK button on the remote control unit.
8
TV Controls and Connectors
Connectors
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
RF
COMP ONENT
Y
Y
P
P
b
b
P
P
r
r
Introducing the TV
HDMI
INPUT
D -Sub/D VI
AUDIO INPUT
D-Sub INPUT
( )
PC/DTV INPUT
RS-232
RF
COMPONENT
Y
Y
P
P
b
b
P
P
r
1
2
3
4
5
r
R
R
L
L
12
S- VIDEO
AV
VIDEO
VIDEO
L
L
R
R
2 1
VCR(OUTPUT )
VIDEO
COAXIAL
DIGITAL AUDIO
OUT
USBUP GRADE PO RT
( )
R
L
R
L
S- VID EO
AV
VIDEO
L
R
2 1
ItemDescription
HDMI IN
1
Audio IN for DVI
2
or D-Sub interface
D-Sub IN
3
RS-232 terminal
4
RF IN
5
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital audio/video
interface between this TV and any HDMI-equipped audio/video component, such as a set-top box and
DVD player. HDMI supports enhanced, or high-definition video, plus two-channel digital audio.
Use this audio input when you are using DVI connection or D-Sub connection. A HDMI-to-DVI adapter
is necessary when you are connecting a DVI-equipped device to this TV
Connects to a PC or other Analog RGB devices such as Video Conferencing or Set-top Boxes.
For service only. The user should not use this terminal.
RF input that connects to your cable system or outdoor antenna.
VIDEO
6
R
L
12
7
L
R
8
9
10
11
12
TV Left Side
VCR( OUTPU T)
VIDE O
COAXIA L
DIGITAL AUDI O
OUT
USB UPGR ADE POR T
R
L
()
Component Video
6
IN ½ / Audio IN
S-VIDEO input
7
Composite Video
8
IN ½ /Audio IN
Headphones jack
9
Video/Audio OUT
10
Coaxial Digital
11
Audio OUT
12
USB Port
Connect to your DVD player’s or digital set-top box’s component video (YPbPr) and audio (L/R) jacks.
Component video provides better picture quality than the S-VIDEO or the composite video connections.
Connects to the S-VIDEO output jack of your VCR or other video equipment that has S-VIDEO.
S VIDEO provides better picture quality than the composite video connection.
Connect to the composite video and audio output jacks on your VCR or other video device.
Connects to your headphones. If your headphones do not match the jack, use a suitable plug
adaptor (not supplied).
Connects to your VCR to record programs as desired or connects to hook up a second TV or monitor.
Only analog TV programs, AV1and AV2 input sources can be output through the AV output jacks.
Connects to the digital audio input of a digital audio component.
For service only. The user should not use this port.
9
Connecting the TV
Basic Connections
Overview
Connecting Antenna
System
To display clear crisp pictures, you must connect your TV correctly and choose
the correct display format. It is strongly recommended to connect the cable and
antenna input using a 75-ohm coaxial cable to receive optimum picture quality
signal. A 300-ohm twin lead cable can be easily affected by radio noise and the
like, resulting in signal deterioration. If you use a 300-ohm twin lead cable, keep it
as far away as possible from the TV.
The way in which you connect your TV will vary, depending on how your home
receives a signal (antenna and satellite; cable and cable box).
Do not use an indoor antenna, which is especially susceptible to radio noise.
Disconnect all power sources before making any connections.
For best results, use this connection if you have an antenna system.
Antenna cable
Connecting Cable
System
Be sure to choose [Antenna] before you start Auto Program. See chapter
[Getting Start] for details.
For best results, use this connection if you have a cable system.
CATV cable
Be sure to choose [Cable] before you start Auto Program. See chapter
[Getting Start] for details.
10
Basic Connections
Connecting the TV
Connecting Cable Box
Connecting Digital
Cable Box
For best results, use this connection if you have a cable system and your cable
company scrambles some channels, such as premium channels or all channels
(which requires you to use a cable box).
Connect the CATV cable to the cable box’s input jack. Then use a coaxial cable to
connect the cable box’s output jack to the TV’s RF input jack.
CATV cable Coaxial Cable
OUT
IN
Cable box
Be sure to choose [Cable] before you start Auto Program. See chapter
[Getting Start] for details.
Connect the RF coaxial cable from the CATV to the input of the digital cable box.
Use a component video cable to connect the YPbPr jacks of your digital cable box
to the TV’s component jacks.
Component video connection is necessary to view digital broadcastings in 1080i,
720p, 480i and 480p. This TV displays most format types of picture.
The component Jacks do not provide audio, so audio cables must be connected
to provide sound.
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
RF
COMP ONENT
Y
Y
P
P
b
b
P
P
r
r
R
R
L
L
12
S- VID EO
AV
VIDEO
VIDEO
L
L
R
R
2 1
Component video cable
Digital Cable Box
Audio cableRF coaxial cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
11
Connecting the TV
Basic Connections
Connecting Satellite
Receiver
Connect the satellite antenna cable to the satellite receiver’s SATELLITE IN jack.
Use AV cables to connect the satellite receiver’s AUDIO and VIDEO OUT jacks to
the TV’s AUDIO and VIDEO IN jacks.
TV Right Side
S-VIDEO
cable
Satellite Receiver
Satellite
antenna
cable
Cables are often color-coded
AV cable
to connectors. Connect red to
red, white to white, etc.
If your is not equipped with S-VIDEO, use a VIDEO cable
satellite receiver
(yellow) instead of the S-VIDEO cable.
Connecting Digital
Satellite Receiver
Connect the RF coaxial cable from the satellite dish to the input of the digital
satellite receiver.
Use a component video cable to connect the YPbPr jacks of your digital satellite
receiver to the TV’s component jacks.
Component video connection is necessary to view digital broadcastings in 1080i,
720p, 480i and 480p. This TV displays most format types of picture.
The component Jacks do not provide audio, so audio cables must be connected
to provide sound.
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
COMP ONENT
Y
P
b
P
r
R
L
RF
Y
P
b
P
r
R
L
12
Audio cableRF coaxial cable
Component video cable
Digital Satellite Receiver
12
S- VID EO
VIDEO
L
R
2 1
AV
VIDEO
L
R
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Using External Equipment
Connecting the TV
Introduction
Equipment with HDMI
Connection
You can connect many types of external equipment to your TV, like a DVD player,
VCR, Digital TV tuner, PC, HDMI equipment, game console and camcorder. To
view external source images, select the input source from INPUT on the remote
control unit or on the Display.
Notes and Cautions:
= Disconnect all power sources before making any connections.
= Carefully check the terminals for position and type before making any
connections.
= The packing contents of this TV may not include the cables or adaptors
mentioned in this chapter.
= Refer to your external equipment operation manual carefully before making
connections.
= Loose connectors can result in image or color problems. Make sure that all
connectors are securely inserted into their terminals.
= Refer to your external equipment operation manual for the signal type.
= The illustration of the external equipment may be different depending on your
model.
For best results, use this connection if your equipment has a High-Definition
Multimedia Interface (HDMI).
Use a HDMI cable, connect the equipment’s HDMI OUT jack to the TV’s HDMI IN
jack.
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
RF
COMP ONENT
Y
Y
P
P
b
b
P
P
r
r
R
R
L
L
12
S- VID EO
AV
VIDEO
VIDEO
L
L
R
R
2 1
Equipment with HDMI output
HDMI cable
The HDMI jack provides both video and audio signals, so it is not necessary to
connect the audio cable.
13
Connecting the TV
Using External Equipment
Equipment with DVI
Connection
If you are connecting equipment with DVI connector to this TV, you will need to
use an adapter. You can use a commercial HDMI-to-DVI cable or an HDMI
adapter. Both are available at your local electronics store. When you use the
adapter, you will also need to use separate audio cables for sound as DVI
connector is for video signals only.
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
COMP ONENT
Y
P
b
P
r
R
L
S- VID EO
AV
VIDEO
VIDEO
L
R
2 1
Audio cable
RF
Y
P
b
P
r
R
L
12
L
R
HDMI-to-DVI cable or adapter
Equipment with DVI output
Equipment with Coaxial
Digital Audio
You can use the TV's Coaxial Digital Audio OUT jack to connect a digital audio
device, such as an audio amplifier.
Use an coaxial audio cable to connect the TV’s Coaxial Digital Audio OUT jack to
the device’s Coaxial Digital Audio IN jack.
VCR( OUTPU T)
VIDE O
R
COAXIA L
DIGITAL AUDI O
L
OUT
()
Coaxial audio cable
USB UPGR ADE POR T
TV Left Side
Audio amplifier
LINE
OUT
LINE
L AUDIO R
IN
COAXIAL
AUDIO IN
The Digital Audio OUT jack is available only when a digital TV channel is
received.
14
Using External Equipment
Connecting the TV
Connecting a VCR for
Playing Back
Use AV cables to connect the VCR’s AV output jacks to the TV’s AV input jacks.
If your VCRs have S-VIDEO jacks, for best picture quality, use an S-VIDEO
connection instead of the video cable (yellow) on your combined A/V cable.
Use a S-VIDEO cable to connect the VCR’s S-VIDEO OUT jack to the TV’s SVIDEO IN jack. S-VIDEO does not provide audio, so audio cables must be
connected to provide sound.
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
COMP ONENT
Y
P
b
P
r
R
L
S- VID EO
AV
VIDEO
VIDEO
L
R
2 1
RF
Y
P
b
P
r
S-VIDEO
cable
R
L
12
L
R
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
S-VIDEO
VCR
AV cable
Connecting a VCR for
Recording
The S-video terminal share the same audio jacks with video2 and has priority
over the video2 jack.
Use AV cables to connect the VCR’s AV input jacks to the TV’s VCR output jacks.
VCR for Recording
VCR( OUTPU T)
VIDE O
S-VIDEO
R
COAXIA L
DIGITAL AUDI O
L
OUT
()
USB UPGR ADE POR T
TV Left Side
AV cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Only analog TV programs, AV1and AV2 input sources can be output through
the AV output jacks.
15
Connecting the TV
Using External Equipment
Connecting a DVD
Player with Component
Video Connectors
Use a component video cable to connect the DVD player’s YPbPr jacks to the
TV’s YPbPr jacks.
Use an audio cable to connect the DVD player’s AUDIO OUT jacks to the TV’s
AUDIO IN jacks. Be sure to use the same row of inputs that you used for the video
connection.
Component video cable
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
COMP ONENT
Y
P
b
P
r
RF
Y
P
b
P
r
Audio cable
DVD Player
Connecting a DVD
Player with S-Video
and Audio Connectors
R
R
L
L
12
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
S- VID EO
AV
VIDEO
VIDEO
L
L
R
R
2 1
The YPbPr jacks on your DVD player are sometimes labeled YCbCr, or Y, B-Y
and R-Y. If so, connect the cables to like colors.
Use an AV cable to connect the DVD player’s AUDIO OUT jacks to the TV’s
AUDIO IN jacks.
Use a S-VIDEO cable to connect the DVD player’s S-VIDEO OUT jack to the TV’s
S-VIDEO IN jack.
TV Right Side
S-VIDEO
cable
16
DVD Player
AV cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
If your DVD player is not equipped with S-VIDEO, use a VIDEO cable (yellow)
instead of the S-VIDEO cable.
Using External Equipment
Connecting a PC
Connecting the TV
If you connect your PC to the TV, you can watch your personal computer’s display
on the TV.
When your PC is connected to the TV with the D-Sub cable and audio cable, you
can view and listen to the PC’s video and audio output on the TV.
TV Right Side
HDMI
INPUT
D - Sub/D VI
AUDIO IN PUT
D-Su b INPUT
()
PC/DTV I NPUT
RS-2 32
COMP ONENT
Y
P
b
P
r
R
L
RF
Y
P
b
P
r
R
L
12
D-Sub cable
(analog RGB)
Audio cable
(stereo mini plugs)
To monitor port
(15-pin D-Sub)
To audio output jack
Connecting a Camcorder
or “PlayStation”
S- VID EO
AV
VIDEO
VIDEO
L
L
R
R
2 1
Use an AV cable to connect the camcorder or “PlayStation” AV output jacks to the
TV’s AV input jacks.
Camcorder“PlayStation”
or
TV Right Side
AV cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
17
Connecting the TV
Using External Equipment
Connecting a Second
TV or Monitor
The TV has a special signal output capability which allows you to hook up a
second TV or monitor.
Connect the second TV or monitor to the TV’s VCR output jacks.
See the Operating Manual of the second TV or monitor for further details
regarding that device’s input settings.
VCR( OUTPU T)
VIDE O
Second TV
AV
IN
or Monitor
R
COAXIA L
DIGITAL AUDI O
L
OUT
()
USB UPGR ADE POR T
TV Left Side
AV cable
Cables are often color-coded
to connectors. Connect red to
red, white to white, etc.
Only analog TV programs, AV1and AV2 input sources can be output through
the AV output jacks.
Connecting Headphones
Insert the plug of the headphone into the TV’s Headphone jack.
When using headphones, adjust the headphone volume so as to avoid excessive
levels, as hearing damage may result.
VCR( OUTPU T)
VIDE O
R
COAXIA L
DIGITAL AUDI O
L
OUT
Headphones
()
USB UPGR ADE POR T
TV Left Side
If your headphones do not match the jack, use a suitable plug adaptor.
18
Introducing the Remote Control
Insert Batteries into
the Remote Control
Insert two size AA batteries by matching the and on the batteries to the
diagram inside the battery compartment.
12
Precaution on battery use
Improper use of batteries can result in a leakage of chemicals and/or explosion.
Be sure to follow the instructions below.
= Place batteries with their terminals corresponding to the (+) and (–) indications.
= Different types of batteries have different characteristics. Do not mix batteries
of different types.
= Do not mix old and new batteries. Mixing old and new batteries can shorten the
life of new batteries and/or cause old batteries to leak chemicals.
= Remove batteries as soon as they are non-operable. Chemicals that leak from
batteries can cause a rash. If chemical leakage is found, wipe with a cloth.
= The batteries supplied with the product may have a shorter life expectancy due
to storage conditions.
= If the remote control is not used for an extended period of time, remove the
batteries from the remote control.
Using the Remote
Control
Use the remote control by pointing it towards the remote sensor window of the
set. Objects between the remote control and sensor window may prevent proper
operation.
Cautions regarding use of remote control
= Do not expose the remote control to shock. In addition, do
not expose the remote control to liquids, and do not place in
an area with high humidity.
= Do not install or place the remote control under direct
sunlight. The heat may cause deformation of the unit.
= The remote control may not work properly if the remote
sensor window of the main unit is under direct sunlight or
strong lighting. In such a case, change the angle of the
lighting or TV set, or operate the remote control closer to
the remote sensor window.
This above illustration is for reference only. The remote sensor may be in
different locations on different models.
19
Introducing the Remote Control
Button Descriptions
4
7
9
10
1
2
3
5
6
8
11
12
ButtonDescription
POWERTurn the unit on or off.
1
AUX, DVD,
2
CBL, TV
To select additional products to be controlled
with remote control.
This remote control is an universal remote
control. If your remote control does not work
correctly when you operate the unit, please
try to press TV button.
0-9 number
3
buttons
4
INPUT
Use these number buttons to select channel or
input password.
To display the INPUT source list or to quickly
select input source.
5
Dash (-)
To enter a program number for multiple program
channels such as 2-1,2-2, etc.
FLASHBACK
6
To switch between the currently tuned channel
and the previously tuned channel.
CH+, CH-
7
VOL+, VOL-
8
9
MUTE
To select channels upward or downward.
To adjust volume.
To mute the sound.
13
MTS/SAP
ZOOMCCDSLEEP
LIST
FAVORITE
PIP
P.POSITION SWAP FREEZE
AUDIO
14
10
11
12
13
14
MENU
INFO
▲,▼,
◄, ►,
OK
GUIDE
EXIT
To access the Menu main page.
To access the program guide.
To move upward or downward in menu
operation;
To move left or right in menu operation;
To adjust selected menu item in menu operation;
To confirm or alter the settings of the selected
menu item.
To access the program guide.
To exit menu.
20
Introducing the Remote Control
Button Descriptions
ButtonDescription
15
ZOOM
16
CCD
17
MTS/SAP
To select a screen aspect ratio.
To select closed caption mode.
To select a stereo, sap or mono for analog
channels; also used to select audio track for
digital channels.
18
SLEEP
19
LIST
20
21
FREEZE
22
FAVORITE
To set sleep timer.
To access the master channel list.
To select a preset picture mode.
To freeze current picture.
To access the favorite channel list and select
from 3 different favorite lists.
23
AUDIO
To select a preset sound mode.
15
MTS/SAP
ZOOMCCDSLEEP
16
1718
19
LIST
FAVORITE
PIP
P.POSITION SWAP FREEZE
AUDIO
20
21
22
23
21
Getting Start
Running Initial Setup
Perform the following steps before you press POWER on the remote control to turn on your TV set.
1. Insert the batteries into the remote control unit.
2. Connect the antenna cable to the TV.
3. Plug in the AC power cord to the AC outlet.
After you finish connecting the TV, you can run the Initial Setup to create a list of available analog and digital
channels. The Initial Setup screen appears when you turn on the TV for the first time after purchase. We strongly
recommend you to perform initial setup according to the steps below.
Setting Language
Press ▲/▼ to select the desired language listed on the screen, and then
press OK to confirm and continue.
Setting Time Zone
Press ▲/▼ to select a proper time zone according to your area, and then
press OK to confirm and continue.
If you want to return to previous screen, please highlight [GO BACK] item
and press OK to return.
Setting Daylight Saving
Press ▲/▼ to highlight [Yes] item if you want to observe daylight saving, or
you may select [No] to abandon daylight saving and then press OK to
confirm and continue.
If you want to return to previous screen, please highlight [GO BACK] item
and press OK to return.
Selecting RF Input Source
Press ▲/▼ to select [Antenna] or [Cable] according to what kind of
connection is made with your TV, and then press OK to confirm and continue.
If you choose [Antenna], the TV starts Auto Program automatically.
If you choose [Cable], there are 3 kinds of CATV system, including STD,
HRC and IRC. Select the one matches to your TV. Select [Automatic] when
you do not know which one to select. When you select [Automatic], the unit
automatically detects the type of your cable system. If the unit fails to detect
the type of your cable system, please consult with your cable TV company
about the type of your cable system, and then choose the correct type before
Auto Program.
If you want to return to previous screen, please highlight [GO BACK] item
and press OK to return.
Start Auto Program...
Once you have finished selecting RF input source, the unit starts auto
program.
Auto Program may take a while to complete. A progress bar is displayed
while available channels are being scanned. If you select [Stop Scan] to
cancel the Auto Program before all receivable channels are scanned, you
need to run Auto Program at a later time.
Auto Program will create a list of receivable channels for the current input .
You will be required to run Auto Program for RF input to create a list of
available channels.
Welcome!
Use the Up and Down
arrows on your Remote
Control and Select the
language you want to use
for menus and message
screens.
Press OK to continue in English
English
Français
Español
Time Zone
Use the Up and
Down arrows and
press Select on your
Time Zone.
Scanning may take a few minutes - Please be patient
2.1
2.2
3.0
4.0
4.1
(Example)
22
Getting Start
Setting a Secret Number
For additional protection to your TV and the user's settings from being accidentally changed, we recommend you to
set a secret number firstly as below.
1. Press MENU.................
New PIN
Enter New PIN:
Confirm New PIN:
2. Highlight [Locks]...........
Use or button.
Audio
Settings
Channels
3. Press OK......................
Locks
Press a Number to
enter digit
Guide
The TV allows you to set a secret number when you access the [Locks] menu first time.
You may use 0-9 number buttons to enter a new four-digit secret number, and then confirm the new secret number by
entering it again.
Once the secret number is set successfully, the TV requests you to enter secret number if you are going to:
= Access to the [Locks] menu.
= Scan channels automatically.
= Find channel manually.
= View a blocked program.
= Reset all settings to defaults by using the [RESET ALL] item in [Settings] menu.
The secret number is very important, please keep it carefully. As a precautionary measure, make a note of
your secret number and keep it in a familiar place.
Menu Navigation
1.
2.
3.
4.
Press to display the Main menu.
Press to highlight the menu items.
Picture Settings
Screen Settings
Aspect Ratio
Color Temperature
Cinemotion
3D Comb Filter
Temporal NR
HDMI Conversion
RESET PICTURE
ON
OFF
Press to enter the sub-menu field.
Press to select items in the submenu.
Audio
Settings
Channels
Locks
Guide
Press to adjust the selected items or move the on-screen cursor in the sub-menu.
Press to confirm your operation or alter the settings for some items such as [Cinemotion].
5.
6.
Press to return to previous screen.
Press to return to normal picture.
23
Watching TV
Turning On/Off
Never attempt to move the TV
unless the AC power cord has
been disconnected.
Introducing Channel
Number
Turning On
Firstly, Plug in the AC power cord to the AC outlet.
Press POWER on the TV or pressPOWER on the remote control.
or
The initial setup starts when the TV powers on for the first time. If the TV has been
turned on before, it displays current input signal directly.
Turning Off
Press POWER on the TV or pressPOWER on the remote control.
The TV enters standby mode and the image on the screen disappears.
The TV will still consume some power as long as the AC power cord is still
inserted into the wall outlet.
If you are not going to use this TV for a long period of time, be sure to remove
the AC power cord from the power outlet.
This television is capable of receiving the full range of cable-TV channels
available today, from the most digital and HDTV channels, to the traditional
analog channels.
As the transition toward full digital TV continues, some cable-TV systems in the
USA will have a mixture of analog and digital channels in their lineups. So i
situations the ATSC PSIP channel number is composed of a m
number and a minor channel number.
both analog and digital channels (It is equal to the NTSC channel number for
existing broadcasters). An analog channel usually has a minor channel number
of zero, while a digital channel usually has a minor channel number of 1, 2 or
larger.
The major channel number is same for
n most
ajor channel
Selecting Channels
You can select analog channels in serveral ways.
Method 1 - Using CH+ or CH- on the remote control or on the TV
Press the CH+ or CH- to cycle among all available channels.
Only those channels marked with a tick symbol can be
selected by the CH+ or CH- button.
Method 2 - Using FLASHBACK on the remote control
Press FLASHBACK to switch to the previously tuned
channel.
Press FLASHBACK again to switch back to the currently
tuned channel.
Method 3 - Using 0-9 and OK on the remote control
For analog TV channels
Press the 0-9 number buttons to input a channel number and
confirm with OK to select up to 125 channels for
VHF/UHF/CATV.
24
Selecting Channels
Watching TV
For digital TV channel
Press the 0-9 number buttons and dash(-) to input a digital
channel number, the TV goes to the selected channel directly.
(e. g., channel 8-3, just press 8, - and 3 one by one)
If you enter channel number with 0-9 only (without
pressing OK), channel selection will be made if there is no
operation for a few seconds.
Adjusting Volume
Using FREEZE button
Method 4 - Using master channel list
Press the LIST button to display the master channel list, you
may select channel with the ▲▼and OK buttons.
Method 5 - Using favorite channel list
Press the FAVORITE button to display a desired favorite
channel list, you may select channel with the ▲▼and OK
buttons.
Using VOL+ or VOL- on the remote control or on the TV
Press the VOL+ or VOL- to increase or decrease the volume.
Using MUTE on the remote control
Press MUTE to mute the sound. Press it again to cancel the
mute.
Press FREEZE to temporarily capture a program's picture.
You can use this feature to write down information such as
phone numbers, recipes, etc. You may press any key to
cancel FREEZE and return to normal viewing.
LIST
FAVORITE
FREEZE
Using ZOOM button
The zoom mode options may
differ from different formats of
the input signal.
The TV automatically cancel FREEZE and return to normal viewing in about a
minute.
Press ZOOM repeatedly to choose a proper screen aspect
ZOOM
ratio. The following mode may available for your choice.
Normal
Select to match the source’s image.( 4:3 to 4:3, 16:9 to 16:9)
Normal
Example:
Source
Final
When you choose NORMAL to view a 4:3 program, two black bars keep on
the two sides of the screen.
For additional protection to the screen, when you are viewing a 4:3 program,
please DO NOT use the NORMAL feature for a long period of time.
25
Watching TV
Using ZOOM button
Direct
Select to detects the resolution of the signal and displays an image with the
same number of pixels on the screen.
Direct
Example:
Source
Full Screen
Select to enlarge the 4:3 picture horizontally only, to fill the display area.
Full Screen
Example:
Source
Panoramic
Select to enlarge the 4:3 picture to fill the 16:9 screen, keeping the original
image as much as possible.
Final
Final
Panoramic
Example:
Source
ZOOM 1
Select to enlarge the picture horizontally and vertically to an equal aspect ratio
that fills the wide screen.
ZOOM 1
Example:
Source
ZOOM 2
Select to view wide-screen DVDs in full screen.
ZOOM 2
Example:
Source
Final
Final
Final
26
Adjusting MENU Options
Depending on the signal tuned, you may see different MENU options on your screen. As an example, Menus
displayed below are based on TV mode.
Picture Control
Accessing Picture Menu
1. Press MENU.................
Picture Settings
Screen Settings
Aspect Ratio
Color Temperature
Cinemotion
3D Comb Filter
Temporal NR
HDMI Conversion
RESET PICTURE
ON
OFF
2. Highlight [Picture].........
Use or button.
3. Press OK......................
Audio
Settings
Channels
Locks
Guide
To highlight an option and to change settings, press ▲▼◄ ►. Press OK to confirm the selection or alter the settings.
Press EXIT to exit.
Selecting Picture
Options
OptionDescription
Picture Settings
Select to access a picture adjustment window, see [Adjusting
Picture Settings] on next page.
Screen Settings
Select to access a screen adjustment window for D-Sub or
Component input, see [Adjusting Screen Settings] on next
page.
To quickly change the aspect ratio,
press the ZOOM button repeatedly.
Aspect Ratio
Select to access a window in which you can choose a proper
aspect ratio for 4:3 or 16:9 program. Select from [Normal],
[Direct], [Full Screen], [Panoramic], [ZOOM 1] and [ZOOM 2].
Color Temperature
Cinemotion
Choose from the following color temperatures:
Cool
Neutral
Warm
Select to give the white colors a blue tint.
Select to give the white colors a neutral tint.
Select to give the white colors a red tint.
Select [ON] to optimize the screen display automatically
detecting film content and applying a reverse 3-2 pull down
process. Moving picture will appear clearer and more natural
looking. Select [OFF] to disable the detection.
3D Comb Filter
Select to provides high quality images with minimal dot
crawl and cross color noise. Select from [Off], [Low],
[Medium] and [High].
Temporal NR
(Analog)
HDMI Conversion
RESET PICTURE
Select to reduce the noise level of connected equipment. This
also reduces the noise level to the signal from the RF jack.
Select from [Off], [Low], [Medium] and [High].
Select to change color space for some irregular HDMI signal.
Select [ON] when you find abnormal color while viewing
HDMI programs. Be sure to select [OFF] for normal HDMI
signal.
Select to reset picture settings and adjustments to the
defaults.
Choose among different preset adjustments for
your TV picture
Custom
25
25
25
25
4
OptionDescription
Preset
Select to choose a picture mode to best match environment of
the TV, which can vary due to factors like room brightness,
type of program watched or the type of image input from
external equipment.
Standard
Vivid
Movie
Pro
Custom
Select for a highly defined image in a normally bright room.
Select for enhanced picture contrast and sharpness.
Select for a movie.
Select for a normal picture.
Select to customize the picture as desired.
To quickly change the picture mode, press the PICTURE button repeatedly.
Brightness
Contrast
Saturation
Tint
Sharpness
Select to adjust picture brightness.
Select to adjust picture contrast.
Select to adjust color saturation for current picture.
Select to adjust natural flesh tones.
Select to adjust clarity of outline detail.
Adjusting Screen
Settings
Adjustment Settings
Horizontal
Vertical
Phase
Use left and right arrows to change
horizontal position
0
0
17
Auto Sync
DONE
OptionDescription
Horizontal
Vertical
Phase
Select to adjust horizontal position for the image.
Select to adjust vertical position for the image.
Adjust when characters have low contrast or when the image
flickers.
Auto Sync
Select to automatically adjust the PC image.
The [Screen Settings] window can't be accessed unless the TV works in D-Sub or
Component mode.
In Component mode, the [Auto Sync] item is unavailable.
In Component mode, when the unit receives 480i signal, the [Vertical] item is
ineffective unless its value is larger than 0. Please do not adjust the [Vertical] item to
a negative value.
28
Audio Control
Accessing Audio Menu
1.Press MENU.................
Adjusting MENU Options
Bass, Treble & Balance
Phone Settings
Effects
Auto Volume Control
COAX Out (SPDIF)
Analog Preference
Digital Preference
TV Speaker
RESET AUDIO
OFF
ON
2. Highlight [Audio].........
Use or button.
3. Press OK......................
Audio
Settings
Channels
Locks
Guide
To highlight an option and to change settings, press ▲▼◄ ►. Press OK to confirm the selection or alter the settings.
Press EXIT to exit.
Selecting Audio
Options
OptionDescription
Bass, Treble &
Balance
Phone Settings
Select to access an audio adjustment window.
Bass
Treble
Balance
Select to access a phone settings window. All adjustments in
Adjust to increase or decrease lower-pitched sounds.
Adjust to increase or decrease higher-pitched sounds.
Adjust to emphasize left or right speaker balance.
this window have an effect on the headphone only.
Adjust to increase or decrease phone volume.
Adjust to increase or decrease lower-pitched sounds.
Adjust to increase or decrease higher-pitched sounds.
Adjust to emphasize left or right speaker balance.
Select to turn off the sound effect.
Select for a concert program.
Select for a movie program.
Select for a music program.
Select for a spoken dialog program.
Select to equalize overall volume levels across all channels.
Select to turn off Auto Volume Control.
Select to output audio signal as its original format.
Select to output audio signal by PCM form.
To quickly change the audio mode,
press the AUD I O button
repeatedly.
Effects
Auto Volume Control
COAX Out (SPDIF)
Volume
Bass
Treble
Balance
None
Hall
Theater
Music
Speech
ON
OFF
AUTO
PCM
For analog channels, you may use
the MTS/SAP button to cycle
through the Multi-channel TV
Sound options.
For digital channels, you may use
the MTS/SAP button to quickly
select audio track if available.
Analog Preference
Digital Preference
TV Speaker
RESET AUDIO
Use this item to select a stereo mode as a default mode when
you switch your TV to a analog program. Select from
[Mono], [Stereo] and [SAP].
Mono
Stereo
SAP
Select for mono reception. Use to reduce noise during weak
stereo broadcasts.
Select for stereo reception when viewing a program
broadcast in stereo.
Select to automatically switch the TV to second audio
programs when a signal is received. If no SAP signal is
present, the TV remains in Stereo mode.
Use this item to select a language as a default language when
you switch your TV to a digital program.
Select to turn the TV speakers ON or OFF.
Select to reset audio settings to the defaults.
29
