Audiovox FPE2607DV User Manual

FPE2607DV

26” HD FLAT PANEL LCD TV WITH BUILT-IN DVD PLAYER

OWNER'S MANUAL

FOR ASSISTANCE CALL CUSTOMER SERVICE AT 1-800-645-4994 OR VISIT US AT WWW. AUDIOVOX.COM

PLV31260CS10 / AUDIOVOX I/B 811-312691W030 <English> SIZE : 148 X 210MM MATERIAL : 80g WOODSFREE PAPER

128-8139

Printed in China

811-312691W030

SAFETY PRECAUTIONS

WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to

alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the

presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product contains a low power laser device.

INVISIBLE LASER RADIATION WHEN UNIT IS

OPENED AND INTERLOCKS ARE DEFECTED.

AVOID EXPOSURE T O LASER BEAM.

CAUTION

• DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIV ALENT TYPE.

• TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT OF WALL OUTLET, THEN FULLY INSERT.

• USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED MAY RESULT IN HAZARDOUS RADIA TION EXPOSURE.

WARNING :

• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS UNIT .

• SHOULD ANY TROUBLE OCCUR, DISCONNECT THE AC POWER CORD AND REFER SERVICING TO A QUALIFIED TECHNICIAN.

CAUTION

The symbol for Class II (Double Insulation)

CLASS 1 LASER PRODUCT APPAREIL À LASER DE CLASSE 1

PLACEMENT INFORMA TION

• Do not use this unit in places which are extremely hot, cold, dusty or humid.

• Do not restrict the air flow of this unit by placing it somewhere with poor air flow, by covering it with a cloth, by placing it on bedding or carpeting.

SAFETY INFORMA TION

• When connecting or disconnecting the AC power cord, grip the plug and not the cord itself. Pulling the cord may damage it and create a hazard.

• When you are not going to use the unit for a long period of time, disconnect the AC power cord.

CONDENSATION INFORMA TION

• When left in a heated room where it is warm and damp, water droplets or condensation may form inside the equipment. When there is condensation inside the unit, the unit may not function normally . Let the unit stand for 1-2 hours before turning the power on or gradually heat the room and let the unit dry before use.

RA TING PLATE LOCA TION

The rating plate is located on the rear of unit.

FCC ST A TEMENTS

NOTE: This unit has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is not guarantee that interference will not occur in a particular installation. If this unit does cause harmful interference to radio or television reception, which can be determined by turning the unit off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the unit and receiver.

- Connect the unit into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications to this unit not expressly approved by party responsible for compliance could void the user authority to operate the unit.

E - 1

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM1

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (Including amplifiers) that produce heat.

9) Do not defect the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your wall outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at

MAINTENANCE

plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments / accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CLEANING THE DISC

A defective or dirty disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges.

• Do NOT touch the surface of the unlabeled side of the disc.

• Do NOT stick paper or tape on the surface of the disc.

• Do NOT expose the disc to direct sunlight or excessive heat.

• Clean the disc before playback. Wipe the disc from the center outward with a cleaning cloth.

• NEVER use solvents such as benzene or alcohol to clean the disc.

• Do NOT use irregular shaped discs (for example : heart shaped, octagonal, etc.). They may cause malfunctions.

CLEANING THE UNIT

• Be sure to turn the unit off and disconnect the AC power cord before cleaning the unit.

• Wipe the unit with a dry soft cloth. If the surfaces are extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-and-water solution and wrung out thoroughly. Then wipe it with a dry cloth.

• Never use alcohol, benzene, paint-thinner, cleaning fluid or other chemicals. Do NOT use compressed air to remove dust.

IMPORT ANT NOTE

Before shipping the unit, remove the disc from the disc compartment.

E - 2

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM2

CONTENTS

SAFETY PRECAUTIONS ................................ 1

IMPORTANT SAFETY INSTRUCTIONS

............................................................................. 2

MAINTENANCE ................................................ 2

CONTENTS ....................................................... 3

DISC FORMATS .............................................. 4

ACCESSORIES ................................................ 5

GETTING STARTED ......................................... 5

CONTROL REFERENCE GUIDE ................. 6-9

CONNECTIONS ........................................ 10-14

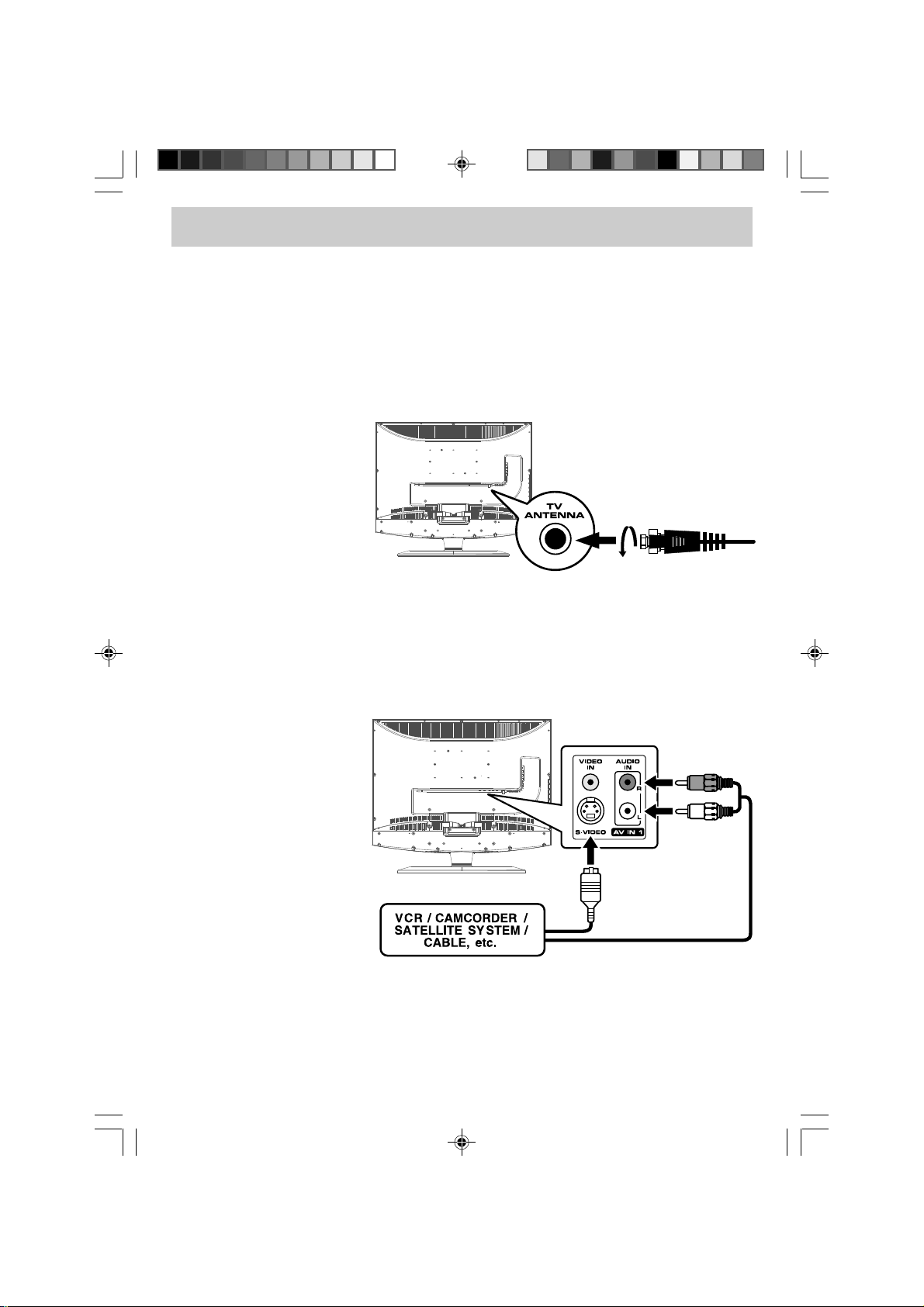

Connecting a TV Antenna / Cable / Satellite

...................................................................... 10

Connecting an A / V Device ........................ 10

Connecting Devices with a Composite (Yellow

RCA-Type) Video Output ........................... 11

Connecting Devices with a Composite (Yellow

RCA-Type) Video Input .............................. 11

Connecting a High Definition (HD) Source

...................................................................... 12

Connecting a PC ......................................... 12

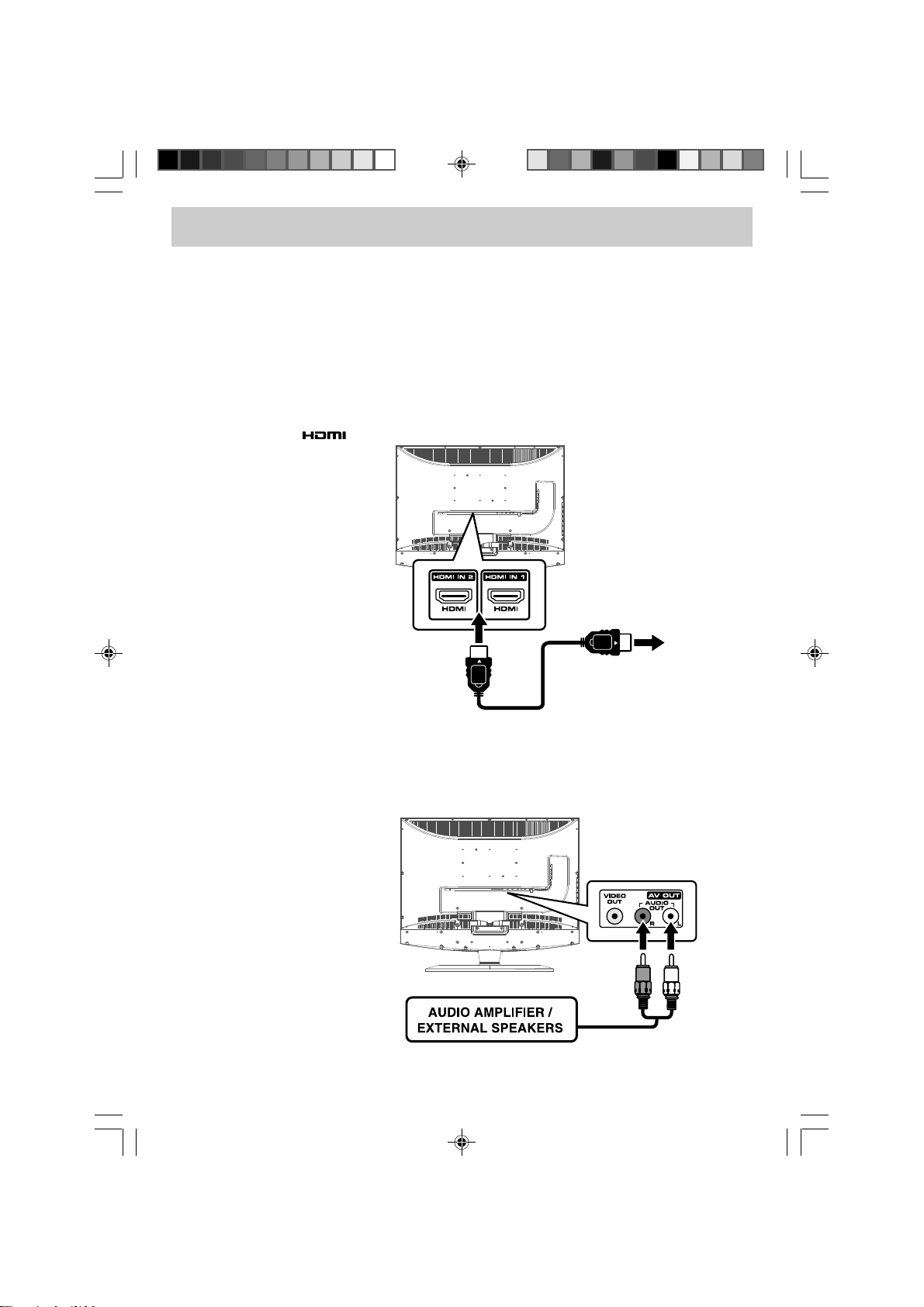

Connecting HDMI ......................................... 13

Connecting an Audio Amplifier .................... 13

Connecting the AC Power Cord ................ 14

USING HEADPHONES ................................... 14

INSTALLA TION ............................................... 15

Removing the Base Stand .......................... 15

Mounting on the Wall .................................. 15

UNIT OPERATION ........................................... 16

SOUND SYSTEM ............................................ 16

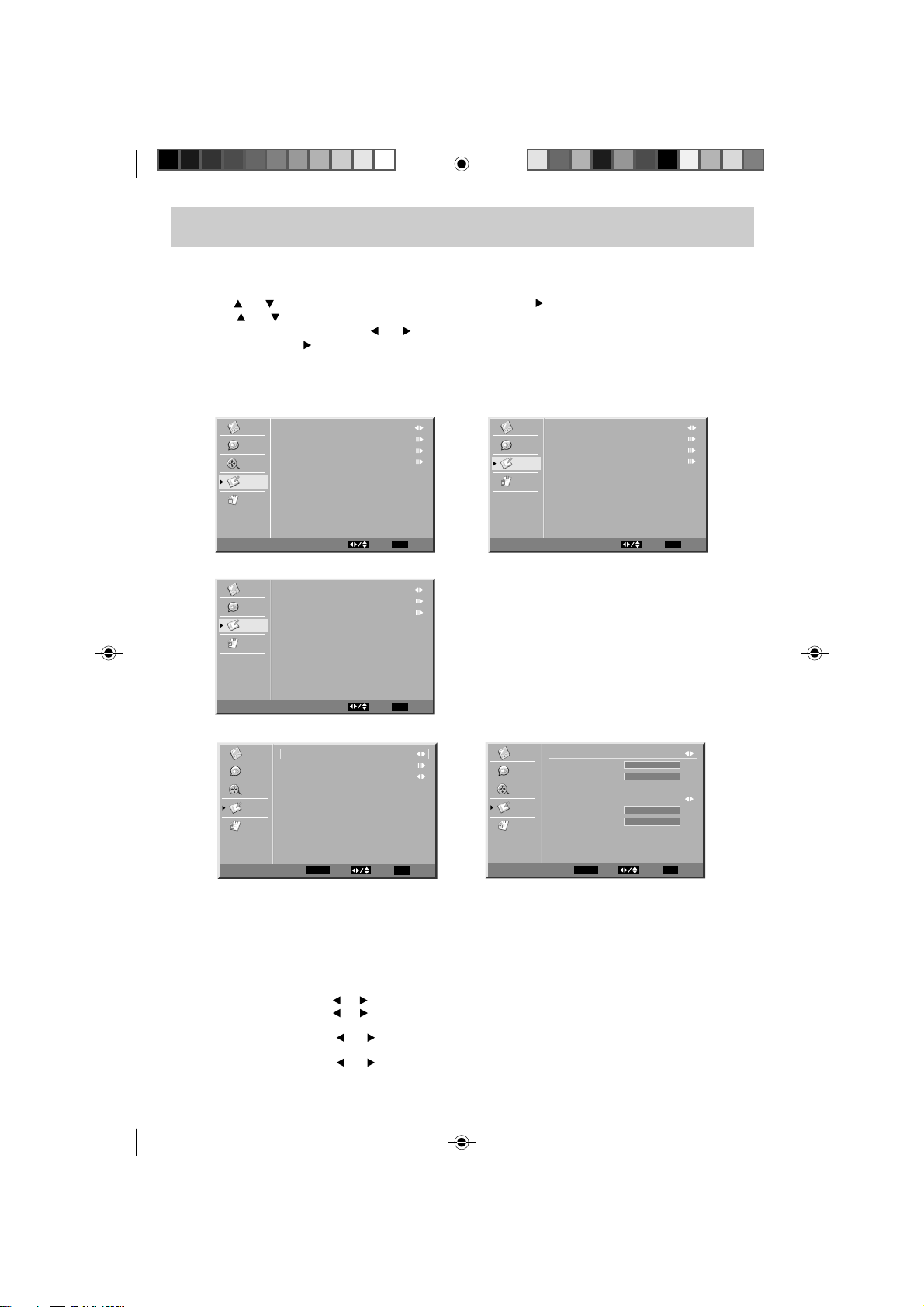

TV SETUP ................................................ 17-22

Video Menu ................................................ 17

Audio Menu ............................................... 18

TV Menu ..................................................... 19

Setup Menu .......................................... 20-21

Parental Menu ..................................... 21-22

PLA YING A DISC ..................................... 23-24

Playing a Disc ............................................. 23

Playing a Picture File Disc ......................... 23

Pausing Playback (Still Mode) ................... 23

Stopping Playback ....................................... 23

Skipping to a Different Track ..................... 23

Fast Forward / Fast Reverse ................... 24

Slow-motion Play (DVD) ............................. 24

Audio Selection (DVD) .............................. 24

Subtitle Selection (DVD) ............................ 24

Angle Selection (DVD) .............................. 24

SPECIAL FUNCTION ...................................... 25

Display ........................................................ 25

Locating a Specific Title (DVD) ................. 25

Locating a Specific Chapter / Track .......... 25

Locating a Specific Time (DVD) ................ 25

REPEAT PLA YBACK ...................................... 26

Repeating a Chapter / Title (DVD) ............. 26

Repeating a Single Track / an Entire Disc (CD)

.................................................................... 26

Repeating a Specific Section (DVD)(CD) ... 26

DVD/CD PROGRAMMABLE PLAYBACK

........................................................................... 27

Title / Chapter Programmed Playback (DVD)

.................................................................... 27

Track Programmed Playback (CD) ............ 27

CUSTOMIZING THE FUNCTION SETTINGS

........................................................................... 28

Language Setup ....................................... 28

Video Setup .............................................. 28

System Setup ........................................... 28

TROUBLESHOOTING GUIDE ....................... 29

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM3

E - 3

DISC FORMA TS

Chapter 1

Titel 1 Titel 2

Chapter 2 Chapter 1 Chapter 2Chapter 3

Track 1 Track 2 Track 3 Track 4 Track 5

NOTES ON COPYRIGHT

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public or rent copyrighted material without permission. Apparatus Claims of U.S. Patent Nos. 4,907,093; 5,315,448 and 6,516,132 licensed for limited viewing uses only. DVDs are copy protected, and any recordings made from these discs will be distorted. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

The unit can play:

DVDs [8cm/ 12cm disc]

Audio CDs [8cm/12cm disc]

CD-R CD-RW

Compatible

REGION MANAGEMENT INFORMA TION

Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.

ICONS USED ON DVDs

Sample Icons:

1. English

2. French

1. English

2. French

Language selections for audio Language selections for subtitles Screen aspect ratio Multiple camera angles Region code indicator

NOTE When playing back a CD-G (Graphics) or CD EXTRA disc, the audio portion will be played, but the graphic images will not be shown.

TITLES, CHAPTERS AND TRACKS

• DVDs are divided into “TITLES” and “CHAPTERS”. If the disc has more than one movie on it, each movie would be a separate “TITLE”. “CHAPTERS” are sections of titles.

• Audio CDs are divided into “TRACKS”. A “TRACK” is usually one song on an Audio CD.

The region number of this equipment is 1.

DISC FUNCTION OR OPERA TION THA T IS NOT A V AILABLE

When the symbol appears on the screen, it indicates that the function or operation attempted is not available at that time. This occurs because the DVD manufacturer determines the specific functions. Certain functions may not be available on some discs. Be sure to read the documentation provided with the DVD.

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM4

NOTE Numbers identify each title, chapter and track on a disc. Most discs have these numbers record on them, but some do not.

NOTES ON UNAUTHORIZED DISCS

You may not be able to playback some DVDs on this equipment if they were purchased from outside your geographic area or made for business purposes.

E - 4

ACCESSORIES

Please check and identify the supplied accessories.

Remote Control (with batteries) ................................................................................................. x 1

GETTING STARTED

USING THE REMOTE CONTROL

• Point the remote control at the remote sensor located on the unit.

• When there is a strong ambient light source, the performance of the infrared remote sensor may be degraded, causing unreliable operation.

• The recommended effective distance for remote operation is about 16 feet (5 meters).

TO INSTA LL BA TTERIES

1. Open the battery door. 2. Insert 2 “AAA” batteries.

BA TTERY REPLACEMENT

When the batteries become weak, the operating distance of the remote control is greatly reduced and you will need to replace the batteries.

CAUTION:

Danger of explosion if battery is incorrectly replaced.

NOTES

• If the remote control is not going to be used for a long time, remove the batteries to avoid damage caused by battery leakage corrosion.

• Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteries.

• Always remove batteries as soon as they become weak.

• Weak batteries can leak and severely damage the remote control.

• WARNING : Do not dispose of batteries in a fire. Batteries may explode or leak.

WARNING : Do not dispose of batteries in a fire. Batteries may explode or leak. Many universal remote controls have a “learning” feature. We recommend you use that feature to

program the remote control. For any questions or problems related to programming a universal remote control, you must contact the

customer service department of the universal remote control manufacturer for assistance, or refer to the instructions included with the universal remote control. We cannot offer assistance in programming universal remote controls.

E - 5

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM5

CONTROL REFERENCE GUIDE

REMOTE CONTROL

1 2

3 4

8 9

10 11

12 13

14 15

1. STANDBY / ON button

Press to turn ON the unit or put it in STANDBY (OFF) mode.

2. TV button

Press to switch to TV mode.

DVD button

Press to switch to DVD mode.

AV button

Press to switch to source connected to AV1 / AV2 (composite) input.

HD button

Press to switch to source connected to YUV in / HDMI 1 / HDMI 2 (component) inputs.

3. Number (0 - 9) buttons

4. • [dot] button

Use to enter digital sub-channels. (i.e.

11.3 or 12.7)

5. MENU button

Press to display the on-screen TV menu.

REPEAT

6. VOLUME (- / +) buttons

Press to adjust the volume level.

7. CURSOR (

Press to highlight selections on a menu screen and adjust certain settings.

ENTER button

Press to confirm selections on a menu screen.

8. / buttons

: Fast reverse playback.

: Fast forward playback.

9. PREV button

Press to select previous chapters or tracks on a disc.

10. SUBTITLE button

Press to select one of the subtitle languages programmed on a DVD.

11. ANGLE button

Press to switch the camera angle of the video presentation when scenes with multiple camera angles are recorded on a DVD.

12. TITLE button

Press to show the Title menu.

13. GOTO button

Press to skip directly to a specific location on a DVD/CD.

14. MEMORY button

Press to set predetermined playback.

CLEAR button

Press to clear input selections.

15.MTS button

Press to switch between MONO sound, STEREO sound and Secondary Audio Program (SAP).

CC button

Press to activate the Closed Captioning feature. This function only works on programs broadcasted with captions.

16. EXIT button

Press to exit the TV SETUP menu and return directly to normal viewing.

SLEEP button

Press to set the SLEEP timer. The unit will remain on for the time that is set, and will automatically shut off afterwards.

E - 6

, , , ) buttons

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM6

CONTROL REFERENCE GUIDE

REMOTE CONTROL

21 22

23 24

REPEAT

17.FUNCTION button

Press to switch between TV / AV 1 / A V 2 / YUV in / DVD / HDMI 1 / HDMI 2 / PC in.

18. LAST CH button

Press to switch repeatedly between the last two channels displayed.

19.MUTE

Press to turn off the sound.

20.CH / CH buttons

Press / to change the channels.

21. NEXT button

Press to select the next title, chapter or track on a disc.

button

25 26

27 28

22.

button

Press to stop playing a disc. Press to go to a folder list of picture file list.

PLA Y button

Press to start and resume playback of a disc.

PAUSE button Press to pause playback and single frame advance.

23. AUDIO button

Press to select audio soundtracks on a DVD or change the output mode of a CD.

24. SLOW button

Press to perform slow forward playback of a DVD.

25. DVD MENU button

Press to enter the main menu of the DVD.

26. SETUP button

Press to enter and exit the SETUP menu of the DVD.

27. REPEAT A-B button

Press to perform point-to-point repeat playback on a DVD or CD.

REPEAT DISC button

Press to repeat a chapter or title of a DVD. Press to repeat a single track or whole CD.

28. DISPLAY button

Press to change disc status information displayed on the screen.

SOUND button

Press to select from preset sound settings to match the type of show you are watching. (Standard / Personal / Theater / Voice / Music)

29. LCD MODE button

Press to set size of LCD display.

PICTURE button

Select from preset screen display settings to match the type of show you are watching. (Personal / Soft / Movie / Standard / Dynamic)

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM7

E - 7

CONTROL REFERENCE GUIDE

FRONT & SIDE VIEWS

1. STD.BY / ON button

Turns the unit on and off.

2. MENU button

Enters the on-screen TV menu.

3. FUNCTION button

Selects TV / AV 1 / AV 2 / YUV in / DVD / HDMI 1 / HDMI 2 / PC in.

4. CH buttons Confirms selections on the TV menu screen and changes the TV channels.

5. - VOL + controls

Adjusts the volume level.

6. Removable stand

7. Color LCD screen

8. PLA Y button

Starts and resumes playback of a disc.

STOP button

Stops playing a disc.

PAUSE button Pauses playback and single frame advance.

PREV button

Goes back to previous chapters / tracks. Performs fast reverse playback.

NEXT button

Advances chapters / tracks. Performs fast forward playback.

OPEN / CLOSE button

Opens and closes the disc door.

9. Remote sensor

Receives the remote control signal.

Standby indicator

10. Speaker

11. DVD door

E - 8

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM8

REAR VIEW

CONTROL REFERENCE GUIDE

20 21 22

12.AUDIO IN (Left/Right) jacks (A V IN 2)

13.VIDEO IN jack (A V IN 2)

14.VIDEO IN jack (A V IN 1)

15.Headphones jack

16. TV ANTENNA terminal

17.AUDIO IN (Left / Right) jacks (A V IN 1)

18.S-VIDEO IN jack (A V IN 1)

19.AUDIO IN (Left / Right) jacks (YUV IN)

14 15

17 18

20.VIDEO / AUDIO OUT (Left / Right) jacks (AV OUT)

21. PC IN MONITOR / VGA jack

22.AC Power Cord

23.HDMI jacks (HDMI IN 1 / HDMI IN 2)

24. PC IN AUDIO jack

25. Component Video input (Y / PB / PR) jacks (YUV IN)

PLV31260_ib_eng_1-16_AUD.pmd 9/13/2007, 3:33 PM9

E - 9

+ 21 hidden pages
