Operating Instructions

Model No.: FPE2005

20” LCD TV

For assistance, please call: 1-800-619-3848

Or visit us at http://www.audiovox.com

128-7354

Congratulations on your purchase of this LCD TV.

We recommend that you read this manual thoroughly before use to fully enjoy the many functions and excellent features of this unit.

Keep this manual in an easily accessible location for future reference.

Note:Screen displays and illustrations in this manual may differ from the actual model.

Contents Index

Overview 3 Important safety information 4 Important safety cautions 5 Accessories 7 Identification of controls 8

Control buttons 8 Back 9

Remote control 10 Installation 12 Basic operations 19 Main on-screen-display (OSD) introduction 20

Operations 21

Picture adjustment 21 System setting 22 Audio setting 27 Channel setting 29 Selecting channel 31 OSD setting 32 Timer setting 33

Operations in YbPr mode 34 TV troubleshooting 36 Notices 40 Maintenance/repair 41 Specifications 42

Overview

General Description

This Audiovox product is a Color Active Matrix liquid Crystal Display (LCD) with an integral Cold Cathode Fluorescent Lamp (CCFL) backlight system. The matrix employs a Thin Film Transistor (TFT) as the active element. This TFT-LCD has a 20.1 inch diagonally measured active display area with a native 640x480 pixel resolution. Each pixel is divided into red, blue, and green sub-pixels which are arranged in vertical stripes. The color palette is capable of more then 16.7 million colors.

This Audiovox product incorporates a tilt stand that can be removed for easy wall mounting. The wall mounting compatibility of this product is completed by incorporating a VESA 100 wall mount standard bolt configuration. A separate VESA 100 compatible wall mount kit will be required to properly secure the unit to the wall.

This units has a great viewing angle allowing the unit to be seen at almost any viewing angle with minimal loss in picture quality. The high brightness and contrast ratio will make this TV a pleasure to watch.

Important Safety Information

The lightning flash with the arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “DANGEROUS

VOLTAGE” within the product’s enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The Exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (Servicing instructions in the literature accompanying the product).

Federal Communication Commission

This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications If this equipment does cause or receive interference, which can be determined by turning equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the TV antenna  Increase the separation between TV and other equipment.  Connect TV into separate outlet from equipment.

Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment

Important Safety Cautions

When any unusual situation occurs, turn off the power supply at once and remove the plug from the wall outlet. Contact a qualified service department in your local area.

Do not expose this unit in the rain or spatter by liquid. Do not use this product near water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.

Heat sources-Keep the product away from heat sources such as radiators, heaters, stoves and other heat generating products (including amplifiers). Requirement of environment temperature:

o o o o

0 C~50 C for storage; 5 C~40 C for working

The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a trolley, stand, tripod, and bracket or table recommended by the manufacturer or sold with the product.

Important Safety Cautions

When relocating the product placed on a trolley, it must be moved with the utmost care. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley.

The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product. Powersupply cords should be routed so that they are not likely to be walked on or snagged by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product. If the power cord or the plug is damaged contact a qualified service department for service.

Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

High Voltage exists in this TV set. Do not remove the cover. In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

Don't try to push anything into the cabinet or place any vessel with water on the TV set.

For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

Important Safety Cautions

Important Information Regarding use of Video Games, Computer, captions or other fixed images displays

The extended use of a fixed image program material can cause permanent “Shadow Image” on the LCD panel. The background image is viewable on normal programs in the form of stationary fixed images. This type of irreversible LCD panel deterioration can be limited by observing the following steps:

* Reduce the Brightness and Contrast settings to a minimum viewing level * DO NOT display the fixed image for extended periods of time * Turn the power OFF when not in actual use

Recycling

This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance Environment at: http://www.eiae.org/

Accessories

1.. FPE2000 TV unit

2.. Power adaptor (AC/DC)

3.. AC Power cord

4.. Remote Control (Model Specific)

5.. Batteries

6.. Audio/Video cable (RCA)

Identification of controls

Control buttons

Control Panel

SOU RCE MENU

CHCH VOL VOL

Power On/

Select Input Signal

Speaker

Channel Down/Up

Standby

Volume Down/Up

Speaker

Remote Sensor Power Indicator

1. SOURCE

To access the SOURCE select menu

2. MENU

Press this button to access the MENU main page.

The Power Indicator light will glow yellow when the set is turned on, and glows red when the set is in the standby mode.

3. CH +/-

Change the TV channel. In OSD Menu, press these buttons to choose the OSD items.

4. VOL +/-

Increase or decrease the sound volume level. In OSD Menu, press these buttons to adjust the value or setting of each item

5. POWER ( )

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

Note:

SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the

corresponding buttons on the remote control. This operation manual provides a description based on operating functions with the remote control.

Identification of controls (continued)

Back

DC 12V

PC AUDIO

LRY

PHONE

VIDE O VIDE O

AUDIOAUDIO AUDIO

L LR R

AV OUT AV INHDTV IN

S VIDEO

1. DC POWER input

Connect to the DC output of the Power Adapter.

2. HDTV input (Y, Pb, Pr, Audio L, R)

Connect to the Y/Pb/Pr (or Y/Cb/Cr) and audio output jacks of a Set-Top Box or DVD player.

3. Headphone 3.5mm jack

4. AV outputs (Video, Audio L, R)

Connect to the VCR input jacks to record programs.

5. AV inputs (Video, Audio L, R)

Receive video/audio signals from external sources such as VCR or DVD player.

6. S-Video input

Receive a S-Video signal from external source such as VCR or DVD player.

7.Coaxial cable & Antenna input

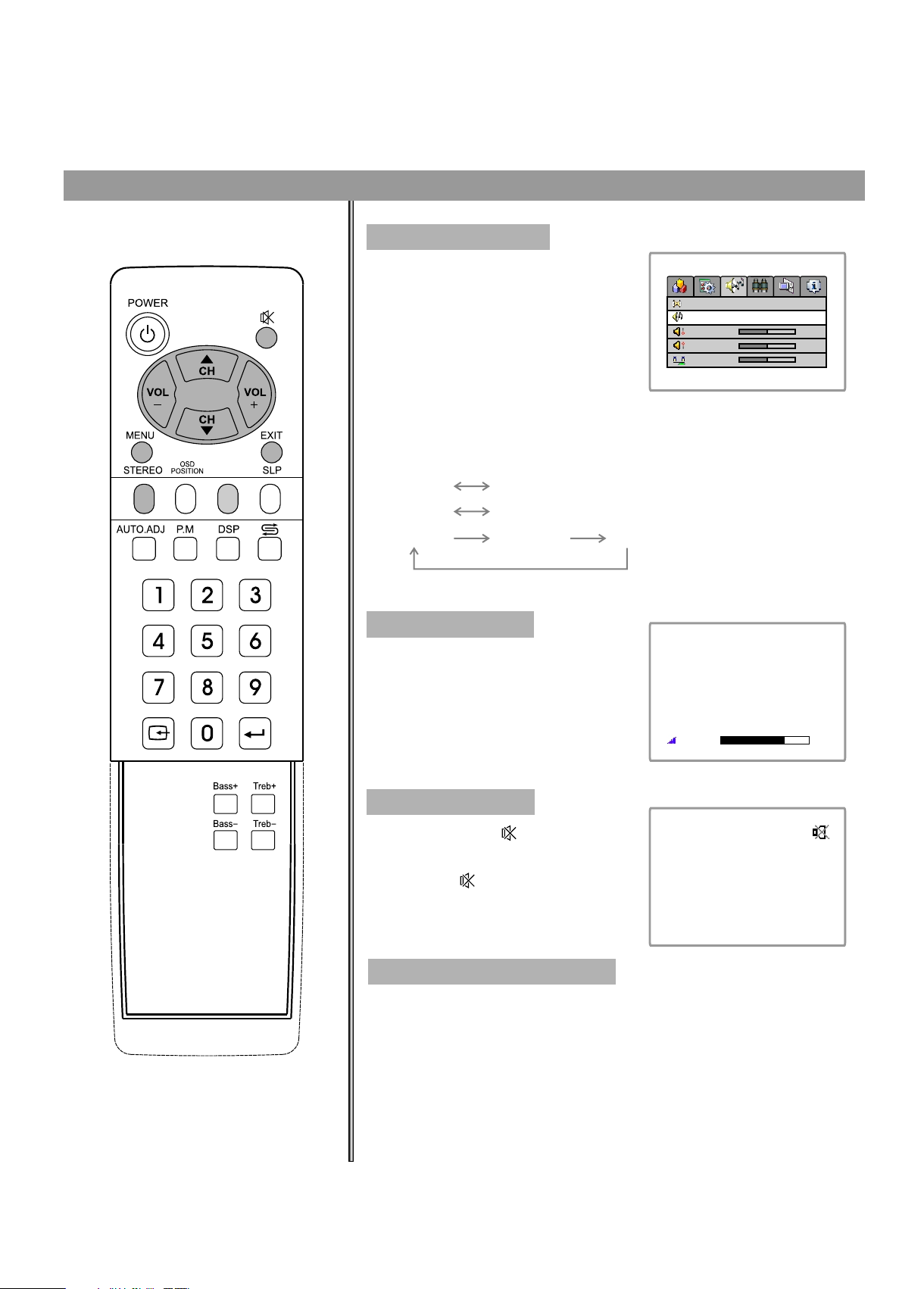

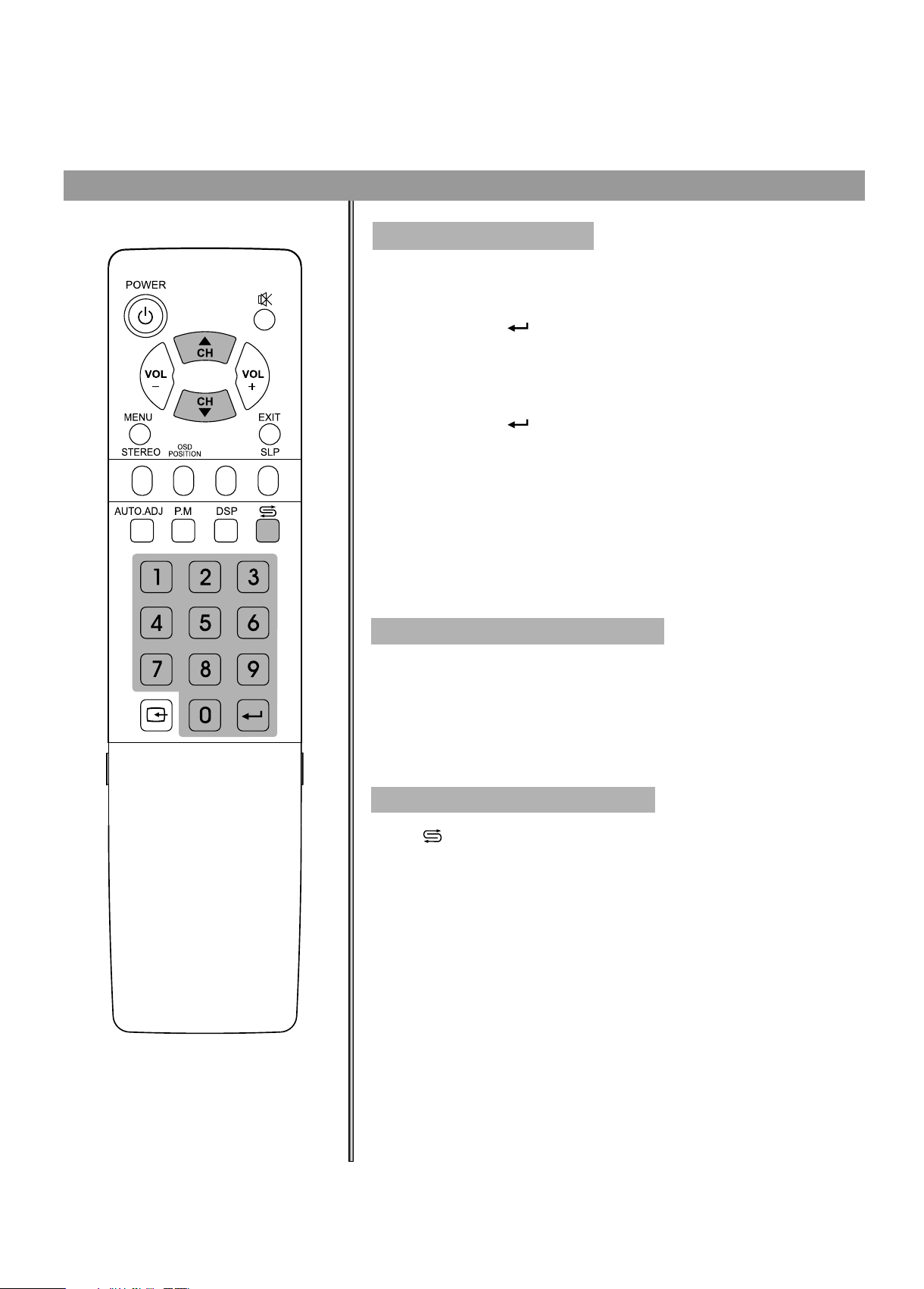

Remote Control

Power on/standby

Volume up/down selector;

In the menu operation,

adjust the selected item

Access the menu

Select OSD menu position

Change audio to mono, stereo or SAP

Auto correct picture

Select picture mode between Bright, Nature, Soft & User

Select the input signal source

Mute

Channel up/down selector. In menu operations, used to select item.

Exit the menu

S.M

Sound preset mode selector

Setting sleep timer

Previous channel Display the current state

Direct channel selector

Adjust the bass

Adjust the treble

Flip the cover open in the arrow direction.

Preparing the Remote Control

Please install the batteries before using the remote control.

Batteries for the Remote Control

If the remote control fails to operate the LCD TV functions, replace the batteries in the remote control.

Open the battery cover.

<(Slide the cover while

pressing down.)

<(Place the batteries with their

terminals corresponding to the (+) and (-) indications in the battery compartment.)

Effective range of the remote control

Insert two size-AAA batteries.

Not es:

1.When the remote control will not be used for a

long period of time or when the batteries are

worn out, remove the batteries.

2.Do not drop or dampen the remote control.

Replace the cover and slide

in reverse until the lock snaps.

3.Do not disassemble the remote control.

4.There should be no obstacle between the TV

and the transmitter.

5.Use the remote control within the effective

range as shown in the figure on the left.

6.If the remote control does not work, please

check whether the batteries are exhausted or

if they have been installed properly.

7.When direct sunlight, and incandescent

lighting, fluorescent lamp or any other strong

light shines on the remote sensor of the TV,

the remote operation can be come erratic.

8.Do not mix different types of batteries in the

remote.

Install the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable

Installation

viewing.

Antenna connections

OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)

Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see the next page.

Combination VHF/UHF Antenna (Single 75 Ohm cable

or 300 Ohm twin-lead wire)

VHF/UHF

Ohm

75 OHM

Connect the 75 Ohm cable from combination VHF/UHF antenna to the antenna jack.

If your combination antenna has a 300 Ohm twin-lead wire, use a 300-75 Ohm matching transformer (NOT SUPPLIED).

Combination VHF/UHF Antenna (Separate VHF and

UHF 300 Ohm twin-leads)

UHF 300 Ohm UHF 300 Ohm

Combiner

VHF 300

Ohm

Connect the UHF twin-lead wire to a combiner (NOT SUPPLIED). Connect the VHF twin-lead to a 300-75 Ohm matching transformer (NOT SUPPLIED). Attach the transformer to the combiner. Attach the combiner to the antenna jack.

Combiner

VHF 75 Ohm

Connect the 75 Ohm cable from the VHF antenna and the UHF antenna twin-lead wire to a combiner (NOT SUPPLIED). Attach the combiner to the antenna jack.

NOTE: If your VHF antenna has a twin-lead wire use a 300-75 Ohm matching transformer, then connect the transformer to the

Installation

Cable (CATV)/satellite connections

This TV has an extended tuning range and can tune most cable channels without using a Cable TV converter box. Some Cable TV companies offer "premium pay channels" in which the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the cable company.

FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE

For basic cable service not requiring a converter/descrambler box, connect the CATV 75 ohm coaxial cable to the VHF/UHF jack on the rear of the TV.

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE OR SATELLITE

If you subscribe to a satellite service or a cable TV service which requires the use of a converter/ descrambler box, connect the incoming 75 Ohm coaxial cable to the converter/descrambler box. Using another 75 Ohm cable, connect the output of the converter/descrambler or satellite box to the antenna jack on the TV. Follow the connections shown below. Set the TV/VCR to the output channel of the converter/descrambler or satellite box (usually 3 or 4) and use the converter/descrambler or satellite box to select channels.

INCOMING 75 Ohm CATV CABLE

CONVERTER/DESCRAMBLER

OR SATELLITE BOX (NOT SUPPLIED)

75 Ohm CABLE TO TV/VCR

FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE

WITH SCRAMBLED PREMIUM CHANNELS

If you subscribe to a satellite service or a cable TV service in which basic channels are unscrambled and premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B switch box (available from the cable company or an electronic supply store). Follow the connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled channels on your TV. With the switch in the "A" position, tune your TV to the output of the converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to tune scrambled channels.

INCOMING 75 Ohm CATV CABLE

CONVERTER/DESCRAMBLER

(NOT SUPPLIED)

75 Ohm

CABLE

SPLITTER

(NOT SUPPLIED)

A/B SWITCH

(NOT SUPPLIED)

Installation(continued)

Power connection

Household power outlet

Power cord

Connect to the DC input socket of the back of the

AC adapter

product. Be sure to fully insert plug into the connection and confirm it is secure.

1. Connecting the female plug to the AC socket on AC adapter.

2. Connecting the AC adapter to the DC power input of the set.

3. Connecting the male plug to the wall outlet as illustrated.

Note:

Always turn off the Power to the LCD TV when connecting the AC adapter.

< <This product should only be operated with the type of power source marked on the lable on the

unit.

<Always unplug the AC adapter from the product and power outlet when the LCD TV is not in use for

an extended period of time of time.

<The illustration of power cord and power outlet is only for your reference and may vary depending

on your area.

Installation(continued)

Elevation adjustment

You can adjust the angle of the LCD TV as follows. The elevation can be adjusted from -5 to +10 average.

-5

o o

Installation(continued)

Notes about connection

1. Carefully check the terminals for position and type before making any connections.

2. Loose connectors will result in image or color problems. Make sure that all connectors are securely inserted into their terminals.

3. When connecting an external device, turn off the power of the main unit first to prevent any possible damage.

Connecting the Video/Audio equipment

You can connect the unit to a DVD or VCR to enjoy playback with high quality picture and sound.

Please refer to the instruction manual of the equipment to be connected.

Composite Video signal connection

Connect the composite video signal terminal on the TV to the output of AV equipment through composite cable. If you select the video signal, please set the input signal source of LCD TV to AV mode.

DC 12V

VCR, DVD etc.

(NOT SUPPLIED)

PHONE

LRY

Yellow (video)

White (audio, L)

Red (audio, R)

To video output

To audio outputs

To S-VIDEO output

VIDE O VIDE O

AUDIOAUDIO AUDIO

L LR R

AV OUT AV INDTV IN

To video input

To audio inputs

S VIDEO

To S-VIDEO input

Note: Composite video is the most common used signal, but the picture quality is not as high as S-video.

S-VIDEO Signal Connection

Connect the S-video terminal on the TV to the output of AV equipment using a S-video cable. If you select S-video signal, please set the input signal source of LCD TV to SVIDEO mode.

S-Video is a signal format which transfers the color and brightness of the picture with higher quality than a

Installation(continued)

AV OUT connection

DC 12V

Yellow (video)

White (audio, L)

Red (audio, R)

DTV IN

PHONE

LRY

To video output To audio outputs

VIDE O VIDE O

AUDIOAUDIO AUDIO

L LR R

AV OUT AV IN

S VIDEO

To video input

To audio inputs

VCR for recording

(Not Supplied)

AV OUT

AV IN

AUDIO

S VID EO

RLVIDE O

ANT INANT OUT

Audio amplifier (Not Supplied)

Rear of the VCR

How to connect:

Connect the video/audio output terminals on the TV set to the signal input terminals of the VCR equipment or the video/audio input terminals on other TV set through a video/audio cable.

Connect the audio output terminals on the TV set to the Audio amplifier through audio cable.

How to record the TV program:

1. Connect cables as shown above.

2. Turn on the LCD TV and select source.

3. Turn on the VCR and insert the tape.

4. Select the video input from the VCR menu that corresponds to the AV in on the VCR.

5. Press the “RECORD” button to begin recording.

How to enjoy high quality sound by Audio amplifier:

1. Connect cables as shown above.

2. Turn the volume of the Audio amplifier to minimum.

3. Turn on the LCD TV and select source.

4. Connect the RCA (Red/White) cable from the TV AV OUT to the AUX input on the back of the Audio Amplifier.

5. Set the Audio Amplifier to AUX INPUT.

6. Turn on the audio amplifier and adjust for a proper volume.

Installation(continued)

YPbPr input connection

Please connect the YPbPr input terminals on the TV set for better picture quality. And connect the audio outputs with the corresponding audio input terminals on the TV set.

If you select YPbPr signal, please set the input signal source of the LCD TV to YPbPr / YCbCr mode.

DC 12V

DTV IN

LRY

PHONE

VIDE O VIDE O

AV OUT AV IN

AUDIOAUDIO AUDIO

L LR R

S VIDEO

Yellow (video)

white (audio L)

red (audio R, Pr)

Green (Y)

Blue (Pb)

RRRRGG BB

Video cable

Audio cable

RRGG BB

Set-Top Box, DVD player, etc.

HDT V OUT

AUDIO

R L VIDE O

AV OUT

AUDI O

S VID EO

ANT

AUDIO

(Not Supplied)

Rear of the STB, DVD

Notes:

The Y, Pb, Pr outputs on your DVD player are sometimes labeled Y, Cb, Cr. If so, connect the cables to like colors.

Basic Operations

S.M

Turning on

1 Connect the power correctly, then the red indicator lights up and the

unit is in STANDBY mode. (See Page 14.)

2 Press the POWER ( )button on the remote control or on the unit to

turn on the TV set.The indicator LED will turn to yellow.

Turning off

With the power on, press the POWER ( ) button to turn off the TV and

put the TV in STANDBY mode, the indicator LED will turn to red.

If you want to turn off the power completely, unplug the power cord from the wall outlet.

Note: Do not switch the on/off state of the unit quickly. The interval of the turning on and turning off should be more than 5 seconds.

Selecting input signal

1 Press the SOURCE button on the unit or

button on the remote control. The screen displays the menu as shown on the right.

2 Press CH5/6 to highlight your desired

input signal source. Press VOL+/- or wait for about 4 seconds and the desired signal source will be selected.

SOURCE

SVIDEO

YPbPr/YCbCr

Note: All buttons shown in the manual are located on the

remote control unless otherwise indicated.

Main On-Screen-Display (OSD) introduction

1 Press MENU button to display menu screen. 2 Press VOL+/- to select the menu. 3 Press CH to access the menu. 4 Press CH to select the item.

6 5/6

5 Press VOL+/- to adjust the item.

6. Press EXIT button twice to exit the menu.

TV/AV/S-VIDEO MODE

Picture Setting Menu

brightness

contrast

color

sharpness

tint

System Setting Menu

blue screen

backlight

ccd mode settings

V-chip settings

CC 1

- - - -

Audio Setting Menu

SRS

MTS

bass

treble

balance

on off

mono stereo SAP

YPbPr/YCbCr MODE

Picture Setting Menu

brightness

contrast

color temp

customer temp setting

5000K

7300K

9300K

user

Picture Position MENU

h position

v position

phase

frequency

866

Audio Setting Menu

SRS

bass

treble

balance

off

Channel Setting Menu

channel number

antenna/cable antenna cable

add/erase

fine tune

channel search

add erase

OSD Setting Menu

language

OSD position

OSD background

OSD timeout

English

opaque

30 seconds

translucent

Signal Information Menu

video type: 650 X 462/60Hz mode: 3

Note: in AV/S-VIDEO mode, Channel Setting menu can not be accessed and there is no MTS menu item in Audio Setting menu.

System Setting Menu

sleep time

Back light

minutes20

OSD Setting Menu

language

OSD position

OSD background

OSD timeout

English

opaque

30 seconds

translucent

Signal Information Menu

resolution: 640 X 480/60Hz mode: 40

Note: in YPbPr/YCbCr mode, there are no color temp and customer temp setting menu items in Picture Setting menu.

Operations

Picture adjustment

Access Picture Setting menu

by pressing MENU.

S.M

Press CH5/6to select the item

that you want to adjust.

Pr e ss V O L+ / - to ad ju s t selected item.

Item Function

brightness

contrast

color

sharpness

tint

To adjust picture's brightness

To adjust picture's contrast

To adjust picture's color To adjust picture's sharpness

To adjust picture's tint

You can select picture mode by P.M button. There are four picture modes: Bright, Nature, Soft and User.

brightness contrast color sharpness tint

soft

bright

user

Range

0-100

0-36 0-63

-32-+31

50 50 19

nature

Bright: Select for a bright picture. Nature: Select for a standard picture. Soft: Select for a soft picture.

NOTE: Setting the unit to a Bright Picture with high brightness

and contrast levels will cause picture quality loss.

Operations (continued)

System setting

blue screen setting

耋晤憮

S.M

Access the System Setting menu.

Press CH5/6to select blue screen

blue screen

backlight

ccd mode settings

V-chip settings

CC 1

- - - -

item.

Press VOL+/- to select off or on. If you select on, the screen displays blue background when there is

no signal. If you select off, the screen displays static when there is no signal.

Note: Only when the blue screen is on, the set will turn off automatically after 15 minutes if there is no signal.

backlight adjustment

Access the System Setting menu.

Press CH5/6to select backlight item.

Press VOL+/- to adjust the backlight

brightness.

blue screen

backlight

ccd mode settings

V-chip settings

CC 1

- - - -

Operations (continued)

System setting

Setting Closed Caption(CCD)

S.M

1 Access the System Setting menu.

2 Press CH5/6 to select ccd

mode settings item.

blue screen

backlight

ccd mode settings

V-chip settings

CC 1

- - - -

3 Press VOL+/- to select . You can select the caption data channel

(CC1, CC2, CC3, CC4), the text service channel(text1, text2, text3, text4) or turn off the Closed Caption(Off).

Note:

1. Some TV programs may not be broadcast with closed caption signals, and therefore the TV will not be able to display captions, Also, text information is not offered by all stations.

2. Some TV programs only provide one channel caption, one channel text, or only caption without text.

Parental Control with V-Chip

1 Access the System Setting menu.

2 Press CH5/6to select V-Chip

settings item.

blue screen

backlight

ccd mode settings

V-chip settings

CC 1

- - - -

3 Enter the password using the keypad to access the V-chip sub-

menu.(The default password is 1234 and you should change the password after you access the sub-menu.)

4 Press CH5/6to select Vchip

global setting item. Use VOL+/- to

select disable or enable. If you select enable, the function is activated. If you select disable, the function is not active.

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

enable

* * * *

Operations (continued)

System setting (V-Chip Sub-menu)

Movie Blocking setting

This function allows programs to be restricted and TV usage to be controlled based on program rating. It prevents children from watching violent or sexual scenes that may be harmful.

Please enter the V-chip sub-menu (previous page).

S.M

Press CH button to select movie

5/6

blocking item.

Press VOL+/- button to select

desired rating.

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

enable

E E

* * * *

Movie Ratings: * NONE * G and Above (general audience) * PG and Above (parental guidance suggested) * PG-13 and Above (13 years and up) * R and Above (restricted) * NC-17 and Above (18 years and up) * X (adult)

If you set PG-13, G and PG movies will be available, and PG-13, R, NC-17 and X will be blocked.

TV blocking setting

This function allows TV programs to be restricted and TV usage to be controlled based on age and content. It prevents children from watching violent or sexual scenes that may be harmful.

Age base

Please enter the V-chip sub-menu (previous page).

Press CH button to select TV

blocking item.

Press VOL+/- button to select the

desired rating.

TV Ratings:

* NONE * Y and Above (all children) (individual content categories do not apply) * Y7 (7 years and up) * G and above (general audience) (individual categories do not apply) * PG and Above (parental guidance suggested) * 14 and above (14 years and up) * MA (mature audience)

5/6

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

enable

E E

* * * *

V-Chip enables parents to prevent their children from watching inappropriate material on TV. V-Chip reads the ratings for programming (except for news, sports, unedited movies on premium cable,and Emergency System signals ), then denies access to programming if the program's rating meets the limitations you select. In this case, the program will be blocked.

Content based

Please enter the V-chip sub-menu first (page 24).

S.M

Press CH button to select TV

blocking setting... item.

Press VOL+ button to access the

sub-menu.

Setting the content with CH+/- and

VOL+/- buttons.

5/6

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

V S L D

show

TV-Y7

TV-PG

TV-14

TV-MA

show

Content Categories:

* FV: fantasy violence (applies only to TV-Y7) * V: violence (applies to TV-PG and above, TV-

14 and Above, TV-MA)

* S: sexual situations (applies to TV-PG and above, TV-

14 and Above, TV-MA)

* L: adult language (applies to TV-PG and above, TV-

14 and Above, TV-MA)

* D: sexual dialogue (applies to TV-PG and Above, TV-

14)

enable

* * * *

show

E E

show

Canadian English Blocking setting

Please enter the V-chip menu first (page 24).

Press CH button to select

Canadian English blocking item.

Press VOL+/- button to select the

desired rating.

Canadian English Language Ratings: * E: Exempt. * C: Children. * C8+: Children 8 years and older. * G: General programming, suitable for all audiences. * PG: Parental guidance. * 14+: Viewers 14 years and older. * 18+: Adult programming.

5/6

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

enable

* * * *

Operations (continued)

System setting (V-Chip Sub-menu)

Canadian French blocking setting

Please enter the V-chip sub-menu first (page 24).

S.M

Press CH button to select

Canadian French blocking item.

Press VOL+/- button to select desired

rating

5/6

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

Canadian French Language Ratings: * E: Exempt. * G: Children. * 8 ans+: Children 8 years and older. * 13 ans+: Children 13 years and older. * 16 ans+:Viewers 16 years and older. * 18 ans+: Adult programming.

Changing the password

Please enter the V-chip sub-menu first (page 24).

enable

* * * *

Press CH button to select

change password item.

Input a new 4-digit password by using

the keypad on the remote.

5/6

Vchip global setting

movie blocking

TV blocking

Canadian English blocking

Canadian French blocking

TV block setting...

change password

enable

E E

* * * *

Next time when you want to access the V-chip menu, you will use your new password. Make sure to remember the password.

Operations (continued)

Audio Setting

2 3

S.M

Selecting the MTS

Access the Audio Setting menu.

Press CH5/6 to select MTS item.

Press VOL+/- to select mono,

SRS MTS

bass treble balance

stereo or SAP(secondary audio program).

You can also directly press STEREO button on the remote control to select the MTS. The MTS mode changes as follows:

MONO STEREO

MONO SAP

MONO STEREO SAP

(If the program is STEREO)

(If the program is SAP)

(If the program is STEREO & SAP)

on off mono

stereo

SAP

0 0 0

NOTE: SAP = Secondary Audio Program.

Adjusting volume

Press VO L + / - to adjust volume. Press VO L + button, the volume increases. Press VOL- button, t h e v o l u m e d e c r e a s e s .

volume

(Range:0-100)

Muting the sound

You can press the button on the remote control to mute the sound. Press the button again to restore. You can also press VOL+ to restore the sound.

Selecting the sound mode

You can press S.M button on the remote control to switch the sound mode between user, movie, music, and news.

Movie: Select for a movie program. Music: Select for a music program. News: Select for a speech or talk program.

Custom settings mode in the Audio Setting OSD are saved under

USER mode.

Operations (continued)

Audio Setting

Adjusting the bass/treble

Access the Audio Setting menu.

Press CH5/6to select bass or treble item.

Press VOL+/- to adjust the bass or treble.

SRS MTS

bass

treble balance

on off mono

stereo

SAP

0 0

S.M

You can press the Bass+/- buttons on the remote control to adjust the bass directly;and you can also press theTreb+/- buttons on the remote control to adjust the treble directly.

Adjusting the sound balance

Access the Audio Setting menu.

Press CH5/6to select balance

item.

Press VOL+/- to adjust the

SRS MTS

bass treble

balance

on off mono

stereo

balance of the left track and right track.

Adjusting the SRS

Access the Audio Setting menu.

Press CH5/6 to select SRS

item.

SRS

MTS

bass

treble balance

on off

mono

stereo

SAP

0 0

SAP

0 0

Press VOL+/- to select on or off.

SRS (Sound Retrieval System®) is an audio enhancement technology that restores the spatial cues that are present in a live listening environment and processes it to provide a natural 3D sound field.

The SRS symbol are trademark of SRS Labs,Inc. SRS technology is incorporated under license from SRS Labs, Inc.

Operations (continued)

Channel Setting

Selecting antenna/cable

Access Channel Setting menu.

S.M

P r e s s C H t o s e l e c t

antenna/cable item.

Press VOL+/- button to select

5 / 6

channel number

antenna/cable antenna cable

add/erase

fine tune

channel search

add erase

antenna or cable.

Please select antenna or cable before you start Auto

Search. If the TV is connected to antenna, please select antenna. If the TV is connected to cable, please select cable.

Auto Search

Please access the Channel Setting menu first.

In Channel Setting menu, press

5/6

CH button repeatedly to

highlight channel search item.

channel number

antenna/cable antenna cable

add/erase

fine tune

channel search

add erase

Press VOL+/- to start Auto Search.

All active channels will be preset and stored into the memory automatically.

antenna searching

Operations (continued)

Channel Setting

S.M

Adding/Erasing Channels

After the Channel SEARCH, you can Add/Erase channels that you watch when you press the CH to change

5/6

channels.

Select the channel number which you want

to erase using the keypad.

Access the Channel Setting

menu.

P r e s s C H t o s e l e c t

add/erase item.

5 / 6

channel number

antenna/cable antenna cable

add/erase

fine tune

channel search

add erase

Press VOL+/- to select erase.

When you press CH to

5/6

change channels, this channel will be skipped.

If you want to resume a skipped chann el, use th e keypa d buttons to enter the channel, then access the Channel Setting menu, press VOL+/- to select add. When you press CH to change channels, the

5/6

channel number

antenna/cable antenna cable

add/erase

fine tune

channel search

channel will be present.

Fine tuning

Please access the Channel Setting menu first.

In Channel Setting menu,

press CH button repeatedly to highlight Fine tune item.

Press VOL+/- to fine tune to

5/6

channel number

antenna/cable antenna cable

add/erase

fine tune

channel search

achieve best picture and sound.

add erase

Operations (continued)

Selecting channel

S.M

Using Keypad buttons

1 To select one-digit channel numbers:

Input the channel using the 0-9 number button, then press Channel Enter button to confirm.

2 To select two-digit channel numbers:

Input the channel using the 0-9 number button, then press Channel Enter button to confirm.

3 To select three-digit channel numbers:

Input the channel using the 0-9 number button directly.

Note: The period between presses should be within 2 seconds.

Using Channel up/down buttons

1 Press CH5button, the channel number increases; 2 Press CH6 button, the channel number decreases.

NOTE: This feature works after a channel search is complete.

Using previous channel button

Press button to switch between the current channel and previous channel.

* You can press DSP button to Know current channel number

information.

Operations (continued)

OSD Setting

Setting the language of the menu

Access the OSD Setting menu.

S.M

Press CH to select the language

item.

Press VOL+/- to select an OSD

language. English, Spanish and French

5/6

language

OSD position

OSD background

OSD timeout

English

opaque

30 seconds

translucent

can be selected.

Setting the position of the menu

Access the OSD Setting menu.

Press CH to select the OSD

position item.

Press VOL+/- to select the position of

5/6

language

OSD position

OSD background

OSD timeout

English

opaque

30 seconds

translucent

the menu displaying.

You can also press the OSD POSITION button on the remote control to select OSD menu position.

Setting the background of the menu

Access the OSD Setting menu.

Press CH to select the OSD

5/6

background item.

Press VOL+/- to select opaque or translucent. If you select Opaque,

the background of the menu is opaque. If you select translucent, the b a c k g r o u n d o f t h e m e n u i s translucent.

Setting the OSD timeout

Access the OSD Setting menu.

Press CH to select the OSD

5/6

timeout item.

Press VOL+/- to set the timeout: 5,

10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 seconds.

language

OSD position

OSD background

OSD timeout

language

OSD position

OSD background

OSD timeout

English

opaque

30 seconds

English

opaque

30 seconds

translucent

Operations (continued)

Timer setting

Using Sleep button

耋晤憮

S.M

Press SLP button to display sleep

timer menu. Press CH5/6 or VOL+/- repeatedly to set sleep time

between:0, 10, 20, 30, 60, 90, 120, 180, 240 minutes. If you select 0 minute, the sleep timer function is turned off. Press the SLP button again to exit the menu.

sleep timer 30 minute

Operations in /YPbPr mode

Select YPbPr mode

1 Press the SOURCE button on the unit

or button on the remote control. The screen displays the menu shown as right.

2 Press CH5/6 to highlight the

YPbPr/YCbCr item. Press VOL+/- or

wait about 4 seconds and the signal source is selected.

S.M

SOURCE

SVIDEO

YPbPr/YCbCr

Operations in VGA /YPbPr mode(continued)

Picture Settings

Adjusting Brightness/Contrast

1 Access the PICTURE menu.

S.M

2 Press CH5/6to select brightness

or contrast item.

3 Press VOL+/- to adjust the

selected item.

Item Function

brightness

contrast

Setting the color temperature

Access the Picture Setting

menu.

Press CH5/6to select color

temp item.

Press VOL+/- to switch the color

temperature between 5000K, 7300K, 9300K and User.

Adjust the brightness of the picture.

Adjust the contrast of the picture.

9300K

user

brightness

contrast

color temp

5000K

7300K

customer temp setting

Notes

Will Not affect the display settings in the TV, AV mode.

9300K

User

brightness

contrast

color temp

5000K

7300K

customer temp setting

If you want to change the value of

the user mode, set color temp to user first, then select customer temp setting item, and press VOL+/- to access the sub-menu.

Press CH5/6to select the item and press VOL+/- to adjust it. The value you set will be stored .

user red

user green

user blue

619-3848

Specifications

N/A = Not Available

ver: 00

S-Video Input

Unit W/O Stand

PAL/NTSC

NTSC

Warranty

Parts & Labor 12 Month

20.3 lbs

Standby consumption

12VDC 5A 60W

Weight (N.W.)

25.1 x 17.4 x 7.5 inches

Unit W/O stand 25.1 x 14.9 x 2.6 inches

Unit W/stand

Features

17 lbs

Power Source

AC/DC power supply

VESA wall mount compatible

User Friendly remote and On Screen Display (OSD) Ultra slim design 181 Channel Cable/AIR TV tuner built in High resolution Composite and S-Video input

FPE2005 TV unit

Accessories in the box

Warranty Card Product Registration card

Power cord Owners manual

Wall mounting Bracket Kit

Component Output (Y,Pb,Pr)

Component Input (Y,Cb,Cr)

Composite Video Output

N/A

N/A N/A

S-Video Output

HDMI Input CableCARD

N/A

160(H) : 140(V)

0.2125(H) x 0.6375(V) mm

Specifications:

Display type

Display Features

Model Number: FPE2005 UPC number: 0-44476-02740-6

Dot Pitch

Panel Resolution

16.7 Million

Aspect Ratio 4:3

Maximum Color

Contrast ratio

Brightness 450 Cd/m² (typical)

500:1

EDTV Ready Tilt stand with built-in Handle

20.1" (diagonal)

640x480

408 (H) x 306 (V) mm

Screen Size

TFT LCD

Remote Control (model Specific) 2-AAA batteriesTV System

Response time (Tr&Tf) 16ms (typical)

TV Reception

Viewing Angle

Active Area

S-Video Input (4pin DIN) Component Input (Y,Pb,Pr)

DVI Input (DVI-D, DVI-I)

1 (480p, 720p, 1080i**)

N/A

Quantity

5watt x 2 2

Audio

ATSC Digital TV Tuner N/A

Backlight life 60,000hrs

DVI Output (DVI-D, DVI-I)

VGA Input (15 pin D-Sub)

Antenna Impedance

NTSC 181 Channel 75Ohm

Total number of speakers

HDMI Output N/A

Component Output (Y,Cb,Cr)

PAL/NTSC

N/A N/A N/A

Video Standards Supported

Composite Video input

VGA Output (15 pin D-Sub)

Power Requirements

Unit W/stand

Unit input power

Dimension (WxHxD)

AC 100-240V, 50/60Hz

<2W

N/A

Channel CATV - UHF/VHF

Connector type

Maximum Audio Output

NTSC Analog TV Tuner

Composite Video Input

Video Connections

N/A

Optical Digital Input N/A

Audio Connections Quantity

Stereo Mini Phono Jack Input (3.5mm) N/A

RCA Input(Red, White) 1

Stereo Mini Phono Jack Output (3.5mm) N/A

RCA Output(Red, White) 1

Coax Digital Input N/A Headphone:(Variable/Fixed) (3.5mm) 1 (variable)

10% - 95%

41 - 95°F

Environment

Operating Humidity

Operating Temperature

Optical Digital Output N/A Coax Digital Output N/A

FPE2005

9093

604-L20H33-02

PRINTED IN

RECYCLED PAPER

128-7354

Audiovox FPE2005 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Press CH5/6to select the item
