Audiovox FP1510 User Manual
Specifications and Main Features
- Model FP1510
- Display: 15” TFT LCD Color
- Pixel: Color: 2,359,296 RGB pixels
- Television System: RF NTSC Only
- Television Standard System: CCIR/NTSC-M
- TV Channels of Automatic Installation: CATV 125CH, AIR 69CH
- Wild Sound: Stereo/Yes
- Remote Control: Yes
- Brightness: 350cd/m*c2
- Direction angle: Horizontal 150 degrees ; Vertical 130 degrees
- Audio Power Amplifier: 2 Audio Power Amplifier Channels 5W
- Audio-Visual Terminal: AV Input
- Various Inputs: A-Video, S-Video, VGA (15Pin D-sub), Coaxial, ANT DIN
- Hearing Device: Yes (3.5mm Jack)
- Power Supply: 110-240V AC, 12V/3.0ADC
- Accessories: Including Remote Control, VGA Cable, AC Power Cord, User Guide
- Scanning Backlighting Life: 50000 hours
- V-Chip: Yes
- Multi-Video and MultiAudio input terminal for several audio/video options
- Facilitates Video-On-Video (VOV)
- Smart Setting of the screen image and a mode of auto power saving
- Mounting: Mounting self for wall mounting
Frequently Asked Questions
- Q: What is the resolution of the FP1510?
- A: The maximum display resolution of the FP1510 is 1024x768.
- Q: I Want To Upgrade My Computer Display. Can I Use FP1510 Monitor?
- A: Connecting FP1510 to a computer can be done for usage as a monitor.
- Q: Which Input types are accepted by FP1510?
The FP1510 possesses capabilities to accept AV input, S-Video input, 15Pin D-sub (VGA) as well as Coax input.
- Q: Comes with a remote control?
Certainly, FP1510 does come with a remote control.
- Q: How much power is consumed in standby mode?
In idle or no signal state, the FP1510 employs less than 8 W of electric power.
- Q: How do you switch on V-Chip feature?
Through the Parent control menu, V-Chip lock function can be activated.
- Q: Is there an audio output on FP1510?
An audio amplifier of 5W x 2 and a headphone output is applied in the FP1510.

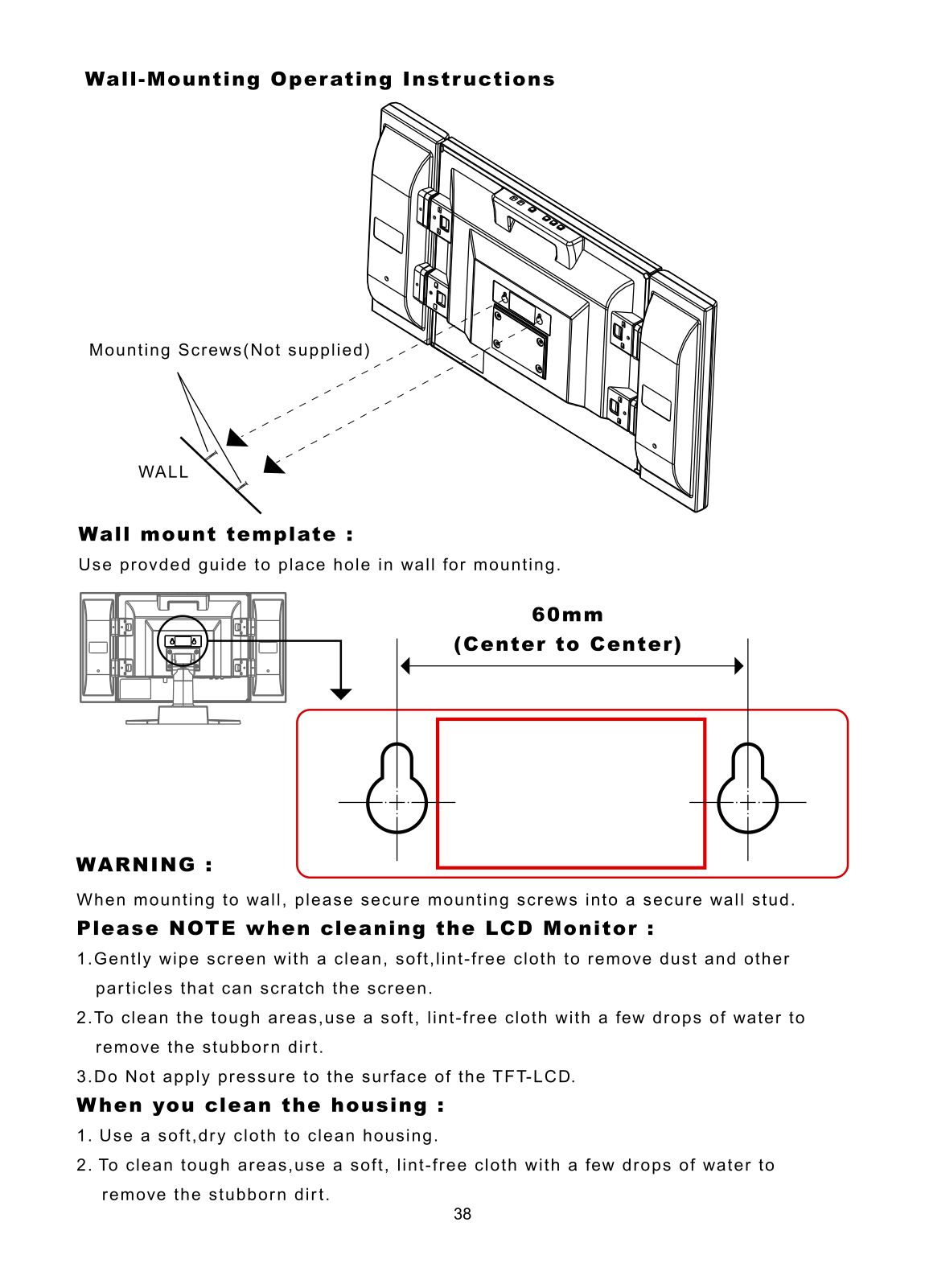

- Q: Is it possible to place the FP1510 on the wall?
Certainly, FP1510 is designed with a wall mounting capability that allows it to be placed on the wall.
User Manual
