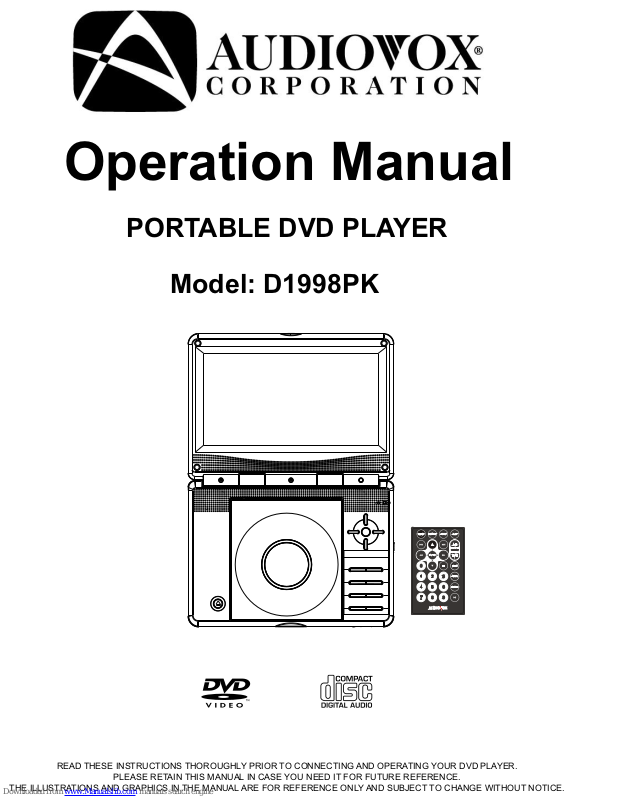

Audiovox D1998PK Operation Manual

Operation Manual

PORTABLE DVD PLAYER

READ THESE INSTRUCTIONS THOROUGHLY PRIOR TO CONNECTING AND OPERATING YOUR DVD PLAYER.

PLEASE RETAIN THIS MANUAL IN CASE YOU NEED IT FOR FUTURE REFERENCE.

THE ILLUSTRATIONS AND GRAPHICS IN THE MANUAL ARE FOR REFERENCE ONLY AND SUBJECT TO CHANGE WITHOUT NOTICE.

Model: D1998PK

Notice:

This Product incorporates copyright protection technology that is protected by method
claims of certain U.S. Patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.

Notice:

An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the
driver if the LCD panel or video monitor is used for vehicle information, system control, rear
or side observation or navigation. If the LCD panel or video monitor is used for television
reception, video or DVD play, the LCD panel or video monitor must be installed so that these
features will only function when the vehicle is in “park” or when the vehicle’s parking brake is
applied.

An LCD panel or video monitor used for television reception, video or DVD play that
operates when the vehicle is in gear or when the parking brake is not applied must be
installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the
operator of the motor vehicle.

Notice:

The D1998PK DVD Player contains a built in battery. To obtain the best performance from
your DVD Player please refer to the following battery care instructions:

CHARGING THE D1998PK

When charging the DVD Player the power switch should be set to off. The DVD Player can be charged
using the AC to DC adaptor or the vehicle DC power adaptor. When the battery is fully discharged the unit
will require approximately 8 hours to fully recharge the battery. While the unit is charging the LED indicator
will blink. Once the unit is fully charged the LED will remain on. When the battery is fully charged, the unit
will play for approximately 2.5 hours. You should charge the unit once a month to ensure the unit will be
operational for 2 hours.
Do not charge the DVD Player in the vehicle when the vehicle is not running

1

Introduction

Thank you for selecting the D1998PK portable DVD Player. The main features include a 9" Screen (16:9 Aspect Ratio) Liquid

Crystal Display (LCD) monitor and a DVD Player. The unit applies the latest state of the art electronics and is designed for use in

hotels, offices, home or vehicle. The unit is constructed to provide years of reliable, trouble-free service, and is compact so that

you can take it with you anywhere and is designed for quick and easy installation. Please read the entire instruction manual

supplied with this product prior to operation. The documentation will assist you in installing the system properly to obtain the best

equipment performance. Please save this manuals for later use.

Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart,

stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight,

excessive dust. If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit. When you

move it from a cold to a warm location, wait for about one hour before operating the unit, or remove the disc and leave the unit

turned on until the moisture evaporates.

2. Installation

Ensure that the D1998PK is installed and used in accordance with the instructions and illustrations provided in this manual.

3. Objects and Liquids

Do not push objects of any kind into the unit through openings; do not spill or spray liquid of any kind on or in the system (this

may result in a fire or electric shock). Do not place anything heavy on the unit. To ensure proper ventilation and proper

operation, never cover or block the slots and openings with a cloth or other material.

4. Disassembly

Do not attempt to disassemble the cabinet or replace the battery. There is a risk of electric shock and/or exposure to Laser

Radiation. Contact qualified service personnel if your system is in need of repair.

5. Cleaning Unit

When cleaning, make sure the system is unplugged from the power source. Do not use liquid cleaners or aerosol cleaners.
Use a cloth lightly dampened with water for cleaning the exterior of theDVD Player system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction. Do not stick
paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Do not touch the
surface of disc. Handle the disc by its edge. Clean the disc by wiping the disc from the center out with a cleaning cloth. Remove
the disc from the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by
software producers. Since this unit plays discs according to the disc contents the software producers designed, some
playback features may not be available. Also refer to the instructions supplied with the discs.

7. Regional Coding

Both the DVD Player and disc are coded by region. These regional codes must match in order for the disc to play. If the

codes don’t match, the disc won’t play. This unit’s code is region 1. DVD’s with other regional codes cannot be played in

this unit.

Contents

1. 1 x 9” LCD Monitor and DVD Player With Built-In Battery

2. 1 x AC to DC Adapter

3. 1 x Remote Control w/Battery (CR2025)

4. 1 x Instruction Manual

5. 1 x Audio/Video Cable

6. 1 x DC Power Adapter

7. 2 x Wired Headphones

8. 1 x Carry Bag With Straps

2

OVERVIEW OF THE DVD PLAYER:

1

2

17

16

15

14

13

12

3

4

5 6

18 19

10
8

11

9
7

1. LCD SCREEN

2. SPEAKERS

3. DISC COVER

4. DISC COVER OPEN BUTTON

5. VOLUME DOWN BUTTON

6. VOLUME UP BUTTON

7. ZOOM & SLOW BUTTON

8. REPEAT & DISPLAY BUTTON

9. MENU & TITLE BUTTON

10. AUDIO & SUBTITLE BUTTON

11. STOP & BUTTON

12. SETUP & SEARCH BUTTON

13. NAVIGATION DOWN & FAST BACKWARD BUTTON (tt)

14. NAVIGATION LEFT & PREVIOUS BUTTON (9)

15. NAVIGATION RIGHT &NEXT BUTTON (:)

16. OK (PLAY/PAUSE) BUTTON

17. NAVIGATION UP & FAST FORWARD BUTTON (uu)

18. POWER INDICATOR

19. REMOTE SENSOR

20. HEADPHONE JACK

21. HEADPHONE JACK

22. AUDIO OUT JACK

23. VIDEO OUT JACK

24. CHARGE INDICATOR

25. POWER ON/OFF SWITCH

26. DC IN 9V JACK

27. BATTERY COMPARTMENT

21 23 24 26

20 22 25

Remote control unit

1

2

3
4
5

6

7
8

27

10

11

12

13
14

15
16

17

18

19

1. SETUP BUTTON

2. DISPLAY BUTTON

9

3. PREV. BUTTON (9)

4. NAVIGATION UP BUTTON (p)

5. NAVIGATION LEFT& F.BWD BUTTON (tt)

6. OK/ENTER BUTTON

7. NAVIGATION DOWN BUTTON (q)

8. NUMERIC BUTTONS

9. SUBTITLE BUTTON

10. ZOOM BUTTON

11. REPEAT A-B BUTTON

12. NEXT BUTTON (:)

13. REPEAT 1/ALL BUTTON

14. NAVIGATION RIGHT & F.FWD BUTTON (uu)

15. MENU BUTTON

16. STOP BUTTON (<)

17. AUDIO BUTTON

18. ANGLE BUTTON

19. PLAY/PAUSE BUTTON (uII)

3
