Audiovox D1929B User Manual
D1929B
9 inch Portable DVD Player
Reproductor DVD Portátil de 9 pulgadas
Important Safety Instructions
Some of the following information may not apply to your particular product;
however, as with any electronic product, precautions should be observed
during handling and use.
l Read these instructions.
l Keep these instructions.
l Heed all warnings.
l Follow all instructions.
l Do not use this apparatus near water.
l Clean only with dry cloth.
l Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
l Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that produce heat.
l Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong is provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
l Protect the power cord from being walked on or pinched particu-
larly at plugs, convenience receptacles, and the point where they
exit from the apparatus.
l Only use attachments/accessories specified by the manufacturer.
l Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
l Unplug this apparatus during lightning storms or when unused for
long periods of time.
l Refer all servicing to qualified service personnel. Servicing is re-
quired when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
]
E
n
g
l
i
s
h
2
Additional Safety Information
l Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus.
l Always leave sufficient space around the product for ventilation. Do
not place product in or on a bed, rug, in a bookcase or cabinet that
may prevent air flow through vent openings.
l Do not place lighted candles, cigarettes, cigars, etc. on the product.
l Connect power cord only to AC power source as marked on the
product.
l Care should be taken so that objects do not fall into the product.
l Do not attempt to disassemble the cabinet. This product does not
contain customer serviceable components.
l Do not use the unit immediately after transportation from a cold
place to a warm place; condensation problems may result. Wait
for about one hour till the moisture evaporates before operating
the unit.
l When using your portable DVD player, do not sit or stand too
close to the screen.
l To use a headset safely, please keep the following in mind:
- Do not play your headset at a high volume. Hearing experts
advise against continuous extended play.
- If you experience ringing in your ears, turn down the volume or
stop using the headset.
- Do not use a headset while driving a motorized vehicle or riding
a bike. It may cause a traffic hazard and is illegal in many areas.
- Even if your headset is an open-air type designed to let you hear
outside sounds, don’t turn up the volume so high that can’t hear
sounds around you.
l CAUTION! CD and DVD products utilize a laser. Do not try to
open the product. Refer all servicing to qualified service
personnel.
l CAUTION! Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
l Warning: Your DVD player contains a battery and charging sys-
tem which is designed to work in temperatures that do not exceed 50oC (122oF). Leaving this product in a closed automobile
or in the trunk of an automobile where temperature may exceed
50oC may result in permanent battery damage, fire, or explosion.
Please remove your product from the automobile when you exit,
do not place your product in the trunk of your automobile, and do
not leave your product in any location where temperature may
exceed 50oC.
3
CAUTION
WARNING: TO PREVENT FIREOR ELECTRICAL SHOCK HAZARD,DO NOT
EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
FCC Information
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference which may cause undesired operation.
E
n
g
l
i
s
h
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
4
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.
In accordance with FCC requirements, changes or modifications not
expressly approved by manufacturer could void the user’s authority to
operate this product.
Manufacturer/Responsible Party
Audiovox Electronics Corp.,
150 Marcus Blvd., Hauppauge, NY 11788
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Service Information
This product should be serviced only by those specially trained in appropriate servicing techniques. For instructions on how to obtain service,
refer to the warranty included in this user manual.
For Your Records
Keep your sales receipt for proof of purchase to obtain warranty parts
and service.
In the event that service should be required, you may need both the model
number and the serial number. In the space below, record the date and
place of purchase, and the serial number:
Model No.
Date of Purchase
Place of Purchase
Serial No.
5
Content
A. Introduction ............................................................................. 7
B.DVD and Disc Information .................................................... 7
C.Contents ................................................................................. 8
D.Powering and installation ....................................................... 8
E.Vehicle Installation .................................................................. 9
F.Controls, Indicators, and Connectors.................................... 10
G.Loading and Playing a Disc .................................................. 11
H.Basic Operation....................................................................... 12
I.Menu ....................................................................................... 13
J.Display..................................................................................... 13
K.Playing Audio CDs.................................................................. 19
L.Playing JPEG Files................................................................. 20
M.Connecting to Other Equipment............................................. 21
N.Setup ..................................................................................... 22
E
n
g
l
i
s
h
O.Specifications ......................................................................... 30
P.Rechargeable Built-in Battery use.......................................... 30
Q.Troubleshooting ...................................................................... 32
6
A. Introduction
Thank you for choosing the D1929B portable DVD player. The main
features include a 9" wide Screen (16:9 Aspect Ratio) Liquid Crystal
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
or your home. The unit is constructed to provide years of reliable,
trouble-free service and is compact so that you can take it with you
anywhere and is designed for quick and easy installation. Please read
the entire instruction manual supplied with this product prior to using.
The documentation will assist you in using the system properly to
obtain the best equipment performance. Please save this manual for
later use.
B. DVD and Disc Information
DVD Copy Protection - This Product incorporates copyright
protection technology that is protected by method claims of certain
U.S. Patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this
copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
DVD Regional Code - Your DVD player
has been designed to process regional
management information that is stored
on DVD discs. The regional code for your player is 1 (The U.S.,U.S.
Territories and Canada). Only DVD discs that have regional codes of
1 or ALL (for all regions) can be played by your player.
Disc - Do not use irregularly shaped discs such as heart or star-
shaped discs as they may cause the unit to malfunction. Do not stick
paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Do not touch the surface
of disc. Handle the disc by its edge. Clean the disc by wiping the disc
from the center out with a cleaning cloth. Remove the disc from the
unit and store it in its case after playing. Some playback operations of
discs may be intentionally fixed by software producers. Since this
unit plays discs according to the disc contents the software producers designed, some playback features may not be available. Also
refer to the instructions supplied with the discs.
7
C. Contents
1. 1 x9’’ Portable DVD Player
2. 1 xRemote Control with battery (CR2025)
3. 1 xAudio/Video Cable
4. 1 xAC to DC Adapter
5. 1 xAutomotive Power Adapter
6. 1 xInstruction Manual
7. 1 xCarrying Bag
8. 1 x Product Registration Card
9. 1 x eMusic Card
10. 1 x Customer Service Card
D. Powering and Installation
1. Powering the System Indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC input jack on the
left side of the main unit, then plug the other end into the 100~240V
AC power receptacle.
2. Powering the System in a Car
Plug one end of the DC Power adapter into the DC input jack on
the unit, then plug the other end into the vehicle power outlet.
E
n
g
l
i
s
h
Figure 1
3. To Charge the Built-in Battery
Plug one end of the AC to DC adapter into the DC jack on the side
of the player, as shown in Figure 1, then plug the other end into the
100~240V AC power outlet. Make sure that the player’s power slide
switch is in the “OFF/CHG.” position, the charge indicator will be
red. Once fully charged, the Chg. LED indicator will turn off. Once
the indicator is off, remove the AC to DC adapter wall plug.
NOTE: Your new battery must be charged a minimum of 8 hours
before the first usage. Each full recharge takes approximately five hours and one full charge can provide power to
the player for approximately 2 hours.
8
E. Vehicle Installation
Installing the DVD Player onto the Seat Back in a Car
(Refer to Figure 2)
Carrying Bag Opened
Carrying Bag Closed
Elastic
Straps
Vehicle Headrest
Headrest Strap
Vehicle
Seat Back
Seat Back
Strap
Figure 2
1).Unfold the carrying bag, and place the DVD player on the bag
beneath the elastic straps. Ensure that the unit’s corners are
secured by the elastic straps.
2).Secure the upper portion of the carrying bag to headrest support
bars using the headrest strap. Adjust the headrest strap until the
bag is firmly secured.
3). Secure the lower portion of the carrying bag to the vehicle seat
back using the seat back strap. Adjust the seat back strap until
the bag is firmly secured.
9
F. Controls, Indicators, and Connectors
3
111213
14
15

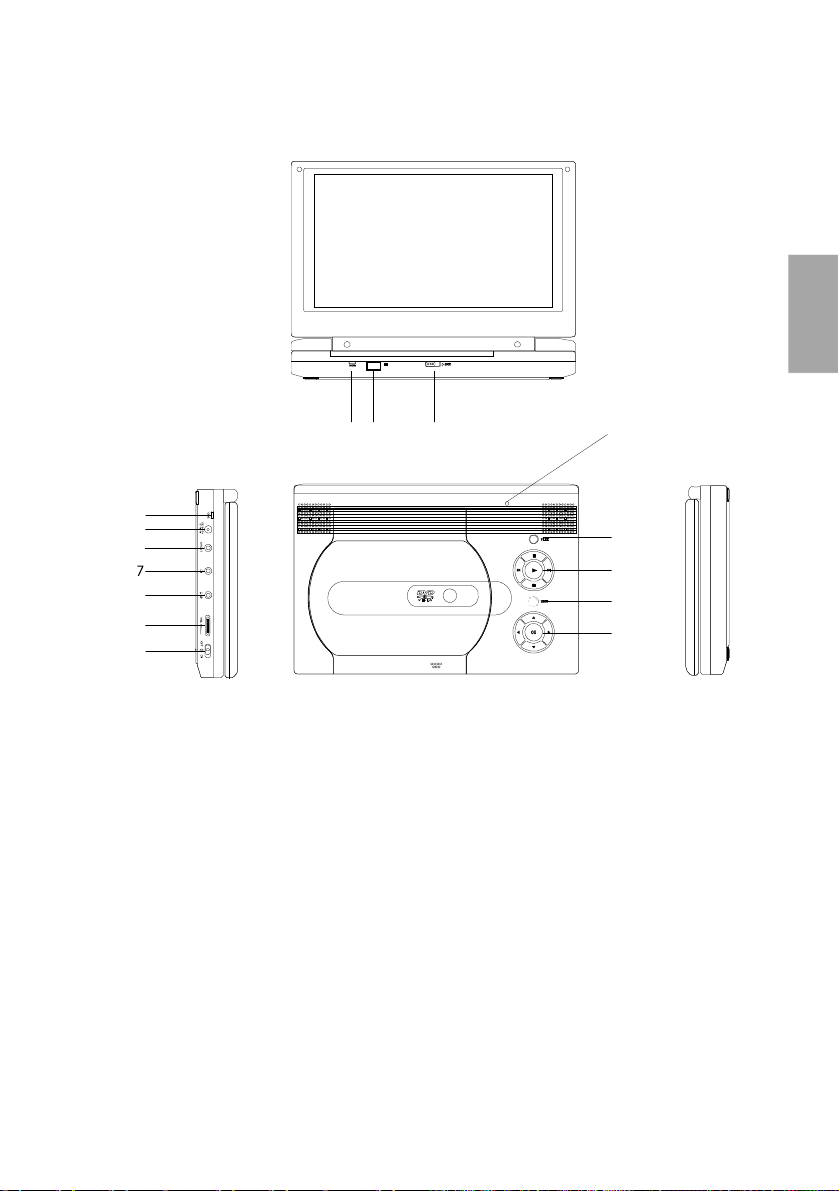

1. Unit View (Refer to Figure 3)
1 2
4
5
6
8
9
10
E
n
g
l
i
s
h
Figure 3
1) Power LED
2) Remote Control Sensor
3) Cover Open Switch
4) Charge Indicator
5) DC 9-12V Input Jack
6) A/V Out Jack
7) Headphone Jack 2
8) Headphone Jack 1*
9) Volume Control
10) Power On/Off(CHG.) Switch
11) LCD Panel Shut Off Switch
12) Wide Screen Button
13) Previous/Next/Pause
/Stop/Play Button
14) Menu Button
15) Up/Down/Left/Right/OK Button
* Connecting to this headphone jack will disable the internal
speakers.
10
2. Remote Control (Refer to Figure 4)
1) SETUP Button
2) UP Button
3) PREVIOUS Button
4) ENTER Button
5) REVERSE/LEFT Button
6) DOWN Button
7) NUMERIC Buttons
8) DISPLAY Button
9) ZOOM Button
10) SUB Button
11) NEXT Button
12) A-B REPEAT Button
13) FORWARD/RIGHT Button
14) 1/All REPEAT Button
15) STOP Button
16) MENU Button
17) AUDIO Button
18) ANGLE Button
19) PLAY/PAUSE Button
Figure 4
G. Loading and Playing a Disc
a.After connecting power to the unit, apply power to the DVD player
by sliding the POWER ON/OFF switch to ON. The power indicator will be green.
b.Open the disc tray by sliding cover OPEN switch and place a disc
onto the tray with the label side facing up.
c. Close the tray by pressing the area marked “PUSH TO CLOSE”.
The unit will load the disc and start playing.
d. Rotate VOLUME control to adjust the DVD player’s volume.
e. To stop playing a disc, press the STOP button.
f. To turn off the DVD player, slide the POWER ON/OFF switch to
OFF.
11
H. Basic Operation
POWER
OPEN
PLAY
PAUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
Turn the unit on/off
Remove/load the disc
Start Play/Execute item or setting
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playback of the DVD/CD
Go to the next chapter, track or scene during playback
Go back to the previous chapter, track or
scene during playback
Scan forward at 2, 4, 8,16 or 32x times
speed
Scan backward at 2, 4, 8, 16 or 32x times
speed
Used for Menu Navigation
Execute item or confirm setting
Select item or setting
Display the main menu of the disc
Repeat playing title, chapter, or track
Repeat a specific portion from point A to
point B of the disc
Display information (title, chapter, track,
time, etc.)
Change the viewing angles on the scene
Select the subtitle language and turn it on/
off
Select the audio language
Enlarge an image to 2, 3, or 4 times the
original size during DVD playback.

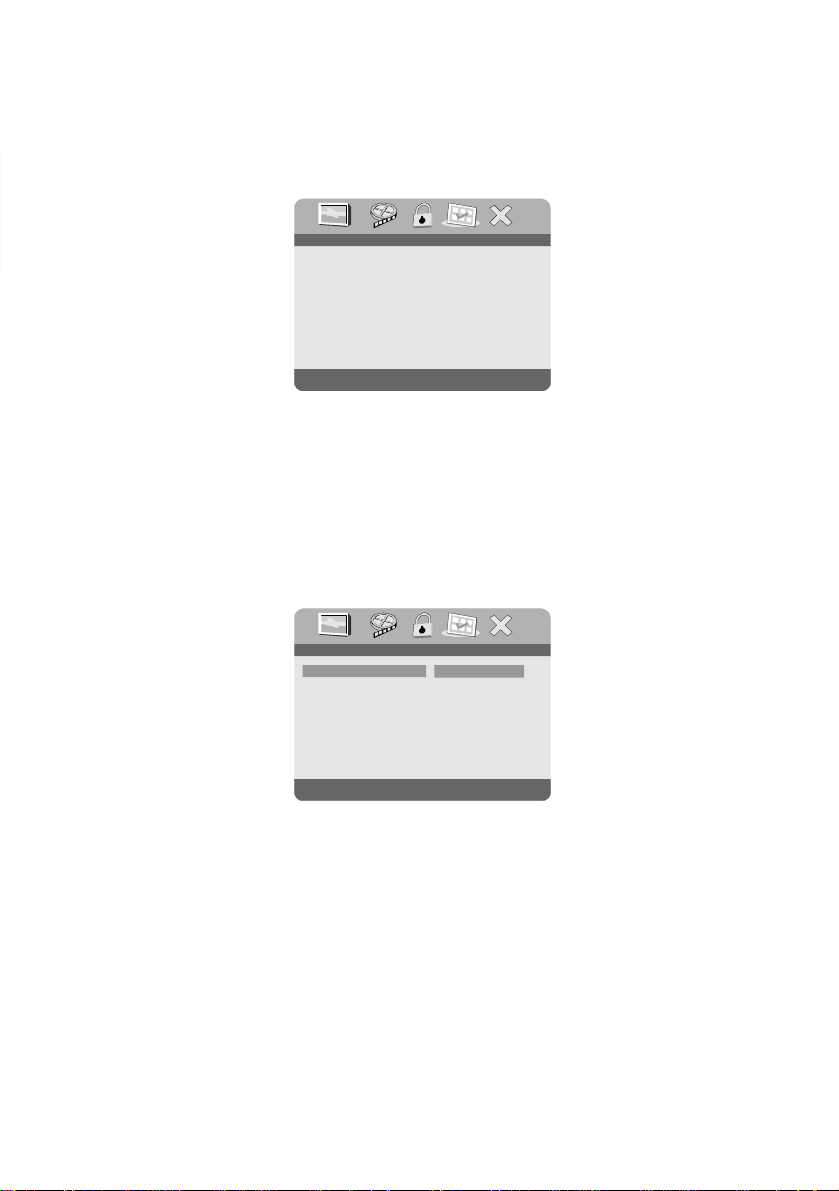

Display the setup menu to select and set
items, and exit the setup menu.
E
n
g
l
i
s
h
12
I. Menu
Tt0101Ch021700000
A DVD is divided into sections called titles and chapters. When you
play a DVD, a root menu of the disc will appear on the screen of your
TV or Monitor. The contents of the menu vary from disc to disc. Press
MENU during playback to display the menu. Some DVDs only allow
you to select disc playback options using the DVD root menu.
J. Display (Display contents vary from disc to disc.)
1. Playing Time and Remaining Time
a. During playback press the DISPLAY button to display the current
Title Number (1), the total Number of Titles (2), the current Chapter Number (3), the total Number of Chapters (4), and the elapsed
playing Time for the title (5). The heading will disappear automatically after 3 seconds if no buttons are pressed.
/ / ::
Title, Chapter Number and Time Screen Display
b. Press DISPLAY button again to display the Remaining Time of
the title. The heading will disappear automatically in 3 seconds.
Title Remaining Time Screen Display
Tt0101Ch021700000
/ / ::
13
c. Press DISPLAY button a third time to display the Elapsed Time
Tt0101Ch021700000
Tt0101Ch021700000
for the chapter. The heading will disappear automatically in 3
seconds.
/ / ::
Chapter Elapsed Time Screen Display
d. Press DISPLAY button a fourth time to display the Remaining
Time for the chapter. The heading will disappear automatically in
3 seconds.
/ / ::
E
n
g
l
i
s
h
Chapter Remaining Time Screen Display
e. Press DISPLAY button a fifth time to exit, ‘DISPLAY OFF’ will be
displayed and will disappear automatically in 3 seconds.
NOTE: To select the Chapter you want, enter the number of the
Chapter you want on the remote while in any display mode.
The information for Chapter and Title will be displayed and
the number of the Chapter you selected will be highlighted.
Press ENTER button to confirm the selection.
14
2. Angle
During playback of a disc, press ANGLE button to display the available angles for discs containing multi-angles*, with the current angle
number (1) and the total number of angles (2) displaying. Press
ANGLE button to select other angles.
*NOTE: Not all discs contain this feature.
Angle Screen Display
3. Subtitle
During disc playback press SUB button to select the subtitle
language you desire*, with the current Subtitle Language Number
(1) and the total Number of Subtitle Languages (2) displayed. If
there are multiple languages press SUB button again to select
another subtitle language. To turn subtitles OFF, press the SUB
button until ‘SUBTITLE OFF’ is displayed. The Subtitle display will
disappear automatically if the SUB button is not pressed again within
3 seconds.
Subtitle0102
/
Subtitle Screen Display
* Some DVDs only allow access to this function through the DVD
menu.
15
4. Audio
During playback press AUDIO button to select the audio language
you desire*, with the current Audio Channel Number (1) and the
total number of Audio Channels (2) displayed. Press AUDIO again
to select another audio language. The audio display will disappear
automatically if the AUDIO button is not pressed within 3 seconds.
Audio Language Screen Display
* Some DVDs only allow access to this function through the DVD
menu.
5. Zoom
During playback press ZOOM button to enlarge the picture by 2x,
3x or 4X with the current zoom multiple. Press ZOOM button one
time, the picture will be enlarged 2X. Press ZOOM button a second
time, the picture will be enlarged 3X. Press ZOOM button a third
time, the picture will be enlarged 4X. Press ZOOM button a fourth
time, the picture will return to normal size.
E
n
g
l
i
s
h
ZOOM Screen Display
16
6. A-B Repeat
a. During playback press A-B button to set the Starting Point A.
A-B Repeat Starting Point Screen Display
b. Press A-B button a second time to set the Ending Point B and
the player will repeatedly play the part between Point A and
Point B.
A-B Repeat Ending Point Screen Display
c. Press A-B button a third time to cancel A-B repeat and resume
normal playback.
A-B Repeat Cancelled Screen Display
17
7. Repeat
a. During playback press 1/ALL button once to repeatedly play the
current chapter.
Chapter Repeat ON Screen Display
b.During playback press 1/ALL button again to repeatedly play the
current title.
E
n
g
l
i
s
h
Title Repeat ON Screen Display
c. During playback press 1/ALL button a third time to repeat all
chapters and titles.
All
All Repeat ON Screen Display
18
d. Press 1/ALL button a fourth time, to resume normal playback.
SingleElapsedSingleRemainTotalElapsed
DisplayOffTotalRemain
Repeat Off Screen Display
8. Forward/Reverse Scan
a. During playback press uu to scan forward at 2x, 4x, 8x,16x,
32x and normal speed.
b. During playback press tt to scan backward at 2x, 4x, 8x,16x,
32x and normal speed.
K. Playing Audio CDs
To play an audio CD, simply load it onto the disc tray and the CD
will start playback automatically. Press the DISPLAY button repeat-
edly on the remote control to view disc time information. The time
information is displayed in the the following sequence:
CD Display Mode
Single Elapsed:The current track playing and the elapsed time on
that track appears on the screen.
Single Remain:The current track playing and the amount of time
remaining on that track appears on the screen.
Total Elapsed: The current track playing and the total elapsed
time on the CD appears on the screen.
Total Remain: The current track playing and the amount of time
remaining on the CD appears on the screen.
19
1. Using the Repeat Feature
The default mode for the Repeat feature is OFF. Pressing 1/ALL button
consecutively changes the repeat options:
• Repeat Track- repeats the track that is playing.
• Repeat All - repeats the disc that is playing.
• Repeat Off
As you toggle through the options, the repeat option changes. The
selected repeat option loops repeatedly until you turn it off.
2. A-B Repeat
a. During playback press A-B to set the Starting Point A.
b. Press A-B a second time to set the Ending Point B and the
player will repeatedly play the part between Point A and Point B.
c. Press A-B a third time to cancel A-B repeat and resume the
normal playback.
3. Forward/Reverse Scan
a. During playback press uu to scan foward at 2x, 4x, 8x,16x, 32x
and normal speed.
b. During playback press tt to scan backward at 2x, 4x, 8x,16x,
32x and normal speed.
L. Playing JPEG Files
1) Load a JPEG disc onto the disc tray.
2) A screen showing folders or picture files contained on the disc
will be displayed automatically after loading.
3) Press UP, DOWN and ENTER button to select a folder or a
picture. If a picture is selected, photo slideshow will start with the
selected picture.
4) Press the DOWN button to rotate the picture clockwise.
5) Press the ZOOM button to enlarge the picture size by 125%,
150%, 200% or zoom out by 75%,50% and then return to the
original size. When the image is enlarged, you can use the
navigation buttons to view blocked parts of the picture.
6) Press UP button to return to the screen showing folders or
picture files.
7) During slideshow, press STOP button to enter Thumbnail mode.
Press navigation buttons and ENTER button to select a picture
you want to start the slideshow with.
8) Press PLAY/PAUSE button then the slideshow will pause. Press
the button again to resume the slideshow playback.
E
n
g
l
i
s
h
20
M. Connecting to Other Equipment
1. AV Out
Connecting to a TV or Another Monitor ( Refer to Figure 5)
Connect the black end (1/8” plug) of the audio/video cable into the
unit’s DVD’s A/V OUT jack, and connect the other end to the
AUDIO INPUT jacks on your TV or Monitor using an additional set of
AV cable (not included) (white = left audio channel, red = right audio
channel, yellow = video).
NOT INCLUDED
Figure 5
2. Connecting Headphones (Not included)
Simply plug the headphones into either Headphone jack 1 or
Headphone jack 2 on the left side of the DVD Player.
(Refer to Figure 6)
Figure 6
Plugging into Headphone jack 1 will disable the internal speakers.
21
Loading...
