Audiovox D1810 User Manual

D1810

PORTABLE 8" LCD MONITOR AND DVD PLAYER

128-6925

Notice:

This Product Incorporates copyright protection technology that is protected by method claims of certain patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

A. Introduction

Thank you for selecting the D1810 portable DVD player. The main features include a 8" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a DVD player. The unit applies the latest state of the art electronics and is designed for use in cars, hotels, office, home or anywhere. The unit is constructed to provide years of reliable, trouble-free service, and is compact so that you can take it with you anywhere and is designed for quick and easy installation. Please read the entire instruction Manual supplied with this product prior to operation. The documentation will assist you in installing the system properly to obtain the best equipment performance. Please retain this M anual for later use.

B. Cautions and Warnings

1. Placement

To prevent fire or electric shock, do not expose this appliance to rain or moisture. Do not place the set on an unstable cart, stand, tripod, bracket or table to prevent it from falling. Keep the unit away from strong magnets, heat sources, direct sunlight, excessive dust. If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit. When you move it from a cold to a warm location, wait for about one hour before operating the unit, or remove the disc and leave the unit turned on until the moisture evaporates.

2. Installation

Ensure that the D1810 is installed in accordance with the instructions and illustrations provided in this M anual.

3. Object and Liquid

Do not push objects of any kind into the unit through openings; do not spill or spray liquid of any kind on or in the system (this may result in a fire or electric shock). Do not place anything heavy on the unit. To ensure proper ventilation and prop er operation, never cover or block the slots and openings with a cloth or other material.

4. Disassemble

Do not attempt to disassemble the cabinet. There is a risk of electric shock and/or exposure to Laser Radiation. Contact qualified service personnel if your system is in need of repair.

5. Cleaning Unit

When cleaning, make sure the system is unplugged from the power source. Do not use liquid cleaners or aerosol cleaners. Use a cloth lightly dampened with water for cleaning the exterior of the system only.

6. Disc

Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources such as hot air ducts. Do not touch the surface of disc. Handle the disc by its edge. Clean the disc by wiping the disc from the center out with a cleaning cloth. Remove the disc from the unit and store it in its case after playing. Some playback operations of discs may be intentionally fixed by software producers. Since this unit plays discs according to the disc contents the software producers designed, some playback features may not be available. Also refer to the instructions supplied with the discs.

C. Contents

1. 1 x 8’’ LCD Monitor & DVD Player Combo

2. 1 x AC to DC Adapter

3. 1 x Rechargeable Battery

4. 1 x Remote Control

5. 1 x Instruction M anual

6. 1 x Audio/Video Cable

7. 1 x DC Power Adapter

8. 1 x Headphone

D. Powering and installation

1. Powering the system indoors (Refer to Figure 1)

Plug one end of the AC to DC adapter into the DC 9V jack on the right side of the main unit, then plug the other end into the 120V AC power socket.

2. Powering the system in a car

Plug one end of the cigarette lighter adapter into the DC 9V jack on the unit, then plug the other end into the cigarette lighter socket.

E. Controls, Indicators, and Connectors

26 Screen Lock

1. Unit View (Refer to Figures 1and 2)

10 Source 11 Menu 12 Return 13 Display 14 Function 15 Up 16 Enter 17 Right 18 Power

1 Down 2 Left 3 Forward Scan 4 Play/Pause 5 Stop 6 Reverse Scan 7 Push Open 8 LCD Cutoff

SCAN

Switch

9 Battery Pack

Figure 1

Figure 2

19 DC IN 9V 20 S Video/Video 21 Audio 22 Headphone 23 Volume 24 Power LED Red/LED Green 25 Remote Control Sensor

* NOTE: The Screen must be locked into position before closing.

1) SOURCE BUTTON

2) MENU (OR SETUP WHEN IN STOP MODE)

3) RETURN BUTTON

4) DISPLAY BUTTON

5) FUNCTION BUTTON (FOR SCREEN ASPECT RATIO, CO LOR AND BRIGHTNESS ADJUSTMENT)

6) UP BUTTON

7) ENT. BUTTON (ENTER)

8) RIGHT BUTTON

9) POWER ON/OFF BUTTON

10) DOWN BUTTON

11) LEFT BUTTON

12) FORWARD SCAN BUTTON

13) PLAY/PAUSE BUTTON

14) STOP BUTTON

15) REVERSE SCAN BUTTON

16) PUSH TO OPEN BUTTON

17) POWER SAVING SWITCH (SCREEN CLOSED LCD PANEL SHUT OFF

SWITCH)

18) BATTERY PACK

19) DC 9V INPUT JACK

20) S VIDEO/VIDEO JACK

21) AUDIO JACK (L+R)

22) HI-FI EARPHONE JACK

23) VOLUME UP/DOWN THUMBWHEEL

24) POWER (RED/POWER LED) (GREEN/CHARGE LED)

25) REMOTE CONTROL SENSOR

2. Remote Control View (Refer to Figure 3)

Prog.

Figure 3

Remote Control Function Description Screen: Change the screen aspect ratio. Angle: Switch to a different angle if the DVD contains angle options.

Mute: Mute speakers

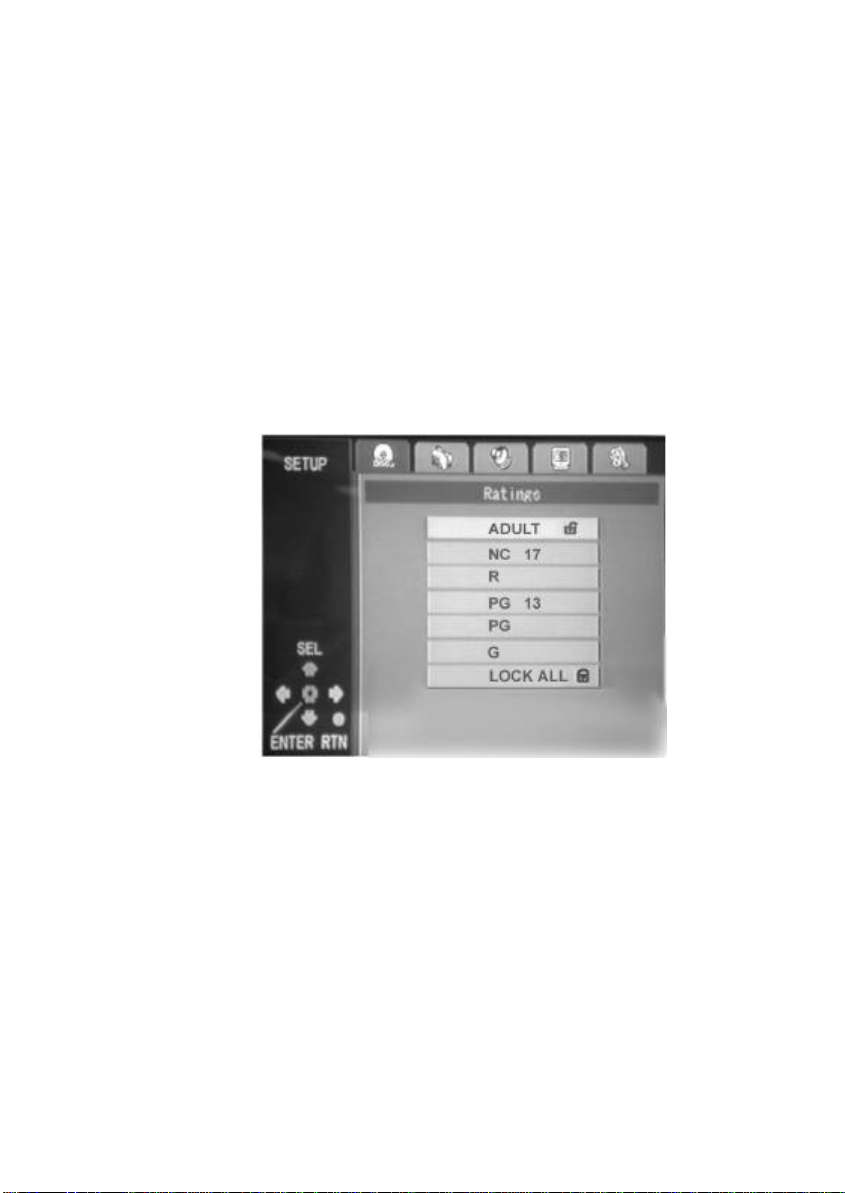

Setup: System setting Display: On screen display of the current disc status Vol. +/-: Volume adjustment

7: Reverse Scan at 2x, 4x or 8x normal playback speed 8: Forward Scan at 2x, 4x or 8x normal playback speed 9: Skip to the PREVIOUS chapter or track :: Skip to next chapter or track

Slow : Playback at 1/2X, 1/4X, 1/8X normal speed

4/II: Play and pause

<: Stop

Return: Back to root Menu or previous menu when in setup mode. 1/ Title: Digit key 1 or Enter Title menu 2/Sub-Title: Digit key 2 or Subtitle on/off and subtitle language if available 3/ A-B: Digit key 3 or A to B repeat. 4/ Menu: Digit key 4 or disc Root Menu 5/5: Digit key 5 or Up arrow 6/ Repeat: Digit key 6 or repeat chapter, title or track 7/3: Digit key 7 or Left arrow 8/Enter: Digit key 8 or Enter key 9/4: Digit key 9 or right arrow 0/6: Digit key 0 or down arrow Num: Shift function keys to number keys 10+/Zoom: +10 key or Zoom in/out

F. Loading and Playing a Disc

1. After connecting power to the unit, power on “DVD player” by holding down the

power button* for 2 seconds.

2. Open the disc door by pressing “PUSH OPEN”, place a disc into the tray with the

label side of the disc facing up.

3. Close the disc door cover of the tray. The unit will load the disc and go to the root

menu. Start playback by pressing, “PLAY”.

4. Rotate the VOLUME control to adjust the DVD player’s volume.

5. To stop playing a disc press STOP.

*NOTE: To turn off the unit, you must press and hold the power button for 2 seconds.

G. Connecting to a TV or another monitor ( Refer to Figure 4.-A & Figure 4.-B )

You can also connect the DVD player to a TV or stereo system.

1. Connect one end of the Audio/Video cable’s (black 1/8” stereo plug) into the

unit’s DVD AUDIO jack, and connect the other end to the AUDIO INPUT jacks on your TV or stereo (white = left channel, red = right channel).

2. Connect one end of the video cable (1/8 plug) into the units S video/video jack

and connect the other end to a video input on the TV or monitor.

3. Disconnect the A/V cables from the unit when you are using the DVD player on

its own. Note: S VIDEO cable not provided with player; please consult the dealer for purchasing it.

Black

White

White Red Yellow

S VIDEO cable

AUDIO / VIDEO cable

Yellow

Player(Right Side)

Figure 4. -A

Amplifier

Fiber Digital AUDIO cable

Player(Right Side)

Red

Stereo Sound AUDIO cable

Figure 4. -B
