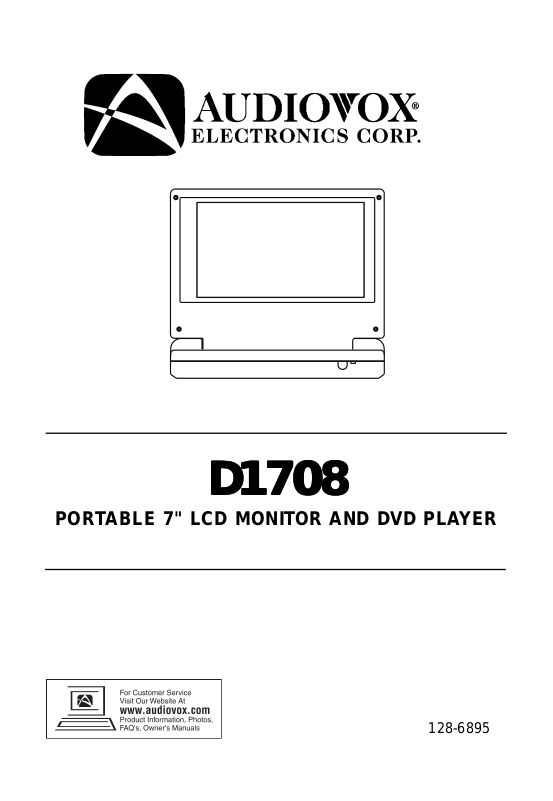

Audiovox D1708 User Manual
D1708D1708
D1708
D1708D1708
PORTABLE 7" LCD MONITOR AND DVD PLAYER
128-6895
A. Introduction
Thank you for choosing the 7” portable DVD player . The main features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Cryst al
Display (LCD) monitor and a DVD player. The unit applies the latest
state of the art electronics and is designed for use in hotels, offices
or your home. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhere and is designed for quick and easy installation. Please
read the entire instruction manual supplied with this product prior to
using. The documentation will assist you in installing the system properly to obtain the best equipment performance. Please save this
manual for later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit away
from strong magnets, heat sources, direct sunlight, excessive dust.
If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit. When you move it from a cold
to a warm location, wait for about one hour before operating the
unit, or remove the disc and leave the unit turned on until the moisture evaporates.
2. Installation
Ensure that the 7” portable DVD player is installed in accordance
with the instructions and illustrations provided in this manual.
3. Caution
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). Do not place anything heavy on
the unit. T o ensure proper ventilation and proper operation, never
cover or block the slots and openings with a cloth or other material.
Keep the unit away from an open flame such as,.fire, candle etc,. It
2
is hazardous to replace the battery incorrectly . Replace the battery
only with the same or equivalent type, in order to protect the
enviromnent,please dispose the battery properly . Do not use the
unit in temperatures higher than 140 degrees Fahrenheit or 40 degrees Celcius.
4.Disassemble
Do not attempt to disassemble the cabinet. There is a risk of electric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system needs repair.
5. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources . Do not touch the surface of disc. Handle the
disc by its edge. Clean the disc by wiping the disc from the center
out with a cleaning cloth. Remove the disc from the unit and store
it in its case after playing. Some playback operations of discs may
be intentionally fixed by software producers. Since this unit plays
discs according to the disc contents the software producers designed, some playback features may not be available. Also refer to
the instructions supplied with the discs.
3
C. Contents
1. 1 x 7’’ LCD Monitor & DVD Player Combo
2. 1 x AC to DC Adapter
3. 1 x Remote Control with battery (CR2025)
4. 1 x Instruction Manual
5. 1 x Audio/V ideo Cable
6. 1 x Cigarette Lighter Adapter
7. Rechargeable Battery
D. Powering and installation
1. Powering the system indoors (Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack on the
left side of the main unit, then plug the other end into the 120V AC
power outlet.
2. Powering the system in a car (refer to Figure 1)
Plug one end of the cigarette lighter adapter into the DC 9V jack on
the unit, then plug the other end into the cigarette lighter socket.
Figure 1
E. Controls, Indicators, and Connectors
4
1. Unit View (Refer to Figure 2)
Figure 2
1) MENU
2) Up Button
3) Left Button
4) Down Button
5) OK Button
6) Right Button
7) Open Button
8) Previous Button
9) Stop Button
10) Next Button
1 1) Play Button
12) Pause
13) Screen Mode Button
14) LCD Panel Shut Off Switch
15) Remote Control Sensor
16) Power LED
17) Video output Jack
18) Audio output Jack
19) Video Input Jack
20) Audio Input Jack
21) Power On/Off Switch
22) Volume Up/Down Control
23) Headphone Jack 1
24) Headphone Jack 2
25) DC 9V Input Jack
26) Brightness Up/Down Control
5
2. Remote Control View (Refer to Figure 3)
1) Display Button
2) Angle Button
3) Subtitle Button
4) Audio Button
5) Zoom Button
6) UP/DOWN/LEFT/RIGHT/
ENTER Buttons
7) Return Button
8) A-B Button
9) Forward Button
10) Reverse Button
1 1) Slow Button
12) Stop Button
13) Numeric Keypad
14) Setup Button
15) Menu Button
16) Repeat Button
17) SKIP-
18) SKIP+
19) Play Button Figure 3
20) Pause Button
F. Loading and Playing a Disc
a. After connecting power to the unit, power on“DVD player” with the
power switch. The power indicator will light.
b. Open the disc tray by pressing OPEN , and place a disc into the
tray with the label side facing up.
c. Close the tray by pressing the “PRESS” button.The unit will load
the disc and start playing.
d. Rotate BRIGHTNESS and VOLUME to adjust the LCD’s bright-
ness and the DVD player’s volume.
e. To stop playing a disc, press STOP .
6
G. SETUP
Press ‘SETUP’ to display the Main screen of the SETUP Menu on the
screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit
will resume it’s last playback mode.
Figure 4. Main SETUP Menu Screen
1) Press “Setup”, the ‘GENERAL SETUP PAGE’ will display on screen.
Figure 5. General SETUP Menu Screen
a).Select TV DISPLA Y using the UP/DOWN buttons, and then press
RIGHT to enter the submenu. Select the TV display mode on
the screen using UP/DOWN, and press ENTER to confirm the
setting. Press LEFT to return.
7
* NORMAL/PS: When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* NORMAL/LB: When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip
at both the top and bottom of the screen.
* WIDE: When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
Figure 6. TV DISPLAY Screen Display
b).Select ‘ANGLE MARK’ using the UP/DOWN butttons, and then
press the RIGHT button to enter the submenu. Choose Angle
Mark on or off using the UP/DOWN buttons and then press ENTER to confirm the setting. Press the LEFT button to return.
Figure 7. ANGLE MARK Screen Display
* ON: The screen will show the angle mark icon. (*If an angle
option is available).
OFF: The screen will not display the Angle Mark
NOTE: Not all discs contain above features. The above features
are disc dependent.
8
c). Select ‘SCREEN SAVER’ using the UP/DOWN buttons,
Figure 8. SCREEN SAVER Display
*ON: enables screen saver
*OFF: disables screen saver (off)
*NOTE: The DVD player will enter the Screen Saver mode after
approximately five minutes if the same image remains on the
screen.
d). Select “ Last Memory” by UP/DOWN button
Figure 9. LAST MEMORY Screen Display
*on: The unit will return to the last position on the disc.
*off: The unit will not return to the last position on the disc.
2) With no disc inside the player select “Video quality Setup”by using
the LEFT/RIGHT buttons, press “enter” to enter the video quality
set up page.
Figure 10. Main SETUP Menu VIDEO QUALITY
9
a).Select “Brightness by using the UP or DOWN buttons ,then press
“Enter”you can change the Brightness by pressing the LEFT or
RIGHT buttons. To exit “Brightness Setting”, press “Enter”again
to return the main Menu.
Figure 11. BRIGHTNESS Screen Display
b).Select “Contrast” by using the UP or DOWN buttons,then press
“Enter” you can adjust the Contrast by pressing the LEFT or
RIGHT butttons.
Figure 12. CONTAST Screen Display
To exit “Contrast” Setting, press “Enter”again to return to the main
Menu.
c).Select “Hue” by using the UP or DOWN buttons, then press
“Enter” you can adjust the Hue by pressing the LEFT or RIGHT
buttons.
Figure 13. HUE Screen Display
To exit “Hue”Setting,press “Enter”again to return the main Menu.
10
