TABLE OF CONTENTS
.
IMPORTANT SAFETY INSTRUCTIONS
FEATURES

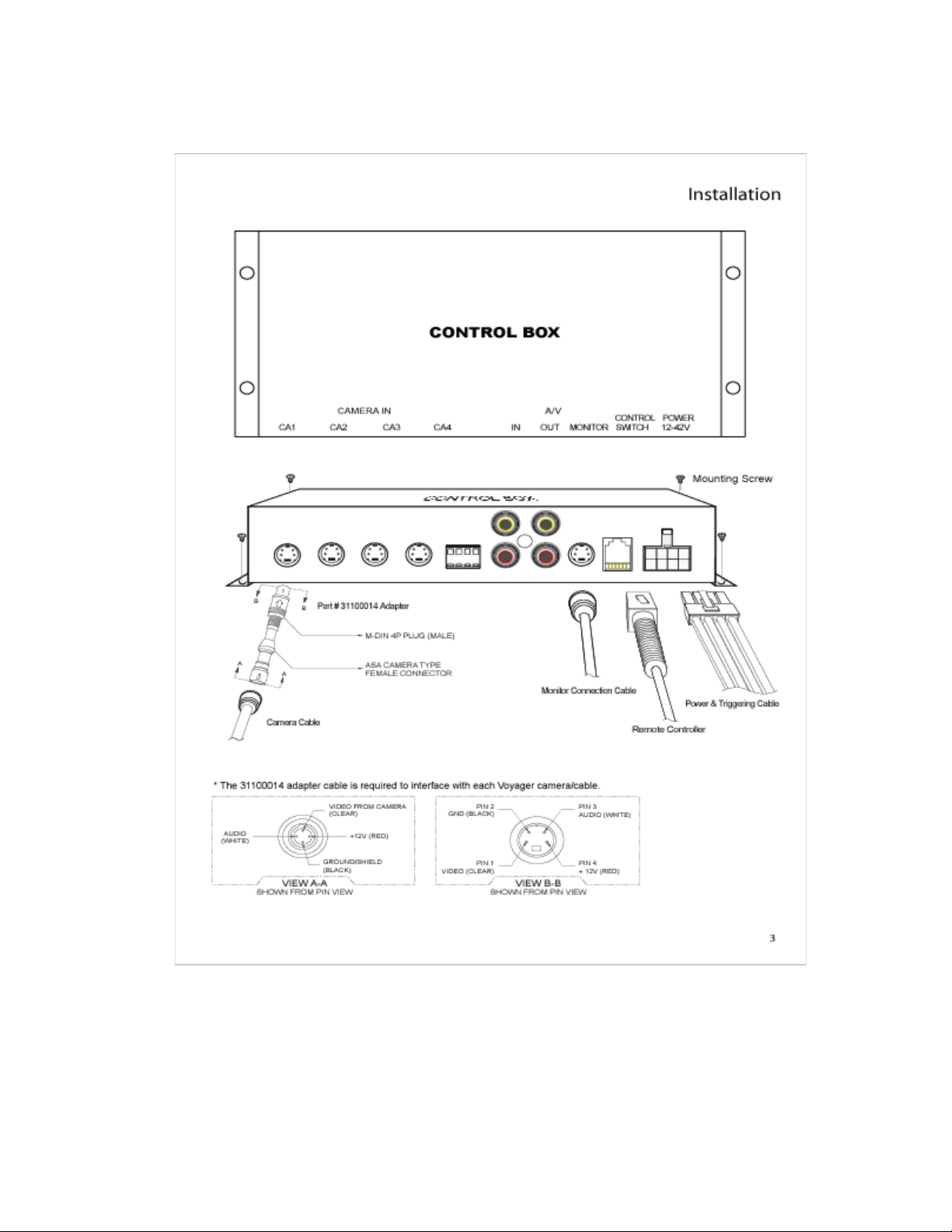

INSTALLATION & CONTROL KEYS
- 4 CAMERAS
- QUAD-VIEW
- A/V
- 4 CAMERAS SEQUENTIAL SCANNING
- AUTOMATIC TRIGGERING
SPECIFICATIONS & PACKAGE CONTENTS
Important Safety Instructions
When using your product, always follow these safety precautions.
Use correct input power.
Do not expose the product to water or any other liquid.
Do not disassemble the product. Take it to a qualified service person when
service or repair work is required. Incorrect reassembly of the product can
cause electric shock.
If you notice smoke or a strange smell coming from the product, immediately
disconnect the product from the power source.
Use of controls, adjustments, or procedures other than specified herein may
result in exposure to shock or electrical and mechanical hazards.
Features
4-Camera Inputs
1 A/V Input for A/V devices such as like DVD Player, T/V tuner and VCR
1 A/V Output to Recorder(VCR, DVR) or extra Monitor
1 A/V Output with 12V DC Power to the Monitor
5-Automatic Triggering Wires with Input voltage from 12V ~ 42V DC
Automatic QUAD mode when triggered by more than two triggers.
Automatic 4 Cameras Sequential Switching with adjustable dwell time from
1 Sec to 9 Sec.
Full Automatic Controls using wired Remote Controller
Designed for multiple applications such as side view cameras and rear view
cameras for any kind of vehicle.
Durable Metal Housing..
.
.
.
.
.
.
.
.
.
.
4 CAMERAS
Select the button (#-1) to display the corresponding camera in full screen mode.
QUAD
Push the QUAD button (#-2) to see all cameras in one screen. In this mode,
the audio will be available only with CA1.
A/V
Push A/V button (#-3) to see A/V device that is connected to A/V-In
terminal(4)
4 CAMERAS SEQUENTIAL SCANNING
Push the SCAN button(#-4) to adjust the sequential dwell time. You may
adjust the time from 1 to 9 seconds by pressing this button. One push
changes 1 second. You can see the change of time on the monitor screen.
AUTOMATIC TRIGGERING
There are total 5-triggering wires(10). Connect the wires according to your
purpose to see the cameras. All trigger inputs feature a 2 second time
delay to avoid flickering caused by on/off cycled inputs such as turn signals.
The QUAD triggering can be connected to some power source which can
supply power when you want to see QUAD screen automatically..
.
.
.
SPECIFICATIONS
.* Video Signal NTSC
* Input Power 12V DC ~ 42V DC Input
* Connectors 4 Camera In : 4-Pin Mini Din/12V DC Outl
1 A/V In : 2-RCA
2 A/V Out
1) 2-RCA for Recorder (VCR or DVR)
2) 4-Pin Mini Din/12V 1A DC Out for Monitor
Control Switch : RJ-11
Power Input & Auto Triggering : 8-Pin Molex
* 5-Auto Triggerings 12V DC ~ 42V DC Input with 2 second dwell time
* Wired Control Switch Camera 1 ~ Camera 4 (Full Screen Mode)
Quad Model A/V Mode
Scan Mode
1) 4-Camera Auto Scan
2) Adjustable Dwell Time (1sec. ~ 9sec.)
4 Meter Cable
(2 Meter Curling + 2 Meter Straight)
* Operating Temperature -15¡ÆC ~ +70¡ÆC (5 ~ 158¡ÆF)
* Power Consumption 1.8A Max.
* Dimensions 190.5(W) x 36.5(H) x 107.5(D) mm
Package Contents
Control Box
Wired Remote Controller
Power & Triggering Cable Kits : 2 meter
Monitor Connection Cable : 2 meter
(4-Pin Mini Din + 2 RCA & 1 DC Power Jack)
Mounting Screws Kits
User's GuideSpecifications6
WARRANTY
90 DAY / 12 MONTH LIMITED WARRANTY
AUDIOVOX SPECIALIZED APPLICATION. LLC (the Company) warrants to the
original retail purchaser of this product that should this product or any part thereof,
under normal use and conditions, be proven defective in material or workmanship
within 90 days from the date of original purchase, such defect(s) will be repaired
or replaced (at the Company’s option) without charge for parts and repair labor.
After the initial 90 day period and for a period of 12 months from the date of original
purchase, the Company will supply at no charge a replacement for any defective
part(s), but will charge for the labor to repair the product.
To obtain repair or replacement within the terms of this warranty, the product is to
be delivered with proof of warranty coverage (e.g. dated bill of sale), specification
of defect(s), transportation prepaid, to an approved warranty station, or the Company
at the address shown below.
This warranty does not extend to the elimination of externally generated static or
noise, to the correction of antenna problems, to costs incurred for removal or
reinstallation of the product, or to damage to any tapes, speakers, accessories, or
electrical systems.
This warranty does not apply to any product or part thereof which, in the opinion
of the Company, has been damaged through alteration, improper installation,
mishandling, misuse, neglect, or accident. THE EXTENT OF THE COMPANY’S
LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE, AND, IN NO EVENT, SHALL THE COMPANY’S LIABILITY EXCEED
THE PURCHASE PRICE PAID BY THE PURCHASER FOR THE PRODUCT.
This warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
SHALL BE LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR
BREECH OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY
OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 DAYS FROM
THE DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE
FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREECH OF THIS OR
ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or
representative is authorized to assume for the Company any liability other that
expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the
exclusion or limitation of incidental or consequential damages so the above limitations
or exclusions may not apply to you. This warranty gives you specific legal rights
and you may also have other rights which vary from state to state.
AUDIOVOX SPECIALIZED APPLICATION, LLC
Visit us at www.asaelectronics.com
