PO RT AB LE CD SYSTEM
OPERATION INSTRUCTION
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
CLASS 1 LASER PRODUCT
This product contains a low power laser device.
SAFETY PRECAUTIONS
Follow the advice below for safe and appropriate operations.
ON PLACEMENT
.Do not use the unit in places which are extremely hot, cold, dusty or
humid.
.Place the unit on a flat and even surface.Do not restrict the air flow of the unit by placing it in a place with poor air
flow, by covering it with a cloth, or by placing it on a carpet.
ON SAFETY
.When connecting and disconnecting the AC cord, grip the plug and not
the cord itself. Pulling the cord may damage it and create hazard.
.When you are not going to use the unit for a long period of time, disconnect
the AC power cord.
ON AC VOLTAGE
.Before use, check that the rated voltage of your unit matches your local
voltage.
.When there is condensation inside the unit, the unit may not function
normally.
.Let it stand for 1 to 2 hours before turning the power on, or gradually heat
the room up and dry the unit before use.
FCC INFORMATION
This device complies with part 15 of FCC Rules. Operations are subject to
the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesirable operations.
Should any trouble occur, disconnect the AC power cord and refer servicing
to qualified personnel.
811-129191-010
Printed in China
NAMES OF CONTROLS
~~",."...,.."',,-"'.~"-.
1. CD display
Program' .' indicator
Repeatone .' indicator
Repeatall'-:;:-' indicator
2. CD PLAY/PAUSE button
3. CD REPEAT/PROGRAM button
4. CD STOP button
5. CD OPEN/CLOSE button
6. CD door
7. SKIP/SEARCH (forward) button
8. SKIP/SEARCH (reverse) button
9. Cassette compartment
10. RECORD button
11. PLAY button
12. REWIND button
13. TUNING control
14. PAUSE button
15. STOP/EJECT button
16. F .FWD (forward) button
17. Micro antenna
18. BAND switch
19. MODE switch
20. FUNCTION switch
21. VOLUME control
22. TONE switch
23. PHONES jack
c'
"c
USING THE CD PLAY
1tj
1. Set the FUNCTION switch to
CD. "--" is show in the display.
CD DISPlAY
2. Press OPEN/CLOSE to open the
CD tray. Place a disc in the centre with the label side up. Press
OPEN/CLOSE again to close the
tray. The total number of tracks
will show in the display.
CD DISPLAY
~
3. Press PLA y IP AUSE ( H ) to start
CD play.
.Adjust the VOLUME.
CD DISPLAY
[=:JJ
TO INTERRUPT PLAYBACK
.Press ( ~" ) PLAY/PAUSE while
a CD is playing to pause play
(the track number will blink).
CD DISPLAY
r ', .1
~
~
TO STOP PLA YBACK
.Press ( .) STOP to stop disc play.
.Press ( ~II )PLAY/PAUSE again
to resume play (the "Play/
Program" indicator will light).
CD DISPLAY
~
POWERING UP
ADJUSTING THE SOUND
PROGRAM PLAY (at stop mode)
RADIO OPERA TION
Note: After listening, set the FUNCTION switch to TAPE.
.~
:",
~

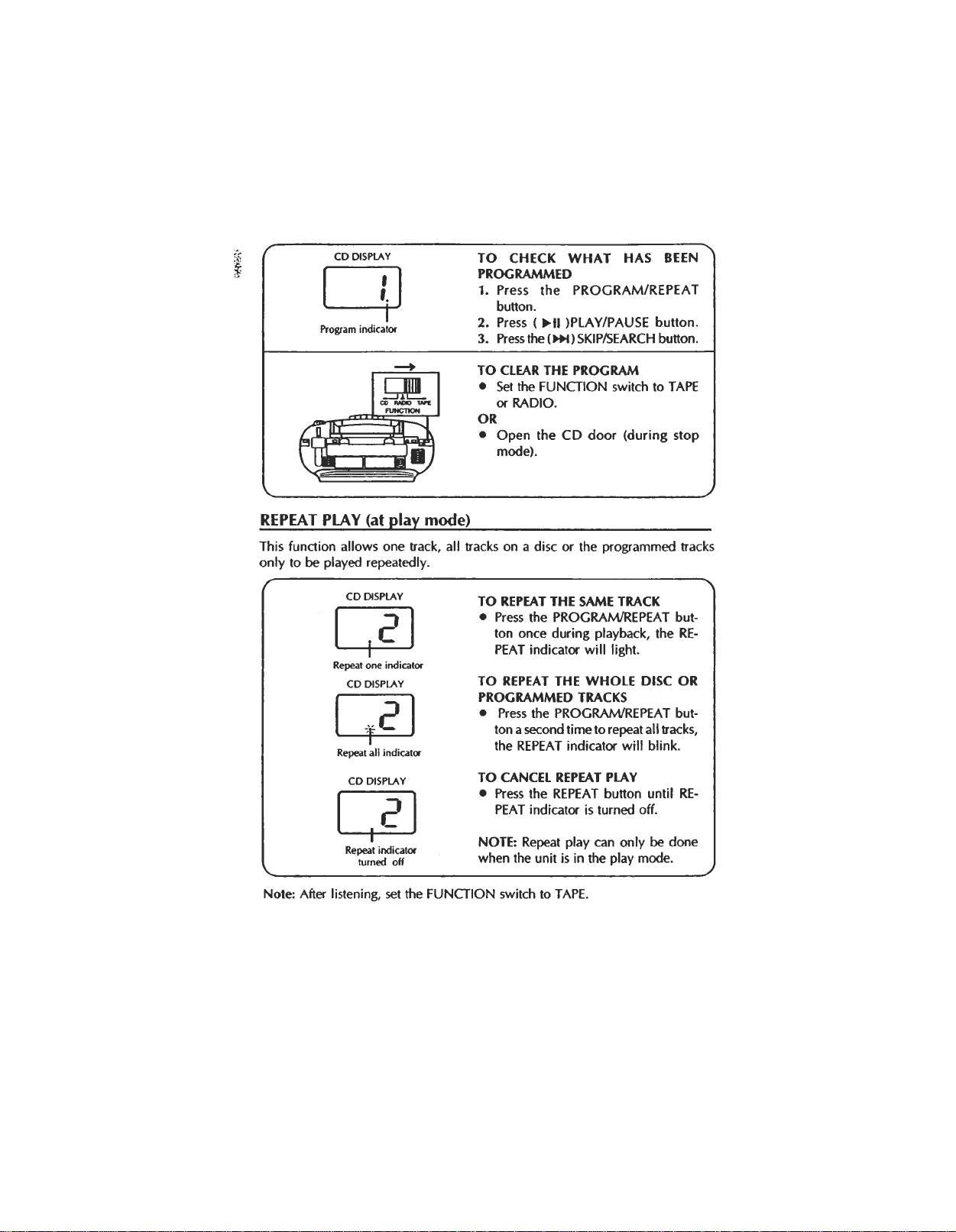

REPEA T PLA y (at play mode)
This function allows one track, all tracks on a disc or the programmed tracks
only to be played repeatedly.
Note: After listening, set the FUNCTION switch to TAPE.
USING THE CASSETTE COMPARTMENT
'A-~..~'.'..".' ~~

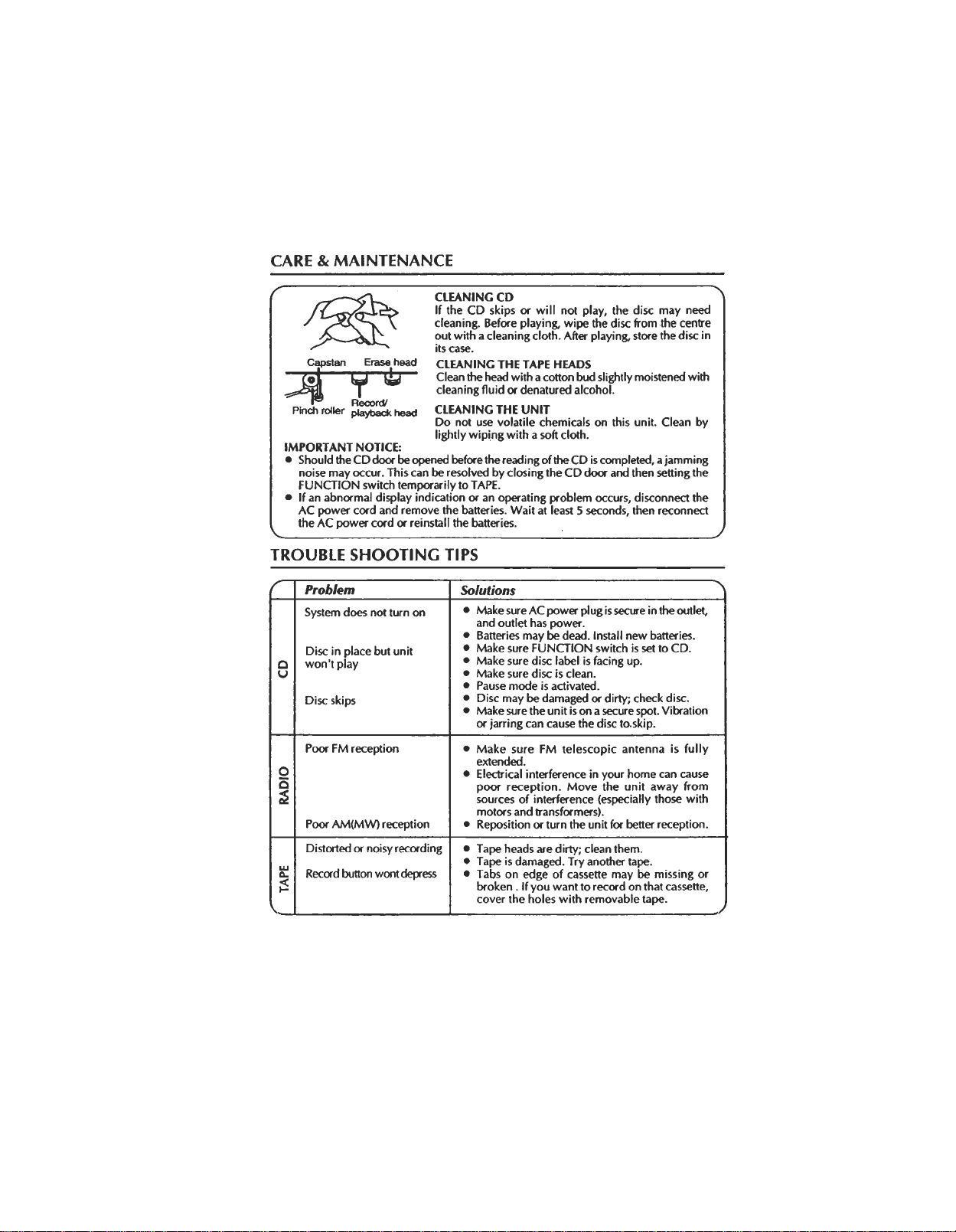

CARE & MAINTENANCE
TROUBLE SHOOTING TIPS
Dist011ed or noisy recording 8 Tape heads are dirty; clean them.
~ Reccrd button wont depress 8 Tabs on edge of cassette may be missing or
~ broken. If you want to record on that cassette,
8 Tape is damaged. Try another tape.
cover the holes with removable tape.
,
;~
'~
:~
;1
,i
"
,~
1
,
~
~
~,
REMOTE FOR CD PLA y (OPTION)
1. STOP button
2. SKIP (reverse) button
3. OPEN/CLOSE button
4. PLAY/PAUSE button
5. SKIP (forward) button
6. REPEAT/PROGRAM button
INSTALliNG BATTERIES
.Install two RO3 (AM or UM-4) size batteries into the battery compartment
of the Remote Control.
USING THE REMOTE CONTROL CORRECTLY
.Point the Remote Control at the REMOTE CONTROL sensor located next to
the CD Display. Press the button required.
.When there is a strong ambient light source, the performance of the infrared
REMOTE CONTROL sensor may be degraded, causing unreliable operation.
.The recommended effective distance for remote operation is about 6 meters.
BATTERY REPLACEMENT
.When batteries become weak, the operating distance of the Remote Con-
trol is greatly reduced and you will need to replace the batteries.
NOTE
.If the Remote Control is not going to be used for a long time, remove the
batteries to prevent possible damage through battery leakage.
.Do not mix different types of batteries, or old batteries with new ones.
SPECIFICATION
