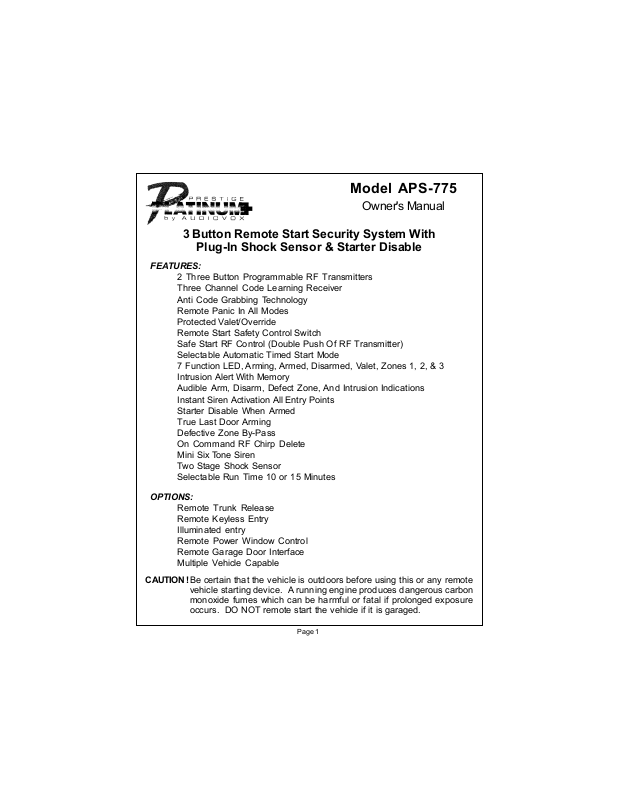

Audiovox APS-775 User Manual

Model APS-775

Owner's Manual

3 Button Remote Start Security System With

Plug-In Shock Sensor & Starter Disable

FEATURES:

 2 Three Button Programmable RF Transmitters  Three Channel Code Learning Receiver  Anti Code Grabbing Technology  Remote Panic In All Modes  Protected Valet/Override  Remote Start Safety Control Switch  Safe Start RF Control (Double Push Of RF Transmitter)  Selectable Automatic Timed Start Mode  7 Function LED, Arming, Armed, Disarmed, Valet, Zones 1, 2, & 3  Intrusion Alert With Memory  Audible Arm, Disarm, Defect Zone, And Intrusion Indications  Instant Siren Activation All Entry Points  Starter Disable When Armed  True Last Door Arming  Defective Zone By-Pass  On Command RF Chirp Delete  Mini Six Tone Siren  Two Stage Shock Sensor  Selectable Run Time 10 or 15 Minutes

OPTIONS:

 Remote Trunk Release  Remote Keyless Entry  Illuminated entry  Remote Power Window Control  Remote Garage Door Interface  Multiple Vehicle Capable

CAUTION ! Be certain that the vehicle is outdoors before using this or any remote

vehicle starting device. A running engine produces dangerous carbon monoxide fumes which can be harmful or fatal if prolonged exposure occurs. DO NOT remote start the vehicle if it is garaged.

Page 1

Y ourAPS-775 Remote Start Alarm System has many features and available options some of which are selected at time of installation. For your reference, the list on page 7 of this manual shows what features and options have been installed. Consult your installing dealer for options that may have been installed and are not listed.

ARMING THE SYSTEM - ACTIVE:

1. Turn the engine off, exit the vehicle, and close all doors, hood and trunk.

2. Press and release the Arm/Disarm button of your key chain transmitter one time. The parking lights will flash once, the siren will chirp once, and the dash mounted LED will begin to flash slowly confirming the system is armed. If y o u have the optional door lock/unlock circuit installed, the doors will lock.

Note: If the siren chirped three times, then you have left a door, hood, or trunk ajar. Simply

closing that opening will provide full protection. If your vehicle has delayed interior lighting, you may also get three chirps when arming. Once the light turns off, you will hear one chirp confirming full arming. If the siren did not sound when arming, then the chirps have been turned off. Refer to the section on "Eliminating the Arm/Disarm Chirps" shown later in this manual.

SILENT ARMING - ACTIVE:

1. Turn the engine off, exit the vehicle, and close all doors, hood and trunk.

2. Press and hold the Arm/Disarm button of your key chain transmitter for two seconds. The parking lights will flash once, and the dash mounted LED will begin to flash slowly confirming the system is armed. The siren will not chirp. If you have the optional door lock/ unlock circuit installed, the doors will lock.

Note: If the siren chirps three times, then you have left a door, hood, or trunk ajar. Simply

ARMING THE SYSTEM - PASSIVE (AUTOMA TIC)

If the passive arming feature has been selected:

1. Turn the engine off, exit the vehicle, and close all doors, hood and trunk. The dash mounted LED will begin to flash rapidly indicating that the 30 second passive

arming timer has begun. If the LED does not begin to flash rapidly, then you have left a door, hood, or trunk ajar. Closing this entry point will allow the arming cycle will begin. If any entry point is opened during the 30 second arming cycle, arming will be suspended. When all entry points are closed, the arming cycle will begin again. At the end of the 30 seconds, the parking lights will flash once, the siren will chirp once, and the dash mounted LED will begin to flash slowly confirming the system is armed. If the siren did not sound when arming, then the chirps have been turned off. Refer to the section on "Eliminating the Arm/Disarm Chirps" shown later in this manual. Passive door locking is a selectable feature. If you have the optional door lock/unlock circuit installed, the doors may or may not lock passively depending upon the setup during installation.

PROTECTION WHILE THE SYSTEM IS ARMED:

Opening any protected entry point, hood, trunk, or doors will cause the alarm to trigger immediately. The siren will sound and the parking lights will flash for 30 seconds, then stop and continue to monitor all protected entry points. If the thief left the door opened, the unit

Page 2

will sound for six 30 second cycles then shut down, isolate the triggered zone and continue to protect all other zones.

Whenever the system is armed, the dash mounted LED will slowly flash. This serves as a visual deterrent to a potential thief. This LED is a very low current light emitting diode, and will not cause the battery to drain even if left unattended for long periods of time. Whenever the system is triggered, the vehicle's parking lights will flash for the full siren sounding period. Optional - whenever the system is triggered, the interior courtesy light will flash for the full siren sounding period. Whenever the system is armed, the vehicle starter circuit is disabled, and the vehicle will not start with the ignition key.

Whenever the system is armed, any strong impact to the vehicle will cause the shock detector to trigger the alarm. Any lesser impact will cause the pre-detect stage of the shock sensor to emit a few short series of warning tones from the siren.

DISARMING THE SYSTEM

As you approach the vehicle, press and release the Arm/Disarm button on the keychain transmitter. The parking lights will flash two times, the siren will chirp twice, and the dash mounted LED will turn off.

If you have the optional door lock/unlock circuit installed, the doors will unlock. If you have the optional entry illumination circuit installed, the interior light will turn on for 30 seconds or until the ignition key is switched on.

Note: If the passive arming mode was selected at time of installation, the dash mounted LED

will start flashing rapidly indicating that the system is rearming. Opening any door will suspend the automatic arming.

If the parking lights flashed three times, and the siren chirps four times, this indicates that the alarm system was triggered during your absence. Before turning on the ignition key, examine the dash mounted LED's flash pattern. The number of flashes identifies the triggered zone. For additional information, refer to INTRUSION WARNING SIGNALS found later in this manual. If the siren did not sound upon disarm, then the chirps have been turned off. Refer to the section titled ELIMINA TINGTHEARM/DISARM CHIRPS.

SILENT DISARMING

1. As you approach the vehicle, press and hold the Arm/Disarm button of your key chain transmitter for two seconds.

The parking lights will flash twice, and the dash mounted LED will turn off confirming that the system is disarmed. The siren will not chirp. If you have the optional door lock/unlock circuit installed, the doors will unlock. If you have the optional entry illumination circuit installed, the interior light will turn on for 30 seconds or until the ignition key is switched on.

Note: If the passive arming mode was selected at time of installation, the dash mounted LED

will start flashing rapidly indicating that the system is rearming. Opening any door will suspend the automatic arming.

If the parking lights flashed three times, and the siren chirps four times, this indicates that the alarm system had been triggered in your absence. Before turning on the ignition key, examine the dash mounted LED's flash pattern. The number of flashes identifies the triggered zone. For additional information, refer to INTRUSION WARNING SIGNALS found later in this manual.

Page 3
