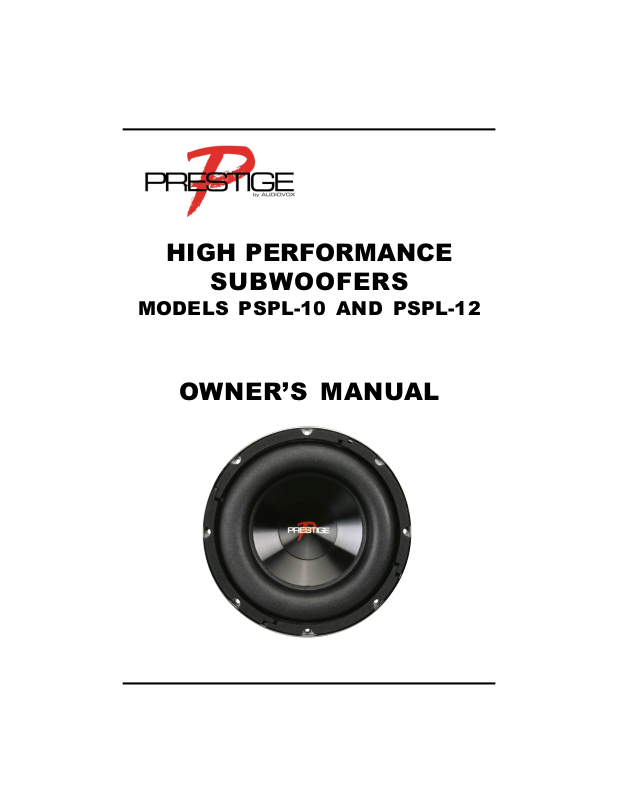

Page 1
HIGH PERFORMANCE
SUBWOOFERS
MODELS PSPL-10 AND PSPL-12
OWNERS MANUAL
Page 2
Congratulations on your purchase of the
Subwoofer. The
Prestige
Subwoofers are designed to provide you with high
Prestige
High Performance
quality Bass reproduction required to make your car audio system perform to
its full potential.
PRESTIGE
l Dual 2 Ohm voice coil for maximum flexibility and performance
l Low-Q parameters for Isobaric and small sealed box enclosures
l Vented magnet for improved performance
l Chrome-plated binding posts that can accept up to 10-gauge wire
l Long throw suspension assembly
l Carbon injection woofer cone
Subwoofer Features
SUBWOOFER P ARAMETERS
PSPL-10 PSPL-12
Nominal Power Rating 300 Watts 350 Watts
Maximum Power Rating 600 Watts 700 Watts
Ferrite Magnet 60 Ounce 80 Ounce
Frequency Response 20 Hz-2.5 kHz 20 Hz-2.5 kHz
Resonant Frequency (F/O) 40 Hz ± 20% 35 Hz ± 20%
VC Diameter 1.5" 2.0"
Sound Pressure Level 87dB ± 1.5 dB 88 dB ± 1.5 dB
Xmax 9.5 mm 9.5 mm
Nominal Impedance 2 Ohms x 2 2Ohms x 2
DCR 1.98 Ohms 1.98 Ohms
Speaker Weight 4.6 kg 5.8 kg
WARNING: High-powered car audio systems may produce sound
pressure levels that exceed the threshold at which hearing
loss may result. They may also impair a driver’s ability to
hear traffic sounds or emergency vehicles. Use common
sense and practice safe listening habits when listening to
your audio system.
DUAL VOICE COIL WIRING
CAUTION: Never connect only one voice coil of a dual voice coil woofer.
Both must be driven at the same time for proper operation.
Never connect an amplifier to an impedance load lower than
it is rated to handle.
SERIES/P ARALLEL MONAURAL CONNECTION
Parallel
result in a total impedance load of 1 Ohm at the amplifier, (See Fig. 1) if your
amplifier is rated to drive 1 Ohm in bridged or one-channel operation. If each of two
dual-voice coil 2-Ohm woofers are connected in parallel and then wired to each
wiring for a single, dual-voice coil 2-Ohm woofer in a monaural system will
2
Page 3
other in parallel, a 0.5-Ohm monaural output would result (See Fig. 2). On the other
hand, if your amplifier is rated for 2-Ohm operation in bridged or one-channel operation,
series-connect the woofer voice coils (See Fig. 3). If the amplifier is rated for 4 Ohms,
interconnect the voice coils of the woofer in series as shown to obtain an 4-Ohm monaural output (See Fig. 4).
1 Ω
1 Ω
P ARALLEL
+
-
-
+
2
+
-
-
+
Fig. 1
Fig. 2
+
4 Ω
1 Ω
MONO
-
-
1 Ω
+
0.5 Ω
MONO
+
-
-
+
4 Ω
SERIES
+
Fig. 3
-
+
+
-
Fig. 4
-
4 Ω
2 Ω
MONO
-
+
4 Ω
MONO
SERIES/P ARALLEL STEREO CONNECTION
Series
wiring of each of two, dual voice-coil 2 Ohm woofers will result in a total
impedance load of 4 Ohms at each channel of the amplifier (See Fig. 5). Otherwise,
connect one woofer to each channel for 2 Ohm stereo operation (See Fig. 6), or two
parallel-wired woofers (one-per-channel) for 1-Ohm stereo operation (See Fig.7).
+
4 Ω
4 Ω
-
L
+
-
+
-
+
-
Fig. 5
R
4 Ω
STEREO
-
+
1 Ω
L
+
-
-
1Ω
+
+
2 Ω
-
1 Ω
STEREO
-
2 Ω
STEREO
+
Fig. 6
-
R
+
Fig. 7
3
Page 4
INSTALLATION RECOMMENDATIONS
To realize the utmost in sound reproduction from your subwoofer(s), follow these
installation recommendations:
l Use a quality large gauge wire to connect your subwoofer to the
amplifier
l Use a subwoofer crossover to remove unwanted higher frequencies
l Position the enclosure in the rear of the vehicle with the subwoofer
facing rearward to improve bass response and avoid cancellation of
audio frequencies
ENCLOSURE CONSTRUCTION RECOMMENDATIONS
T o enhance subwoofer performance, the following general recommendations should be
addressed when constructing the speaker enclosure:
l Use 3/4" MDF for your construction material
l Glue all joint seams
l Screw all joints tight
l Brace all walls
DESIGNING AND BUILDING YOUR SPEAKER ENCLOSURE
The following parameters are offered to assist you in designing your own enclosure.
There are many computer software programs available on the market that, along with
this information, will allow you to construct the type of enclosure that best suits your
needs.
To obtain the best possible results, we suggest you use our recommended enclosure
designs and have an automotive sound professional build your enclosure.
4
Page 5
Thiele/Small Parameters
PSPL-10 PSPL-12
Parameters
Fs 38.88 Hz 38.40 Hz 32.44 Hz 32.14 Hz
R e 3.97 Ohms 0.95 Ohms 4.01 Ohms 0.99 Ohms
Res 31.88 Ohms 4.32 Ohms 41.37 Ohms 10.37 Ohms
Qms 3.89 2.55 4.41 4.34
Qes 0.48 0.56 0.43 0.42
Qts 0.43 0.46 0.39 0.38
R 2 8.69 Ohms 2.53 Ohms 12.65 Ohms 3.18 Ohms
V as (Sd) 29.44 Ltrs 30.17Ltrs 54.81 Ltrs 55.84 Ltrs
Mms (Sd) 68.43Gms 68.43Gms 106.45 Gms 106.45 Gms
Cms (Sd) 245 M/Ntn 251 M/Ntn 226 M/Ntn 230 M/Ntn
Bl (Sd) 11.31 Tesla-M 5.30 T esla-M 14.27 T esla-M 7.16 Tesla-M
SPLref (Sd) 87.4 dB 86.7 dB 88,2 dB 88.3 dB
Series Parallel Series Parallel
5
Page 6
Recommended Enclosure Designs
SEALED BOX
VENTED BOX
BANDPASS
BOX (4th
order)
PSPL-10
(Vb) Box Volume = 0.56 Cu. Ft.
F3: 42 Hz
Dimensions: 11.5" W x 16" H x 5.25" D
(Vb) Box Volume = 1.15 Cu. Ft.
F3: 42 Hz
Dimensions:12.5" W x 20.25" H x 7.75" D
(P) Port = 2" ID x 7.875" Long
Vbt = 1.15 Cu. Ft. (total)
Vbs = .58 Cu.Ft. (sealed side)
Vbp = .57 Cu. Ft. (ported side) (speaker
load s into this s ide)
Port = 3" ID x 9.25" Long
F3: 39 Hz & 100 Hz with negligible gain
10" W (inside) x 16.125" H (inside) x
6.125" D (inside) (sealed side) x 6" D
(inside) (vented side)
PSPL-12
(Vb) Box Volume = 0.77 Cu. Ft.
F3: 64 Hz
Dimensions: 13.5" W x 17.75" H x 5.5" D
(Vb) Box Volume = 1.68 Cu. Ft.
F3: 36 Hz
Dimensions: 14.13" W x 23" H x 8.75" D
(P) Port =3" ID x 8.75" Long
Vbt = 1.23 Cu. Ft. (total)
Vbs = .59 Cu.Ft. (sealed side)
Vbp = .64 Cu. Ft. (ported side) (speaker
load s into this s ide)
Port = 3" ID x7.125" Long
F3: 38 Hz & 115 Hz with negligible gain
12" W (inside) x 16.125" H (inside) x
5.125" D (inside) (sealed side) x 5.625" D
(inside) (vented side)
© 2000 Audiovox Corporation, Hauppauge, NY 1 1788 128-5809
