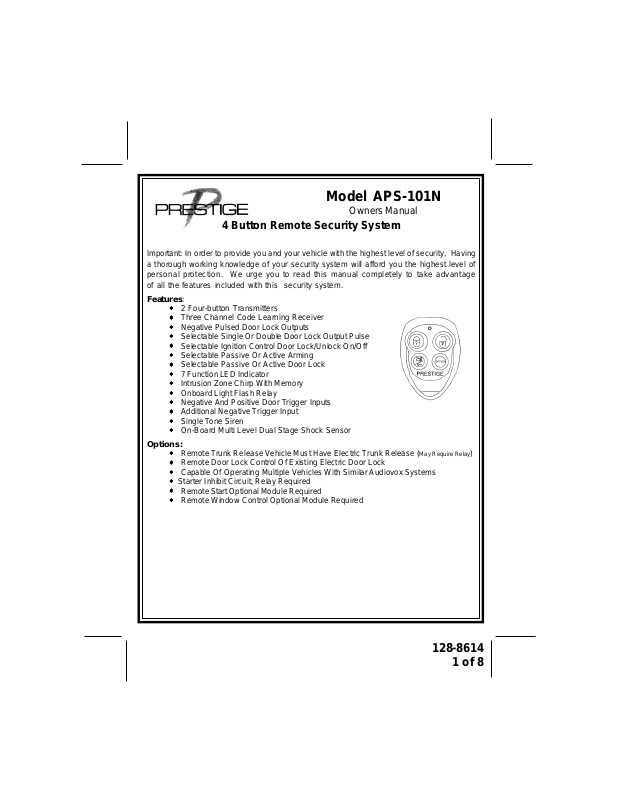

Audiovox 128-8614 User Manual
Model APS-101N
Owners Manual
4 Button Remote Security System
Important: In order to provide you and your vehicle with the highest level of security, Having
a thorough working knowledge of your security system will afford you the highest level of
personal protection. We urge you to read this manual completely to take advantage
of all the features included with this security system.
Features:
2 Four-button Transmitters
Three Channel Code Learning Receiver
Negative Pulsed Door Lock Outputs
Selectable Single Or Double Door Lock Output Pulse
Selectable Ignition Control Door Lock/Unlock On/Off
Selectable Passive Or Active Arming
Selectable Passive Or Active Door Lock
7 Function LED Indicator
Intrusion Zone Chirp With Memory
Onboard Light Flash Relay
Negative And Positive Door Trigger Inputs
Additional Negative Trigger Input
Single T one Siren
On-Board Multi Level Dual Stage Shock Sensor
Options:
Remote Trunk Release Vehicle Must Have Electric Trunk Release (May Require Relay)
Remote Door Lock Control Of Existing Electric Door Lock
Capable Of Operating Multiple Vehicles With Similar Audiovox Systems
Starter Inhibit Circuit, Relay Required
Remote Start Optional Module Required
Remote Window Control Optional Module Required
128-8614
1 of 8
ARMING THE SYSTEM - ACTIVE
1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid.
2. Press and release the Lock button on the keychain transmitter.
SILENT ARMING - ACTIVE
1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid.
2. Press both Lock & Unlock buttons on the keychain transmitter.
ARMING THE SYSTEM - PASSIVE ( AUTOMATIC )
1. Turn off the engine, exit the vehicle, and close and lock all doors, hood lid, and trunk lid.
2. Opening any protected entry point during the 30 second passive arming cycle will immedi-
PROTECTION WHILE THE SYSTEM IS ARMED
Red dash mounted LED begins to flash slowly.
Parking Lights flash one time.
Siren sounds one chirp.
Doors Lock - Optional
Red dash mounted LED begins to flash slowly.
Parking Lights flash one time.
Siren will not sound.
Doors Lock - Optional
NOTE: Must be selected on during installation
Red dash mounted LED begins to flash rapidly, indicating 30 second passive
ately suspend automatic arming, and the 30 second passive arming cycle will re start when
all doors are closed. At the end of the passive arming cycle;
Red dash mounted LED begins to flash slowly.
Parking Lights flash one time.
Siren sounds one chirp
Doors Lock - Optional
Opening any protected door, hood, or trunk lid will cause the alarm to immediately sound.
The alarm will continue to sound for 30 seconds, then stop and continue to monitor all
protected entry points. If the thief left a door opened, the alarm will sound for six 30
second cycles, remain armed and ignore that triggered zone.
Whenever the system is armed, the red dash mounted LED indicator will slowly flash.
This serves as a visual deterrent to the potential thief. The LED is a very low current
bulb, and will not cause the vehicle’s battery to drain, even when left unattended for
extended periods.
Whenever the system is triggered, the vehicle’s parking lights will flash for the full 30
second alarm cycle, attracting visual attention to the vehicle.
If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid
ajar. Simply close the opened entry point to provide full protection. If the
siren did not sound when arming, then the chirps have been turned off,
and you should refer to the section titled “ ELIMINATING THE ARM / DISARM
CHIRPS “ in this manual.
If the siren sounds 3 chirps, then you have left a door, trunk, or hood lid
ajar. Simply close the opened entry point to provide full protection.
arming has begun.
Door locking during passive arming is a selectable feature. The alarm can
be programmed to allow the doors to lock only when arming using the
keychain transmitter, and they will not automatically lock during passive
arming.
Page 2
128-8614
2 of 8
Whenever the system is armed, the vehicle’s starting circuit will be bypassed. If the
thief should choose to ignore the siren, the vehicle can not be started.
Any strong impact to the vehicle's glass/body will cause the alarm to trigger for the
full 30 second alarm cycle. A milder impact will cause the siren to emit a few short
DISARMING THE SYSTEM
1. As you approach the vehicle, press and release the Unlock button on the keychain
NOTE : Anytime the system is disarmed, the unit will rearm automatically unless a door is
opened. This will occur regardless of the arming method selected.
SILENT DISARMING
1. As you approach the vehicle, press both Lock & Unlock buttons on the keychain transmitter.
INTRUSION WARNING SIGNALS
This system will inform you if an intrusion attempt has occurred while you were away from the
vehicle. If an intrusion attempt has occurred, the siren will chirp 4 times and the parking lights
will flash 3 times when disarming the system. Enter the vehicle, and observe the red
dash- mounted LED to identify which zone was triggered.
If the LED is flashing one time...pause...one time...pause...etc., then the shock sensor was
activated in your absence.
warning tones.
transmitter.
Red dash mounted LED turns off.
Parking Lights flash two times.
Siren sounds two chirps.
Doors Unlock - Optional
Red dash mounted LED turns off.
Parking Lights flash two times.
Siren will not sound.
Doors Unlock - Optional
NOTE: Must be selected on during installation.
If passive arming is selected, the LED will start flashing rapidly, indicating
that the system is re arming automatically. Open any door to suspend the
automatic arming.
If the parking lights flashed three times, then the alarm was triggered in
your absence. Before turning the key on, examine the LED to identify
which zone was triggered.
If the siren sounds 4 chirps, then the alarm was triggered in your absence. Before turning the key on, examine the LED and refer to the INTRUSION WARNING SIGNALS section of this manual to identify which zone
was triggered.
If the siren did not sound when disarming, then the chirps have been
turned off, and you should refer to the section titled “ ELIMINATING THE
ARM / DISARM CHIRPS “ in this manual.
If passive arming was selected during the installation, then the LED will
start flashing rapidly, indicating that the system is re arming automatically.
Open any door to suspend the automatic arming.
If the parking lights flashed three times, then the alarm was triggered in
your absence. Before turning the key on, examine the LED to identify
which zone was triggered.
If the siren sounds 4 chirps, then the alarm was triggered in your
absence. Before turning the key on, examine the LED and refer to the
INTRUSION WARNING SIGNALS section of this manual to identify which
zone was triggered.
