D1500AD1500A
D1500A
D1500AD1500A
PORTABLE 5" LCD MONITOR AND DVD PLAYER
1
Notice:
This Product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual
property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
2
A. Introduction
Thank you for choosing the D1500A portable DVD player. The main
features include a 5" Screen (4:3 aspect ratio) Liquid Crystal Display
(LCD) monitor and a DVD player. The unit applies the latest state of
the art electronics and is designed for use in hotels, offices, vehicles
or your home. The unit is constructed to provide years of reliable,
trouble-free service, and is compact so that you can take it with you
anywhere and is designed for quick and easy installation. Please read
the entire instruction manual supplied with this product prior to using.
The documentation will assist you in installing the system properly to
obtain the best equipment performance. Please save this manual for
later use.
B. Cautions and Warnings
1. Placement
To prevent fire or electric shock, do not expose this appliance to
rain or moisture. Do not place the set on an unstable cart, stand,
tripod, bracket or table to prevent it from falling. Keep the unit away
from strong magnets, heat sources, direct sunlight, and excessive
dust. If the unit is brought directly from a cold to a warm location,
moisture may condense inside the unit. When you move it from a
cold to a warm location, wait for about one hour before operating
the unit, or remove the disc and leave the unit turned on until the
moisture evaporates.
2. Installation
Ensure that the D1500A portable DVD player is installed in accordance with the instructions and illustrations provided in this manual.
3. Caution
Do not push objects of any kind into the unit through openings;
do not spill or spray liquid of any kind on or in the system (this
may result in a fire or electric shock). Do not place anything
3
heavy on the unit. To ensure proper ventilation and proper
operation, never cover or block the slots and openings with a cloth
or other material. Keep the unit away from an open flame such as
fire, candle etc. It is hazardous to replace the battery incorrectly.
Replace the battery only with the same or equivalent type, in order
to protect the environmnent, please dispose of the battery properly. Do not use the unit in temperatures higher than 95 degrees
Fahrenheit or 35 degrees Celsius.
4. Disassemble
Do not attempt to disassemble the cabinet. There is a risk of electric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system needs repair.
5. Cleaning Unit
When cleaning, make sure the system is unplugged from the power
source. Do not use liquid cleaners or aerosol cleaners. Use a cloth
lightly dampened with water for cleaning the exterior of the system
only .
6. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources. Do not touch the surface of disk. Handle the
disc by its edge. Clean the disc by wiping the disc from the center
out with a cleaning cloth. Remove the disc from the unit and store
it in its case after playing. Some playback operations of discs may
be intentionally fixed by software producers. Since this unit plays
discs according to the disc contents the software producers designed, some playback features may not be available. Also refer to
the instructions supplied with the discs.
4
C. Contents
1. 1 x 5’’ LCD Monitor & DVD Player Combination
2. 1 x AC to DC Adapter
3. 1 x Remote Control with battery (CR2025)
4. 1 x Rechargeable Battery
5. 1 x DC Power Adapter
6. 1 x Instruction Manual
7. 1 x Audio/V ideo Input Cable
8. 1 x Audio/Video Output Cable
D. Powering and installation
1. Powering the system indoors
(Refer to Figure 1)
Plug one end of the AC to DC adapter into the DC 9V jack on the
right side of the main unit, then plug the other end into a 120VAC
power outlet.
2. Powering the system in a car
(refer to Figure 1)
Plug one end of the DC power adapter into the DC 9V jack on the
unit, then plug the other end into the vehicle power outlet.
Figure 1
5
E. Controls, Indicators, and Connectors
1. Unit View
(Refer to Figure 2)
Figure 2
1) LCD Panel Shut Off Switch
2) Display Button
3) Pause Button
4) Next Button
5) Play Button
6) Stop Button
7) Previous Button
8) Open Button
9) Press Area
10) Remote Control Sensor
11) Power LED
12) AV Output Jack
13) A V Input Jack
14) Brightness +/- Control
15) Volume +/- Control
16) Headphone Jack 1
17) Headphone Jack 2
18) Power On/Off Switch
19) DC 9V Input Jack
6
2. Remote Control View
(Refer to Figure 3)
1) Setup Button
2) Up Button
3) Previous Button
4) Enter Button
5) Reverse Scan/Left Button
6) Down Button
7) Numeric Button
8) Display Button
9) Zoom Button
10) Subtitle Button
1 1) Next Button
12) A-B Repeat Button
13) Forward Scan/Right Keypad
14) 1/All Repeat Button
15) Stop Button
16) Menu Button
17) Audio Button
18) Pause Button
19) Play Button
Figure 3
F. Loading and Playing a Disc
a. After connecting power to the unit, power on DVD player by sliding
the power switch to the on position. The power indicator will light.
b. Open the disc tray by pressing the OPEN button and place a disc
into the tray with the label side facing up.
c. Close the tray by pressing the “PRESS” area.The unit will load the
disc and start playing.
d. Rotate the BRIGHTNESS and VOLUME to adjust the LCD’s bright-
ness and the DVD player’s volume.
e. To stop playing a disc, press STOP.
7
G. Setup
Press ‘SETUP’ to display the Main screen of the Setup Menu on the
screen. Press ‘SETUP’ again to exit the Setup Menu and the unit will
resume it’s last playback mode.
Main Setup Menu Screen
1) Press “SETUP”, the ‘Language Setup Page’ will be displayed on
the screen.
a). Press ENTER and select ‘Disc Menu’ using the UP/DOWN
button, and then press RIGHT to enter the submenu. Select the
desired Menu Language using UP/DOWN, and press ENTER to
confirm the setting. Press LEFT to return.
Disc Menu Language Screen Display
8
b).Select ‘Audio’ using the UP/DOWN button, and then press the RIGHT
button to enter the submenu. Choose the Audio Language you desire using the UP/DOWN button and then press ENTER to confirm
the setting. Press the LEFT button to return.
Audio Language Screen Display
c).Select ‘Subtitle’ using the UP/DOWN buttton, and then press the
RIGHT button to enter the submenu. Choose the Subtitle Language
you desire using the UP/DOWN button and then press ENTER to
confirm the setting. Press the LEFT button to return.
Subtitle Language Screen Display
9
4). Press the left button to return to the main menu. Select ‘Screen Setup’ using
the UP / DOWN button, then press ENTER to enter the screen setup page.
a. Select ‘TV Display’ using the UP/DOWN button, then press RIGHT
to enter the submenu. Select the desired display ratio using the
UP/DOWN button, then press ENTER to confirm the setting. Press
LEFT to return.
TV Display Screen Display
* 4:3 PS (Normal/PS): When the player is connected to a normal TV,
and a wide picture is shown on the full screen.
* 4:3 LB (Normal/LB): When the player is connected to a normal TV,
and a wide picture is shown on the screen with a black strip at both
the top and bottom of the screen.
* 16:9 (Wide): When the player is connected to a wide screen TV, a
wide picture is shown on the full screen.
b. Select ‘TV T ype’ the using UP/DOWN button, then press RIGHT to
enter the submenu. Select the desired TV T ype using the UP/DOWN
button, then press ENTER to confirm the setting. Press LEFT to
return.
TV Type Screen Display
10
3).Press the left button to return to the main menu. Select “Custom Setup” using the UP/DOWN button, then press the ENTER button to
access the custom setup page.
a. Select ‘Parental’ using the UP/DOWN button, then press RIGHT to
enter the submenu.
Parental Control Screen Display
Select the parental level you desire using the UP/DOWN button for
discs with lock-out function or multiple rating levels. These are listed
from the lowest level (1 Kid Safe) to the highest level (8 Adult). Enter a
4 digit password, then press ENTER to confirm the parental level setting. Press left button to return.
NOTE: The level of 8 Adult is the factory default.
b. Select ‘Password’ using the UP/DOWN button, then press the RIGHT
button to enter the Password Change Page. Input the Old Password
or the Default Password, the new password and the Confirmed New
Password.
Password Setup Page Screen Display
11
c. Select ‘Default’ using the UP/DOWN button, then press RIGHT to en-
ter the submenu. Press ENTER to make all of the settings return to
the factory preset mode.
NOTE: The parental setting is not affected by the default reset
function.
Default Screen Display
NOTE: The Default Password is
3308
. This password is always effective even after you have selected your own password and changed
it. To avoid the possibility of others using the default password to set
the parental level and change the password, you can record this
default password in another area and delete it from this manual. Some
discs can be limited depending on the age of users while some discs
cannot.
4) Press “SETUP” to exit the setup mode or select “Exit” using
the UP/DOWN button, then press the ENTER button to exit the Setup
mode.
Exit Screen Display
12
H. Basic Operation
POWER
OPEN
PLA Y
P AUSE
STOP
NEXT
PREVIOUS
FORWARD
REVERSE
LEFT/RIGHT/UP/DOWN
ENTER
NUMBERS
MENU
1/ALL REPEA T
A-B REPEA T
DISPLA Y
SUBTITLE
AUDIO
ZOOM
SETUP
Turn the unit on/of f
Remove/load the disc
Start Play/Execute item or setting
Still Picture
(1 time) Stop at the present playing point
(2 times) Stop playing
Go to the next chapter, track or scene during play back
Go back to the previous chapter , track or
scene during play back
Scan forward at 2, 4, 8,16 or 32 times normal speed
Scan backward at 2, 4, 8, 16 or 32 times
normal speed
Used for Menu Navigation
Confirm a setting or selection
Select item or setting
Display the main menu of the disc
Repeat playback of a title, chapter, or track
Repeat a specific portion from point A to
point B of the disc
Display information (title, chapter, track,
time, etc.).
Select a subtitle language and turn it on/off
Select an audio language
Enlarge an image to 2 or 4 times the
original size.
Display the setup menu to select and set
items and exit the setup menu.
13
I. Menu
A DVD is divided into sections called titles and chapters. When you
play a DVD, a root menu of the disc will appear on the screen of your
TV or Monitor. The contents of the menu vary from disc to disc. Press
MENU during playback to display the menu. Some DVDs only allow
you to select disc playback options using the DVD root menu.
J. Display
1. PLAYING TIME AND REMAINING TIME
a. During playback press the ‘DISPLAY’ button to display the cur-
rent Title Number (1), the total Number of Titles (2), the current
Chapter Number (3), the total Number of Chapters (4), and the
Elapsed playback time for the title (5). The heading will disappear
automatically after 3 seconds if the DISPLA Y button is not pressed.
Title, Chapter Number, and Time Screen Display
b. Press ‘DISPLA Y’ again to display the Remaining T ime of the title.
The heading will disappear automatically in 3 seconds.
Title Remaining Time Screen Display
14
c. Press ‘DISPLAY’ a third time to display the Elapsed Time for the
chapter. The heading will disappear automatically in 3 seconds.
Chapter Elapsed Time Screen Display
d. Press ‘DISPLAY’ a fourth time to display the Remaining Time for
the chapter. The heading will disappear automatically in 3 seconds.
Chapter Remaining Time Screen Display
e. Press ‘DISPLAY’ a fifth time to exit, ‘Display Off’ will be displayed
and will disappear automatically in 3 seconds.
15
2. SUBTITLE
During disc playback press ‘SUBTITLE’ to select the subtitle language
you desire*, with the current Subtitle Language Number (1) and the
total Number of Subtitle Languages (2) displayed. If there are multiple languages press ‘SUBTITLE’ again to select another subtitle language. To turn subtitles OFF , press the ‘SUBTITLE’ button until ‘Subtitle Off’ is displayed. The Subtitle display will disappear automatically
if the ‘SUBTITLE’ button is not pressed again within 3 seconds.

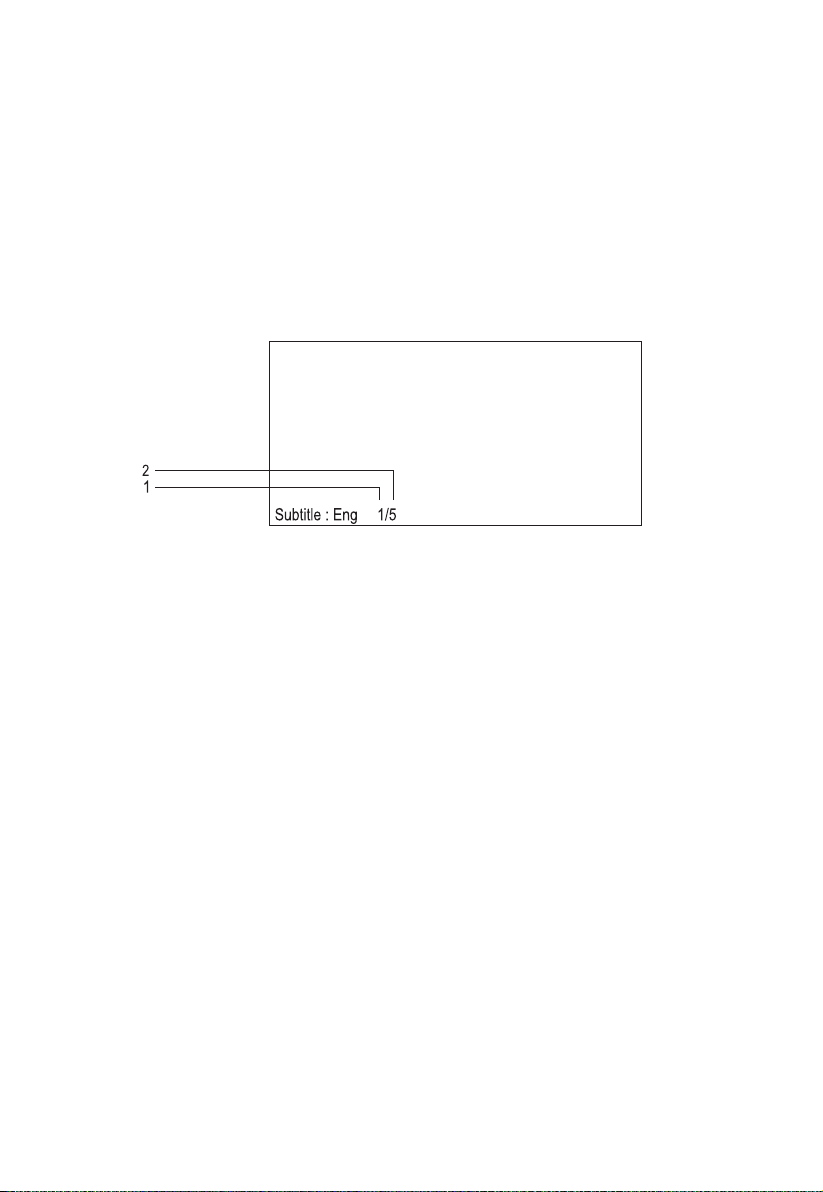

Subtitle Screen Display
* Some DVDs only allow access to this function through the DVD menu.
16
3. AUDIO
During playback press ‘AUDIO’ to select the audio language you desire*, with the current Audio Channel Number (1) and the total number
of Audio Channels (2) displayed. Press AUDIO again to select another
audio language. The audio display will disappear automatically if the
‘AUDIO’ button is not pressed within for 3 seconds.
Audio Language Screen Display
* Some DVDs only allow access to this function through the DVD
menu.
4. ZOOM
During playback press ‘ZOOM’ to enlarge the picture by 2x or 4X with
the current zoom multiple displayed (1) Press “zoom”one time, the
picture will be enlarged 2X. (2) Press “zoom” a second time, the
picture will be enlarged 4X. (3) Press “zoom” a third time, and the
picture will return to normal size.
Zoom Screen Display
17
5. A-B REPEA T
a. During playback press ‘A-B’ once to set the Starting Point A.
A-B Repeat Starting Point Screen Display
b. Press ‘A-B’ a second time to set the Ending Point B and the
player will repeatedly play the part between Point A and
Point B.
A-B Repeat Ending Point Screen Display
c. Press ‘A-B’ a third time to cancel A-B repeat and resume
normal playback.
A-B Repeat Cancelled Screen Display
18
6. 1/ALL REPEA T
a. During playback press ‘1/ALL REPEA T’ once to repeatedly play the
current chapter.

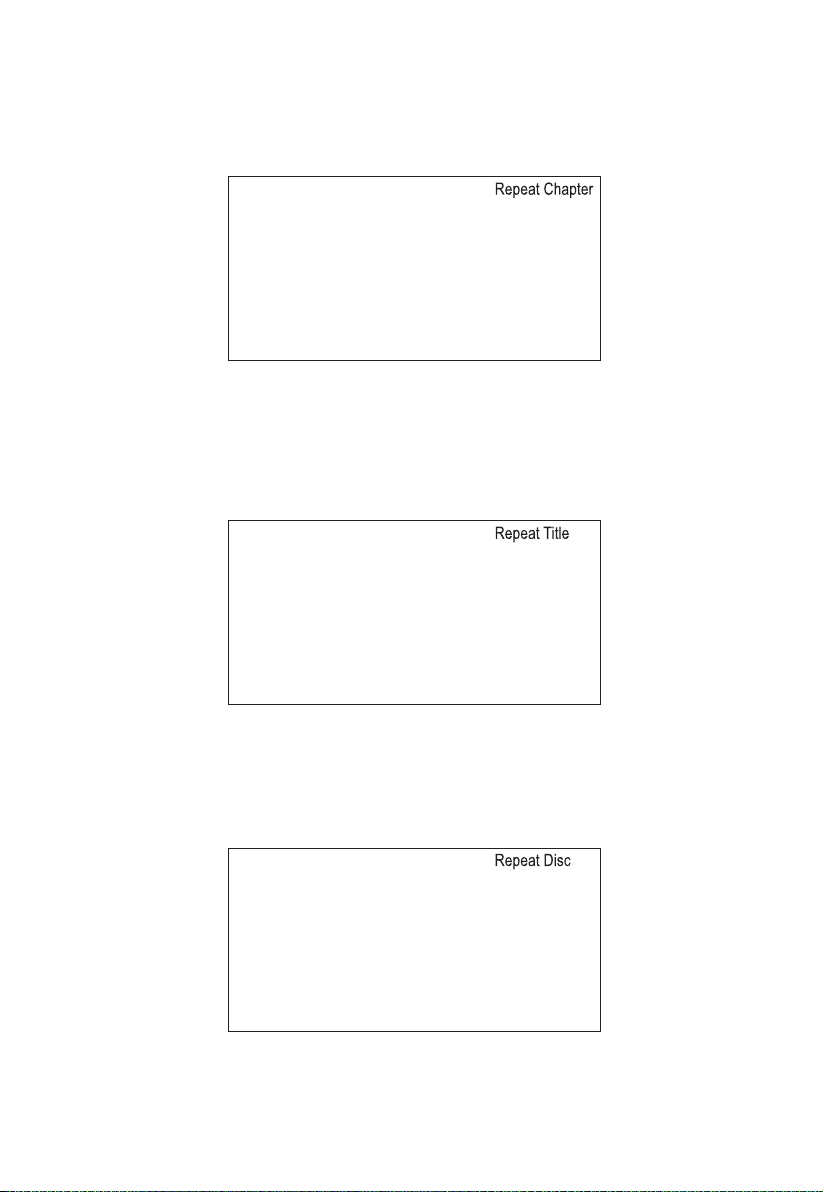

Chapter Repeat Screen Display
b. During playback press ‘1/ALL REPEA T’ again to repeatedly play the
current title.
Title Repeat Screen Display
c. During playback press ‘1/ALL REPEA T’ a third time to repeat whole
disc.
Disc Repeat Screen Display
19
d. Press ‘1/ALL REPEA T’ a fourth time, to cancel the repeat function
and resume normal playback.

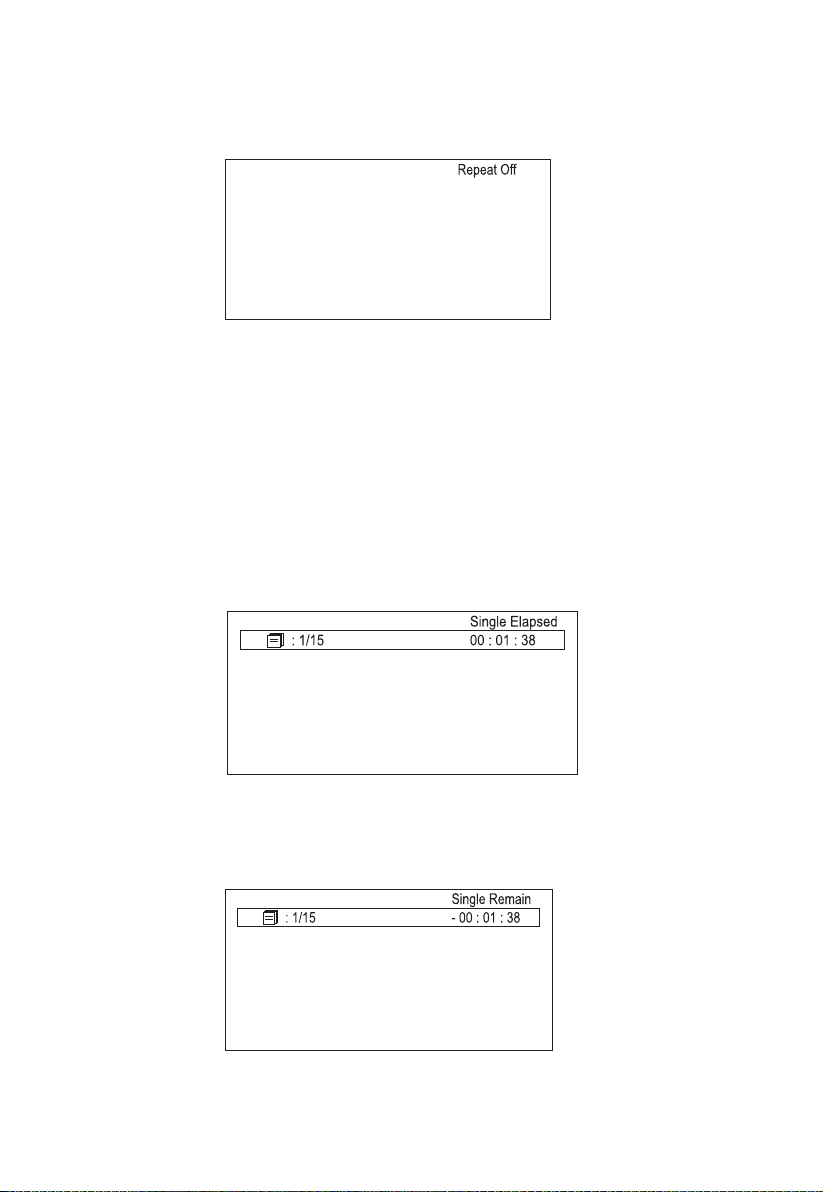

Repeat Off Screen Display
K. Playing Audio CDs
When playing an audio CD the track and playback time information will
automatically be displayed. Pressing the display button will change the
displayed information. The options below show you what information is
available using this function.
a. The current track and playing time of that track will be displayed
on the screen.
Single Elapsed Screen Display
b.Press ‘DISPLAY’ one time and
Single Remain
appears along
with the current track playing and the amount of time left.
Single Remain Screen Display
20
c. Press ‘DISPLA Y’ a second time and
current track playing and the total time left.

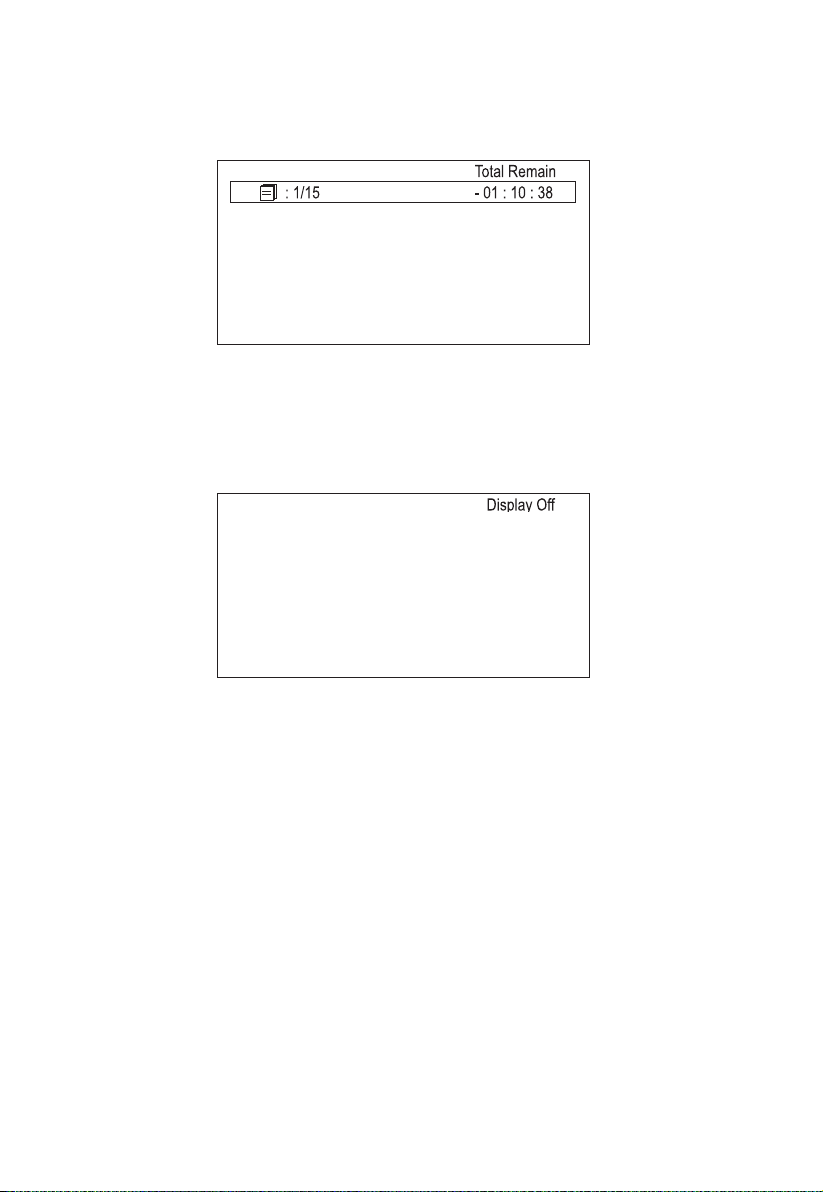

Total Remain Screen Display
T otal Remain
appears along with the
d. Press ‘DISPLAY’ a third time and
will no longer be displayed.
Display Off Screen Display
USING THE REPEAT FEATURE
The default mode for the Repeat feature is OFF. Pressing REPEAT
consecutively changes the repeat options:
•
T rack
- repeats the track that is playing.
•
Disc
- repeats the disc that is playing.
•
Off
As you toggle through the options, the repeat option changes. The
selected repeat option loops repeatedly until you turn it off.
Display Off
appears. The disc information
21
L. Playing MP3 Discs
MP3 is a format for storing digital audio. An audio CD-quality song is
compressed into the MP3 format with very little loss of audio quality
while taking up much less disc space. CD-R /RW discs that have
been encoded in MP3 format are compatible with this system.
Insert a MP3 CD, the DVD player will initialize the disc and the directory
(folder) will be displayed.

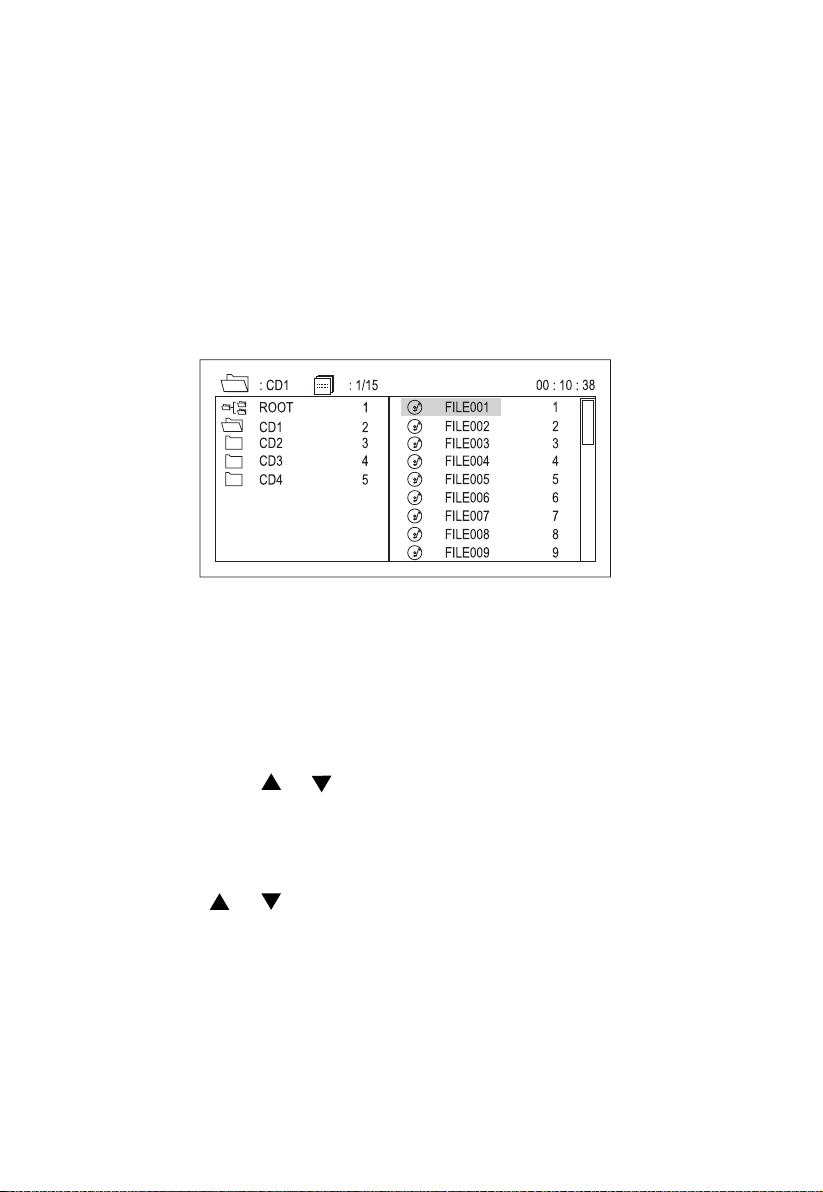

MP3 MENU Screen Display
When an MP3 disc is inserted into the unit, the menu screen appears
and playback will begin. You can use the menu screen to change
folders and songs. The system plays the songs in the order they
were burned onto the disc.
1. Press the
or button to choose a folder from the folder list
on the left side of the screen.
2. Press ENTER to select the highlighted folder. The songs available in the folder will be listed.
3. Use
or button to choose a song from the list. Press EN-
TER to select and begin playback of the highlighted song.
22
Use the ( NEXT ) button to move to the next song. Press the
(PREVIOUS) button to move to the beginning of the previous song.
USING THE REPEAT FEATURE
The default mode for the Repeat feature is OFF. Pressing REPEAT
consecutively changes the repeat options:
• Repeat One
• Repeat Folder
• Repeat Off
As you toggle through the options, the repeat option changes. The
selected repeat option loops repeatedly until you turn it off.
NOTICE
“ ” icon in front of a file name indicates that this is a folder, not an
MP3 file.
“ ” icon in front of a file name indicates that this is a MP3 file.
23
M. Playing JPG file
1) Load the JPG Disc into the tray and JPEG playback starts
automatically.
2) T o select individual JPEGs press the menu button to display folders
and a list of the JPEGs contained within.
3) To select a folder highlight the desired folder on the left side and
press “ENTER“. The JPEGS contained in the folder will be listed
on the right side. Highlight the desired JPEG and press “ENTER“.
4) The unit will then play the JPEGs in order . To continually view a
JPEG, press the “P AUSE“ button.
5) Pressing the “LEFT’’ button will rotate the picture
counterclockwise. Pressing the “RIGHT’’ button will rotate the
picture clockwise.
6) Y ou can reverse the photo horizontally by pressing the “UP” button,
or you can reverse the photos vertically by pressing “DOWN”
button.
7) When previewing the file, if you press “DISPLA Y”, “SUBTITLE”,
“AUDIO”, “AB”, “STOP”, a hand icon will appear on the display
meaning that these options are not available.
24

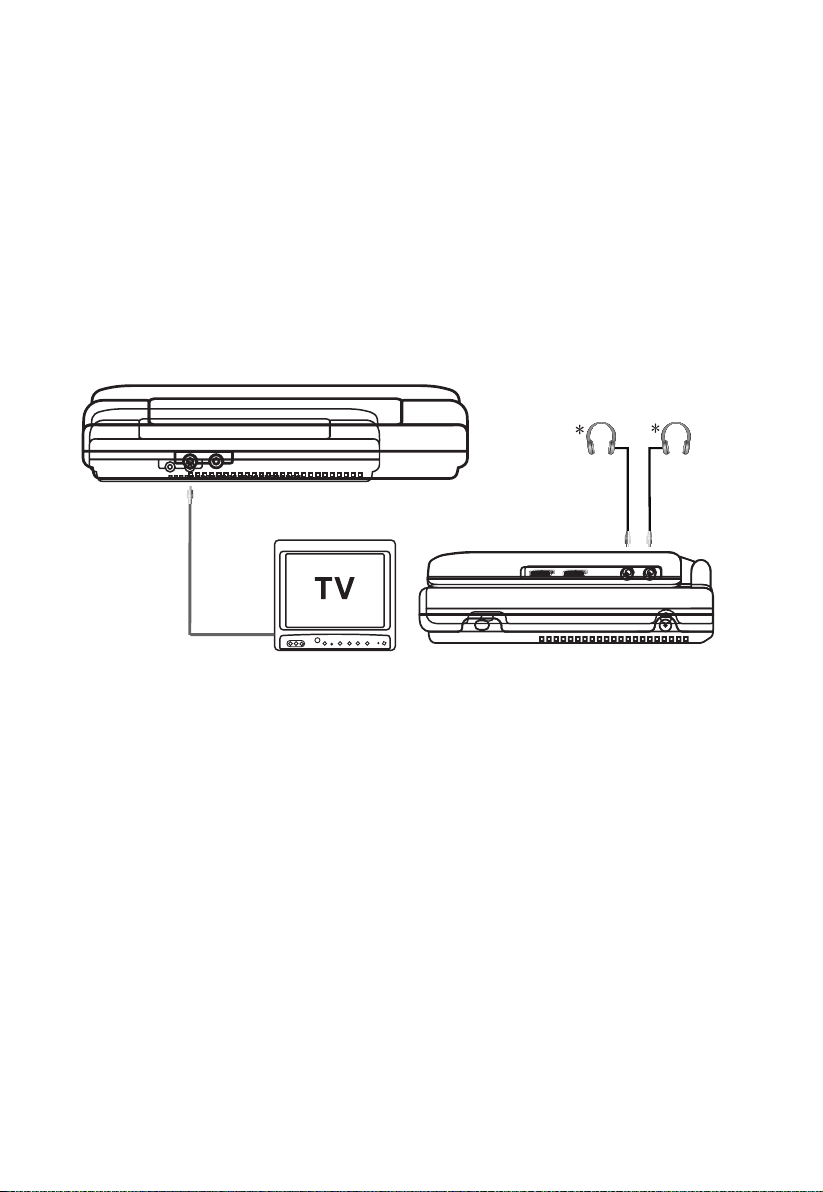

N. Connecting to a TV or another monitor ( Refer to Figure 4)
You can also connect the DVD player to a TV to enjoy high quality
stereo sound and picture on another monitor as follows:
Connect one end of the audio/video cable’s black (1/8” plug) plug
into the unit’s A V Out jack, and connect the other end to the AUDIO
INPUT jacks on your TV or Monitor (white = left channel, red = right
channel). Connect the yellow plug to the VIDEO INPUT jack on
your TV or Monitor .
Figure 4
*Optional wired headphones may be used with the unit. Simply plug
in the headset to either Headphone 1 jack or Headphone 2 jack on the
right side of the monitor.
Note: Plugging into Headphone jack 1 disables the internal speakers.
25
O. Specifications
Compatible DISC: DVD/CD/MP3/JPEG
Signal system:NTSC
Panel size: 5 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75 Ohm, unbalanced
Audio output: 1.4V
rms/10kOhm
Audio S/N: Better than 60 dB
Dynamic range : Better than 85 dB
Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm
Power source: DC 9V
Power consumption: 12 W
Operating temperature: 5~35°C
Weight : 0.67 kg
Dimensions (W x D x H): 8.07 X 5.98 X1.57inches
205 x 152 x 40mm
Battery T ype: NiMh
P. Rechargeable Battery Installation and Use
The player utilizes a set of long-life NiMh batteries for a portable power
supply . NiMh batteries feature high storage capacity and low level of
degradation. This means the NiMh batteries do not have “Memory Effect” and thus can be recharged safely regardless of whether the battery is fully or only partially discharged. Please fully charge the battery
prior to first use.
NOTE: When the DVD player is used for the first time ensure that the
battery has been charged for at least eight hours prior to connecting it
to the DVD player.
If you plan not to use the battery for an extended period of time (one
week or longer), we recommend that you first fully charge the battery
and store it away properly. For longer periods of storage, please recharge the battery at least once every two months to maintain the
battery in optimum condition. Under no circumstances short the battery terminals, store the battery in a metal container , or leave the battery in a humid or damp environment. Ideally, store the battery in an
26
airtight container with desiccant or other dehumidifying agent. Each
full recharge takes approximately five-hours and one full charge can
provide power to the player for approximately 2.5 hours.
During recharge, the red indicator will stay on. Once fully recharged,
the red light will turn off. At this point you may remove the wall plug and
stop charging.
Precautions Related to Battery Recharge:
1. Once the battery is fully discharged, immediately recharge (regardless of whether you plan to use battery or not) in order to maximize
battery life.
2. To charge the battery, connect the AC adapter power jack directly
into the battery .
Using and Maintaining your Rechargeable Batteries
1. Please make sure you always use only the AC adapter included
with the player to recharge your batteries.
2. Recharge efficiency will degrade when environmental temperatures
drop below 50
o
F (10oC) or exceed 95oF (35oC).
3. Please remove battery from the player and store it properly if the
player is not to be used for long time. During this period, please
recharge the battery at least once two months to avoid irreparable
damage to the battery .
27
Installing the Battery Pack:
1. First, make sure the player is in “Stop” mode and that the AC power
supply has been disconnected.
2. Close the player cover .
3. Align the battery pack with the player module’s front edge.
4. Push the battery towards the rear of the player until it locks into
position. The lock position is indicated by a click. The unit will fit
snugly to the player.
5. Push the battery plug into the DVD player DC input jack.
Installing the DVD Player Battery
Removing the Battery Pack:
1. First, make sure the player is in “S top” mode and the AC power
supply has been disconnected.
2. Unplug the battery plug from the DVD player .
3. Press the release button on the rear of battery.
4. Slide the battery towards the back of the unit.
Removing the DVD Player Battery
28
90 DAY LIMITED WARRANTY
Applies to Audiovox Video Products
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser
of this product that should this product or any part thereof, under normal use and conditions,
be proven defective in material or workmanship within 90 days from the date of original
purchase, such defect(s) will be repaired or replaced with reconditioned product (at the
Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be
delivered with proof of warranty coverage (e.g. dated bill of sale), specification of
defect(s), transportation prepaid, to the Company at the address shown below.
This Warranty does not extend to the elimination of externally generated static or noise, to
correction of antenna problems, to costs incurred for installation, removal or reinstallation
of the product, or to damage to tapes, discs, speakers, accessories, or electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the
Company, has suffered or been damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial number/
bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTY
IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT,
SHALL THE COMPANY'S LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE
LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH
OF ANY WARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY MUST BE BROUGHT WITHIN A PERIOD OF 30 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS
OR IMPLIED, WHATSOEVER. No person or representative is authorized to assume for the
Company any liability other than expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damage so the above limitations or exclusions may
not apply to you. This Warranty gives you specific legal rights and you may also have other
rights which vary from state to state.
U.S.A. : AUDIOVOX ELECTRONICS CORPORATION, 150 MARCUS BLVD.,
HAUPPAUGE, NEW YORK 11788 z 1-800-645-4994
CANADA : CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION
SERVING YOUR AREA
29
128-5556C
© 2004 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788
30
128-6791B
Loading...
