Audiovox 1285893B User Manual
Model APS-875
Owner’s Manual
4 Button Remote Start Security System With
Plug-In Shock Sensor & Starter Disable
IMPORTANT !
vehicle, this system is equipped with selectable manual override circuitry. It is
possible that you will need to override you security system if the transmitter
becomes lost, or inoperative due to battery failure. Reading the sections on
"Manually Overriding Your System" is necessary to fully understand the procedure

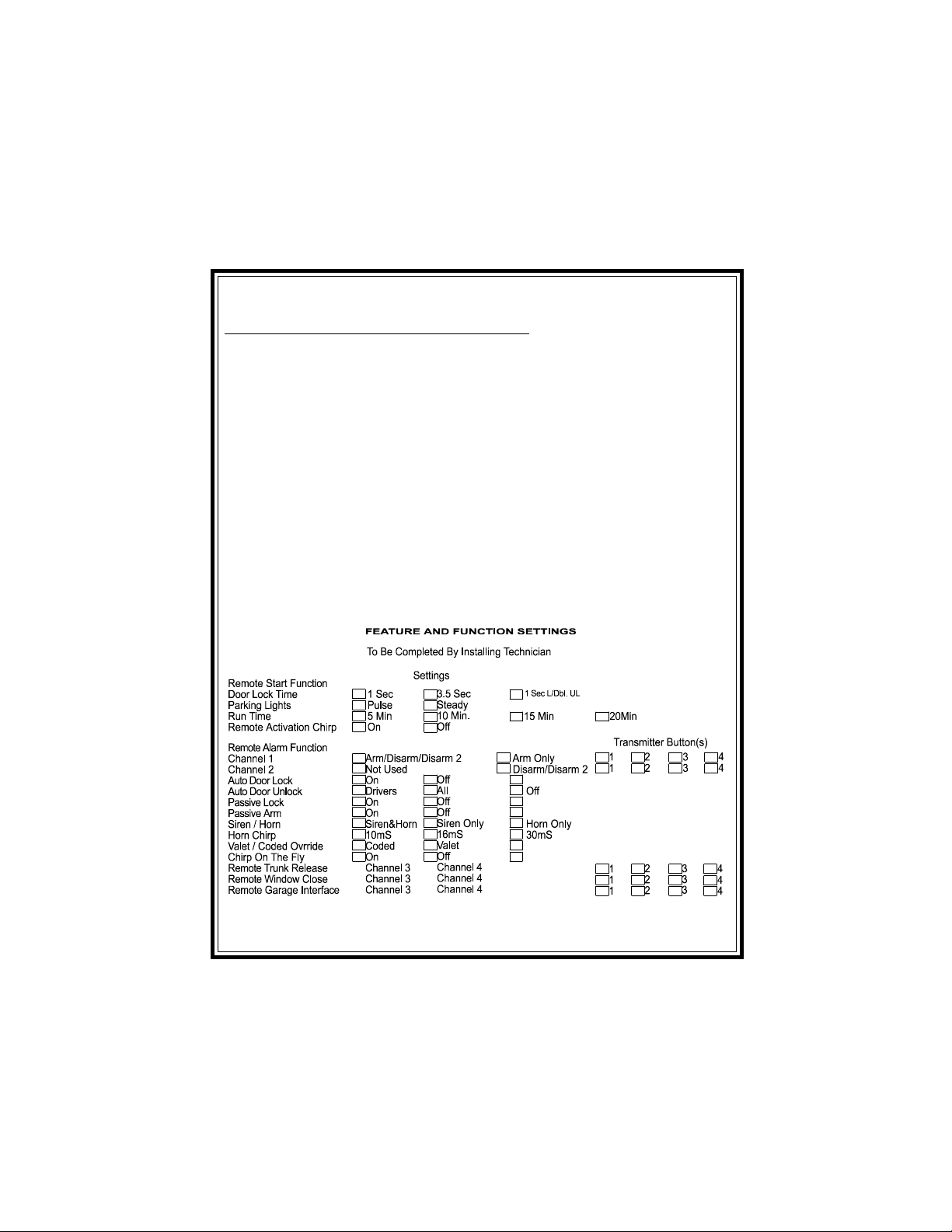

required to enable your vehicle in such situations. In addition, the chart on the last
page of this manual has a section for the particular features and options installed in
your vehicle as well as the override method selected. Although the default mode is
"Valet Switch" operation, the system can be configured for "Custom Code"
operation for enhanced security. Confirm the override mode selected on the last
page of this manual, and familiarize yourself with the section on it's operation.
FEATURES :
w 2 Four Button S.A.W. Anti-Code Grabbing Transmitters
w Six Channel Code Learning Programmable Receiver
w External Superheterodyne Receiver Antenna
w Single Or Two User Programmable W/Separate Control Outputs
w Single Button Lock/Unlock or Separate Button Lock/Unlock or Both
w Remote Keyless Entry With Optional Access Guard (must have power door locks)
w Selectable Manual Override Mode
w New Enhanced Panic Feature (Any button other than unlock stops siren, no
change to the units state)
w Smart Disarm (If triggered, elect to shut off siren, or disarm entire unit )
w Selectable Automatic Timed Start Mode
w Adjustable Shock Sensor Via The Transmitter (Pre-Detect Off, Pre & Full Detect
Off, City Mode)
w Safe Start Output Controlled From Channel 3 (Option Channel 3 For Trunk, Or
For R/S)
w Remote Panic In All Modes (Press & Hold Lock /Unlock Button For 3 Seconds
To Engage)
w Improved Custom Code Override, User Selectable and Programmable
w Protected Push Button Valet/Override Switch
w 7-Function LED-Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
In order to provide you with the highest level of security to your
w Intrusion Alert With Memory
w Instant Siren Activation
w Starter Disable Output
w Additional Engine Immobilizer Output, (Optional Relay Required)
w True Last Door Arming (Hardwire Only)
w Defective Zone By-Pass
w Defective Zone Chirp Confirmation (Unit Chirps To Report Zone Cleared)
w 6 Tone Mini Siren (New AS-9903)
w Car Horn Output For Additional Alarm Response (Improved Timing To Mini-
mize RF Interference.)
w Additional Negative Trigger Input (Hood & Trunk)
w RF Inhibit With Ignition On
w Parking Light Flasher (Relay On Board)
w Plug In Dual Stage Shock Sensor (Pre-detect, Full Trigger, and “City Mode”)
w Audible Arm, Disarm, Defect, And Tamper Chirp Indications
w Headlight Control Output
w Illuminated Entry Control Output
w Active or Passive Arming Selectable
w Programmable Auto Lock On / Off
w Programmable Auto Unlock On / Off/Drivers Door/All Doors
w Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec
L/ Dbl. U/L
w Programmable Active or Passive Door Locks
w User Programmable Permanent Chirp Delete
w On Command RF Chirp Delete from Transmitter Or Selectable Through
Software
OPTIONS :
w Remote Trunk Release (must have electronic trunk release)
w Remote Keyless Entry (must have power door locks)
w Multiple Vehicle Capable
w Remote Starter
w Remote Power Window Roll Up
w Remote Garage Door Interface
CAUTION! Be certain that the vehicle is outdoors before using this or any remote
vehicle starting device. A running engine produces dangerous carbon
monoxide fumes which can be harmful or fatal if prolonged exposure
occurs. DO NOT remote start the vehicle if it is garaged.
Page 2
YOUR "ANTI CODE GRABBING" TRANSMITTERS
The transmitters included with your new security system use the most advanced
and secure form of radio frequency transmission available on any current automotive security system. Some of today’s sophisticated auto thieves use a device
known as a code grabber, which will receive and store the signal from your keychain transmitter, and re transmit at a later time to disarm your system.
Your Keeloq Code Hopping transmitters will change their signal every time the
button is pressed, so when a thief grabs then re-transmits your signal, the alarm
will not
system
respond.
If your transmitter button is pressed more than fifty times while it is out of range of
the vehicle (children playing with your keys), the transmitter will not operate when
you return to the vehicle, and will need to be realigned to the receiver. To do this,
simply press button 1 two times within a one second time period. The system will
now respond to that transmitter each time a button is pressed.
NOTE: This system is custom configurable and can be set up to operate with a
number of options controlled from any transmitter button or button combination. For reference, we will describe operation assuming that your system is programmed for separate lock and unlock buttons. Also reference
will be made to the icons as shown on the buttons below.
Consult your installation center if your system has been configured differently.
NOTE:Your system has the option of using a siren, the vehicle horn, or both for
the sounding device. Where the siren is referenced below, the horn or
both may in fact chirp, or beep.
ARMING THE SYSTEM - ACTIVE
1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid.
2. Press and release button Lock/Arm button on the keychain transmitter.
þ The dash mounted LED begins to flash slowly.
þ Parking Lights flash one time.
þ Siren sounds one chirp.
If the siren sounds 3 chirps, then you have left a door, trunk, or
hood lid ajar. Simply close the opened entry point to provide full
protection. If the siren did not sound when arming, then the
chirps have been turned off, and you should refer to the section
titled “ELIMINATING THE ARM / DISARM CHIRPS“ in this
manual.
o Doors Lock - Optional
NOTE: If the optional Headlamp illumination feature has been added, and has
been selected for operation when arming, as an added convenience, the
system will turn on the headlights when the system is armed.
Page 3
SILENT ARMING - ACTIVE (Must be activated during programming)
1. Turn off the engine, exit the vehicle, and close all doors, hood lid, and trunk lid.
2. Press and hold button the Lock/Arm button on the keychain transmitter
for 2 seconds.
þ The dash mounted LED begins to flash slowly.
þ Parking Lights flash one time.
þ Siren will not sound.
If the siren sounds 3 chirps, then you have left a door, trunk, or hood
lid ajar. Simply close the opened entry point to provide full protection
o Doors Lock - Optional
NOTE: If the optional Headlamp illumination feature has been added, and has
been selected for operation when arming, as an added convenience, the
system will turn on the headlights when the system is armed.
ARMING THE SYSTEM - P ASSIVE (AUTOMATIC)
1. Turn off the engine, exit the vehicle, and close and lock all doors, hood lid, and
trunk lid.
þ The dash mounted LED begins to flash rapidly, indicating 30 second
passive arming has begun.
2. Opening any protected entry point during the 30 second passive arming cycle
will immediately suspend automatic arming, and the 30 second passive arming
cycle will re-start when all doors are closed. At the end of the passive arming
cycle;
þ The dash mounted LED begins to flash slowly.
þ Parking Lights flash one time.
þ Siren sounds one chirp
If the siren did not sound when arming, then the chirps have
been turned off, and you should refer to the section titled
“ELIMINATING THE ARM / DISARM CHIRPS“ in this manual.
o Doors Lock - Optional
Door locking during passive arming is a selectable feature. The
alarm can be programmed to allow the doors to lock only when
arming using the keychain transmitter, and they will not
automatically lock during passive arming.
PROTECTION WHILE THE SYSTEM IS ARMED
þ Opening any protected door, hood, or trunk lid will cause the alarm to
immediately sound. The alarm will continue to sound for 30 seconds, then
stop and continue to monitor all protected entry points. If the thief left a door
opened, the alarm will sound for six 30 second cycles, remain armed and
ignore that triggered zone.
Page 4
þ Whenever the system is armed, the red dash mounted LED indicator will
slowly flash. This serves as a visual deterrent to the potential thief. The LED
is a very low current bulb, and will not cause the vehicle’s battery to drain,
even when left unattended for extended periods.
þ Whenever the system is triggered, the vehicle’s parking lights will flash for
the full 30 second alarm cycle, attracting visual attention to the vehicle.
þ Optional - Whenever the system is armed, the vehicle’s starting circuit will
be bypassed. If the thief should choose to ignore the siren, the vehicle can
not be started.
þ Any mild impact to the vehicle’s glass will cause the alarm to sound a short
series of warning tones.
þ Any strong impact to the vehicle’s glass will cause the alarm to trigger for the
full 30 second alarm cycle.
Note: If the optional interior illumination circuit was installed, the interior light will
flash as well for the full 30 second alarm cycle.
DISARMING THE SYSTEM
Note: If the optional 2 step door unlock circuit is installed, when the unlock
transmitter button is activated, the drivers door only will unlock, pressing the
unlock button a second time will cause all doors to unlock.
Note: If your transmitter has been configured with single button Lock/Unlock as
shown, to activate the all door unlock feature operate the Lock/Unlock
button a second time within 3 seconds of the first unlock command.
1. As you approach the vehicle, press and release the Unlock/Disarm button on the
keychain transmitter.
þ The dash mounted LED turns off.
The LED will start flashing rapidly, indicating that the system is
re-arming automatically. Open any door to suspend the automatic
arming.
þ Parking Lights flash two times.
If the parking lights flashed three times, then the alarm was
triggered in your absence. Before turning the key on, examine
the LED to identify which zone was triggered.
þ Siren sounds two chirps.
If the siren sounds 4 chirps, then the alarm was triggered in your
absence. Before turning the key on, examine the LED and refer
to the INTRUSION WARNING SIGNALS section of this manual
to identify which zone was triggered.
If the siren did not sound when disarming, then the chirps have
been turned off, and you should refer to the section titled
“ELIMINATING THE ARM / DISARM CHIRPS“ in this manual.
o Doors Unlock - Optional
o 2 Step Doors Unlock - Optional
Page 5
