Audiovox 128-4634D User Manual
Model APS 400
Installation Manual
SELECT ABLEFEATURES
Note : The method of manual override can either be selected to operate from the valet switch or operate as custom code. Be
certain to place a check mark indicating the method used in the box located on the last page of the owner's manual.
Wire Loop Selectable Features :
Note : When both Passive Arming and Voltage Sensing are selected, you must hardwire the driver’s door pin switch in order
to begin the passive arming sequence.
RF Programmable Features :
Feature Selection 1 Chirp 2 Chirps Default
First 1 Second Door Locks 3.5 Second Door Locks 1 Second
Second Auto Lock On Auto Lock Off Auto Lock Off
Third Auto Unlock On Auto Unlock Off Auto Unlock Off
Fourth No Function No Function —————————Fifth Passive Door Locks Active Door Locks Passive Locks
Sixth Passive Arming Active Arming Active Arming
To program these selectable features;
Wire Color Closed Loop Cut Loop
Gray Loop Custom Code Manual Override Valet Switch Manual Override
Green Loop Voltage Sense Hardwire
Action System Response
Turn ignition on No response
Flip valet switch on then off 3 times 1 Chirp - LED 1 flash
Within 3 seconds, turn ignition Off Short chirp, then long chirp
First Then On 1 chirp = 1 second door locks
Press transmitter button 1 to change 2 chirps = 3.5 second door locks
or
Second Flip valet switch on then off 2 chirps = auto locks off
Press tranmitter button 1 to change 1 chirp = auto locks on
or
Third Flip valet switch on then off 2 chirps = auto unlock off
Press transmitter button 1 to change 1 chirp = auto unlock on
or
Fourth Flip valet switch on then off 1 chirp = No Function
Press transmitter button 1 to change 2 chirps = No Function
or
Fifth Flip valet switch on then off 1 chirp = passive locks
Press transmitter button 1 to change 2 chirps = active locks
or
Sixth Flip valet switch on then off 1 chirp = passive arming
Press transmitter button 1 to change 2 chirps = active arming
or
Flip valet switch on then off Exit program mode
or
Turn ignition key off Exit program mode
Note : Once you enter the feature programming mode, do not allow more than 15 seconds to pass between steps, or the
programming will be terminated.
Page 1
INST ALLATIONOF MAJOR COMPONENTS
Control Module :
Select a mounitng location inside the passenger compartment ( up behind the dash ), and secure using the
two screws provided. The control module can also be secured in place using cable ties.
Do not mount the control module in the engine compartment, as it is not waterproof. You should also avoid
mounting the unit directly onto factory installed electronic components. These components may cause RF
interference, which can result in poor transmitter range or intermittent operation.
Siren :
Select a mounting location in the engine compartment that is well protected from access below the
vehicle. Avoid areas near high heat components or moving parts within the engine compartment. To prevent
water retention, the flared end of the siren must be pointed downward when mounted.
Mount the siren to the selected location using the screws and bracket provided.
Hood or Trunk Pin Switch :
A pin switch is included for use in protecting the hood or trunk ( or hatchback ) of the vehicle. The switch
must always be mounted to a grounded, metal surface of the vehicle. It is important to select a location
where water cannot flow or collect, and to avoid all drip gutters on hood and trunk fender walls. Choose
locations that are protected by rubber gaskets when the hood or trunk lid is closed.
The pin switch can be mounted using the bracket provided, or direct mounted by drillinga¼“diameter
mounting hole. Keep in mind that when properly mounted, the plunger of the pin switch should depress at
least ¼ “ when the hood or trunk lid is closed.
Dash Mounted L.E.D. :
A small red L.E.D. is included that will serve as a visual indicator of the alarm status. It should be installed
in the dash, located where it can be easily seen from outside the vehicle, yet not be distracting to the driver.
Once a location has been selected, check behind the panel for wire routing access, and to confirm the drill
will not damage any existing components as it passes through the panel.
Drilla¼“diameter hole, and pass the red and blue wires from the L.E.D. through the hole, from the front
of the panel. Firmly press the body of the L.E.D. into the hole until fully seated.
Valet Switch :
Select a mounting location for the switch that is easily accessible to the driver of the vehicle. The switch
does not have to be concealed, however, concealing the switch is always recommended, as this provides
an even higher level of security to the vehicle.
The valet switch can be mounted to the lower side of the dash by drillinga¼“diameter hole in the selected
location.
Be sure to check behind the dash for adequate clearance for the body of the switch, and to confirm that the
drill will not damage any existing components as it passes through the dash. You should also make
certain that the back of the switch is accessible for wiring later in the installation.
Shock Sensor :
Select a solid mounting surface for the shock sensor on the firewall inside the passenger compartment,
and mount the sensor using the two screws provided. The shock sensor can also be secured to any
fixed brace behind the dash using tie straps.
Whichever mounting method is selected, make certain that the sensitivity adjustment is accessible for
use later in the installation.
Page 2

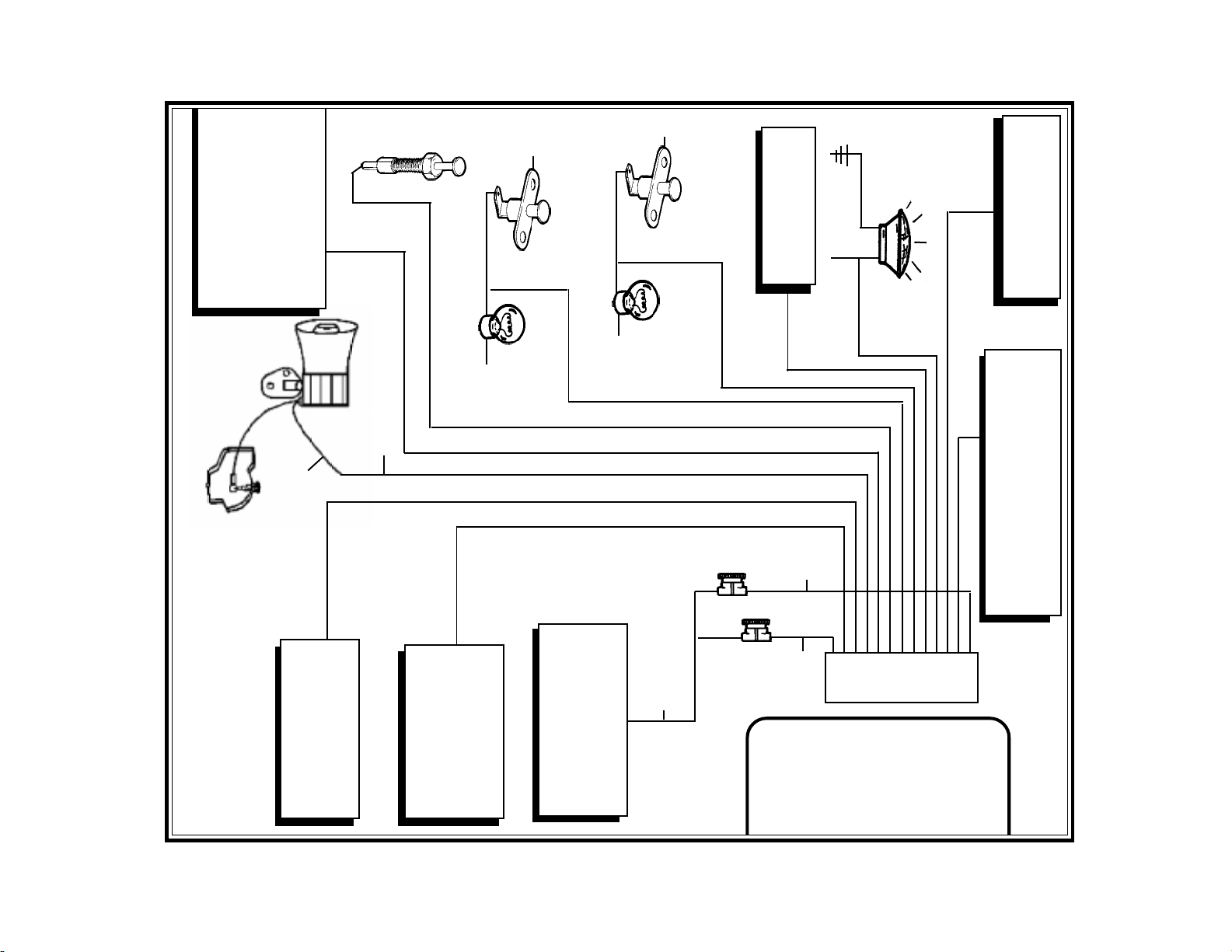

WIRING THE SYSTEM
Large 13 Pin Edge Connector :
Red Fused Wire : + 12 VDC CONSTANT BATTERY SOURCE
This wire controls the sensitivity of the voltage sensing circuit, which detects the turning on of an interior
light when a door is opened. It will also detect the switching on of parking or headlamps, and in many
cases will trigger the alarm when a thermostatically controled electronic radiator cooling fan switches on.
When installing this system into vehicles with electronic “ after fans “, it is recommended you disable the
voltage sense circuit.
In voltage sensing applications, the closer to the battery that the red wire is connected, the less sensitive
the voltage sense circuitry will be. Moving this connection point to the fuse panel will increase the sensitivity, and connecting to the courtesy lamp fuse in the vehicle will provide maximum sensitivity of the voltage
sense circuit.
When hardwiring the control module to pin switches at all entry points, the voltage sense circuit must be
disabled. Cut the Green wire loop, then connect the red wire toa+12VDCconstant battery source.
Orange Wire: 300 mA GROUND OUTPUT WHEN ARMED - N. C. STARTER DISABLE (Optional Relay
Required)
This wire is provided to control the starter cut relay. Connect the orange wire to terminal 86 of the relay.
Connect relay terminal 85 to an ignition wire in the vehicle that is live when the key is in the on and crank
positions, and off when the key is in the off position. ( This is where the yellow wire from the alarm should
be connected ).
Cut the low current starter solenoid wire in the vehicle, and connect one side of the cut wire to relay
terminal 87A. Connect the other side of the cut wire to relay terminal 30.
Note : This is a normally closed starter cut arrangement, and when power is removed from the
security system, the starter disable feature will not operate, allowing the vehicle to start.
Audiovox does not recommend using the Orange wire to interrupt anything but the starting circuit of the vehicle.
Black Wire : CHASSIS GROUND
Connect this wire to a solid, metal part of the vehicle’s chassis. Do not confuse this wire with the thin black
antenna wire that exits the control module independantly.
White Wire : + 12 VDC PULSED PARKING LIGHT OUTPUT ( 15 AMP MAX )
This wire is provided to flash the vehicle’s parking lights. Connect the white wire to the positive side of one
of the vehicle’s parking lights.
Yellow Wire : + 12 VDC IGNITION SOURCE
Connect this wire to a source that is live when the key is in the on and crank positions. Be sure that this
source is off when the key is in the off position.
Purple Wire : + DOOR TRIGGER
If the vehicle’s door courtesy light switches havea+12volt output when the door is opened ( most Fords
and some Imports ), you must connect this wire to the positive output from one of the door switches. In
most cases, the purple wire will only need to be connected to one door switch, no matter how many doors
the vehicle has.
WARNING : Do not use the purple wire if the vehicle has ground output type door switches. ( see Brown
Wire ).
Brown Wire : - DOOR TRIGGER
Page 3
If the vehicle’s courtesy light switches havea(-)ground output when the door is opened ( GM and most
Imports ), you must connect this wire to the negative output from one of the door switches.
WARNING : Do not use the brown wire if the vehicle has + 12 volt output type door switches. ( see Purple
Wire ).
Dark Green Wire : ( - ) INSTANT TRIGGER ZONE 2
This is an instant on ground trigger wire. It must be connected to the previously installed hood and trunk pin
switches.
Orange w/ White Trace Wire : 300 mA GROUND OUTPUT WHEN DISARMED - N. O. STARTER
DISABLE ( Optional Relay Required ).
This wire is provided to control the starter cut relay. Connect the orange w/white wire to terminal 86 of the
relay. Connect relay terminal 85 to an ignition wire in the vehicle that is live when the key is in the on and
crank positions, and off when the key is in the off position. ( This is where the yellow wire from the alarm
should be connected ).
Cut the low current starter solenoid wire in the vehicle, and connect one side of the cut wire to relay
terminal 87. Connect the other side of the cut wire to relay terminal 30.
Note : This is a normally opened starter cut arrangement, and when power is removed from the
security system, the starter disable feature will remain operational, and the vehicle will
not start. Audiovox does not recommend using the Orange w/ White trace wire to interrupt anything but the starting circuit of the vehicle.
White w/ Black Trace Wire : POSITIVE OUTPUT TO SIREN
Route this wire through a rubber grommet in the firewall, and to the siren location.
Connect the white / black wire to the positive wire of the siren. Secure the black ground wire of the siren to
chassis ground.
Dark Green w/ Black Trace Wire : LATCHING OUTPUT / CHANNEL 3
The green w/ black trace wire latches to ground via an independant RF channel from the keychain transmitter. This is a transistorized, low current ( 300 mA ) output, and should only be used to drive an external
relay coil.
This wire provides an immediate ground signal, and stays at ground for as long as the button(s) on the
keychain transmitter remain pressed.
WARNING ! Connecting the dark green w/ black trace wire to the high current switched output of
trunk release circuits will damage the control module.
Connect the dark green w/ black trace wire to terminal 86 of the AS 9256 relay ( or an equivalent 30 Amp
automotive relay ), and wire the remaining relay contacts to perform the selected function of channel 3.
Dark Blue Wire : DELAYED 300 mA PULSED OUTPUT / CHANNEL 2
The dark blue wire pulses to ground via an independent RF channel from the keychain transmitter. This is
a transistorized, low current output, and should only be used to drive an external relay coil.
WARNING: Connecting the dark blue wire to the high current switched output of trunk release circuits,
some remote start trigger inputs, will damage the control module.
Connect the dark blue wire to terminal 86 of the AS - 9256 relay (or equivalent 30 A automotive relay), and
wire the remaining relay contacts to perform the selected function of channel 2.
2 Pin Blue Connector : VALET SWITCH
Route the grey and black wires in the 2 pin connector from the valet switch to the control module, and plug
Page 4
it into the mating blue connector on the side of the module.
2 Pin White Connector : DASH MOUNTED L.E.D.
Route the red and blue wires in the 2 pin white connector from the L.E.D. to the control module, and plug
it into the mating white connector on the side of the module.
4 Pin White Connector : SHOCK SENSOR
Route the red, black, blue, and green wires in the 4 pin white connector from the shock sensor to the
control module, and plug one end into the shock sensor, and the other end into the mating white connector
on the side of the module.
Red & Green 2 Pin White Connector : DOOR LOCK OUTPUTS
These wires will provide either a pulsed ground output to the factory door lock control relay, or a pulsed +
12 volt output to the factory door lock control relay. In either case, the maximum current draw through
these outputs must not exceed 300 mA.
3 Wire Ground Switched Door Locks
In this application, the red wire provides a ground pulse during arming, or the pulsed ground lock output.
Connect the red wire to the wire that provides a low current ground signal from the factory door lock switch
to the factory door lock control relay.
The green wire provides a ground pulse during disarming, or the pulsed ground unlock output. Connect
the green wire to the wire that provides a low current ground signal from the factory door unlock switch to
the factory door lock control relay.
3 Wire Positive Switched Door Locks
In this application, the red wire provides a positive pulse during disarming, or the pulsed + 12 volt unlock
output. Connect the red wire to the wire that provides a low current positive signal from the factory door
unlock switch to the factory door lock control relay.
The green wire provides a positive pulse during arming, or the pulsed + 12 volt lock output. Connect the
green wire to the wire that provides a low current positive signal from the factory door lock switch to the
factory door lock control relay.
4 Wire Polarity Reversal and
5 Wire Alternating 12 Volt
Door Lock Control Circuits
In these applications, the AS 9159 Door Lock Interface ( or equivalent 30 A automotive relays ) must be
used. Refer to the AUDIOVOX Door Lock Wiring Supplement for proper connection to these types of
circuits.
COMPLETING THE INSTALLATION
Page 5
Antenna Wire : Be sure to extend the thin black antenna wire to it’s full length, and cable tie into place
where it cannot be damaged. Avoid wrapping this wire around major, high current wire looms.
Adjusting the Shock Sensor : The sensitivity of the pre - detect circuit is automatically set 30% less
sensitive than the full trigger circuit.
Using a small screwdriver, gently turn the adjustment screw fully counterclockwise. ( DO NOT over turn
this screw. Maximum rotation for this adjustment is 270° ). Close the hood and trunk lids, and arm the
alarm. Wait 6 seconds for the accessories trigger zone to stabilize, then firmly strike the rear bumper with
the side of a closed fist considering the amount of force required to break a window.
CAUTION : Never perform this test on the vehicle’s glass, as you may break the window.
Turn the adjustment screw clockwise ( increasing sensitivity ) about ¼ turn and re - test. Repeat this
procedure until the alarm sounds. Ultimately, one firm strike to the rear bumper will cause the alarm to emit
pre - detect warning tones.
WARNING ! Setting the sensitivity too high can cause false alarms due to noise vibrations from passing
trucks and heavy equipment. To decrease sensitivity, turn the adjustment screw counter
clockwise.
Wire Dressing : Always wrap the alarm wires in convoluted tubing, or with a spiral wrap of electrical tape.
Secure these looms along the routing using cable ties. This will ensure that the alarm wires are not
damaged by falling onto hot or sharp moving surfaces in the vehicle.
Operation : Take a few moments to check off the appropriate option boxes in the owner’s manual, and to
fully explain the operation of the system to your customer.
Audiovox Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788
Page 6
128-
APS 400
CONTROL MODULE
GREEN WIRE LOOP
Cut to Eliminate Voltage
Sensing
GRAY WIRE LOOP
Cut for Valet Switch
Override Operation
GREY
RED
LT. BLUE
DOOR LOCK OUTPUTS
GREEN
RED
( + ) Lock Pulse
( - ) Unlock Pulse
( - ) Lock Pulse
( + ) Unlock Pulse
DASH L.E.D.
SHOCK SENSOR
Red, Black, Blue,
and Green Wires
VALET
SWITCH
Page 7
BLACK
Required )
( Optional Relay
Cut Feature
Normally Opened Starter
Connect To Relay For
GROUND OUTPUT
when DISARMED
HOOD or TRUNK
PIN SWITCH
+
-
DOOR PIN SWITCH
(GM TYPE)
EXISTING NEGATIVE SWITCHING
EXISTING POSITIVE SWITCHING
DOOR PIN SWITCH
(FORD TYPE)
Ignition / Crank
To + 12 Volts
IGNITION SOURCE
PARKING
LIGHT
EXISTING
BLACK
Connect to Vehicle's
GROUND SOURCE
Chassis
SIREN
BLACK
(-) TO VEHICLES CHASSIS
Page 8
GROUND
Window Roll - Up
Optional Remote Starter or
RED
GREEN w/ BLACK
Negative Latching Output for
CHANNEL 3
WHITE w/ BLACK
Window Roll Up
ORANGE w/ WHITE
Remote Starter
Trunk Release
DARK GREEN
DK. BLUE
Negative Pulsed Output for
CHANNEL 2
Optional
BROWN
+
( See Note on Voltage Sensing )
Connect toa+12Volt
Battery Source
-
+ 12 VDC BATTERY
RED
PURPLE
FUSE
15A
FUSE
5A
YELLOW
RED
RED
w/WHITE
WHITE
Connect to Relay for Normally Closed Starter
GROUND OUTPUT when ARMED
( Optional Relay Required )
Cut Feature
ORANGE
APS 400
CONTROL MODULE
Loading...
