Audio-Technica ATR2500-USB User Manual
ATR2500-USB
Instruction Manual
Cardioid Condenser USB Microphone
ATR2500-USB
Contents
Introduction & features 2
Setting up your microphone with pivot mount & desk stand 3
Preliminary setup with Mac OS X 4

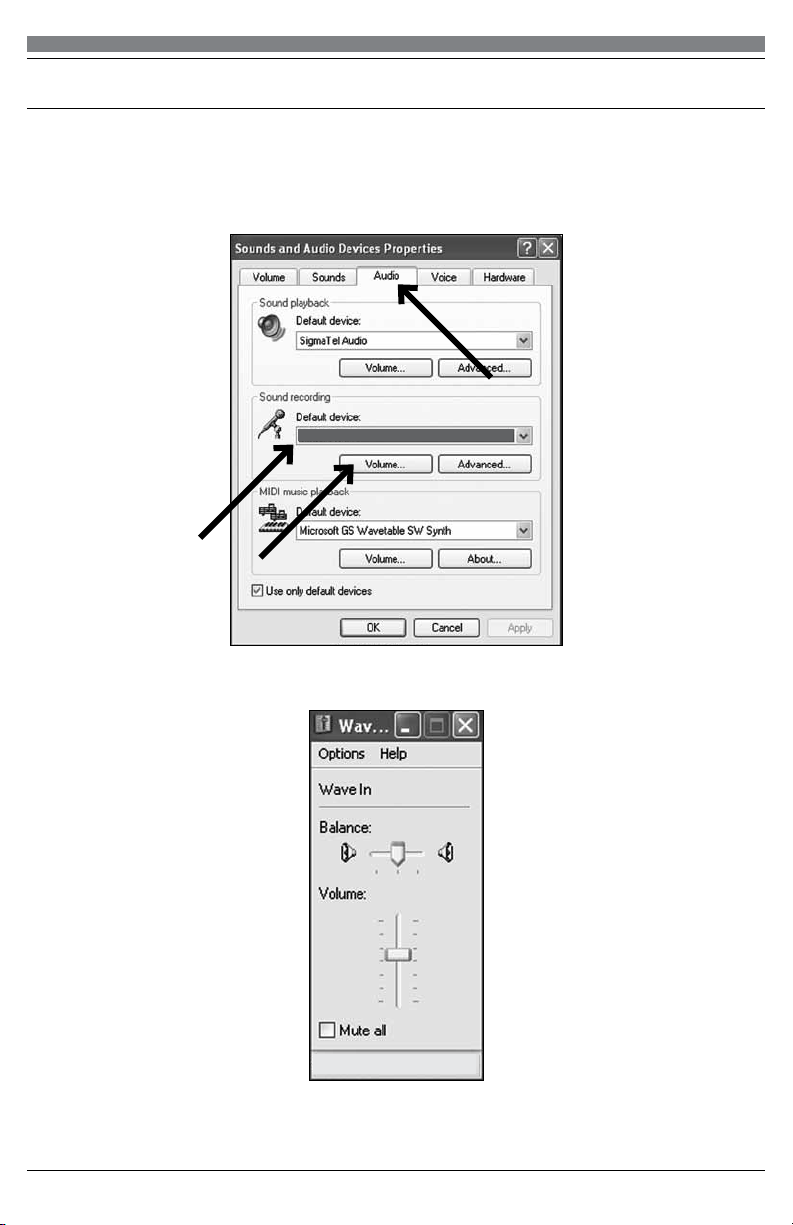

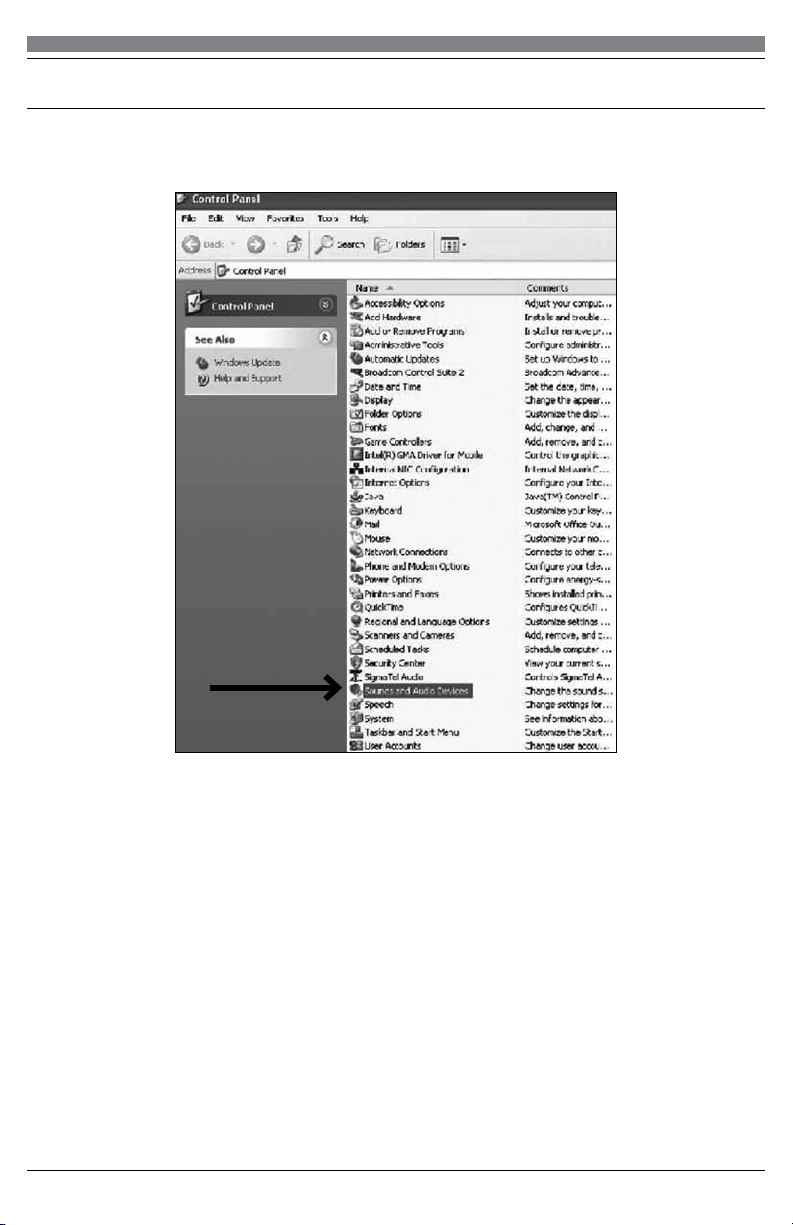

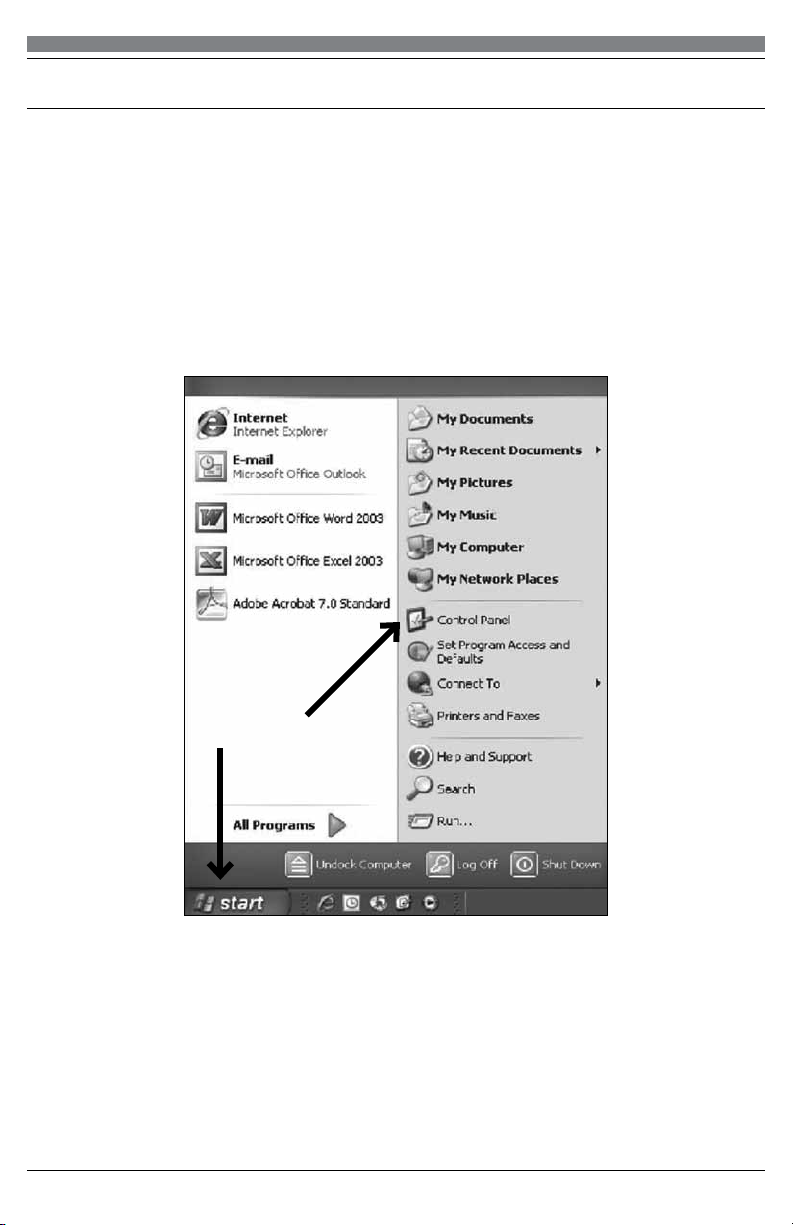

Preliminary setup with Windows XP 6
Preliminary setup with Windows Vista 9

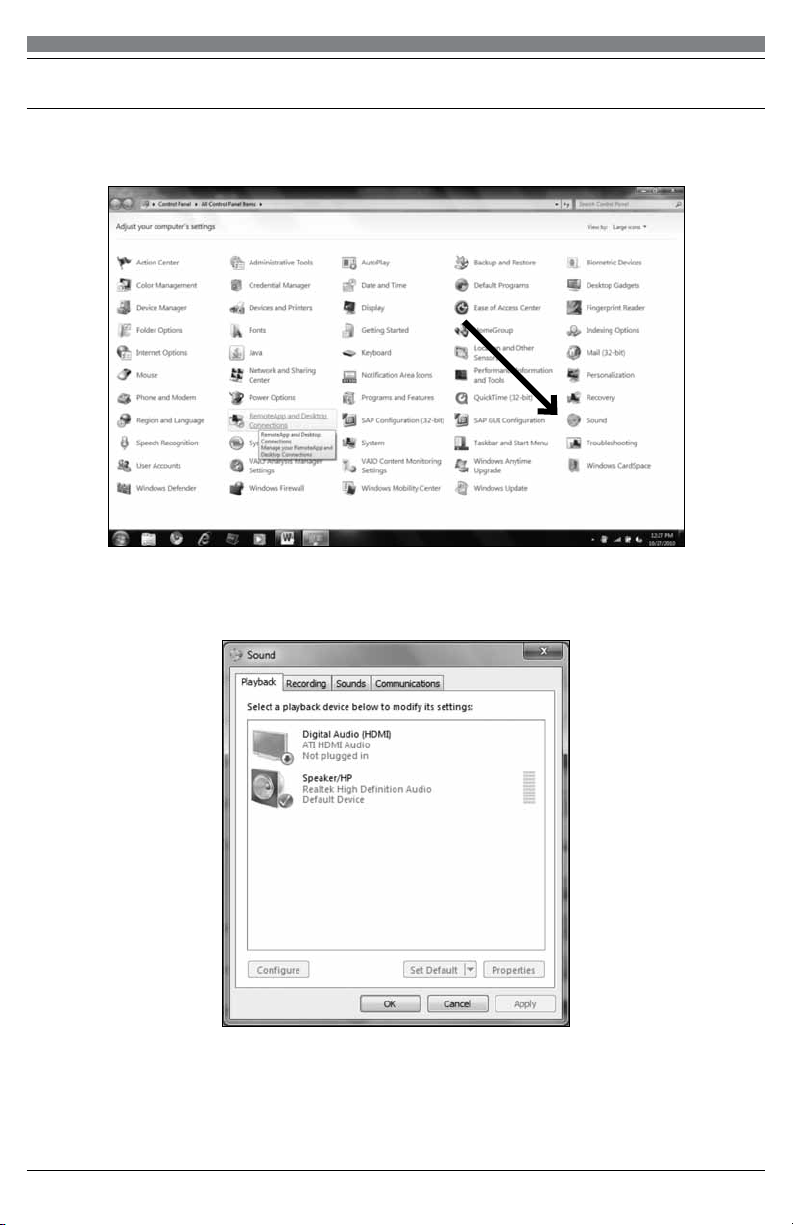

Preliminary setup with Windows 7 10
Using headphones 13
Selecting software 13
Setting your software levels 13
Positioning your microphone 13
Protecting your microphone 13
Specifications 14
Warranty 15
Compliance with FCC rules (USA only)
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC WARNING
You are cautioned that any changes or modifications not expressly approved in this manual could
void your authority to operate this equipment.
Canada only
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme á la norme NMB -003 du Canada.
Thank you for buying the Audio -Technica ATR2500-USB cardioid condenser microphone. Designed for
computer-based recording, this microphone is ideal for digitally capturing music or any acoustic audio
source using your favorite recording software.
Equipped with a USB output for easy connection to your computer, the ATR2500-USB offers studioquality articulation and intelligibility perfect for home studio recording, field recording, podcasting, and
voiceover use.
The ATR2500-USB also features a built-in headphone jack with volume control that allows you to
directly monitor your microphone’s output during recording. The microphone’s focused pickup pattern
delivers excellent off-axis rejection, while its A/D converter with a 16-bit, 44.1/48 kHz sampling rate
ensures clear, articulate sound reproduction.
Audio-Technica’s state-of-the-art design and manufacturing techniques ensure that the microphone
complies with the company’s renowned consistency and reliability standards.
Features
• Side-address studio condenser microphone with USB output for easy connection to your computer
• Ideal for podcasting, home studio recording, field recording, and voiceover use
• Built-in headphone jack allows you to directly monitor your microphone’s output without audible delay
• Adjust headphone volume with easy-to-use controls on the front of the microphone
• High-quality A/D converter with 16-bit, 44.1/48 kHz sampling rate
• Compatible with Windows and Mac
• Low-mass diaphragm provides excellent frequency response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of
desired sound source
• Low self-noise – ideally suited for digital recording equipment
• Pivoting, threaded stand mount attaches securely for easy and precise placement of
the microphone
• Tripod desk stand with folding legs for secure and easily portable tabletop use
2
ATR2500-USB
1
2
3
4
5
6
8
7
1. Windscreen–Multi-stage grille design offers excellent protection against plosives and sibilance
without compromising high-frequency clarity
2. Capsule–Condenser microphone element with cardioid polar pattern
3. Blue LED –Blue light shows mic is receiving USB power
4. Metal construction –Tough, durable, resilient design
5. Headphone level control– Soft-touch buttons control headphone volume
6. Headphone jack –1/8-inch (3.5 mm) stereo jack for connecting your headphones
7. USB–USB connector for connection to your Mac or PC
8. USB cable
Setting up your microphone with included pivot mount and tripod desk stand
A. Screw the pivot mount microphone adapter onto the threaded portion of the desk stand.
B. Extend the tripod legs to provide a wide, secure base. Place the tripod desk stand on a flat surface.
C. Install the ATR2500-USB microphone through the tapered side of the collar of the pivot mount.
While holding the microphone in place, screw the threaded ring to the threaded portion of the
microphone that extends through the collar, and tighten.
D. The front of the microphone should be facing the sound source. (The USB icon and LED indicate
the front of the microphone.)
E. Use a screwdriver or coin to loosen and tighten the pivot screw for angle adjustment.
F. Plug the provided USB cable into the USB output at the base of the microphone.
Note: Many recording software programs are available online. Audacity is widely used free software
for recording and editing sounds. It is available online at http://audacity.sourceforge.net/
3
Preliminary setup with Mac OS X
1. Plug the free end of the provided USB cable into the USB port on your computer. The microphone’s
blue LED will illuminate, indicating the microphone is receiving power.Your computer will
automatically recognize the USB device and install a driver.
2. To select the ATR2500-USB as your audio input, first, open your System Preferences.
4
3. Next, click Sound to display the Sound preference pane.
4. Click the Input tab and select the ATR2500-USB as the device for sound input.
ATR2500-USB USB
Your preferences are now set to use the ATR2500-USB on your Mac with GarageBand or another
recording program of your choice.
5
