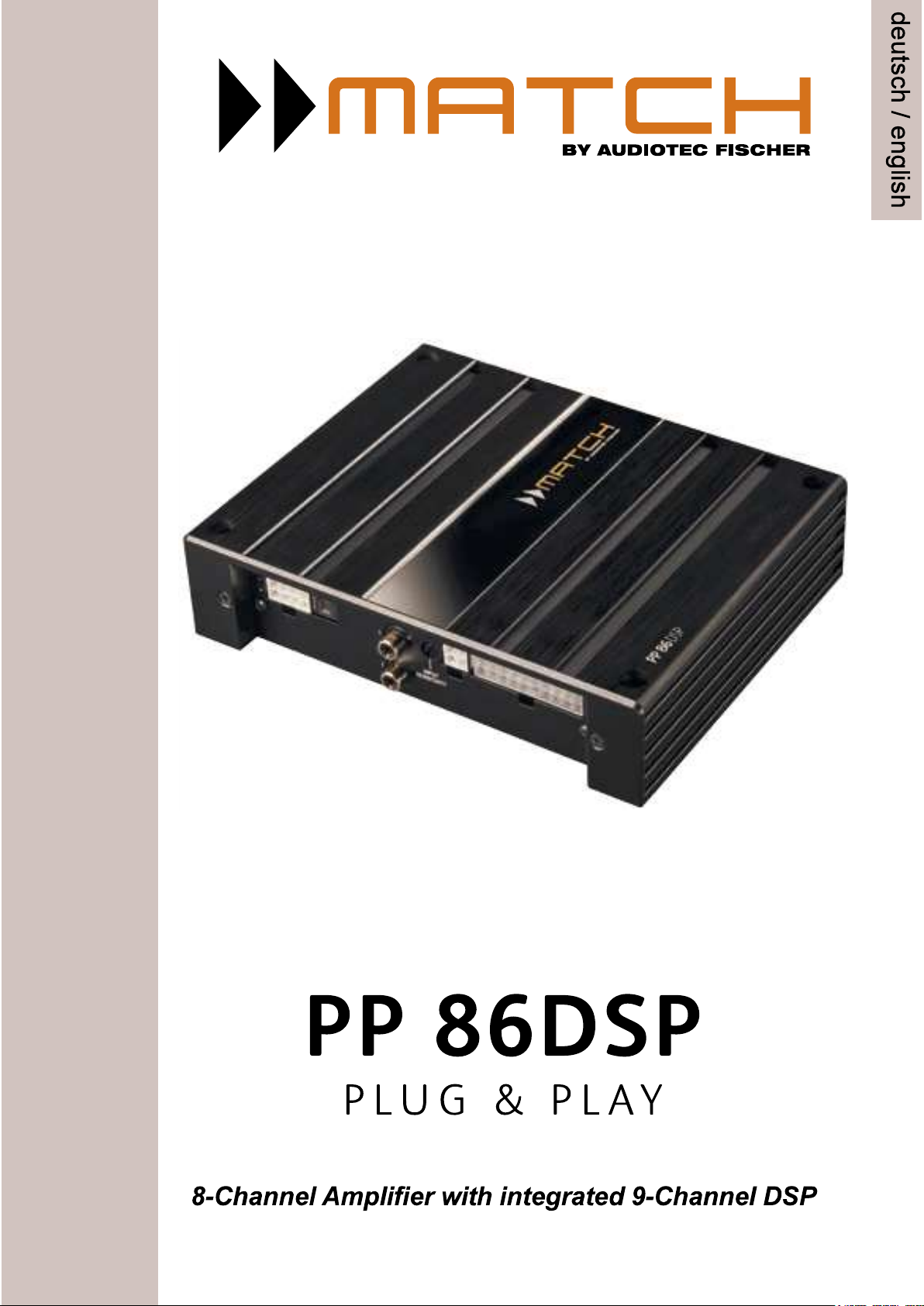

8-Kanal Verstärker mit integriertem 9-Kanal DSP
Congratulations!
Dear Customer,
Congratulations on your purchase of this innovative
and high-qual ity MATCH product.
With the PP 86DSP, MATCH is setting new standards in the evolving plug & play market.
General instructions
General installation instructions for MATCH
components
To prevent damage to the unit and possible injury,
read this manual carefully and follow all installation
instructions. This product has been checked for
proper function prior to shipping and is guaranteed
against manufacturing defects.
Before starting your installation, disconnect the
battery’s negative terminal to prevent damage
For a proper
performance and to ensure full warranty coverage,
we strongly recommend to get this product installed
by an authorized MATCH dealer.
Install your PP 86DSP in a dry location with suf-
We wish you many hours of enjoyment with your
new MATCH PP 86DSP.
Yours,
AUDIOTEC FISCHER
General instruction for connecting the
motor vehicles which have a 12 Volts negative terminal connected to the chassis ground. Any other
the electrical system of the vehicle.
The positive cable from the battery for the entire
sound system should be provided with a main fuse
at a distance of max. 30 cm from the battery. The
value of the fuse is calculated from the maximum
total current draw of the car audio system.
Use only the enclosed MATCH cable for connection of the PP 86DSP. The use of other
cables can result in damage of the ampli-
a solid mounting surface using proper mounting
hardware. Before mounting, carefully examine the
area around and behind the proposed installation location to ensure that there are no electrical
cables or components, hydraulic brake lines or any
part of the fuel tank located behind the mounting
surface. Failure to do so may result in unpredictable
damage to these components and possible costly
repairs to the vehicle.
only be replaced by identically rated fuses (2 x
Prior to installation, plan the wire routing to avoid
any possible damage to the wire harness. All
cabling should be protected against possible
crushing or pinching hazards. Also avoid routing
cables close to potential noise sources such as
electric motors, high power accessories and other
vehicle harnesses.
15
Speaker Output E - H
Connector for the loudspeakers of the chan
connect a passive MATCH PP subwoofer.
2
Optical Input
Optical input for digital stereo signals (SPDIF
format).
3
external
devices.
4
Clipping LED
This LED lights up red if one of the analog
5
Control for adjusting the input sensitivity.
6
and F.
7
System Connector
Connector for the MATCH cable harness.
the PP
86DSP with your car radio.
8
This LED will light up if the fuses inside the
9
+12 V
Connector for the +12
V power cable to the
Connector for the remote cable.
GND
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
Auto Remote
This switch allows to activate
/ deactivate
The remote output has to be used to turn on
/
the
Mono Line Outputs
Control Input
86DSP
accessory.
Connects the PP
86DSP to your PC.
Status LED
This LED indicates the operating mode of the
sen.
Control pushbutton
setups or initiate a reset of the device.
9
8
234
5
6
7
Initial start-up and functions
Speaker Output E - H
1
This output is used for connecting a passive
Plug & Play subwoofer like the MATCH PP 10E-D
or further loudspeakers. When connecting a
the PP 86DSP are used for driving the subwoofer.
Please make sure that in this case the output signal of all these four channels is identical. Alterna-
for other purposes via the DSP PC-Tool software
The impedance per channel must not be lower than
2 Ohms.
Attention: Solely use the connection cable with the
in delivery!
Optical Input
2
Optical input in SPDIF format for connecting signal
sources with a digital audio output. The sampling
rate of this input must be between 12 and 96 kHz.
The input signal is automatically adapted to the internal sample rate. In order to activate and control
the volume of this input, we recommend to use an
optional remote control.
Notice:
signals and no Dolby-coded digital audio stream.
Mono Line Output
3
The Mono Line Outputs
level outputs (max. 3 Vrms) for connecting addition-
reduce the input sensitivity by using the control 5
(Input Sensitivity) until the LED goes out.
Input Sensitivity
5
This control is used to adapt the input sensitivity of
the highlevel inputs to the output voltage of the connected signal source. This is not a volume control,
trol range of the highlevel input goes from 11 Volts
(max. CCW position) to 5 Volts (max. CW position).
Please note: The input sensitivity ex works is set to
11 Volts (max. CCW position). If the highlevel inputs
of the System Connector or the Highlevel Input
E + F are used in combination with a standard car
radio we recommend an input sensitivity of roughly
9 Volts. For this purpose, turn the control from max.
CCW position to 9 o’clock position.
Highlevel Input E + F
6
2-channel highlevel loudspeaker input of the chan-
loudspeaker outputs of OEM / aftermarket radios
11 Volts for all channels. It is possible to vary the
sensitivity between 5 and 11 Volts with control 5 (In-
put Sensitivity).
Please note: This input has to be used for car radios with 6-channel highlevel output because the
MATCH connection cable only provides four highlevel channels.
Attention: Solely use the connection cable with the
-
Audio Transformer” avoids any ground-loops that
may cause undesired alternator noise. Please
make sure that you always turn on/off external am-
Remote Out) of the
PP 86DSP. Additionally this output will be turned off
tive as well as during software updates.
Important: Both RCA outputs deliver the same au-
software!
Clipping LED
4
This LED lights up red if one of the six highlevel
inputs is overdriven. The LED has no function when
an input signal is applied to the digital input (Optical
Input) or to the MEC module. If this LED lights up
in delivery!
System Connector
7
Please use this terminal only in combination with
the cable harness that is included in the delivery of
to connect the MATCH PP 86DSP to your head
unit / car radio.
Caution: The use of other harnesses than the one
your loudspeakers. In any case the warranty will be
void!
Important note: This connector does not allow
mandatory to use the terminals (9) and (11) which
are described in the following.
17
Initial start-up and functions
Fuse
8
the internal fuses the LED lights up red. The fuses
may only be replaced by identically rated fuses (2 x
+12 V
9
Connect the +12 V power cable to the positive terminal of the battery. Recommended cross section:
min. 10 mm² / AWG 8.
10
REM
The remote input has to be used to turn on/off the
PP 86DSP if the signal source which is connected
to the System Connector or Highlevel Input E + F is
not activating the “automatic turn-on” function (Auto
Remote
deactivated by a remote signal applied to the remote input.
The remote lead should be connected to the remote
output / automatic antenna (aerial positive) output
of the head unit / car radio. This is only activated
if the head unit / car radio is switched on. Thus the
in this case.
13
Remote Out
We strongly recommend to use this output for turn-
the Mono Line Outputs of the MATCH PP 86DSP.
This is essential to avoid any interfering signals.
This output is activated automatically as soon as
the booting process of the DSP is completed. Additionally this output will be turned off during the
“Power Save Mode” or a software update process.
14
Control Input
This multi-functional connector is designed for
MATCH accessory products like a remote control
which allows to adjust several features of the am-
or on the remote control itself.
15
USB Input
Connect your personal computer to the PP 86DSP
using the provided USB cable. The required
head unit / car radio. This input needn´t to be assigned if the System Connector or Highlevel Input
E + F is used.
11
GND
The ground cable should be connected to a common ground reference point (this is located where
the negative terminal of the battery is grounded
to the metal body of the vehicle) or to a prepared
metal location on the vehicle chassis i.e. an area
which has been cleaned of all paint residues. Recommended cross section: min. 10 mm² / AWG 8.
12
Auto Remote
The PP 86DSP will be turned on automatically if
the highlevel inputs of the System Connector or the
Highlevel Input E + F are used or if a signal is applied to the remote input (REM) terminal.
The Auto Remote switch allows to activate / deactivate the automatic turn-on feature. The feature
should be deactivated if there are e.g. disturbing
Note: If the automatic turn-on function is deactivated it is mandatory to use the remote input to power
18
downloaded from the Audiotec Fischer website
.
Please note: It is not possible to connect any USB
storage devices.
16
Status LED
The LED indicates the operating mode of the ampli-
Green: Setup 1 is loaded.
Orange: Setup 2 is loaded.
Red: Undervoltage protection circuit is
active.
Internal setup storage is empty (A
new setup has to be loaded via
the DSP PC-Tool software).
17
Control pushbutton
The Control pushbutton allows the user to switch
between the two setup memory positions. To switch
between the setups the button has to be pressed
and held for one second. Switching is indicated by a
Status LED. Pressing the but-
of the Status LED.
Attention: After erasing the setups from memory
the MATCH PP 86DSP will not reproduce any audio
output.
Unique Features of the PP 86DSP
Class HD technology
The PP 86DSP combines the advantages of a
Class H technology with the principle of a class D
which easily outperforms any conventional Class D
By varying the internal supply voltage depending on
cy is close to maximum at any time.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the
features (e.g. fader function) are often the result but not with the PP 86DSP.
The new ADEP circuit (Advanced Diagnostics Error
Protection) avoids all these problems without loading the speaker outputs of the OE radio during high
volumes unnecessarily.
Start-Stop capability
The switched power supply of the MATCH
PP 86DSP assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts
during engine crank. If the supply voltage drops be-
Status LED lights up
red) in order to avoid any further discharge of the
car’s battery.
Automatic Digital Signal Detection
Switching from analog input to the digital input is
done automatically as soon as a signal is detected on the Optical Input. This feature can be deactivated in the DSP PC-Tool software. Alternatively
you can use an optional remote control for manual
switching between analog and digital inputs.
Power Save Mode
The Power Save Mode is incorporated in the ba-
er consumption of the PP 86DSP and potentially
present for more than 60 seconds. Please note that
in many up-to-date cars with “CAN” or any other internal bus structures it may happen that the radio
remains “invisibly” turned on for up to 45 min. even
after locking and leaving the car! Once the “Power
Save Mode“ is active the remote output and there-
MATCH PP 86DSP will reactivate the remote output
within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or
completely deactivate the “Power Save Mode” via
the DSP PC-Tool software.
-
-
19
20
The ISO female connector will either be plugged into the vehicle harness that has been disconnected
2
adaptor.
3
4
5
The power supply terminal has to be connected directly to the battery - use only adequate cables
fuse at a distance of max. 30
cm from the battery.
The power supply of the PP
The power supply of the PP
86DSP must never be made via the MATCH connection
cable!
for
original cable
2
3
5
Optional:
4
The MATCH PP 86DSP must be connected to the
head unit (car radio) as follows:
highlevel channels.
Caution: Carrying out the following steps will require special tools and technical knowledge. In order to avoid connection mistakes and/or damage,
ask your dealer for assistance if you have any questions and follow all instructions in this manual (see
page 15).
1. Connecting the Plug & Play cable harness
1. After removing the head unit / car radio
from the dash using appropriate tools,
disconnect the vehicle harness from the
car radio. Next, connect the vehicle harness to the female connector of the
MATCH cable harness,
1
Depending on your car an additional car-spe-
and the respective adaptors can be found on
.
2. Connect the male connector of the MATCH
The Input Sensitivity control (page 17, item 5) is
used to adapt the input sensitivity to the output
voltage of the connected head unit / car radio.
Adjustments with this control do not affect the
optical input! This control is no volume control
and is only for adapting the input sensitivity. The
ex works setting of the highlevel input sensitivity of the PP 86DSP is the maximum coun terclockwise position.
If the highlevel inputs of the System Connector
or the Highlevel Input E + F are used in combination with a standard car radio we recommend
an input sensitivity of roughly 9 Volts. For this
.
purpose turn the control from max. CCW position to 9 o’clock position.
Important note: Please make sure that you
choose an appropriate sensitivity setting that
the Clipping LED (page 17, item 4) never lights
up.
the head unit / car radio,
2
.
Note - Cars equipped with MOST bus:
In cars equipped with MOST bus structure
cable from the original car radio connector
and insert it into the car radio connector
of the MATCH cable harness which has a
dedicated recess for this.
2. Connecting the highlevel speaker inputs E
and F (optionally)
The highlevel loudspeaker inputs E and F can
be connected directly to the loudspeaker outputs of an OEM or aftermarket radio using
appropriate cables (loudspeaker cables with
1 mm² / AWG 18 max.).
Make sure that the polarity is correct. If one or
more connections have reversed polarity it may
input is used the remote input (REM) does not
tomatically turn on once a loudspeaker signal
is received.
Please note: This input has to be used for car
radios with 6-channel highlevel output because
the MATCH connection cable only provides four
4. Connecting a digital signal source
If you have a signal source with an optical digital
the MATCH PP 86DSP automatically activates
the used digital input if a digital audio signal is
detected. This function can be deactivated via
the DSP PC-Tool software. Alternatively you
can manually activate the digital input if you are
using the optional remote control.
The automatic turn-on circuit does not work
when the digital input is used. Therefore it is
mandatory to connect the remote input (REM).
Please note that it is possible to connect a
source to the digital input and the highlevel inputs at the same time.
Important: The signal of a digital audio source
normally does not contain any information about
the volume level. Keep in mind that this will
lead to full level on the outputs of the MATCH
-
PP 86DSP. This may cause severe damage to
your speakers. We strongly recommend to use
an optional remote control for adjusting the volume level of the digital signal input!
Information: The PP 86DSP can only handle
uncompressed digital stereo signals in PCM
21
Installation
format with a sample rate between 12 kHz and
96 kHz and no Dolby-coded signals.
5. Connection to power supply
Make sure to disconnect the battery before
installing the MATCH PP 86DSP!
The power supply of the PP 86DSP never ever
occurs via the MATCH cable harness. Always
directly connect the massive screw terminals of
the power leads of the car radio itself! Though
the PP 86DSP only has a limited average power consumption, it may draw very high currents
(up to 50 A) for the fraction of a second due to
its dynamically controlled internal power supply.
Important: You may risk a severe damage of
ic components inside your vehicle or even a
The PP 86DSP will be turned on automatically
if the highlevel inputs of the System Connector
or the Highlevel Input E + F are used or if a signal is applied to the remote input terminal. The
Auto Remote switch (page 18, item 12) allows
to deactivate the automatic turn-on feature. The
feature should be deactivated if there are e.g.
Note: If the automatic turn-on function is deactivated it is mandatory to use the remote input
signal of the System Connector and High-
level Input E + F will be ignored in this case.
To deactivate the automatic turn-on feature you
have to change the position of the Auto Remote
-
switch to “Off”.
the power supply of the PP 86DSP!
Connect the +12 V power cable to the positive
terminal of the battery. The positive wire from
needs to have an inline fuse (50 A) at a distance
of less than 12 inches (30 cm) from the battery.
If your power wires are short (less than 1 m /
40”) then a wire gauge of 6 mm² / AWG 10 will
The ground cable (same gauge as the +12 V
wire) should be connected to a common ground
reference point (this is located where the negative terminal of the battery is grounded to the
metal body of the vehicle) or to a prepared metal location on the vehicle chassis, i.e. an area
which has been cleaned of all paint residues.
6. Connecting the remote input
The remote input has to be connected to the ra-
Optical Input
is solely used as signal input. We do not recommend controlling the remote input via the ignition switch to avoid pop noise during turn on/off.
If the highlevel inputs of the System Connector
or the Highlevel Input E + F are used this input
does not need to be connected as long as the
car radio has BTL output stages.
conducted with the DSP PC-Tool software
Ignoring this advice may result in damaging the
the PP 86DSP will be used to drive fully active
speaker systems, a wrong setup can destroy
your tweeters right away.
-
Information about connecting the PP 86DSP to
a computer can be found on page 25.
9. Connecting the loudspeaker outputs E - H
The loudspeaker outputs allow to connect a
passive Plug & Play subwoofer like the MATCH
PP 10E-D or further loudspeakers (e.g. center speaker etc.). For the connection of a
Plug & Play subwoofer you have to connect the
8-pole Molex connector of the connection cable which is delivered with the subwoofer to the
Speaker Output E - H.
Afterwards the appropriate subwoofer has to be
activated in the DCM menu of the DSP PC-Tool
software.
Note: nels for driving the subwoofer.
Alternatively the loudspeaker outputs can be
connected directly to the wires of further loudspeakers by using the 8-pole connection cable
which is included in delivery. Never connect
any of the loudspeaker cables with the chassis
22
your speakers. Ensure that the loudspeakers
are correctly connected (in phase), i.e. plus to
plus and minus to minus. Exchanging plus and
minus causes a total loss of bass reproduction.
The plus pole is indicated on most speakers.
The impedance of the speakers must not be
tection will be activated.
Attention: Solely use the connection cable with
included in delivery for connecting further loudspeakers!
10. Connecting the remote output
This output (Remote Out) is used to supply
are connected to the Mono Line Output of the
PP 86DSP. Always use this remote output sig-
Caution:
the OE speakers in the car will not be able to
handle this extra power permanently. As long
as you do not replace the original speakers by
loudspeakers with higher power handling be
-
very careful when you crank up the volume. If
you hear strong distortion, please reduce the
volume to an appropriate level in order to avoid
damaging your speakers.
Note: Audiotec Fischer is not responsible for
any damages to OE speakers that are used in
combination with the PP 86DSP!
-
off switching noises.
23
24

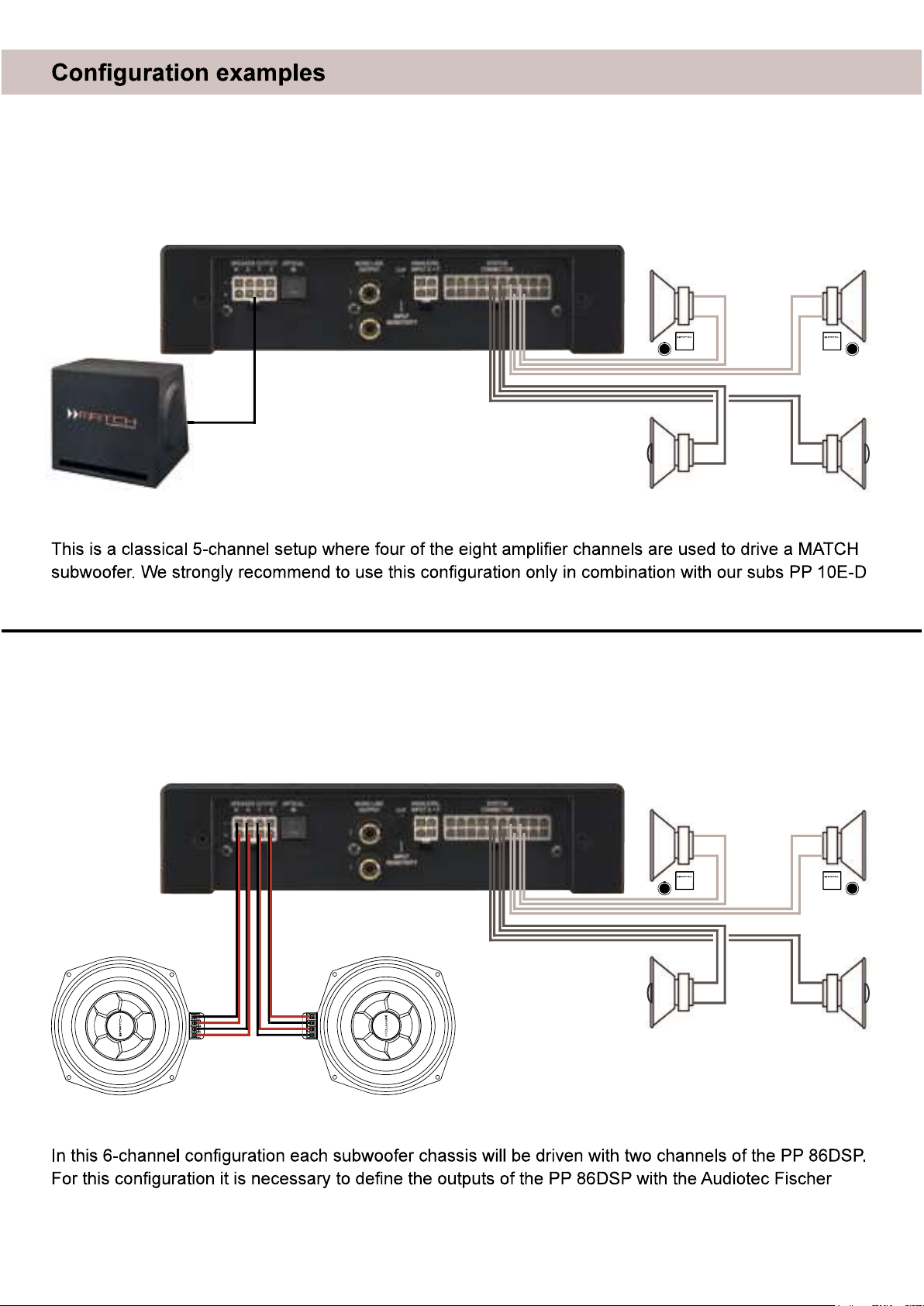

5-channel application
or PP
8E-Q.
Coaxial system
2-way passive system
+ Passive Plug & Play subwoofer
subwoofer connection
cable
6-channel application
2-way passive system
Subwoofer MW 8BMW-D
Connection to a PC
PP 86DSP with our DSP PC-Tool software.
The user interface is designed for easy handling of
all functions and allows an individual adjustment of
each of the nine DSP channels. Prior to connect-
download the latest version of the DSP PC-Tool
software.
Check from time to time for software updates. You
al on .
We strongly recommend to carefully read the user
manual (Sound Tuning Magazine) before using the
plications and failures.
Important: nected to your computer before the software and
USB driver are installed!
2.
the USB cable that is included in delivery. If you
have to bridge longer distances please use an
active USB extension cable with integrated repeater and no passive extension.
3.
the Status LED lights up green. The operating
software will be updated automatically to the
latest version if it is not up-to-date.
4.
PP 86DSP with our intuitive DSP PC-Tool
software. Nevertheless, interesting and useful
hints can be found e.g. in our “Sound Tuning
-
Magazine”, which can be downloaded for free
from our website.
Caution: We highly recommend to set the volume
of your head unit / car radio to minimum position
In the following the most important steps how to
1. Download the latest version of the
DSP PC-Tool software (available on our website ) and install it
on your computer.
1
3
4
5
be connected to the Mono Line Output until general settings in the DSP PC-Tool software have been
made. Especially if the PP 86DSP will be used in
fully active applications, a wrong setup can destroy
your speakers right away.
2
6
7
Load and save
1
2
Main menu
3
Channel configuration
4
Highpass filter
5
Lowpass filter
8
10 11
9
6
Time alignment
7
Output level
Frequency graph
8
9
Range of frequency graphs
10
Equalizer
EQ fine adjustment
11
25
26
al MATCH Extension Card (MEC) - for example a
Bluetooth
®
Audio Streaming module, an AUX input
or an USB audio input.
To install a MATCH Extension Card it is necessary
to remove the side panel of the PP
86DSP and re
Attention: Install the MEC module only in the
the MEC module in other devices or slots can
devices!
2
Connector input is located by removing the Phil
3.
4.
vice. Any further mounting information will be
found in the instruction manual of the respective
5.
the device which is marked in the following pic
ture.
6.
socket.
7.
with the Phillips screws.
8.
cise mounting information will be found in
the instruction manual of the respective MEC
9.
Technical Data
Output power RMS / max.
- All channels @ 4 Ohms .................................................8 x 55 / 110 Watts
- All channels @ 2 Ohms .................................................8 x 70 / 140 Watts
Inputs ...............................................................................6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Input sensitivity ................................................................5 - 11 Volts
Outputs ............................................................................8 x Speaker
2 x RCA / Cinch (mono)
2 x Remote Out
Output voltage RCA / Cinch.............................................3 Volts RMS
Frequency response ........................................................20 Hz - 22,000 Hz
DSP resolution .................................................................64 Bit
DSP power ......................................................................295 MHz (1.2 billion MAC operations/second)
Sampling rate ..................................................................48 kHz
Signal converters .............................................................A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio.........................................................> 103 dB (A-weighted)
Distortion (THD) ...............................................................< 0.015 %
Damping factor ................................................................> 100
Input impedance ..............................................................13 Ohms
Operating voltage ............................................................10.5 -16 Volts (max. 5 sec. down to 6 Volts)
Max. remote output current .............................................500 mA
Dimensions (H x W x D) ..................................................44 x 185 x 164 mm / 1.73 x 7.28 x 6.46”
Additional features ...........................................................Class HD technology with dynamically controlled
power supply, Start-Stop capability, Control Input,
USB, MEC slot, Auto Remote switch, galvanically
isolated Line Out
Warranty Disclaimer
The limited warranty comply with legal regulations.
Failures or damages caused by overload or improper use are not covered by the warranty. Please
return the defective product only with a valid proof
of purchase and a detailed malfunction description.
Note:
“The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
Audiotec Fischer GmbH is under license. Other trademarks and trade names are those of their respective owners.”
Errors are reserved! For damages on the vehicle
and the device, caused by handling errors of the
device, we can’t assume liability. These devices are
Community (EC).
27
Audiotec Fischer GmbH
Hünegräben 26 · 57392 Schmallenberg · Germany
Tel.: +49 2972 9788 0 · Fax: +49 2972 9788 88
Loading...
