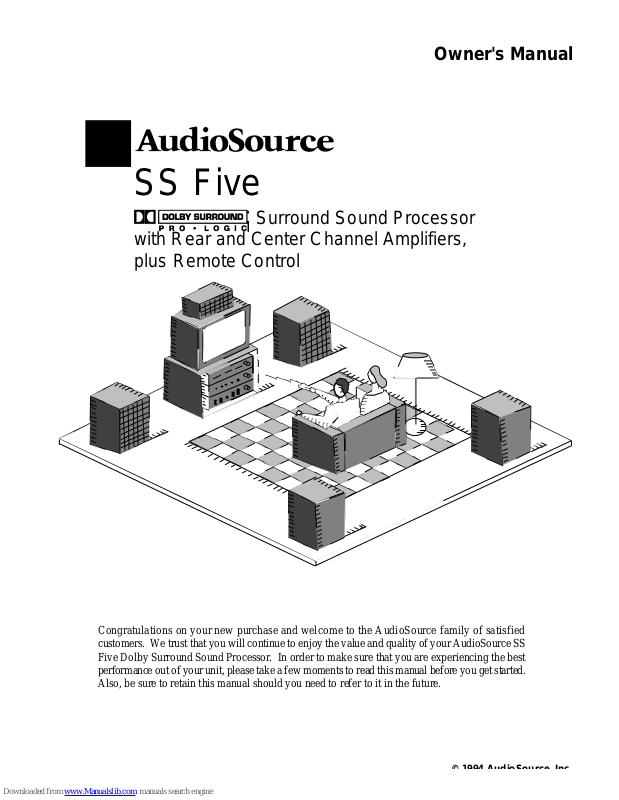

SS Five
Surround Sound Processor
with Rear and Center Channel Amplifiers,
plus Remote Control
Owner's Manual
Congratulations on your new purchase and welcome to the AudioSource family of satisfied
customers. We trust that you will continue to enjoy the value and quality of your AudioSource SS
Five Dolby Surround Sound Processor. In order to make sure that you are experiencing the best
performance out of your unit, please take a few moments to read this manual before you get started.
Also, be sure to retain this manual should you need to refer to it in the future.
SS Five Overview
The AudioSource SS Five represents the State of the Art in add-on Dolby Pro Logic Surround Sound
Processors. First and foremost it will decode the Dolby Surround information into usable signals. The self contained
amplifiers bring these additional sounds to your Home Theater speakers. A subwoofer pre-amp output jack is located
on the back panel. Any of the internal amplifiers may be bypassed if you feel the need to upgrade your system along
the way. The built-in Test function and sophisticated auto calibration circuitry easily keep your system in top
performance. The rich variety of operating modes allow you to enjoy two, four and five speaker listening from Dolby
Surround, stereo or mono sources.With the exception of the "pop-up" knob used for setting the input level. the SS Five
is controlled entirely from the remote control. Bright LED status indicators plus the LED bar graph meters provide
visual information to make adjusting the system simple. When wired properly, the SS Five remote will control the
volume of your entire set-up. The SS Five is designed to hook up to your current system quickly and with a minimum
of wire changing. The back panel reproduces any jacks you may have forfeited in hooking the SS Five to your other
components.
A Few Words About Home Theater
Dolby Stereo is the trademarked name for the Multi-Channel sound that is recorded for motion pictures. When
these movies are transferred to video, these extra audio channels are transferred also, as Dolby Surround. However,
a normal VCR or Stereo System cannot make use of these extra channels. A Dolby Pro-Logic Surround Sound
Decoder, such as the AudioSource SS Five, makes it possible to re-create the multi-speaker theater experience at home.
Your existing set-up is enhanced by the addition of two rear, or surround speakers, and a center channel, or dialogue
speaker. The AudioSource SS Five will decode these rear and center channels, amplify them and send their sound to
the appropriate speakers, and then send the rest of the signal to your other components. Remember, the signal has to
go both In and Out of the SS Five for the Home Theater effect to work properly.
Dolby Surround encoding is becoming increasingly more popular in other mediums. Many television
programs are now being broadcast in Dolby Surround. Recent Compact discs have been released with Dolby Surround
encoding. You can still enjoy the thrill of multi-speaker sound even if your source is not Dolby encoded. The Hall
and Matrix modes of the AudioSource SS Five will deliver exhilarating, multi-channel sound from any stereo or even
mono signal.
Some System Guidelines
In setting up your Home Theater system, keep in mind a few rules to achieve the best performance. The rear,
or surround, speakers should be about 30 to 40 percent of the front speakers' volume. These speakers are best placed
at about ear level, either to the side of, or behind the listener. The center channel will primarily keep the dialogue
matched to the picture. For this reason, the center speaker should be in front of the listener, as close to the screen as
possible. A video shielded speaker is best for this application, as it will eliminate the adverse ways that a speaker
magnet can affect the picture quality. Positioning your Front Left and Front Right speakers further from each other
will increase the size of the listening area, and allow sounds to be placed more accurately.
There are two basic ways to integrate the SS Five into your system. The first method is referred to as an " InLine " hook-up. In this fashion, the SS Five is inserted between two components, a VCR and a Television, for example.
The second method employs a "Loop", where signal is fed to and from the SS Five from a single component, usually
a receiver or pre-amp, forming a loop. This will often be referred to as a "Tape Monitor Loop", because it will use
the Tape In and Tape Out jacks, and the Monitor switch on your receiver or pre-amp. In this second method, any source
may be processed by the SS Five; VCR, Laser Disc, CD, Tape, Phono, DAT, etc.. by simply selecting that source on
the reciever or pre-amp.
1.
2.
Model SS Five
Down
Up
Phantom
Surround Sound Processor
Power Hall Dolby
Monitor Matrix Test
The Audiosource SS Five is controlled entirely from the remote control, with the exception
of the Input Level "pop-up" knob on the front panel. For each and every button on the remote
control, there is a red L.E.D. status indicator on the front panel of the SS Five to verify that the
commands from the remote control have been received
Surround
Phantom
+6
+3
0
-5
-10
S L C R
Input Level Rear Center Master Volume Remote Sensor
Using the Controls
Power
Power
Use the remote control to turn the SS Five "ON" or "OFF". A red lamp indicates when the
unit is "ON."
Modes
There are three different modes: Dolby Surround, Hall and Matrix. These determine what type
of decoding or processing the SS Five will employ. Use the buttons on the remote control to
activate each mode. A red LED will glow to verify your choice. Selecting the right mode will
allow you to enjoy multi-speaker sound no matter what the source.
Dolby Surround: Decodes and restores the Dolby Surround information of any source; video
tapes, laser discs, television, compact discs, etc.
SurroundHallMatrix
Hall: Creates a concert hall ambience from non-Dolby but stereo program material. The rear
speakers contribute to the spaciousness of the effect.
Matrix: Synthesizes a stereo image from mono signals that will play through all of the
speakers.
Phantom
If a center channel speaker is not available, the SS Five will create a "Phantom" center image
by sending these sounds equally to the left and right speakers. The lamp stays off during
normal operation, and is lit to indicate Phantom operation. Please note: If you are not using a
center channel speaker that is connected to the center speaker terminals, be sure to turn off the
center channel amplifier. Refer to Rear Panel Controls on the next page.
Test
The Test function allows you to quickly and accurately set the levels for each of the speakers,
without relying on an input signal. Pressing the button so that the LED is lit sends a tailored
Test
pink noise signal to each speaker in a rotating order. The LED Display will indicate which
speaker is receiving the test signal. The buttons on the remote control may be used to set the
levels. Set all the levels so that they appear to have the same volume. The Test function is only
active in the Dolby Surround mode.
Monitor
Monitor
On the SS Five, the Monitor function disables the "Line In" on the back panel, and activates
the "Tape In". In effect, the Monitor button becomes an input selector. If no unit is connected to the "Tape In", selecting the monitor function will act as a "Mute" switch.
Model SS Five
Down
Up
ON
Surround Sound Processor
Power Hall Dolby
Monitor Matrix Test
Surround
Phantom
S L C R
+6
+3
0
-5
-10
Input Level Rear Center Master Volume Remote Sensor
Using the Controls
Meters
The SS Five features four LED meters; S = Surround, L = Left, C = Center, R = Right. The
meters as a group perform three separate functions. Primarily, they are input meters, and will
display how much signal is present in each channel. This information can be extremely useful,
for example in determining if any surround information is present during a certain scene of a
movie. This is the normal mode for the meters. In addition, the meters will also display the
relative volume settings assigned to each channel, by touching any of the three volume controls.
Finally, in the Test mode, the meters will indicate which speaker is receiving the test signal.
Input Level
The input level knob is used for just that, setting the input level. It is NOT a volume control.
Normally, this knob will be turned 1/2 to 3/4 of the way up. When set properly, the top row
of the meters should faintly flicker during the loudest passages from your source. When the
proper level has been set, push the knob IN. This will lock the knob in it's proper position.
Volume Controls
Use the remote control for the Rear, Center, and Master volume adjustments. When the
remote control buttons are momentarily pressed, the meters will display the relative
volume settings for each channel. Pressing the button again, or continuing to depress
the button for a few seconds, will cause that switch to become active and a new level
may be set. After a new level has been set, the meters will remain in the relative volume
mode for a few seconds longer, and then switch back to their normal mode.
+6
+3
0
-5
S L C R
Input Level
Rear Centre Master
Vol+
Vol+
-10
Vol+
Rear: Raises or lowers the volume level of the Rear Channel in relation to the other speakers.
Center: Raises or lowers the volume level of the Center Channel in relation to the other
speakers.
Master Volume: Raises or lowers the overall volume of the entire system, including the level
of the signal being sent to your other components.
Remote Sensor
This infrared "eye" should be kept unobstructed so that it may "see" the commands from the
Remote Control.
Rear Panel Controls
Center Speaker On / Off
If no center speaker is being used turn this switch off, and turn the Phantom switch on the front
panel On. Also turn the Center Speaker switch Off if the center speaker is being used with
an external amplifier.
Auto or Manual On / Off
The power control has two positions; Manual and Auto. In the "Manual" position, use your
remote control to turn the power ON or OFF. In the "Auto" position, whenever a signal is
detected at the inputs, the SS Five will automatically turn itself "ON". If no signal is detected
over a period of minutes, the SS Five will automatically turn itself "OFF". This allows the user
to bypass the "POWER" switch during system start-up and shut-down.
Vol–
Remote Sensor
CENTER SPEAKER
AUTO MANUAL
ON/OFF
Vol–
Vol–
OFF
4.
OFF
ON/OFF
AUTO MANUAL
(REAR)
LEFT
RIGHT
LINE
SPEAKER
CENTER
C L R
REAR
SURR
OUT
(REAR)
CENTER SPEAKER
ON
CENTER
SUBWOOF
LINE
TAPE
TAPE
IN
OUT
IN
OUT
(FRONT)
(MONO)
Hooking up the Wires
Audio signals travel OUT of one component and IN to another. All of your connections
should also go from OUT to IN. When you are using the SS Five in a loop from your receiver
or pre-amp, the MONITOR switch on that receiver or pre-amp must be engaged. Refer to Some
System Guidelines on page 1.
LEFT
RIGHT
CENTER
SUBWOOF
(MONO)
LINE
IN
LINE
OUT
(FRONT)
SURR
OUT
Line In
The signal that is to be decoded or processed by the SS Five plugs into these jacks. These signals
come OUT of your VCR from the TAPE OUT or REC jacks on your receiver/pre-amp.
Line Out (Front)
The Left front and Right front (stereo) signals remain intact and exit the SS Five here.
From these "Line out" jacks, the signal goes IN to your Television Audio Inputs, or IN to
the TAPE IN, MONITOR, or PLAY jacks on your receiver / pre-amp.
Center & Surround Out (Rear)
Inside the SS Five there are amplifiers for the Center and Surround channels. However, you
may choose to upgrade your system to include more powerful external amplifiers. These jacks
provide a pre-amp output to drive any additional amplifiers you may wish to use.
Subwoofer (Mono)
A subwoofer is large, low frequency speaker that provides extended bass response to your
system. The SS Five employs a built-in electronic crossover to provide a pre-amp signal
suitable for an amplifier / subwoofer package.
Tape In & Tape Out.
Setting up a "loop" to the SS Five is done through the tape recorder jacks on your receiver or
pre-amp. In some cases, you may have had to disconnect your tape deck to allow the SS Five
TAPE
OUT
TAPE
IN
to access these jacks. In this situation you may use the Tape In and Tape out jacks on the SS
Five instead. To listen to the tape deck, activate the Monitor button on the front panel.
Speaker
The amplified Center and Surround signals hook directly to the speakers from these speaker
terminals. The "push-on" style terminals can accommodate up to 16 gauge speaker wire, which
SPEAKER
CENTER
C L R
REAR
is recommended for long speaker runs, otherwise 18 gauge will be adequate. When connecting
the speakers, it is very important to retain the correct polarity. To do this, be sure that the Red
or "+" terminal on the SS Five is connected to the Red or "+" terminal on the speaker. The Black
or "–" terminals on the SS Five must also connect to the Black or "–" speaker terminal. This
polarity is easily preserved by observing the color, stripe or ribbing that may appear on the
speaker wire. The terminals are labeled for Center, Rear Left and Rear Right and should be
connected accordingly.
SS Five Specifications
Amplifier Power Output:------------------------- Selectable;24 Watt Peak Center + 24 Watt Peak Rear,
Or; 24 Watt Peak Rear + 24 Watt Peak Rear
Frequency Response: ----------------------------- Dolby Surround; 100 Hz to 7k Hz
Matrix; 20 Hz to 20k Hz
Hall; 100 Hz to 7k Hz
Signal to Noise Ratio (Surround Mode ): ------> 90 dB
Delay Time:---------------------------------------- 30 ms; 50ms
Input Sensitivity (Line): -------------------------- 150 mV
Input Impedance ---------------------------------- 47k Ohms
Maximum Input Capacity: ----------------------- 5 V
Output Level (Surround Out, Dolby Mode):---1.5 V
Center Channel Output Level:------------------- 1.5 V
Subwoofer Output Level: ------------------------ 2.0 V
Subwoofer Crossover Frequency:--------------- 100 Hz
Function Modes: ---------------------------------- Dolby Pro Logic
Hall
Matrix
Inputs: -----------------------------------------------Line In
Tape In
Outputs: -------------------------------------------- Line Out ( Front )
Center Out
Subwoofer Out
Tape Out
Surround Out
Reference Display:-------------------------------- 5 Segment LED Peak meter x 4 ( Center, Left, Right, Surround )
Power Requirements: ----------------------------- 120 V, AC; 60 Hz; 90 Watts
Dimensions: --------------------------------------- 16 1/2"W x 2 1/16"H x 9 1/8"D
Weight:--------------------------------------------- 8 lbs., 14 oz.
Remote Specifications
Type: ------------------------------------------------Infrared Transmitter
Batteries: ------------------------------------------- 1.5 V x 2; UM-3 style; "AA" Size
Dimensions: --------------------------------------- 2.5"W x 6.7"H x 0.7"D
Designs and Specifications subject to change without notice
9300 North Decatur
Portland, Or. 97203
Printed in Taiwan
Loading...
