Reference CD9SE

Page 2

Page 3

Thank you for choosing the

Reference CD9SE to be a part of

your high performance music

listening system. Since 1970,

Audio Research has been creating

some of the world’s nest

audio equipment. Each piece is

handcrafted in Minnesota, and has

been designed to provide many

years of listening enjoyment.

We understand you are eager

to begin listening; however,

please take a few minutes to

read through this guide for

useful information concerning

the operation of your new

amplier. Once installed, please

allow an appropriate breakin period to fully appreciate

the benets this amplier will

provide to your system.

After reading the user guide, if

you have any further questions

regarding your amplier, contact

your dealer or Audio Research

customer service - they will be

Thank You.

happy to help you make the

most of your new component.

Happy Listening!

Page 4

Contents

Warnings

Installation

Illustrations

Before operating the CD9SE

In Your System

A note about Vacuum Tubes

Connections

Digital Inputs

Digital Outputs

Analog Outputs

Operation

Front Panel Controls

Remote Only Functions

CD Door Functions/Warnings

Maintenance

Vacuum Tubes

Servicing

Cleaning

Disposal and Recycling Guidelines

About Fuse Replacement

Warranty

FCC Rules

Specications

Software Installation

Page 5

Warnings

To prevent re, or shock hazard, do not

expose your CD9SE to rain or moisture.

Do not place objects containing

water on top of this unit.

This unit contains voltages which can cause

serious injury or death. Do not operate with cover removed. Refer servicing to your

authorized Audio Research dealer or other qualied personnel.

The detachable power cord on your CD9SE is

equipped with a heavy gauge, 3-conductor cable and a standard three-prong grounding plug. For absolute protection, do not defeat the ground power plug. This

provides power line grounding of the CD9SE

chassis to provide absolute protection from electrical shock.

For continued protection against re hazard,

replace the fuse only with the same type

and rating as specied at the fuse holder.

Do not operate the CD9SE player without the

supplied CD9SE clamp installed on the CD.

Gently place clamp on disc to prevent damaging the spindle mechanism.

If the unit is to be operated in an enclosure

such as an equipment rack, make certain

that adequate airow above and to each

side of the unit is provided, and ensure that the ventilation fans on the back panel are not obstructed.

The appliance coupler at the rear of this unit

must be accessible for emergency power disconnect.

This unit is RoHS compliant.

A note about packaging...

Save all packaging in a dry place away

from fire hazard. Your CD9SE compact disc

player is a precision electronic instrument and should be properly cartoned any time shipment is made. You may not have occasion to return your unit to the factory for service, but if that should prove necessary, or other occasion requiring shipment occurs, the original packaging

will protect your CD9SE from unnecessary

damage or delay.

Whenever the CD9SE power is on, the door

covering the drive mechanism/tray area should remain fully closed after inserting or removing a CD. Following this procedure will maintain proper ventilation and also

minimize dust intrusion on the lens and

drive mechanism.

Page 6

Installation

WARNING

TO PREVENT FIRE AND SHOCK HAZARD, DO NOT

UNIT CONTAINS VOLTAGES WHICH MAY BE HAZARDOUS.

CAUTION

FOR CONTINUED PROTECTION AGAINST

WITH SAME TYPE AND RATING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

REFERENCE DIGITAL CD PLAYER

PLYMOUTH, MINNESOTA

MADE IN U.S.A.

SERIAL

VOLTS

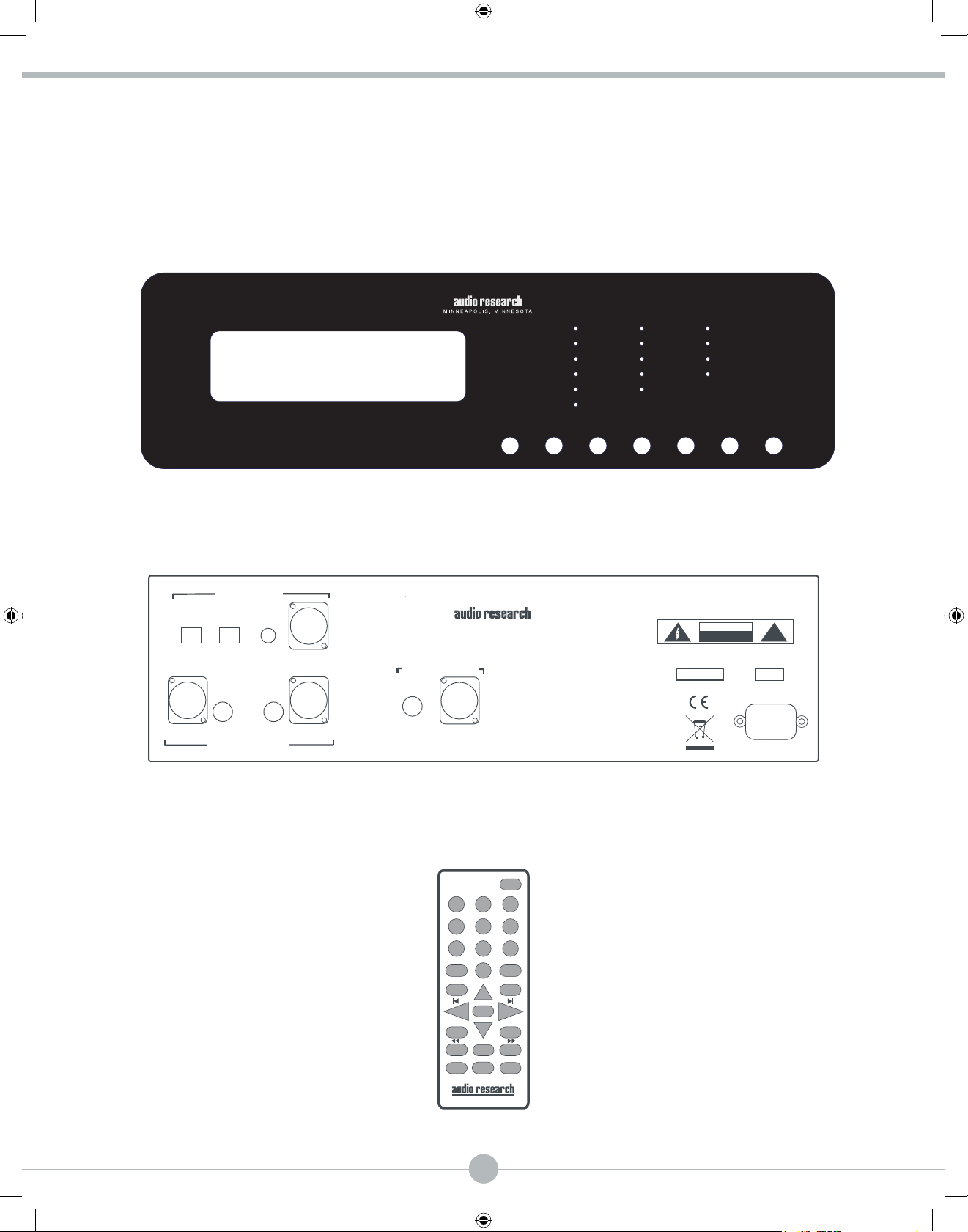

Illustrations

Front Panel

MODEL CD9 SE HIGH DEFINITION

DIGITAL INPUTS

RCAUSB AES/EBUTOSLINK

RIGHT LEFT

ANALOG OUTPUTS

REFERENCE CD PLAYER

BALANCEDSESEBALANCED

Rear Panel

MODEL CD9SE

DIGITAL OUTPUTS

AES/EBUBNC

192

176.4

88.2

44.1

POWER PREV PLAY NEXT PAUSE STOP INPUT

EXPOSE THIS DEVICE TO RAIN OR MOISTURE.

UNIT MUST BE OPERATED IN A HORIZONTAL POSITION.

-DO NOT OPERATE WITH COVERS REMOVED-

RCA

USB

AES

TOS

FAST

SLOW

UPSAMPLE

POWER

FIRE HAZARD REPLACE FUSE ONLY

120W MAX

50/60HZ

Remote

REFERENCE CD9

SCAN SHUF

UPSAMPLE INPUT

DSP DN DSP UPPAUSE

TIME A/B

H I G H D E F I N I T I O N

REPEAT

2 3

4 5 6

7 8 9

PLAY

FILTER

STOP

PROG

Page 7

Installation

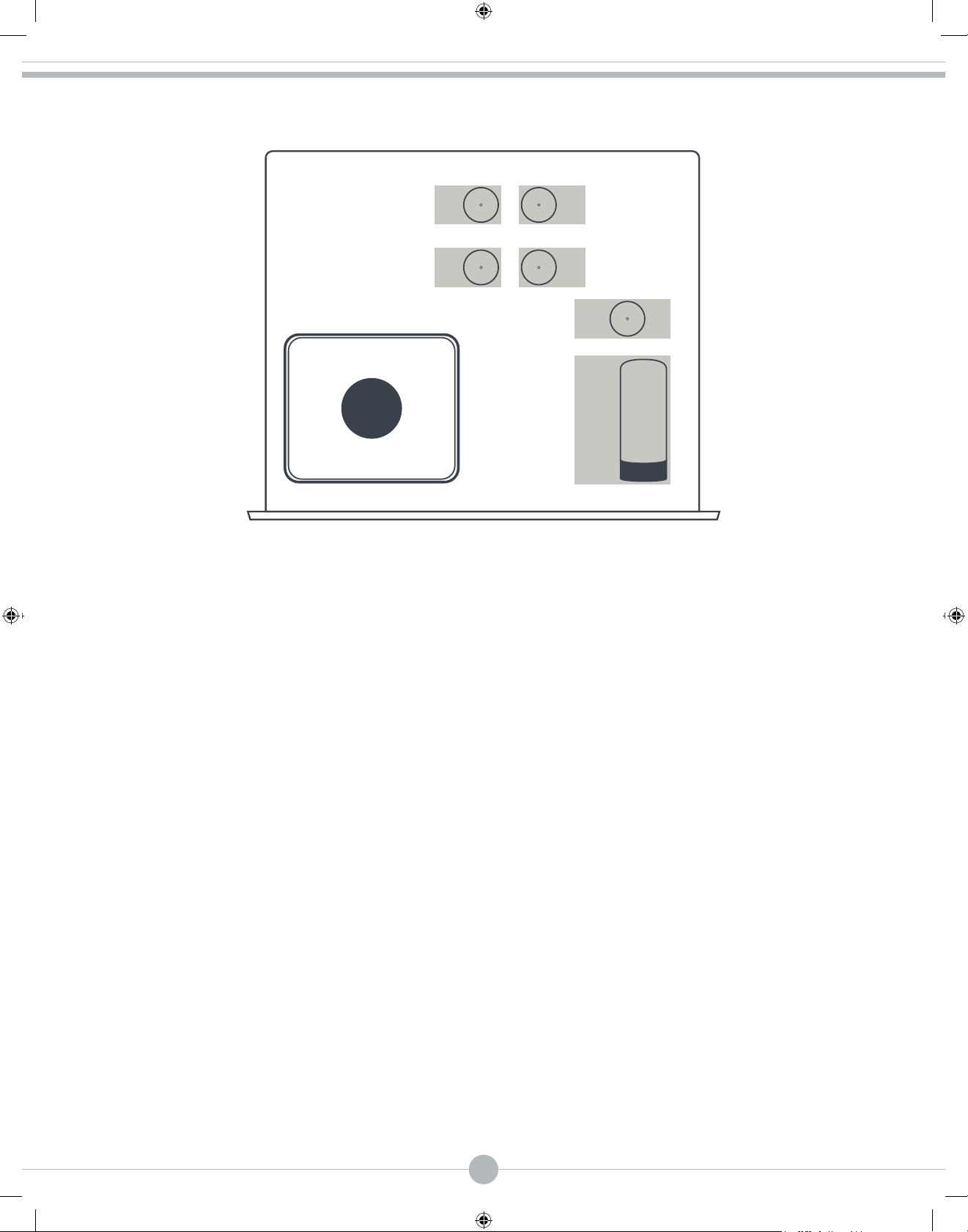

V1 V3

V4V2

Before operating the CD9SE

Carefully remove each of the six vacuum

tubes (ve 6H30, one 6550WE) from

their protective foam blocks and install them in their sockets on the circuit board, matching the “V” number on the tube with each matching numbered tube socket.

The 6550WE is mounted horizontally in

the socket on the metal bracket. When installing or removing the 6550WE vacuum tube in the V5 socket location, grasp the metal bracket with one hand while inserting the tube with the other to prevent

exing of the circuit board and possible

damage to it.

Note: double damping rings are installed

at the factory on each 6H30 tube for maximum sonic performance.

Page 8

Installation

In your system

To insure normal component life and safe

operation this unit must be operated only in an upright position. Adequate

airow and proper cooling can occur

only if there is no restriction above and behind the unit and on either side.

The special non-marring elastomer feet

provide adequate spacing and stability only on a smooth, hard surface, and also assist to isolate the CD player from spurious vibrations. For upright stability and best performance, never operate the unit while it is sitting on a soft surface such as a thick rug or carpet.

Due to its weight, this CD player must

be supported on a surface specically

rated for such a load. Check with the manufacturer of your support system to be sure it is rated to handle this weight.

If the unit is to be operated in an enclosure

such as an equipment rack, make certain

that adequate airow above and to

each side of the unit is provided.

The ‘ambient’ operating temperature should

never exceed 120° F or 49° C. Improper installation will cause premature tube

failure and will aect your warranty,

as well as the service life of the unit.

It is normal for a vacuum tube CD player

to run quite warm, and if used for prolonged periods, hot to the touch. All components within are, however, operated at safe, conservative levels

and will not be improperly aected

thereby, providing the requirements outlined above are adhered to.

A Note about Vacuum Tubes

The vacuum tubes in your CD9SE have

been burned in, tested and electrically matched to provide the best performance

and reliability of your preamplier. That

said, vacuum tubes must be replaced from time to time. The 6H30 tubes in

the CD9SE should have an expected

life of approximately 4,000 hours, while the 6550WE tube in the power supply should have a life expectancy of approximately 2,000 hours. These life expectancies are only approximate.

Page 9

Connections

Digital Connections

The CD9SE offers four digital inputs, and two

standard digital output options. Which option is best for your system will depend on your personal listening preference, the nature of your system installation requirements, and the options allowed by your external digital processor, if one is used.

Digital Inputs

RCA: Connect to a transport or other device

equipped with an RCA digital output. Press the INPUT button until the ‘RCA’ LED is illuminated.

USB: Connect to a Windows-based PC or

Mac computer for music playback from your computer. Press the INPUT button

until the ‘USB’ LED is illumindated.

Software installation is not necessary for Mac or Linux users. Windows users can find the necessary software at www.audioresearch.com.

AES/EBU: Connect to a transport or other

device equipped with an AES/EBU digital output. Press the INPUT button until the ‘AES/EBU’ LED is illuminated.

Digital Outputs

BNC: Use 75-ohm impedance coaxial cable

with locking BNC-type connectors. An RCA/BNC adaptor is also supplied.

AES/EBU: For connection to digital

processors having the AES/EBU-Standard interface.

Analog Outputs

Single-Ended (RCA): For connection to

the inputs of a line-level preamplier or integrated amplier.

Balanced (XLR): For connection to the

balanced inputs of a line-level preamplier.

Caution

The digital outputs supply only a digital

signal and should therefore only be connected to an input which is suitable for this signal. Never connect either of these digital outputs to a non-digital input of

a preamplier (such as those labeled CD, AUX, PHONO, TAPE, etc.) or to a power amplier. To do so is to risk damage to your

system and may void any or all warranties involved.

Toslink: Connect to a transport, computer

or other device equipped with Toslink

(optical) digital output. Press the

INPUT button until the ‘Toslink’ LED is illuminated.

Page 10

Operation

Front Panel Control Functions

Power: The Power switch turns the CD9

completely on for operation (indicated

by the LED being brightly lit), each time

preceded by a warm-up interval of about 40 seconds when the LED is dim and the output is automatically muted. Press

power switch again to turn CD9 o-

indicated by unlit LED.

Operation

Pause: Interrupts play (display will read

“PAUSE”). Release PAUSE by pressing it a

second time to resume playing disc.

Stop: Stops play. (Number of tracks and

total disc track time appear on display.)

Input: Selects between the CD player and

digital inputs on the rear panel. Pressing the Input button repeatedly will cycle through all the inputs.

Note

Play, Pause, Stop, Previous and Next only

function when using the CD player.

Front Panel Control Functions

Power: The Power switch completely

Power: The Power switch turns the CD9

turns on the CD9SE for operation (there

completely on for operation (indicated

is no “standby” mode). The power LED

by the LED being brightly lit), each time

will illuminate dimly during the 40 second

preceded by a warm-up interval of about

warm-up interval while the vacuum tubes

40 seconds when the LED is dim and the

are allowed to stabilize. During warm-up

output is automatically muted. Press

the analog SE and BAL outputs are muted.

power switch again to turn CD9 o-

The digital BNC and AES/EBU outputs will

indicated by unlit LED.

function immediately. After 40 seconds, the power LED will fully illuminate, indicating

Prev: Selects the previous track to play.

the CD9SE is ready for operation, and the

Continue pressing to cycle backward

analog outputs will unmute.

through previous tracks. (Track number

will appear on display.)

Also illuminated will be the LEDs for the last selected settings of the Filter (Fast or Slow),

Play: Starts play. CD door must rst be

the last input selected, and the sample rate

fully closed. Begins to play rst track

(if an active digital input is selected, or a CD

unless another is selected. Restarts track

is loaded).

if pressed during play. (Track number and

elapsed track time appear on display.)

To turn o the CD9SE, press the power

switch again. All LEDs will extinguish.

Next: Selects the next track to play.

Continue pressing to cycle forward through tracks. (Track number will appear on

Prev: Selects the previous track to play.

display.)

Continue pressing to cycle backward through previous tracks. (Track number

will appear on display.)

Play: Starts play. CD door must rst be

fully closed. Begins to play rst track

unless another is selected. Restarts track if pressed during play. (Track number and

elapsed track time appear on display.)

Pause: Interrupts play (display will read

“PAUSE”). Release PAUSE by pressing it a

second time to resume playing disc.

Stop: Stops play. (Number of tracks and

total disc track time appear on display.)

Input: Selects between the CD player and

digital inputs on the rear panel. Pressing the Input button repeatedly will cycle through all the inputs.

Note

Play, Pause, Stop, Previous and Next only

function when using the CD player.

Systems operation note: The CD9SE

should be the rst component turned on

in your system, followed by other source components, the preamp, and last the power amp. This will prevent any extraneous turnon noise an upstream component might generate from reaching the power amp, which could amplify the noise, which might potentially damage the loudspeakers. When powering down the system, reverse the

order: Mute the preamp, turn o the power amp rst, then the preamp, then the CD9SE

and other source components. If the above is followed, it will help to avoid accidental loudspeaker damage.

Next: Selects the next track to play.

Continue pressing to cycle forward through tracks. (Track number will appear on

display.)

Page 11

Operation

Remote Only Functions

The remote control unit includes all of the

above described CD9SE front panel control

functions plus the following additional functions. (Functions in [ ] indicate labeling abbreviations appearing on remote

control unit.)

0-9 Buttons: Pressing numbered button(s)

corresponding to the disc track number will advance disc to desired track. Also used to select tracks when compiling a custom disc

playback program (see PROGRAM function description below).

Shue [SHUF]: Toggles between Shue

play (random playback order) and normal play (sequential playback). SHUFFLE

appears in the display window when random playback is selected.

Filter: Select between Fast and Slow digital

lters. Pressing FILTER will toggle between

the two options, and will be indicated by an

LED next to the selected lter name.

Display Down/Display Up: [DSPDN/

DSPUP]: Decreases/Increases display

intensity, oering four levels of brightness as well as display o.

Scan: With a stopped CD and the CD door

closed, press SCAN and the rst 10 seconds

of each track will be played in sequence. (“SCAN” will light up on display, then 10 seconds are counted out next to each track

number.) To hear a track in full that the

player is presently scanning, press SCAN button again which will cancel SCAN function.

A/B: Press the A/B button once while

music is playing, then press it again; the musical passage in the interval between pressing the button is then repeated in a loop until pressing the A/B button once again to discontinue it. Display reads

“A—B” to show activation. Note: you must

discontinue the A/B loop before pressing PLAY to resume normal playback. Pressing and holding this button down will fast search backward through the track that is playing until it is released. Rate of search accelerates as button is held down.

Upsample: Select between native sampling

rate playback and integer upsampling. 44.1

kHz and 88.2 kHz sampling frequencies are upsampled to 176.4 kHz, whereas 48 kHz and 96 kHz frequencies are upsampled to 192 kHz. An LED will indicate which sampling frequency is selected. Note:

When using the USB input, upsampling is

available only to 88.2 kHz or 96 kHz.

Input: Select between CD playback and the

digital inputs on the rear panel (Toslink,

USB, RCA, AES/EBU). Pressing INPUT toggles through the dierent inputs, and

the selected input will be indicated by an

LED next to the input name. Note: display

window is illuminated only during CD playback.

Repeat [REP]: Press REPEAT once to repeat

the entire disc continuously (“REPEAT”

appears in display window). Press REPEAT

once more to continuously repeat the track now playing (“REPEAT 1” appears in display

window). Press REPEAT once again to

discontinue repeat mode.

Page 12

Operation

Remote Control Functions continued

Program [PROG]: Allows compiling a

custom track selection and playback order of up to 20 tracks on a disc. With the

player in STOP mode, enter the desired rst track number and then press the PROGRAM button. The word “PROGRAM”

will light and the display will show the total number of tracks programmed and total programmed time. If a second track

selection is entered, the word “PROGRAM” ashes, indicating that other track(s)

have already been stored in the program

memory. Press the PROGRAM button to

save the second track selection. Repeat procedure to program additional tracks as desired. This programming procedure, with readout of the cumulative total number of programmed tracks and total programming

time (including time between tracks), works for any of the rst 13 numbered

tracks on a disc. You may program track numbers higher than 13, but from then on no track time information will appear on the display. To preview a program before playing it, press PLAY and then use the NEXT and PREV buttons to cycle through track selections. Pressing PLAY will begin

playing program. Pressing STOP once will

stop program play. Pressing PLAY again will resume play from beginning of program.

To cancel program, press STOP twice.

CD Door Functions/Warnings

Do not attempt to play a CD without rst

installing the supplied CD9SE magnetic disc

clamp on the CD. Use only the supplied

CD9SE clamp in your CD9SE player.

CD door must be fully closed for the CD9SE to

operate.

If the CD door is closed without a CD in the

player and the CD9SE is powered up, the

display will read “NO DISC”.

If a CD is inserted (label side up) in the CD9SE,

the CD door is fully closed and the CD9SE

is powered up, the CD will spin for a few seconds while the track information is accessed. The number of tracks and total disc time will then be displayed, indicating the CD is ready to play.

Keep the CD door closed when the CD9SE is

turned o and not in use to keep dust out

of the lens and drive area.

Note

When the CD9SE power is on, keep the CD

door fully closed (except to change CDs) to

allow heat to escape through all of the top cover holes and prevent over-heating of the unit.

Time: Pressing and releasing TIME

repeatedly will cycle through the following

information on the display: current

track time elapsed (default setting

initially seen on display), total disc time

elapsed, and total disc time remaining.

Page 13

Software Installation

Software installation is not necessary for Mac or Linux users. Windows PC users can nd the

necessary software drivers at www.audioresearch.com under the Download tab.

Removal of previous driver versions

Uninstall any prior/existing Audio Research Corp. Drivers for Windows OS by opening the Windows “Control Panel” for your computer. Find and open the “Uninstall Programs” for your particular computer. This may be named “Programs” or “Programs and Features.”

If you experience diculty, please contact your selling dealer or Audio Research Customer

Support at [email protected] or call 763-577-9700 between 8AM – 5PM CST.

Page 14

Vacuum Tubes

Maintenance

Vacuum Tubes

It is recommended that you replace the

vacuum tubes of your CD9 in sets. All of the tubes in your CD player have been matched to have similar operating characteristics, to provide the best sound quality and reliability.

Servicing

Because of its careful design and exacting

standards of manufacture, your CD9 CD player should normally require only minimal service to maintain its high level of performance.

Disposal and Recycling Guidelines

disposal require special reuse and recycling

Corporation (763-577-9700) for the name

Cleaning

To maintain the visual appearance of your

CD9SE, occasionally wipe the front panel

and top cover surfaces with a soft damp

(not wet) cloth to remove dust. A mild,

non-alkaline soap solution may be used to

remove ngerprints or similar smudges.

Cleaners containing abrasives should not be used as they will damage the brushed

grain of the front panel nish, as well as

the LED display window. A dry 2-inch pure bristle paint brush works well to remove dust from bevels, reliefs and switches.

The CD9SE CD compartment may be gently

dusted: carefully avoid touching the laser

assembly area to prevent possible damage.

About Fuse Replacement

The CD9 has two fuses; both are located

towards the back of the chassis on the

left. One fuse is accessible with the

removal of the top cover, and the other with the removal of the bottom panel.

See specications for information on fuse

types.

Caution

Your CD9 contains sucient levels of voltage

and current to be lethal. Do not tamper with a component or parts inside the unit.

Refer any needed service to your authorized Audio Research dealer or other qualied

technician. Should service be necessary, please contact your Audio Research dealer,

or Audio Research Customer Service (763)

577-9700.

Maintenance

Vacuum Tubes

It is recommended that you replace the

vacuum tubes of your CD9 in sets. All of the tubes in your CD player have been matched to have similar operating characteristics, to provide the best sound quality and reliability.

Servicing

Because of its careful design and exacting

standards of manufacture, your CD9 CD player should normally require only minimal service to maintain its high level of performance.

Disposal and Recycling Guidelines

To dispose of this electronic product, do

not place in landll. In accordance with

the European Union Waste Electrical and

Electronic Equipment (WEEE) directive eective August 2005, this product may

contain regulated materials which upon disposal require special reuse and recycling processing. Please contact your dealer or importing distributor for instructions on proper disposal of this product in your

country. Or, contact Audio Research Corporation (763-577-9700) for the name

of your importing distributor and how

Cleaning

To maintain the visual appearance of your

CD9SE, occasionally wipe the front panel

and top cover surfaces with a soft damp

(not wet) cloth to remove dust. A mild,

non-alkaline soap solution may be used to

remove ngerprints or similar smudges.

Cleaners containing abrasives should not be used as they will damage the brushed

grain of the front panel nish, as well as

the LED display window. A dry 2-inch pure bristle paint brush works well to remove dust from bevels, reliefs and switches.

The CD9SE CD compartment may be gently

dusted: carefully avoid touching the laser

assembly area to prevent possible damage.

About Fuse Replacement

The CD9 has two fuses; both are located

towards the back of the chassis on the

left. One fuse is accessible with the

removal of the top cover, and the other with the removal of the bottom panel.

See specications for information on fuse

types.

Caution

Your CD9 contains sucient levels of voltage

and current to be lethal. Do not tamper with a component or parts inside the unit.

Refer any needed service to your authorized Audio Research dealer or other qualied

technician. Should service be necessary, please contact your Audio Research dealer,

or Audio Research Customer Service (763)

577-9700.

Maintenance

Vacuum Tubes

It is recommended that you replace the

vacuum tubes of your CD9 in sets. All of the tubes in your CD player have been matched to have similar operating characteristics, to provide the best sound quality and reliability.

Servicing

Because of its careful design and exacting

standards of manufacture, your CD9 CD player should normally require only minimal service to maintain its high level of performance.

Cleaning

To maintain the visual appearance of your

CD9SE, occasionally wipe the front panel

and top cover surfaces with a soft damp

(not wet) cloth to remove dust. A mild,

non-alkaline soap solution may be used to

remove ngerprints or similar smudges.

Cleaners containing abrasives should not be used as they will damage the brushed

grain of the front panel nish, as well as

the LED display window. A dry 2-inch pure bristle paint brush works well to remove dust from bevels, reliefs and switches.

The CD9SE CD compartment may be gently

dusted: carefully avoid touching the laser

assembly area to prevent possible damage.

About Fuse Replacement

The CD9 has two fuses; both are located

towards the back of the chassis on the

left. One fuse is accessible with the

removal of the top cover, and the other with the removal of the bottom panel.

See specications for information on fuse

Vacuum Tubes

It is recommended that you replace the

vacuum tubes in your CD9SE in sets.

vacuum tubes of your CD9 in sets. All

All of the tubes in your CD player have

of the tubes in your CD player have

been matched to have similar operating

characteristics, to provide the best sound

quality and reliability.

The vacuum tubes in your CD9SE have been burned in, tested and electrically matched to provide the best performance and reliability of your preamplier. That said, vacuum tubes must be replaced from time to time. The 6H30 tubes in the CD9SE should have an expected life of approximately 4,000 hours, while the

Servicing

6550WE tube in the power supply should

Because of its careful design and exacting

have a life expectancy of approximately

standards of manufacture, your CD9

2,000 hours. These life expectancies are

CD player should normally require

only approximate.

only minimal service to maintain

Servicing

its high level of performance.

Because of its careful design and exacting standards of manufacture, your CD9SE CD player should normally require only minimal service to maintain its high level of performance, other than routine vacuum tube replacement noted above.

Disposal and Recycling Guidelines

To dispose of this electronic product, do

not place in landll. In accordance with

the European Union Waste Electrical and

Electronic Equipment (WEEE) directive eective August 2005, this product may

To dispose of this electronic product, do

contain regulated materials which upon

not place in landll. In accordance with

disposal require special reuse and recycling

the European Union Waste Electrical and processing. Please contact your dealer

Electronic Equipment (WEEE) directive

or importing distributor for instructions

eective August 2005, this product may

on proper disposal of this product in your

contain regulated materials which upon

country. Or, contact Audio Research Corporation (763-577-9700) for the name

processing. Please contact your dealer of your importing distributor and how

or importing distributor for instructions to contact them. Packing and shipping

on proper disposal of this product in your materials may be disposed of in a normal

country. Or, contact Audio Research

manner.

Maintenance

Cleaning

To maintain the visual appearance of your

to contact them. Packing and shipping

CD9SE, occasionally wipe the front panel

materials may be disposed of in a normal and top cover surfaces with a soft damp

manner.

(not wet) cloth to remove dust. A mild,

non-alkaline soap solution may be used to

Cleaning

remove ngerprints or similar smudges.

To maintain the visual appearance of your

Cleaners containing abrasives should not

CD9SE, occasionally wipe the front panel

be used as they will damage the brushed and top cover surfaces with a soft damp

grain of the front panel nish, as well as (not wet) cloth to remove dust. A mild,

the LED display window. A dry 2-inch pure non-alkaline soap solution may be used to

bristle paint brush works well to remove

remove ngerprints or similar smudges.

dust from bevels, reliefs and switches. Cleaners containing abrasives should not

The CD9SE CD compartment may be gently

be used as they will damage the brushed

dusted: carefully avoid touching the laser grain of the front panel nish, as well as

assembly area to prevent possible damage. the LED display window. A dry 2-inch pure

bristle paint brush works well to remove

About Fuse Replacement

dust from bevels, reliefs and switches.

The CD9 has two fuses; both are located

The CD9SE CD compartment may be gently

towards the back of the chassis on the

dusted: carefully avoid touching the laser left. One fuse is accessible with the

assembly area to prevent possible damage. removal of the top cover, and the other

About Fuse Replacement

with the removal of the bottom panel.

The CD9SE has two internal fuses. Under

See specications for information on fuse

normal operating, these should never

types.

blow. If you experience an operational problem and suspect a blown fuse, please

Caution

contact Audio Research Customer

Your CD9 contains sucient levels of voltage

Support for assistance.

and current to be lethal. Do not tamper with a component or parts inside the unit.

Caution

Refer any needed service to your authorized

The CD9SE contains sucient levels of

Audio Research dealer or other qualied

voltage and current to be lethal. The CD9SE power supply can store potentially

technician. Should service be necessary,

lethal energy in its capacitor bank for

please contact your Audio Research dealer,

several hours after the unit is turned

or Audio Research Customer Service (763)

o. Do not tamper with a component

577-9700.

or parts inside the unit. Refer any needed service to your authorized Audio Research dealer or qualied technician. Should service be necessary, please contact your Audio Research dealer, or Audio Research Customer Service (763) 577-9700.

Page 15

Limited Warranty

Audio Research Corporation products are

covered by a 3-Year Limited Warranty, or a 90-Day Limited Warranty on vacuum tubes. This Limited Warranty initiates from the date of purchase, and is limited to the original purchaser, or in the case of demonstration equipment, limited to the balance of warranty remaining after original shipment to the retailer or importer.

In the United States, the specic terms,

conditions and remedies for fulllment

of this Limited Warranty are listed on the warranty card accompanying the product in its shipping carton, or may be

obtained from the authorized retailer

or from the Audio Research Customer

Service Department. Outside the United States, the authorized importing retailer or

distributor has accepted the responsibility for warranty of Audio Research products

sold by them. The specic terms and remedies for fulllment of the Limited

Warranty may vary from country to country. Warranty service should normally be obtained from the importing retailer or distributor from whom the product was purchased.

In the unlikely event that technical service

beyond the ability of the importer is

required, Audio Research will fulll the

terms and conditions of the Limited Warranty. Such product must be returned at the purchaser’s expense to the Audio Research factory, along with a photocopy of the dated purchase receipt for the product, a written description

of the problem(s) encountered, and any

information necessary for return shipment. The cost of return shipment is the responsibility of the purchaser.

Page 16

FCC Rules

Note

This equipment has been tested and found

to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment o and on,

the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Use interconnect cables of no more then one

meter in length.

Increase the separation between the

equipment and receiver.

Connect the equipment into an outlet on

a circuit dierent from that to which the

receiver is connected.

Consult the dealer or an experienced radio/

TV technician for help.

Page 17

Specications

Frequency Response: +0-3dB, 3Hz to 96kHz at rated output. 0.15dB 20Hz to 20kHz. (Balanced, 200k ohms load)@ 192kHz sample rate.

Distortion: THD+N Less than .003% at 2V RMS BAL output.

Signal-Noise-Ratio: 110dB

Dynamic Range (AES17): 110dB

IMD (SMPTE): .002%

RMS Noise level: -95dBV (20-20kHz)

Gain: 14.0dB Balanced, 7.0dB SE.

Input Impedance: Digital: 75 ohms RCA, 110 ohms AES/EBU, OPT 660nm TOSLink ber 44.1 to 96kHz.

Output Impedance: 660 ohms Balanced, 330 ohms SE Main (2), 20K ohms minimum load and 2000pF maximum capacitance.

Output Polarity: Non-inverting.

Max. Output: At 0.0dB input, 5V RMS into 200K ohm balanced load.

Digital Sample Rates: 24 bits @ 44.1kHz to 192kHz, SPDIF, AES/EBU and USB 2.0 HS.

Upsampling: Select upsampling or Native mode; CD, RCA, AES/EBU, TOS upsample to 176.4 or 192kHz. USB upsamples to 88.2 or 96kHz.

Master Oscillator: 22.579mHz ±20Hz for 44.1, 88.2 & 176.4kHz. 24.576mHz ±20Hz for 48, 96 & 192kHz.

Intrinsic Jitter: <10ps

Outputs Digital: XLR Balanced AES/EBU 110-ohms 4V P-P, BNC coax SPDIF 75-ohms 0.7V P-P.

Channel Separation: 107dB @ 1kHz.

Push buttons: Power, Previous, Stop, Pause, Play, Next, Input.

Signal Format (disc): Sample freq. 44.1kHz, Quantization bit; 16bit linear/channel, Channel bit rate; 4.3218Mb/sec, Channel modulation code; EFM (8-14

modulation), Error Correction; CIRC.

Drive Mechanism (Top Load): Wow & Flutter; Un-measureable (Quartz stability); Discs; Accepts 5” (12cm) and 3” (8cm) sizes.

Optical pickup: Type; 3-beam LDGU (Laser Diode & Grating Unit), with holographic diraction light pen, Laser; GaAlAs semiconductor, 780nm, 0.5mW

max. output, Servo; Digitally-controlled low inertia linear positioning actuator.

Jitter reduction: High-stability crystal-controlled re-clocking for all outputs.

Display: Six-digit vacuum uorescent with optical lter; LED display; CD, AES, USB, RCA, TOS, Fast, Slow, Upsample, Power, 44.1, 48, 88.2, 96, 176.4,

192kHz.

Tube complement: (4) 6H30 dual triodes, plus (1) 6550WE & 6H30 in power supply.

Remote Buttons: Repeat track/disc, 0-9 digit entry keys, Scan ten seconds each track, Pause program, Stop program, Play, Shue tracks, Program

enters selection on program list, Time elapsed, remaining track, remaining disc, A/B repeat segment, Filter select, Input select, Pause, Play, Skip>, Skip<, FF, FR, Upsample/Native mode, DSP-DN, DSP-UP.

Power Requirements: 105-125VAC 60Hz (210-250VAC 50/60Hz) 120 watts maximum. Sleep mode 1 watts maximum.

Dimensions: Width 19” (48 cm)

Height 5.75” (14.5 cm) (standard rack panel) Depth 17.75” (45 cm)

Weight: 33.0 lbs. (15.0 kg) Net; 43 lbs. (19.5 kg) Shipping.

including

handles

and

jacks.

This unit is RoHS compliant

Page 18

There is only One Reference®

6655 Wedgewood Road N., Ste. 115

3900 Annapolis Lane North

Maple Grove, MN 55311

Plymouth, MN 55447

www.audioresearch.com

Specications subject to change without notice.

consent from Audio Research Corporation.

95000009
