D50
Schematic
2 pgs
517.04 Kb
0
Table of contents
Loading...

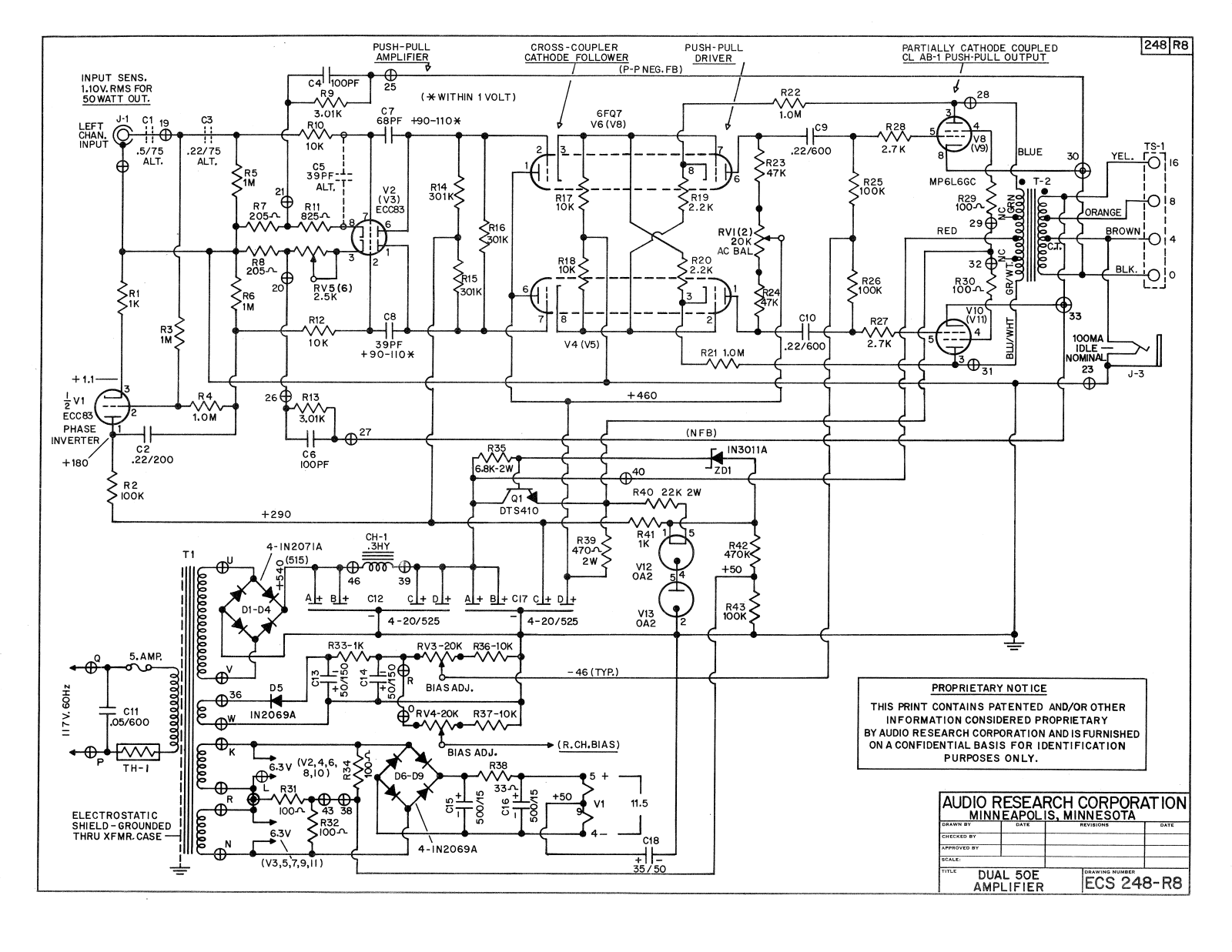

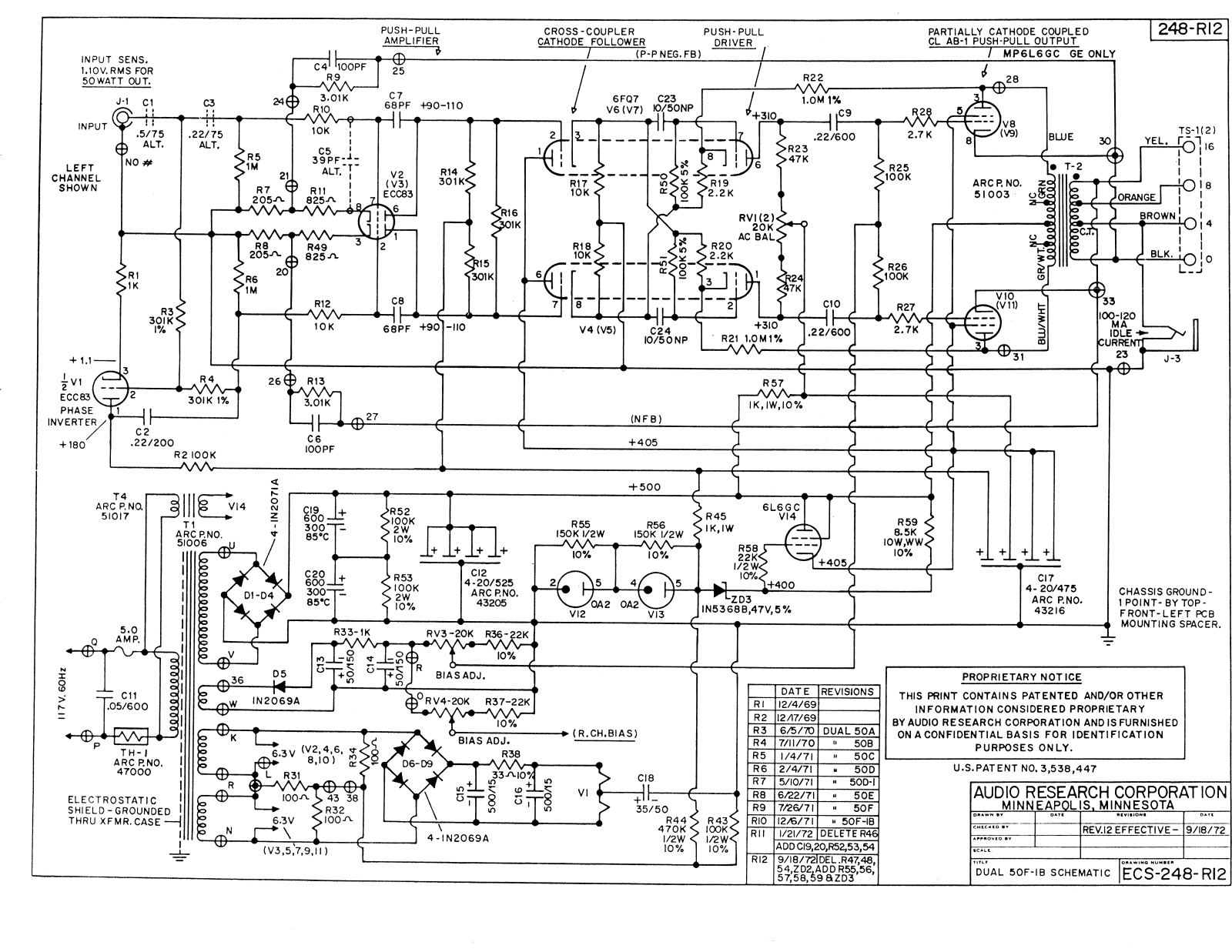

Audio Research D50 Schematic
...
Audio Research Schematic
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
