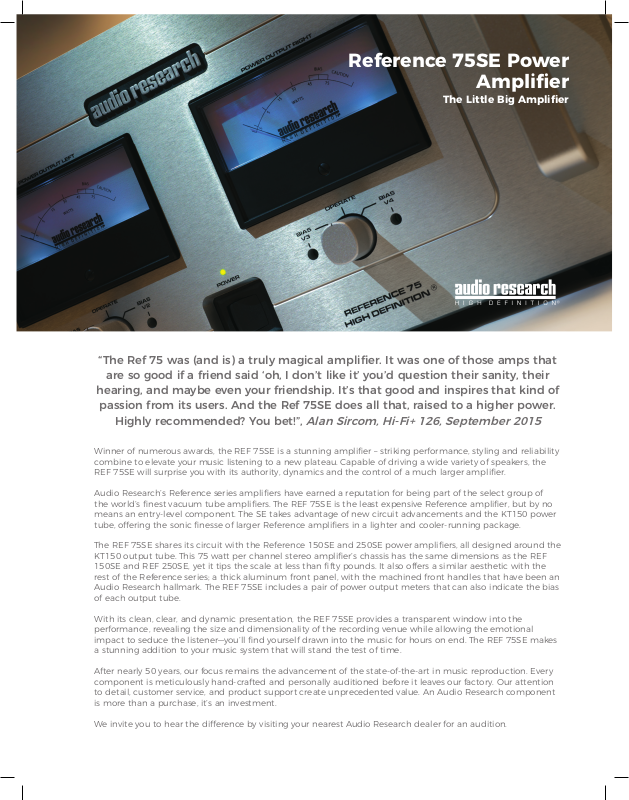

Reference 75SE Power
Amplifier
The Little Big Amplifier
“The Ref 75 was (and is) a truly magical amplifier. It was one of those amps that
are so good if a friend said ‘oh, I don’t like it’ you’d question their sanity, their
hearing, and maybe even your friendship. It’s that good and inspires that kind of
passion from its users. And the Ref 75SE does all that, raised to a higher power.
Highly recommended? You bet!”,
Winner of numerous awards, the REF 75SE is a stunning amplifier – striking performance, styling and reliability
combine to elevate your music listening to a new plateau. Capable of driving a wide variety of speakers, the
REF 75SE will surprise you with its authority, dynamics and the control of a much larger amplifier.
Audio Research’s Reference series amplifiers have earned a reputation for being part of the select group of
the world’s finest vacuum tube amplifiers. The REF 75SE is the least expensive Reference amplifier, but by no
means an entry-level component. The SE takes advantage of new circuit advancements and the KT150 power
tube, offering the sonic finesse of larger Reference amplifiers in a lighter and cooler-running package.
The REF 75SE shares its circuit with the Reference 150SE and 250SE power amplifiers, all designed around the

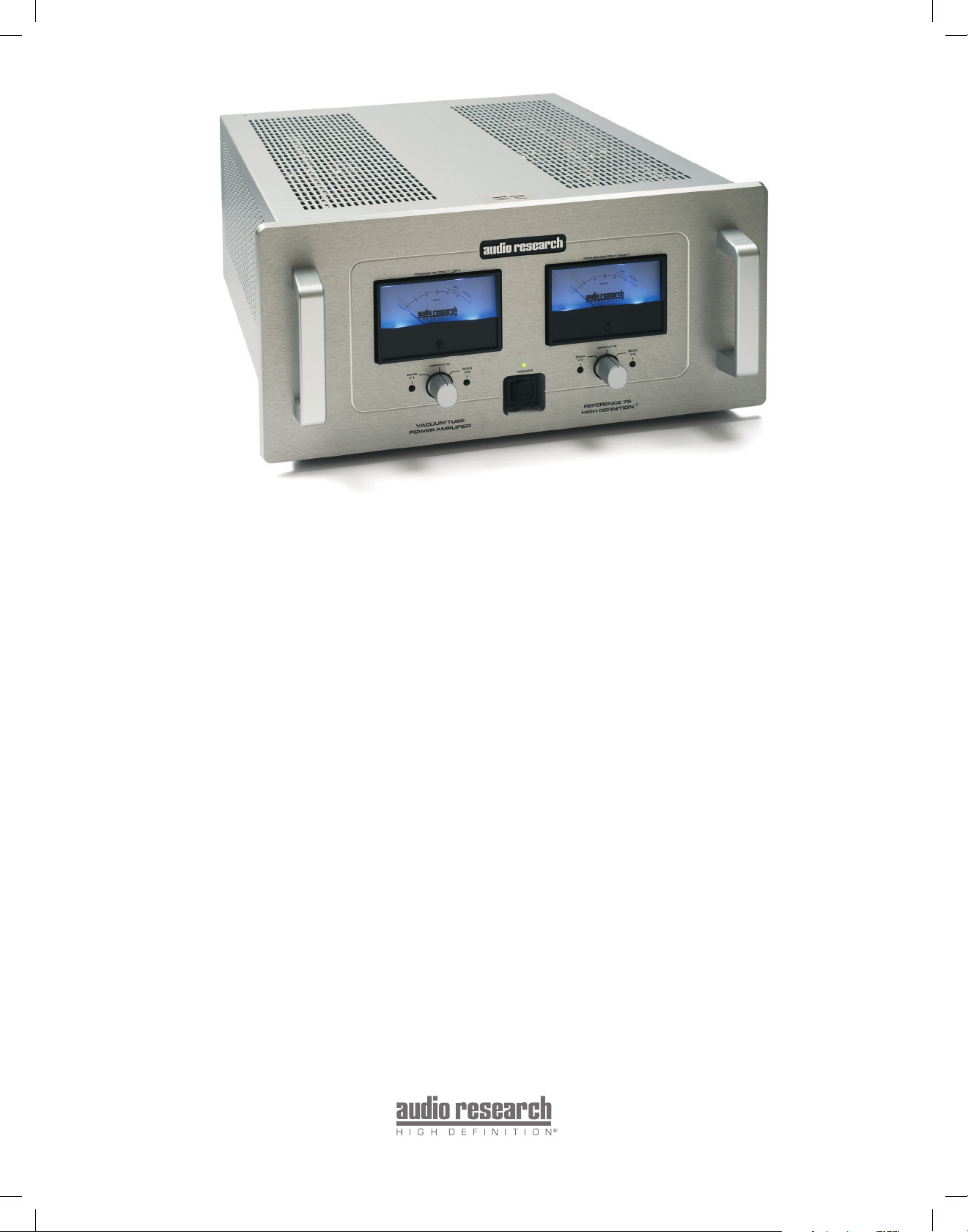

KT150 output tube. This 75 watt per channel stereo amplifier’s chassis has the same dimensions as the REF
150SE and REF 250SE, yet it tips the scale at less than fifty pounds. It also offers a similar aesthetic with the
rest of the Reference series; a thick aluminum front panel, with the machined front handles that have been an

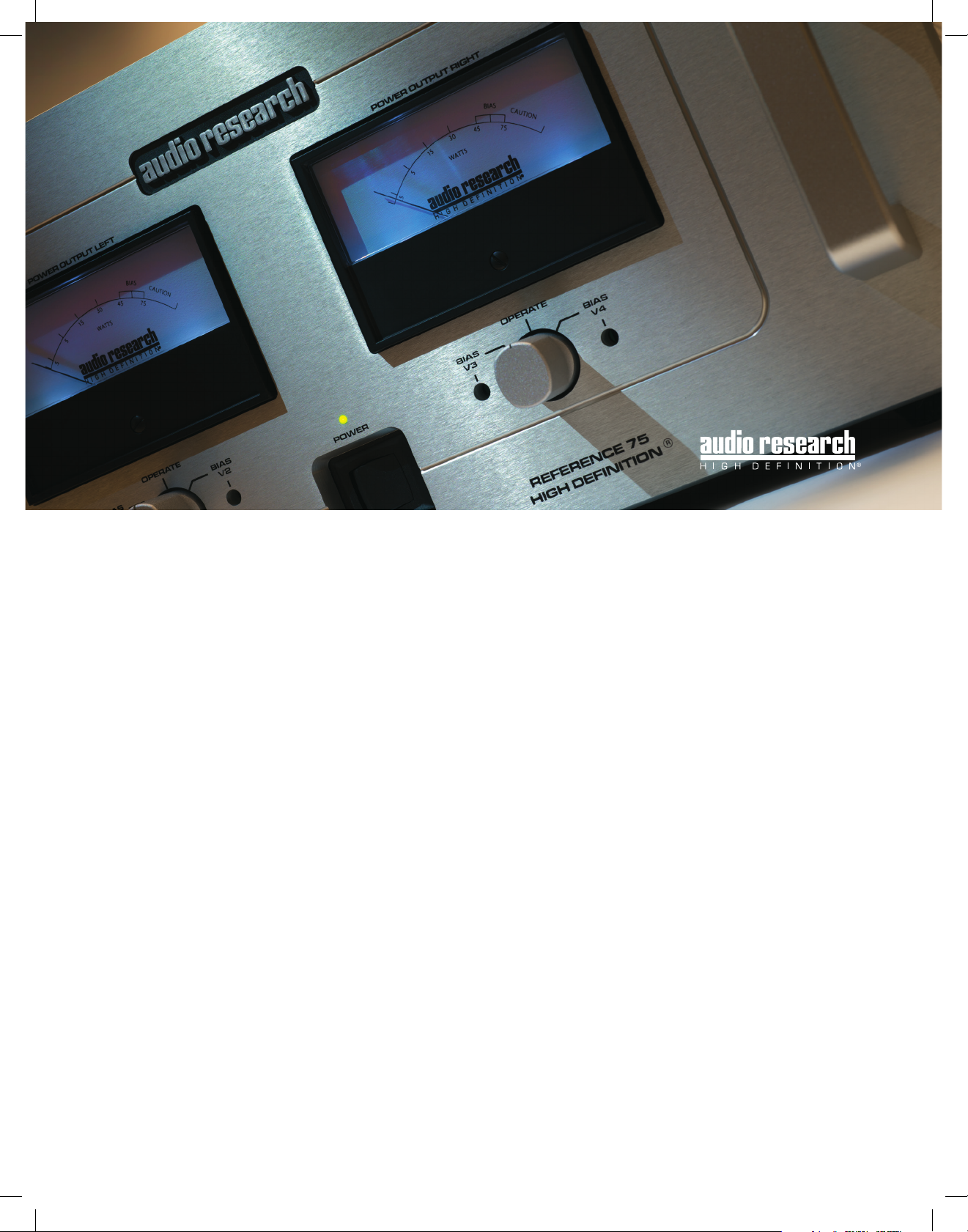

Audio Research hallmark. The REF 75SE includes a pair of power output meters that can also indicate the bias
of each output tube.
With its clean, clear, and dynamic presentation, the REF 75SE provides a transparent window into the
performance, revealing the size and dimensionality of the recording venue while allowing the emotional
impact to seduce the listener—you’ll find yourself drawn into the music for hours on end. The REF 75SE makes
a stunning addition to your music system that will stand the test of time.
Alan Sircom, Hi-Fi+ 126, September 2015
After nearly 50 years, our focus remains the advancement of the state-of-the-art in music reproduction. Every
component is meticulously hand-crafted and personally auditioned before it leaves our factory. Our attention
to detail, customer service, and product support create unprecedented value. An Audio Research component
is more than a purchase, it’s an investment.
We invite you to hear the difference by visiting your nearest Audio Research dealer for an audition.
Page 2
Complete technical specifications can be found on our website.
S P E C I F I C A T I O N S
Power output
75 watts per channel continuous from20Hz to
20kHz. 1kHz total harmonic distortion typically
0.6% at 75 watts, below 0.05% at 1 watt.
Approximate actual power available at ‘clipping’ 76
watts (1kHz)
Frequency response
(-3dB points at 1 watt) 0.7Hz to 75 kHz
Input sensitivity
1.4V RMS BAL for rated output. (25 dB Bal gain into
8 ohms)
Output taps
4, 8 ohms
Hum & Noise
Less than 0.06mV RMS – 112dB below rated output
(IHF weighted, input shorted)
Tube complement
2 - Matched pair KT150 – Power Output, 2 - 6H30
Driver
Power requirement
105-125VAC 60Hz (210-250VAC 50Hz) 410 watts at
rated output, 500 watts maximum, 230 watts idle
Dimensions
Width: 19” (48.3 cm)
Height: 8.75” (22.2 cm)
Depth: 19.5” (49.5 cm)
Handles extend 1.5” (3.8 cm) forward
Weight
47 lbs. (21.3 kg) Net; 63 lbs. (28.6 kg) Shipping
3900 Annapolis Lane North | Plymouth, MN 55447 USA | T: 763.577.9700 | www.audioresearch.com
