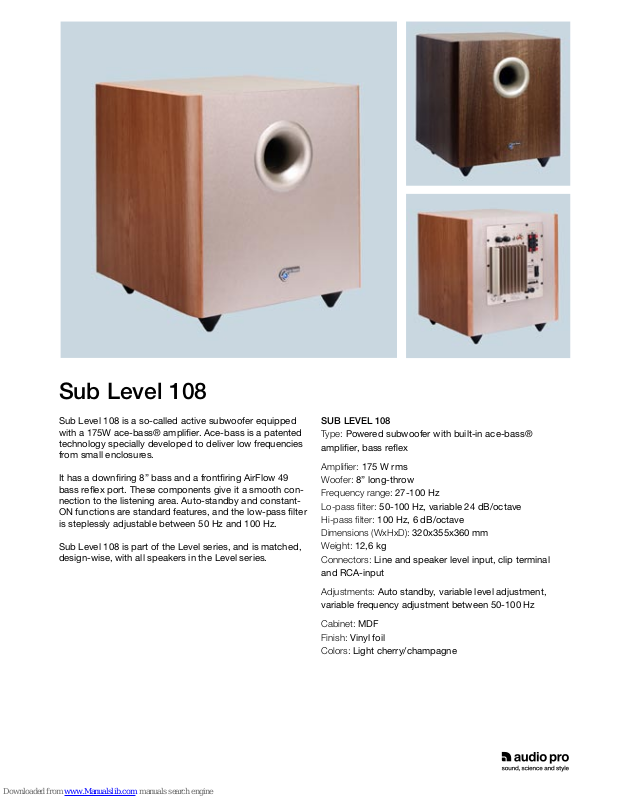

Sub Level 108
Sub Level 108 is a so-called active subwoofer equipped
with a 175W ace-bass® amplifier. Ace-bass is a patented
technology specially developed to deliver low frequencies
from small enclosures.
It has a downfiring 8” bass and a frontfiring AirFlow 49
bass reflex port. These components give it a smooth connection to the listening area. Auto-standby and constantON functions are standard features, and the low-pass filter
is steplessly adjustable between 50 Hz and 100 Hz.
Sub Level 108 is part of the Level series, and is matched,
design-wise, with all speakers in the Level series.
SUB LEVEL 108
Type: Powered subwoofer with built-in ace-bass®
amplifier, bass reflex
Amplifier: 175 W rms
Woofer: 8” long-throw
Frequency range: 27-100 Hz
Lo-pass filter: 50-100 Hz, variable 24 dB/octave
Hi-pass filter: 100 Hz, 6 dB/octave
Dimensions (WxHxD): 320x355x360 mm
Weight: 12,6 kg
Connectors: Line and speaker level input, clip terminal
and RCA-input
Adjustments: Auto standby, variable level adjustment,
variable frequency adjustment between 50-100 Hz
Cabinet: MDF
Finish: Vinyl foil
Colors: Light cherry/champagne
