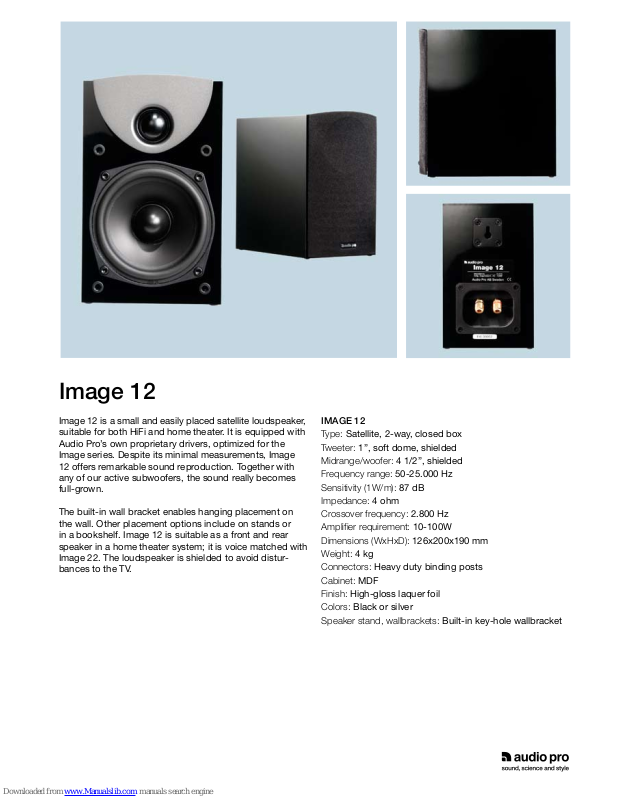

Image 12
Image 12 is a small and easily placed satellite loudspeaker,
suitable for both HiFi and home theater. It is equipped with
Audio Pro’s own proprietary drivers, optimized for the
Image series. Despite its minimal measurements, Image
12 offers remarkable sound reproduction. Together with
any of our active subwoofers, the sound really becomes
full-grown.
The built-in wall bracket enables hanging placement on
the wall. Other placement options include on stands or
in a bookshelf. Image 12 is suitable as a front and rear
speaker in a home theater system; it is voice matched with
Image 22. The loudspeaker is shielded to avoid disturbances to the TV.
IMAGE 12
Type: Satellite, 2-way, closed box
Tweeter: 1”, soft dome, shielded
Midrange/woofer: 4 1/2”, shielded
Frequency range: 50-25.000 Hz
Sensitivity (1W/m): 87 dB
Impedance: 4 ohm
Crossover frequency: 2.800 Hz
Amplifier requirement: 10-100W
Dimensions (WxHxD): 126x200x190 mm
Weight: 4 kg
Connectors: Heavy duty binding posts
Cabinet: MDF
Finish: High-gloss laquer foil
Colors: Black or silver
Speaker stand, wallbrackets: Built-in key-hole wallbracket
