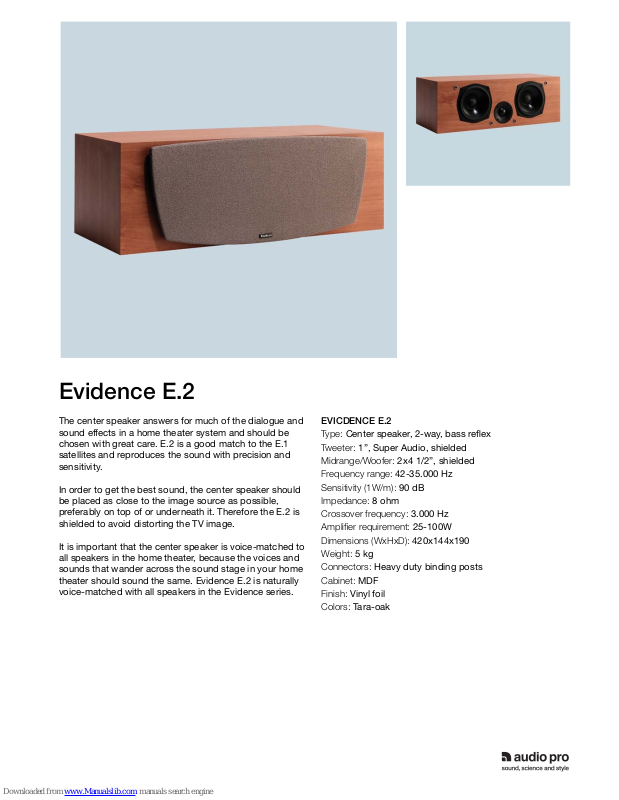

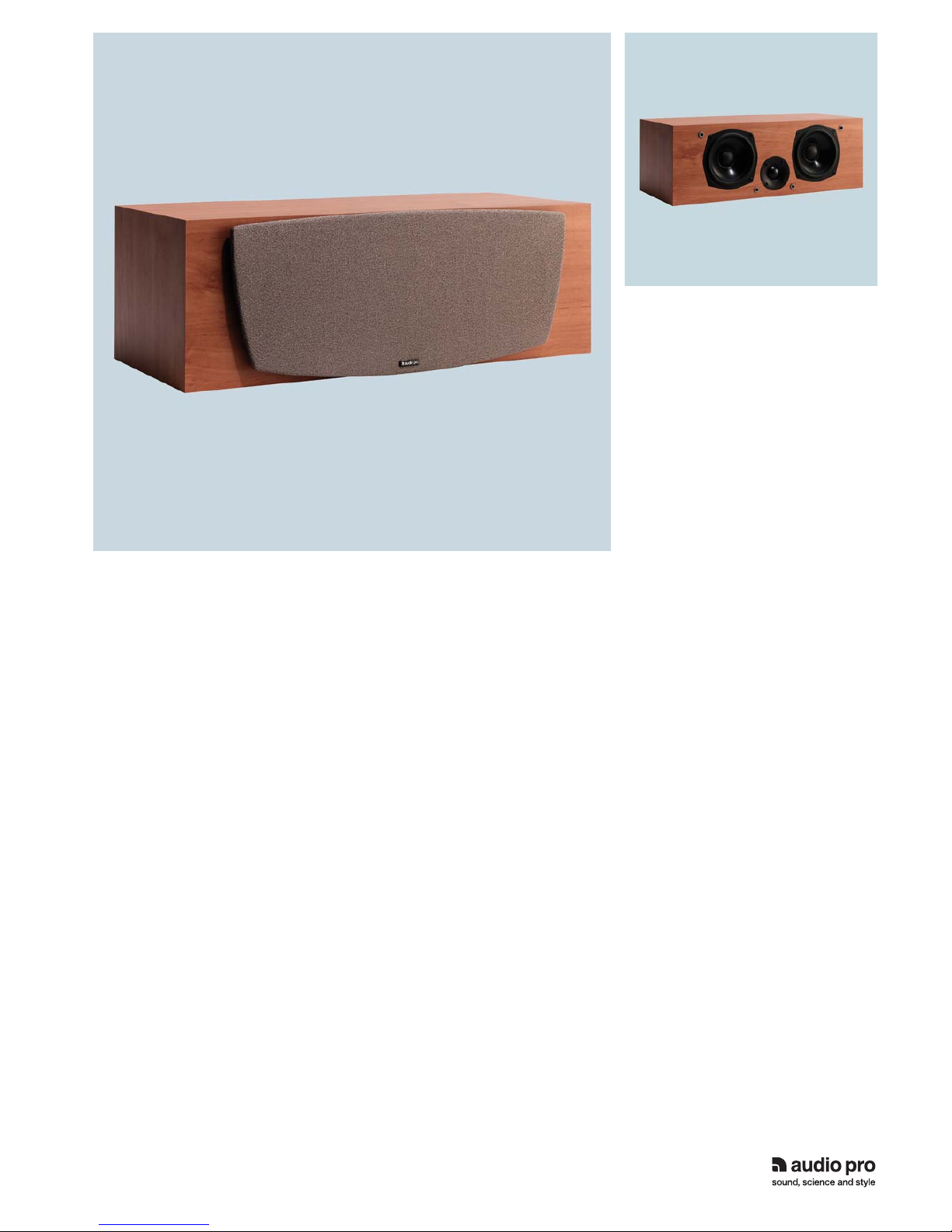

Evidence E.2
The center speaker answers for much of the dialogue and
sound effects in a home theater system and should be
chosen with great care. E.2 is a good match to the E.1
satellites and reproduces the sound with precision and
sensitivity.
In order to get the best sound, the center speaker should
be placed as close to the image source as possible,
preferably on top of or underneath it. Therefore the E.2 is
shielded to avoid distorting the TV image.
It is important that the center speaker is voice-matched to
all speakers in the home theater, because the voices and
sounds that wander across the sound stage in your home
theater should sound the same. Evidence E.2 is naturally
voice-matched with all speakers in the Evidence series.
EVICDENCE E.2
Type: Center speaker, 2-way, bass refl ex
Tweeter: 1”, Super Audio, shielded
Midrange/Woofer: 2x4 1/2”, shielded
Frequency range: 42-35.000 Hz
Sensitivity (1W/m): 90 dB
Impedance: 8 ohm
Crossover frequency: 3.000 Hz
Amplifi er requirement: 25-100W
Dimensions (WxHxD): 420x144x190
Weight: 5 kg
Connectors: Heavy duty binding posts
Cabinet: MDF
Finish: Vinyl foil
Colors: Tara-oak
