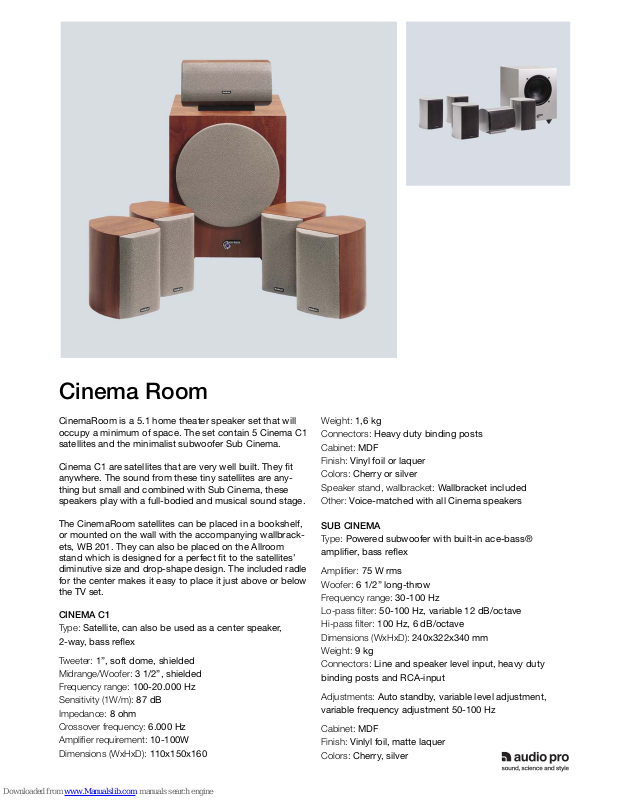

Cinema Room
CinemaRoom is a 5.1 home theater speaker set that will
occupy a minimum of space. The set contain 5 Cinema C1
satellites and the minimalist subwoofer Sub Cinema.
Cinema C1 are satellites that are very well built. They fi t
anywhere. The sound from these tiny satellites are anything but small and combined with Sub Cinema, these
speakers play with a full-bodied and musical sound stage.
The CinemaRoom satellites can be placed in a bookshelf,
or mounted on the wall with the accompanying wallbrackets, WB 201. They can also be placed on the Allroom
stand which is designed for a perfect fi t to the satellites’
diminutive size and drop-shape design. The included radle
for the center makes it easy to place it just above or below
the TV set.
CINEMA C1
Type: Satellite, can also be used as a center speaker,
2-way, bass refl ex
Tweeter: 1”, soft dome, shielded
Midrange/Woofer: 3 1/2”, shielded
Frequency range: 100-20.000 Hz
Sensitivity (1W/m): 87 dB
Impedance: 8 ohm
Crossover frequency: 6.000 Hz
Amplifi er requirement: 10-100W
Dimensions (WxHxD): 110x150x160
Weight: 1,6 kg
Connectors: Heavy duty binding posts
Cabinet: MDF
Finish: Vinyl foil or laquer
Colors: Cherry or silver
Speaker stand, wallbracket: Wallbracket included
Other: Voice-matched with all Cinema speakers
SUB CINEMA
Type: Powered subwoofer with built-in ace-bass®
amplifi er, bass refl ex
Amplifi er: 75 W rms
Woofer: 6 1/2” long-throw
Frequency range: 30-100 Hz
Lo-pass fi lter: 50-100 Hz, variable 12 dB/octave
Hi-pass fi lter: 100 Hz, 6 dB/octave
Dimensions (WxHxD): 240x322x340 mm
Weight: 9 kg
Connectors: Line and speaker level input, heavy duty
binding posts and RCA-input
Adjustments: Auto standby, variable level adjustment,
variable frequency adjustment 50-100 Hz
Cabinet: MDF
Finish: Vinlyl foil, matte laquer
Colors: Cherry, silver
