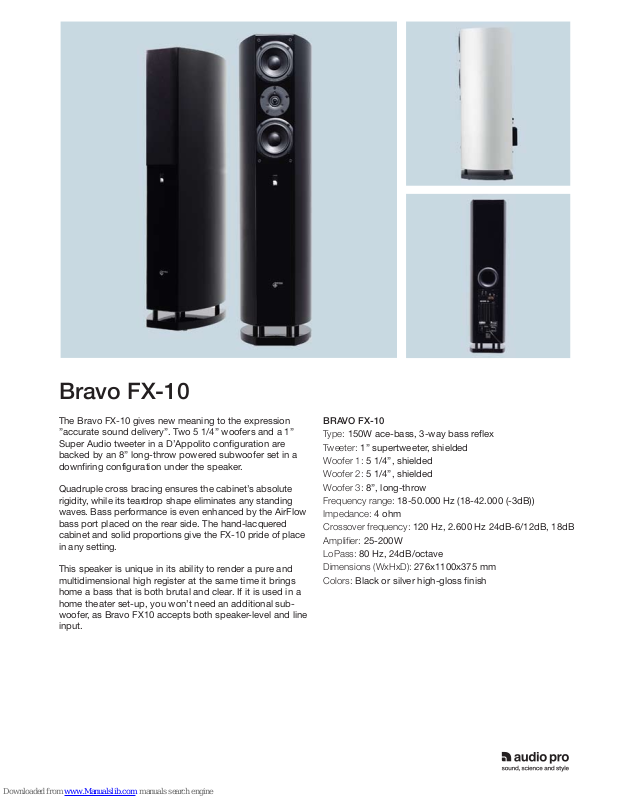

Audio Pro Bravo FX-10 Specifications

Bravo FX-10

The Bravo FX-10 gives new meaning to the expression
”accurate sound delivery”. Two 5 1/4” woofers and a 1”
Super Audio tweeter in a D’Appolito configuration are
backed by an 8” long-throw powered subwoofer set in a
downfiring configuration under the speaker.

Quadruple cross bracing ensures the cabinet’s absolute
rigidity, while its teardrop shape eliminates any standing
waves. Bass performance is even enhanced by the AirFlow
bass port placed on the rear side. The hand-lacquered
cabinet and solid proportions give the FX-10 pride of place
in any setting.

This speaker is unique in its ability to render a pure and
multidimensional high register at the same time it brings
home a bass that is both brutal and clear. If it is used in a
home theater set-up, you won’t need an additional sub­woofer, as Bravo FX10 accepts both speaker-level and line
input.

BRAVO FX-10

Type: 150W ace-bass, 3-way bass reflex
Tweeter: 1” supertweeter, shielded
Woofer 1: 5 1/4”, shielded
Woofer 2: 5 1/4”, shielded
Woofer 3: 8”, long-throw
Frequency range: 18-50.000 Hz (18-42.000 (-3dB))
Impedance: 4 ohm
Crossover frequency: 120 Hz, 2.600 Hz 24dB-6/12dB, 18dB
Amplifier: 25-200W
LoPass: 80 Hz, 24dB/octave
Dimensions (WxHxD): 276x1100x375 mm
Colors: Black or silver high-gloss finish
